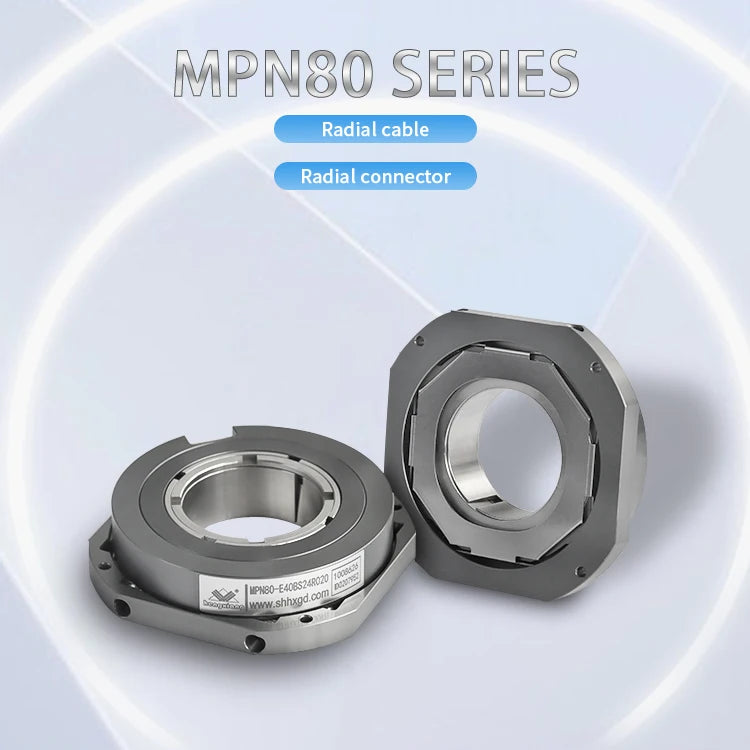

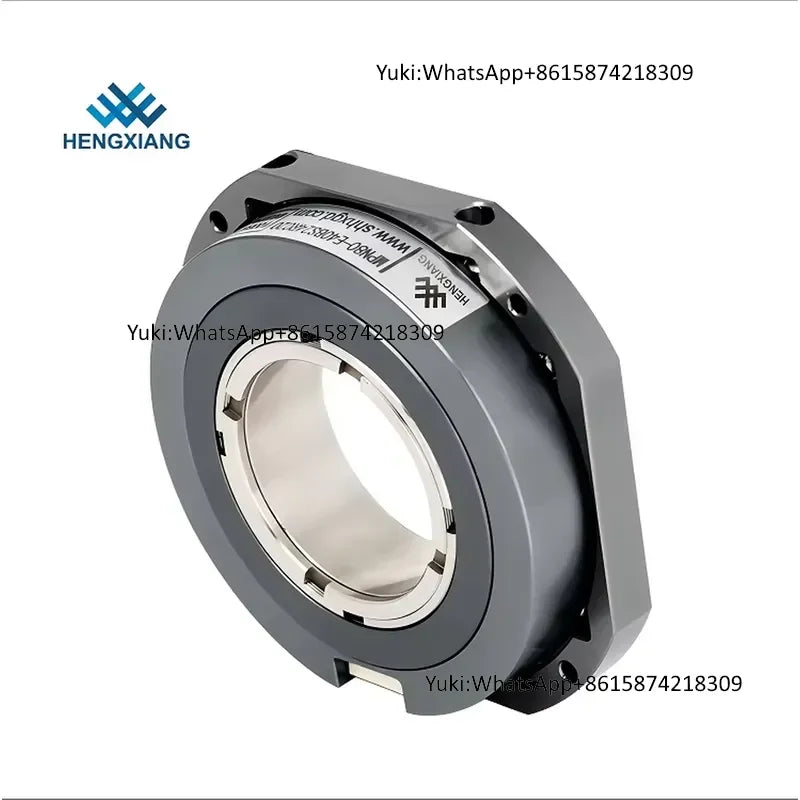

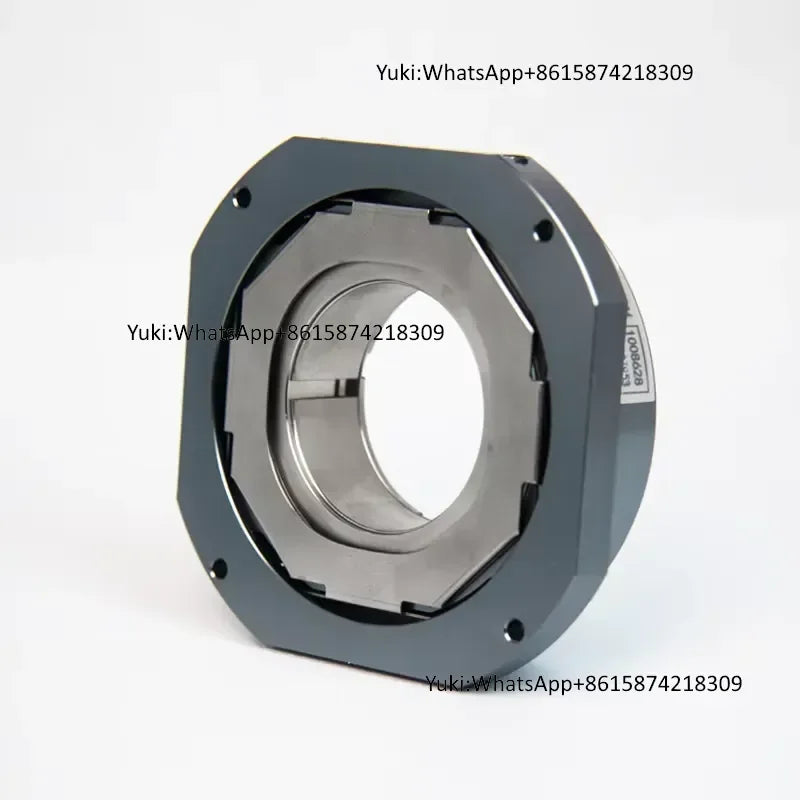

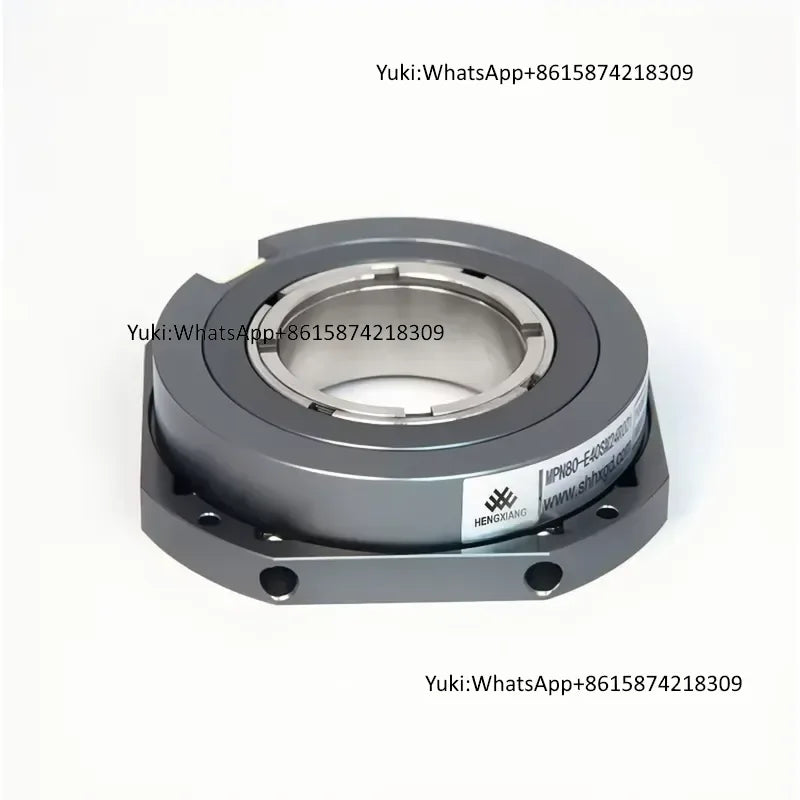

MPN80 Large Bore Hollow Rotary Encoder Shaft Max 40mm High Precision Optical Absolute Rotary Encoder 360 IP50 Flange Mount
$3,266.87
Sale price
$3,266.87
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certificate: CE; ISO9001
Communication: BISSC; SSI

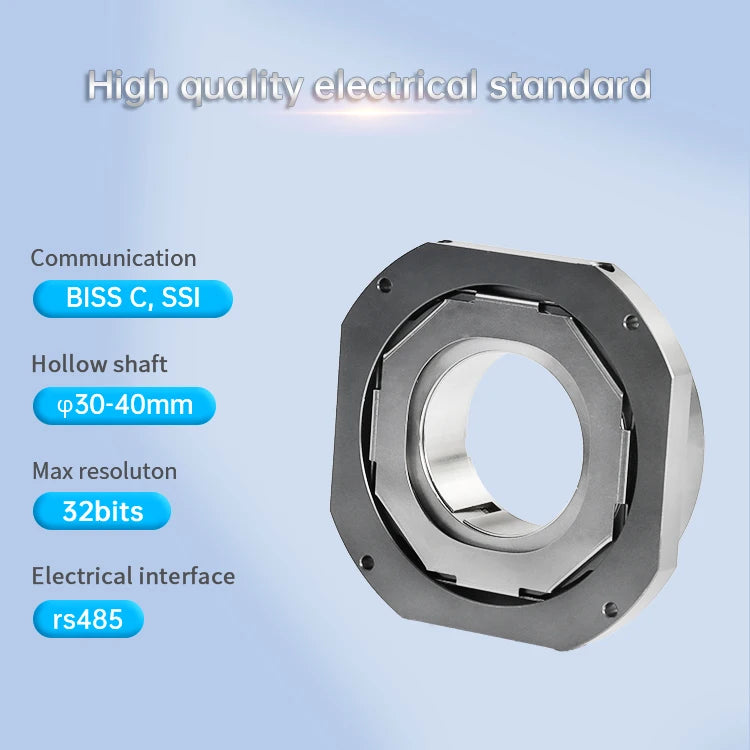

Description: 80mm large absolute multi-turn flange encoder, MPN80 encoder
External diameter: 80mm (Mounting flange 94mm)
Installation size: 840.1mm
Manufacturer Part Number: MPN80
Mounting Type: Flange type
Multi-turn: 16Bit + (17/19/20/22/24 Bits)
Origin: Mainland China
Outlet type: Radial socket; Radial cable
Output: Other
Place of Origin: Shanghai, China
Protection grade: :IP50
Resolution: Single-turn; Multi-turn
Series: Absolute type
Shaft diameter: 30/32/38/40mm hollow shaft
Single-turn: 17/19/20/22/24 Bits
Theory: Optical sensor
Type: ABSOLUTE ENCODER
Usage: Optical sensor
option description
1.2026
1.2026
Products Description

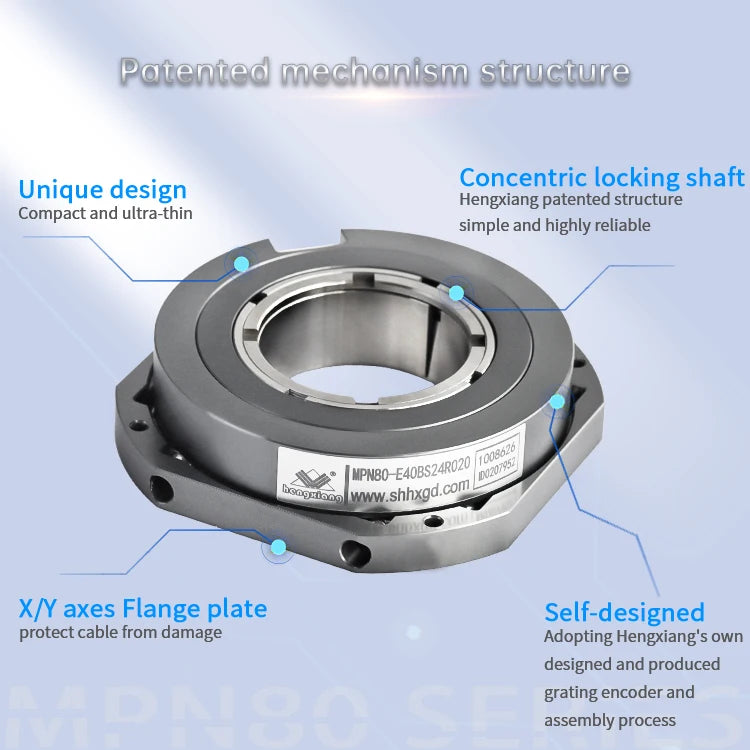

1.Highlights of MPB80 encoder

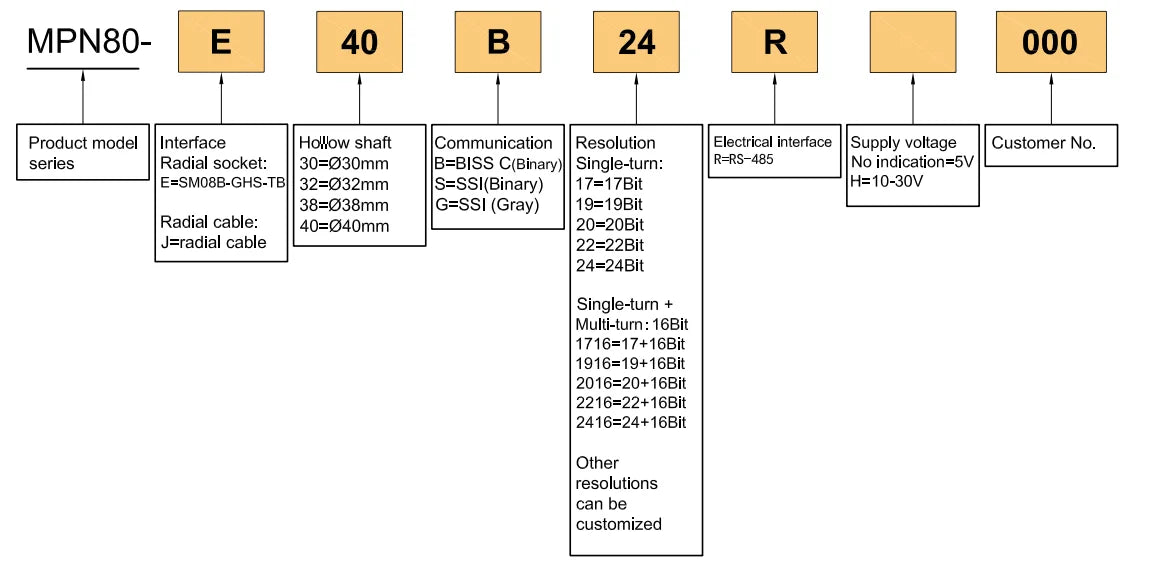

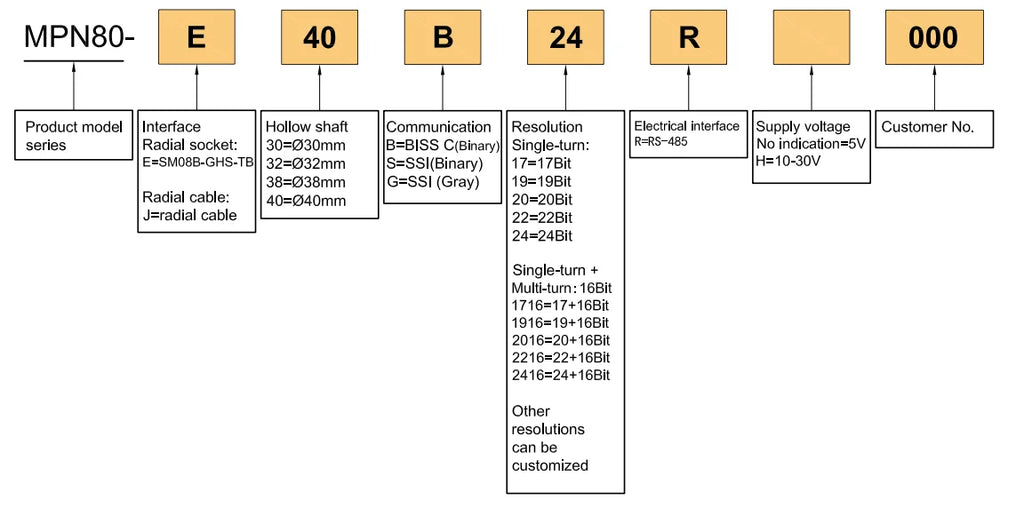

Model Selection Guide

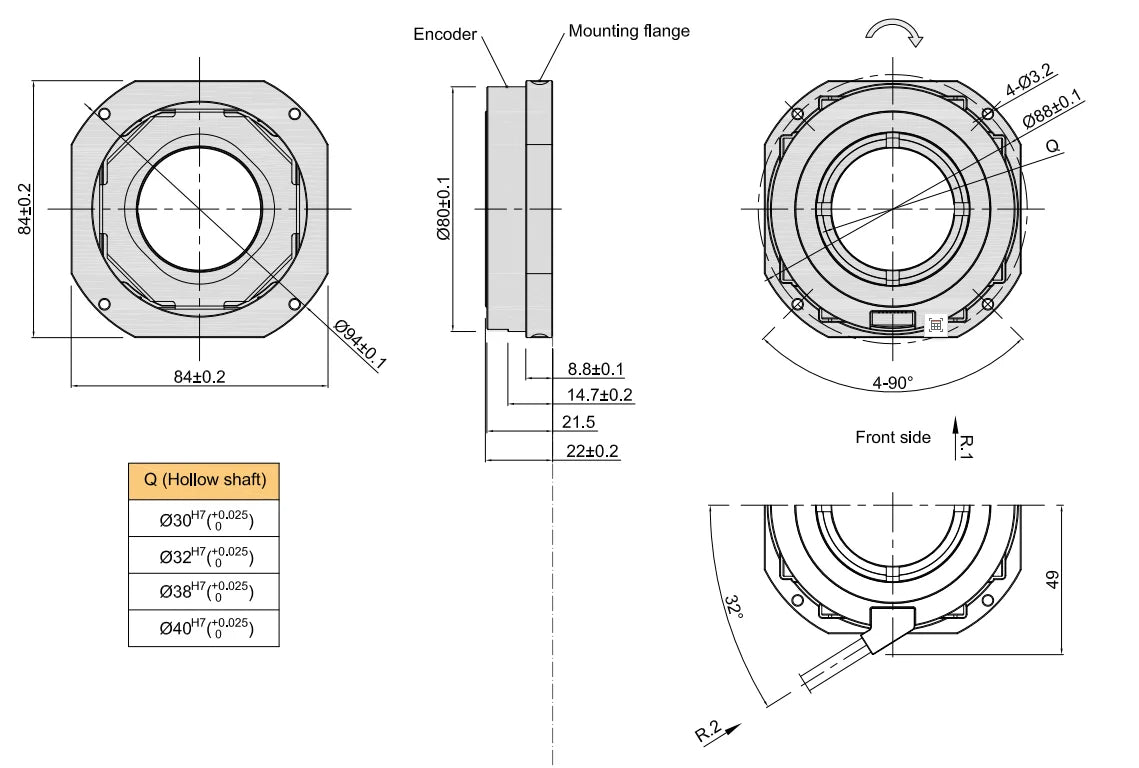

2.Dimension
3.Electrical parameters
|
Items
|
Basic parameters
|
|
|
Brand
|
Hengxiang
|
|
|
Encoder type
|
Absolute encoder
|
|
|
External diameter
|
80mm（Mounting flange 94mm）
|
|
|
Thickness
|
22mm
|
|
|
Hollow shaft type
|
Through hole
|
|
|
Hollow shaft diameter
|
30mm; 32mm; 38mm; 40mm
|
|
|
Resolution
|
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
|
|
|
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
|
||
|
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
|
||
|
Interface
|
E=SM08B-GHS-TB ；J=radial cable
|
|
|
Communication
|
B=BISS-C; S=SSI
|
|
|
Electrical connection
|
R=RS-485
|
|
|
Output mode
|
M=multi-turn
|
|
|
S=single-turn
|
||
|
Reflective principle
|
Non-contact photoelectric
|
|
|
Accuracy
|
±80"
|
|
|
Response speed
|
Normal action: 6000min-1
|
|
|
RMS position signal noise
|
±2@18 bits/r
|
|
|
Communication clock frequency
|
≤10MHz(BISS) or ≤ 5MHz(SSI)
|
|
|
Starting time
|
typical value: 13ms
|
|
|
Absolute position sampling period
|
≤75 ns
|
|
|
Allowable speed
|
≤32200 r/min (restricted by mechanical speed limit)
|
|
|
Cable
|
Twisted-paired cable
|
|
|
Cable length
|
200mm-10000mm
|
|
|
Mechanical Connection
|
Ring locking with shaft, flexible spring plate fixed connection
|
|
|
Starting Torque
|
less than 60×10-3 N.m
|
|
|
Inertial moment
|
less than 80×10-6 kg.m2
|
|
|
Shaft load
|
Radial 30N; Axial 20N
|
|
|
Slew speed
|
≤5000rpm
|
|
|
Shell Material
|
Aluminum alloy
|
|
|
Environmental temperature
|
Operating: -20~+95℃; Storage: -25~+95℃
|
|
|
Environmental humidity
|
Operating and storage: 35~85%RH(Noncondensing)
|
|
|
Vibration
|
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
|
|
|
Shock
|
980m/s2 11ms, three times for X,Y,Z direction individually
|
|
|
Protection
|
IP50
|
|
|
Net weight
|
About 360g
|
