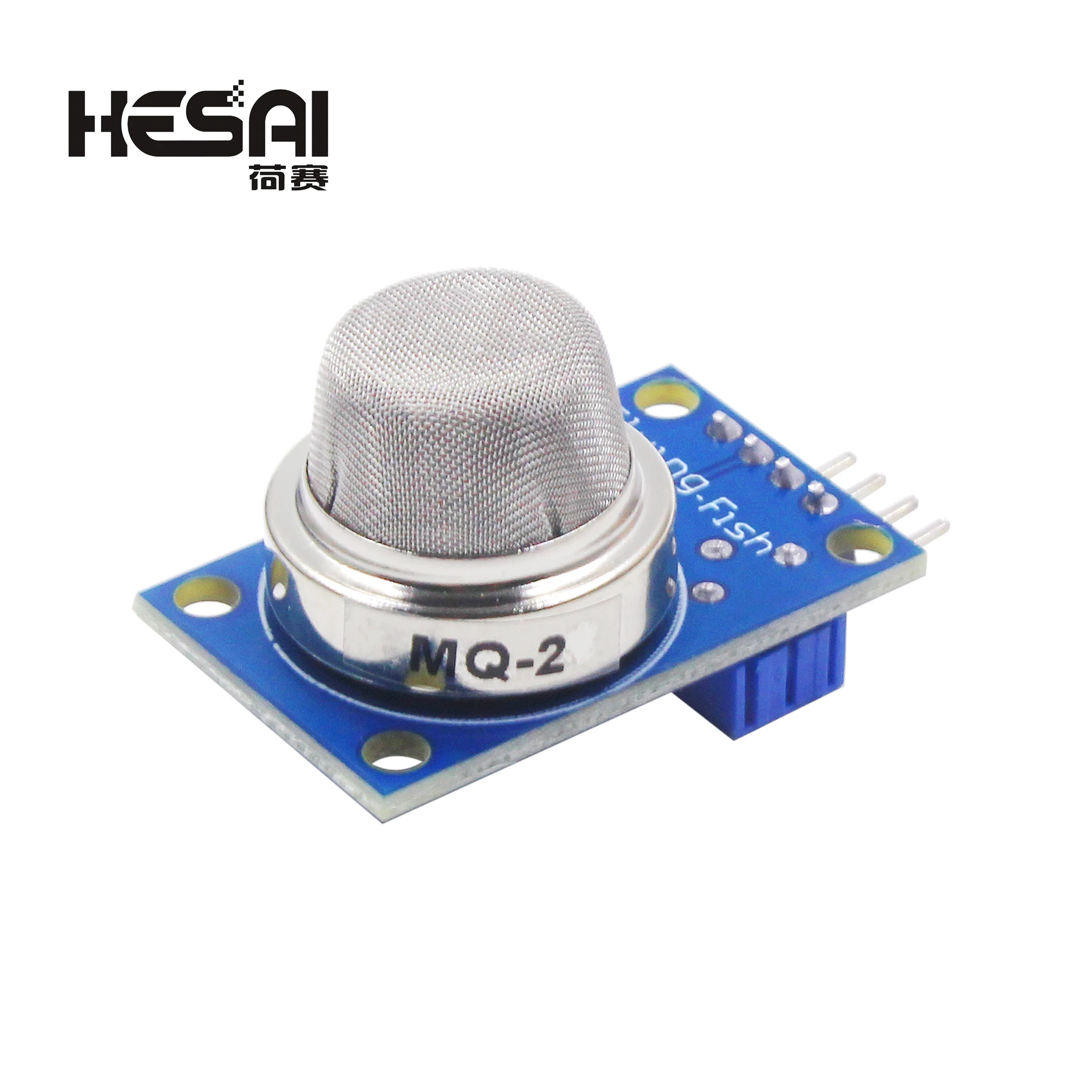

MQ-2 MQ2 Smoke Gas LPG Butane Hydrogen Gas Sensor Detector Module For Arduino

MQ-2 MQ2 Smoke Gas LPG Butane Hydrogen Gas Sensor Detector Module For Arduino

$8.01

$8.01 $0.00

Description

SPECIFICATIONS

Brand Name: HESAI

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

semi_Choice: yes

Purchase Notes

The logistics methods that can be sent in our shop include "Rookie Super Economy", "AliExpress Standard Shipping", "Yanwen Economy" and so on. If you choose the "economical" mode of transportation, some countries will delay receiving packages during the peak logistics season. If you cannot accept the delay, then please choose air mail for faster transportation and protection. (The logistics of the overseas section of "Cainiao Economy" is generally not updated, and you need to pick up the package at the post office) Please choose the appropriate logistics transportation method according to your needs.

We provide customized services and more priority services. When you need more quantity and customized solutions, you can contact me. You will get discounted "exclusive" VIPprices. Looking forward to working with you! I will be your best supplier: HeSai

Collect my shop and become my fan. In my shop discount event, fans will get higher VIP discounts!

Buying Tip:

When you receive the product, the product appears "fine scratches, broken needles, bent needles". I do not accept your dispute if it does not affect the use. If you do not agree, please do not buy in this store. Of course, if you accept this delicate product situation, under reasonable circumstances, when we avoid disputes, I will be able to offer you some discounts on yournew order.

Happy shopping!

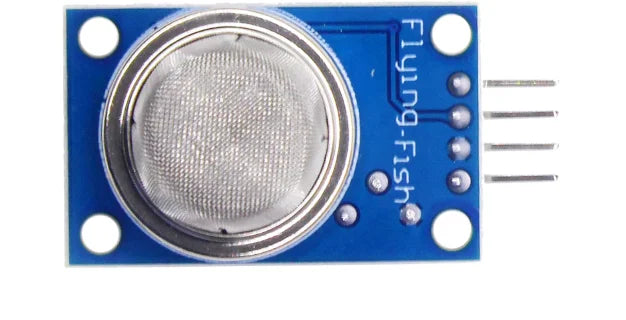

MQ-2 gas sensor sensitive material used in the clean air low conductivity tin oxide (SnO2). When there is the environment in which the combustible gas sensor, conductivity sensor with increasing concentration of combustible gases in air increases. Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-2 gas sensor high on gas, propane, hydrogen sensitivity of detection of natural gas and other flammable vapors are also very good. This sensor can detect a variety of flammable gas, is a low-cost sensors for a variety of applications.

Gas may be used in homes and factories leakage monitoring device suitable for the detection of gas, butane , propane , methane , smoke , etc.

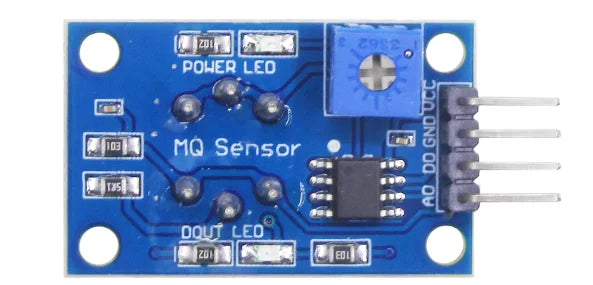

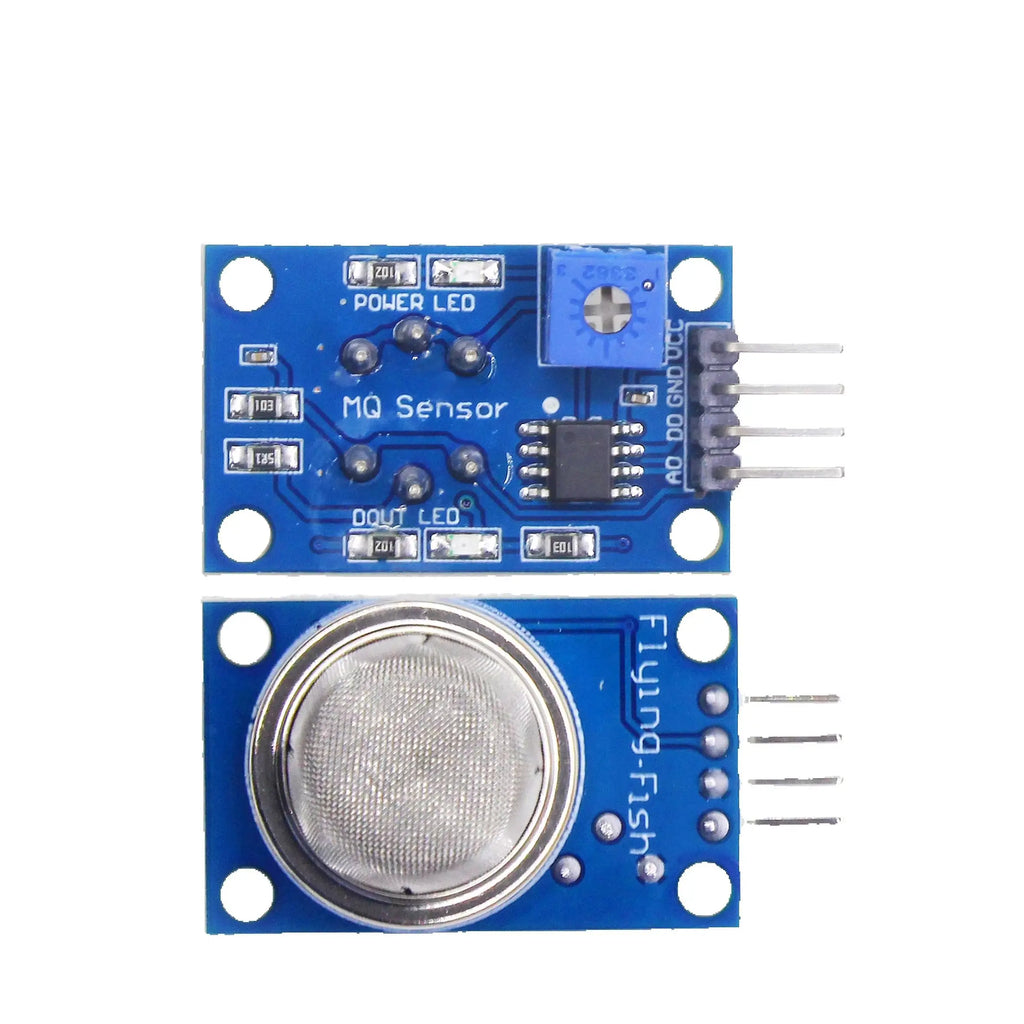

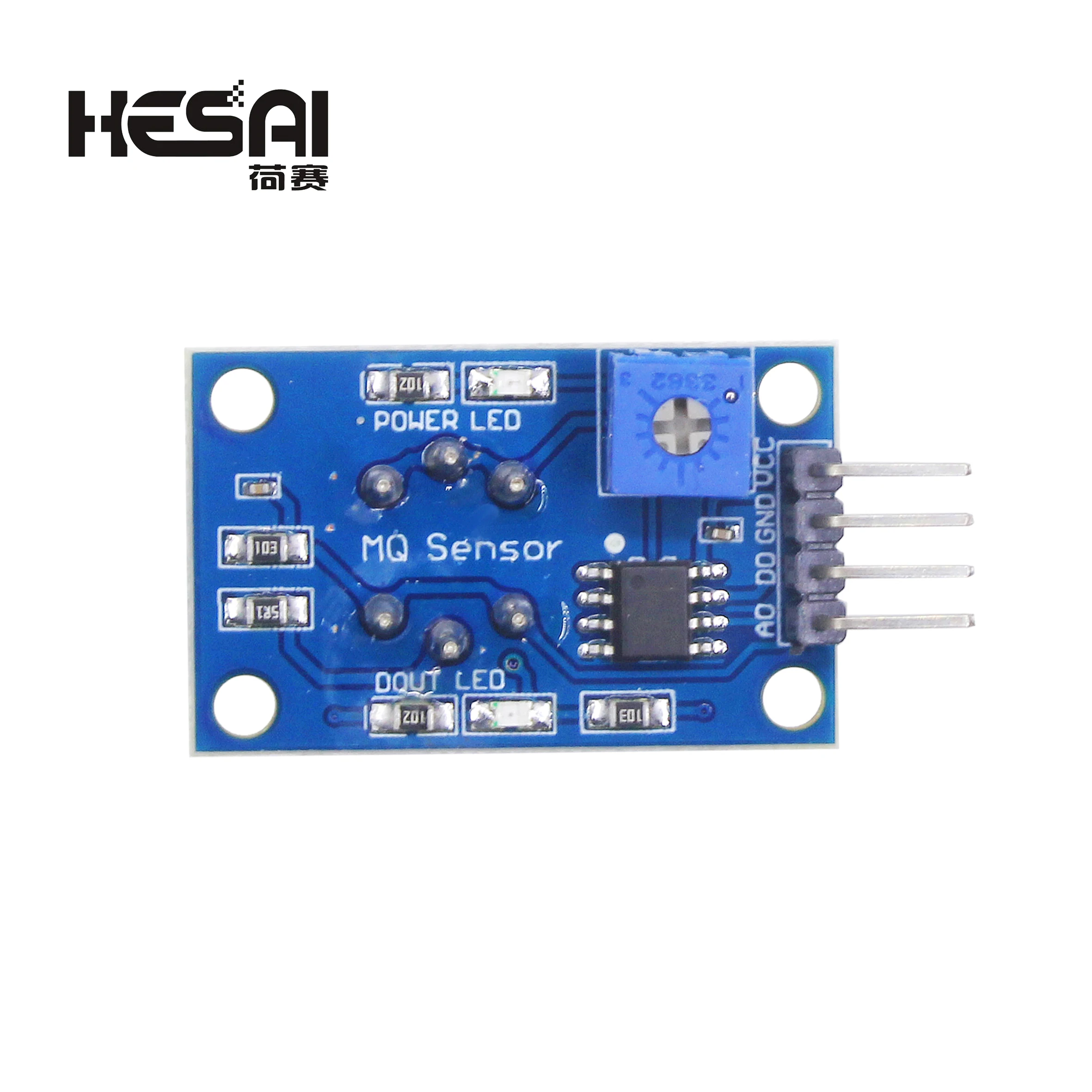

Using high-quality dual-panel design, with power indicator and TTL signal output instructions;The switching signal having a DO (TTL) output and analog output AO ;TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )Analog output voltage with the higher concentration of higher voltage.A gas, natural gas, city gas , smoke better sensitivity.There are four screw holes for easy positioning ;Has a long life and reliable stability Rapid response and recovery characteristic

Input voltage : DC5V Power consumption ( current ): 150mA

DO output : TTL digital 0 and 1 ( 0.1 and 5V)

AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V

Special note: After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .

VCC: positive power supply (5V)

GND: power supply is negative

DO: TTL switching signal output

AO: analog signal output

If need more parts Pls clickand submit the order.If you need more quantity,Pls contact us. If you mind the price,If some parts can not find out in my store,Pls contact us,we still have many parts don't published.

We will send thelatest version of product, the upgraded function. It may has different shape or color. If you can't agree, pls don't buy.

Please don't open dispute and leave any bad feedback, if you have any question, feel free to contact us,we will give you satisfactory answer. Hope you understand us, thank you in advance.

Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer service.

Free Shipping Over $199
