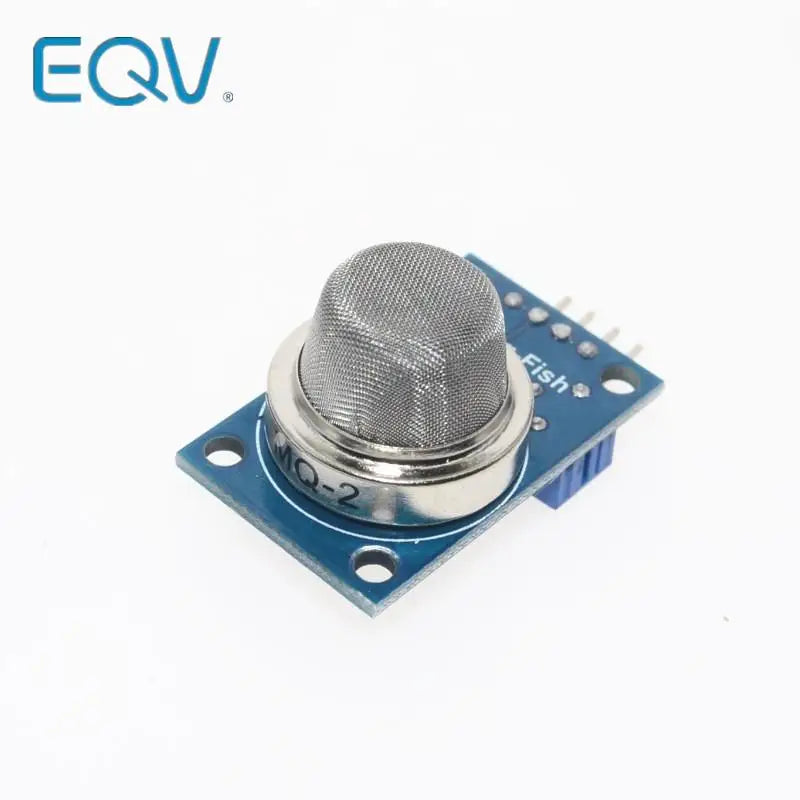

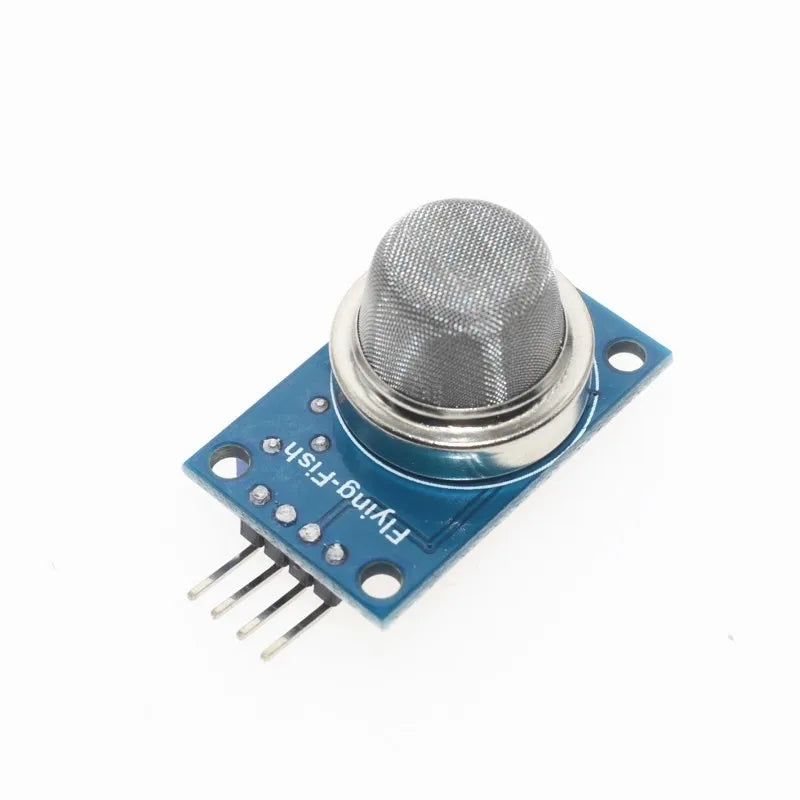

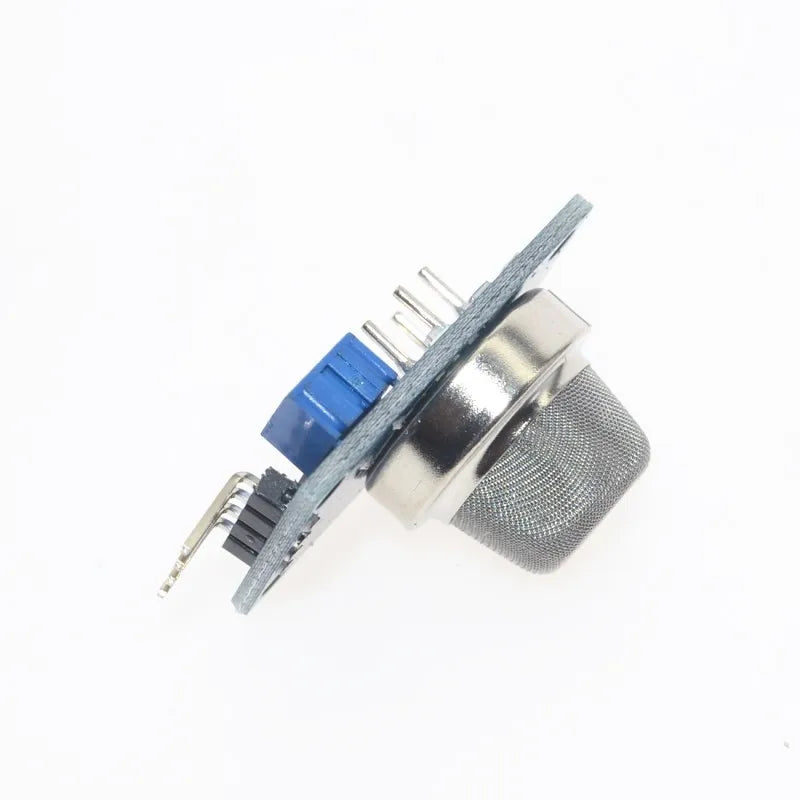

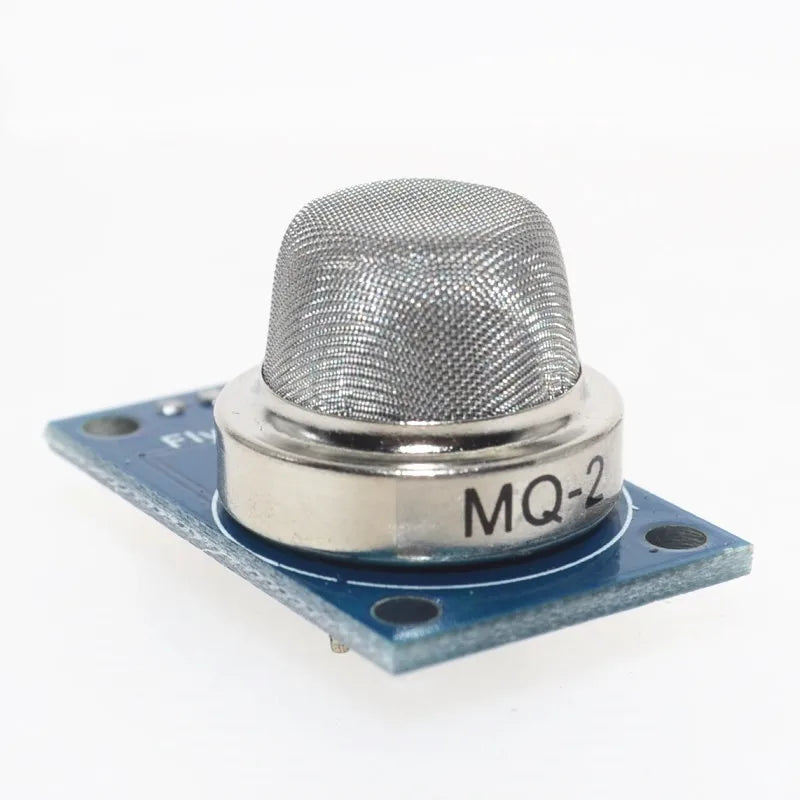

MQ-2 MQ2 Smoke Gas LPG Butane Hydrogen Gas Sensor Detector Module For Arduino

MQ-2 MQ2 Smoke Gas LPG Butane Hydrogen Gas Sensor Detector Module For Arduino

$8.51

$8.51 $0.00

Description

SPECIFICATIONS

Brand Name: EQV

Choice: yes

Material: Mixture

Model Number: MQ-2

Origin: Mainland China

Output: Analog Sensor

Theory: Hall Sensor

Type: Gas Sensor

Use: Consumption Sensor

is_customized: Yes

semi_Choice: yes

start

SPP-C Bluetooth serial pass-through module wireles...US $2.38

2017 Rushed Direct Selling New Wavgat 1x5 Matrix A...US $2.10

50m/164ft Laser Distance Measuring Sensor Range Fi...US $38.90

5A XL4015 DC-DC 4-38V to 1.25-36V 24V 12V 9V 5V St...US $1.43

Free Shipping 3590S-2-202L 3590S 2K ohm Precision ...US $1.80

2017 Top Fashion Hot Sale New Free Shipping! Enclo...US $1.47

WAVGAT Laser Sensor Module non-modulator Tube Lase...US $0.99

NodeMcu Node MCU Base ESP8266 Testing DIY Breadboa...US $1.37

2S 3A Li-ion Lithium Battery 7.4v 8.4V 18650 Charg...US $0.70

2017 Free Shipping 10pcs Nrf24l01+ Wireless Data T...US $7.78

end

Smart Electronics 1pcs MQ2 MQ 2 MQ-2 Smoke Liquefied Flammable Methane Gas Sensor Module for Arduino Diy Starter Kit

MQ-2 gas sensor sensitive material used in the clean air low conductivity tin oxide (SnO2). When there is the environment in which the combustible gas sensor, conductivity sensor with increasing concentration of combustible gases in air increases. Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-2 gas sensor high on gas, propane, hydrogen sensitivity of detection of natural gas and other flammable vapors are also very good. This sensor can detect a variety of flammable gas, is a low-cost sensors for a variety of applications.

Gas may be used in homes and factories leakage monitoring device suitable for the detection of gas, butane , propane , methane , smoke , etc.

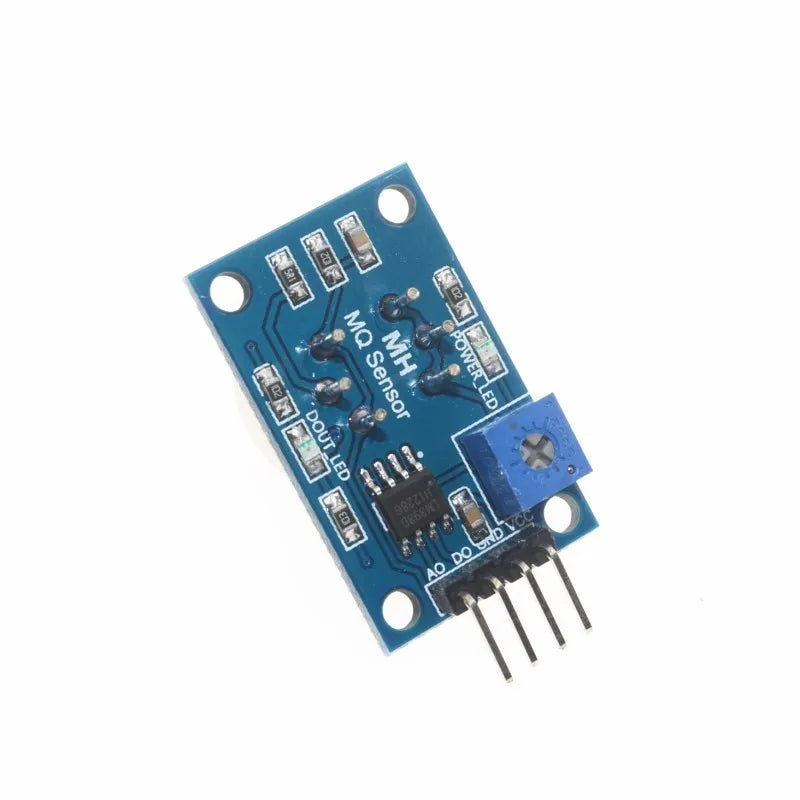

Using high-quality dual-panel design, with power indicator and TTL signal output instructions;
The switching signal having a DO (TTL) output and analog output AO ;
TTL output valid signal is low . ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
Analog output voltage with the higher concentration of higher voltage.
A gas, natural gas, city gas , smoke better sensitivity.

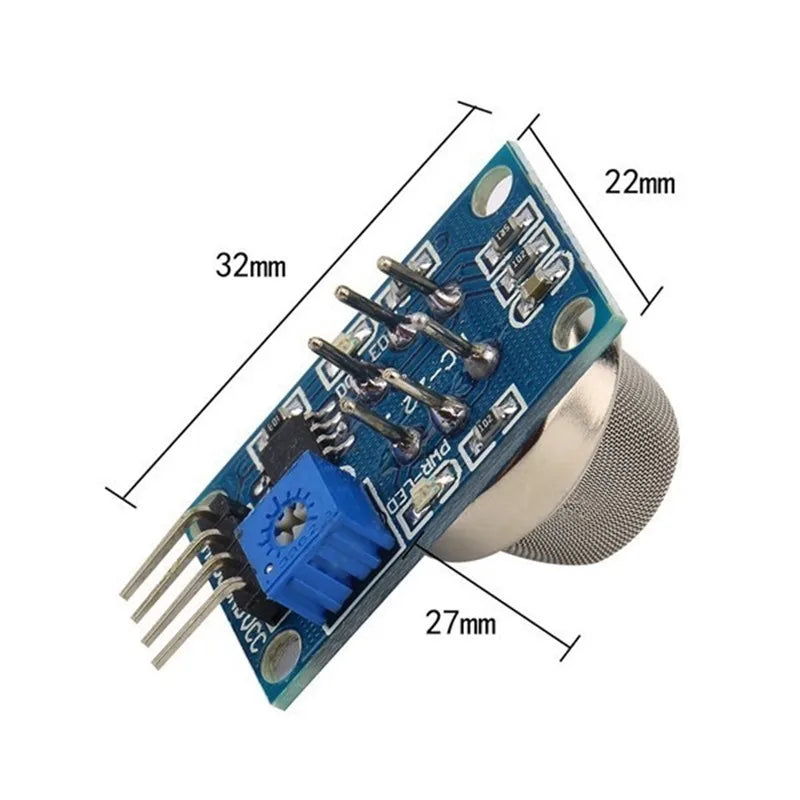

There are four screw holes for easy positioning ;
Has a long life and reliable stability
Rapid response and recovery characteristic

Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered , needs to warm up around 20S, measured data was stable , heat sensor is a normal phenomenon , because the internal heating wire , if hot is not normal .

VCC: positive power supply (5V)
GND: power supply is negative
DO: TTL switching signal output
AO: analog signal output

Package included:
100% Brand New

1set x MQ-2
