SPECIFICATIONS

Application: Computer

Brand Name: diymore

Condition: New

Dissipation Power: 20-25mA

Model Number: RS485 to Ethernet TCP/IP Converter Module

Operating Temperature: RS485 to Ethernet TCP/IP Converter

Origin: Mainland China

Package: SOP

Supply Voltage: DC 12V

Type: Logic ICs

is_customized: Yes

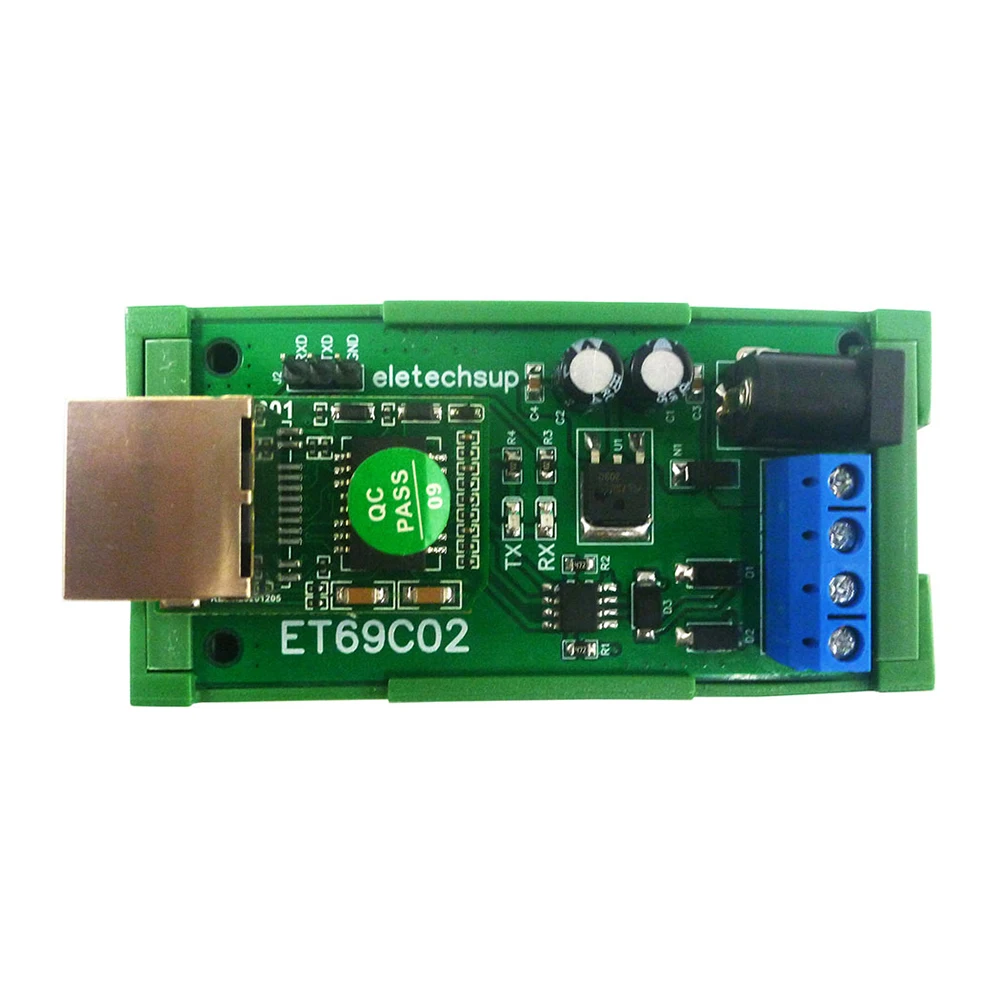

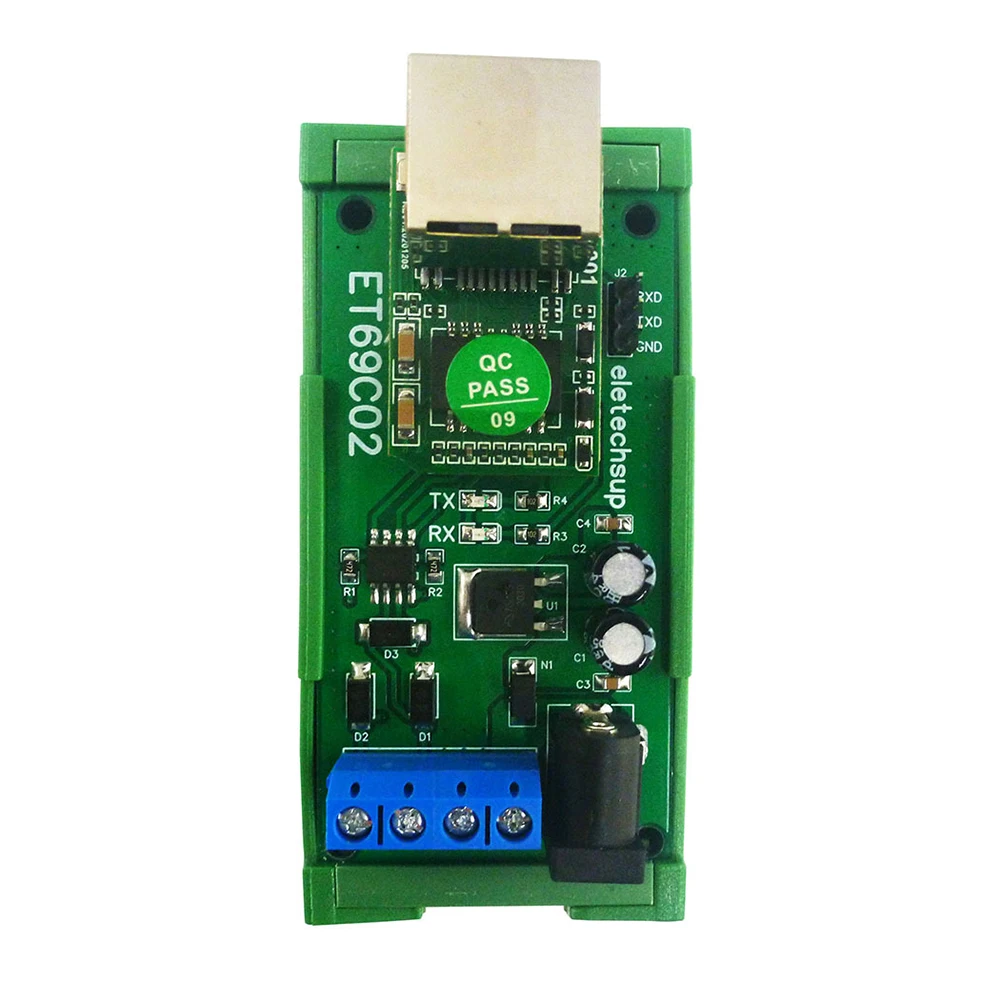

RS485 to Ethernet TCP/IP Converter MQTT Modbus RTU Module Without Rails/With Rails

Product selling point

1: Wide range of applications

2: with guide rail and without guide rail optional

3: Small size, easy to carry

4: stable performance

5: Simple and easy to understand

describe:

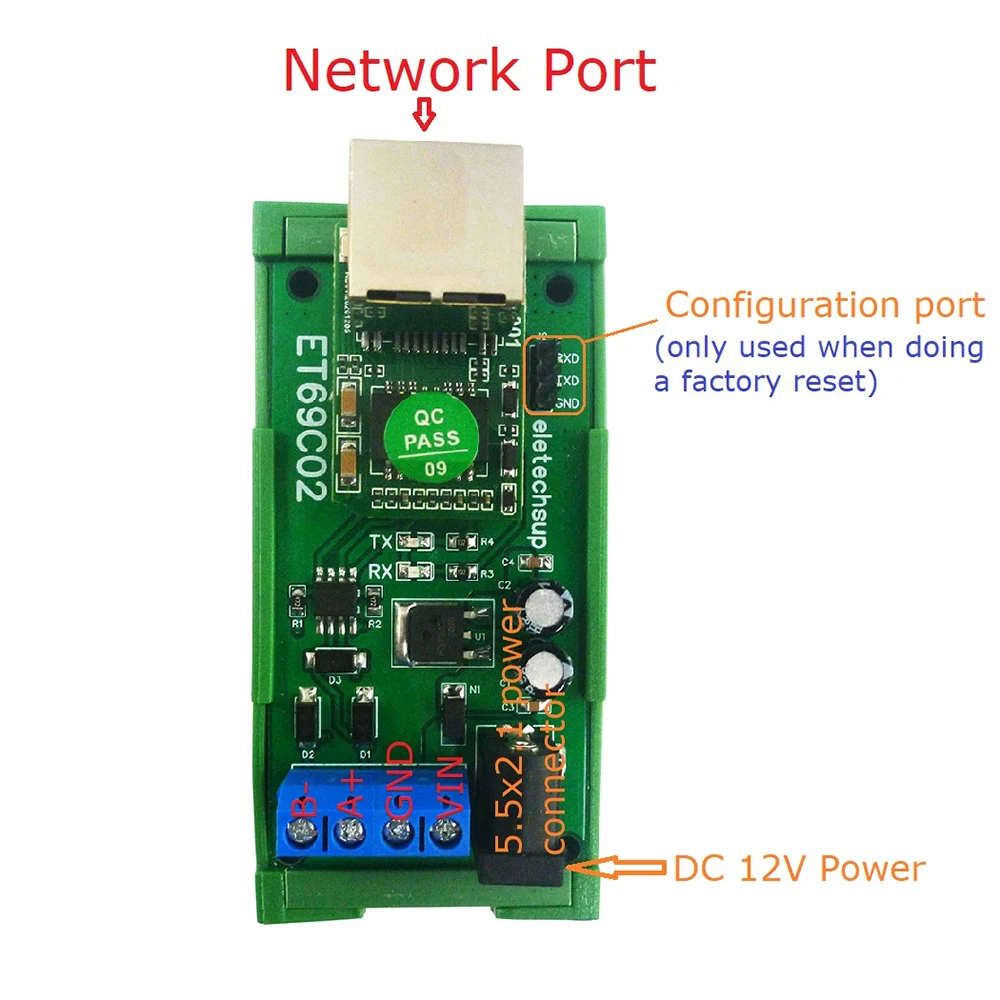

Working voltage: DC 12V (DC 6.5-25V)

Working current: 20-25mA

Working mode: UDP, TCP Client, TCP Server, Modbus Slave, Modbus Master, MQTT

TVS anti-surge protection

The default baud rate is 9600BPS. Baud rate can be selected through WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS

Parity can be no parity, even parity and odd parity

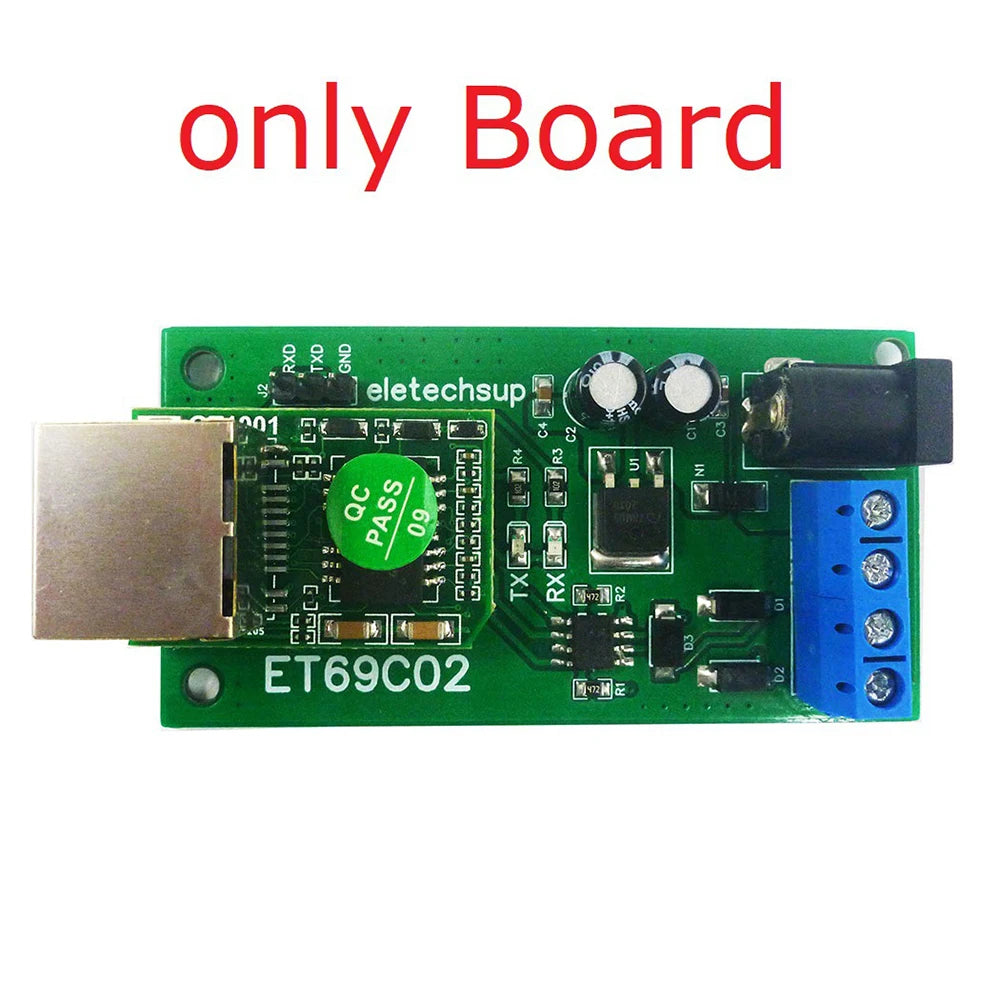

Size: 72*37*24mm (PCB board only); 82*41*40mm (with DIN rail box)

Weight: 24g (PCB board only); 58g (with DIN rail box)

application

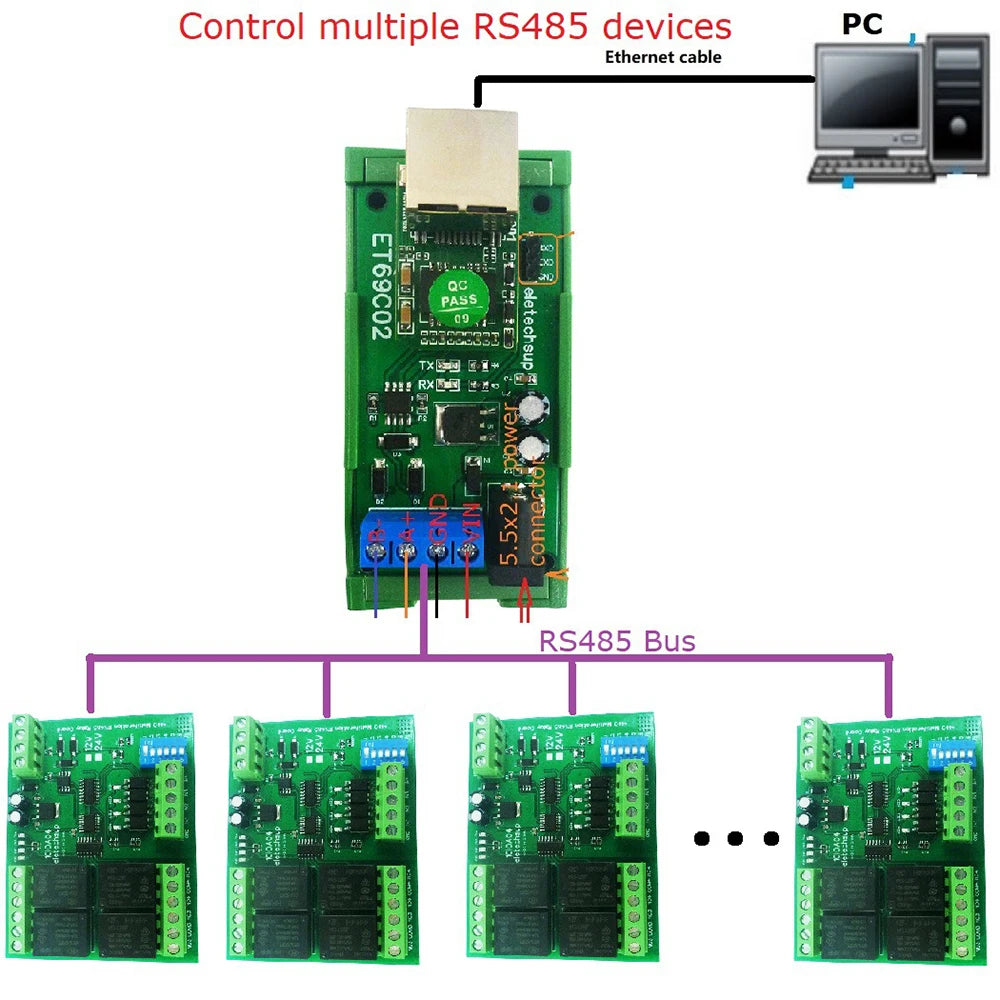

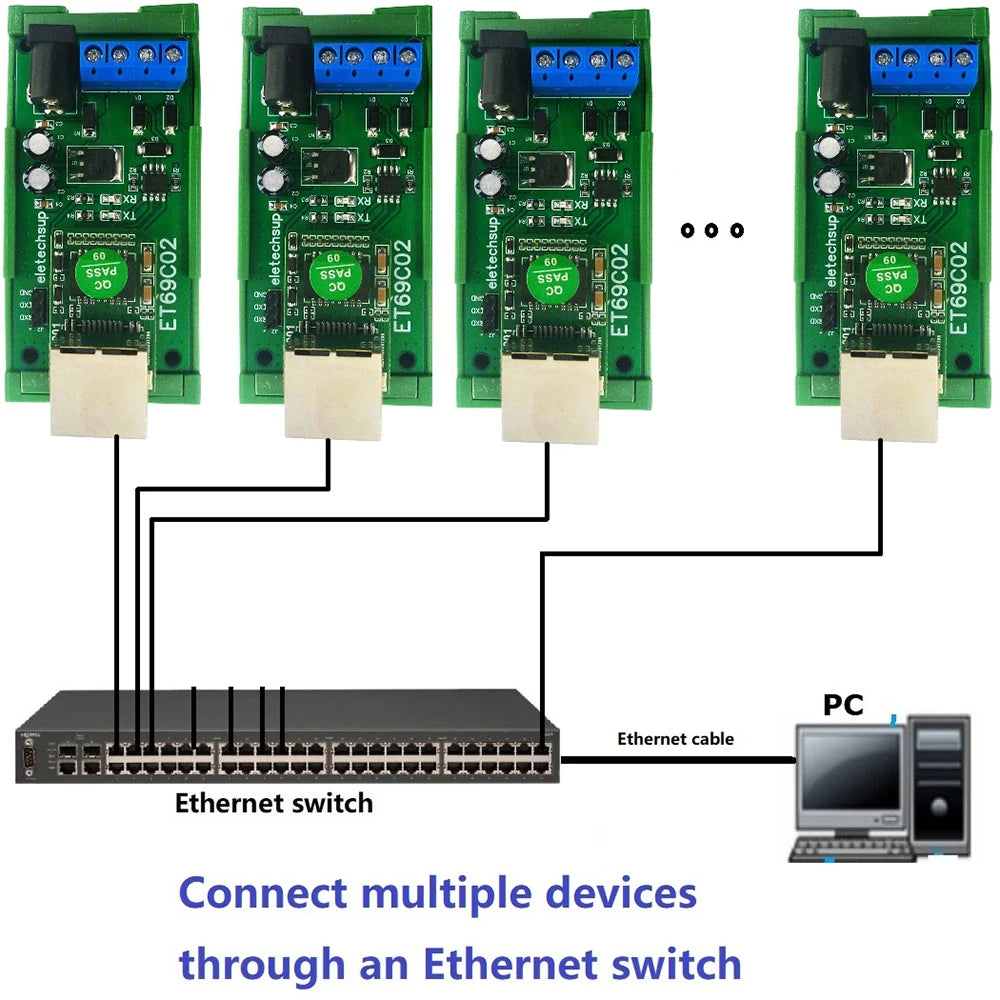

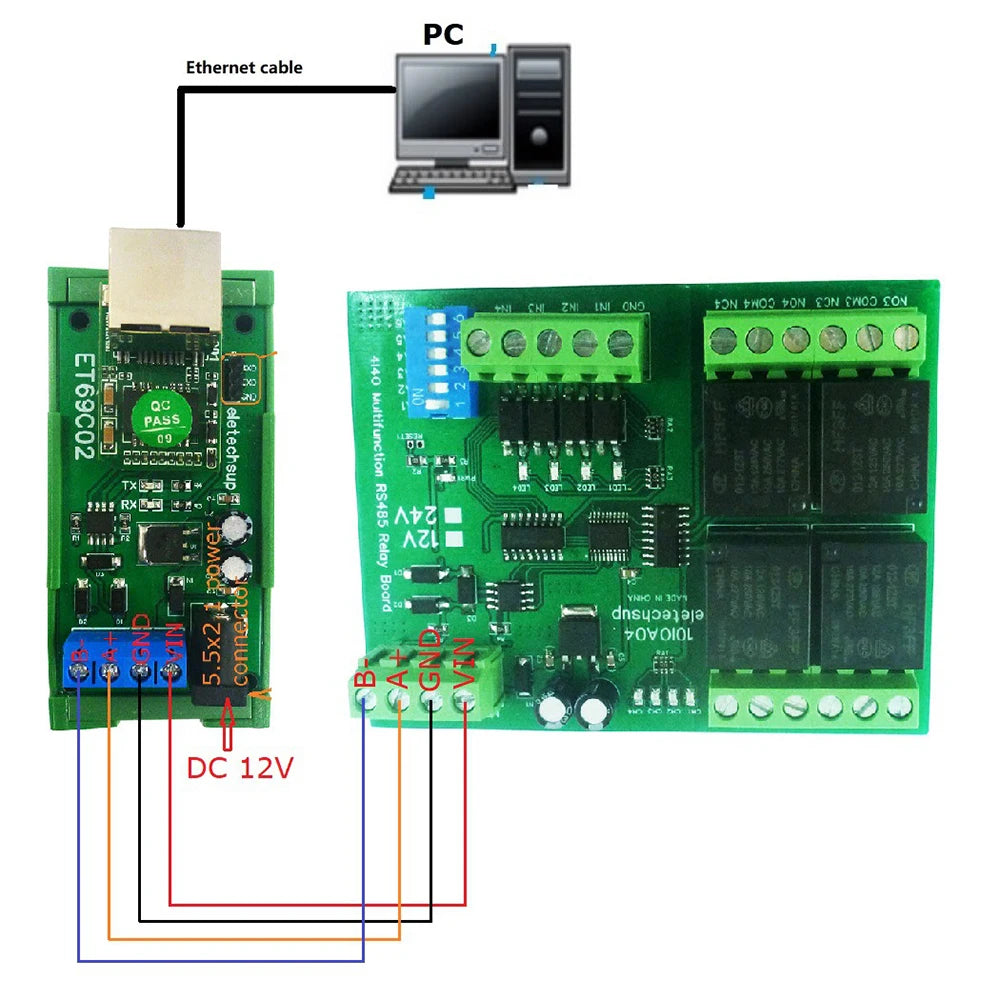

Ethernet to RS485 Bus

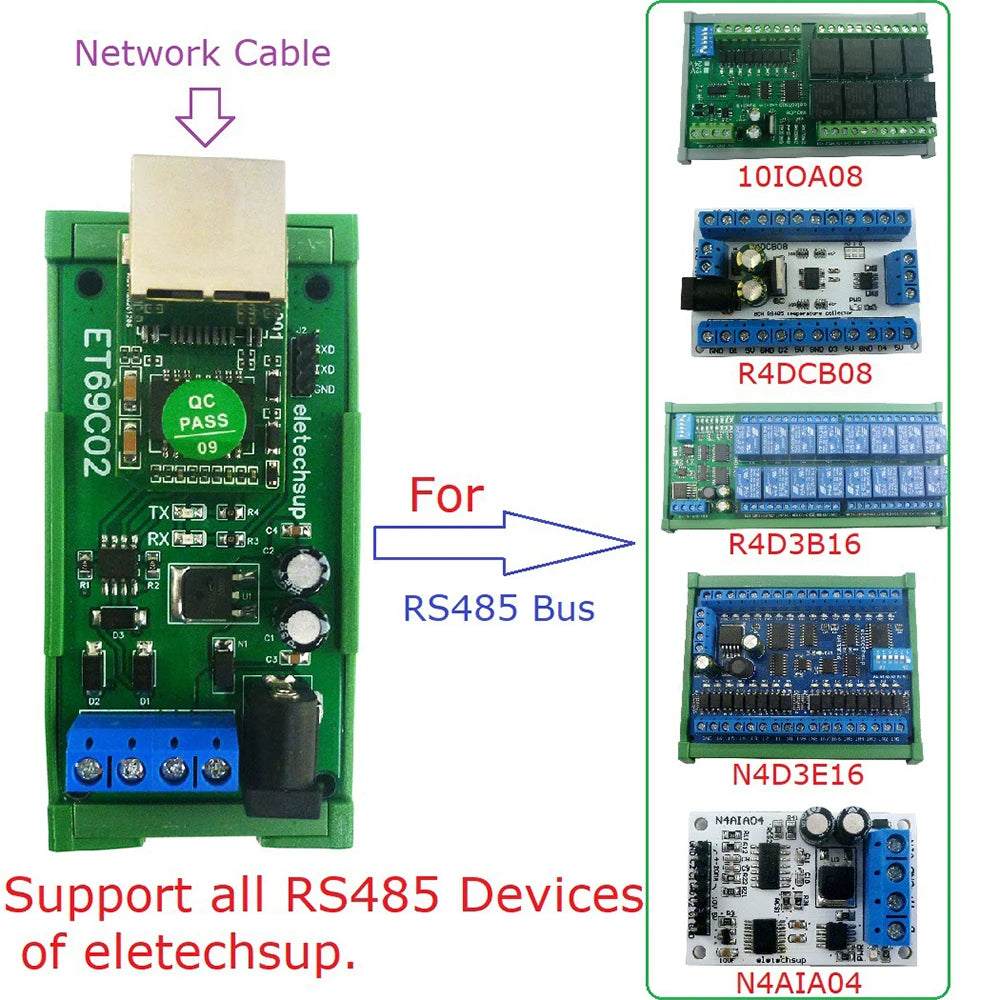

Support all RS485 devices of eletechsup, such as:

10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04

Smart Home, Home Automation, Wiser Home;

Security Monitoring

recognition system;

IP camera

LED light driver

Automatic Curtain Control

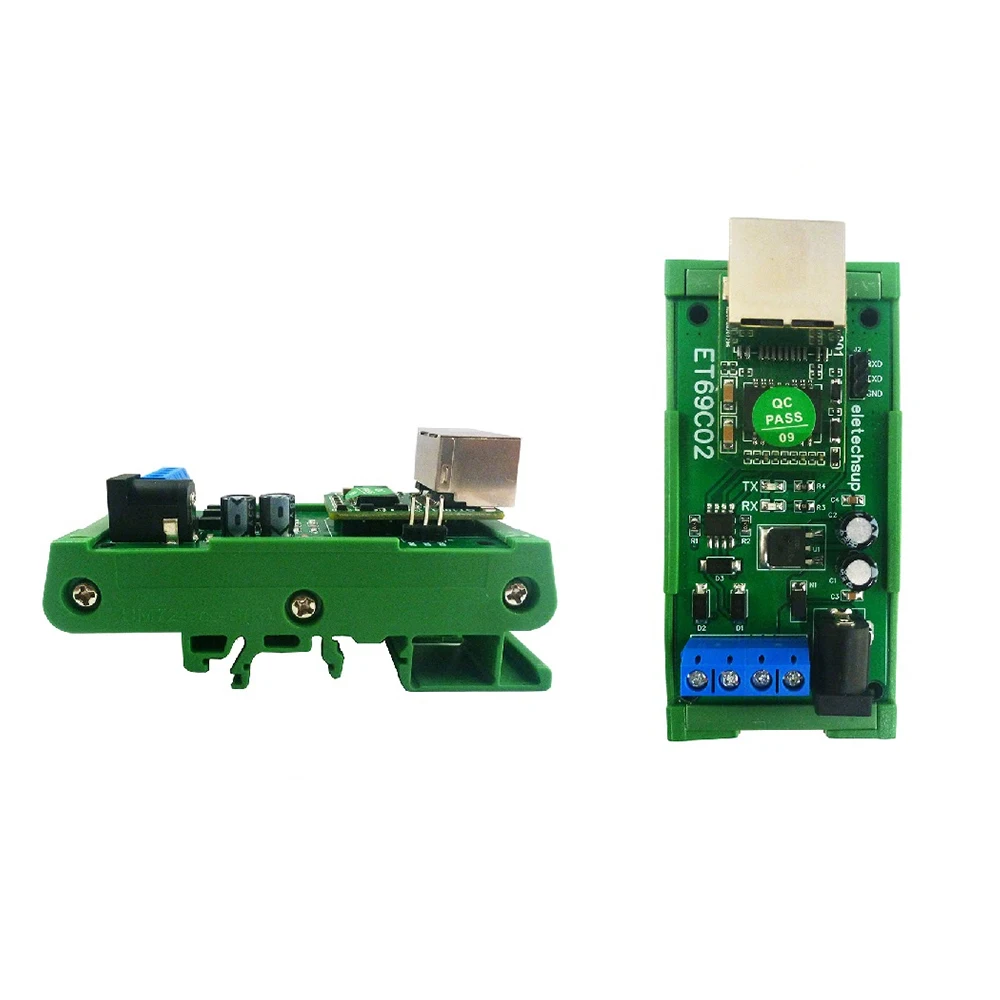

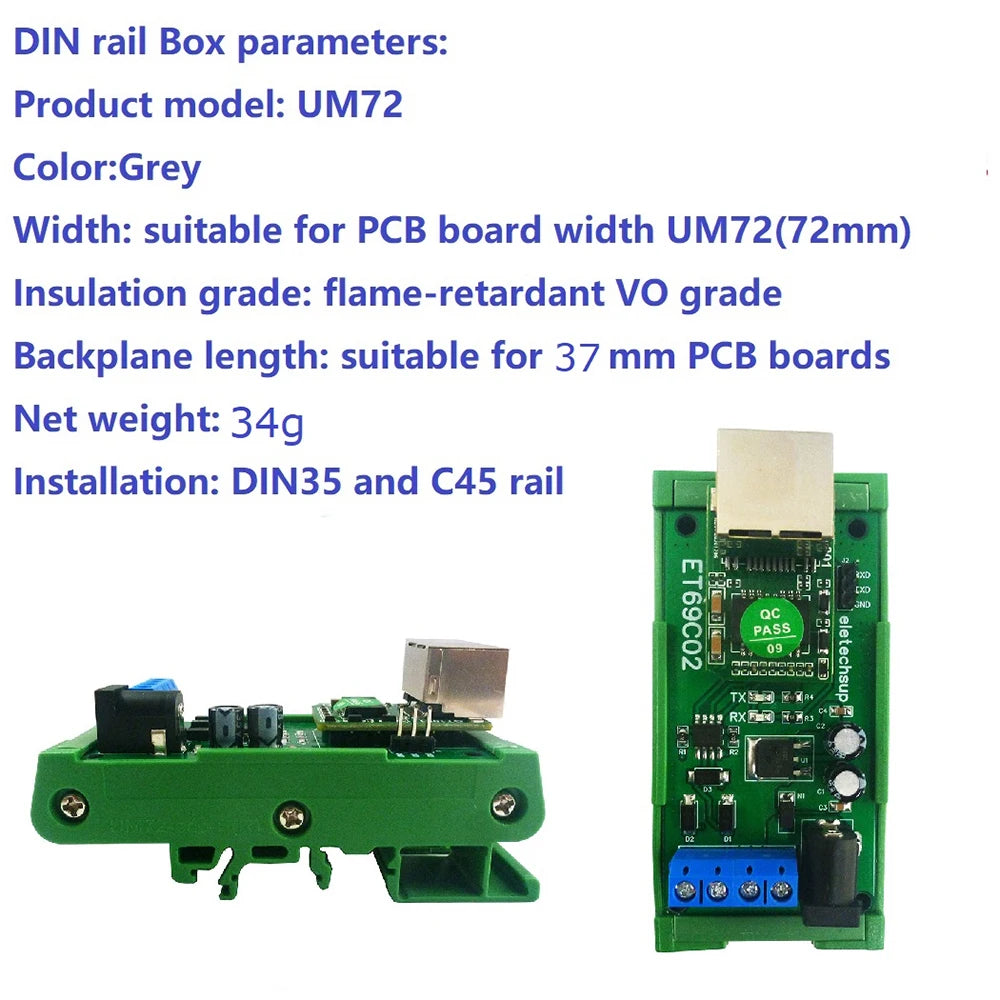

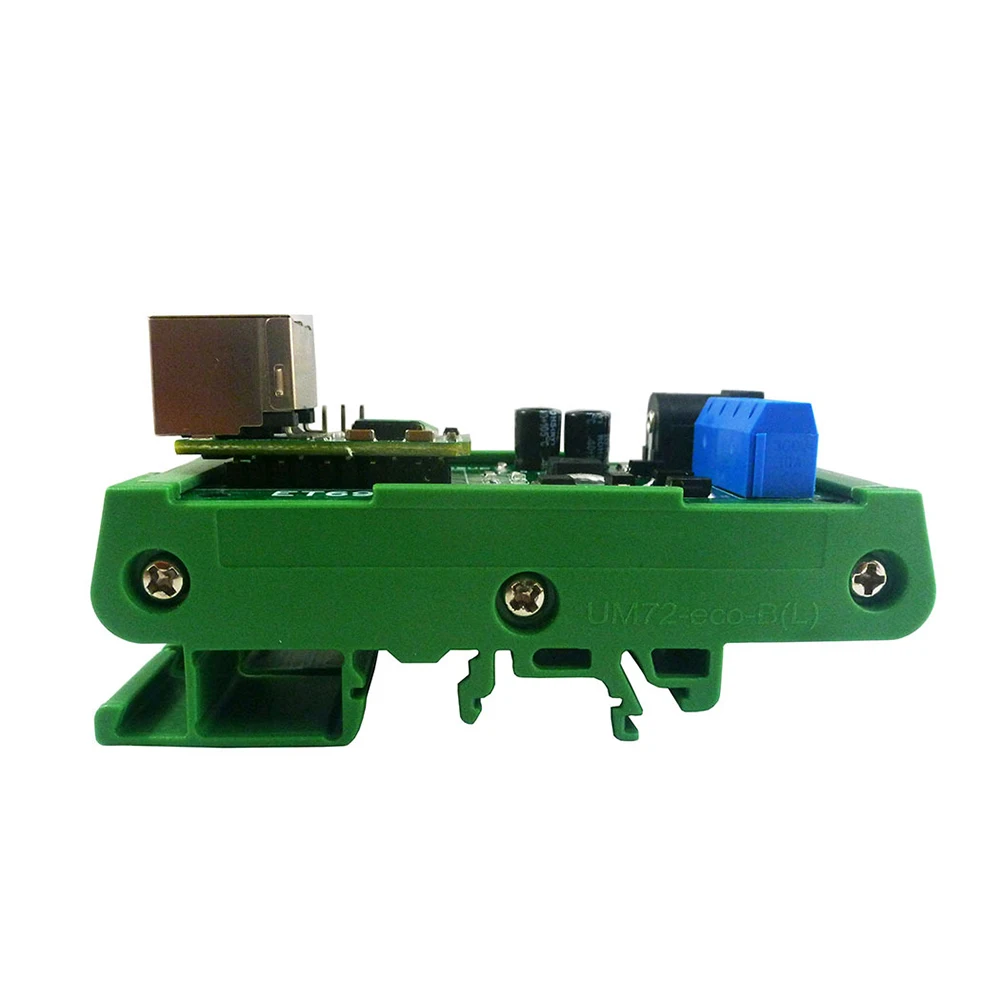

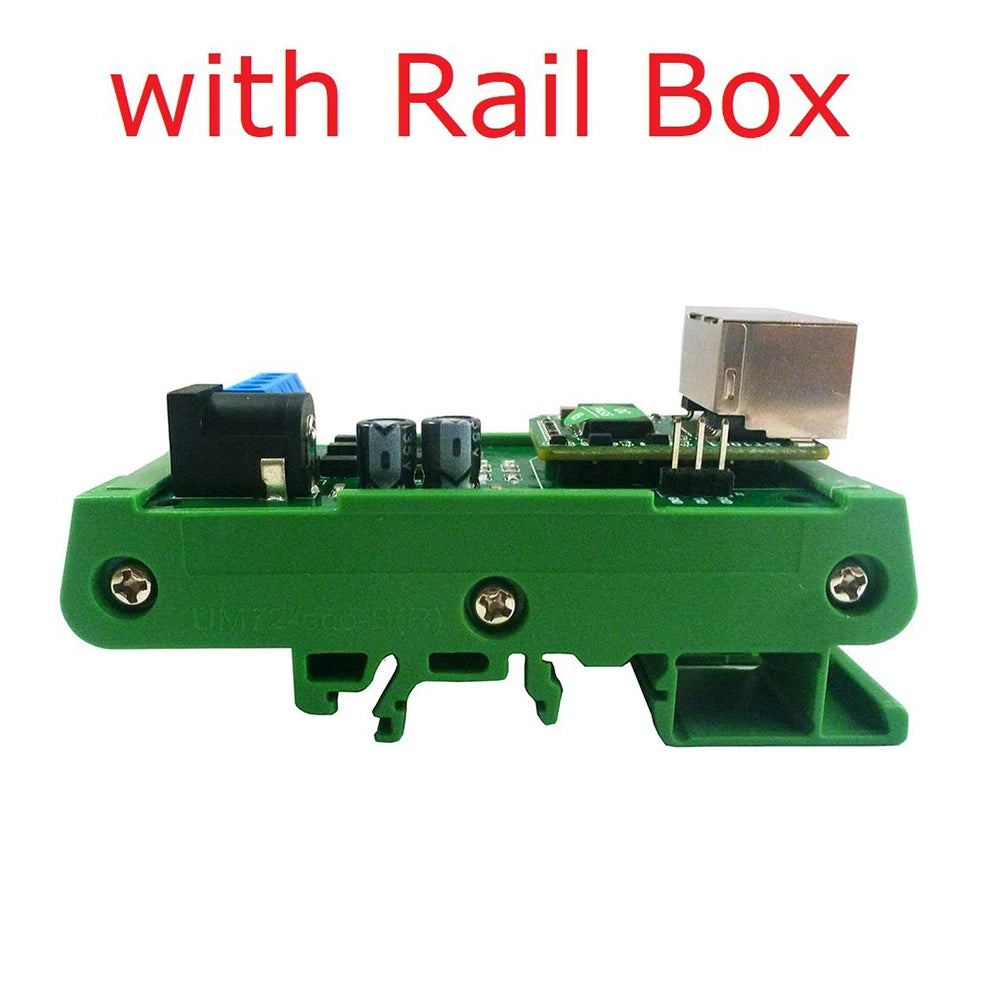

DIN rail Box parameters:

Item model number: UM72

Color: green

Width: suitable for PCB board width UM72 (72mm)

Insulation grade: flame retardant VO grade

Backboard length: suitable for 37mm PCB board

Net weight: 34g

Installation method: DIN35 and C45 rails

list

1*RS485 to Ethernet TCP/IP Converter Module
