SPECIFICATIONS

Application: Speaker

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: Low power consumption

High-concerned chemical: none

Operating Temperature: Details Page

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: Details Page

Type: Module

is_customized: Yes

Product Features:

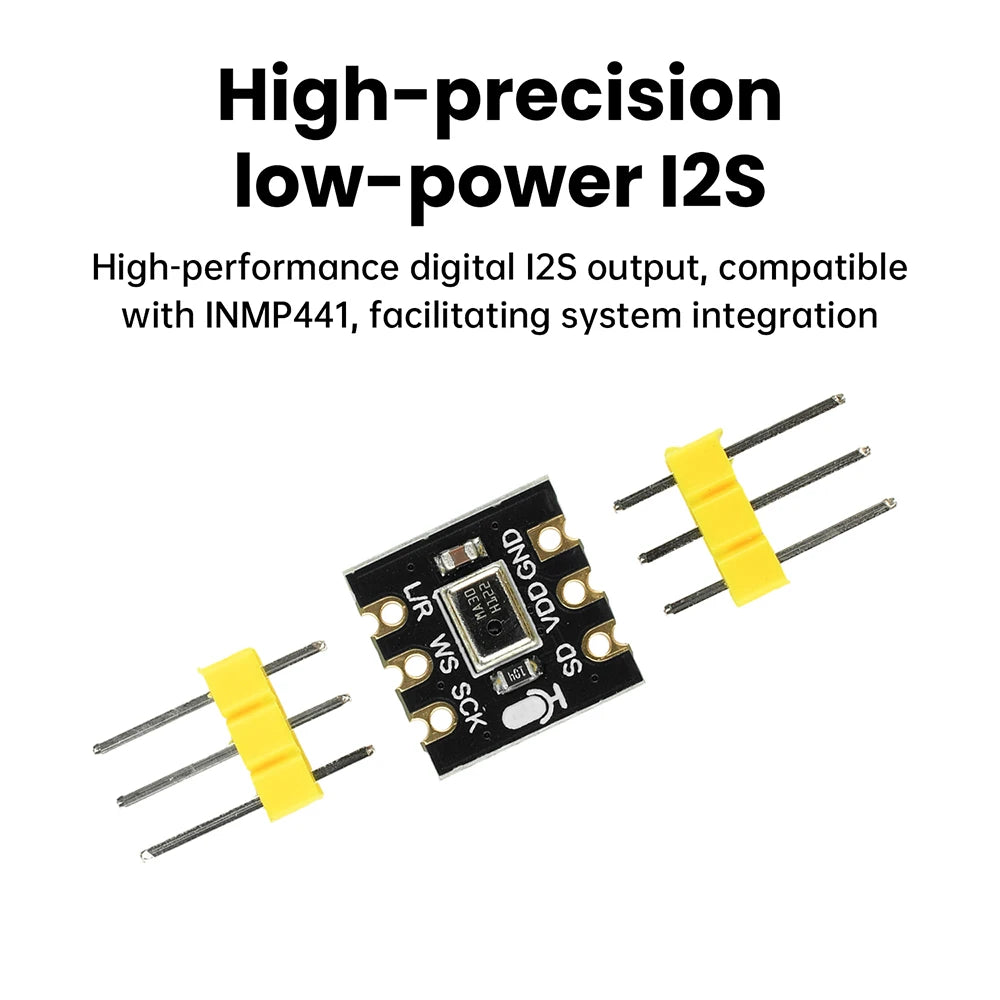

1. High-performance digital I²S output, compatible with INMP441 for seamless system integration.

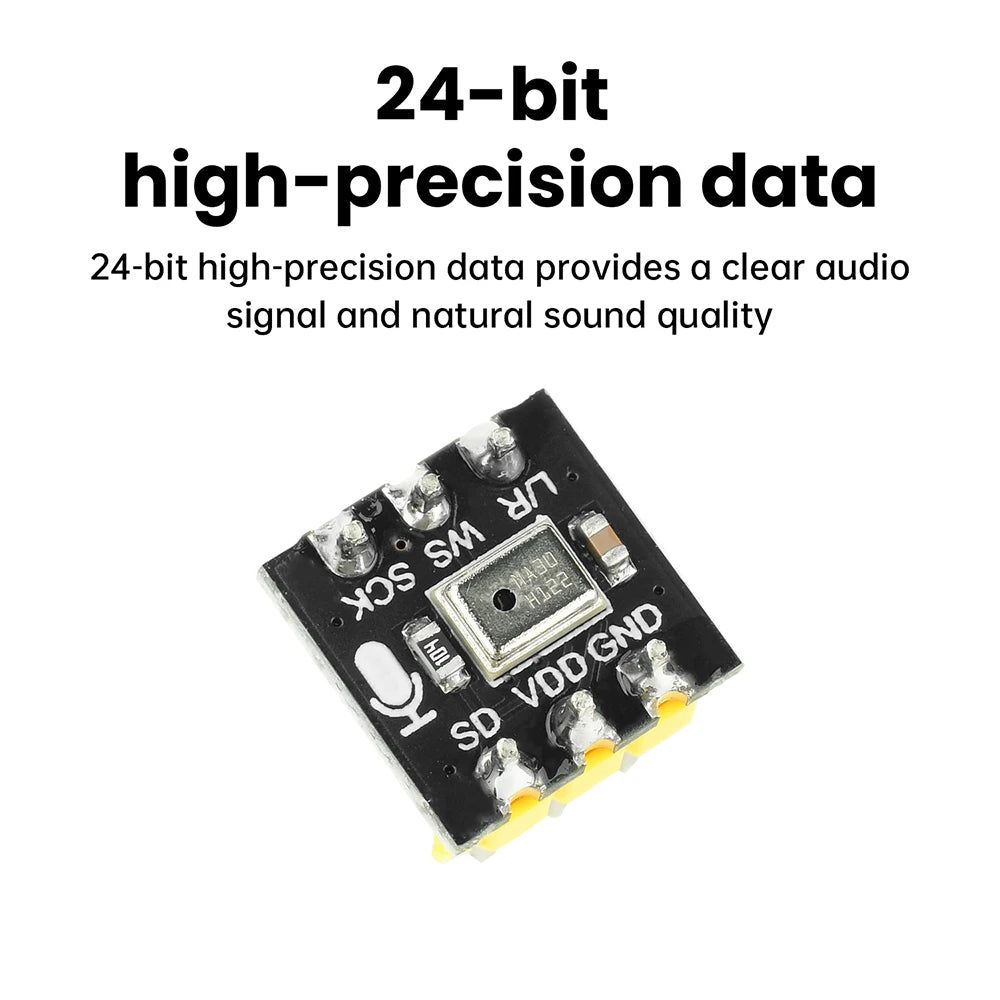

2. 24-bit high-precision data delivers clear audio signals and natural sound reproduction.

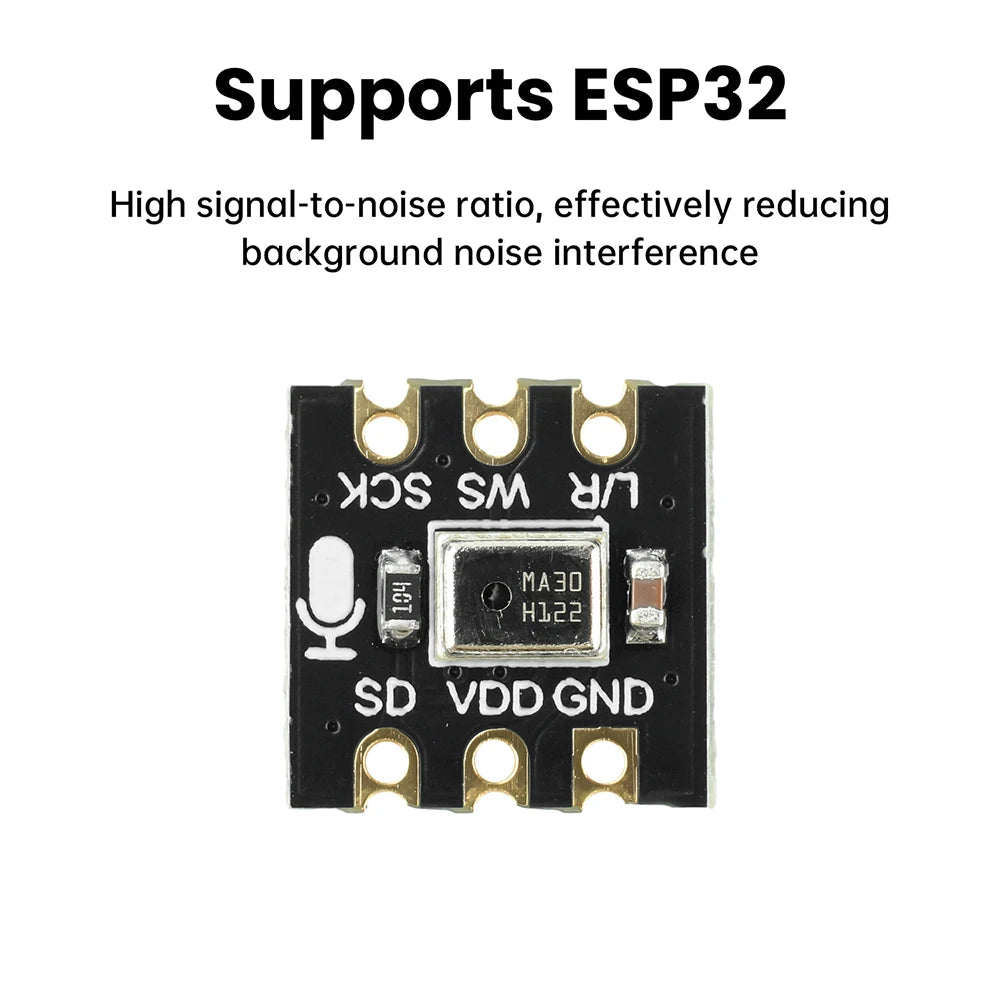

3. High signal-to-noise ratio effectively reduces background noise interference.

4. High sensitivity precisely captures near-field audio details.

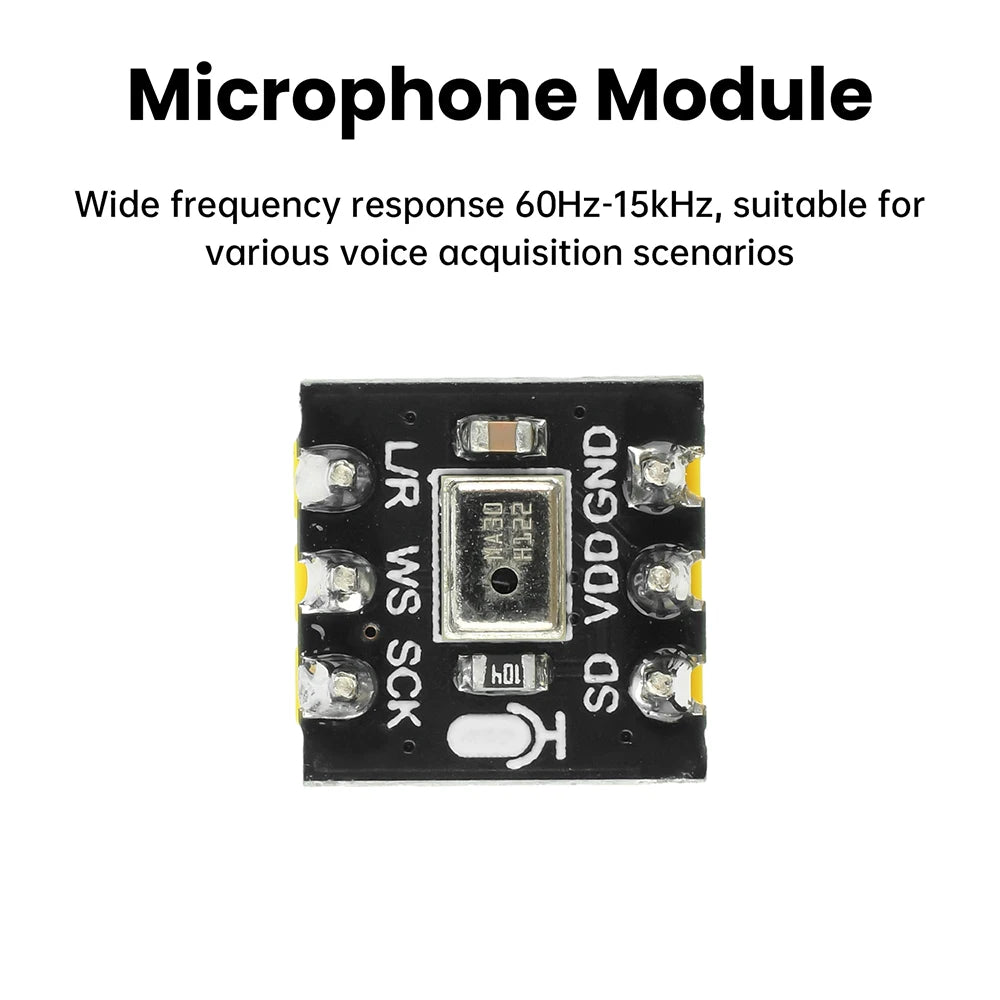

5. Wide frequency response (60Hz–15kHz) suits diverse voice capture scenarios.

Product Description:

This sensor is a high-performance, low-power, digital-output omnidirectional MEMS microphone with a bottom-port configuration. Compatible with INMP441, it comprises a MEMS sensor, signal conditioning circuitry, an analogue-to-digital converter, an anti-aliasing filter, power management, and an industry-standard 24-bit I²S interface. The I²S interface enables direct connection to digital processors such as DSPs and microcontrollers without requiring an audio codec within the system. Featuring a high signal-to-noise ratio, it is an excellent choice for near-field applications. Its flat, broadband frequency response delivers natural sound with high clarity.

Product Specifications:

Digital I²S interface with high-precision 24-bit data

High signal-to-noise ratio: 61 dBA

High sensitivity: -26 dBFS

Frequency response: Stable response from 60 Hz to 15 kHz

Low power consumption: 1.4 mA

High PSR: -72 dBFS

Suitable for soldering onto breadboards or direct surface-mount installation

Applications: Ideal for smart speakers, voice assistants and other smart home devices; voice capture; integration into wearables; acoustic monitoring in industrial environments.

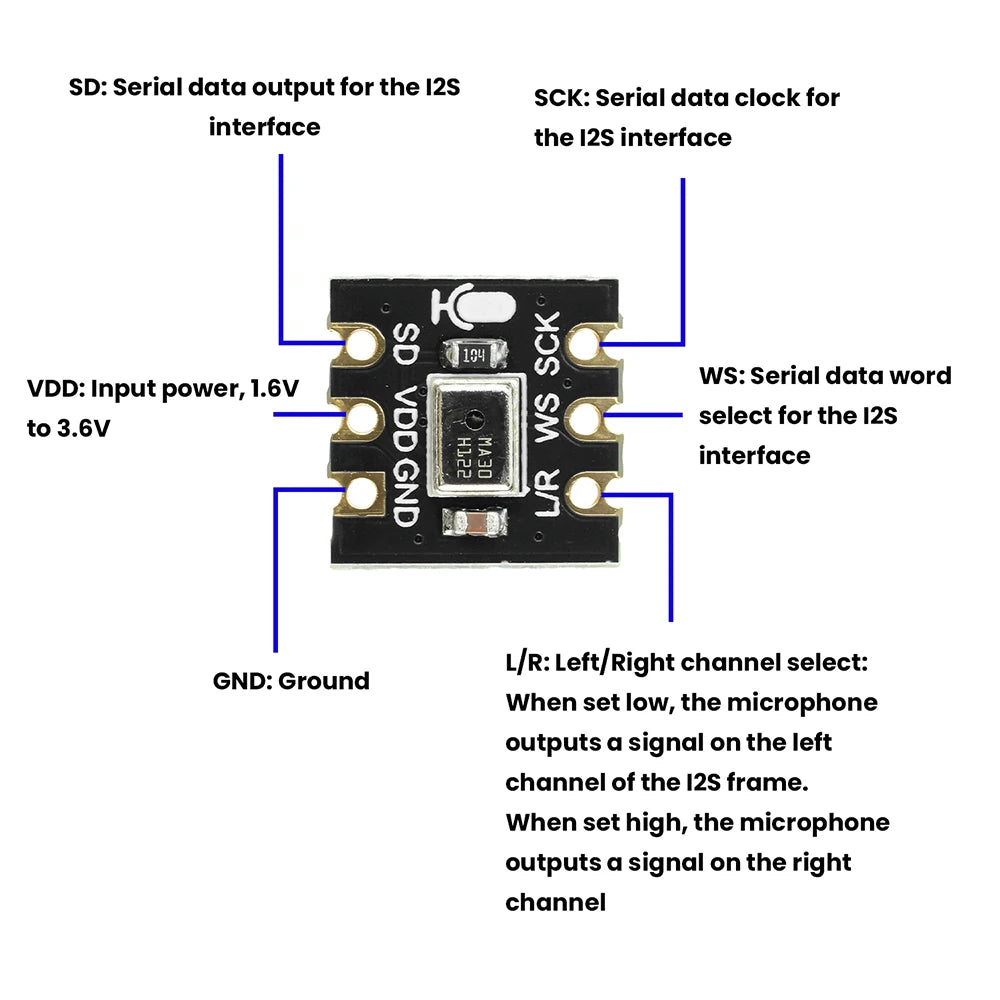

Interface Definitions:

SCK: Serial data clock for I2S interface

WS: Serial word select for I2S interface

L/R: Left/Right channel selection:

Low level: Microphone outputs signal on left channel of I2S frame.

High level: Microphone outputs signal on right channel.

SD: Serial data output for I2S interface

VDD: Input power supply, 1.6V to 3.6V

GND: Power ground

Connection to ESP32 Development Board:

This module -- ESP32 development board

SCK -- GPIO14

SD -- GPIO32

WS -- GPIO15

L/R -- GND

GND -- GND

VDD -- VDD3.3

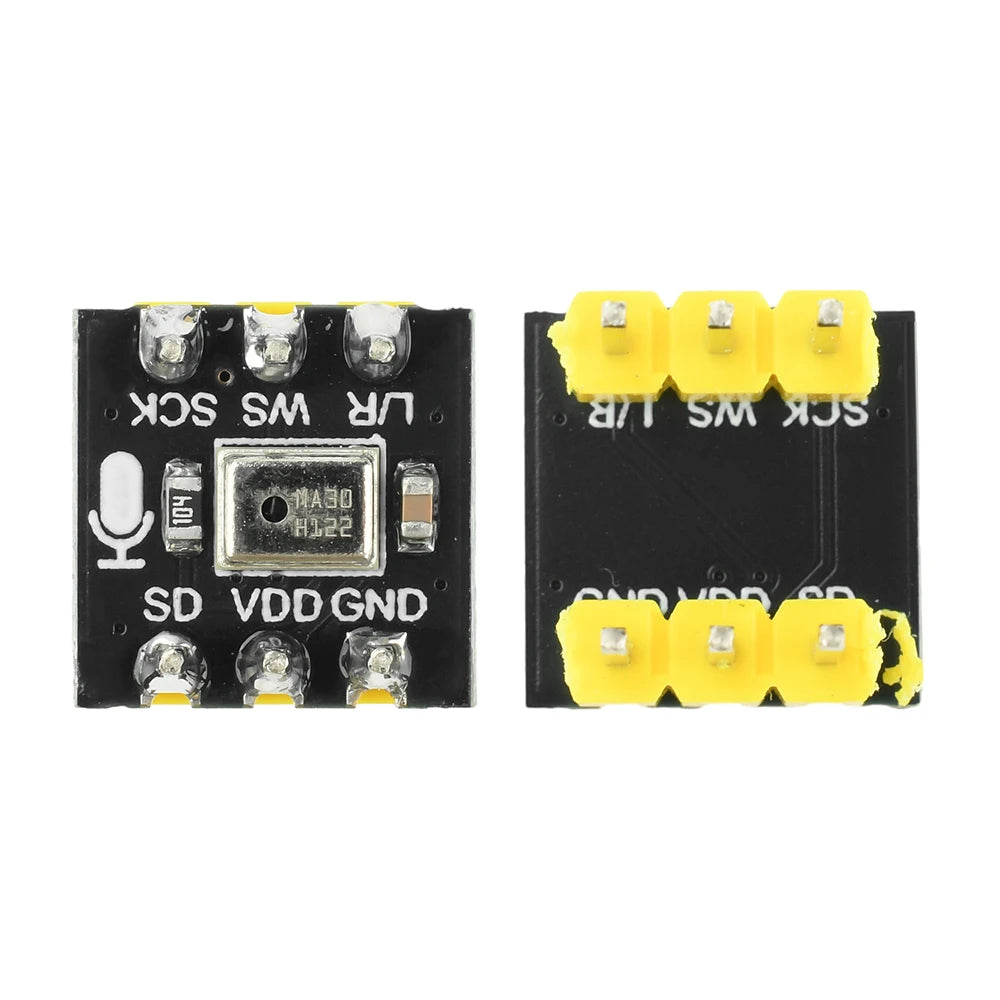

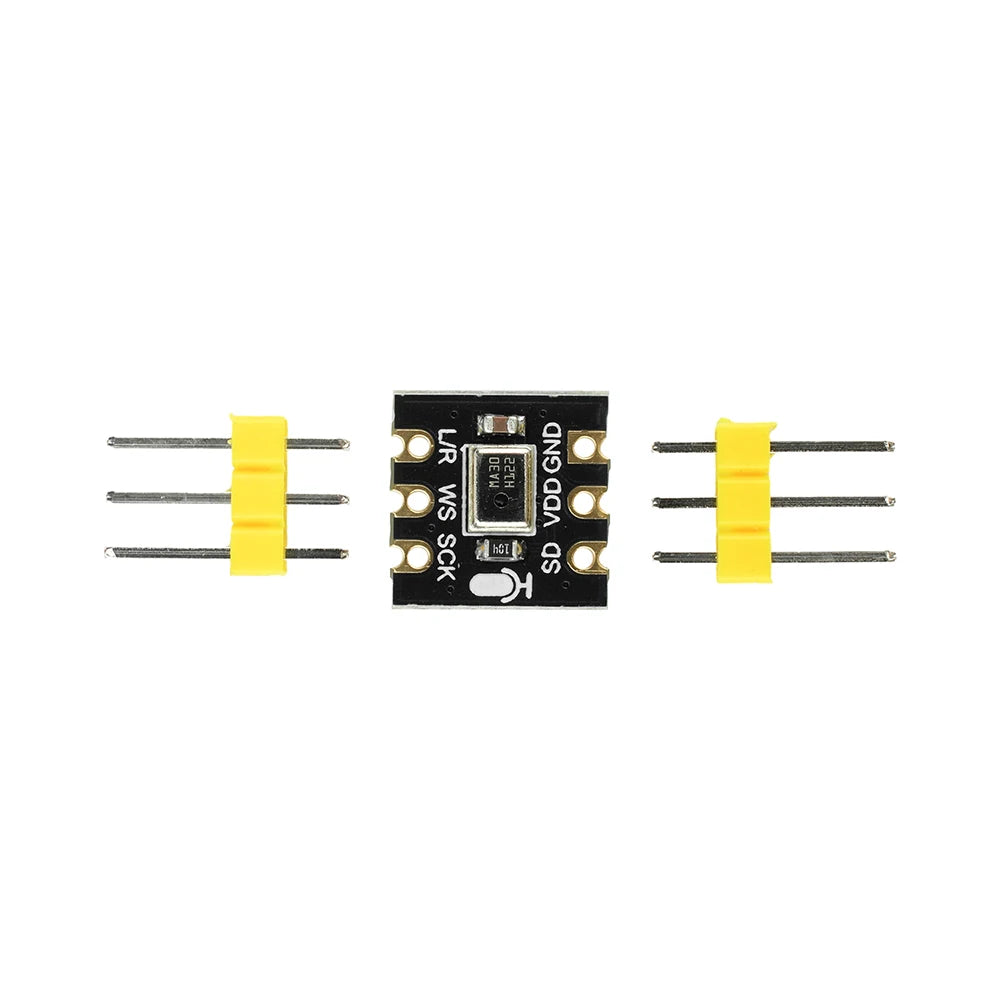

Product Listing:

1X Module

2X 3-pin header pins (optional: unpopulated headers/pre-soldered headers)
