SPECIFICATIONS

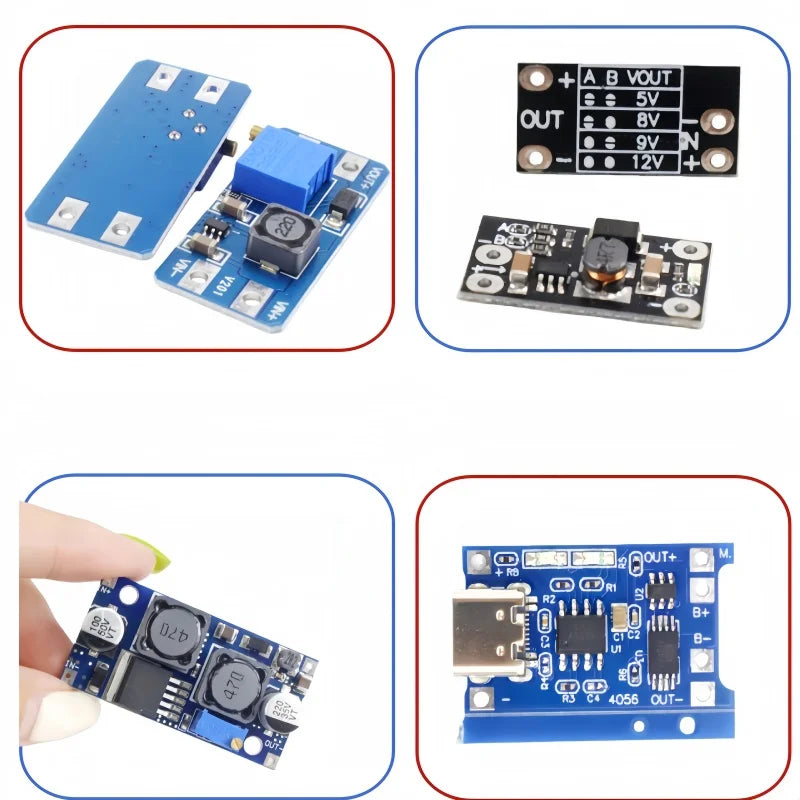

Portable Device Power Solution - Complete Boost & Power Management Kit

Key Features & Benefits

Wide Voltage Boost Coverage
Feature → MT3608, Mini Boost, XL6009 cover 2V-32V input
Advantage → Meets various boost needs
Benefit → One-stop shop for all boost requirements

Smart Battery Management
Feature → TP4056 with Type-C and protection
Advantage → Charges Li-ion safely & efficiently
Benefit → Create safe battery-powered devices

️ Flexible Output Options

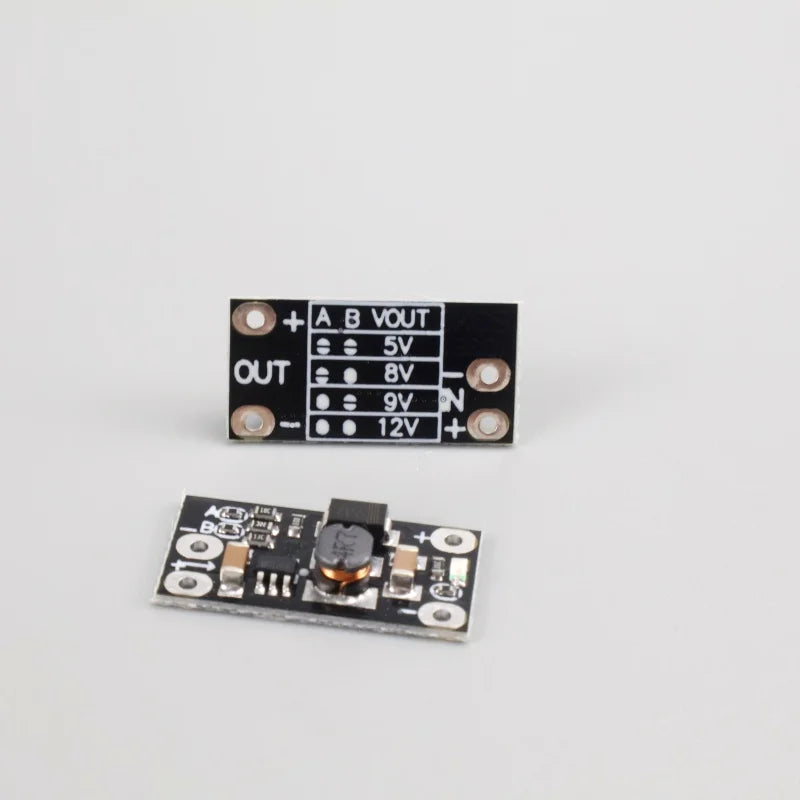

Feature → Mini Boost with jumper-selectable 5V/8V/9V/12V
Advantage → No adjustment needed for common voltages
Benefit → Simple to use, plug and play

Automatic Boost-Buck
Feature → XL6009 input can be higher/lower than output
Advantage → Stable output even with battery voltage drop
Benefit → Ideal for applications using the full battery range

Product Description:
This combo brings together the most popular boost and power management modules, designed for a variety of battery-powered portable devices. Whether you're powering a 5V Arduino from a single Li-ion cell or building a fast-charge power bank, these modules provide a stable and reliable power core.

Important Notes / How to Use:

【Purchasing Model】: All modules are sold INDIVIDUALLY

【MT3608 Adjustment】: MUST rotate pot CCW to min before powering on

【Mini Boost Config】: Default 12V output, requires soldering to change voltage

【XL6009 Heating】: Provide heatsink for high power (>2A) use

【TP4056 Polarity】: Strictly observe polarity to avoid damage

Specifications:

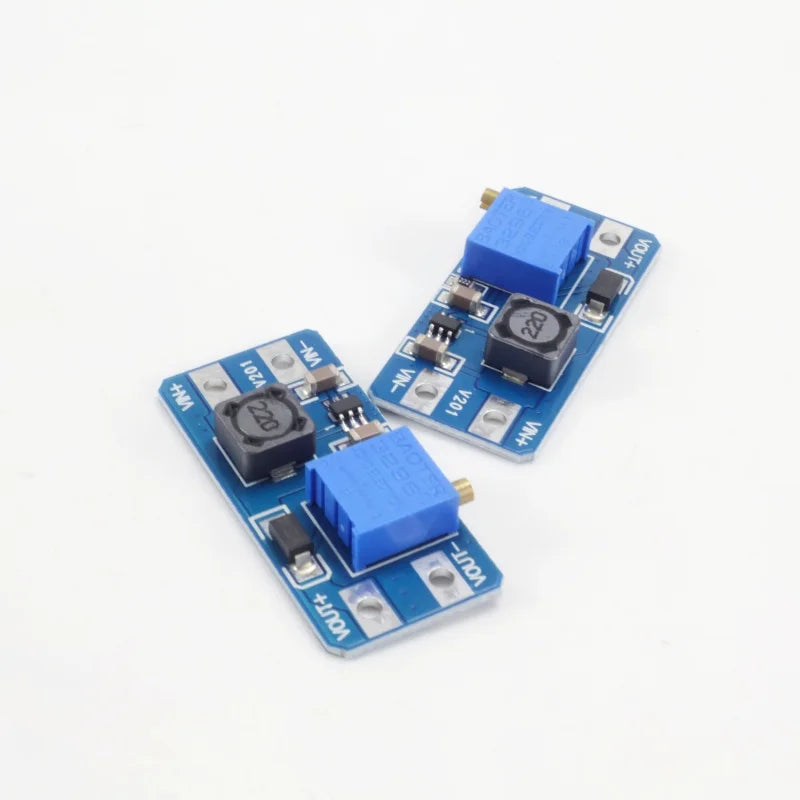

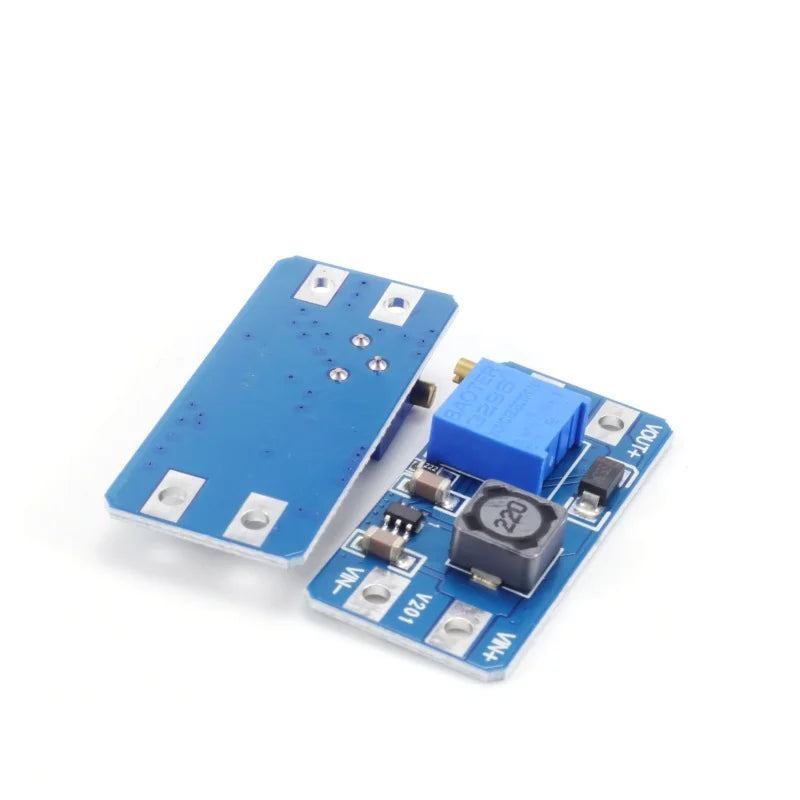

MT3608: Input 2-24V, Output 5-28V Adj, 2A Max, >93% Eff

Mini Boost: Input 2.5-12V, Output 5V/8V/9V/12V (Configurable), 1A Max

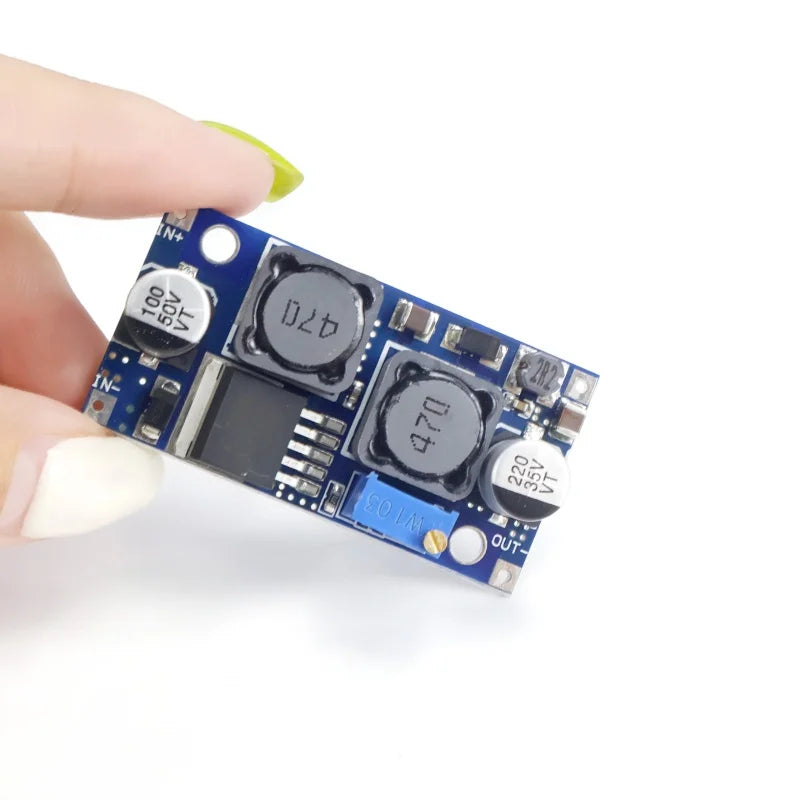

XL6009: Input 3.8-32V, Output 1.25-35V Adj, 3A Max, Auto Boost-Buck

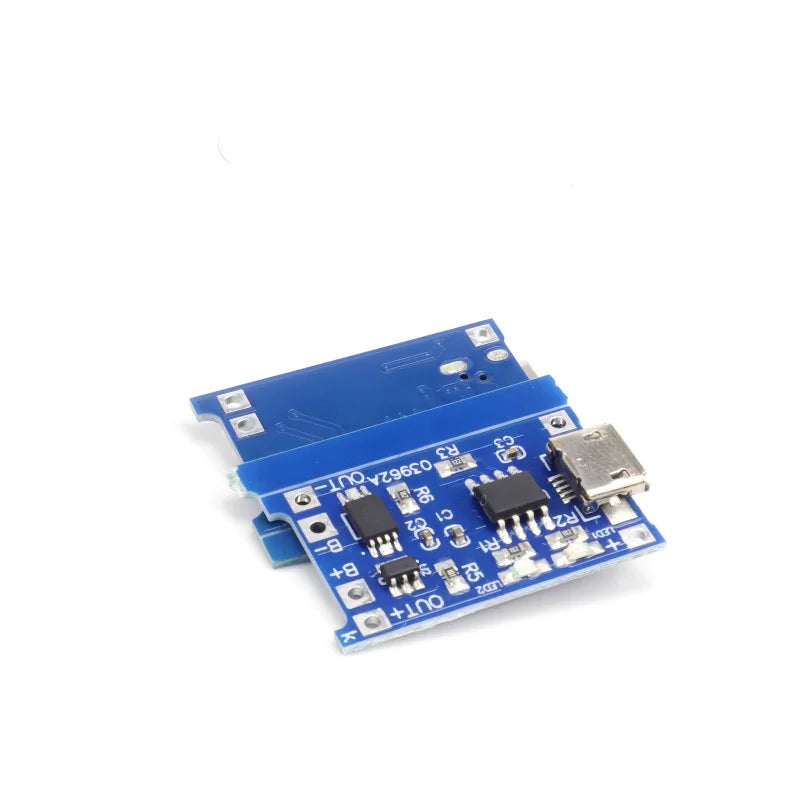

TP4056: Type-C/Micro USB Input, 4.2V Cut-off, 1A Current, With Protection

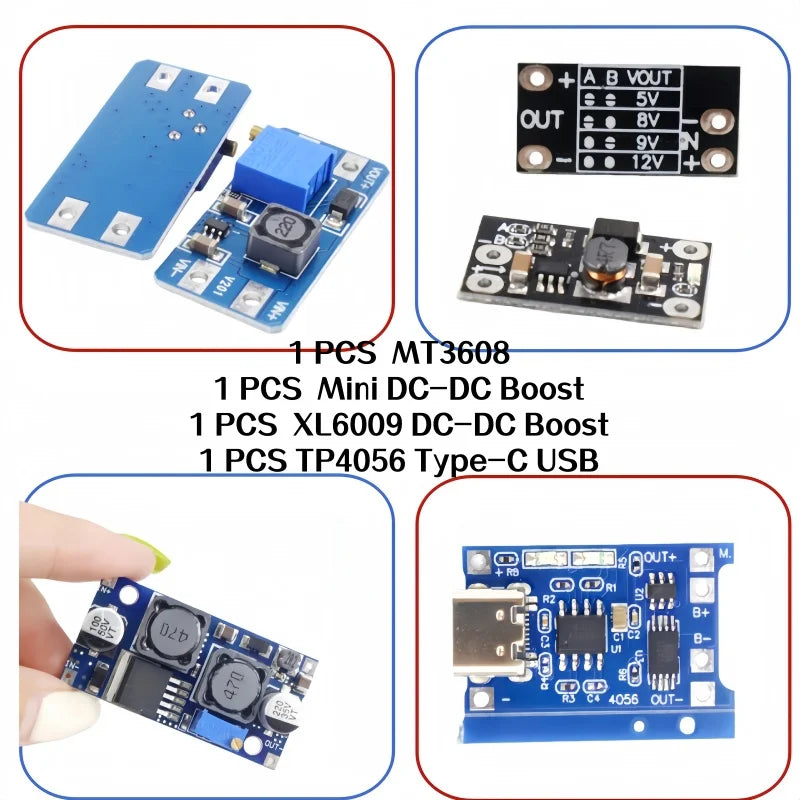

Package Includes:
Final items depend on SKUs selected in your cart.
