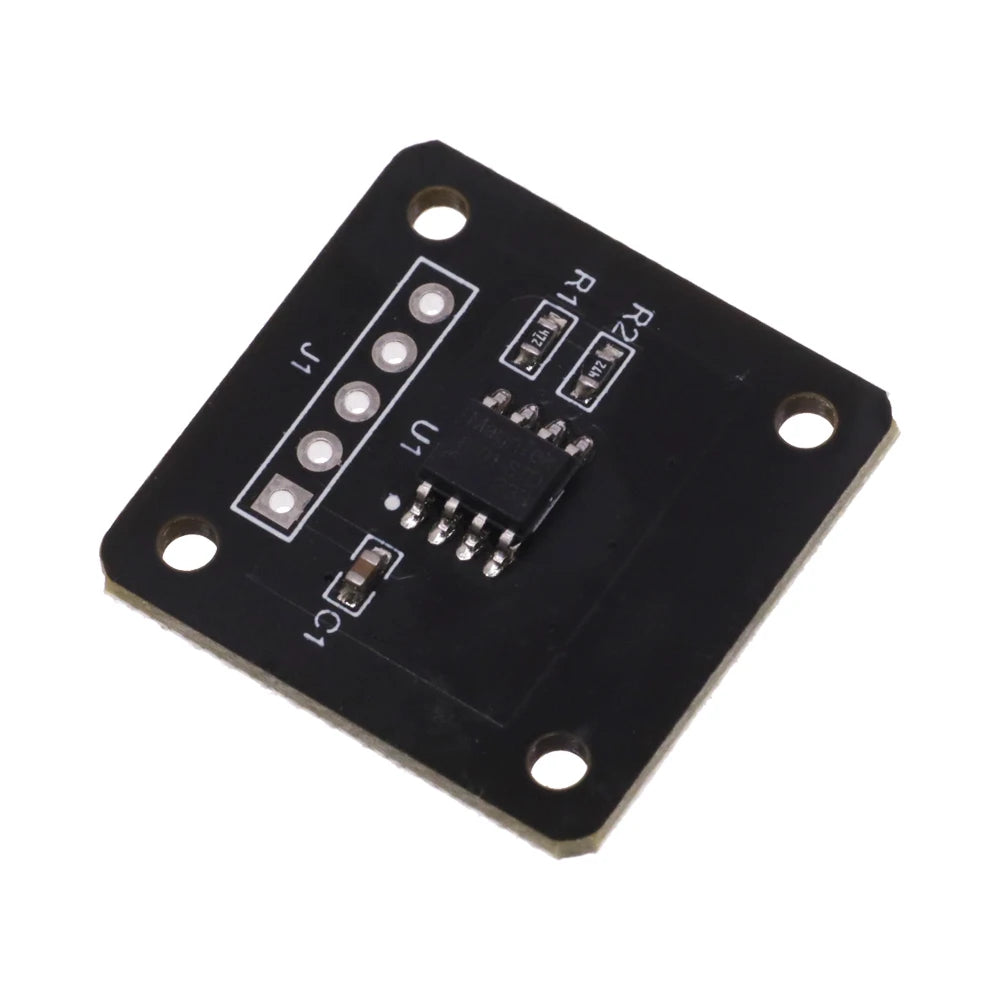

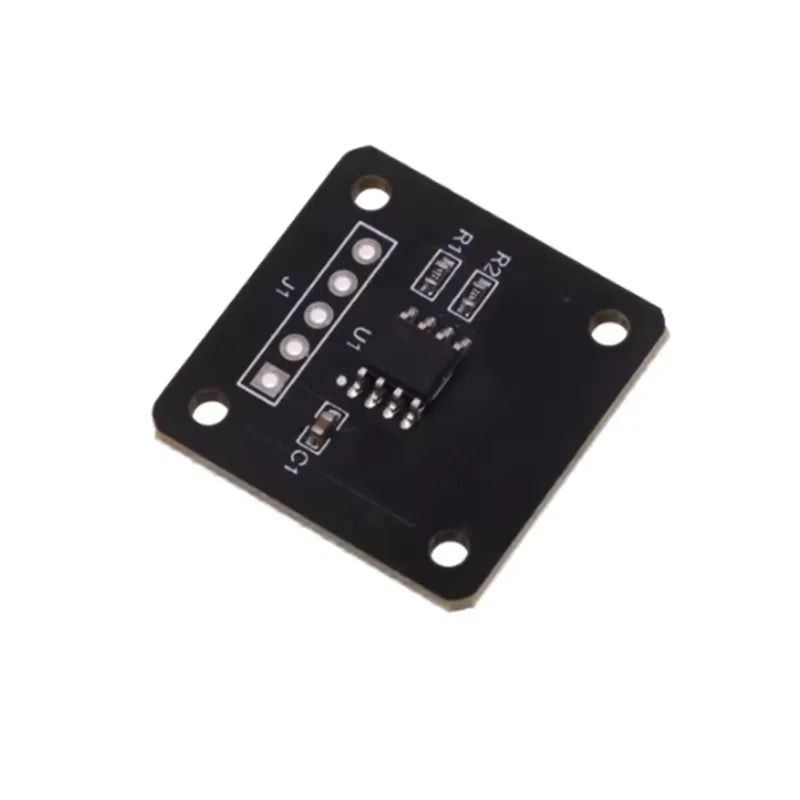

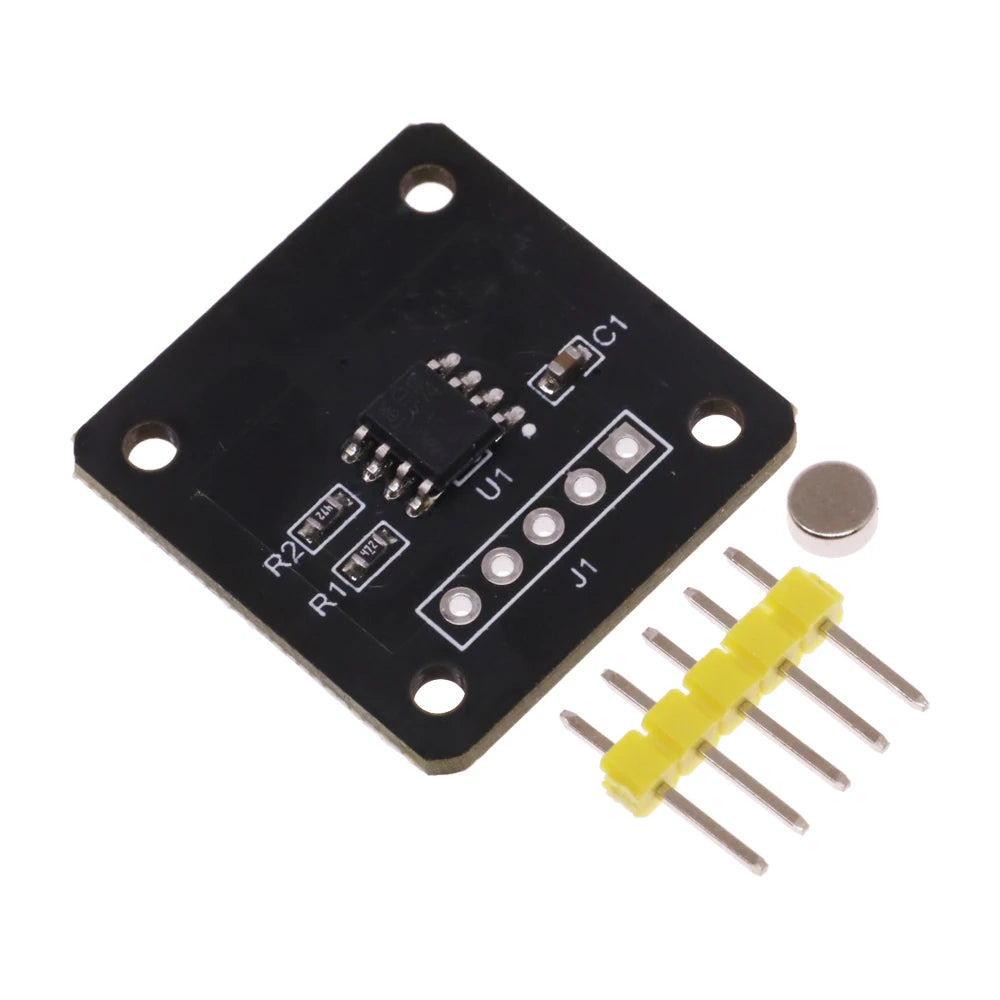

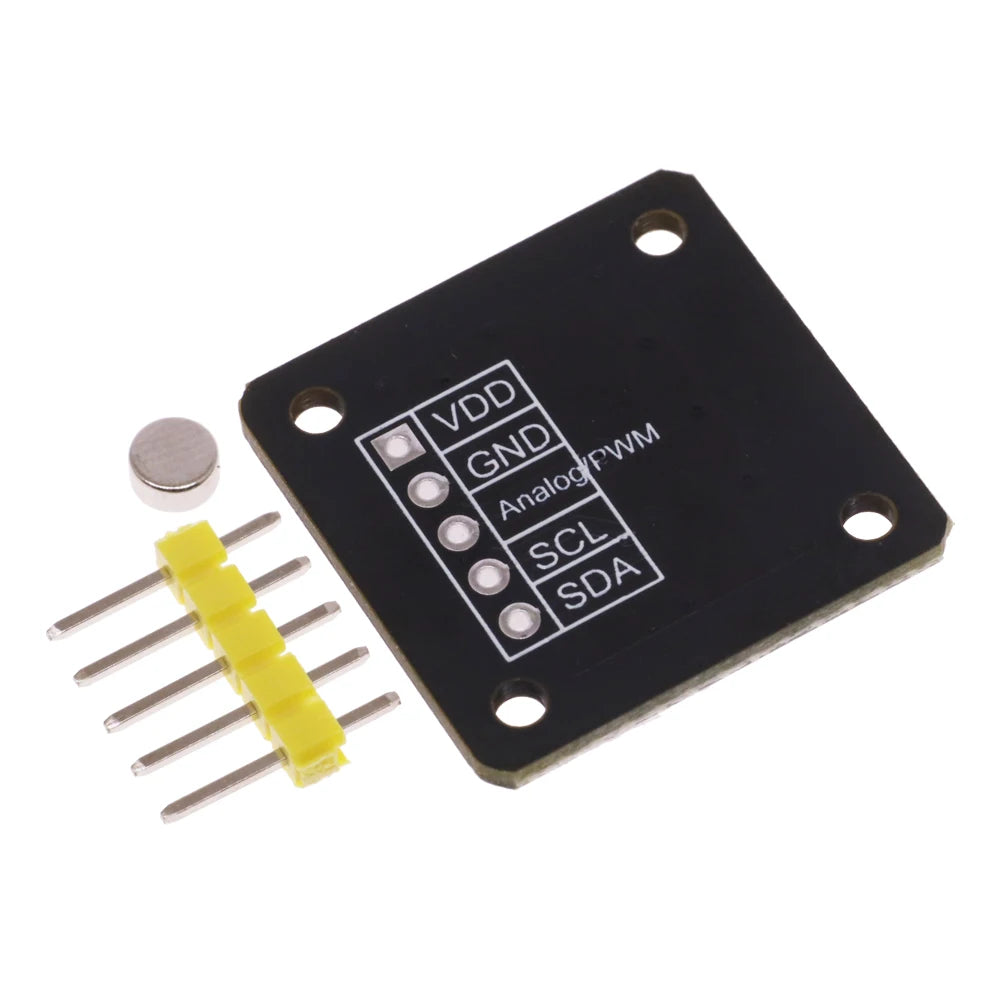

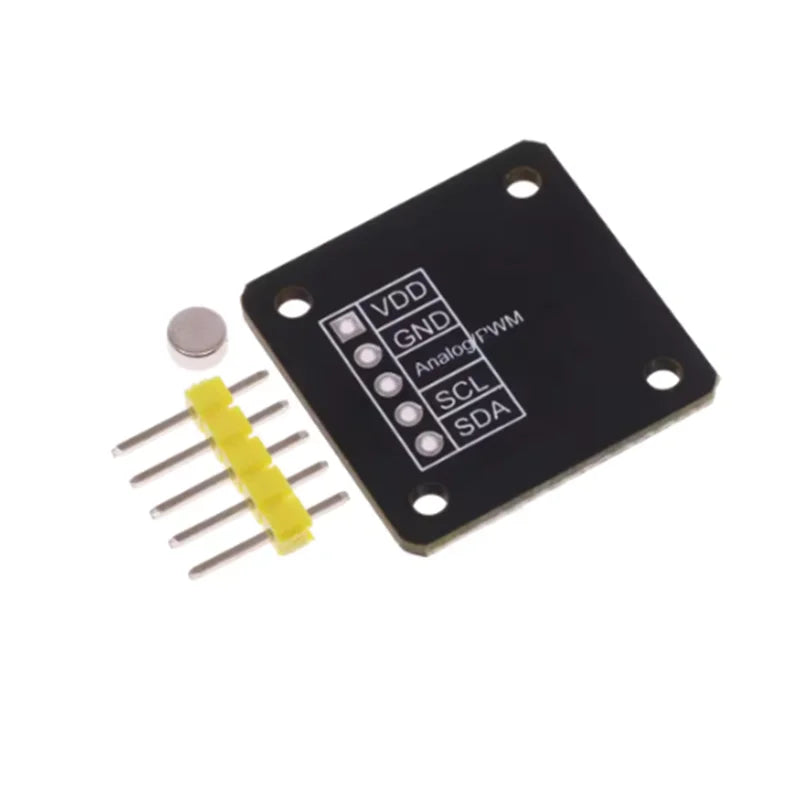

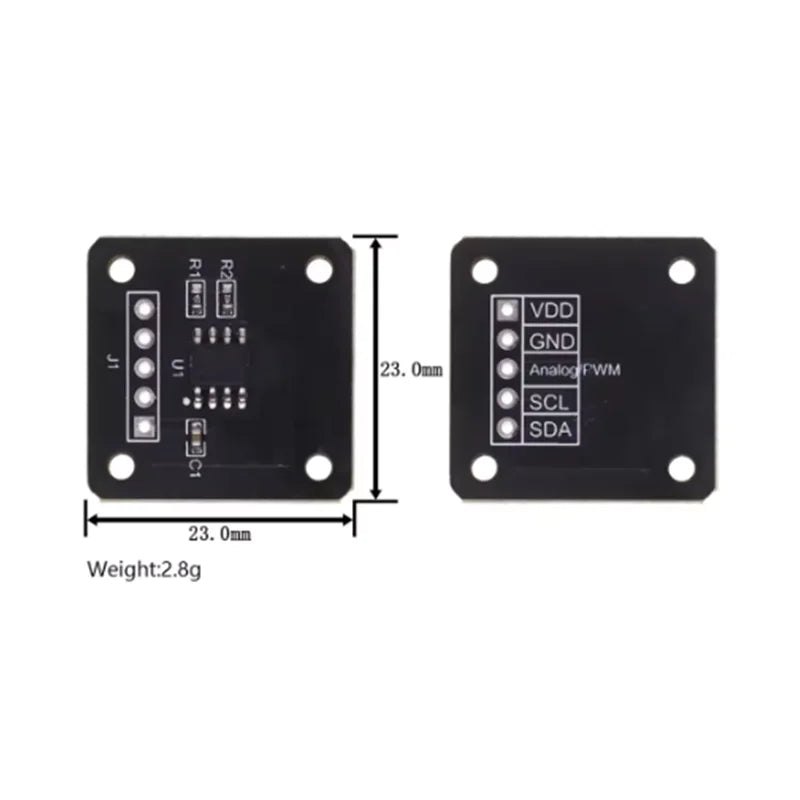

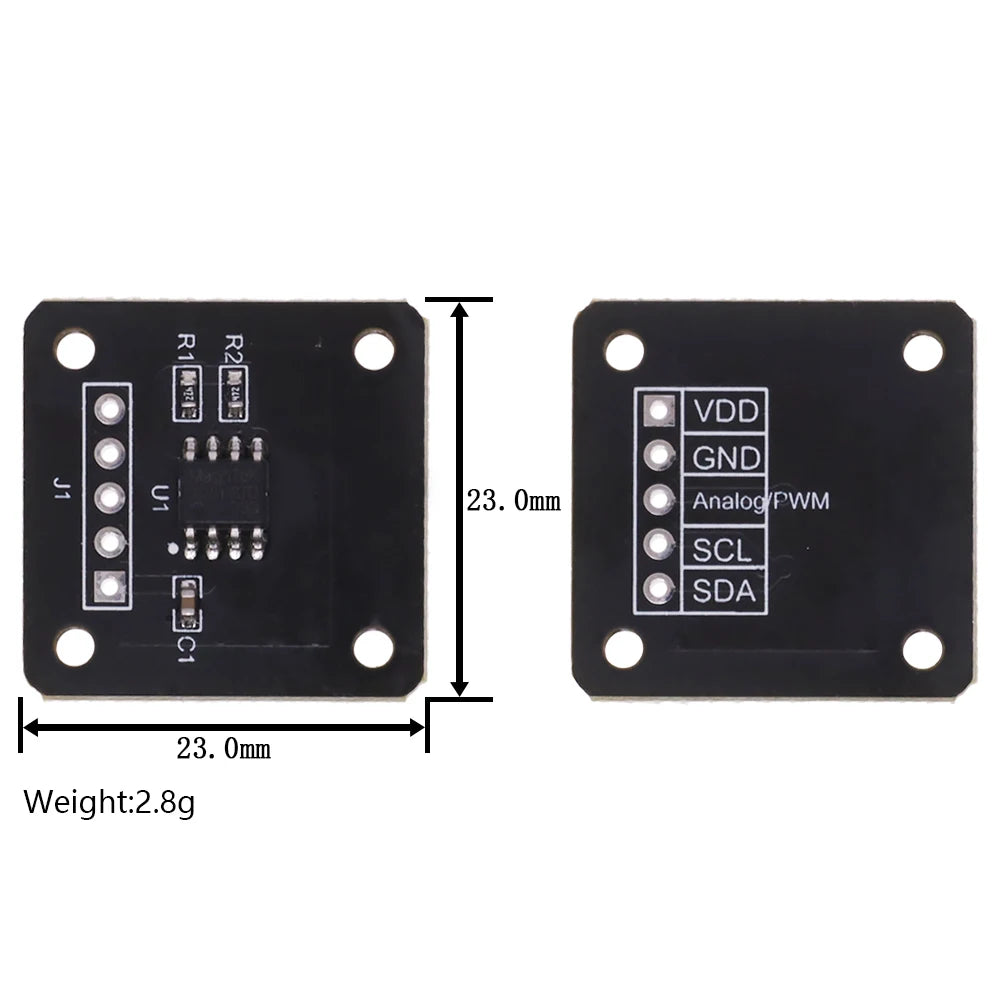

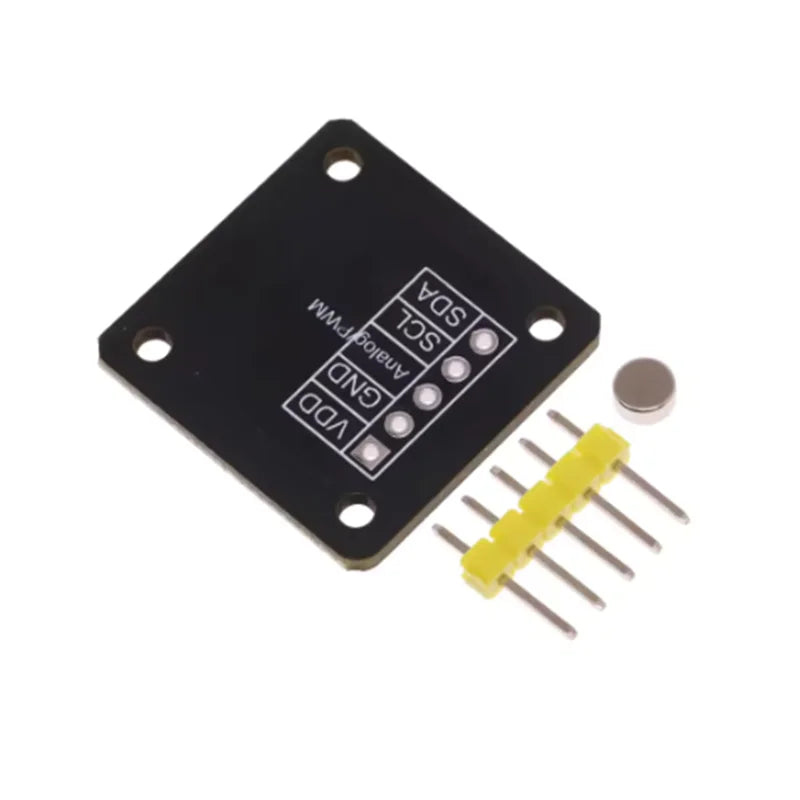

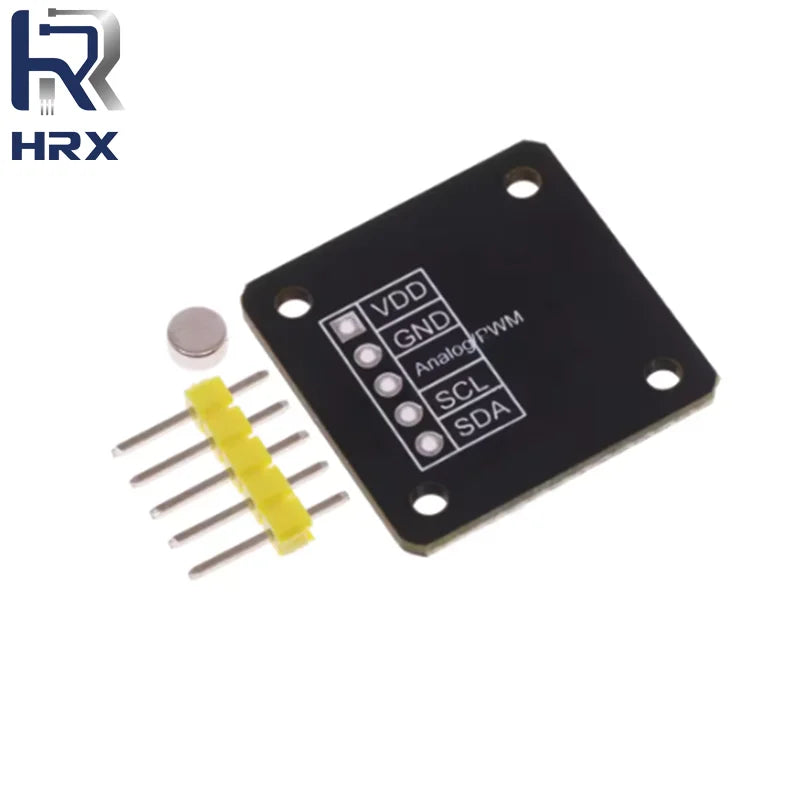

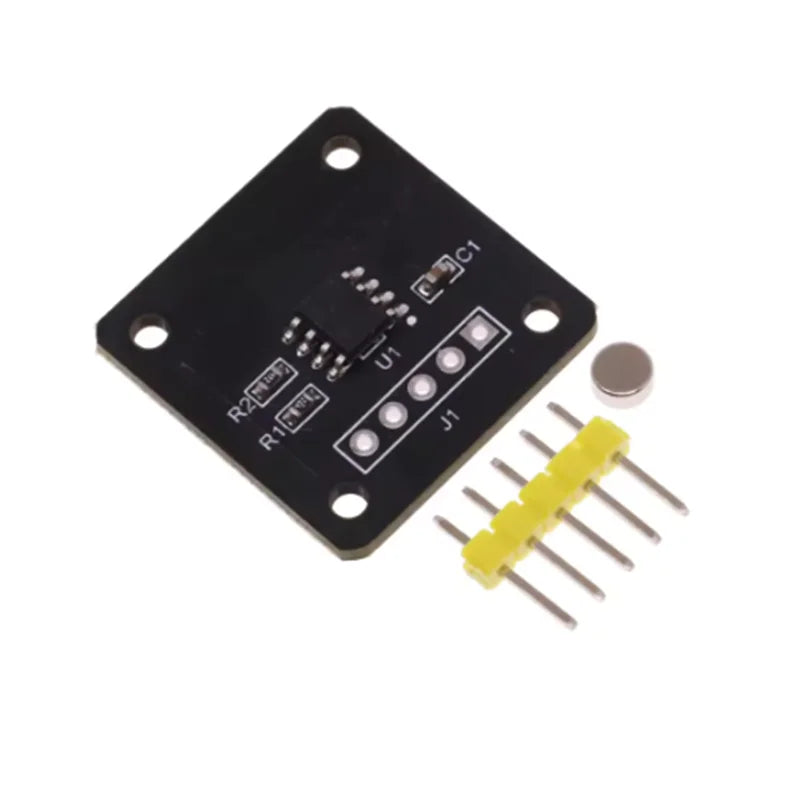

MT6701 magnetic encoder magnetic induction angle measurement sensor module 14bit high precision instead of AS5600

MT6701 magnetic encoder magnetic induction angle measurement sensor module 14bit high precision instead of AS5600

$24.57

$24.57 $0.00

Description

SPECIFICATIONS

Application: -

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: -

Origin: Mainland China

Package: SMD

Supply Voltage: -

Type: Module

is_customized: Yes

semi_Choice: yes

MT6701

describe:

MT6701 is a new generation of magnetic angle encoder chip based on the principle of differential Hall induction launched by MagnTek. MT6701 senses the magnetic field component perpendicular to the surface of the chip, with the rotation of a radial magnet magnetized on the surface of the chip,

MT6701 correspondingly outputs an angle signal of 0~360°. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute angle output, MT6701 also provides 14 bit digital angle output through I2C/SSI interface. In addition to rotation angle measurement, MT6701 also provides a "press" output to realize single-chip button (rotation + press) function.

feature:

- Based on differential Hall technology, it provides absolute angle measurement from 0° to 360°

- Working voltage 3.3~5.0V, working temperature -40℃~125℃

- Linearity deviation <±1° typical, <±1.5° over temperature range

- The system delay is as low as less than 5us, and the maximum speed can be up to 55,000 rpm

- Provide I²C/SSI interface to read 14-bit angle data inside the chip

- Incremental output ABZ supports any resolution from 1 to 1024 lines

- Incremental output UVW supports any polarity from 1 to 16

- Provide 12-bit PWM output or analog output (12-bit DAC)

- Dedicated press detection output (sensing magnet and chip pitch change) for single-chip button applications

- Built-in EEPROM, >1000 times of repeated programming
