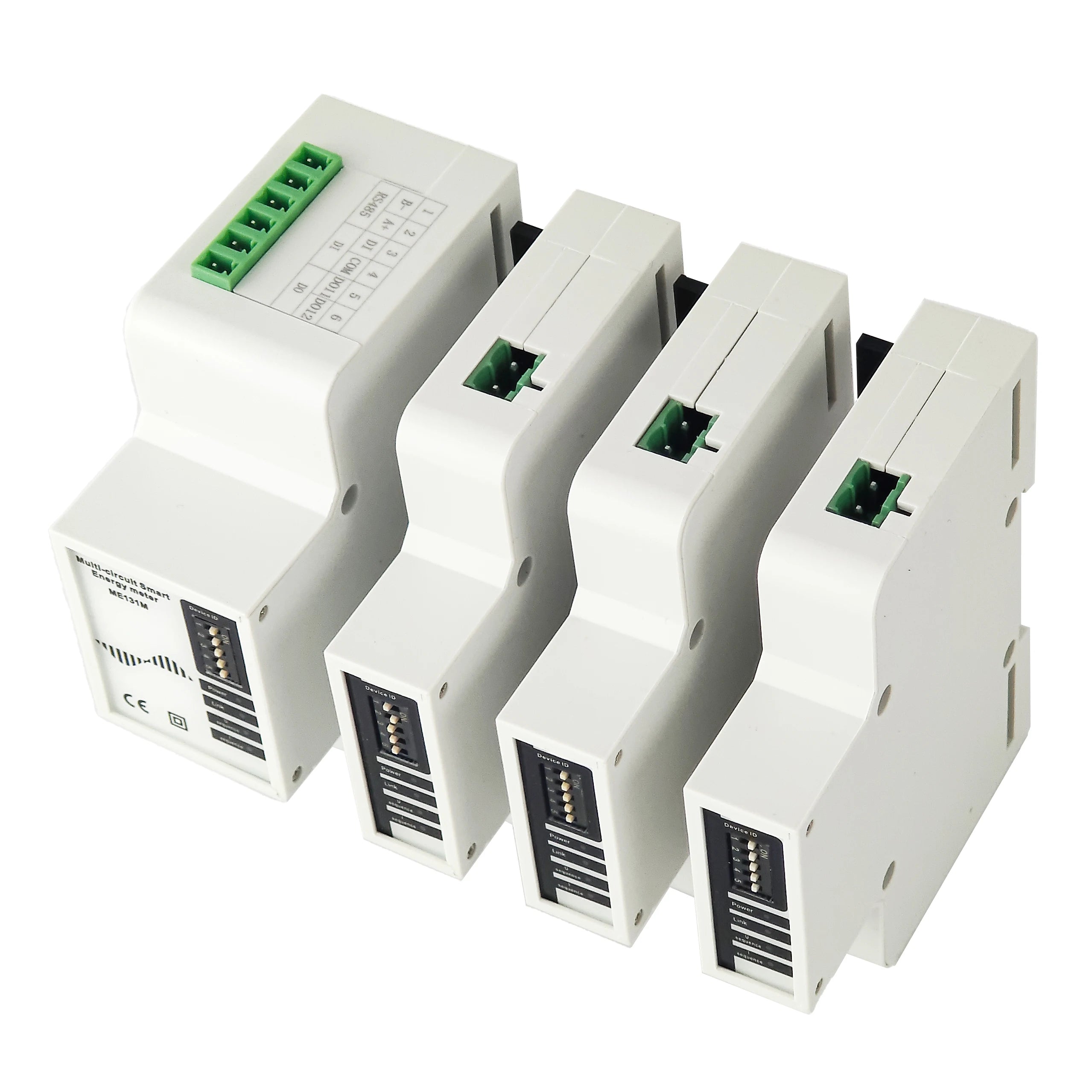

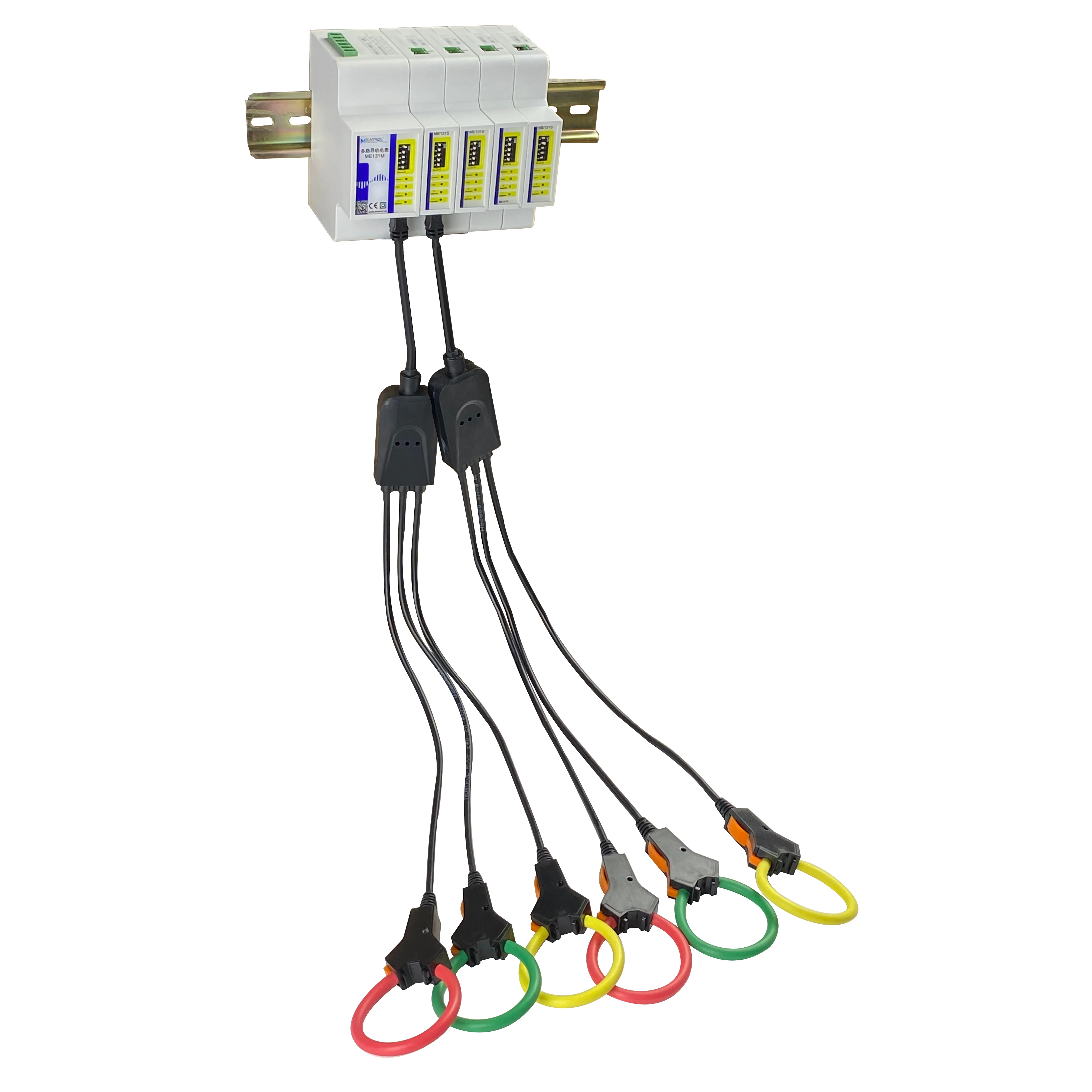

Multi Circuit Energy Meter ME131 Rogowski Coil CT Meters Multi Function Smart Power Energy Meter
SPECIFICATIONS
Accuracy Class: Class 0.5S
Application: Industrial, IoT, Household, Telecommunication, Electric Power, Energy
Basic Current: 0-6000A
Brand Name: NONE,MEATROL
Communication: Modbus RTU, RS485
Current range: 0-10000A
Current sensor: Rogowski coil current clamp
Current transformer: 333mV CTs
Dimensions: ME131M: 9.3*8.0*3.6cm; ME131S: 9.3*8.0*1.81cm
Display Type: Analog And Digital
Feature: Safety, Waterproof, LED Display, Lightweight, Eco-Friendly, Durable, T
Frequency: 45~60Hz
Function: Measure multi loop currents
Max. Current: OEM
Measuring Energy Range: 0 to 999.9GWh
Model Number: ME131
Operating Temperature: -25℃~+60℃
Origin: Mainland China
Output Voltage: 85~265VAC/110~370VDC
Phase: Three Phase
Place of Origin: Shanghai, China
Product name: 3 Phase Multi-circuit Smart Energy meter
Product type: Branch circuit monitoring Energy meter
Rated Current: OEM
Voltage range: 0-600VAC


|

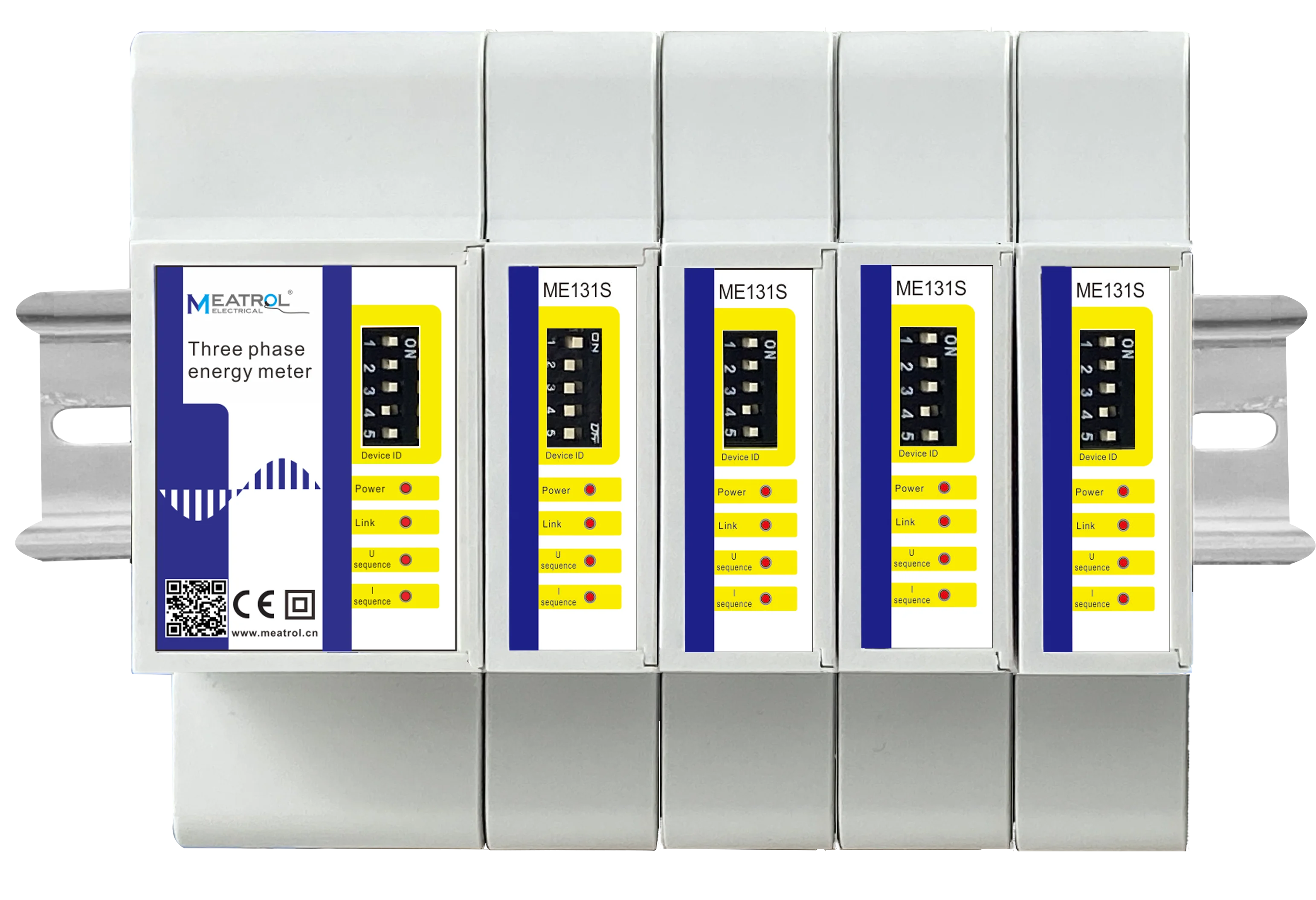

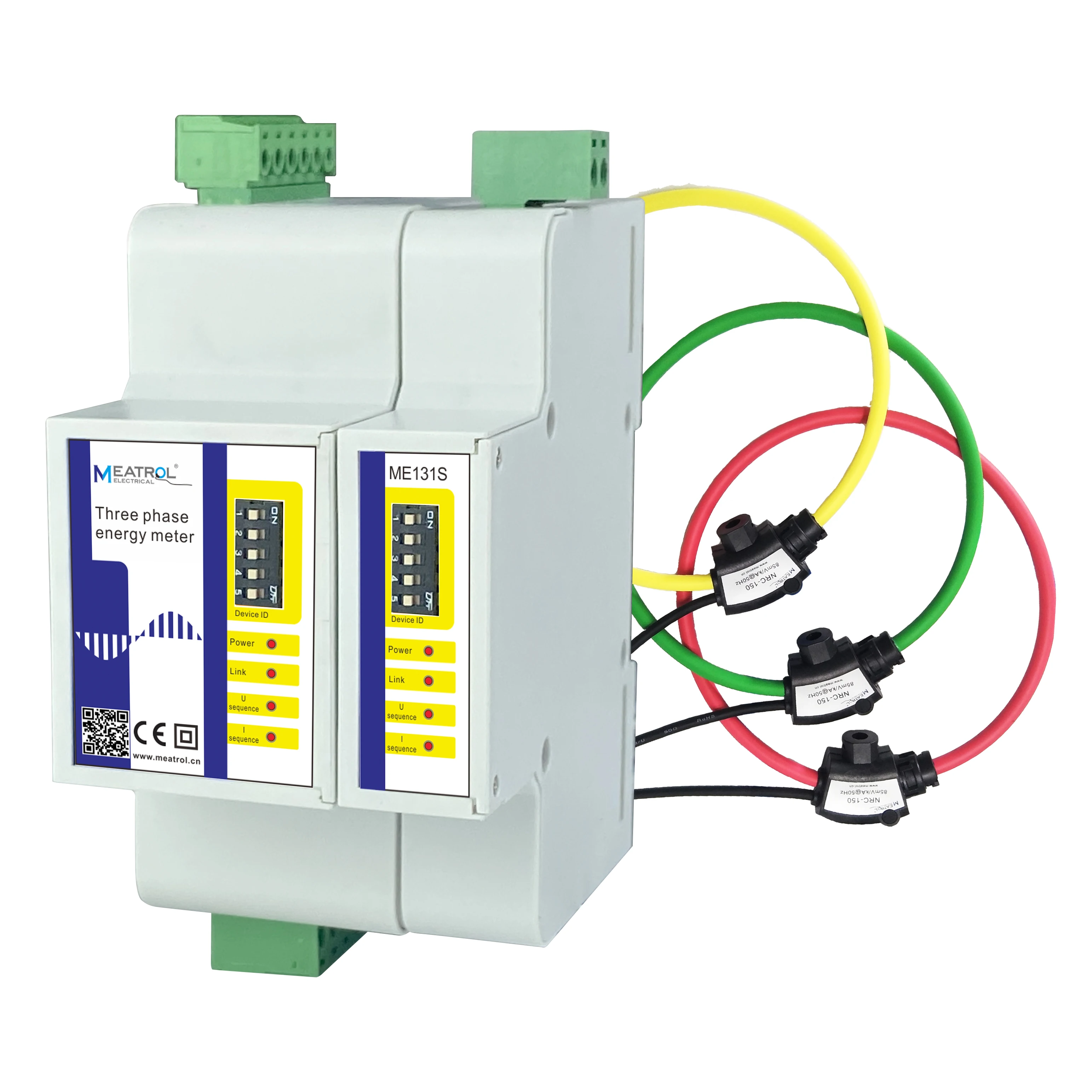

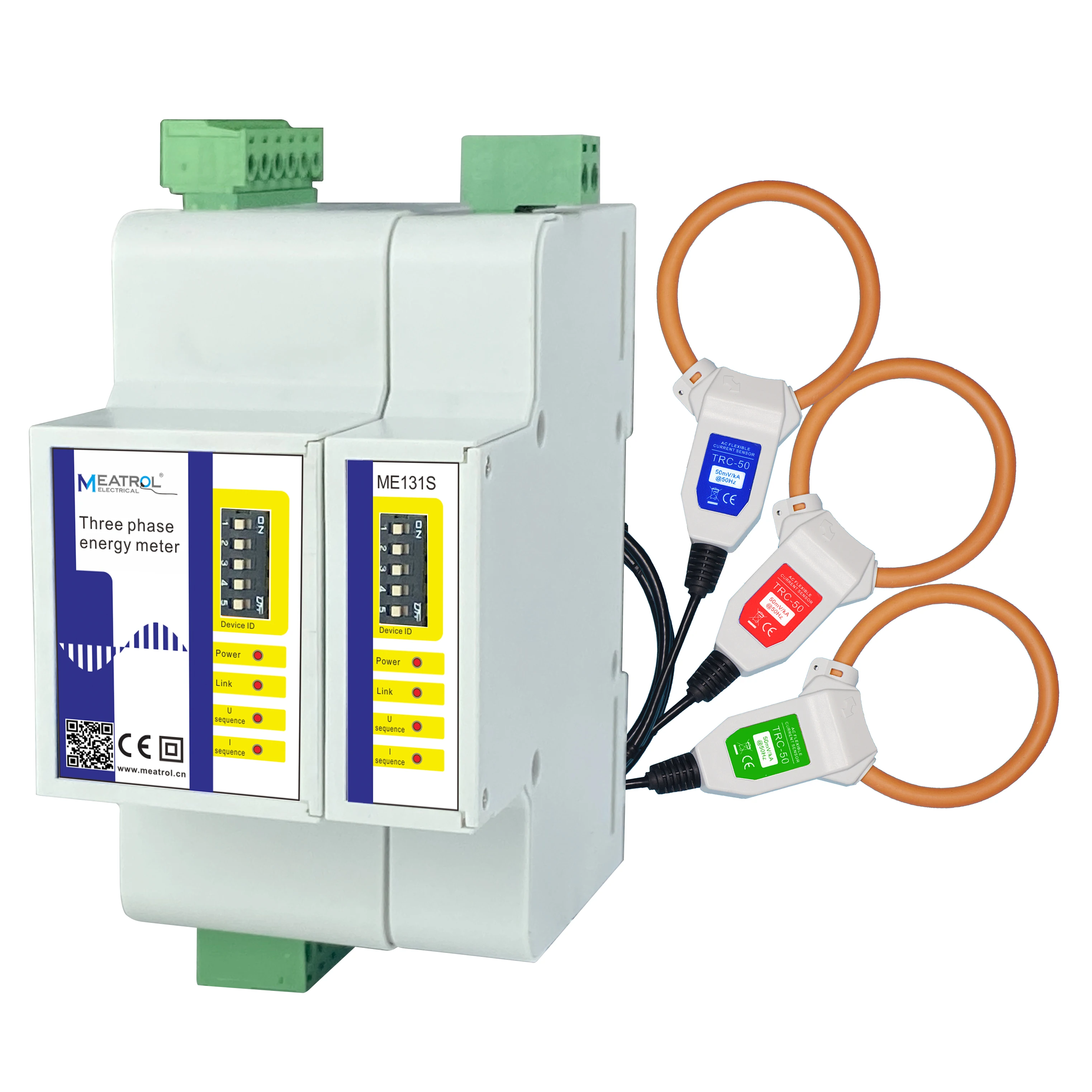

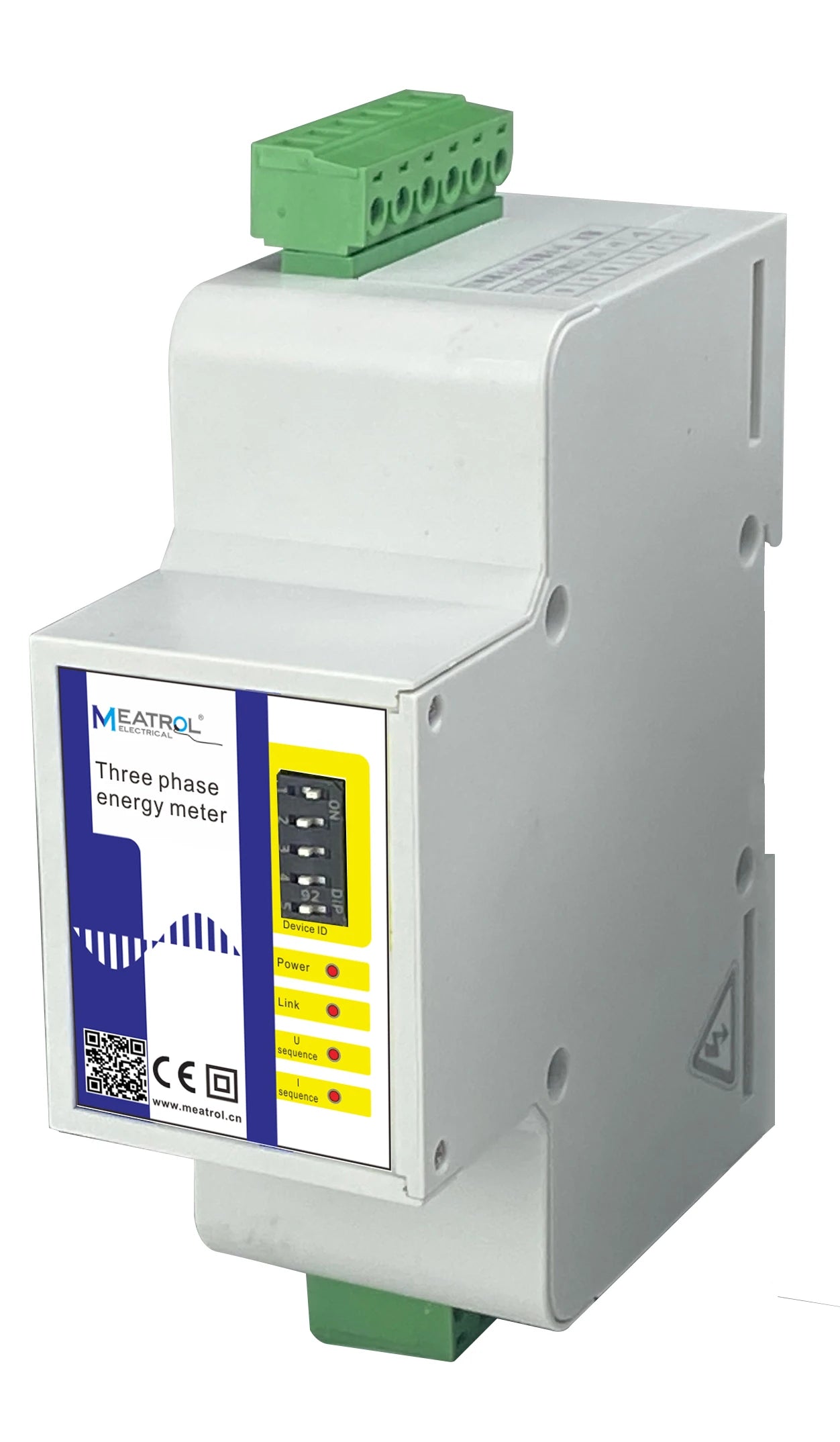

ME131 Multi-circuit Smart Energy meter
|
|
|
|
Description
|
|
|
|
Mounting type
|
Din Rail
|
|
|

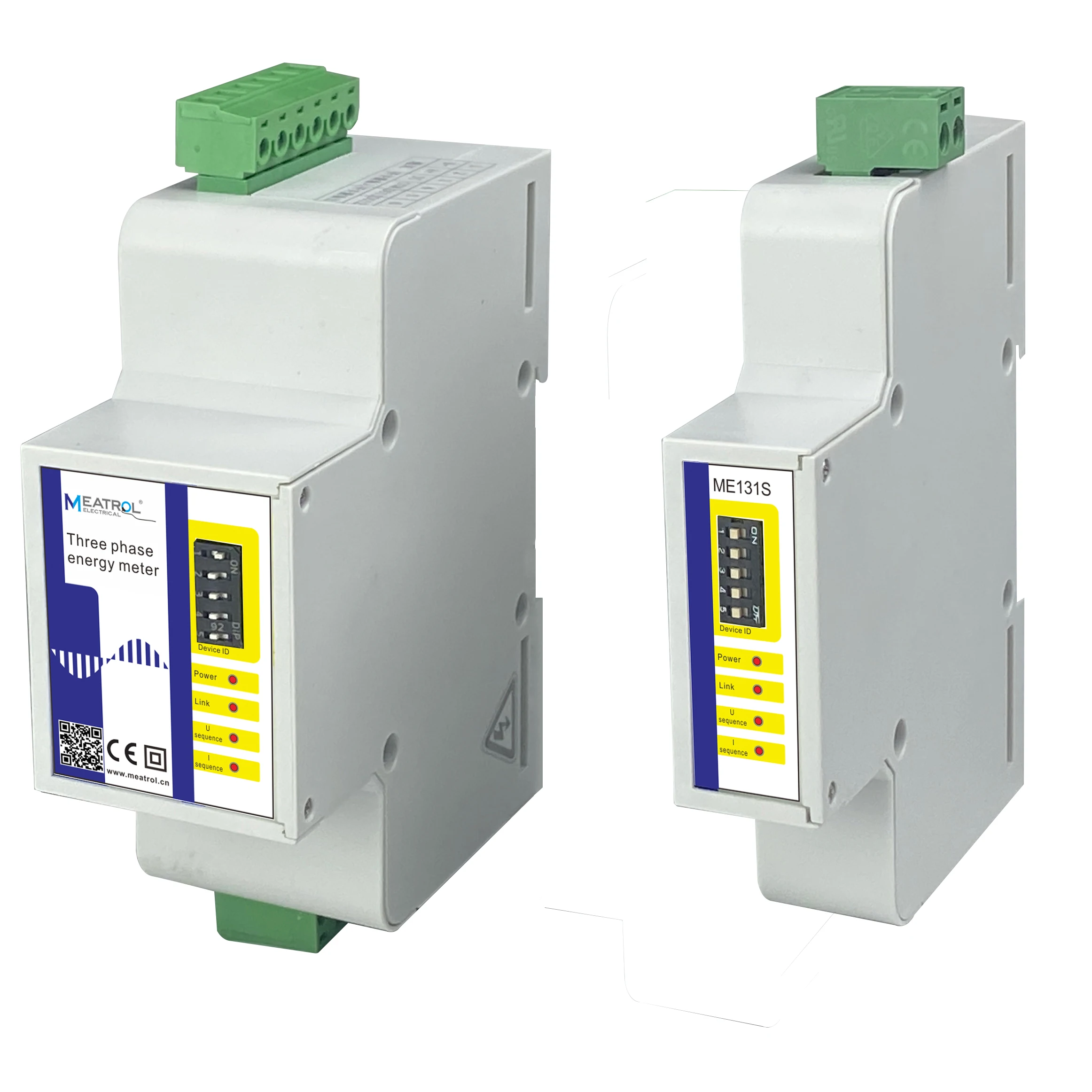

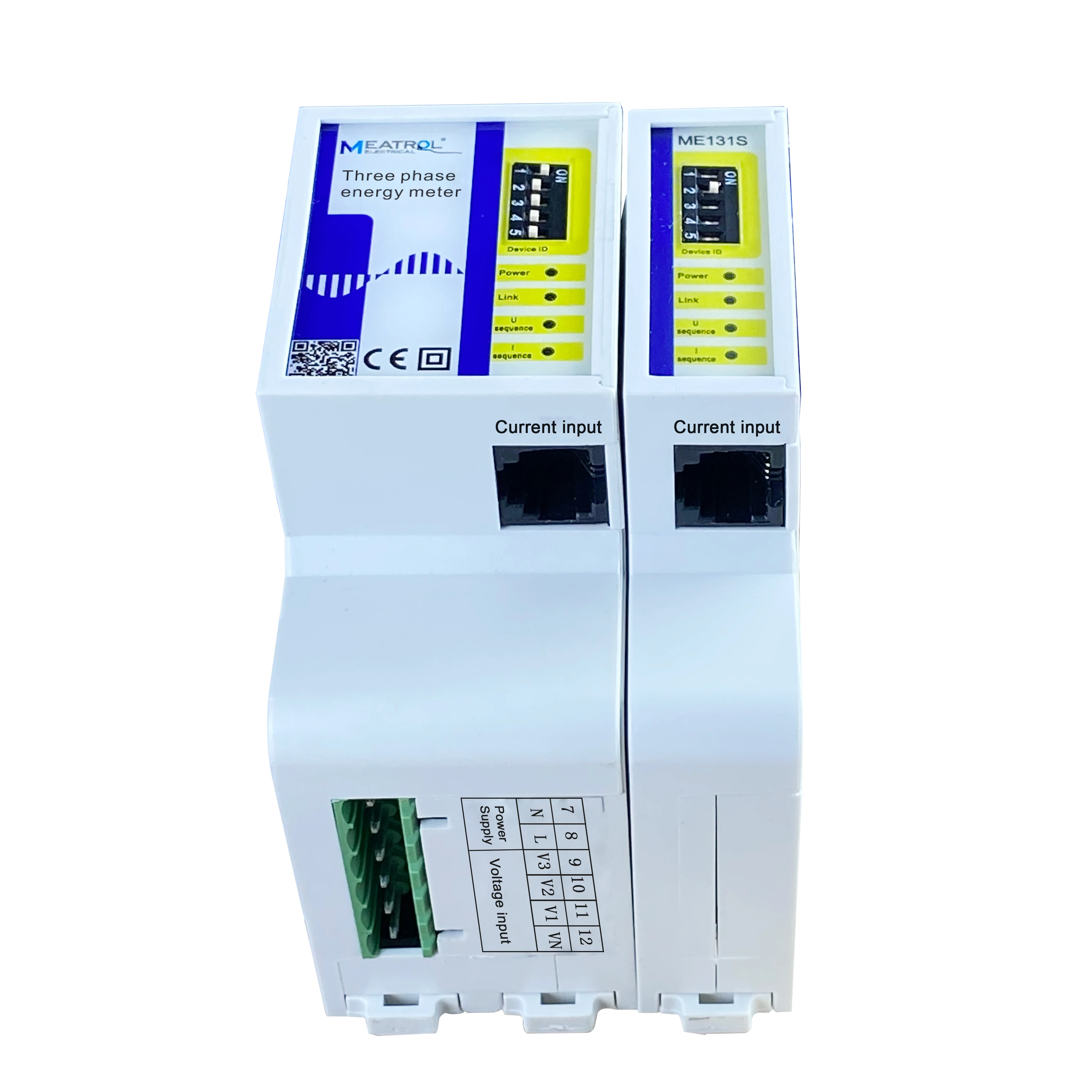

Model No.
|
Master meter: ME131M

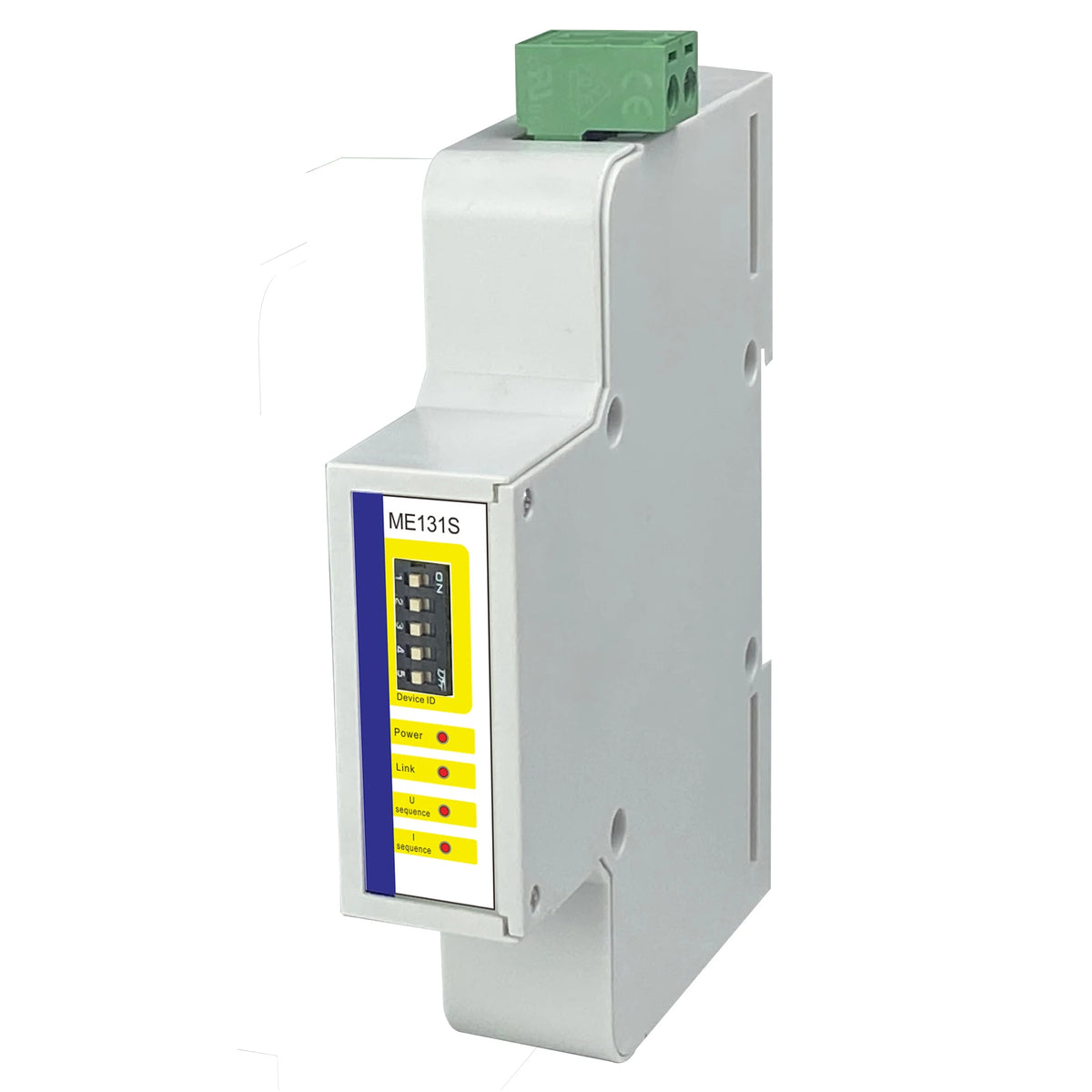

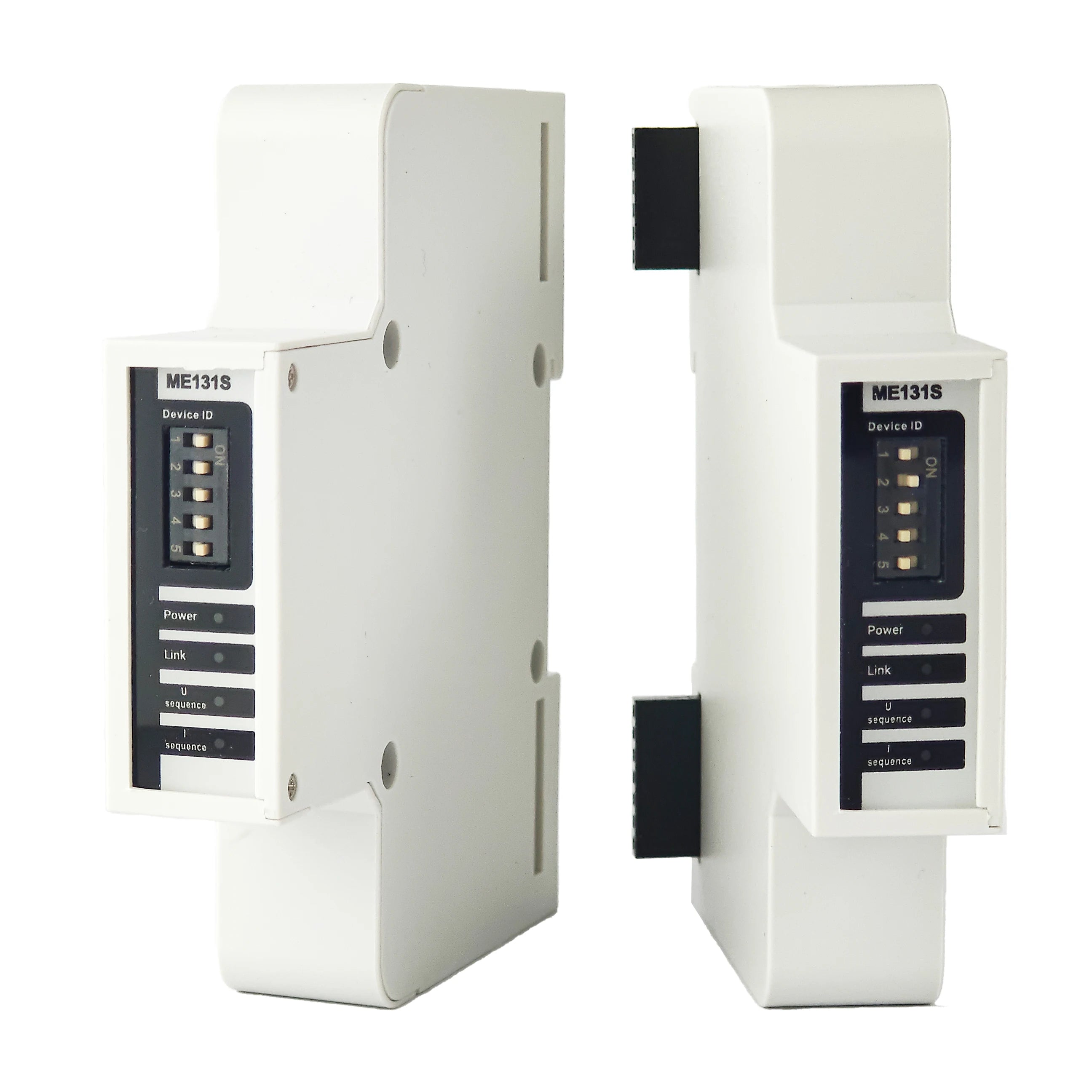

Submeter: ME131S
|
|
|
Type of current sensor
|

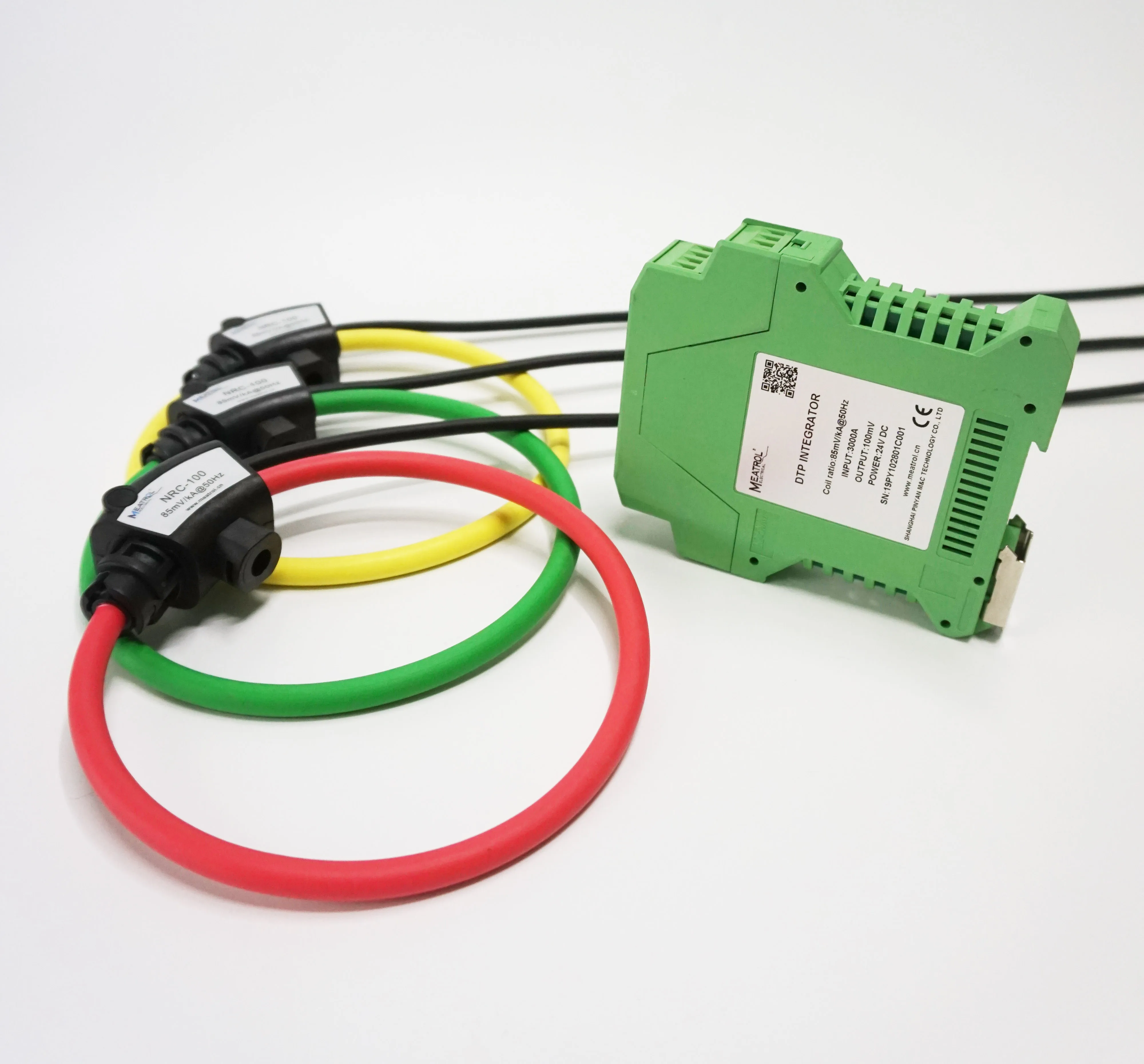

Rogowski coil
Voltage-output current transformer |
|
|
Feature
|

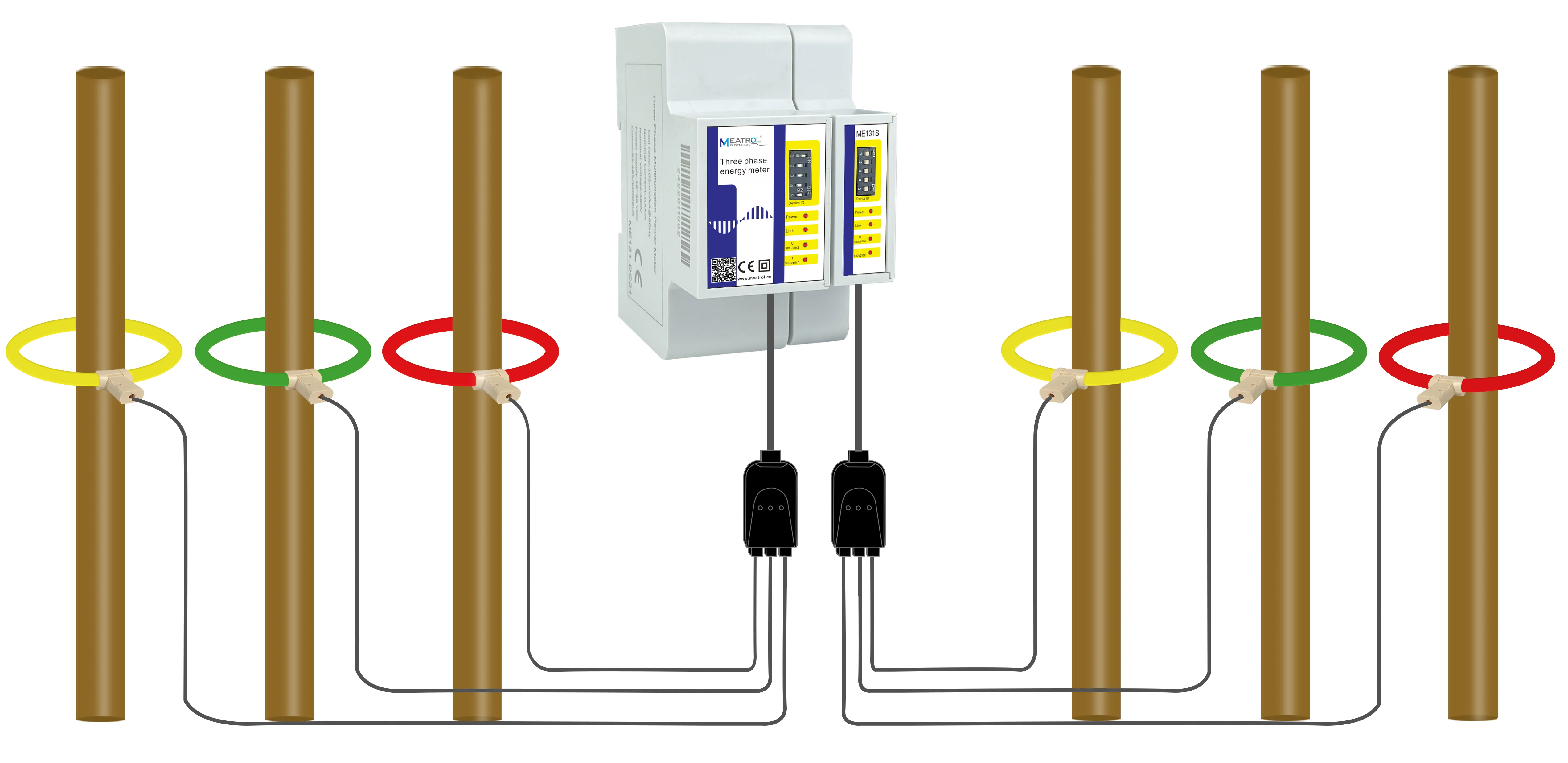

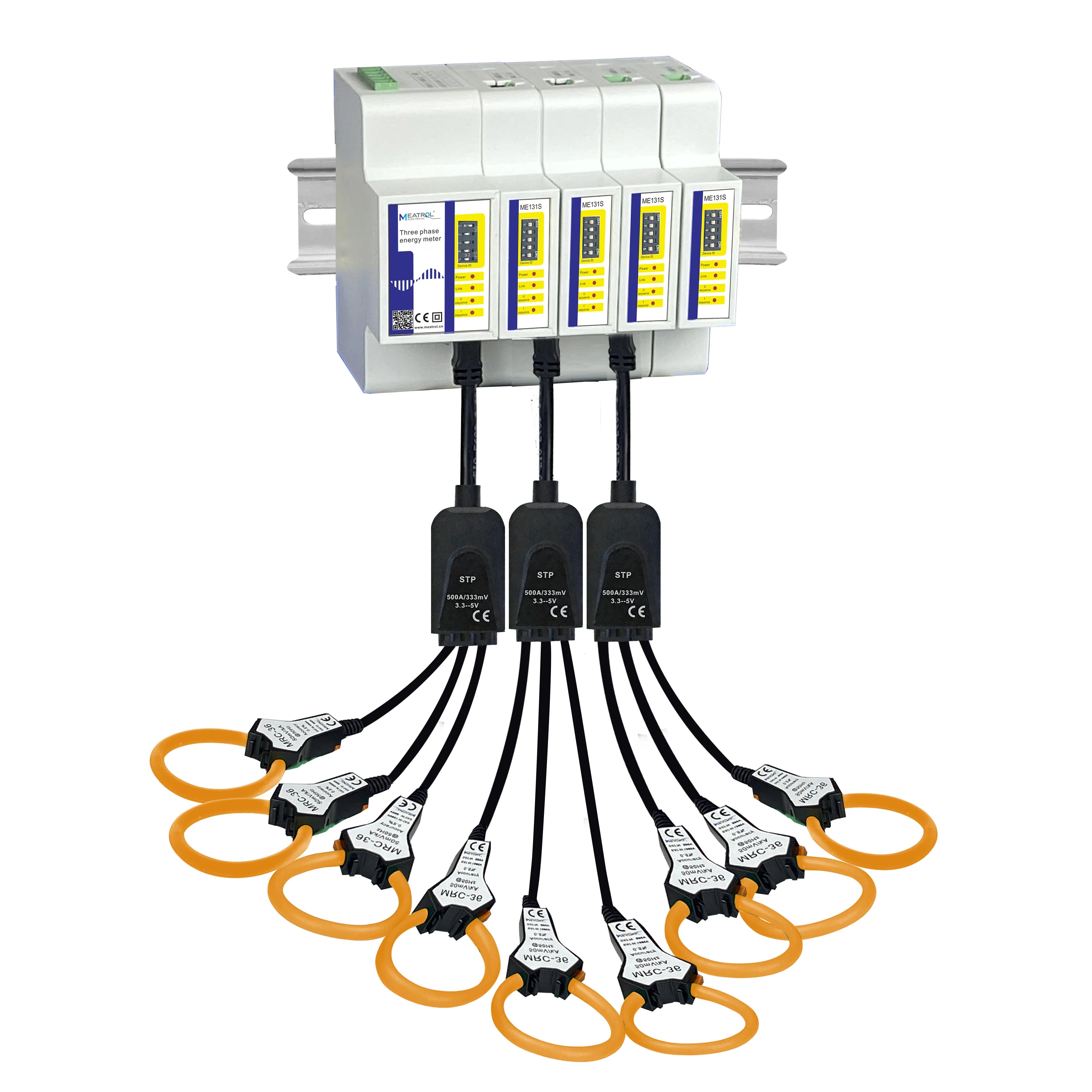

Directly connect to Rogowski coil
|
|
|
Advantage
|
Wide current range, measurement without dismantling
|
|
|
Wiring system
|
3P4W_3CT, 3P3W_3CT, 3P3W_2CT, 1P3W, 1P2W
|
|
|
Application field
|
Power analysis and energy consumption monitoring
|
|
|
Display screen
|
None
|
|
|
Weight
|
ME131M: 122g
ME131S: 59g |
|
|
Dimention
|
ME131M: L*W*D 9.3*8.0*3.6CM;
ME131S: L*W*D 9.3*8.0*1.81CM |
|
|
Channel input voltage range
|
0-900mVAC peak, 636 mV RMS
|
|
|
Measurement range
|
Different current sensors have different measuring ranges
|
|
|

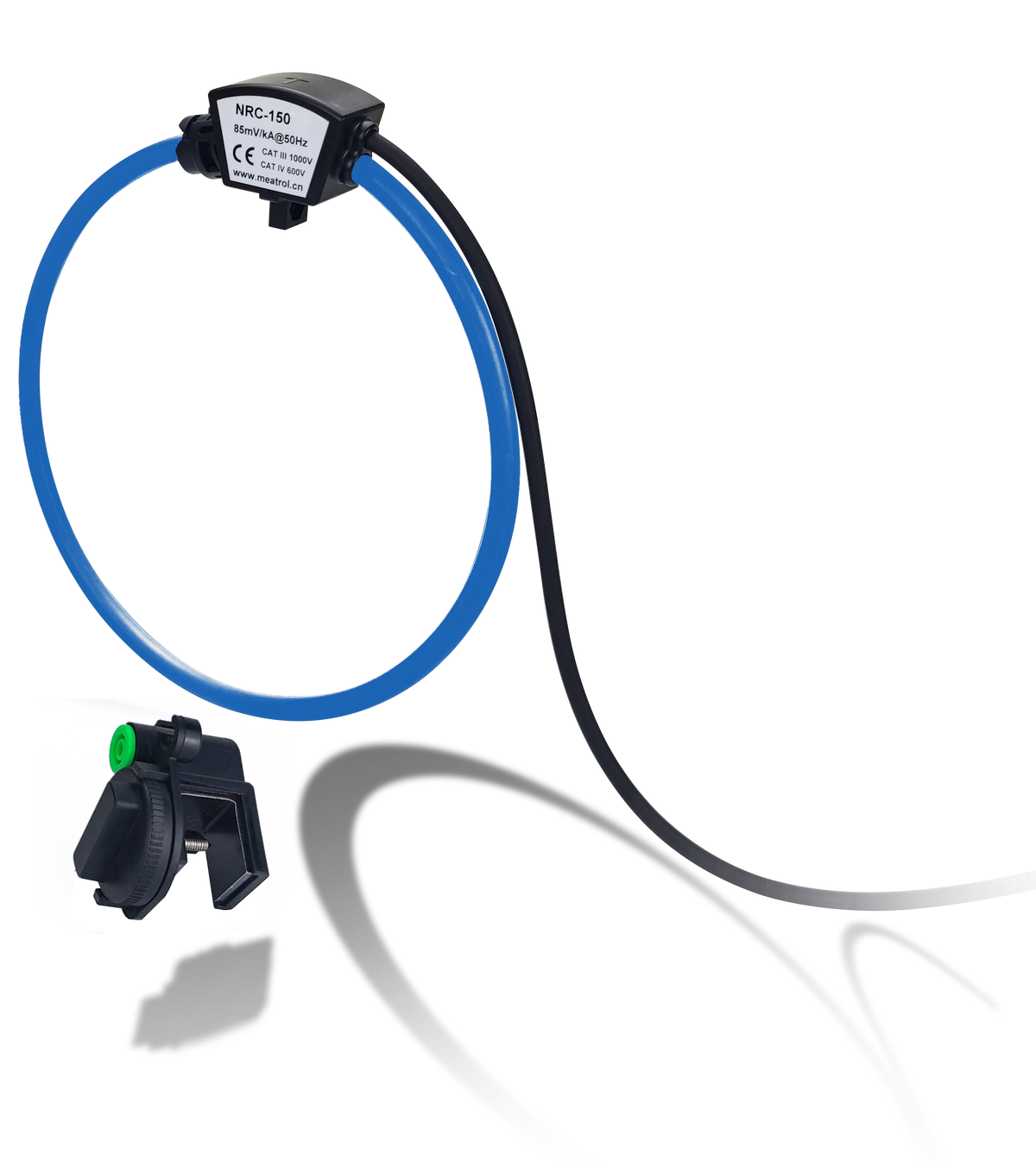

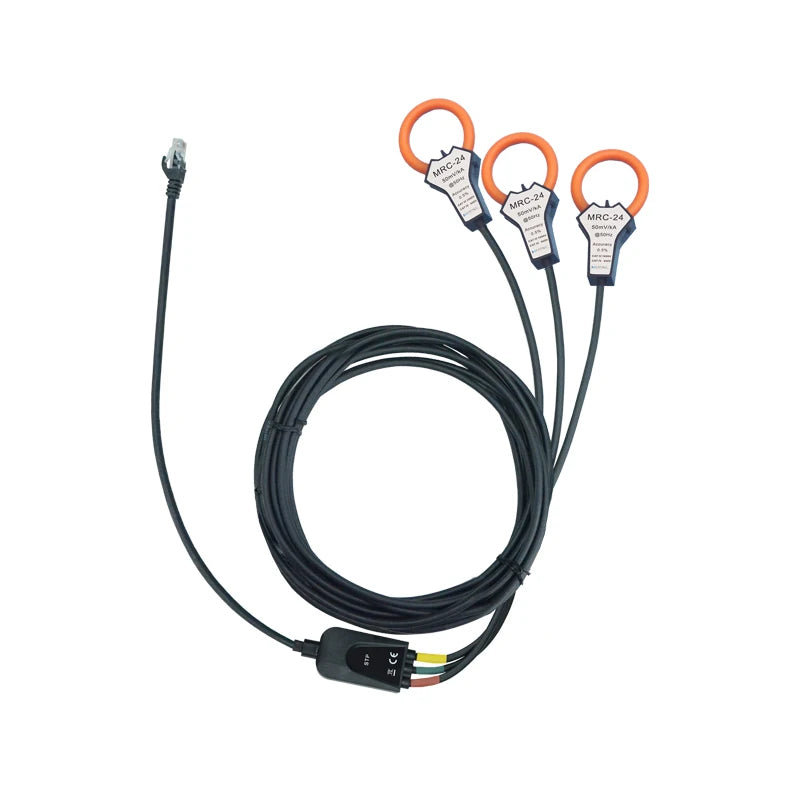

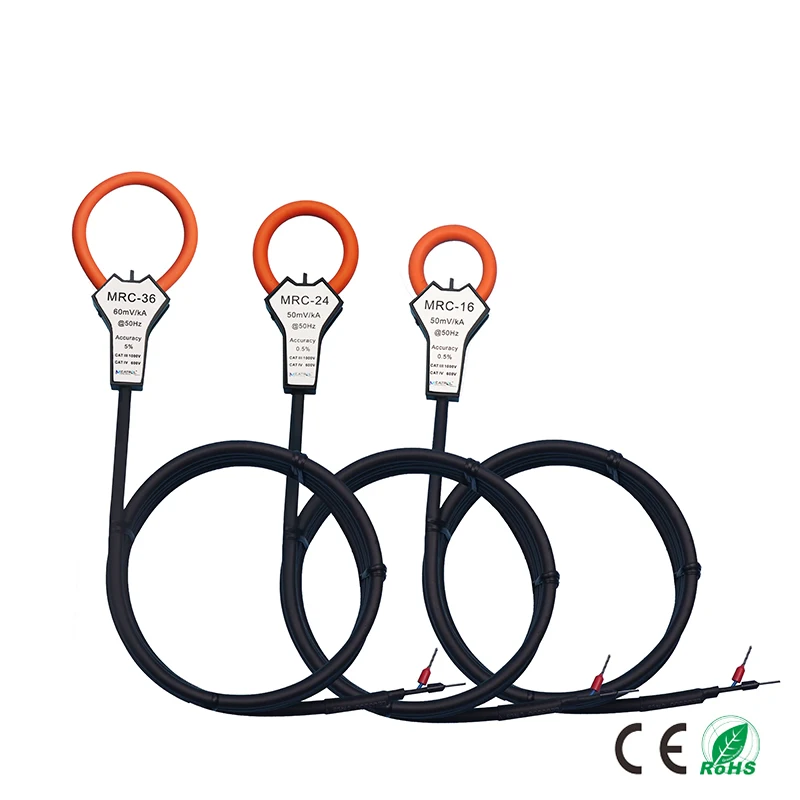

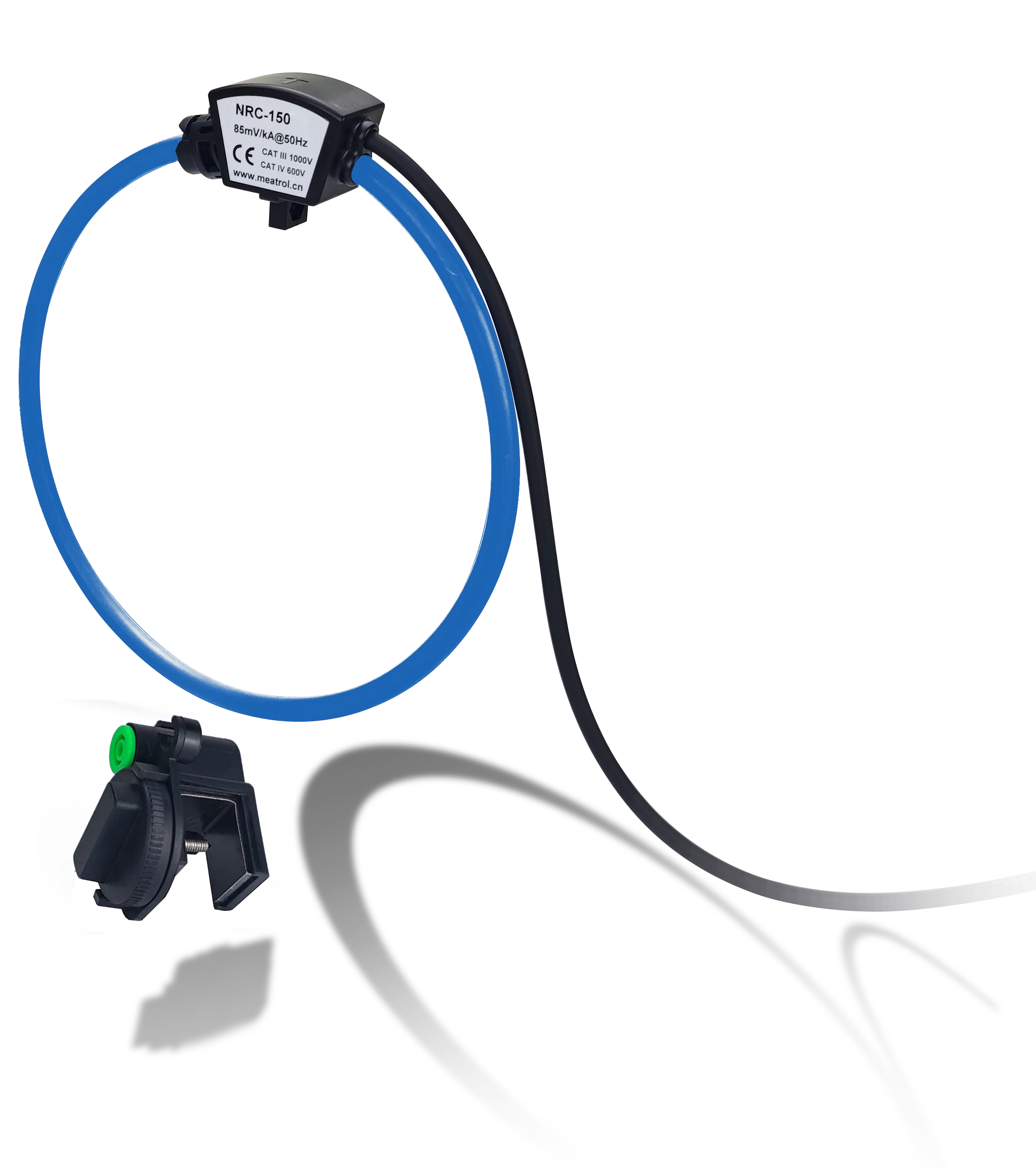

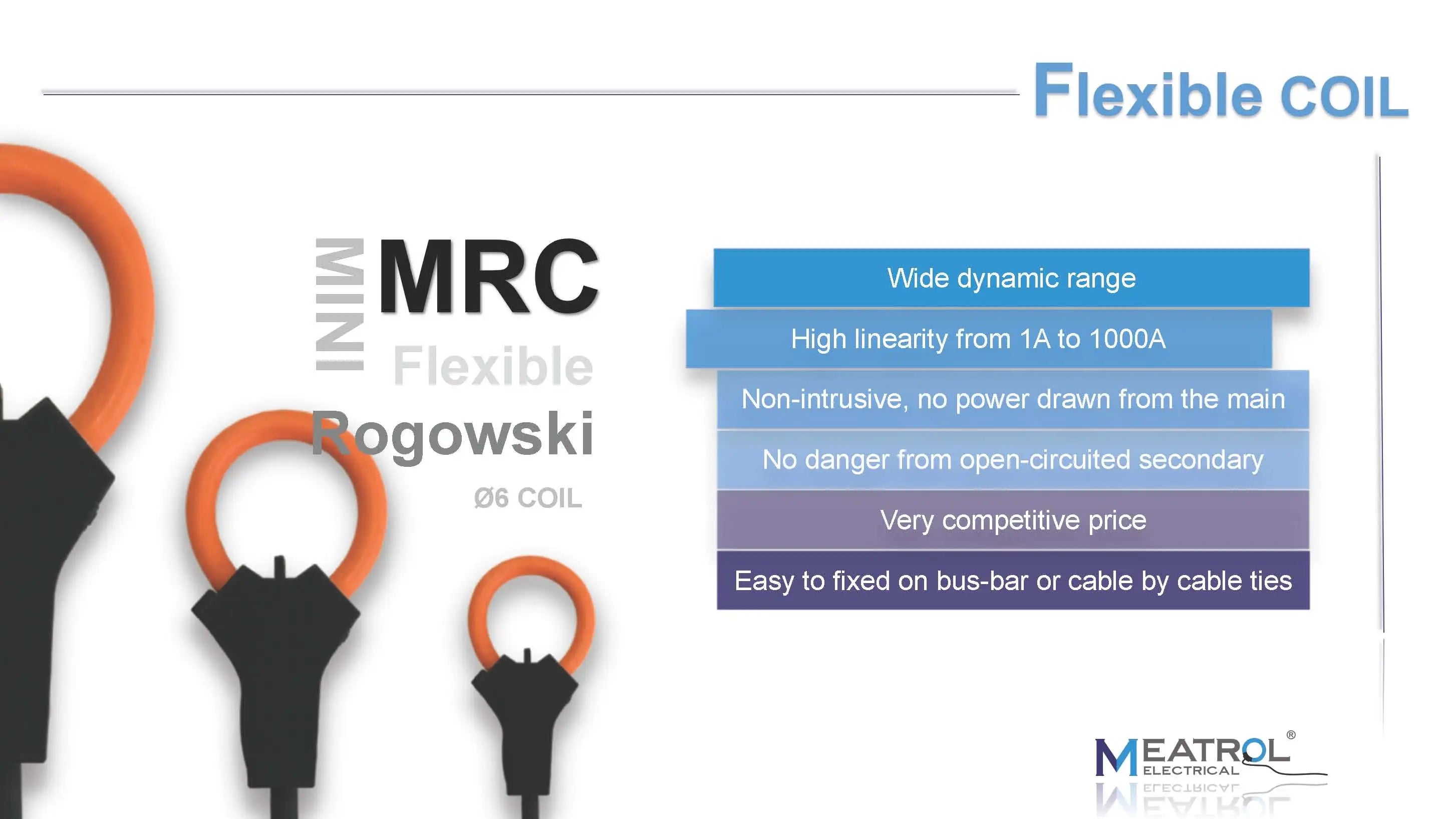

Rogowski coil
|
50mV/kA@50Hz(0-12000A), @60Hz(0-10000A)
85mV/kA@50Hz(0-7000A), @60Hz(0-6000A) 100mV/kA@50Hz(0-6000A), @60Hz(0-5000A) ... |
|
|
Voltage-output CT
|
0~99999A
|
|
|
Measurement range
|
0~600VAC
|
|
|
Switching output(Digital signal)
|
1-circuit electromagnetic relay output, contact capacity: 3A 30V DC,3A 250V AC
|
|
|
Switching value input(Digital signal)
|
Optocoupler isolation(5kVrms)
|
|
|
RS485 Communication
|
One RS485 communication interface
Interface type: two-wire half-duplex Communication baud rate: 2400bps~38400bps Protocol: Modbus-RTU |
|
|
Power supply
|
85~265VAC/110~370VDC, 45~60Hz
(24V DC power supply version could be customized) |
|
|
Maximum power consumption
|
≤3.5VA
|
|
|
Measurement parameters
|
|
|
|
Instantaneous value
|
|
|
|
Phase Voltage
|
U1, U2, U3, AVG, U0 (Zero sequence voltage)
|
|
|
Line Voltage
|
U12, U23, U31, AVG
|
|
|
Current
|
I1, I2, I3, AVG, In
|
|
|
Grid frequency
|
F1, F2, F3, ∑
|
|
|
Power factor PF
|
PF1, PF2, PF3, ∑
|
|
|
Fundamental power factor DPF
|
DPF1, DPF2, DPF3, ∑
|
|
|
Active power
|
P1, P2, P3, ∑
|
|
|
Reactive power
|
Q1, Q2, Q3, ∑
|
|
|
Apparent power
|
S1, S2, S3, ∑
|
|
|
Energy
|
|
|
|
Active energy Pos.
|
EP1, EP2, EP3, ∑
|
|
|
Active Energy Neg.
|
EP1, EP2, EP3, ∑
|
|
|
Reactive Energy Pos.
|
EQ1, EQ2, EQ3, ∑
|
|
|
Reactive energy Neg.
|
EQ1, EQ2, EQ3, ∑
|
|
|
Apparent Energy
|
ES1, ES2, ES3, ∑
|
|
|
Tariff Energy
|
ET1, ET2, ET3, ET4, ET5, ET6
|
|
|
Harmonics
|
|
|
|
Voltage Harmonic Distortion
|
Total harmonic(U1, U2, U3)
Odd total harmonic(U1, U2, U3) Even total harmonic(U1, U2, U3) Sub-harmonic 1-50th(U1, U2, U3) |
|
|
Current Harmonic Distortion
|
Total harmonic(I1, I2, I3)
Odd total harmonic(I1, I2, I3) Even total harmonic(I1, I2, I3) K-factor(I1, I2, I3) Sub-harmonic 1-50th(I1, I2, I3) |
|
|
Voltage Harmonic Value
|
Total harmonic(U1, U2, U3)
Sub-harmonic 1-50th(U1, U2, U3) |
|
|
Current Harmonic Value
|
Total harmonic(I1, I2, I3)
Sub-harmonic 1-50th(I1, I2, I3) |
|
|
Phase
|
|
|
|
Phase sequence
|
Voltage, Current
|
|
|
Voltage angle
|
U1, U2, U3
|
|
|
Current angle
|
I1, I2, I3
|
|
|
Voltage-current angle
|
UI1, UI2, UI3
|
|
|
Demand
|
Total active power, total reactive power, total apparent power
|
|
|
Maximum demand of total active power
|
Maximum demand and time
|
|
|
Maximum demand of total reactive power
|
Maximum demand and time
|
|
|
Maximum demand of total apparent power
|
Maximum demand and time
|
|
|
Unbalance
|
|
|
|
Voltage unbalance
|
Negative Sequence, zero Sequence
|
|
|
Current unbalance
|
Negative Sequence, zero Sequence
|
|
|
Max. & Min.
|
|
|
|
Phase Voltage
|
Each phase and average
|
|
|
Line Voltage
|
Each phase and average
|
|
|
Current
|
Each phase and average
|
|
|
Active power
|
Each phase and total
|
|
|
Reactive power
|
Each phase and total
|
|
|
Apparent power
|
Each phase and total
|
|








* Accuracy: 0.5S

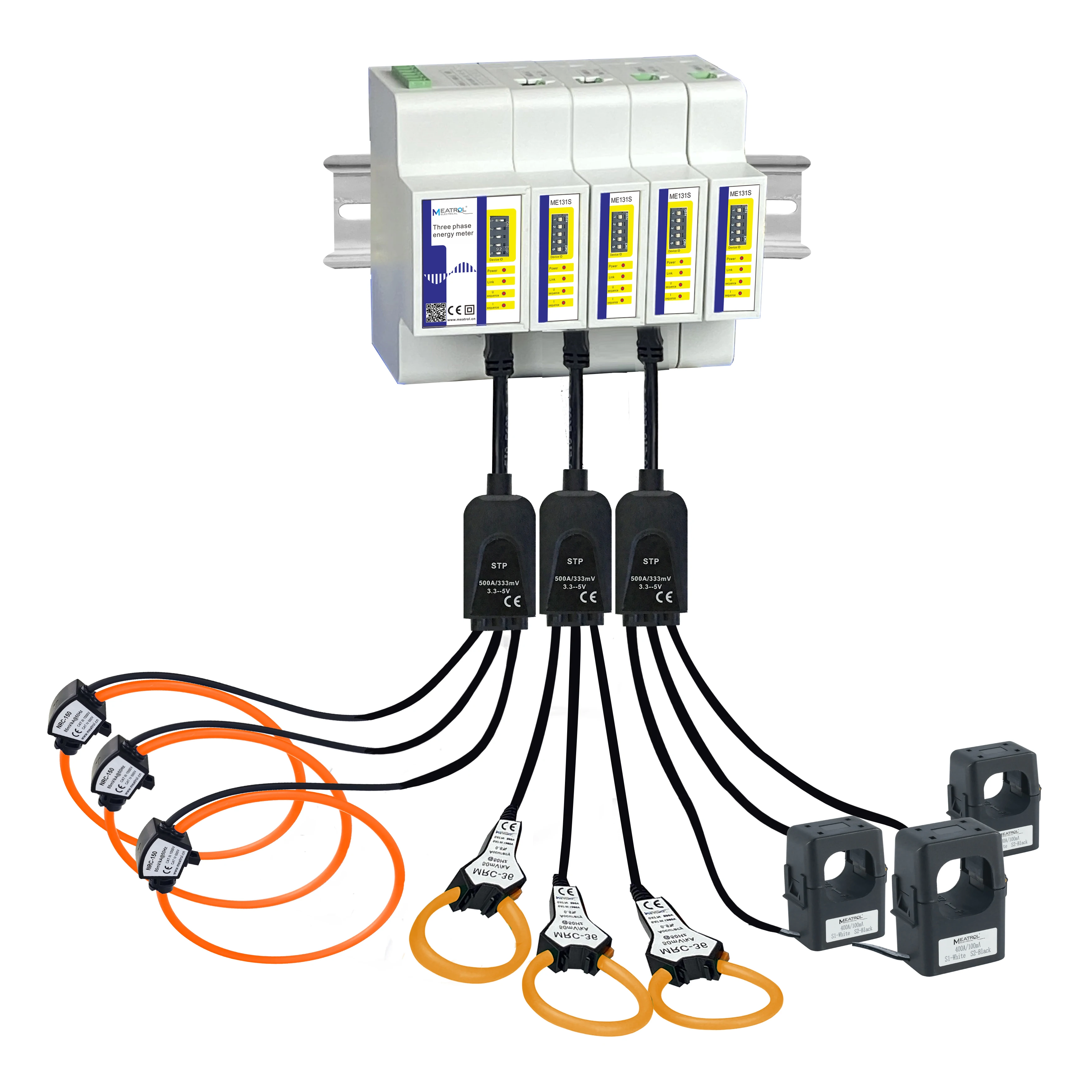

* Sensor:

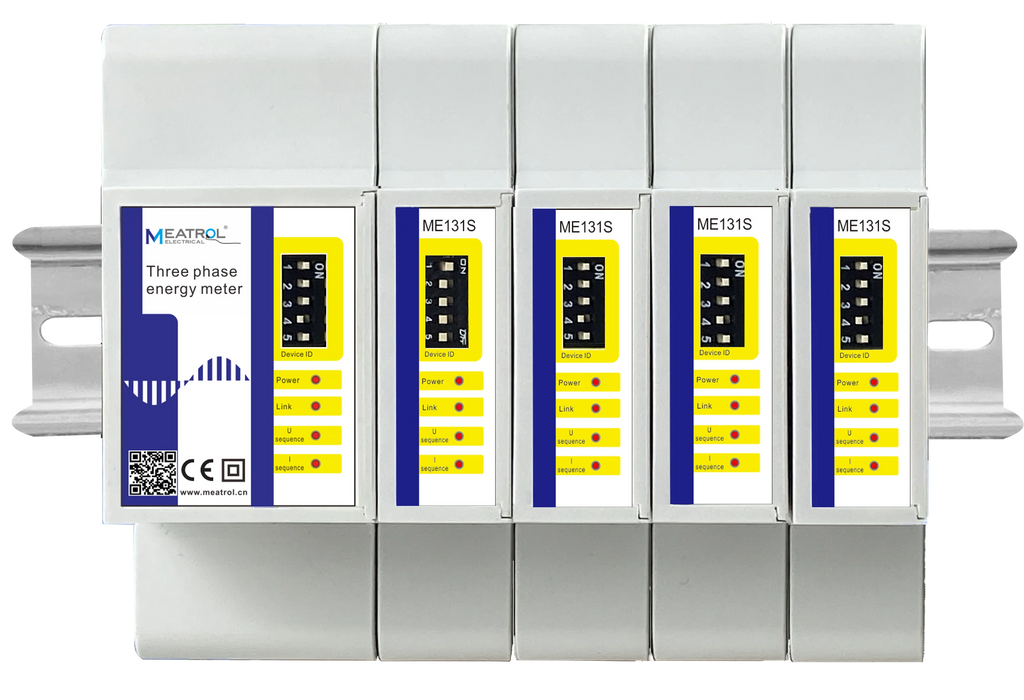

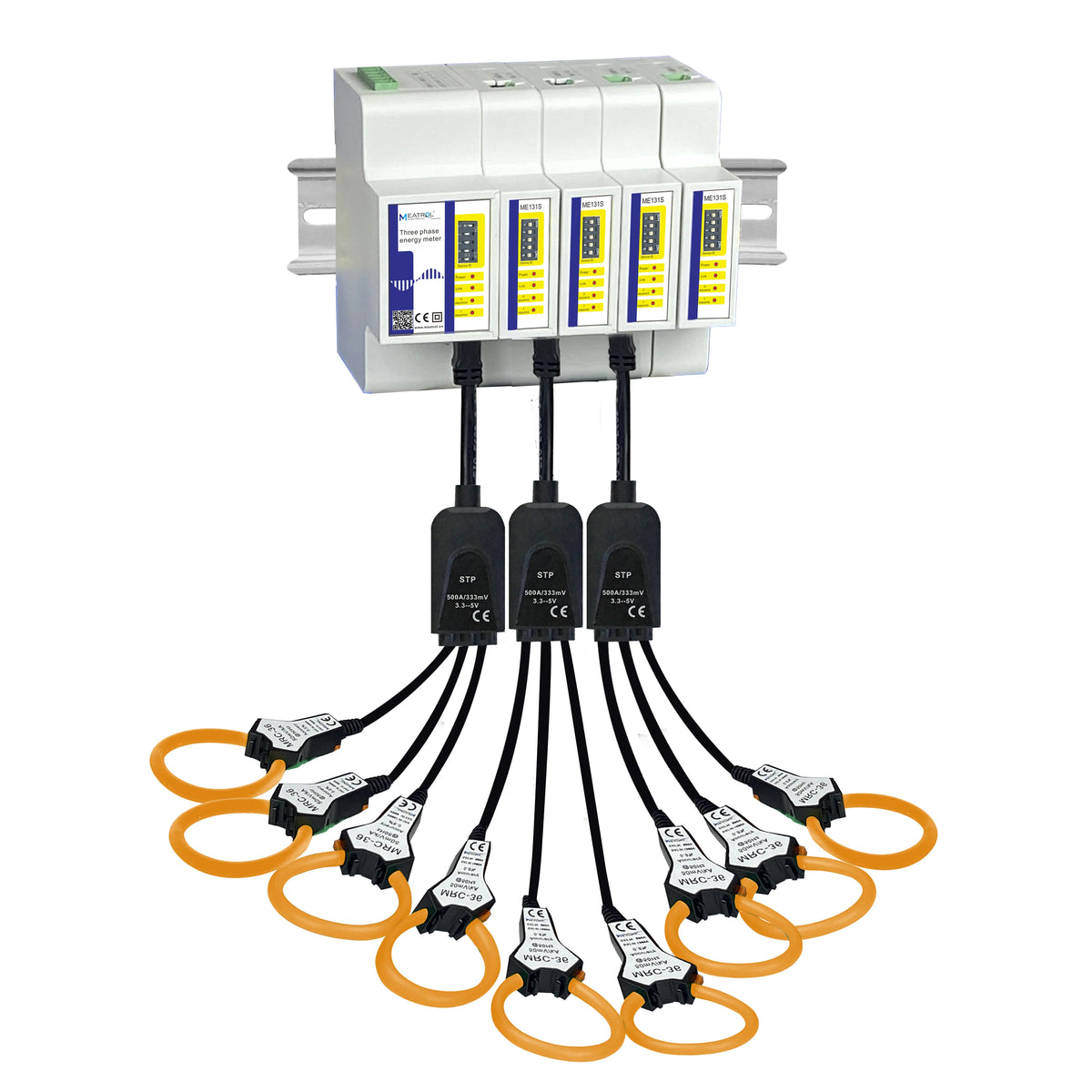

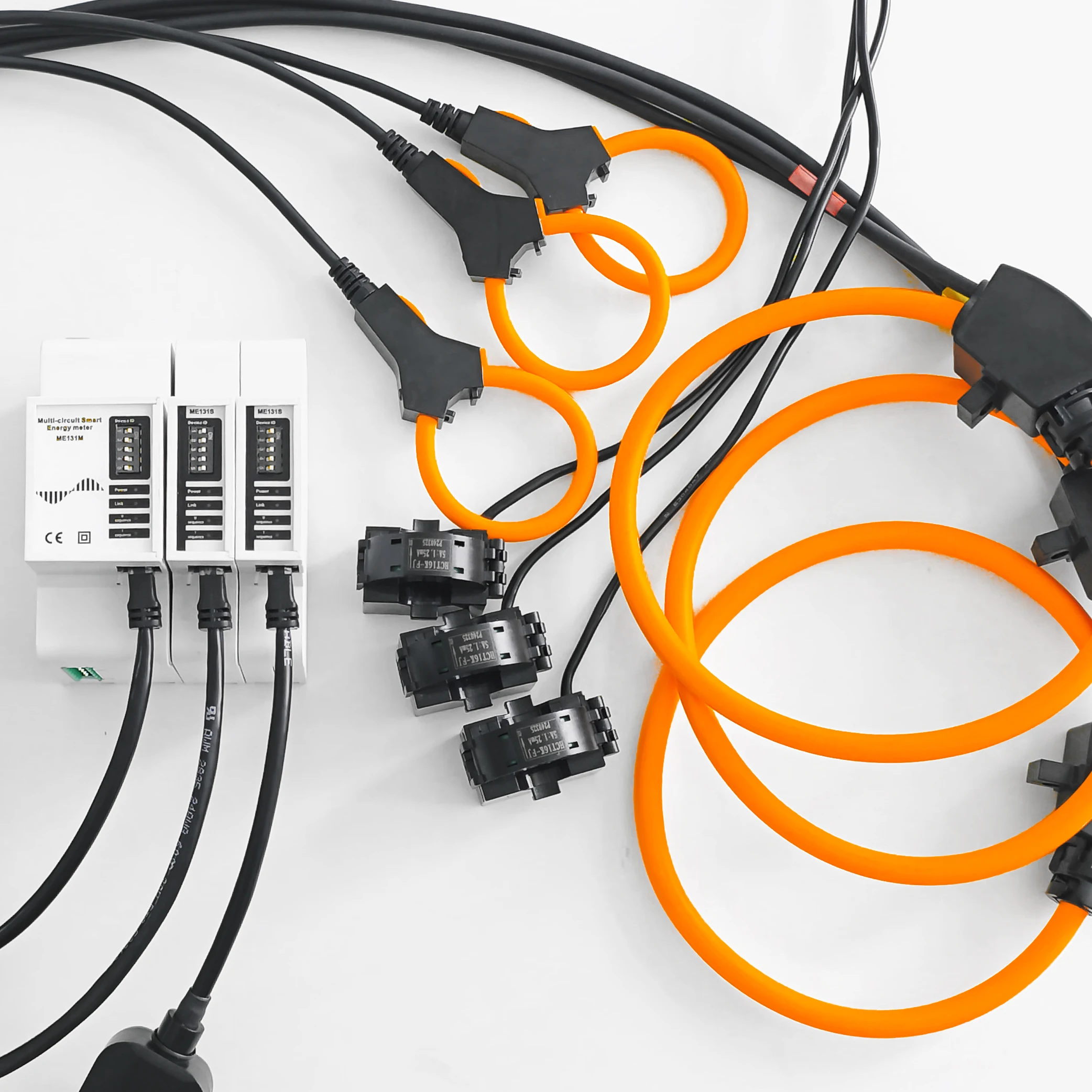

* Monitor up to 32 circuits
(Single phase/Three phase)
* Integrated power supply for master
* Communication: Modbus-RTU,
* Max baud rate: 38.4 kbps
* Test version software


Plug design
Centralized installation
Easy maintenance
Excellent function
Economical cost













A:We are the No.1 manufacturer of rogowski coil with meters in China over 16years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 1000k pcs Rogowski coil per year.
Q:Do you support customization?
A: Powerful R&D team, Any customization requirements related to Rogowski coil and power metets could be realized.
