SPECIFICATIONS

Brand Name: CNYANNUA

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: AD6

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 380V

is_customized: Yes

Describe

The product is widely used in air compressors, motors, distribution boxes, water pumps, oil pumps, central air conditioning units, electric control boxes, distribution cabinet cranes, etc., such as central air conditioning compressor protection, power monitoring of various elevators, anti phase loss and reverse phase protection of water pumps and oil pumps, etc. It is an indispensable protection product for maintaining the normal working voltage of industrial equipment during operation.

Specifications

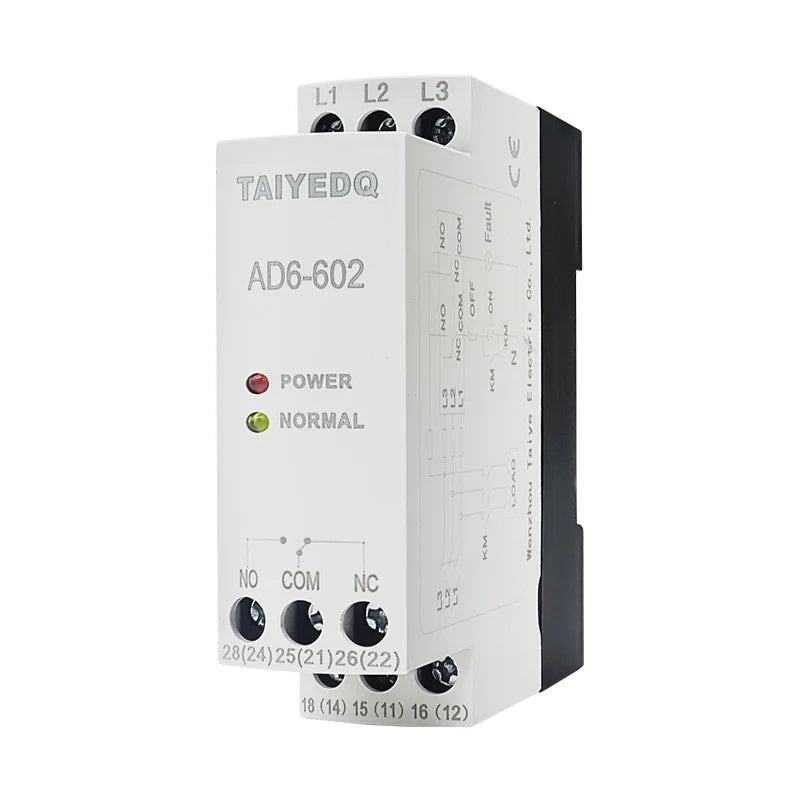

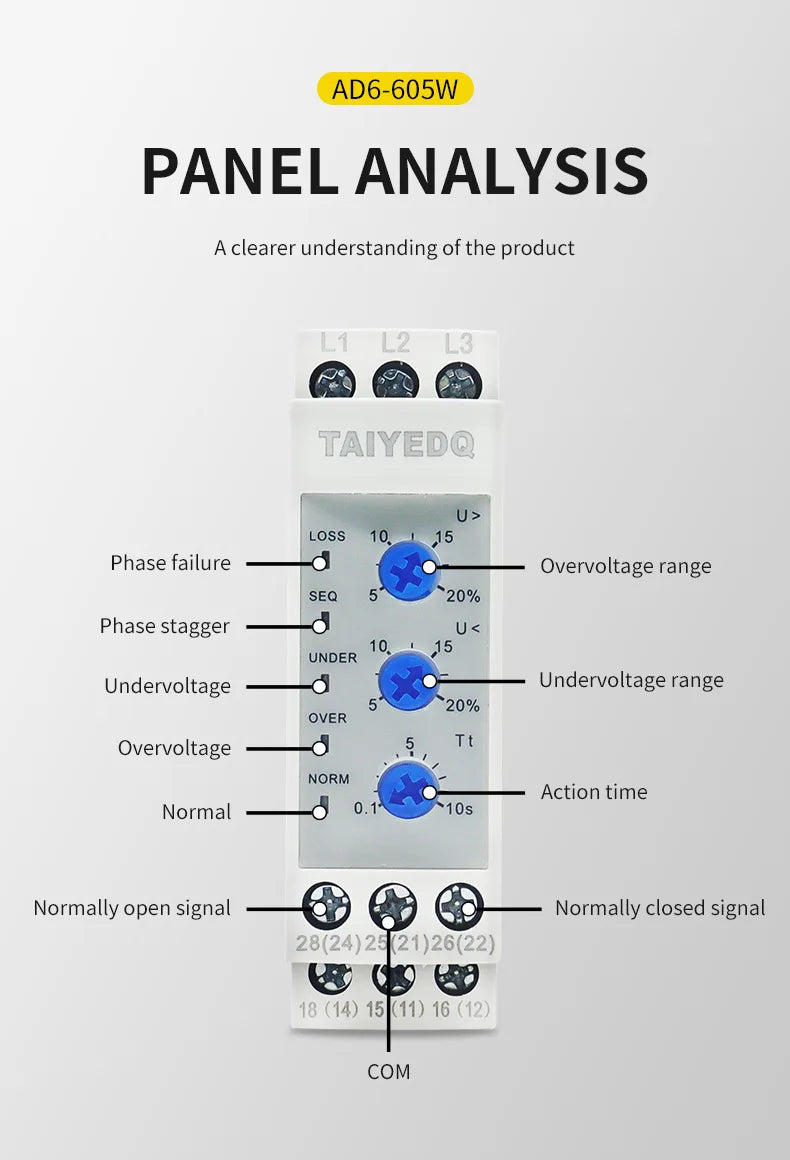

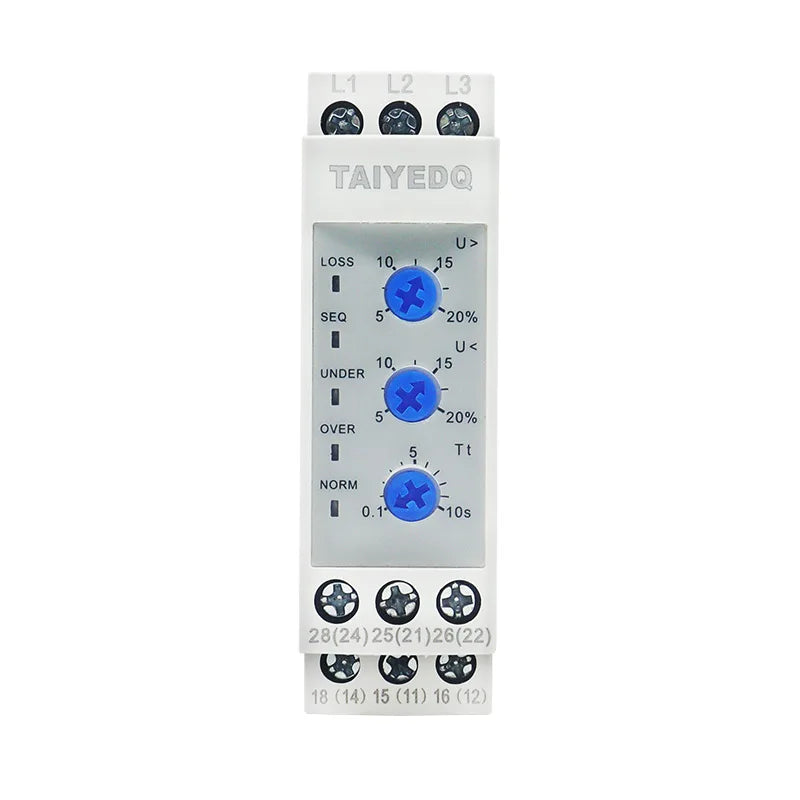

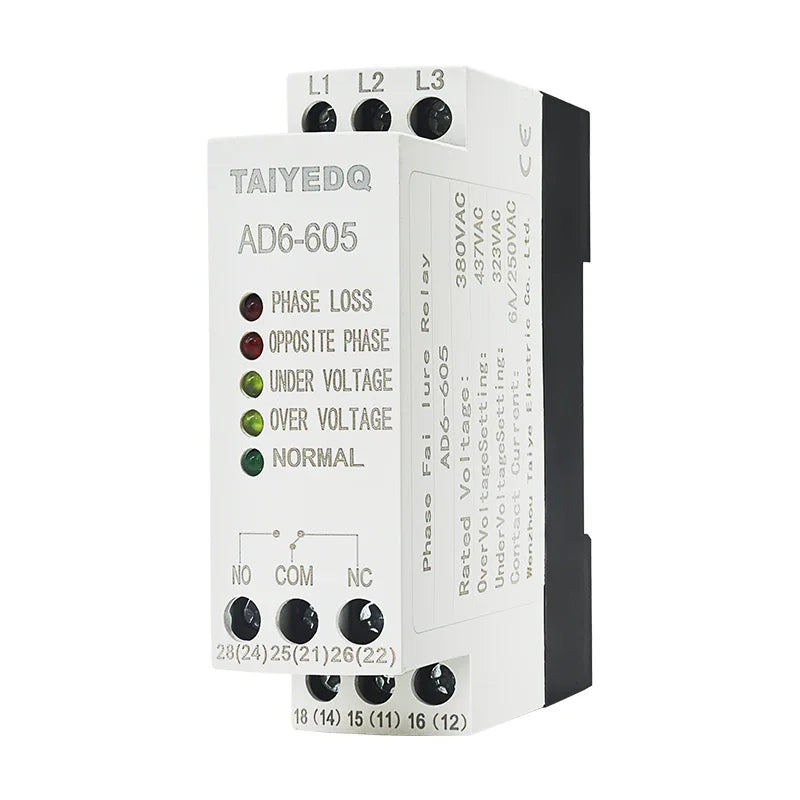

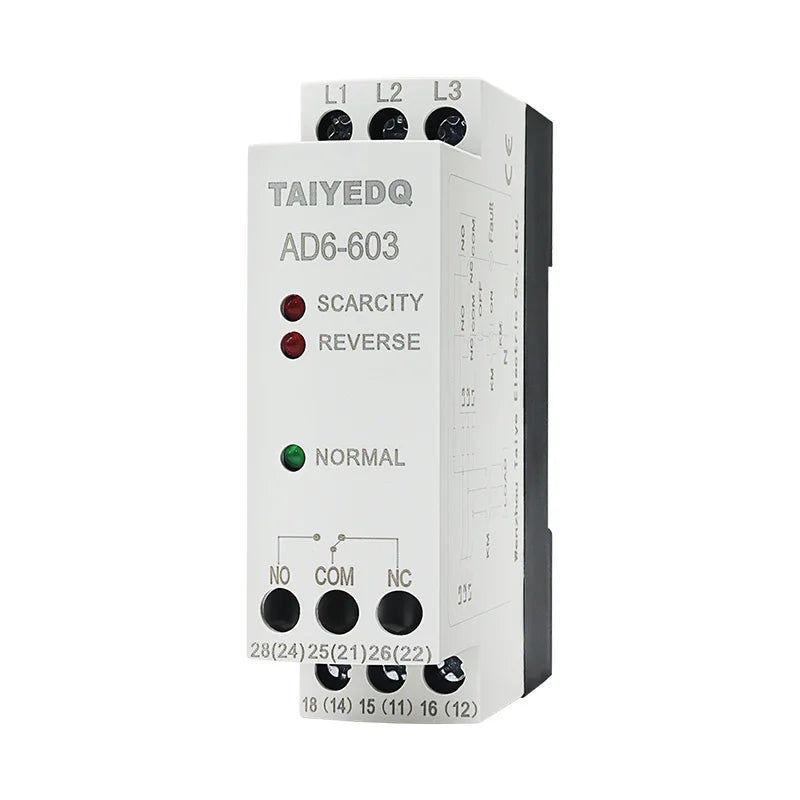

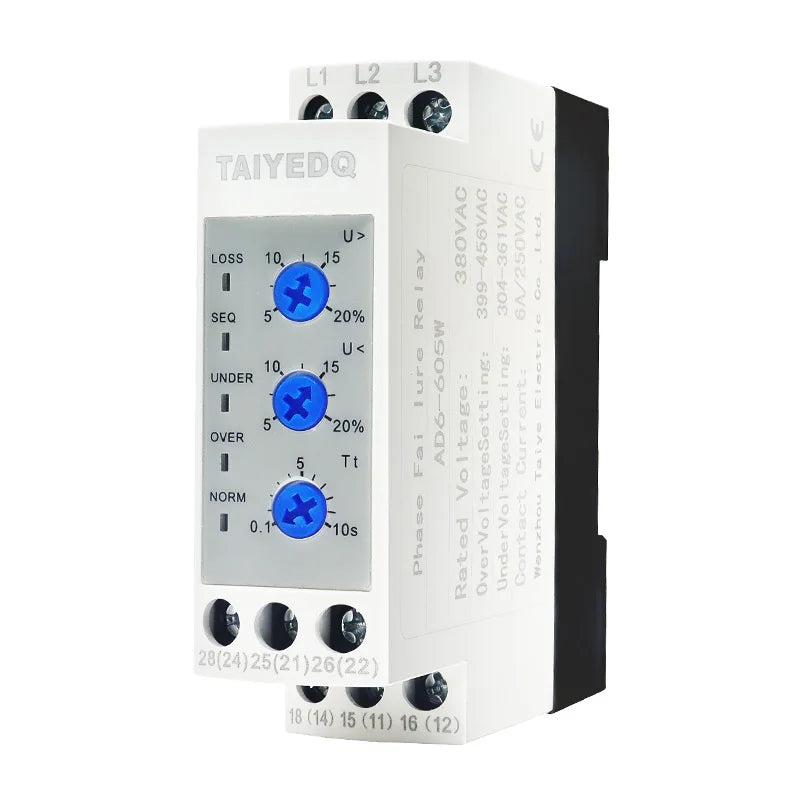

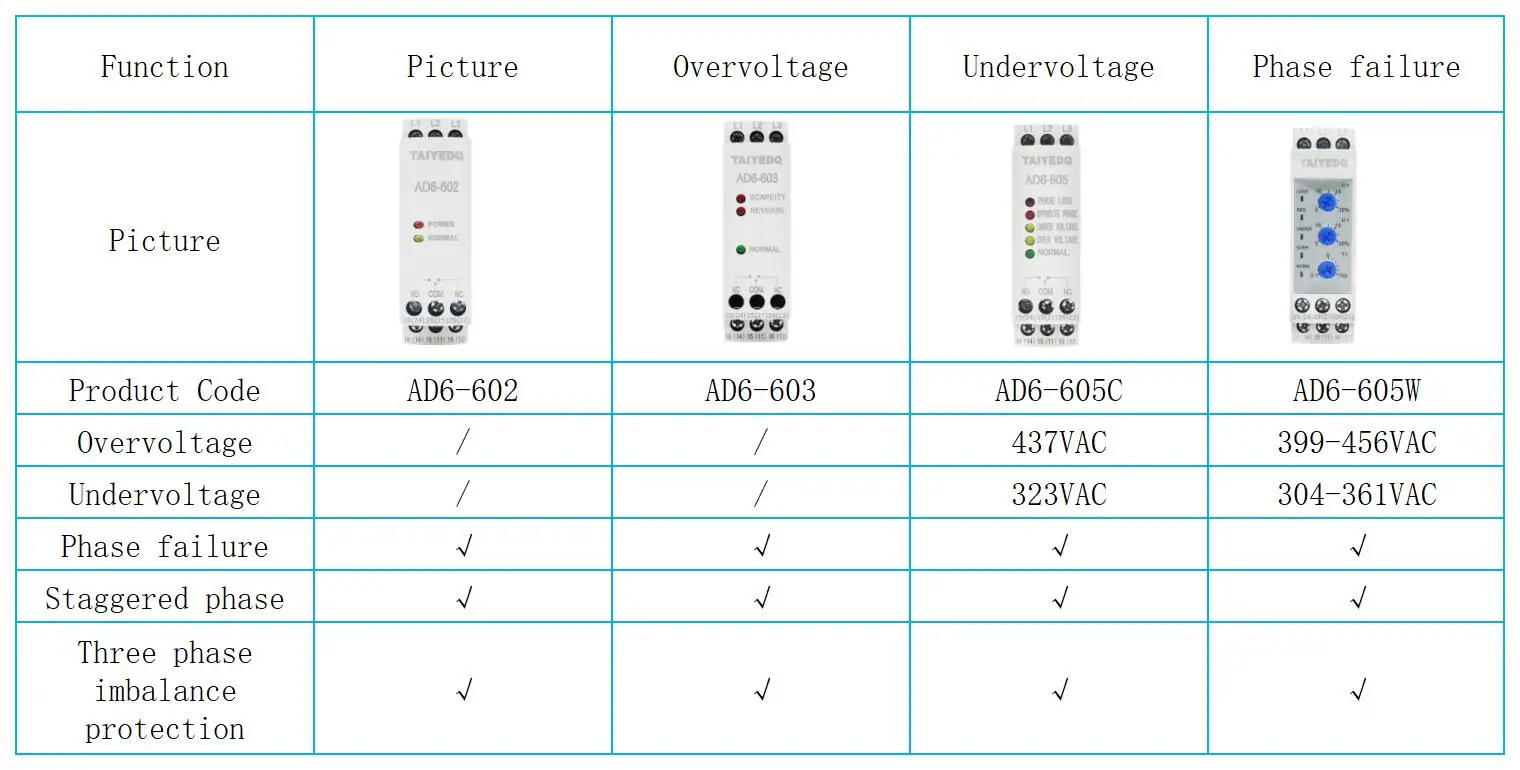

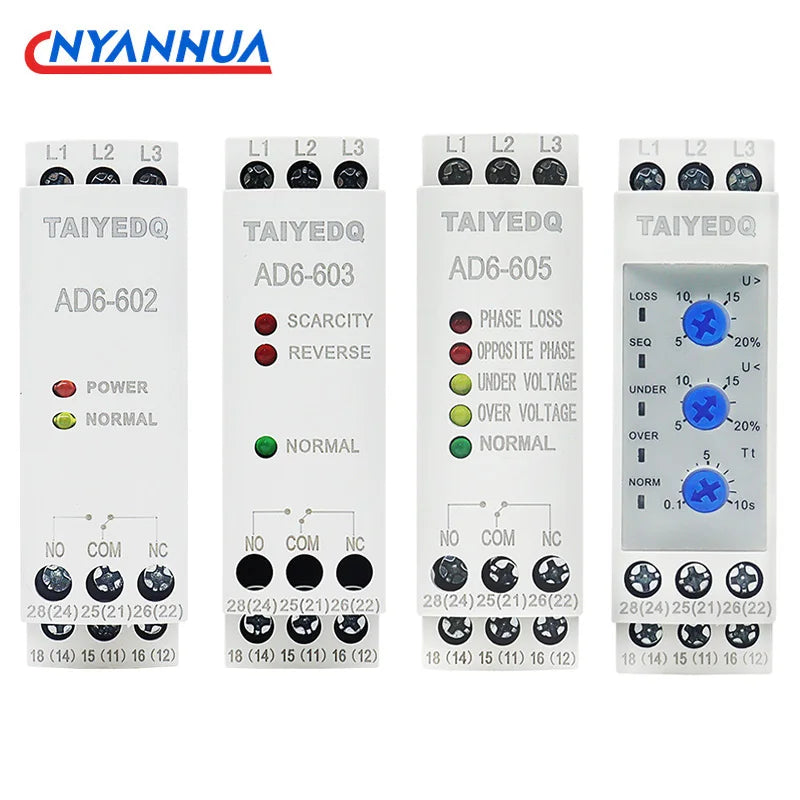

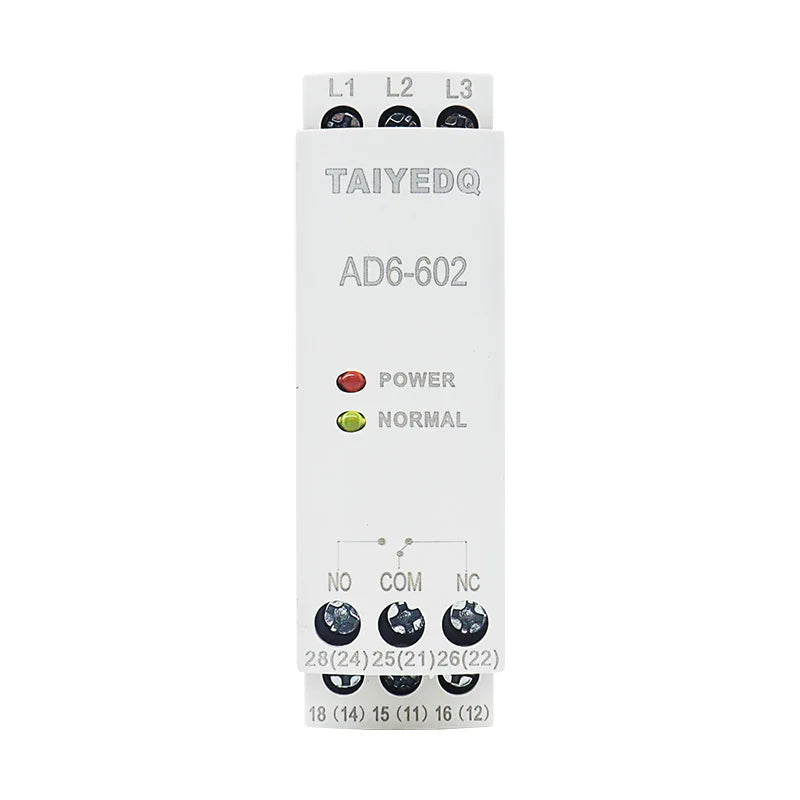

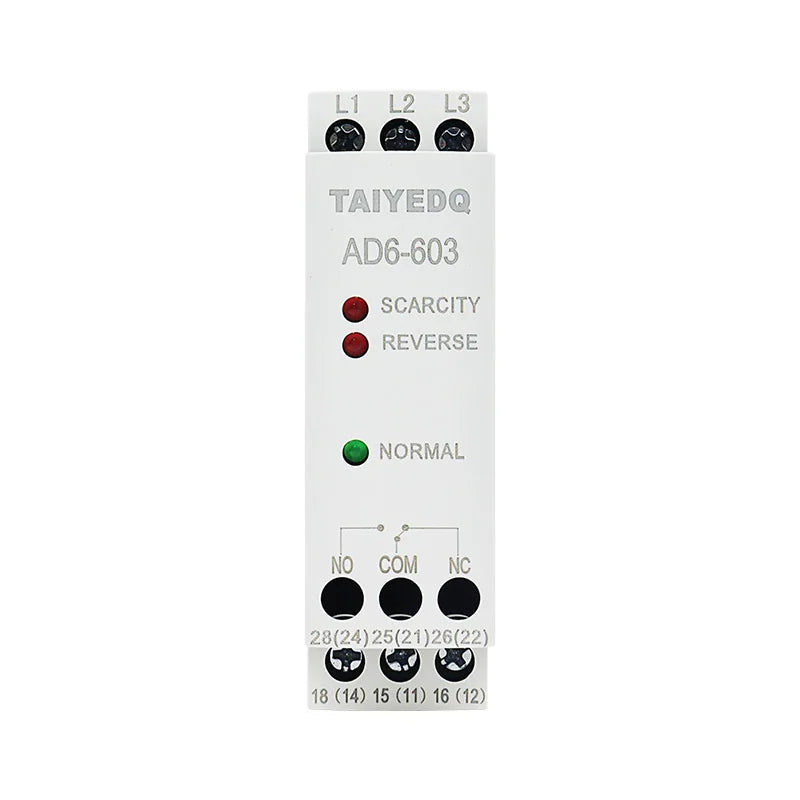

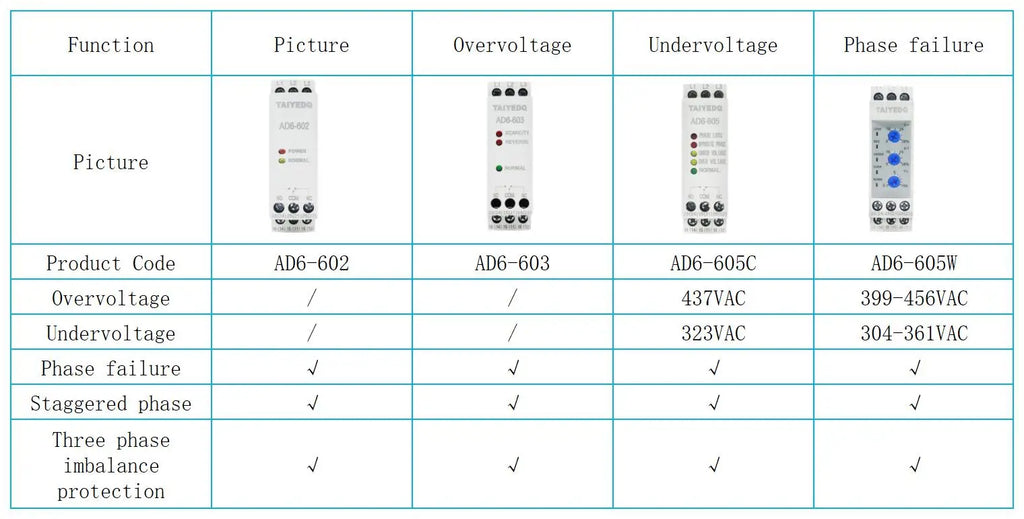

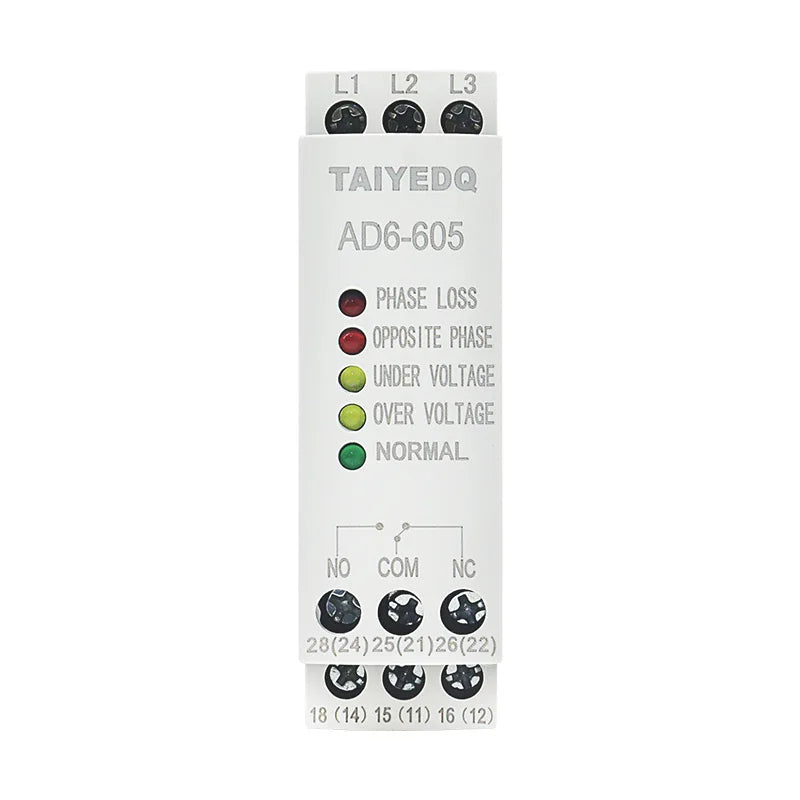

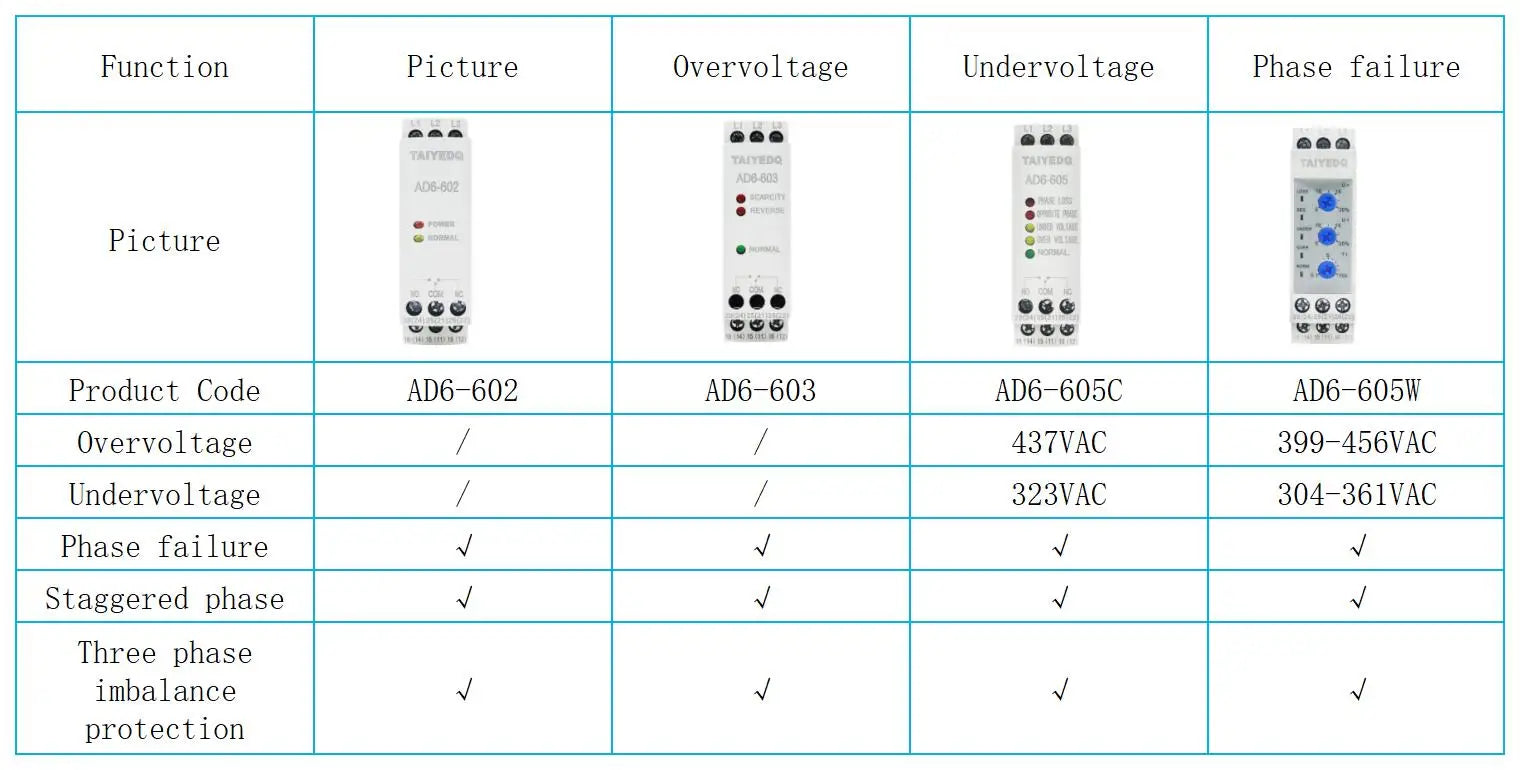

Model:AD6-602 AD6-603 AD6-605 AD6-605W

Over voltage setting: 399-456VAC

Under voltage setting: 304-361VAC

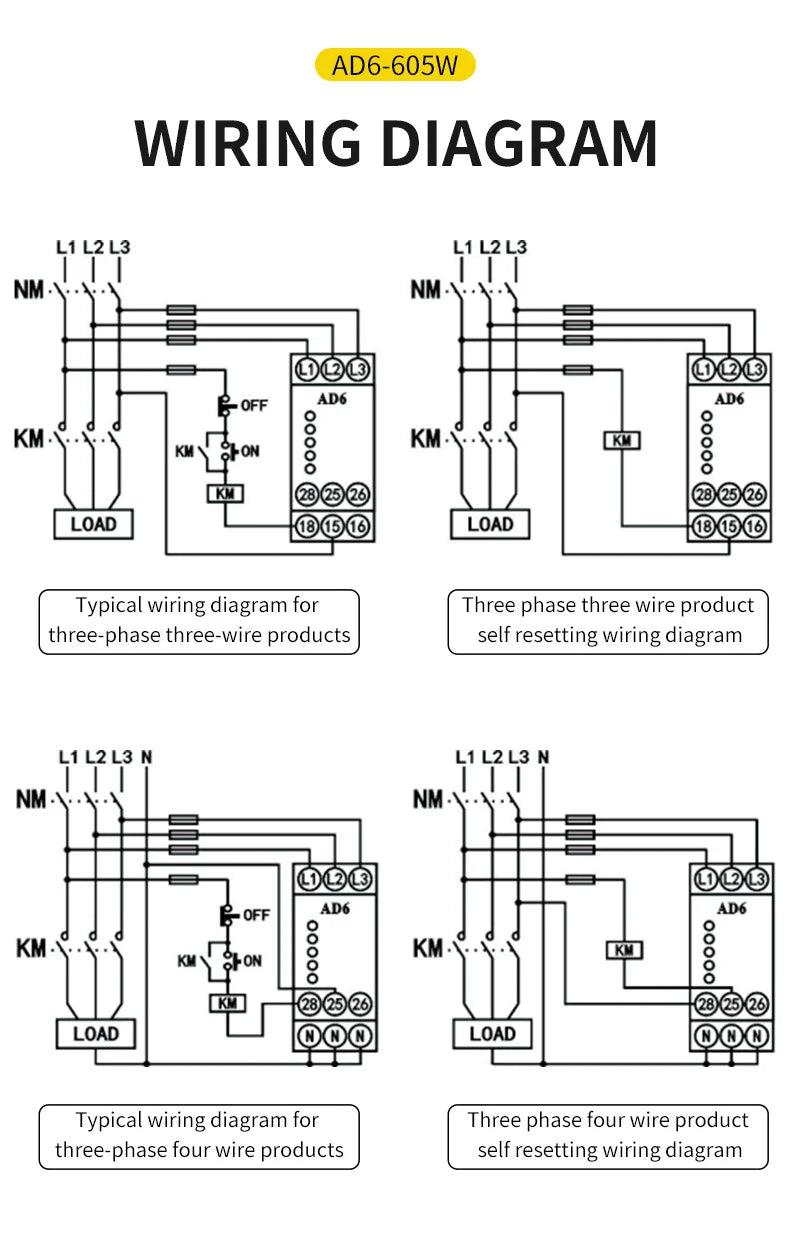

Monitoring circuit: L1, L2, L3

Rated voltage:380VAC. 50/60Hz

Protection function:Overvoltage, undervoltage protection, phase failure, phase mismatch, three-phase imbalance protection

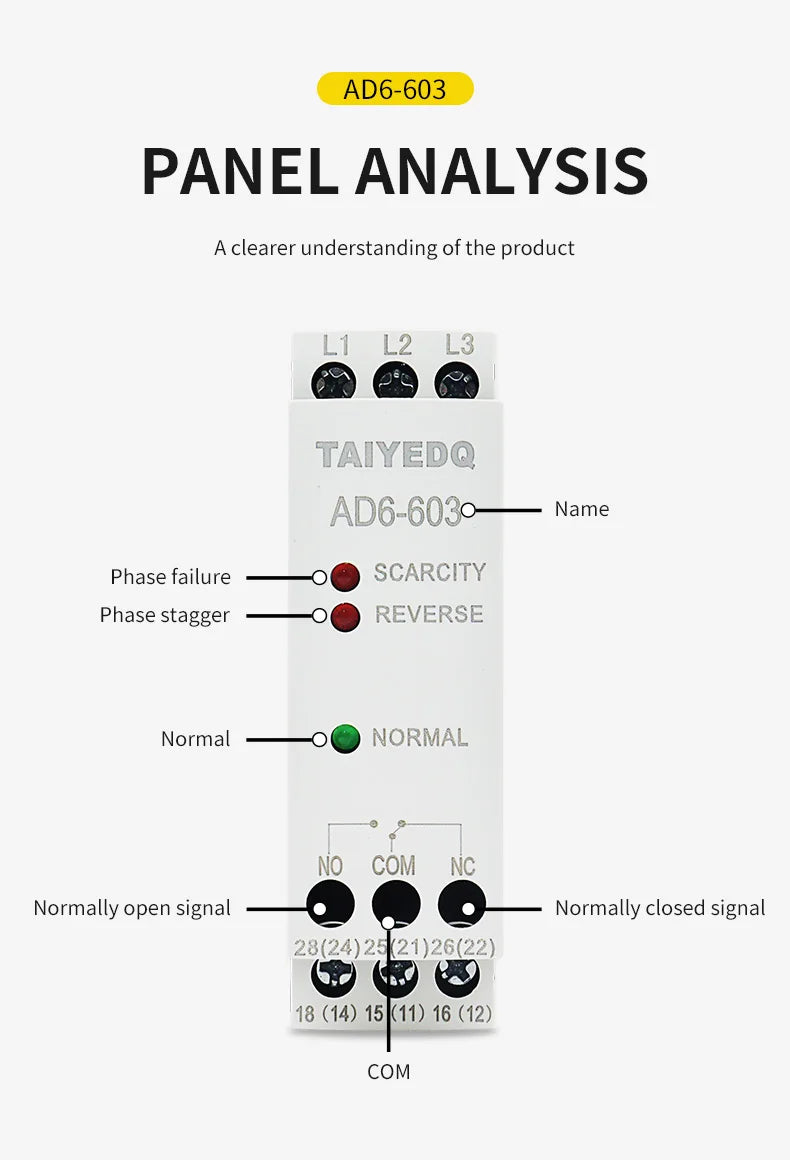

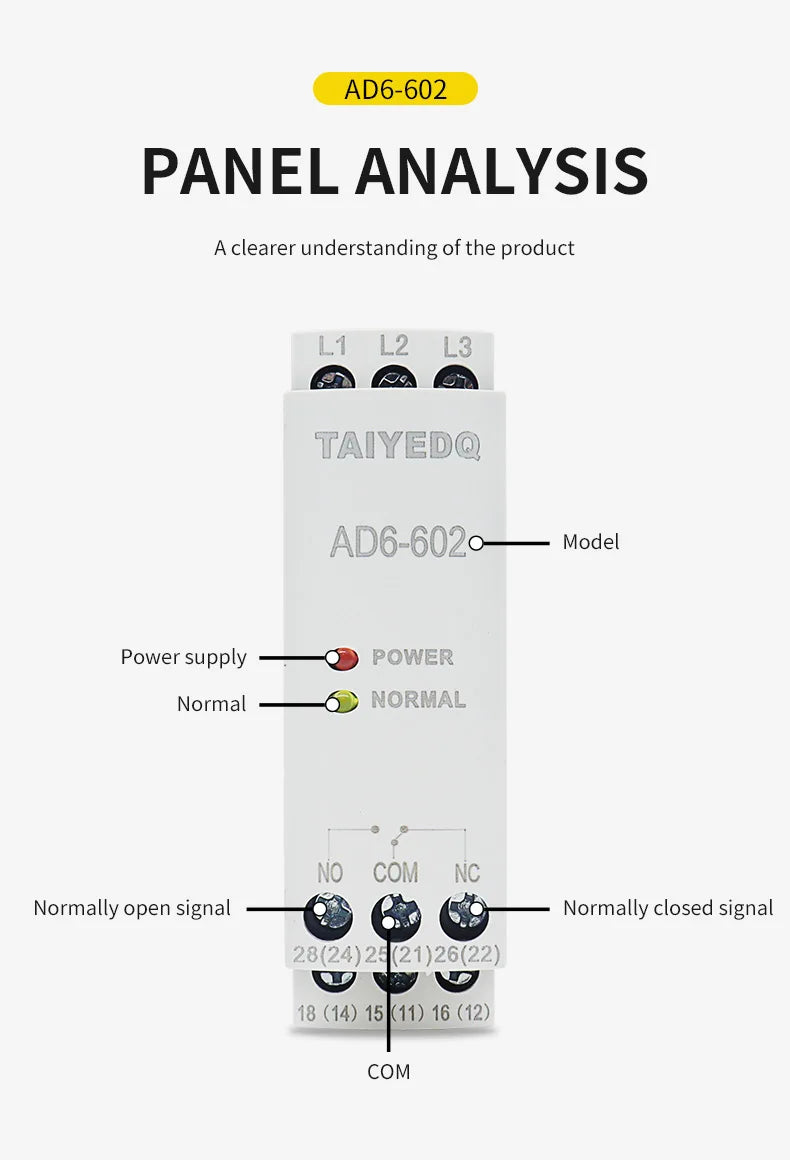

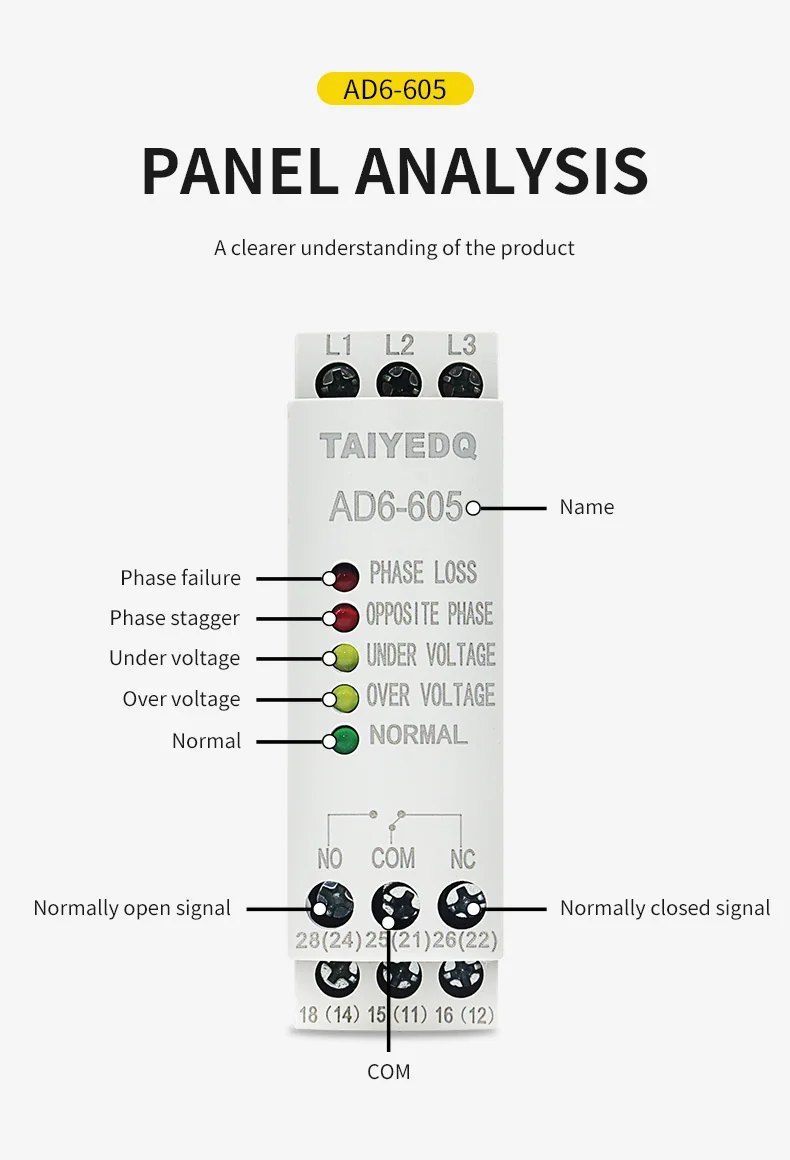

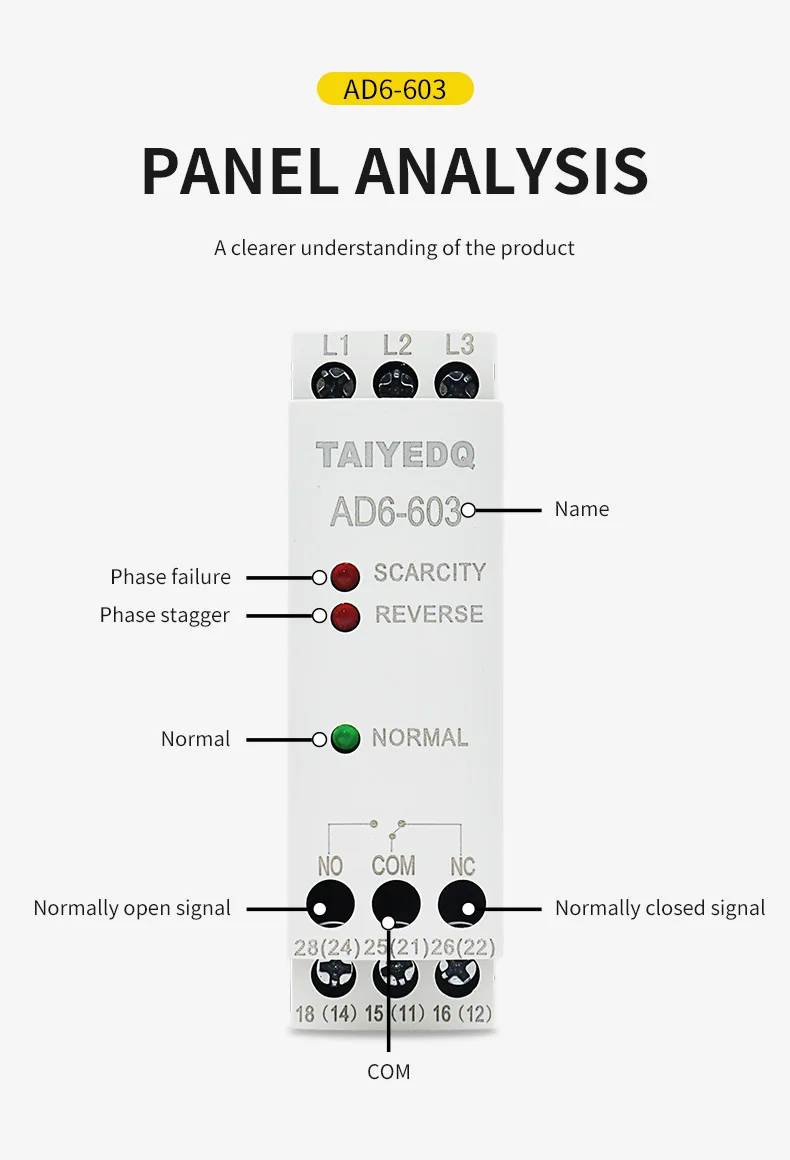

Display mode: power supply, normal 2 LED lights indicating working status

Contact form: 2NO2NC  1NO1NC

Contact capacity: 6A 250VAC (resistive)

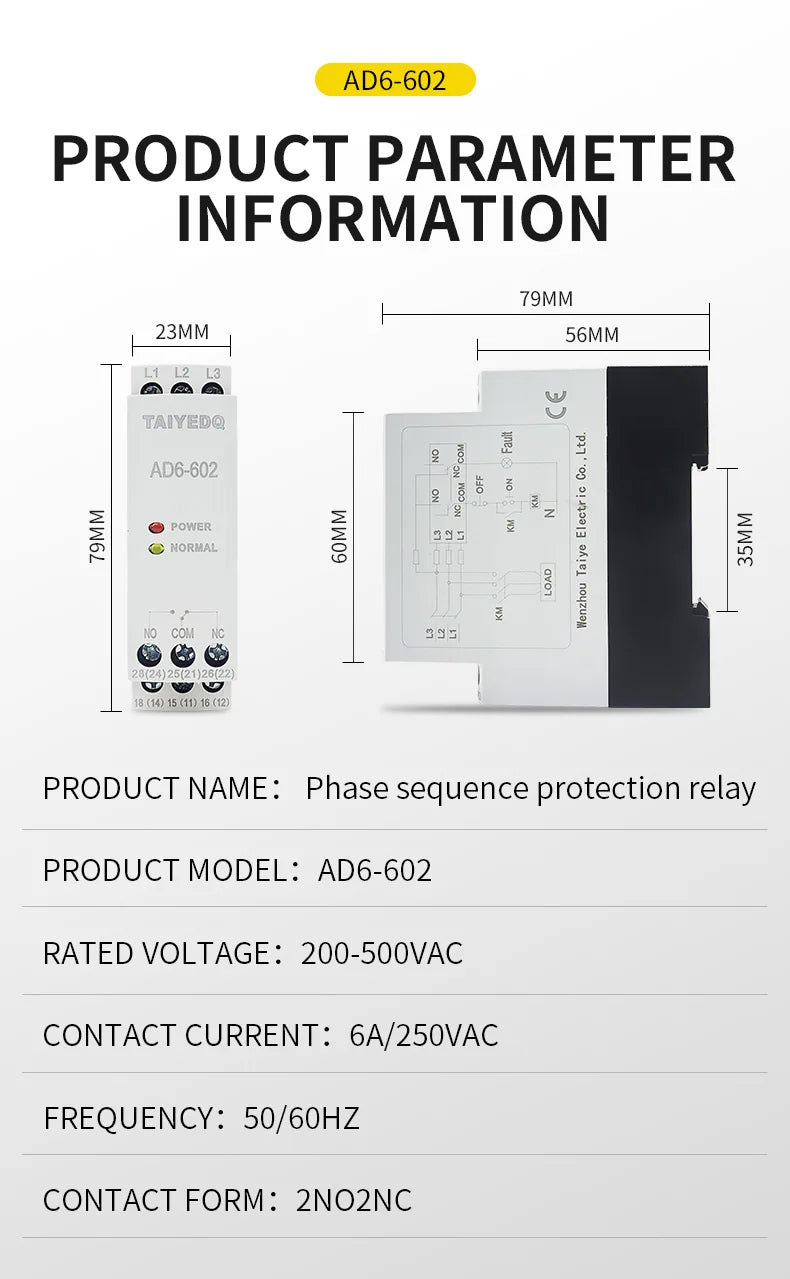

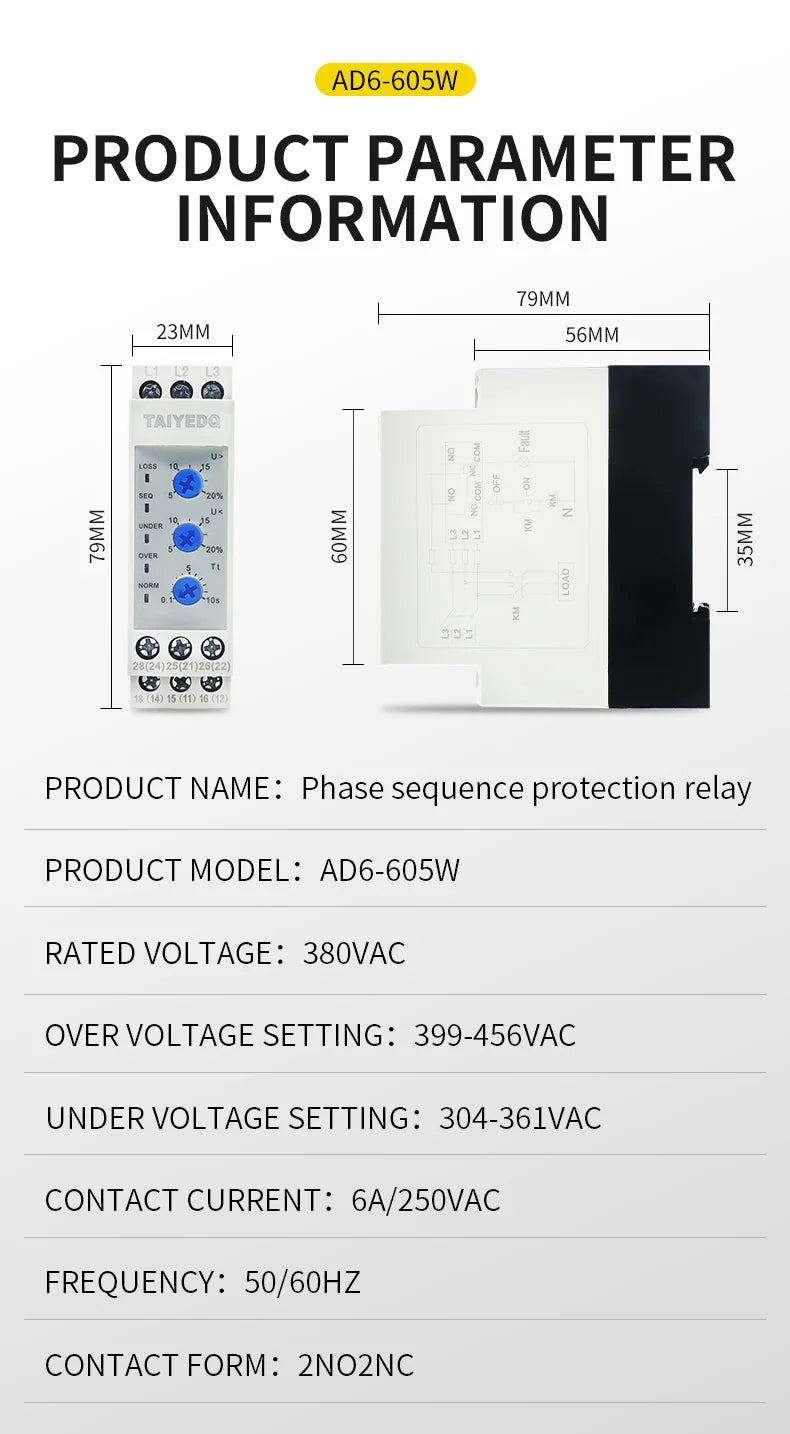

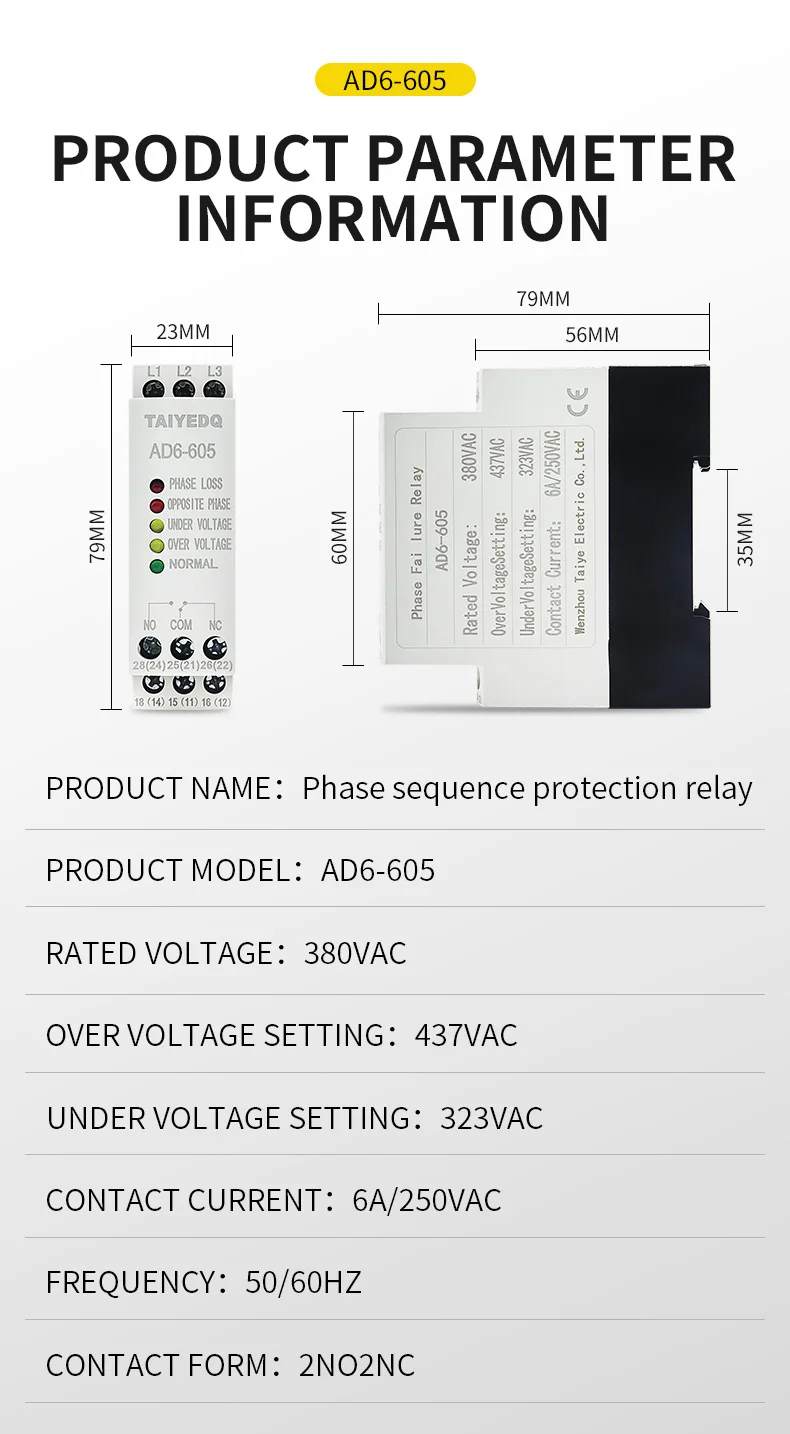

External dimensions: 79 * 23 * 79mm

Package included

1 × Phase sequence protection relay
