SPECIFICATIONS

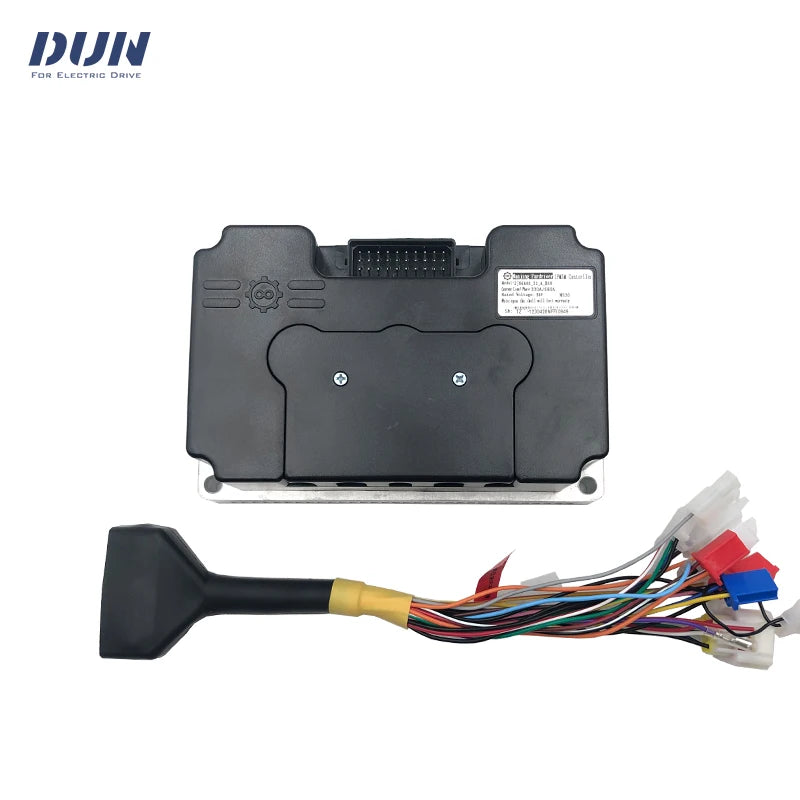

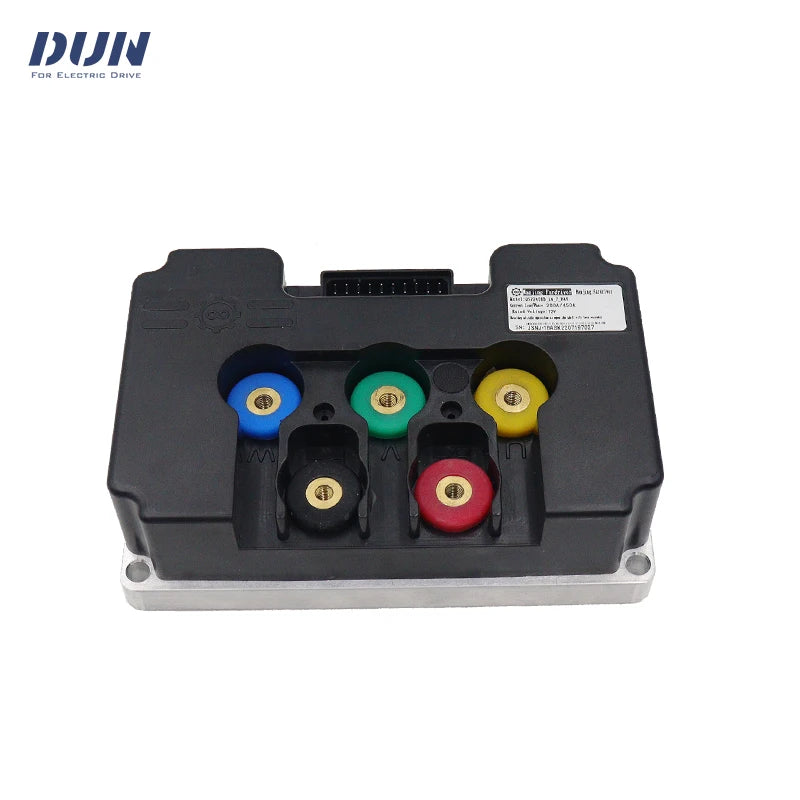

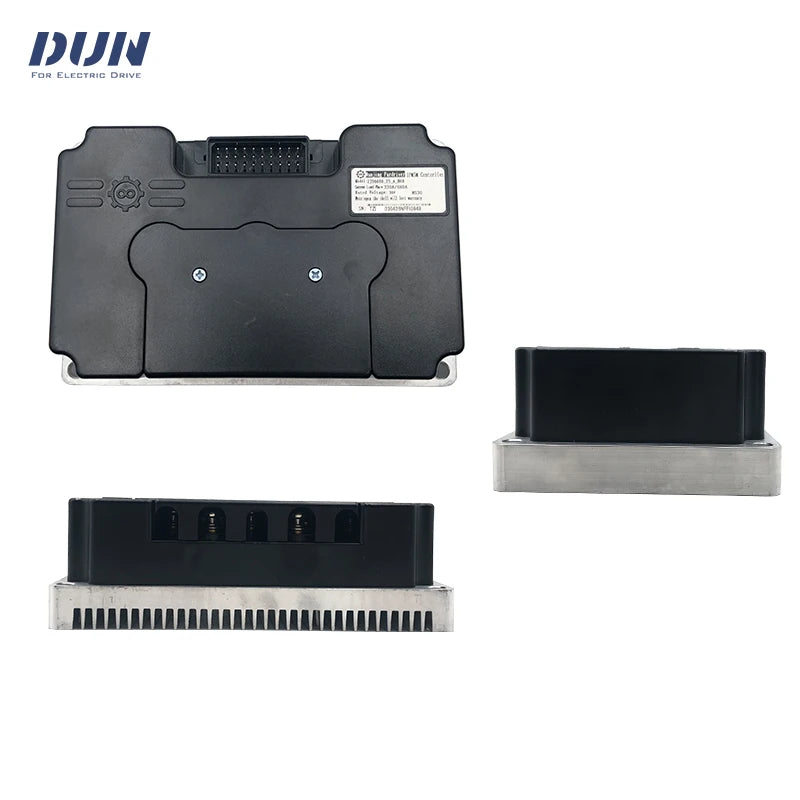

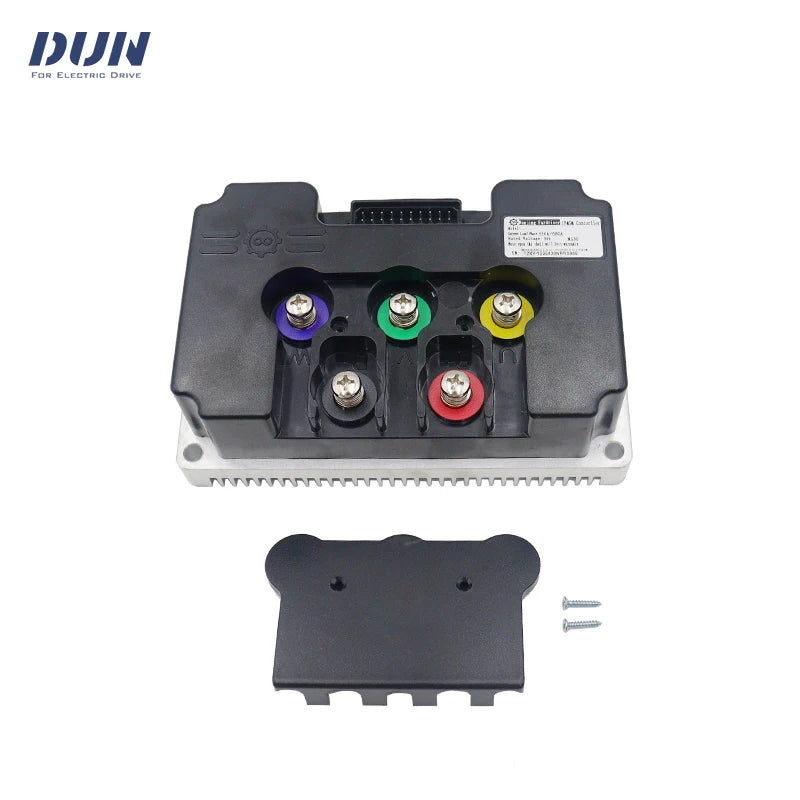

Nanjing Fardriver ND72680 48V-72V DC 350A Phase 680A Hall Sensor BLDC Motor Controller Motherboard

The default function for Fardriver controller :

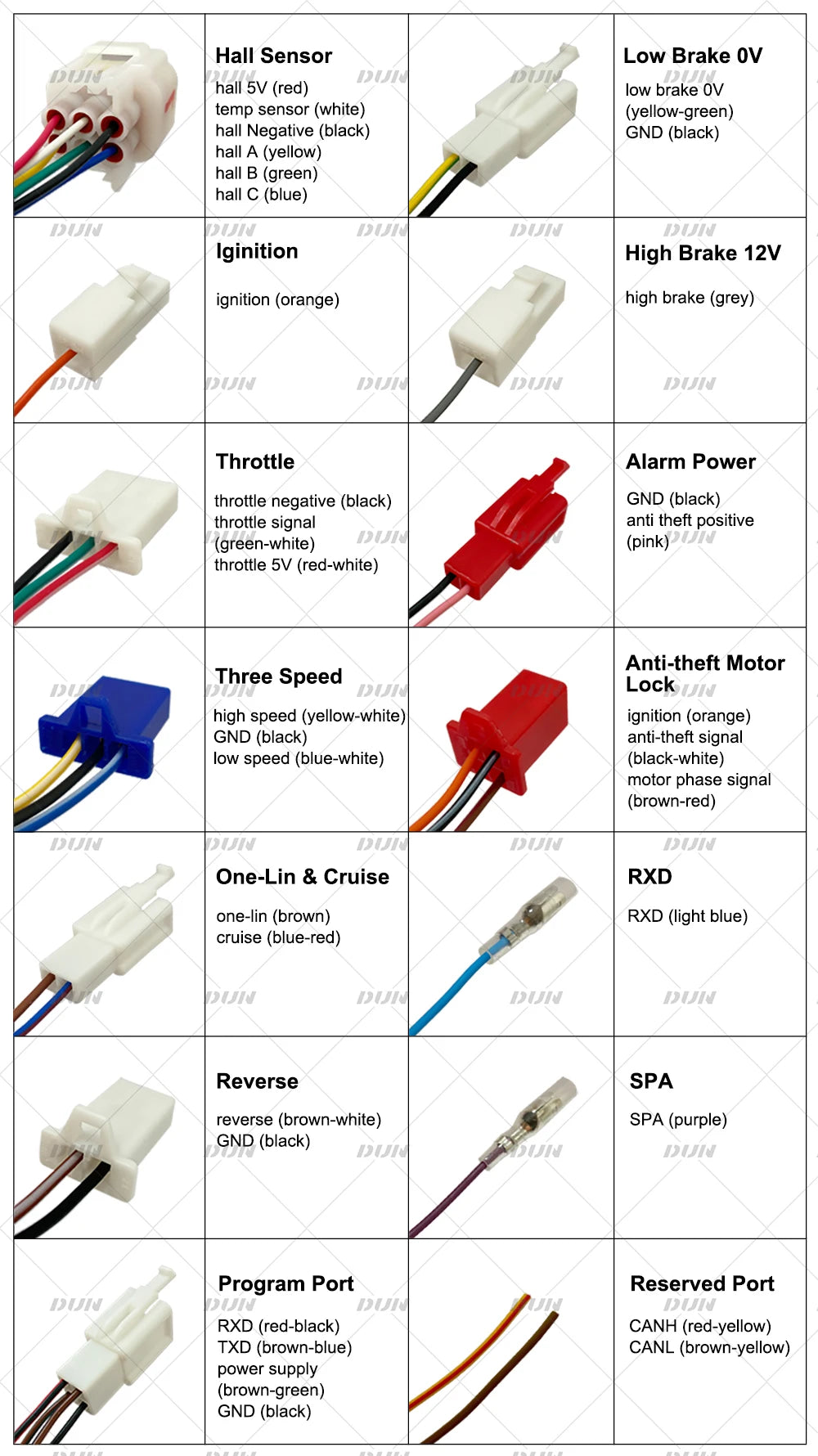

Hall plug, Throttle signal (0-5V), Ignition, Speed Signal Meter, High Brake(12v), Three Speed, Temp Sensor, Reverse, Low Brake(0v),Flux Weakening,Anti-Theft,Boost,Cruise,Self Learning,Program Port.

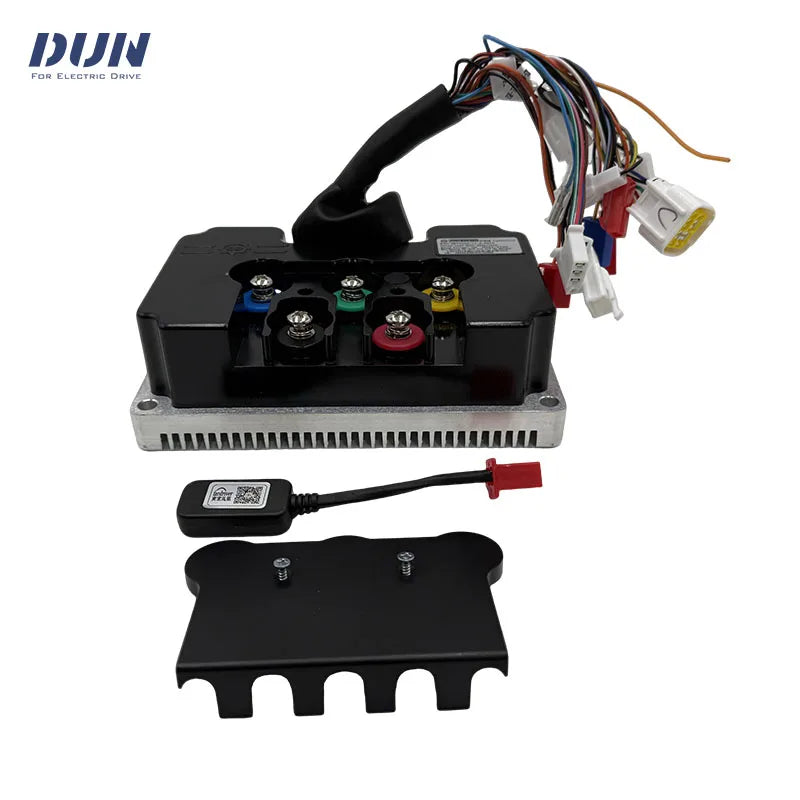

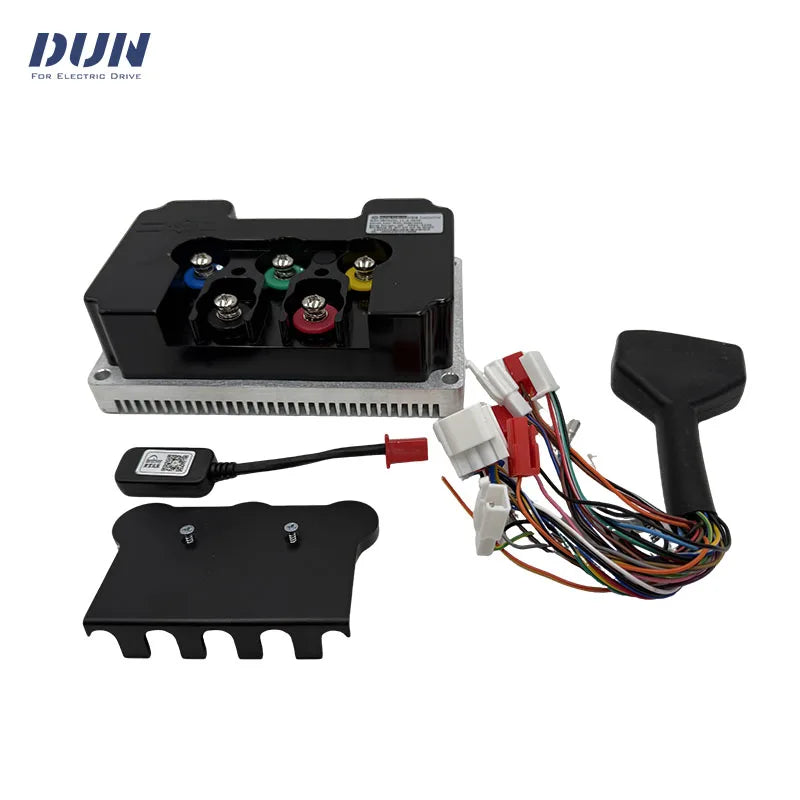

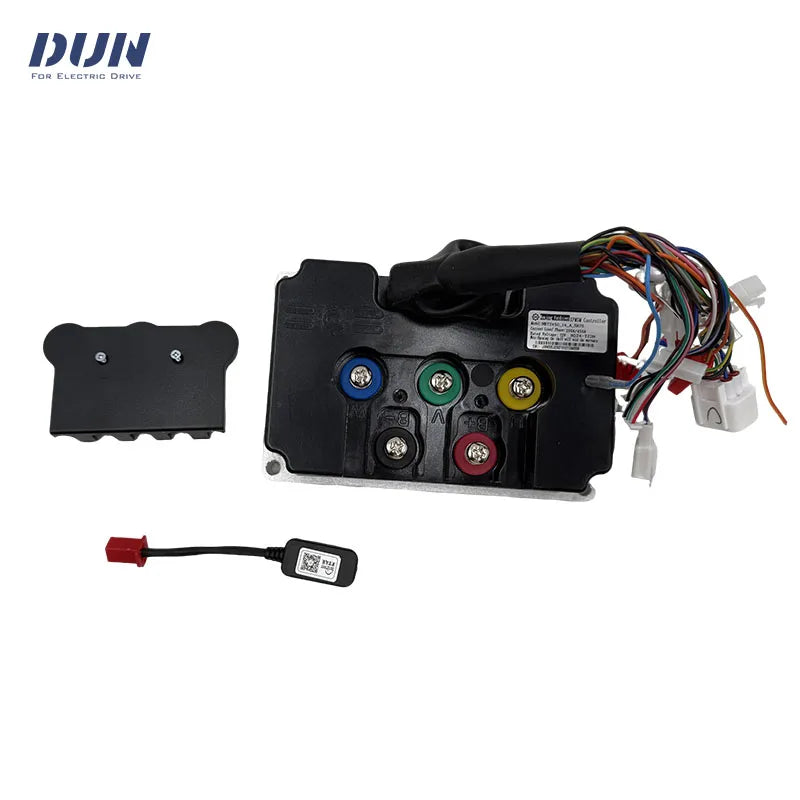

-One Kit Contains-

1 pcs x Fardriver ND72680 Controller
1 pcs x Bluetooth
1 pcs x Manuals & Software Link for Download

- Key Features -

The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.

-General SPEC-

Nanjing Fardriver Controller
1 Model: ND72680
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage: 48V-72V
4 Peak Battery Voltage: 88V
5 Available Motor Power: 3000W - 6000W
6 Defaut Throttle Working Voltage: 0V - 5V
7 Peak DC Current: 350A
8 Peak Phase Current: 680A
9 Mosfets Detail: 30 FET
10 Weight: 2.4kgs
11 Instaliing Size: 189mm * 120mm * 60mm
12 Controller Design: Sine Wave BLDC
13 Case Material: Aluminum

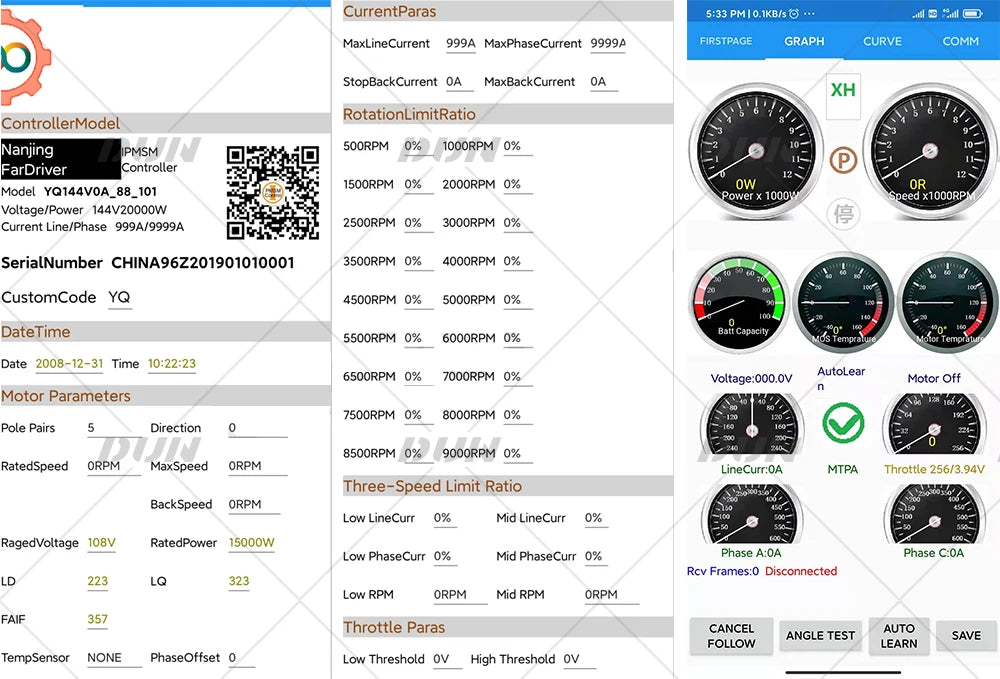

14 Support Programmable: PC & Phone
15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

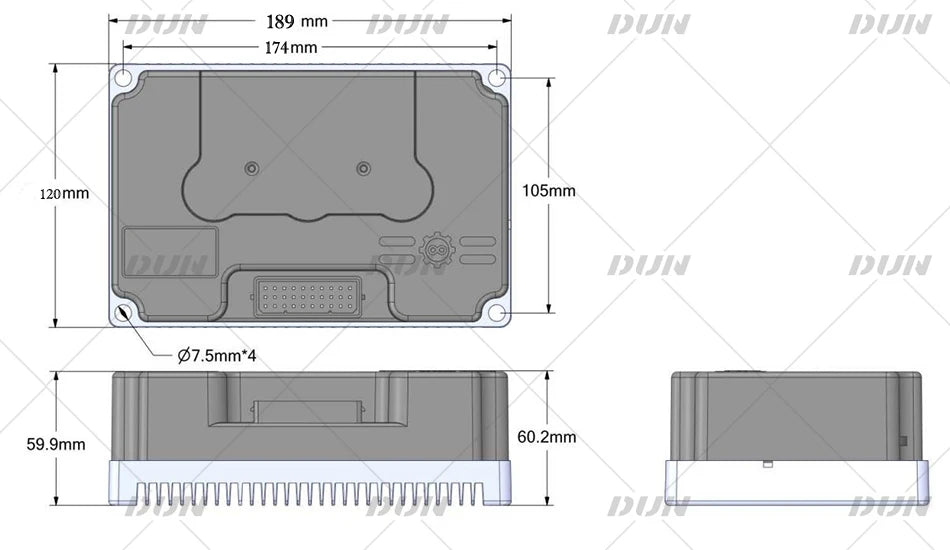

-Controller Drawing-

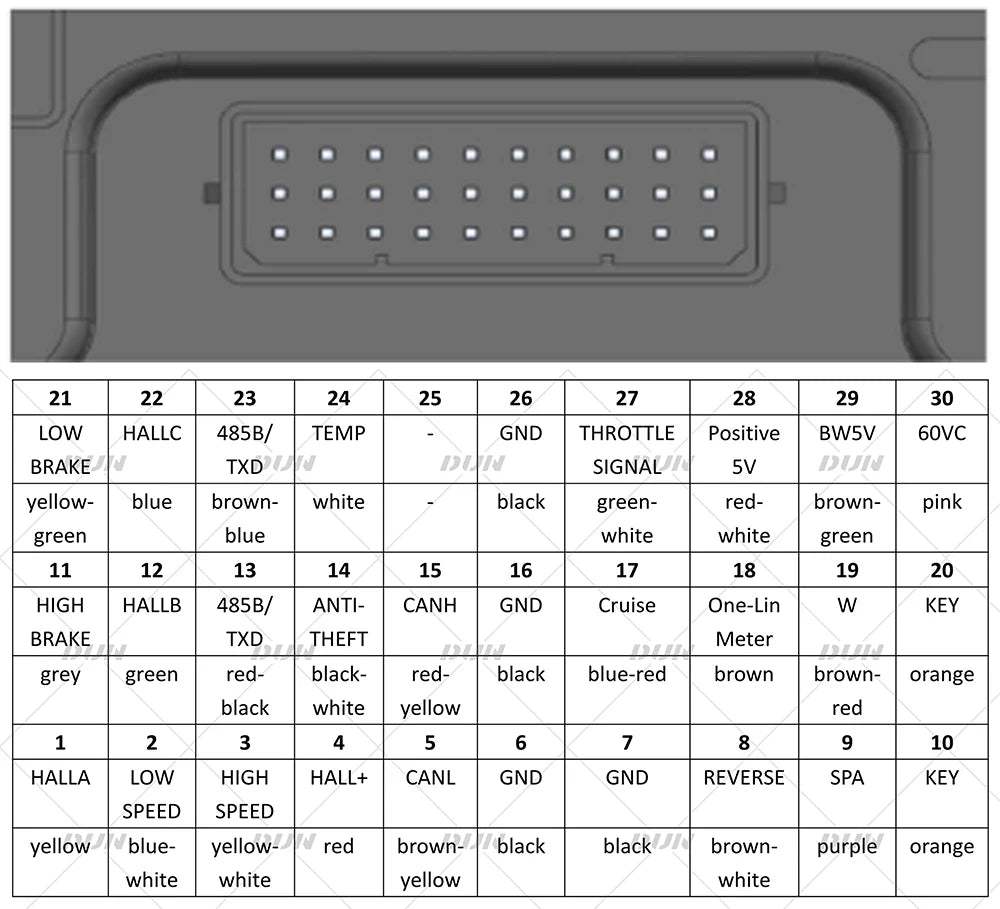

--Pin Definition -

- Recommendation -

Click the pic to check more Fardriver Controllers

- FAQ -

Q: How about the Duty & Tax ?
A: All products are sent in DDU mode, the total price does not include tax and duty.The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: About the functions and interfaces of the controller
A: The most controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some auxiliary functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, not plug and play.
Before refitting, please carefully check the function line on the original vehicle and the communication signal of the speedometer.

Q: How long is the delivery time ?
A: For some stock controller and motor, we could ship it out within 24 hours. If no stock, the delivery time normally in 6 -10 working days (some customized products will take more days).

Q: About delivery timeliness
A: The time limit of commitment of AliExpress shipping channel is 60 days (Goods can usually be received within 3 weeks, but it may take longer for some special countries).
If you want to make fast delivery, please select FedEx, DHL or UPS.

Q: How about the warranty ?
A: We offer 1 year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any knowledge on electric kits assembly, please make prudent choice to buy it or not ! There is no warranty for man-made damage.

Q: About the shipping way
A: Sometimes the online shipping cost and shipping way is not best, we will choose the most convenient shipping way to you and will inform you before shipping. Thank you for your understanding.
