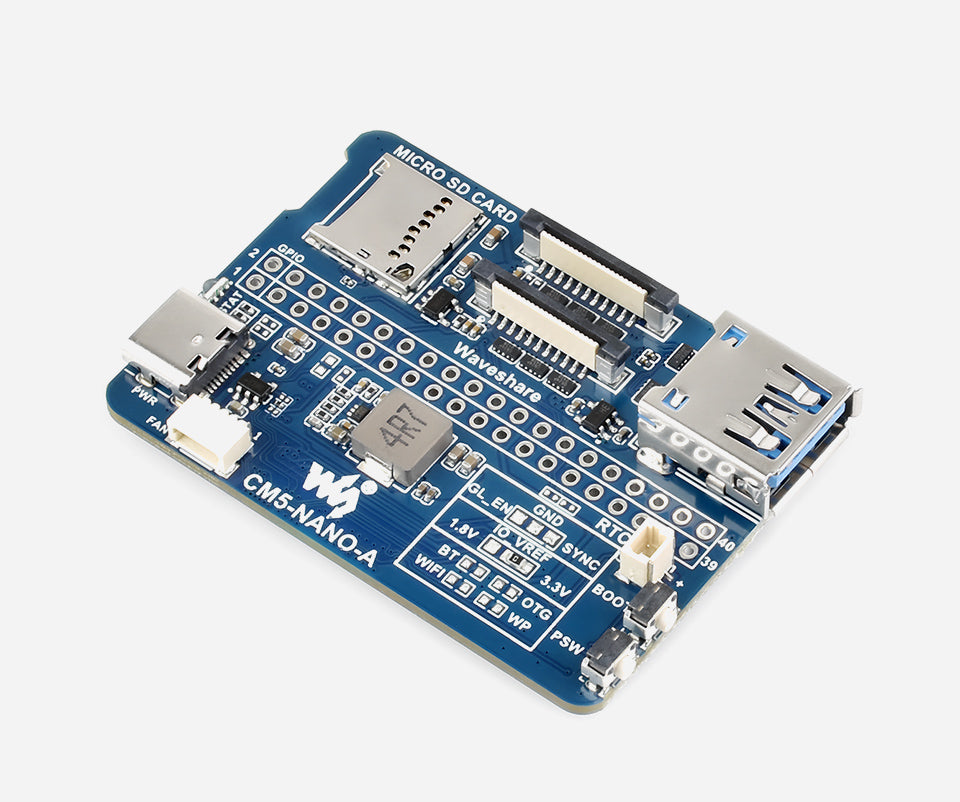

Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Size As The CM5
Nano Base Board (A) for CM5

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Base Board for Compute Module 5 Lite / eMMC


Same Size As The CM5

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Note: the CM5 is NOT included. Please buy it separately.

Specifications

CM5 socket

suitable for all variants of Compute Module 5

Connector

Raspberry Pi 40PIN GPIO interface × 1

USB

USB 3.2 Gen1 Type A port × 1

MIPI

MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)

Storage

TF card socket for Compute Module 5 Lite (without eMMC) variants

Power input

5V

Dimensions

55 × 40mm

What's On Board

  1. CM5 socket
    suitable for all variants of Compute Module 5

  2. USB port
    USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices

  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)

  4. Power supply / Programming
    5V power supply, or used for eMMC burning

  5. FAN header
    4PIN JST-SH PWM fan header for connecting a cooling fan

  6. PSW button
    power button

  7. BOOT button
    Press before powering on and release after powering on to enter the burning mode



8. 2PIN JST-SH RTC battery header

9. 40PIN GPIO interface
suitable for connecting to various HAT modules

10. Dual MIPI interfaces
for connecting to DSI displays or CSI cameras

11. Special function pins
CM5 core power enable and ETH SYNC signal

12. IO-VREF selection
CM5 IO logic level: 3.3V or 1.8V

13. Function enable pins
Enabled by default, can be disabled by shorting the corresponding pads

14. Dual-color LED indicator
Red light: Raspberry Pi power indicator
Green light: Raspberry Pi working status indicator


Outline dimensions
Resources & Services

WIKI:https://www.waveshare.com/wiki/CM5-NANO-A

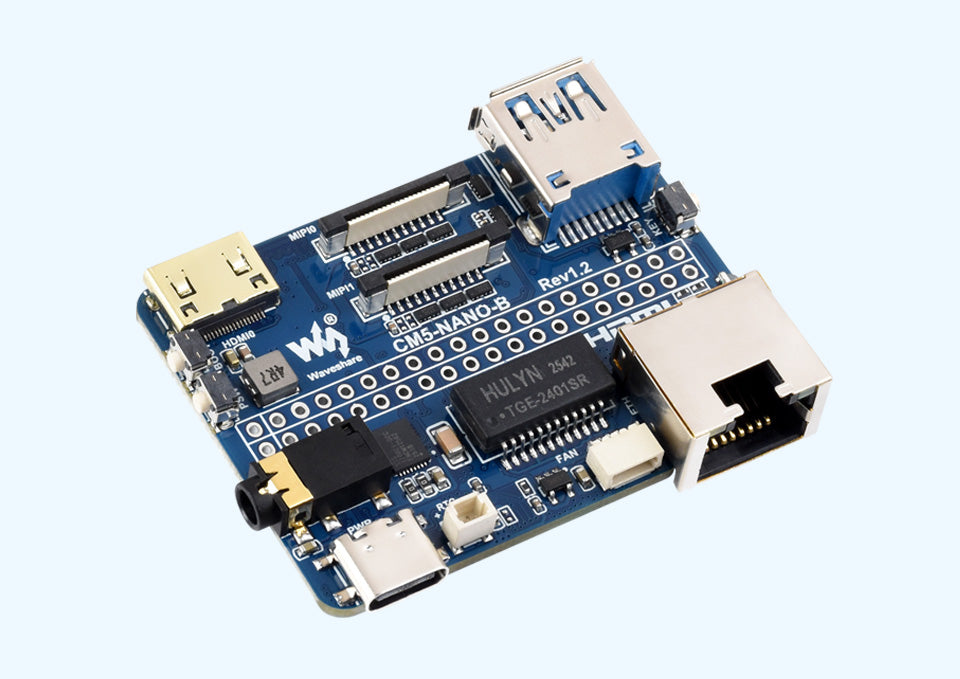

Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5
Nano Base Board (B) for CM5

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Base Board for Compute Module 5 Lite / eMMC


Same Size As The CM5

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Note: the CM5 is NOT included. Please buy it separately.

Specifications

CM5 socket

Suitable for all variants of Compute Module 5

Networking

Gigabit Ethernet RJ45 connector

Connector

Raspberry Pi 40PIN GPIO interface × 1

USB

USB 3.2 Gen1 Type A port × 1

MIPI

MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)

Video

Mini HDMI port × 1, supports 4K output

Audio

USB audio 3.5mm jack

Storage

TF card socket for Compute Module 5 Lite (without eMMC) variants

Power input

DC 5V 5A

PCIe

16PIN PCIe connector (PCIe Gen2/3 x1)

Dimensions

55 × 41mm

What's On Board

  1. CM5 socket
    Suitable for all variants of Compute Module 5

  2. PCIe interface
    16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards

  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)

  4. Other function pins
    Supports for extended functions

  5. Mini HDMI port
    Supports 4K output

  6. BOOT button
    Press before powering on and release after powering on to enter the burning mode

  7. PSW button
    power button

  8. 3.5mm jack
    Audio output



9. Power supply / Programming
5V power supply, or used for eMMC burning

10. 2PIN JST-SH RTC battery header

11. FAN header
4PIN JST-SH PWM fan header for connecting a cooling fan

12. RJ45 Gigabit Ethernet port
for network access

13. Dual-color LED indicator
Red light: Raspberry Pi power indicator
Green light: Raspberry Pi working status indicator

14. User button
connected to GPIO21

15. USB port
USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices

16. Dual MIPI interfaces
for connecting to DSI displays or CSI cameras

17. 40PIN GPIO interface
suitable for connecting to various HAT modules


Outline dimensions
Resources & Services
WIKI: https://www.waveshare.com/wiki/CM5-NANO-B
