NanoDLA Logic Analyzer SCM FPGA Debugging Protocol Analysis 24MHz SampleRate 8 Channels Sigrok PulseView For arduino Module

NanoDLA Logic Analyzer SCM FPGA Debugging Protocol Analysis 24MHz SampleRate 8 Channels Sigrok PulseView For arduino Module

$25.80

$25.80 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: SHANGSIMOUDLECX

Choice: yes

Compatible With: all

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Industrial Automation

semi_Choice: yes

Introduction

TYPE-C nanoDLA is a hardware and software open source logic analyzer developed and produced by Muse Lab. It is exquisite and compact in appearance with rich functions. It supports up to 24Mhz sampling rate and more than 100 kinds of protocol analysis. 8 channels can sample data simultaneously. Efficiency could be greatly improved in scenarios such as problem location, complex systems with multiple components, timing analysis and performance analysis.

Features&Specification

● Open source hardware , provide hardware schematic ● Open source software : 1.provide source code to compile firmware by yourself 2.use open source PulseView as PC software to analyze sampling data, which is rich in functions and easy to use, supports more than 100 kinds of protocol analysis ● Support up to 24Mhz sampling rate and 8 channels can sample data simultaneously ● Support input logic level [-0.5v,5.25v]. low level is [-0.5v, 0.8v], high level is[2v, 5.25v] ● Support operating system like Windows, Linux, Mac, Android ● Small Size: 3.9cm * 2.0cm

Software Installation

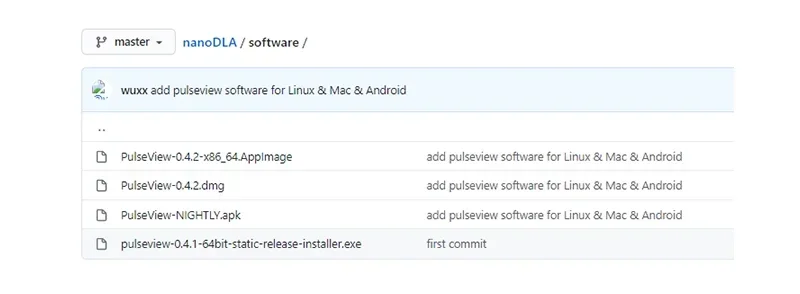

● Install PulseView Download installation package from https://github.com/wuxx/nanoDLA/tree/master/software and double click the installation package to install

● Install Driver 1.Plug nanoDLA to PC USB port. nanoDLA will be recognized as other device in device manager

2.Search "Zadig" in the the start menu of PC, then open it

3.Click "Options" and toggle on "List All Devices". Choose device named "fx2lafw", whose USB ID is 1D50:608C and select "WinUSB" in the driver blanket. Then click "Install Driver" button.

When the driver is installed successfully, there would be a alert as below,

4.After finishing installation of driver, nanoDLA would be recognized as a USB device in device manager

How to Use

1.Plug nanoDLA to PC USB port and open PulseView software

2.Configure channels and sampling rate, the click "Run" button in the top left corner to sample data

3.After signals are sampled, you can use decoder to decode them. Let's take UART sampled data as an example. Click the decoder menu and select UART protocol, then configure UART parameters such as channels, baud rate, data bits, parity type. Afterwards, the data sampled will be decoded.
