SPECIFICATIONS

explain
(1) The shipment comes with transparent heat shrink tubing insulation protection, and this version is only different from the USB-A port version in terms of interface and functionality.
(2) Using video tutorials, strongly recommended to watch
https://www.bilibili.com/video/BV1Rg411j7nn
(3) This logic analyzer supports a maximum sampling rate of 16-24MHz and can sample signals up to around 3MHz (the sampling rate needs to be at least 5 times higher than the original signal, and it is generally recommended to have a sampling rate of 10 times to better restore the original signal). The maximum sampling rate is 24MHz, but not all PCs can achieve it. After testing, Linux can sample at 24MHz, and most Windows (win7/win10) can sample at 16MHz. The maximum sampling rate is related to the operating system/USB controller/USB bus status/USB driver

describe

Report project

introduce

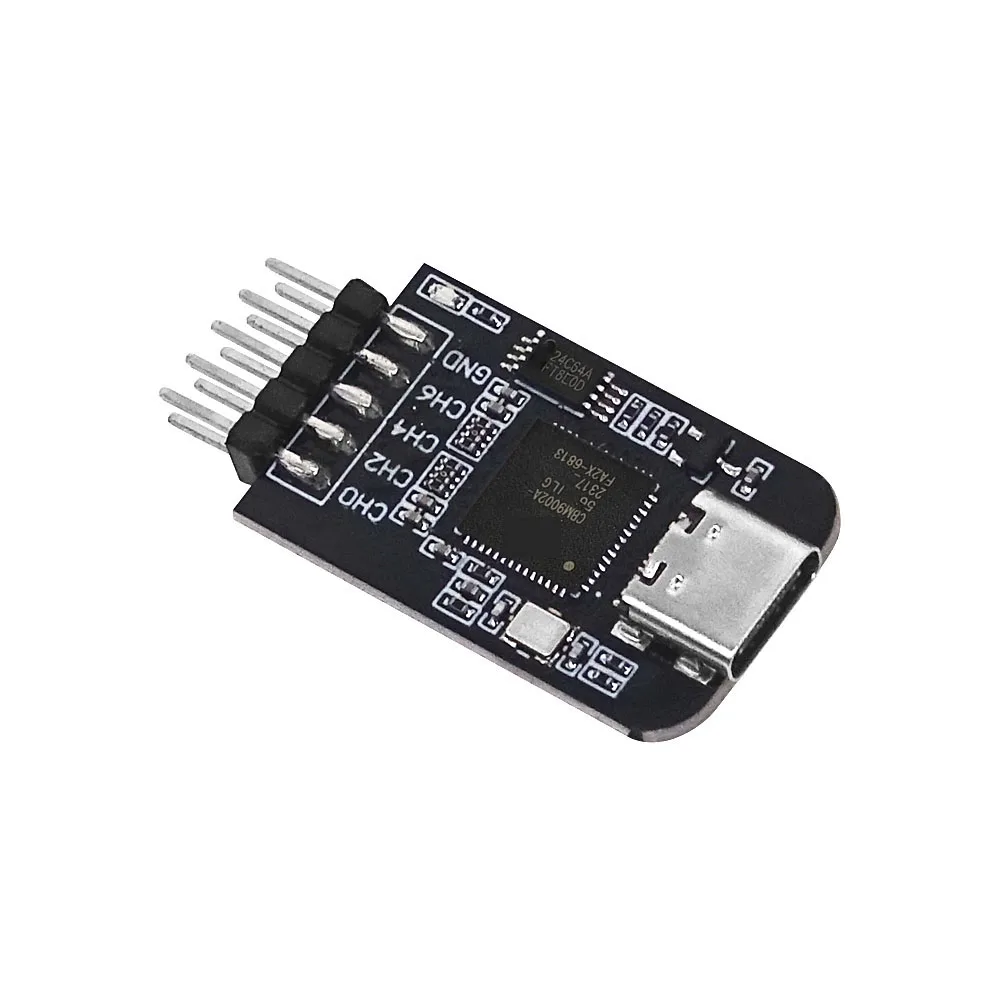

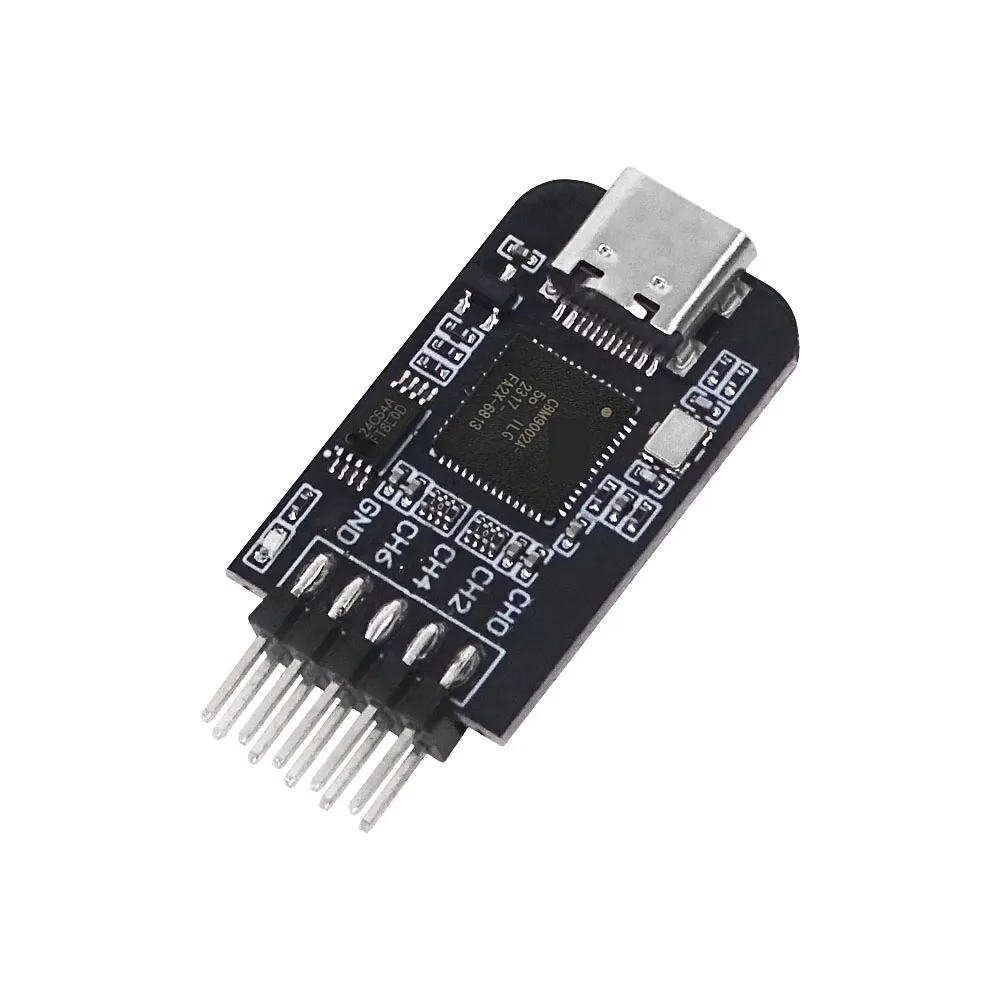

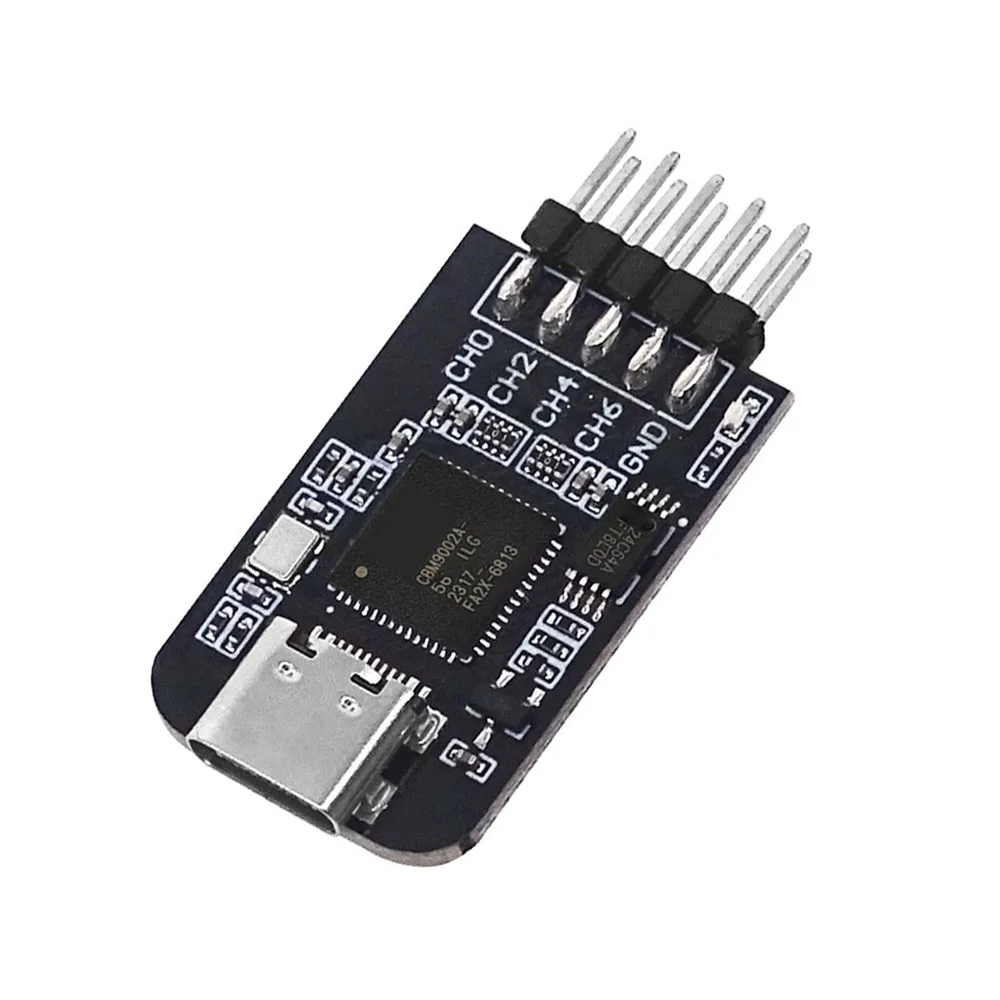

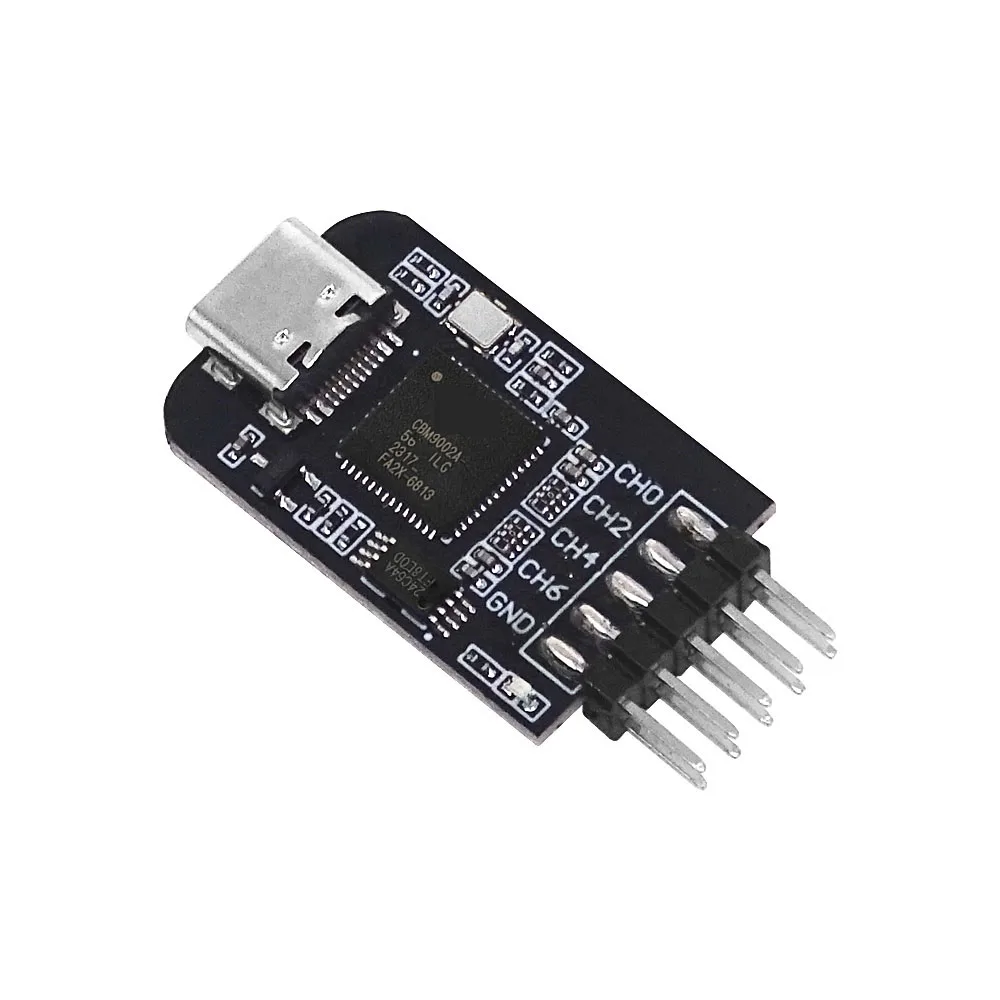

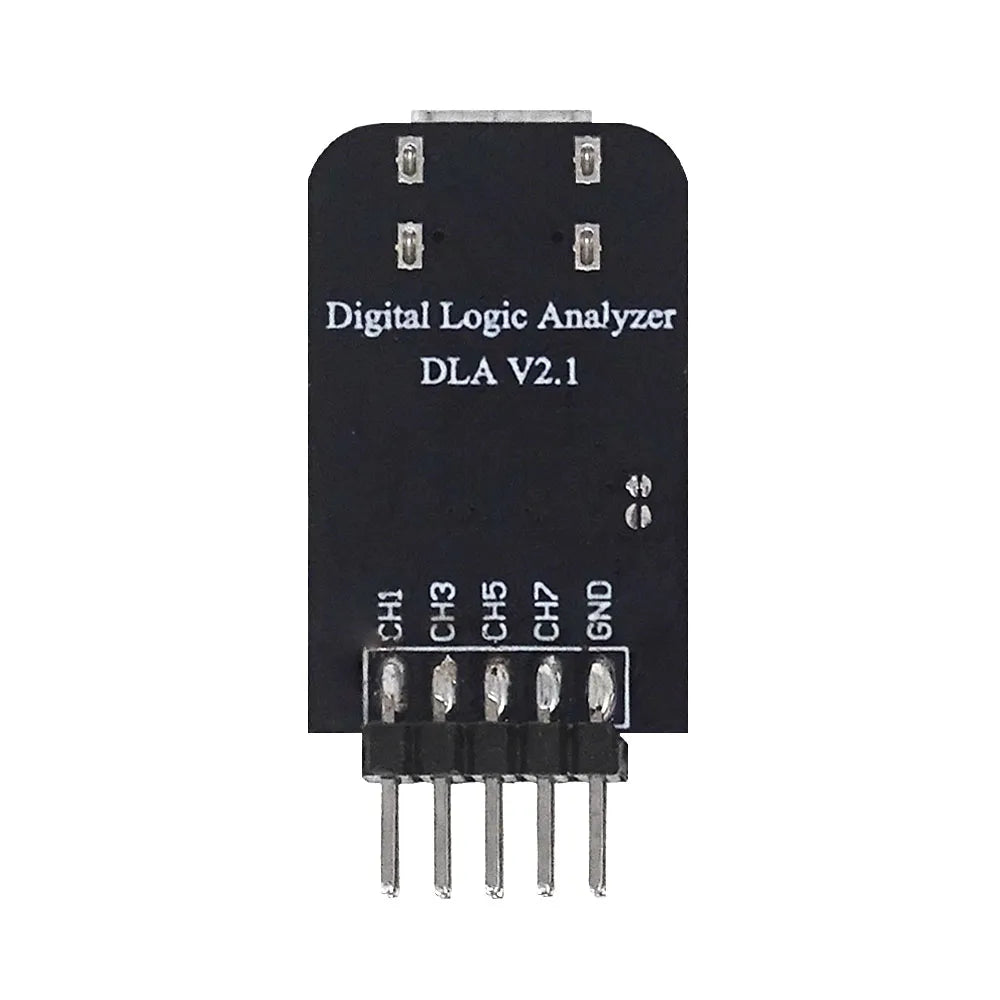

TYPE-C nanoDLA is a software and hardware open-source logic analyzer developed and produced by Muse Labs, with a delicate and compact appearance and rich functions. It supports a sampling rate of up to 24MHz and analysis of over 100 protocols. Eight channels can simultaneously sample data. In scenarios such as problem localization, complex systems with multiple components, time analysis, and performance analysis, efficiency can be greatly improved.

Features and specifications:

Supports a sampling rate of up to 24MHz, with 8 channels capable of simultaneously sampling data

● Supports input logic levels [-0.5v, 5.25v]. Low level is [0.5v, 0.8v], high level is [2v, 5.25v]

● Supports operating systems such as Windows, Linux, Mac, Android, etc

Small size: 3.9cm * 2.0cm

Software installation

● Install PulseView

Download installation package from https://github.com/wuxx/nanoDLA/tree/master/software Then double-click on the installation package to proceed with the installation
