SPECIFICATIONS

Brand Name: RAK

High-concerned chemical: none

Origin: Mainland China

Type: Lora Module

Request Quote for Custom WisBlock Module

Not sure what WisBlock modules are mandatory and how to select modules?
Check our WisBlock Documentation

Product Description

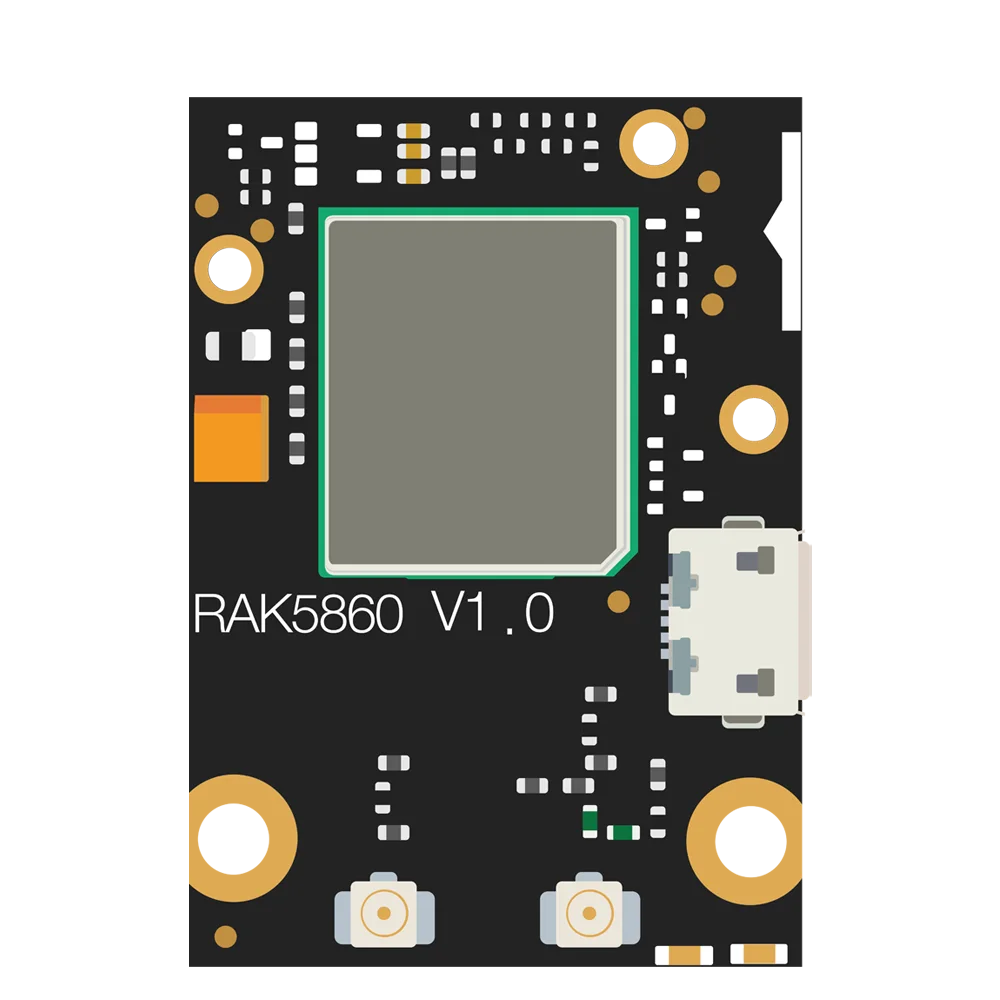

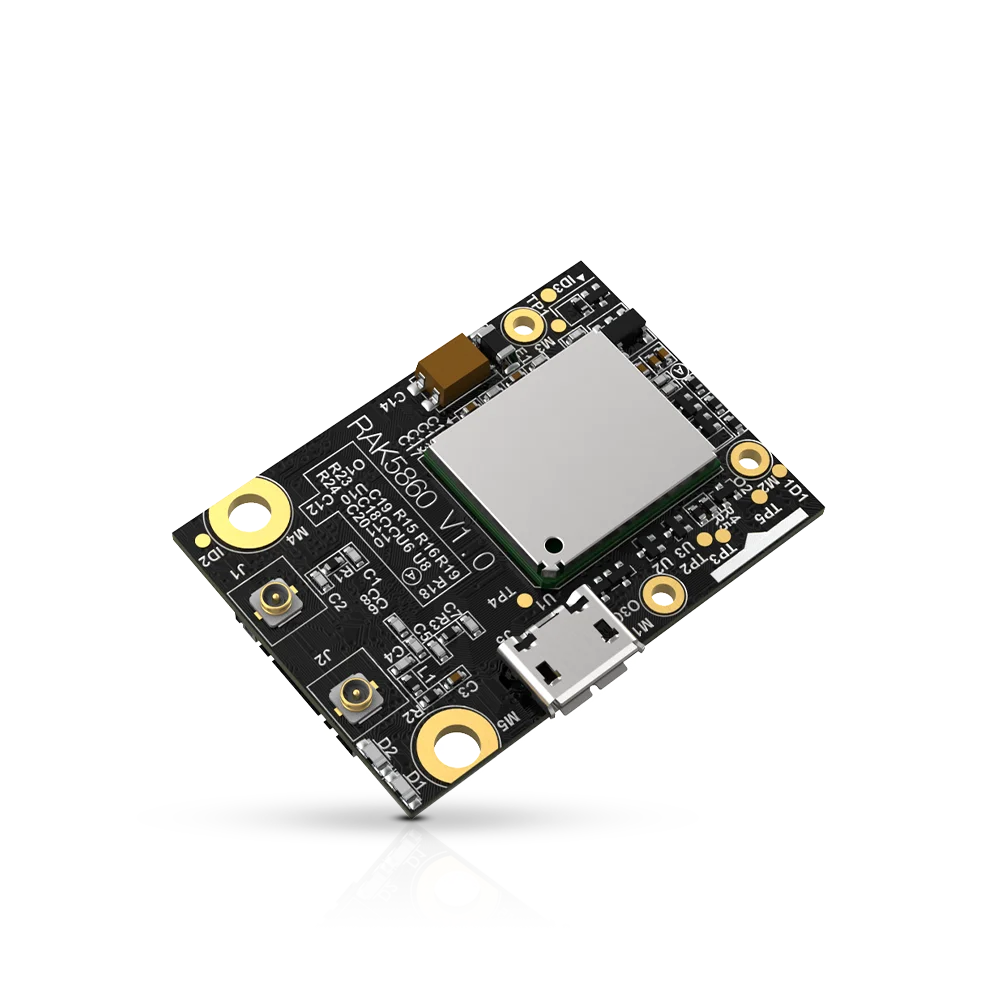

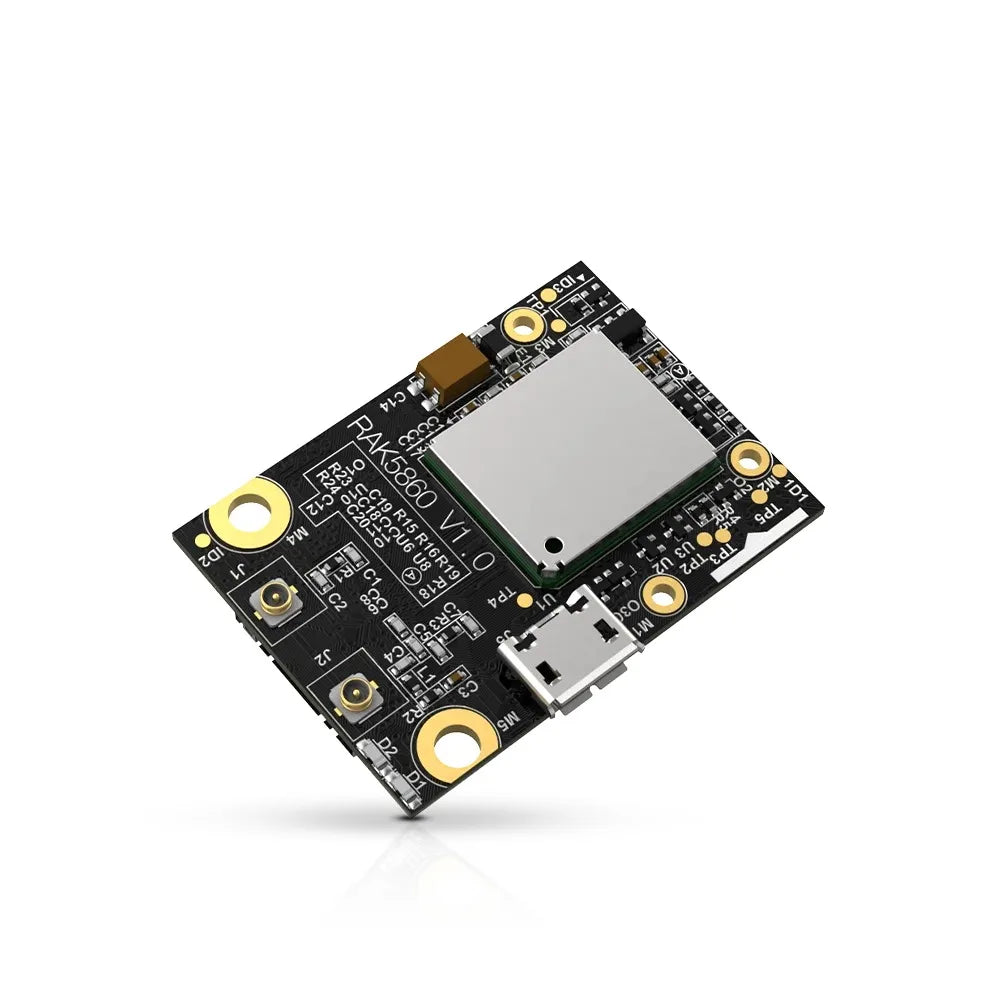

RAK5860 is based on the Quectel BG77 NB-IoT and LTE-M module. It supports CAT M1 and CAT NB2 cellular IoT wireless protocols.

RAK5860 has, in addition, a GNSS location option that can use both GPS and Glonass satellites.

RAK5860 is the solution when your LoRa® application needs access to IoT but is outside the coverage of WiFi networks or LoRaWan® gateways.

RAK5860 adds wireless communication options to your solution. It can be used for example as a gateway between your LoRa nodes over LTE.

RAK5860 can be comfortably programmed with the Quectel AT command interface.

RAK5860 is ideal for battery-powered applications because the WisBlock system allows to power down the module completely to reduce the power consumption of the system.

Key Features

• Based on the Quectel BG77 module

• UART communication with WisBlock Core microcontroller

• Programmable with Quectel AT command set

• MHF connectors for external LTE and GPS antennas

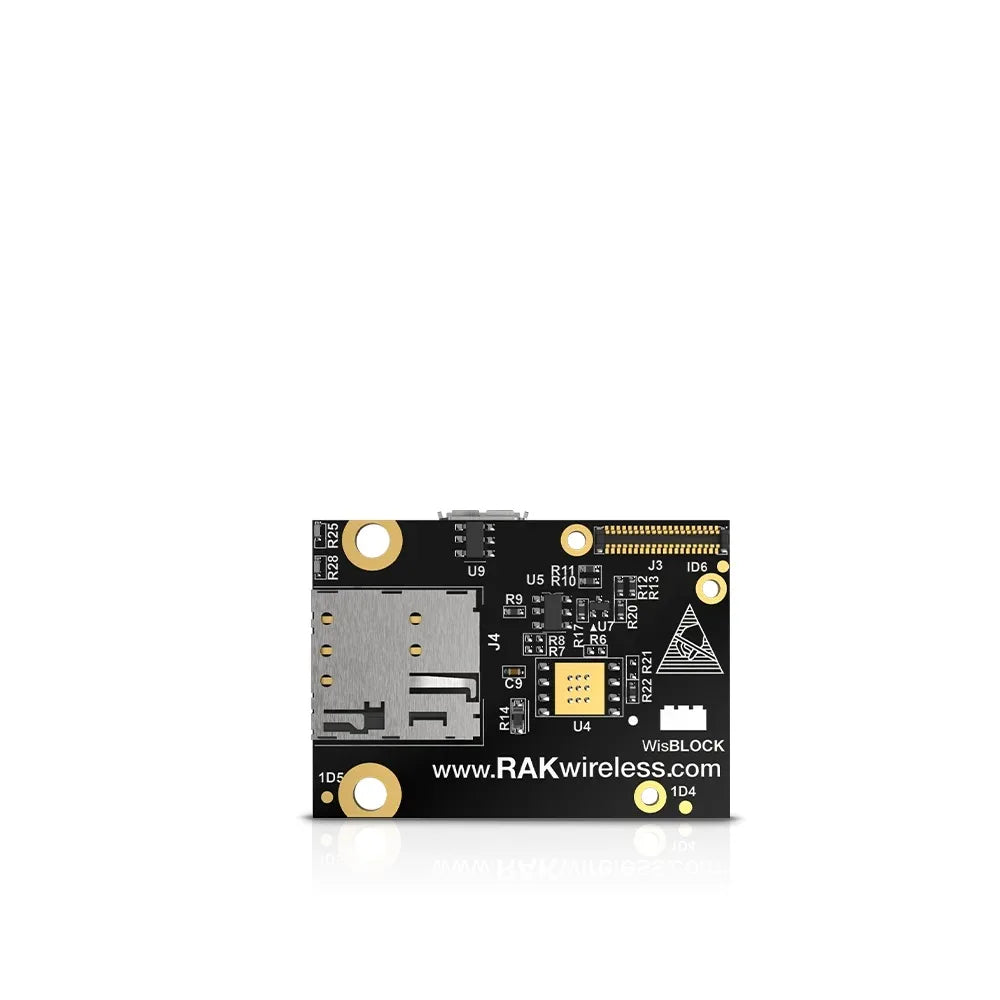

• Nano SIM and ESIM options

• Supports LTE CAT M1 and LTE CAT NB2

• GNSS location

Package Inclusion

• 1pc RAK5860

• 1pc Active GPS Antenna

• 1pc LTE Antenna
