NDIR CO2 SENSOR MH-Z14A infrared carbon dioxide sensor module,serial port, PWM, analog output with cable MH-Z14
Default Title
$129.06
Sale price
$129.06
Regular price
$0.00
Skip to product information
NDIR CO2 SENSOR MH-Z14A infrared carbon dioxide sensor module,serial port, PWM, analog output with cable MH-Z14
$129.06
Sale price
$129.06
Regular price
$0.00
Description
SPECIFICATIONS
Application: Other
Brand Name: CFsunbird
Condition: New
Dissipation Power: 1
Model Number: MH-Z14
Operating Temperature: 1
Origin: Mainland China
Package: TQFP
Package Size: 10cm x 10cm x 1cm (3.94in x 3.94in x 0.39in)
Package Weight: 0.22kg (0.49lb.)
Supply Voltage: 1
Type: Voltage Regulator
Unit Type: piece
is_customized: Yes
-----Focus on One-stop service of Electronic parts-----
Description:

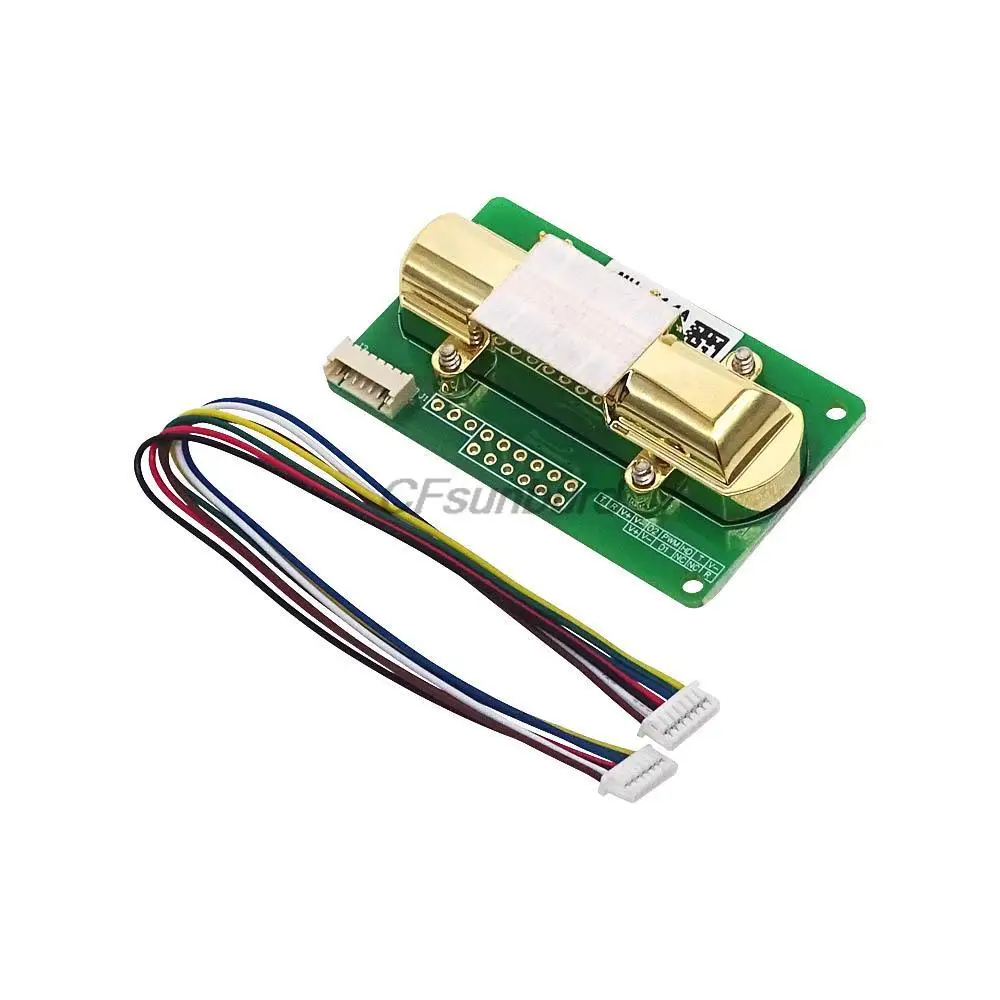

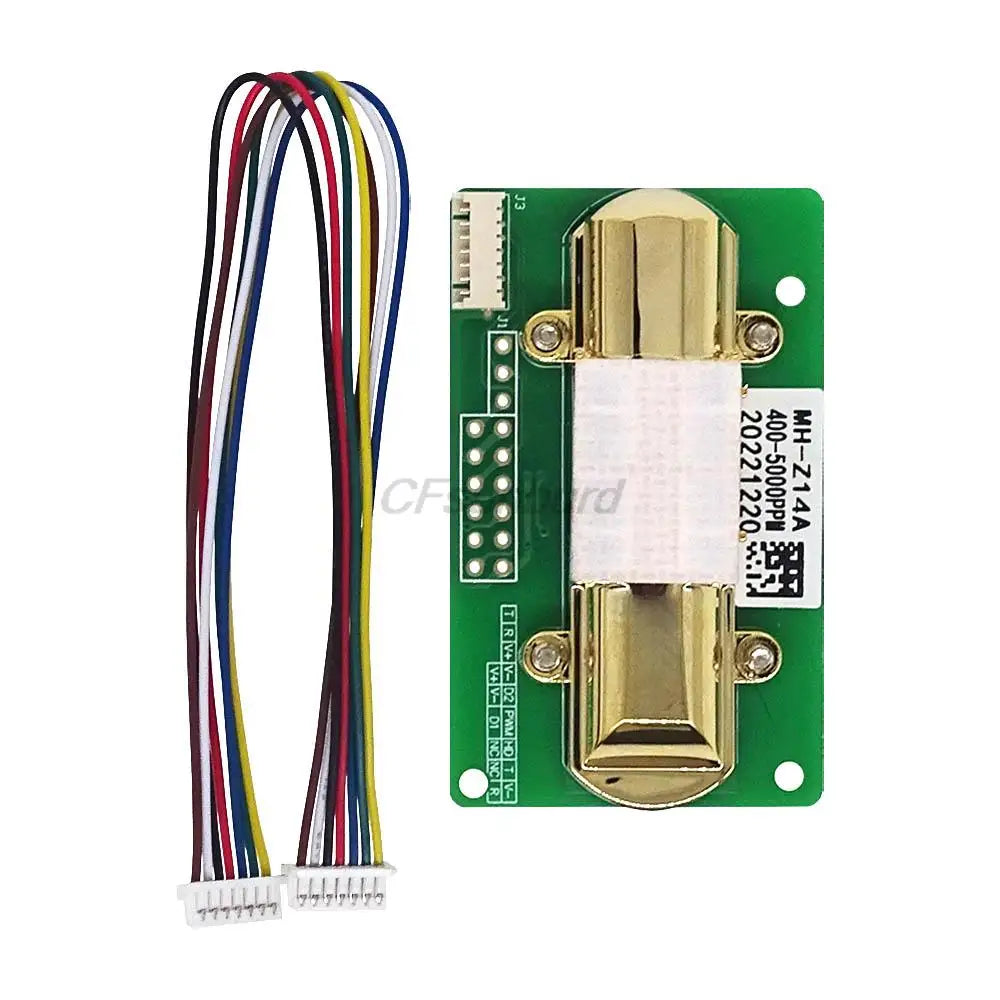

CO2 SENSOR MH-Z14A 1piece + with cable 1piece
Product Name: MH-Z14A infrared type, carbon dioxide detection sensor
1, the working voltage: DC4.5-5.5V
2, Working current: Mean <60mA; peak 150mA.
3, the detection range: 0-5000ppm
4, the detection accuracy: ± (50ppm + 3% reading value)
5. Warm-up time: 3min
6, the output signal:
1) analog output voltage: (D1 port 0V-2.5V) (D2 port 0.4-2V) linear output.
2) serial port (UART) (TTL level)
3) PWM
7, response time: T90 <120s
8, the working temperature: 0 ~ 50 oC
9, Humidity: 0 ~ 95% RH
10, life: 5 years

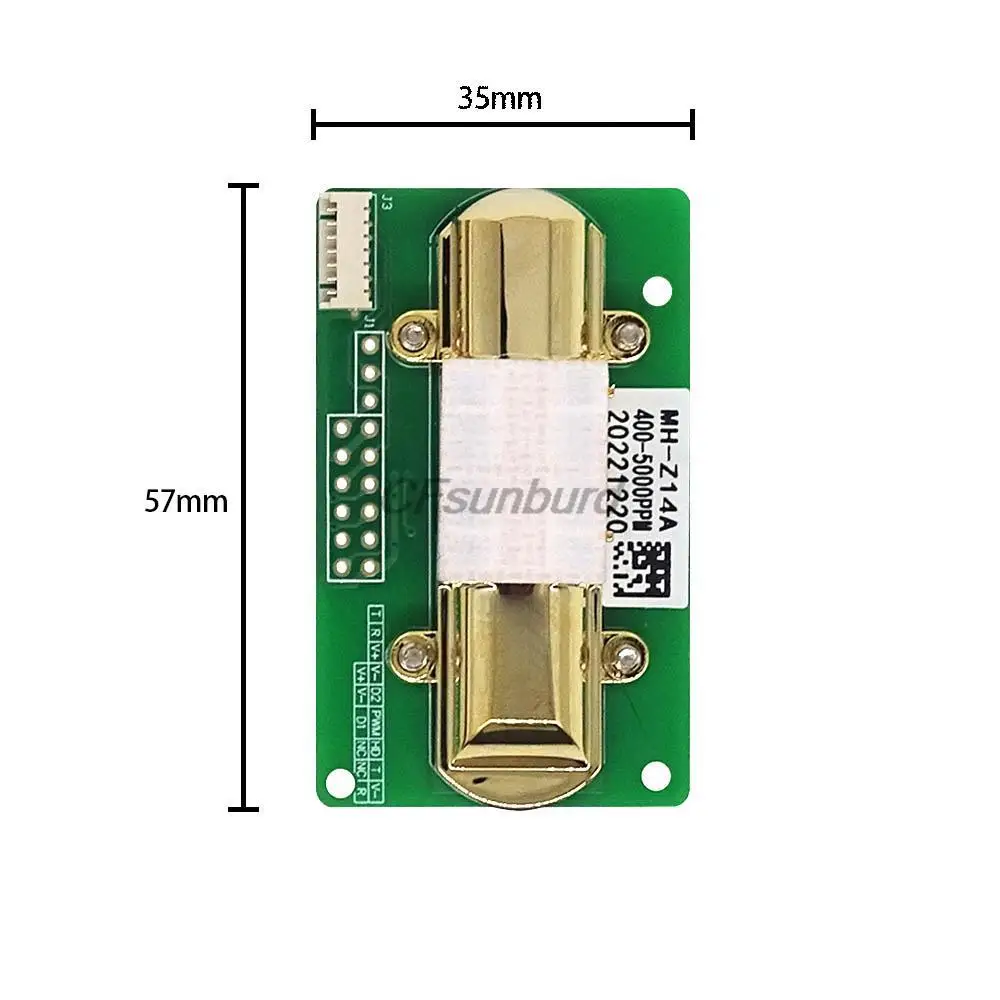

11, size: 57mm × 35mm × 15mm
12, weight size: 17g
Package Including:
1pcs x CO2 sensors
Free Shipping Over $199
- Standard Shipping: Standard Shipping (12–18 Business Days)
- Express Shipping: Expedited Shipping (5–9 Business Days)
- Free Shipping: Orders over $199 qualify automatically
- Tracking: Full tracking number provided for all orders
30-Day Return Policy
- Returns: 30-day hassle-free return window
- Condition: Items must be unused and in original packaging
- Refund: Full refund processed within 3-5 business days
Why Choose Us?
- Factory Direct: ISO/TS 16949 certified manufacturer
- Quality: 100% electrical continuity tested before shipment
- Experience: 15+ years in automotive connector industry
- Support: Professional technical support available
