SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Compatible Audio & Video Equipment Style: Speakers,Amplifier,player,Professional Audio Equipment

Feature: Wide range of applications

High-concerned chemical: none

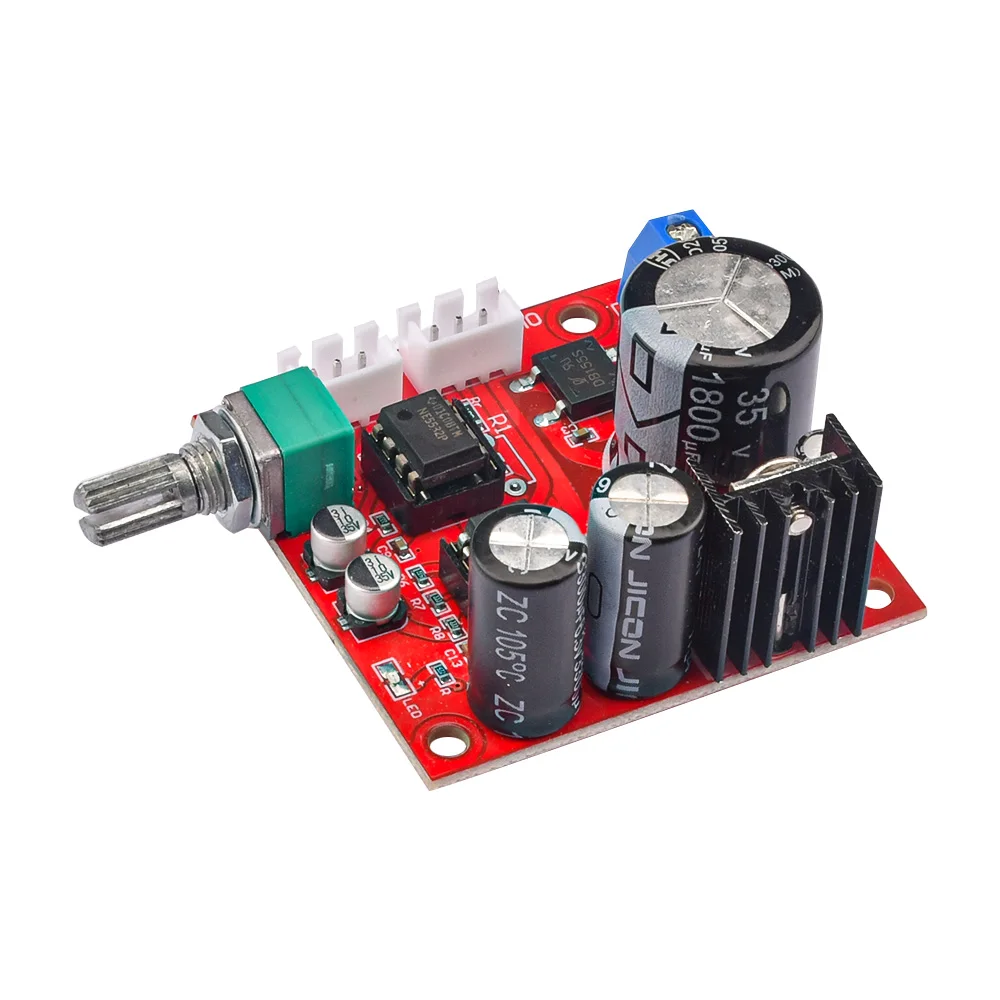

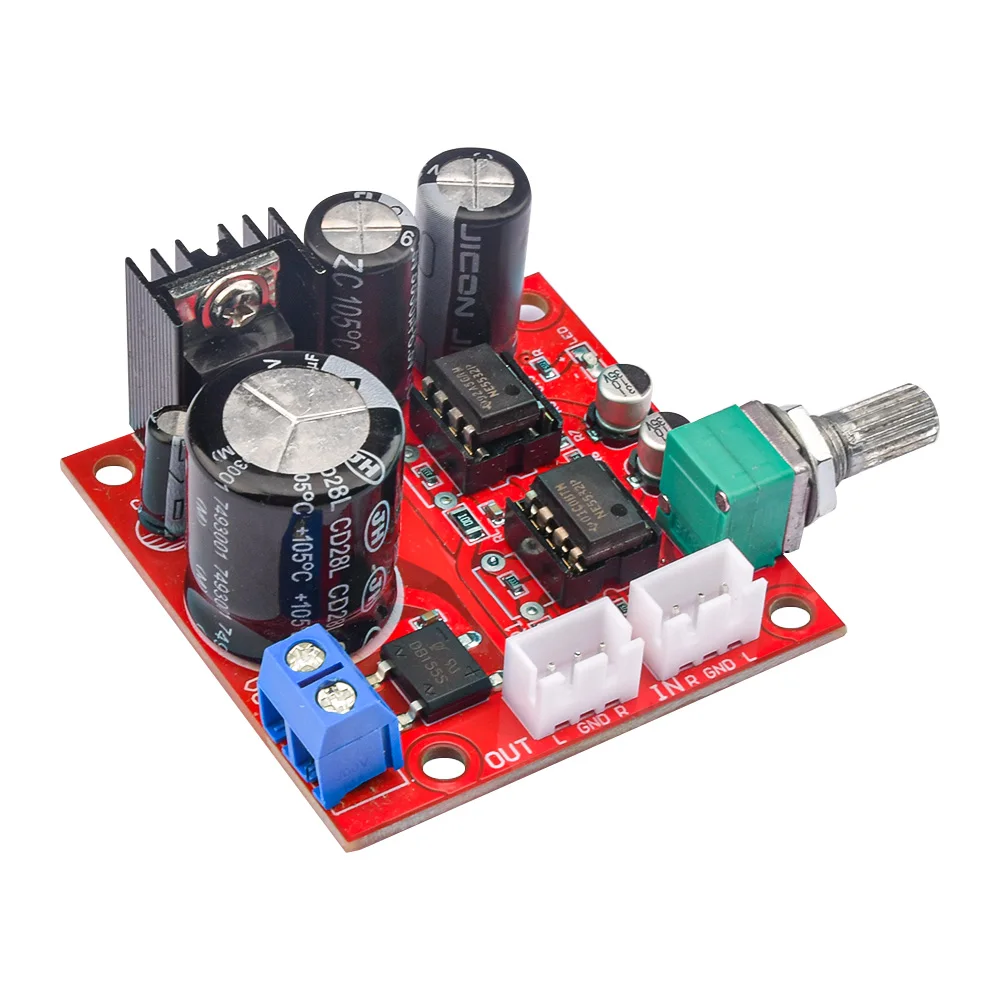

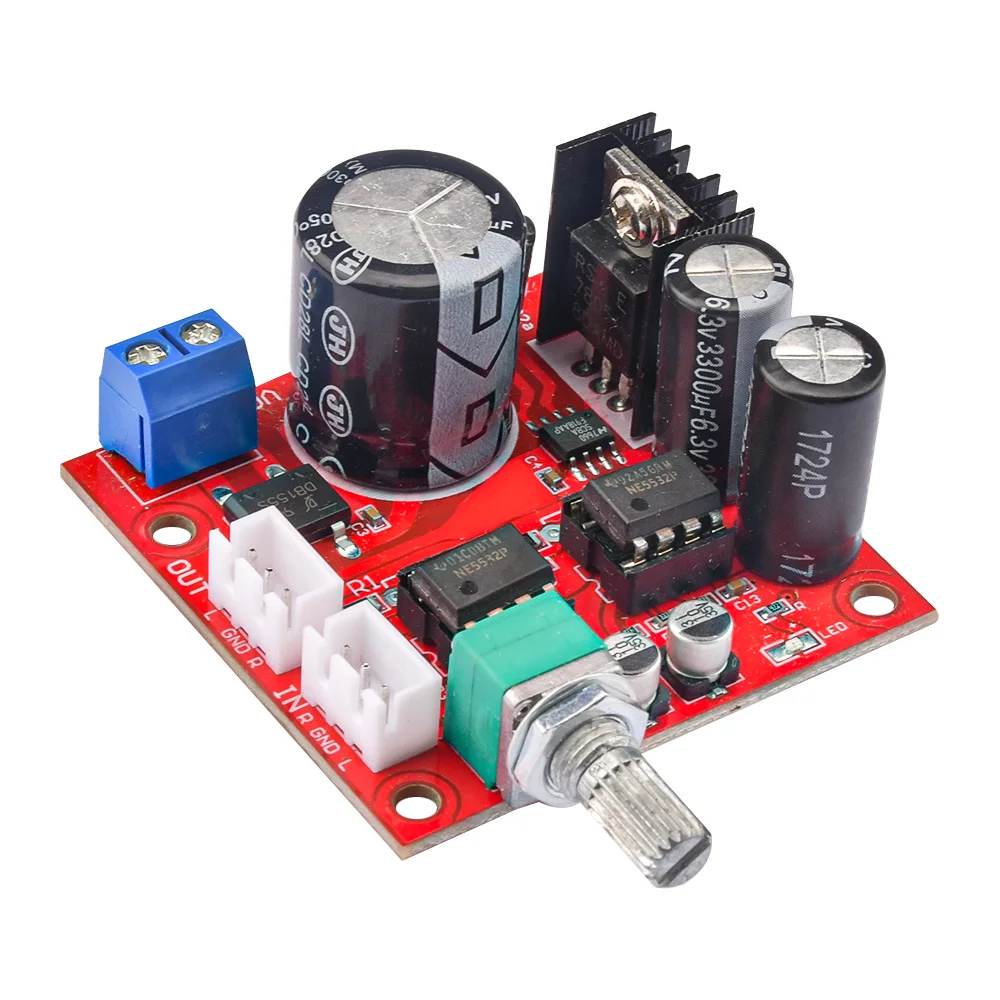

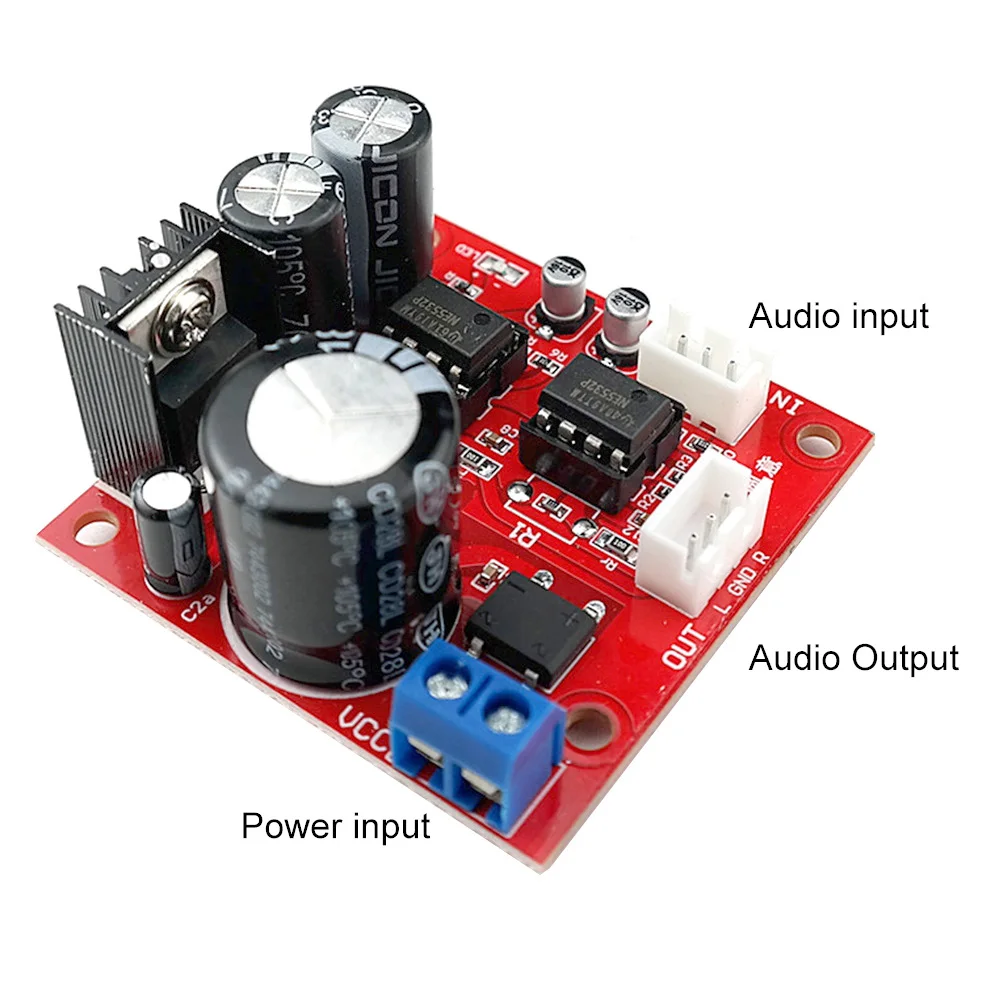

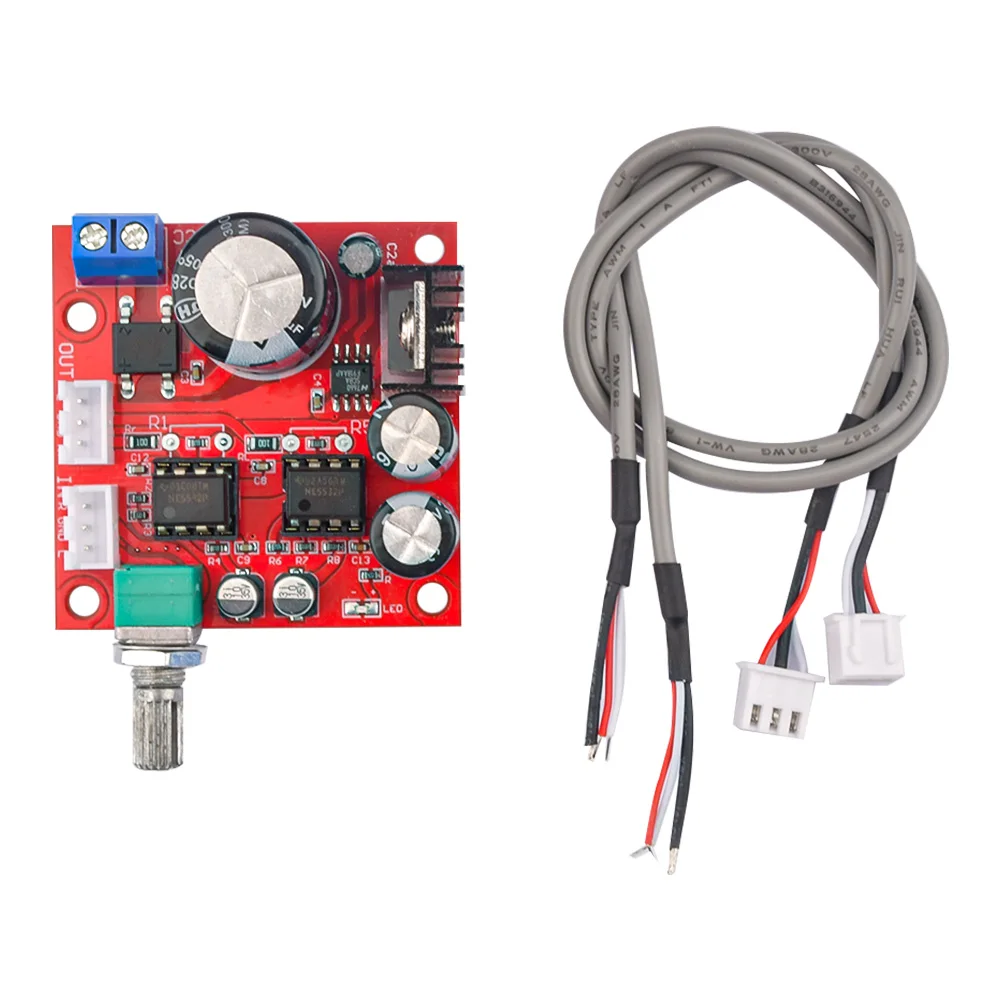

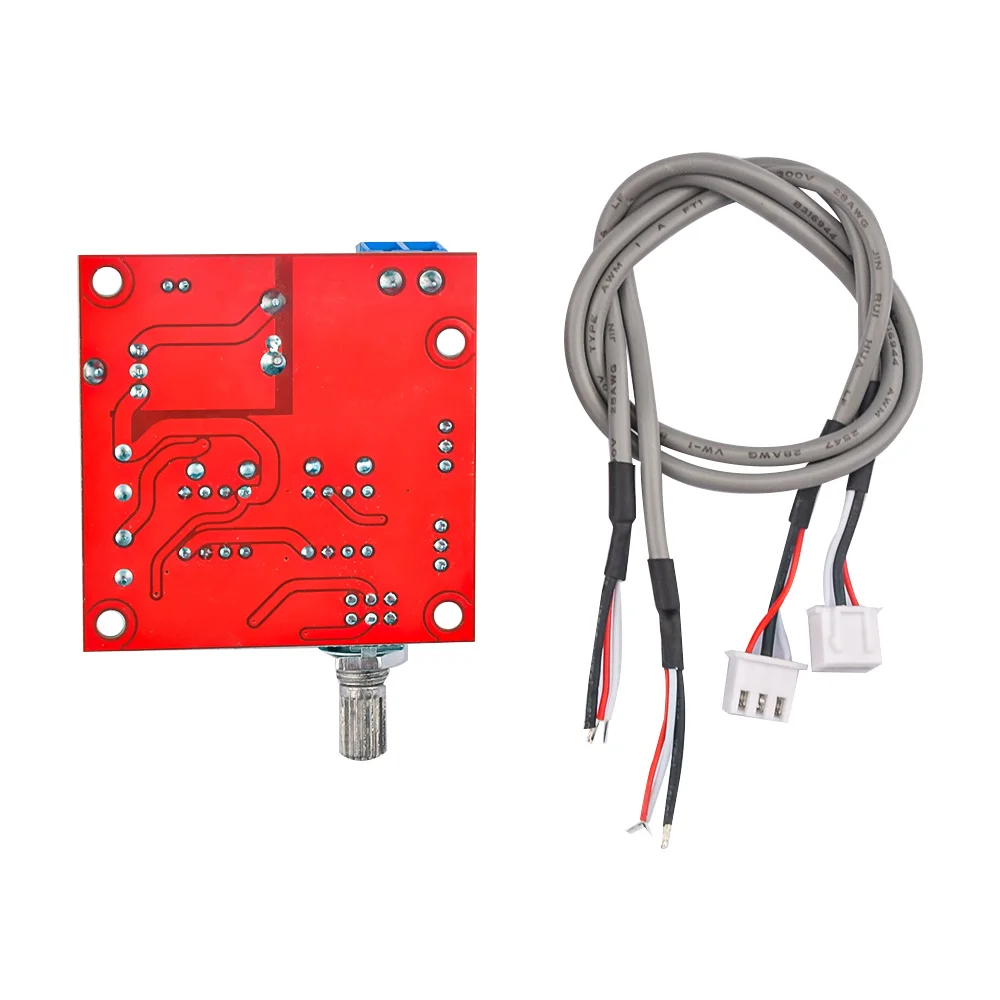

Model Number: NE5532 Pre-Amplifier Board

Origin: Mainland China

Overall height of the board: about 23mm

PCB size: 50x50mm

Working voltage: AC5-16V or DC6-24V

semi_Choice: yes

Features:
1. Using high-quality materials, the quality is guaranteed
2. The pre-amplifier is designed with two op amps, and one op amp is used for one channel, and the effect is much better than that of a single op amp and two channels.
3. Built-in single power supply to dual power supply chip, so that it has the effect of dual power supply under single power supply
4. Use large-capacity filter capacitors with rectifier circuit, which can be used for both AC and DC
5. Wide range of applications

Specification:
Working voltage: AC5-16V or DC6-24V

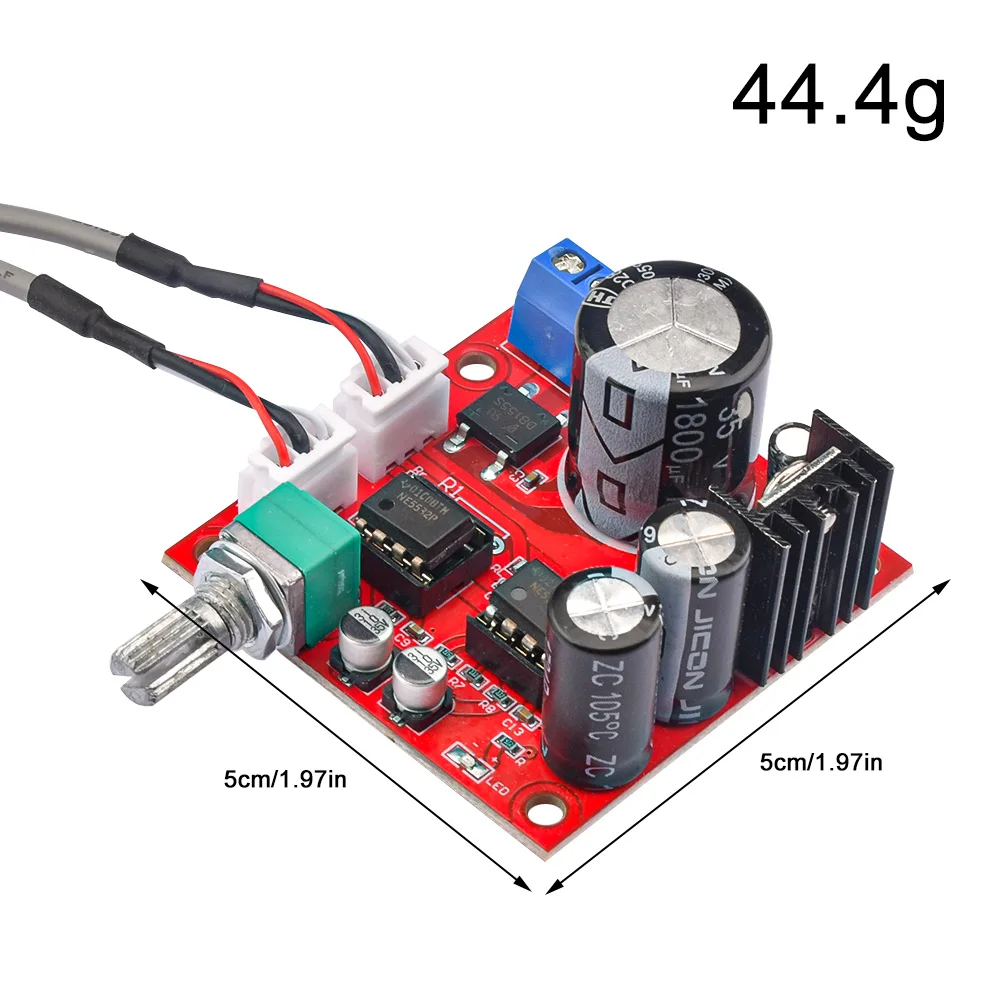

PCB size: 50mm*50mm
Overall height of the board: about 23mm

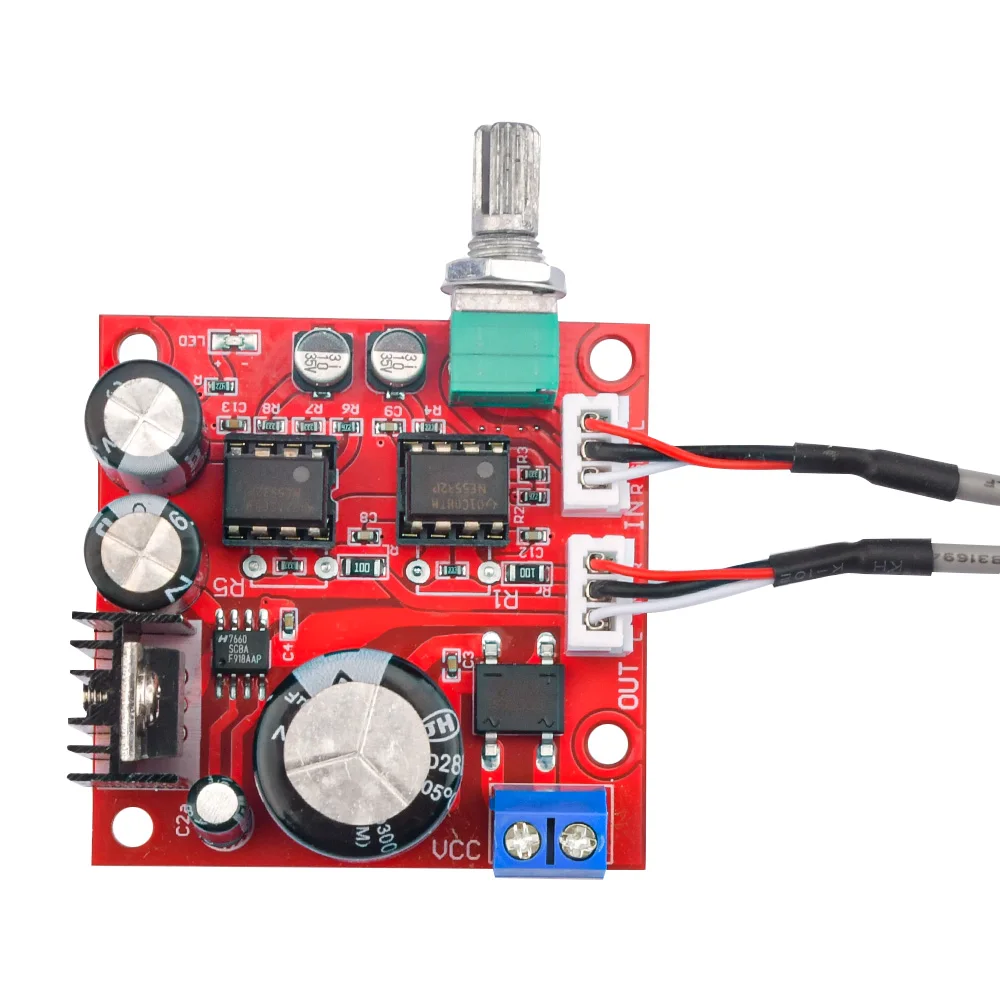

R1, R5 are the magnification setting resistors (the default is about 5 times magnification for delivery, you can change the magnification according to your own needs, the resistance can be selected from 5k-100k, the larger the resistance, the higher the magnification, if you use a plug-in resistor , you can remove the original chip resistor by soldering, and solder the plug-in resistor on the pads at both ends of the patch position)

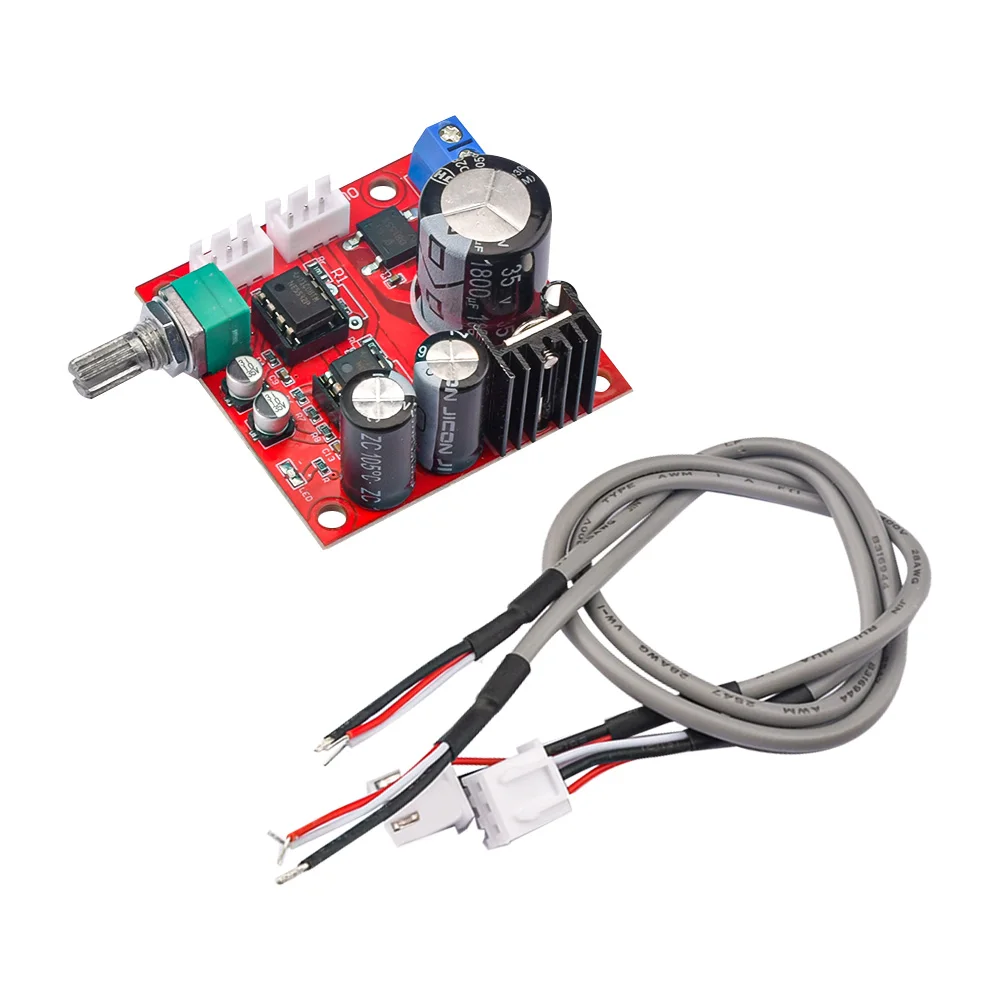

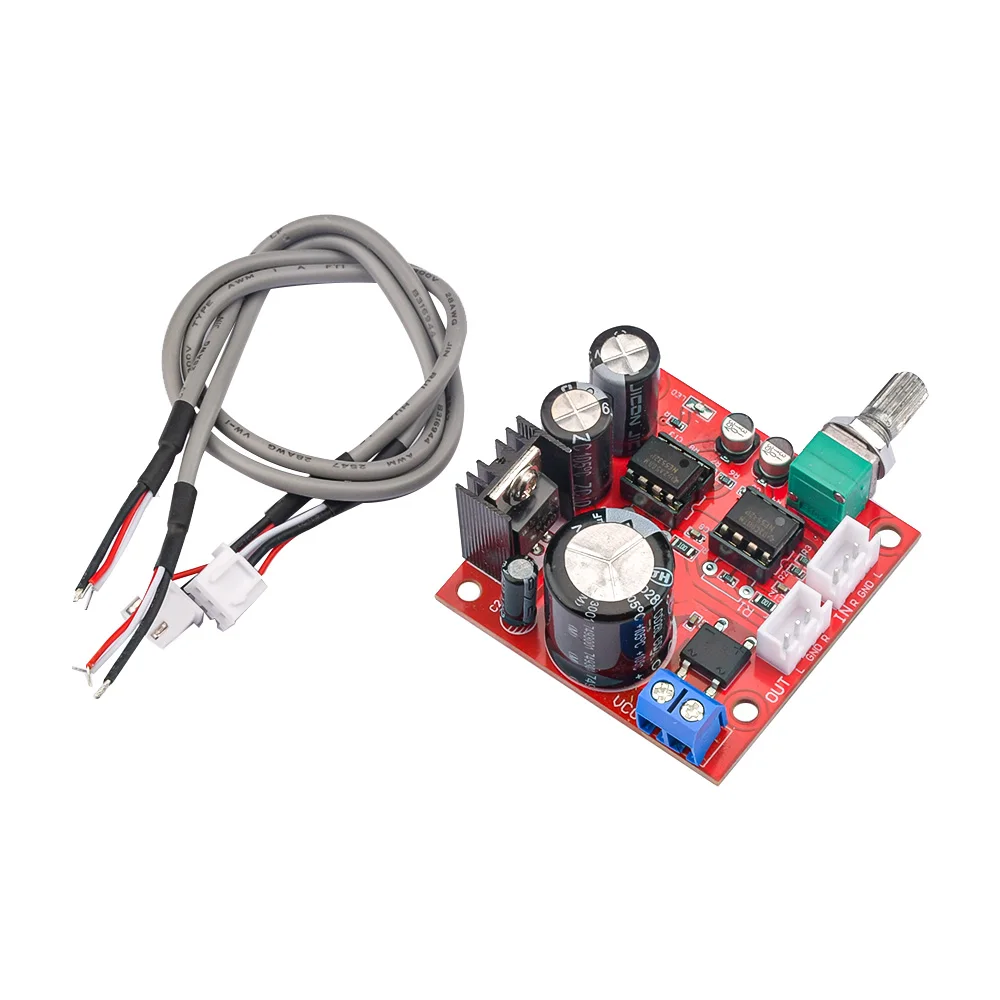

Package list:
Amplifier board*1
Signal line*2
