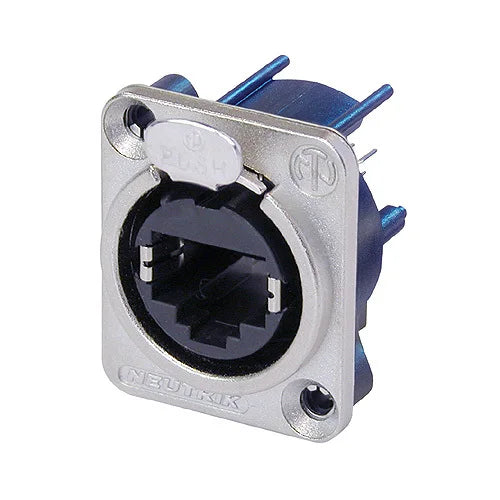

NE8FDV NE8FDV-TOP EtherCon Vertical PCB RJ45 Chassis Panel Mount Jack D Shape Swiss Neutrik original RJ45 receptacle D-shape
NE8FDV
$29.76
Sale price
$29.76
Regular price
$0.00
Skip to product information
NE8FDV NE8FDV-TOP EtherCon Vertical PCB RJ45 Chassis Panel Mount Jack D Shape Swiss Neutrik original RJ45 receptacle D-shape
$29.76
Sale price
$29.76
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Model Number: NE8FDV
Origin: Ch(origin)
We are authorization official agent for NEUTRIK in China. If larger order or demand, send me E-mail to me for future demand. My e-mail is alex@linautech.com
Product |
|
Title |
NE8FDV |
Gender |
female |
Electrical |
|
Contact resistance |
< 10 mΩ |
Dielectric strength |
1 kVdc |
Frequencyrange |
1 - 100 MHz |
Insulation resistance |
> 0.5 GΩ |
Rated current per contact |
1,5 A |
Rated voltage |
< 50 V |
Transmission performance |
Class D |
Standard compliance |
TIA/EIA 586B, IEC11801 |
Mechanical |
|
Insertion force |
≤ 20 N |
Withdrawal force |
≤ 20 N |
Lifetime |
> 1000 mating cycles |
Panel thickness |
max. 4 mm 0.16' |
Wiresize |
|
Wiring |
vertical PCB mount |
Locking device |
Latch lock |
Chassis shape |
D |
Material |
|
Contact plating |
0.2 µm Au over Ni plating |
Contacts |
Bronze (CuSn8) |
Insert |
PBTP 15 % GR |
Shell |
Zinc diecast (ZnAl4Cu1) |
Shell plating |
Nickel |
Environmental |
|
Flammability |
UL 94 V-0 |
Solderability |
Complies with IEC 68-2-20 |
Temperature range |
-30 °C to +80 °C |
