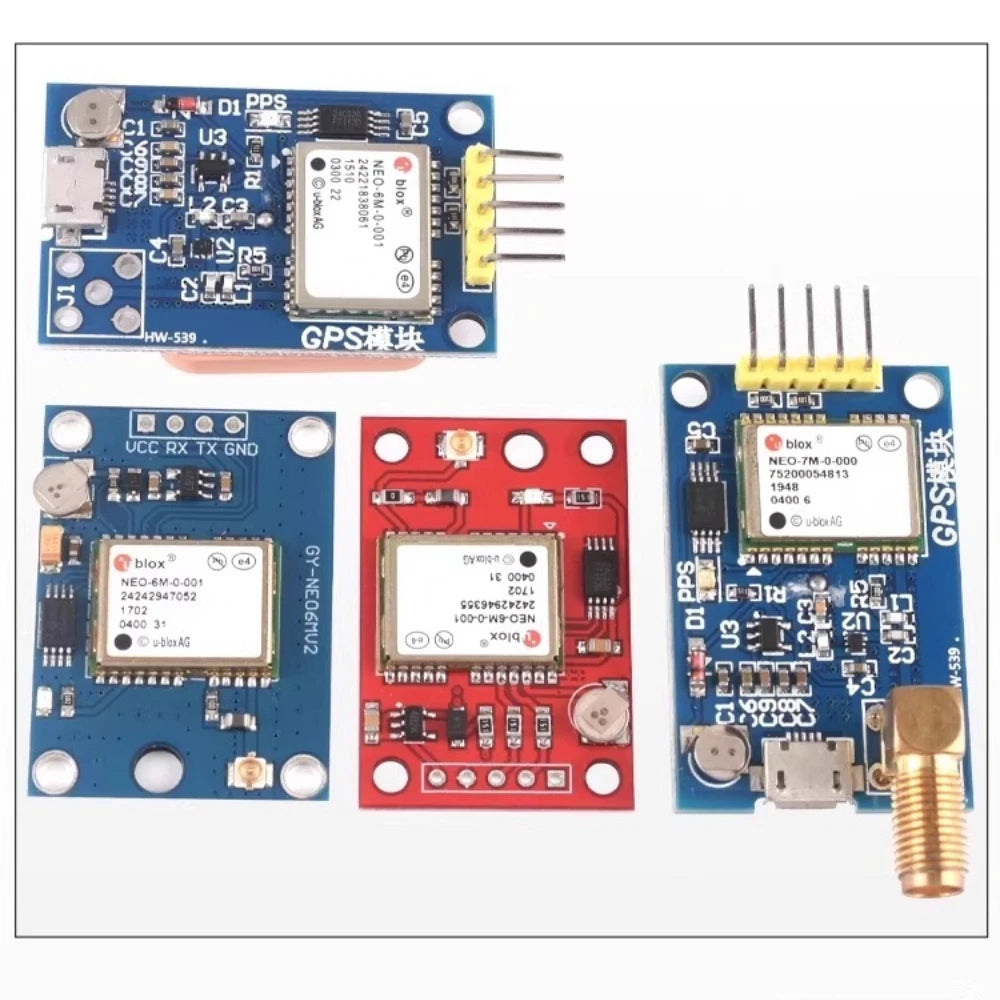

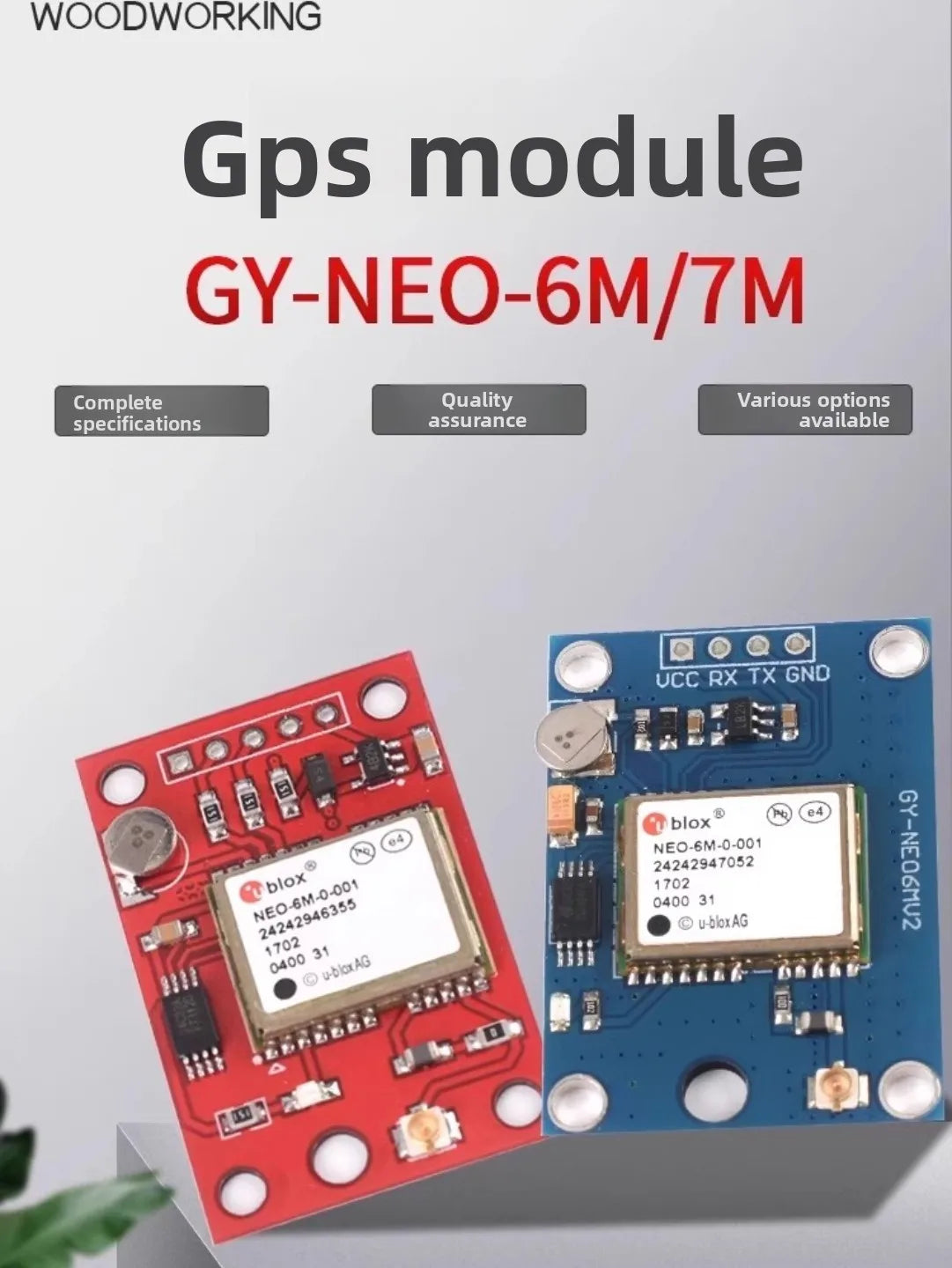

NEO-6M/7M/8M GPS Module for 51 MCU STM32,Arduino,APM2.5 Flight Control.High Sensitivity,Low Power,Fast Positioning with Antenna!

NEO-6M/7M/8M GPS Module for 51 MCU STM32,Arduino,APM2.5 Flight Control.High Sensitivity,Low Power,Fast Positioning with Antenna!

$60.36

$60.36 $0.00

Color GPS and Antenn IPEX 8M and Antenn 7M and Antenn 6M and Antenn NEO-7M NEO-6M STM32 and GPS

Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Logic ICs

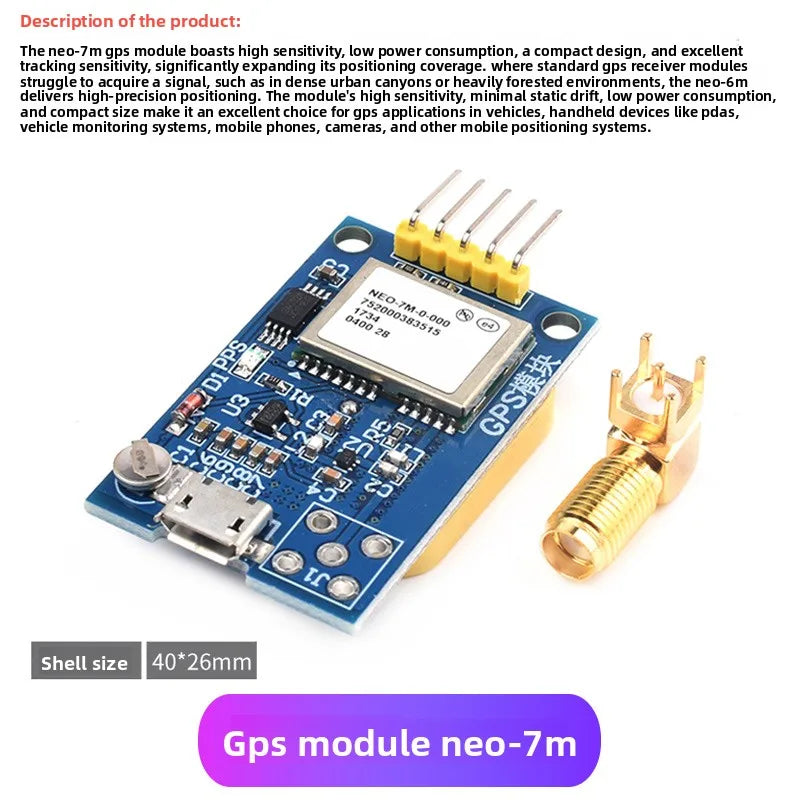

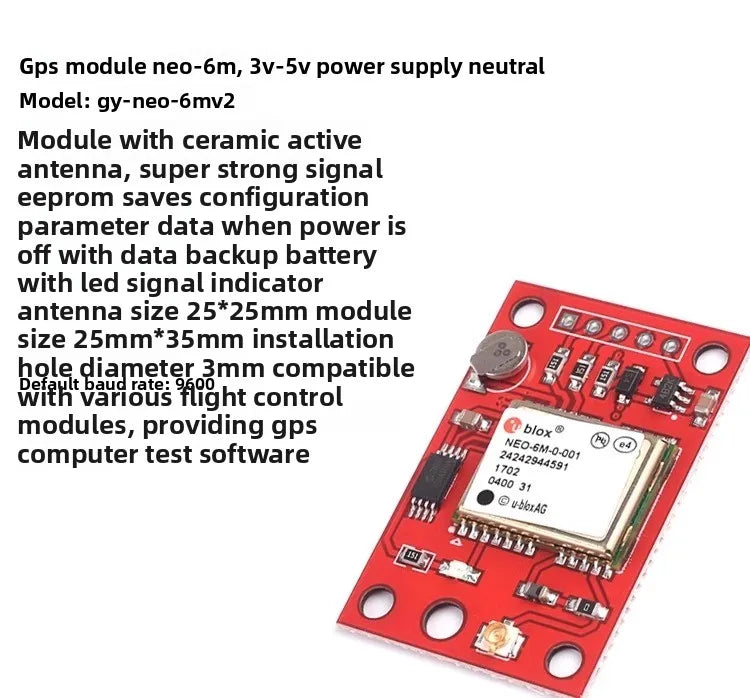

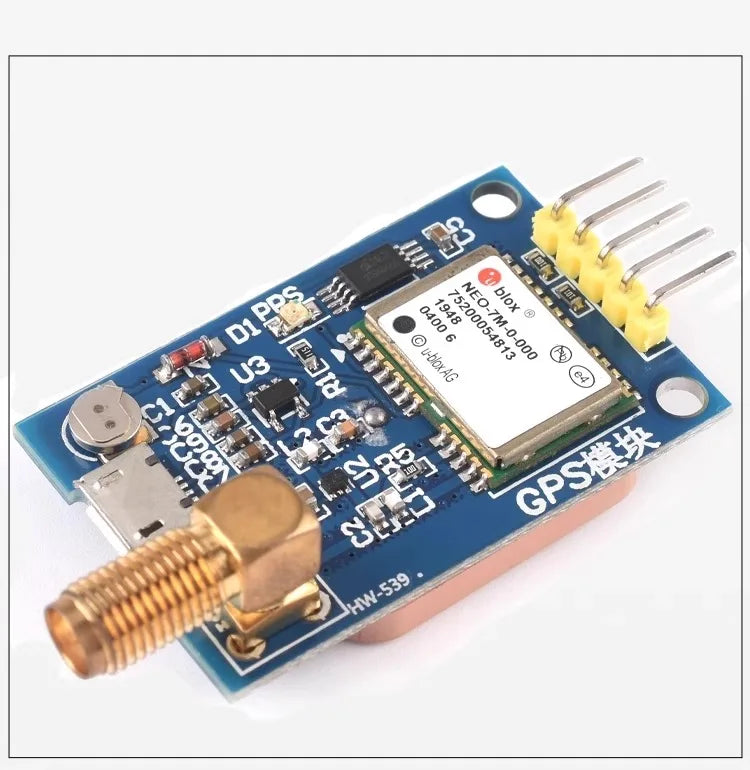

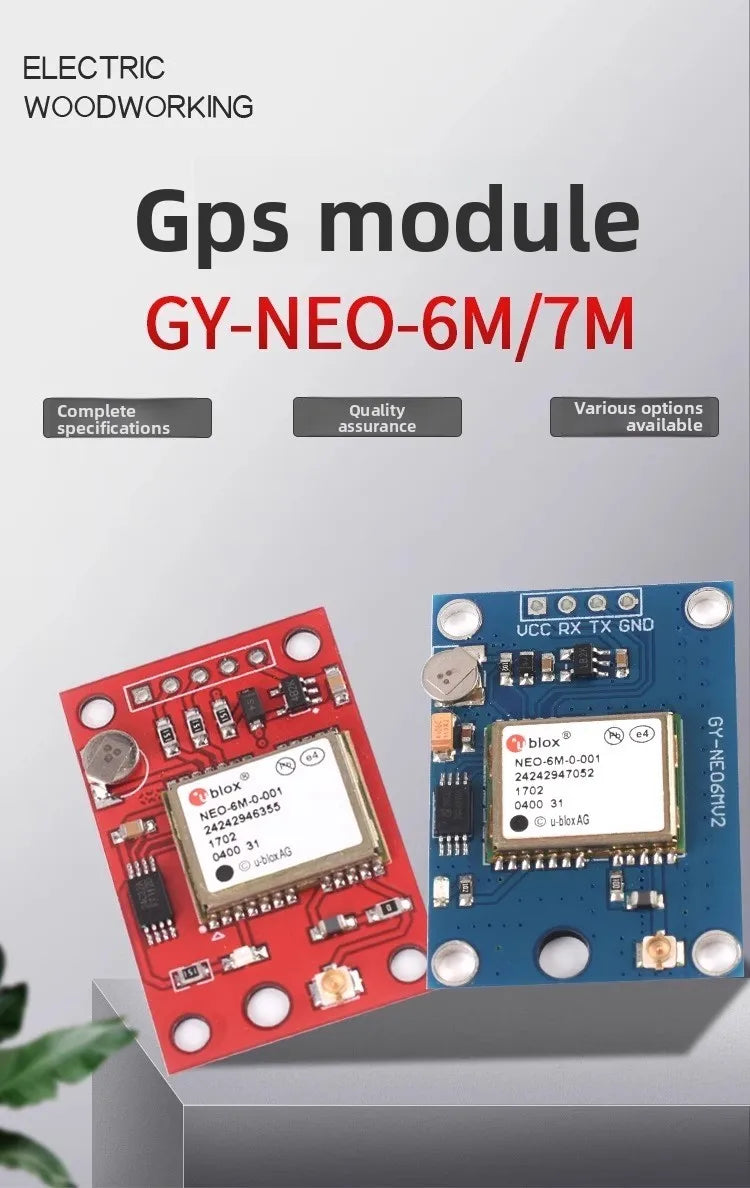

NEO-6M GPS Module – Professional High-Sensitivity Receiver for Embedded Systems

Precision Navigation Meets Developer-Friendly Design

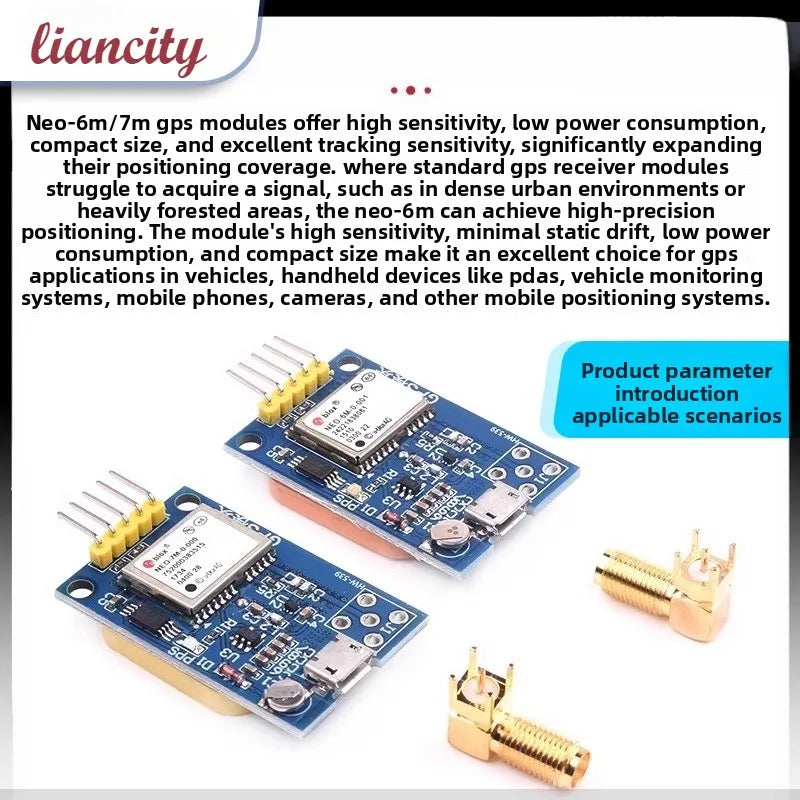

Unlock the power of global positioning for your next project. Our NEO-6M GPS module is engineered around the renowned u-blox NEO-6M engine, delivering exceptional sensitivity, reliability, and fast time-to-first-fix in a compact, ready-to-use package. Perfect for UAV/drone flight controllers (like APM 2.5), vehicle tracking, data loggers, robotics, and portable navigation devices.

Key Features & Benefits

High-Performance u-blox Core: Features the industry-standard NEO-6M GPS module, offering -161dBm tracking sensitivity for superior performance in challenging environments like urban canyons or dense foliage.

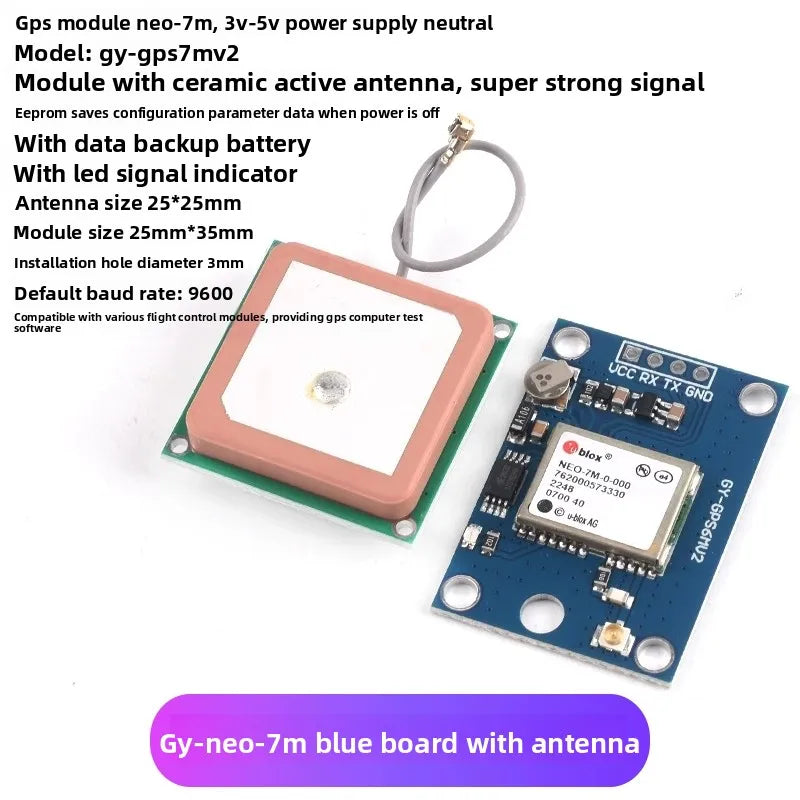

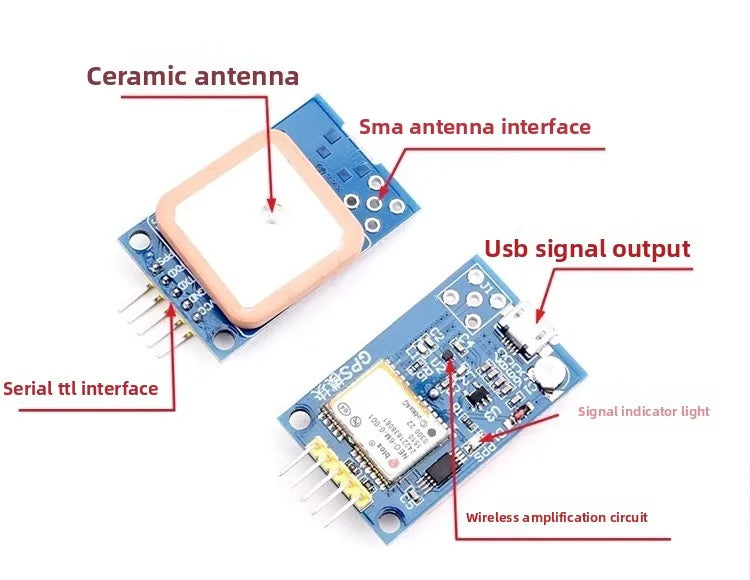

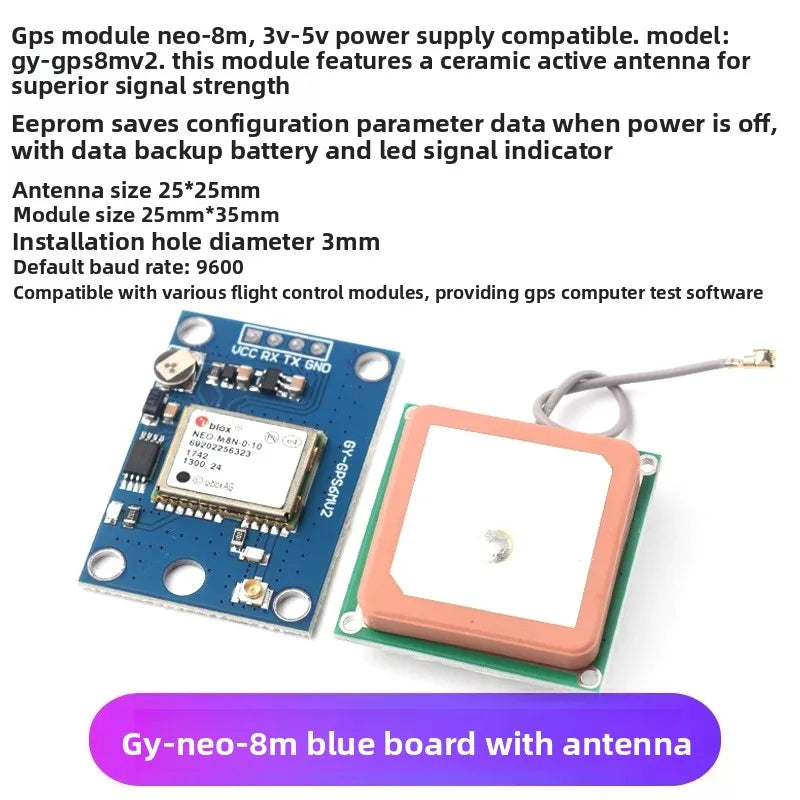

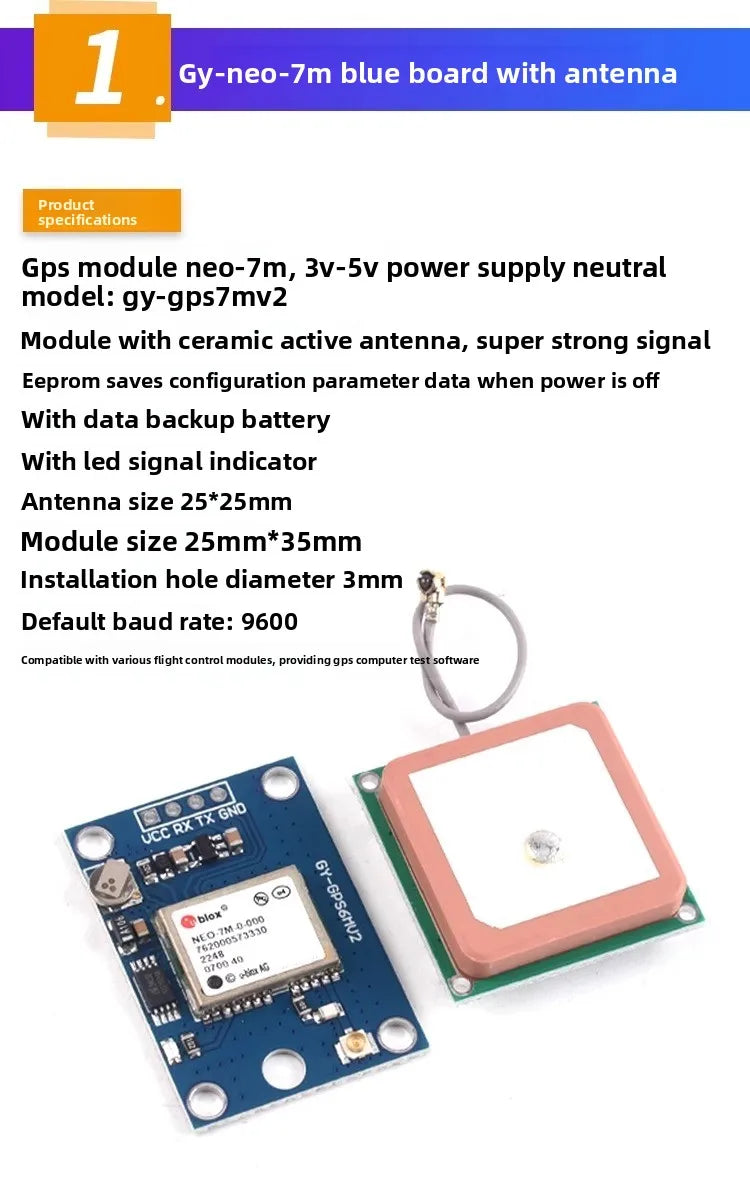

Integrated Active Antenna & LNA: Comes with a high-gain 25x25mm ceramic patch antenna and onboard low-noise amplifier circuit, ensuring strong signal acquisition and maximum satellite lock.

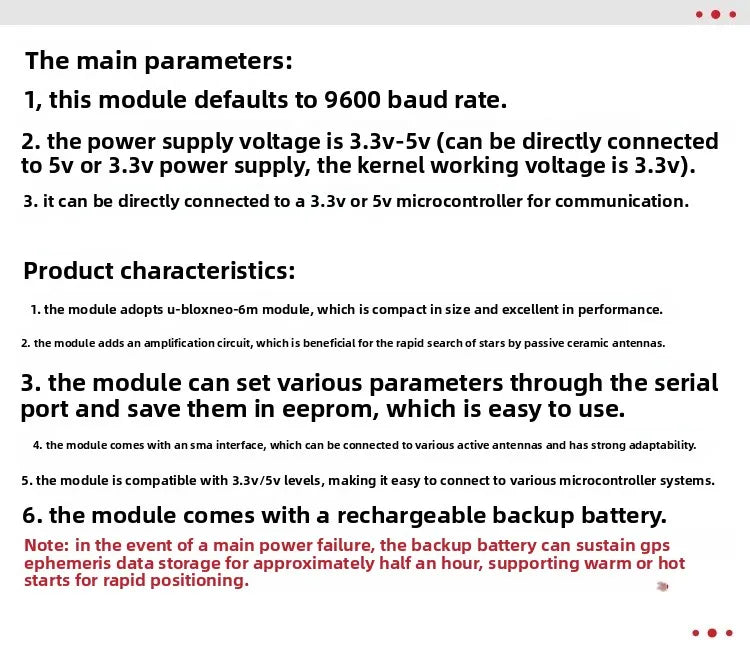

Fast & Stable Positioning: The included rechargeable backup battery maintains the GPS almanac data for 30+ minutes, enabling rapid hot-starts and significantly reducing positioning time.

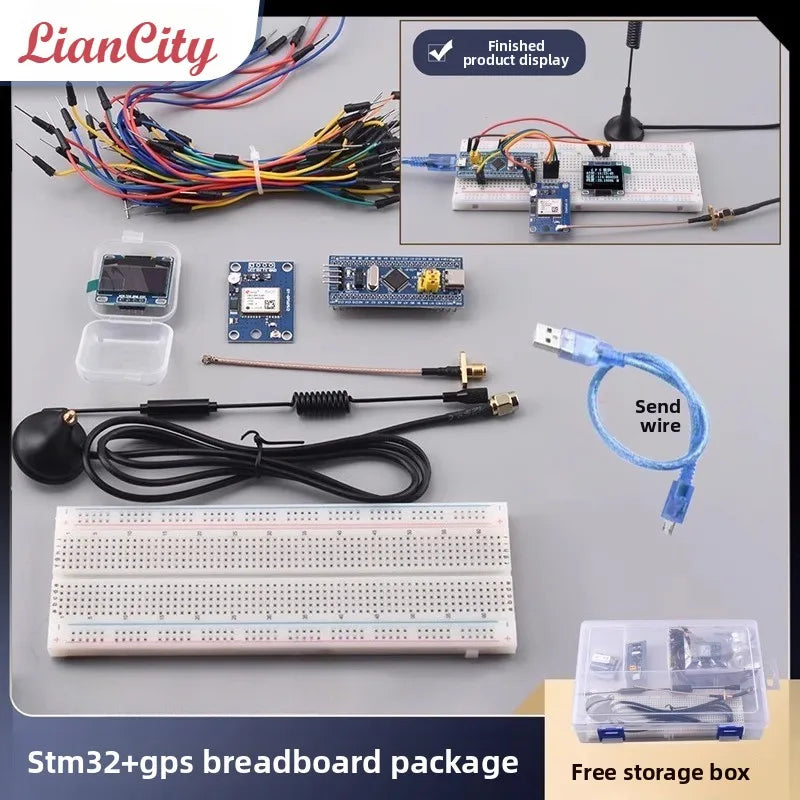

Plug-and-Play Compatibility: Designed for seamless integration with 5V and 3.3V systems. Works effortlessly with Arduino, STM32, 51 Series MCUs, and other popular microcontrollers via simple UART (TTL) serial communication.
Intelligent Status Indicators: The built-in PPS (Pulse Per Second) LED provides clear visual feedback: solid light = operating, slow blink (1Hz) = valid GPS fix achieved.
Fully Configurable: All module parameters (baud rate, update rate, NMEA sentences) can be customized via serial commands and are saved in the onboard EEPROM, preserving your settings through power cycles.

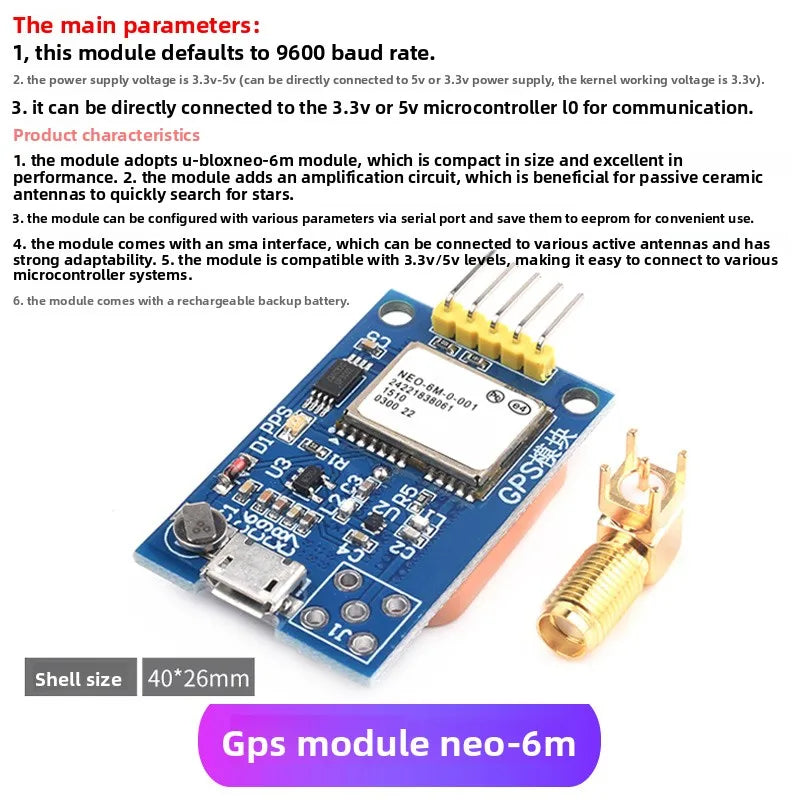

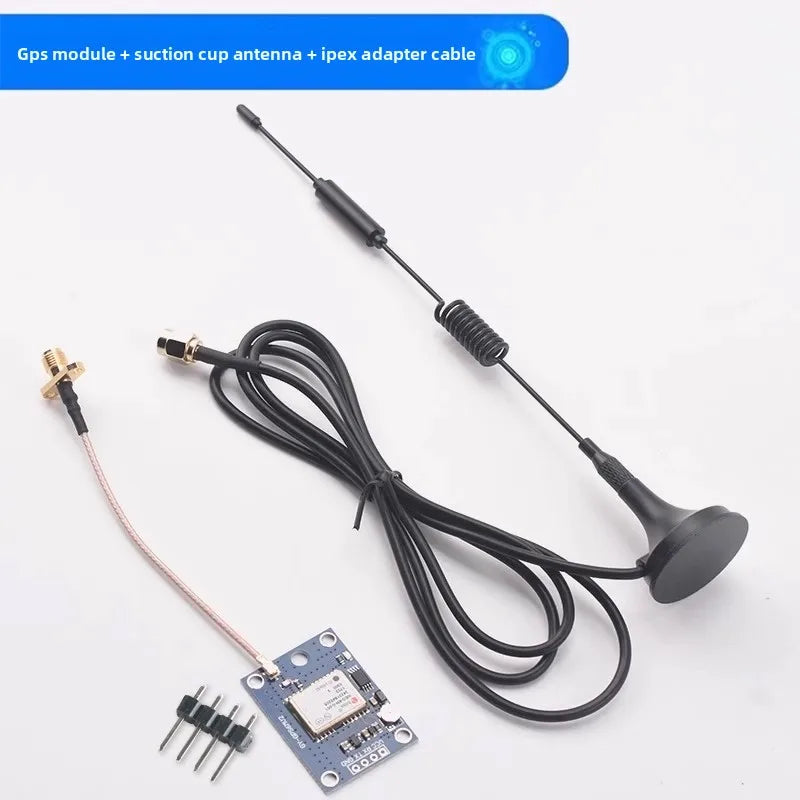

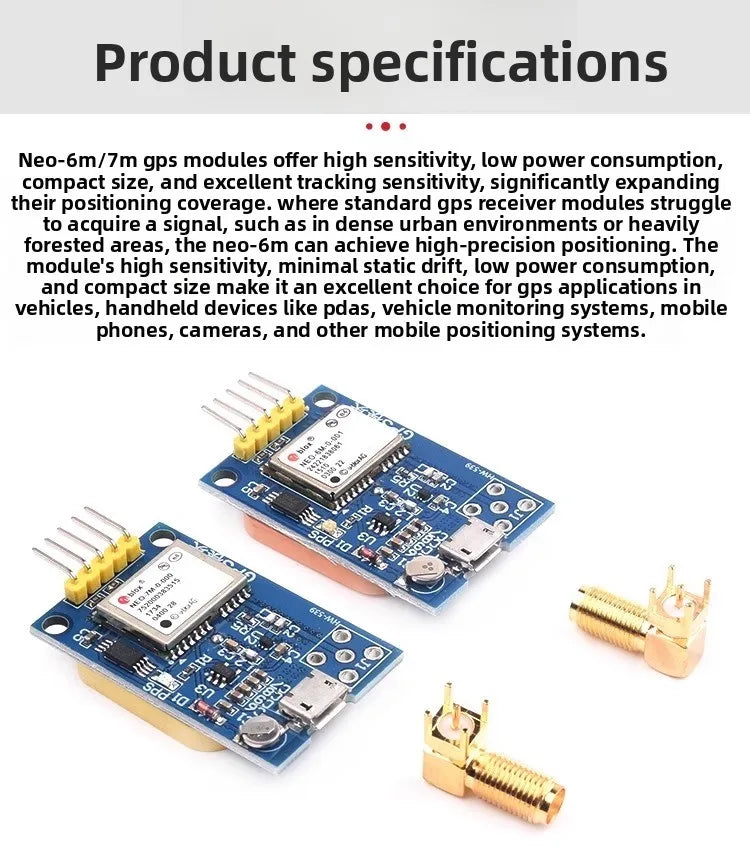

Professional Connectivity: Standard SMA antenna connector allows you to upgrade to an external active antenna for even greater range and performance.

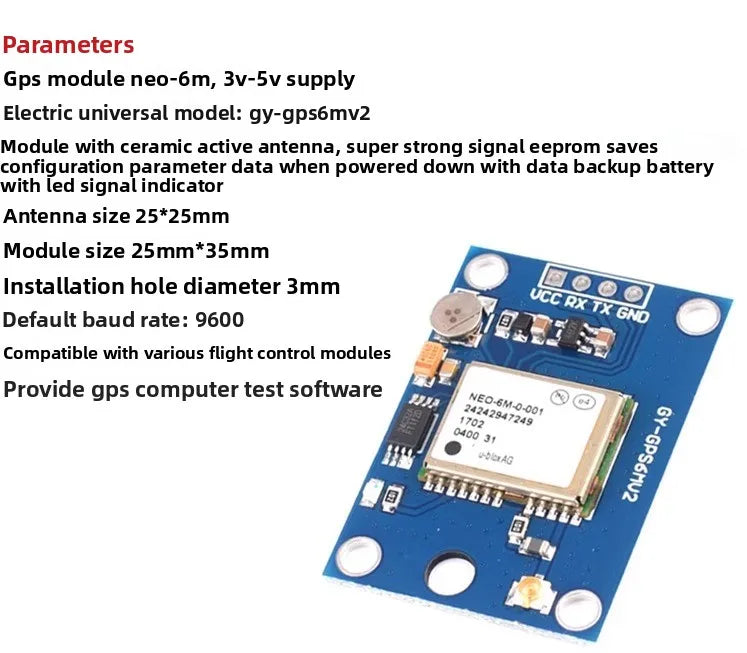

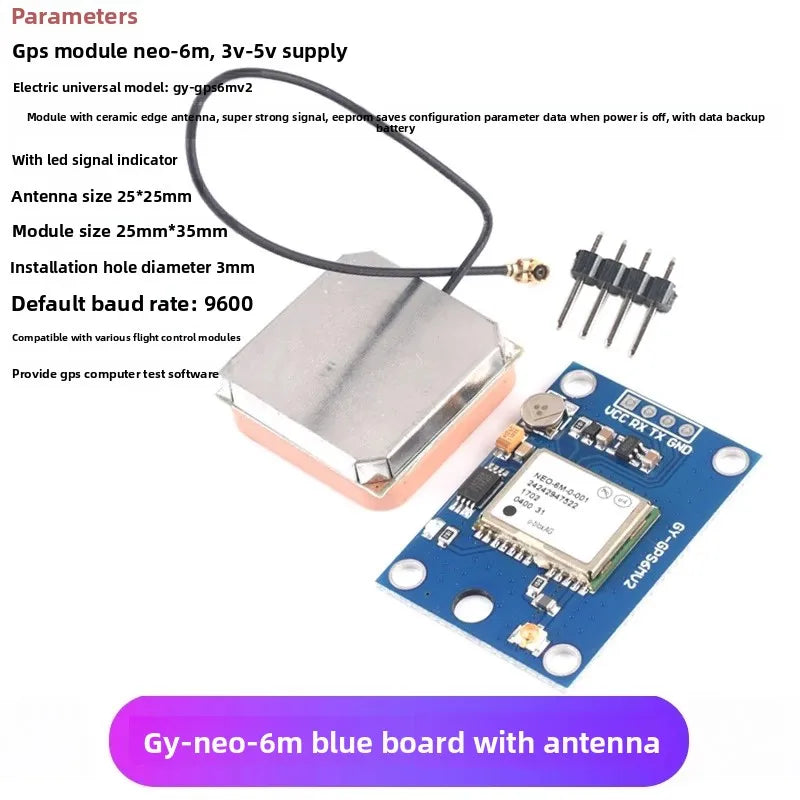

Technical Specifications

Category	Specification
Core Module	u-blox NEO-6M
Supply Voltage	3.3V ~ 5.0V DC
Communication	UART TTL Serial (Default Baud Rate: 9600)

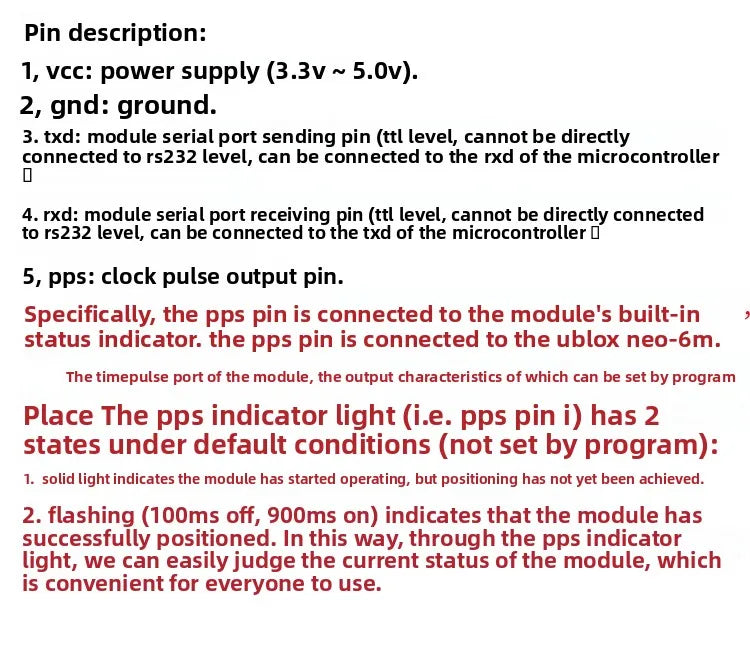

Interface Pins	VCC, GND, TXD, RXD, PPS
Sensitivity	Acquisition: -161 dBm, Tracking: -161 dBm
Position Accuracy	< 2.5m CEP
Backup Battery	Yes, for hot-start capability
Onboard Antenna	Active Ceramic Patch (25mm x 25mm)
External Antenna Port	SMA Female Connector
Dimensions (PCB)	35mm x 25mm
Mounting Holes	3mm diameter

Package Includes

1 x NEO-6M GPS Receiver Module (with onboard antenna)
Set of pin headers (unattached for flexible installation)

Applications

UAV / Drone / APM / Pixhawk Flight Control Systems
Vehicle Tracking & Fleet Management
Personal & Asset Tracking Devices
Precision Timing & Data Logging
Robotics and Autonomous Navigation
Marine & Outdoor Adventure Equipment

Why Choose Our Module?

We provide more than just a chip-on-board. Our module is a complete, tested solution with a robust power design, signal amplification, and configuration memory. The clear documentation, status LED, and standard connectors save you hours of development time, allowing you to focus on building your application.

Order today and give your project a clear sense of direction!
