SPECIFICATIONS

Battery Included: no

Brand Name: NONE

High-concerned chemical: none

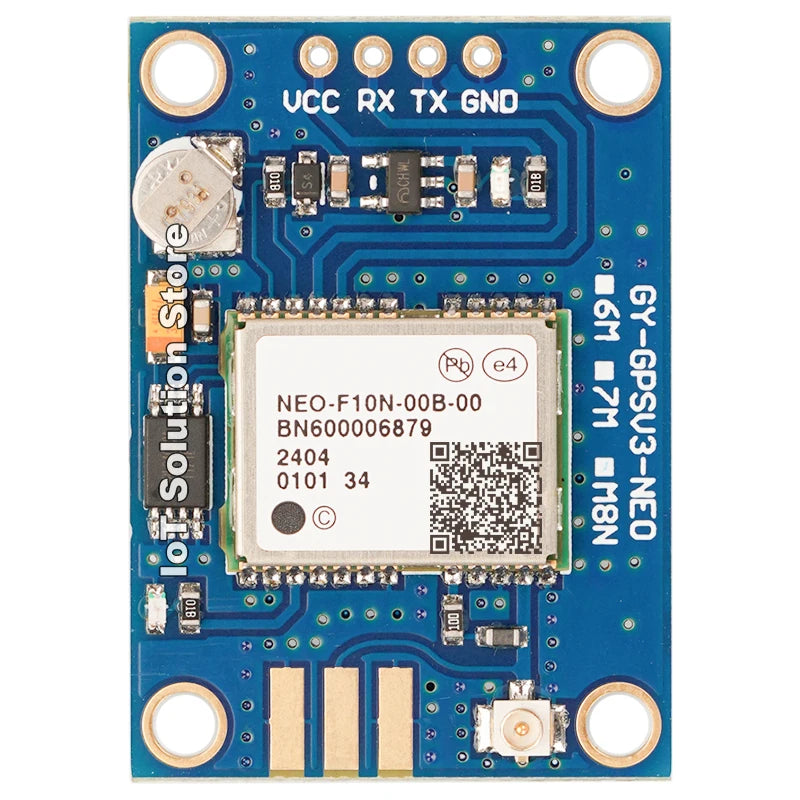

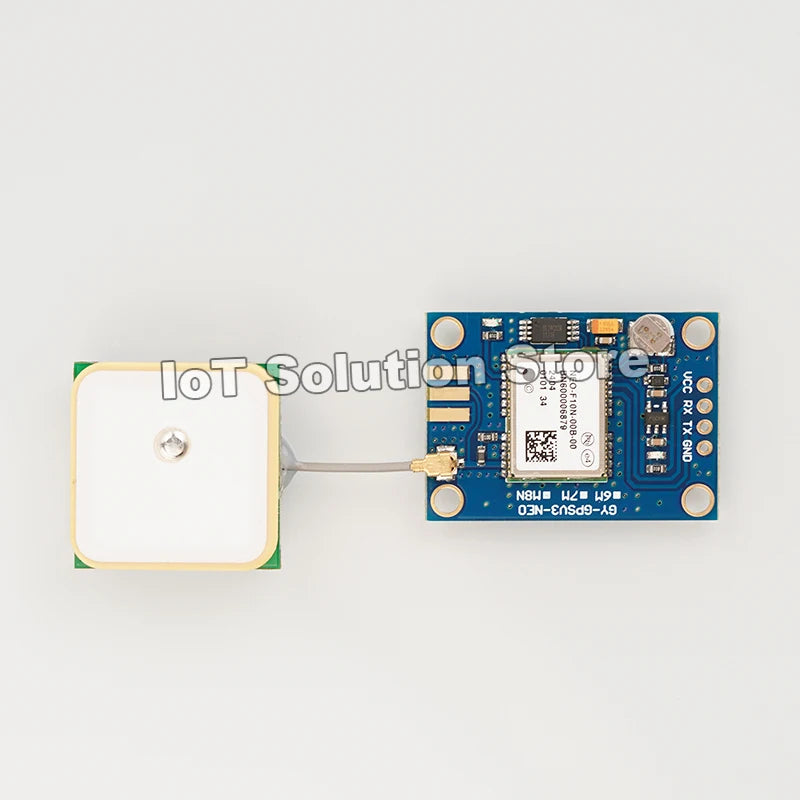

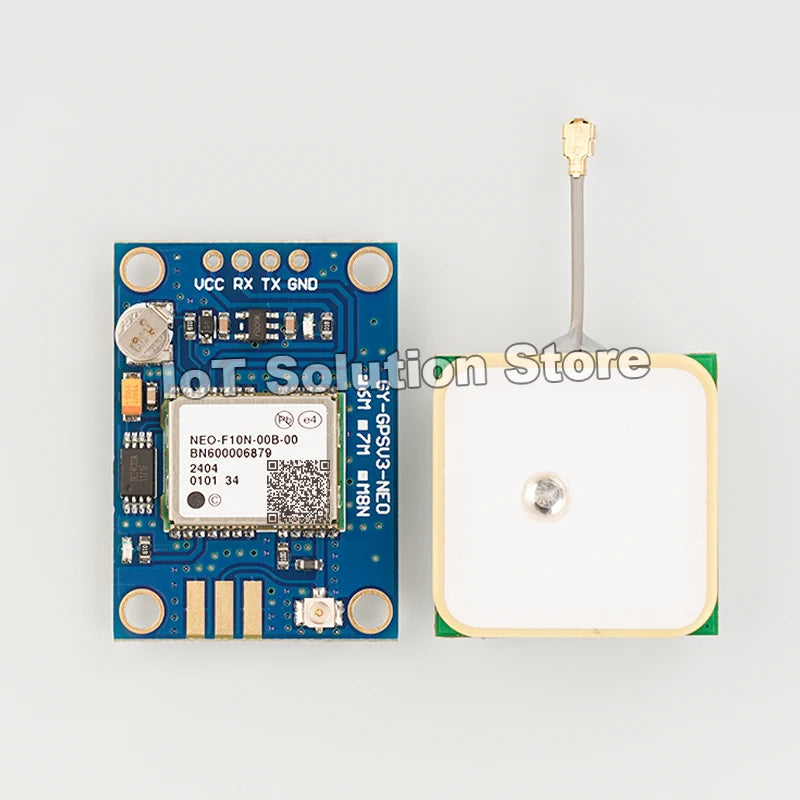

Main Chip: NEO Series GNSS Module

Model Number: NEO-M8N, NEO-M8T, NEO-M9N, NEO-F10N

Origin: Mainland China

Typical Application Fields: Education and Learning

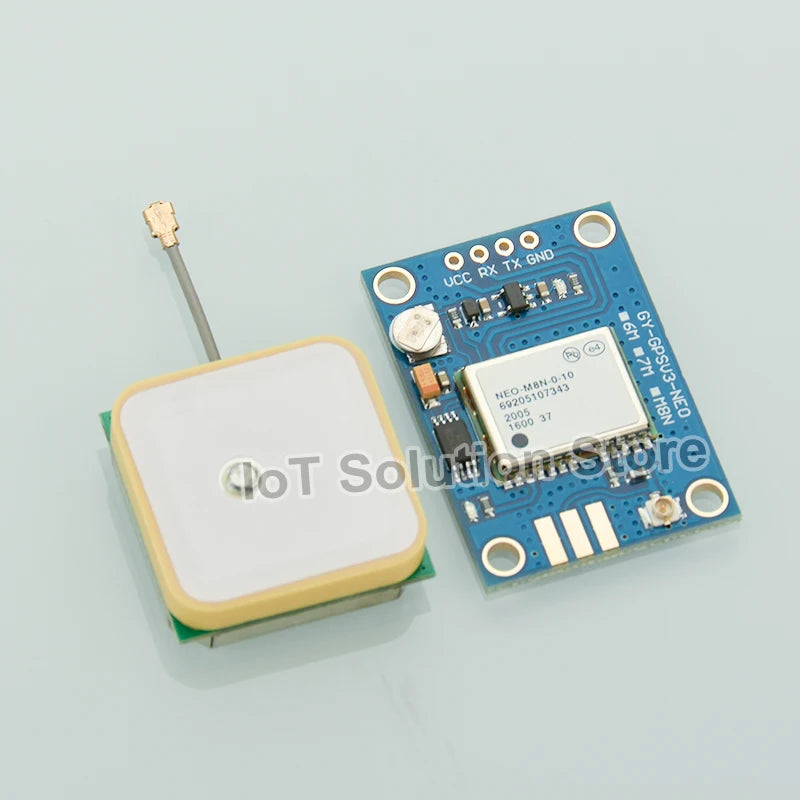

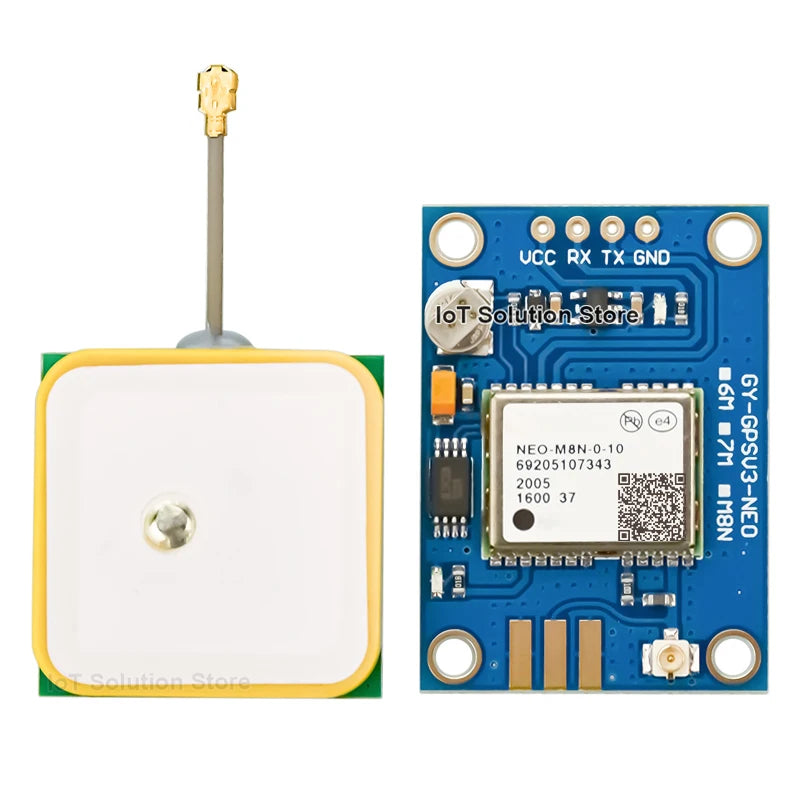

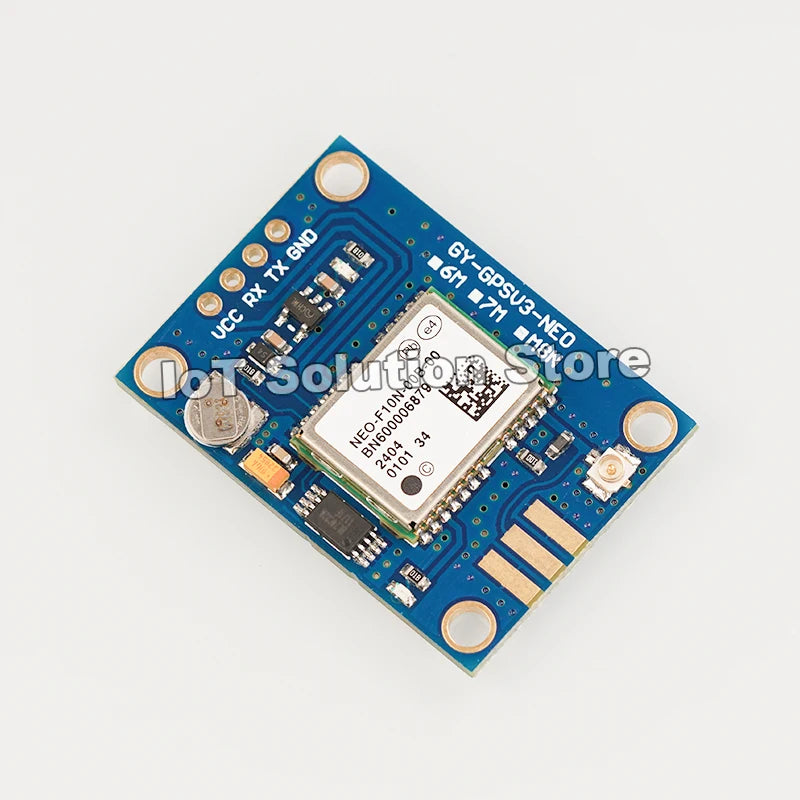

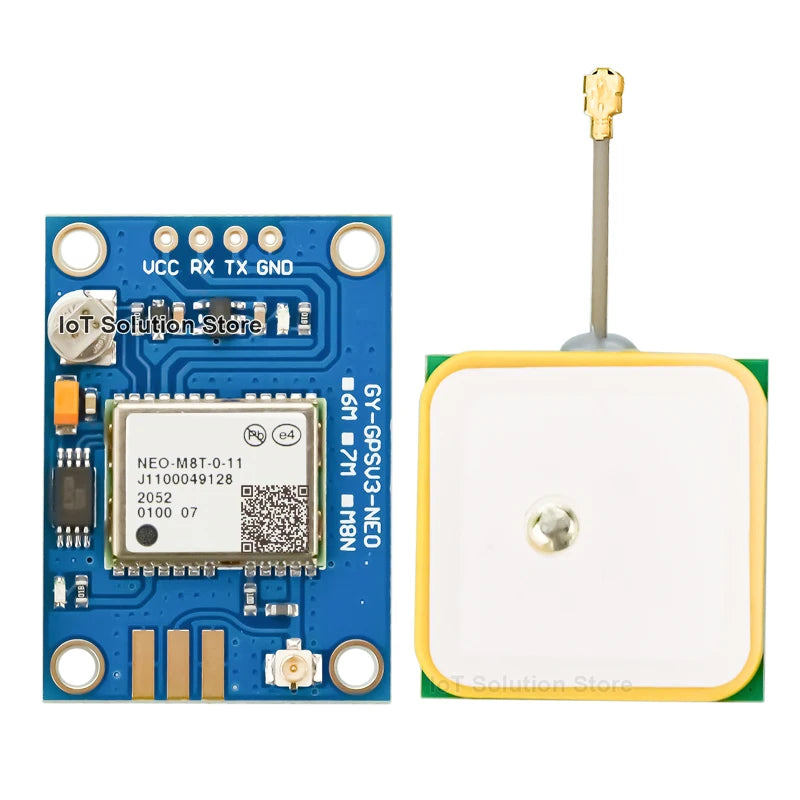

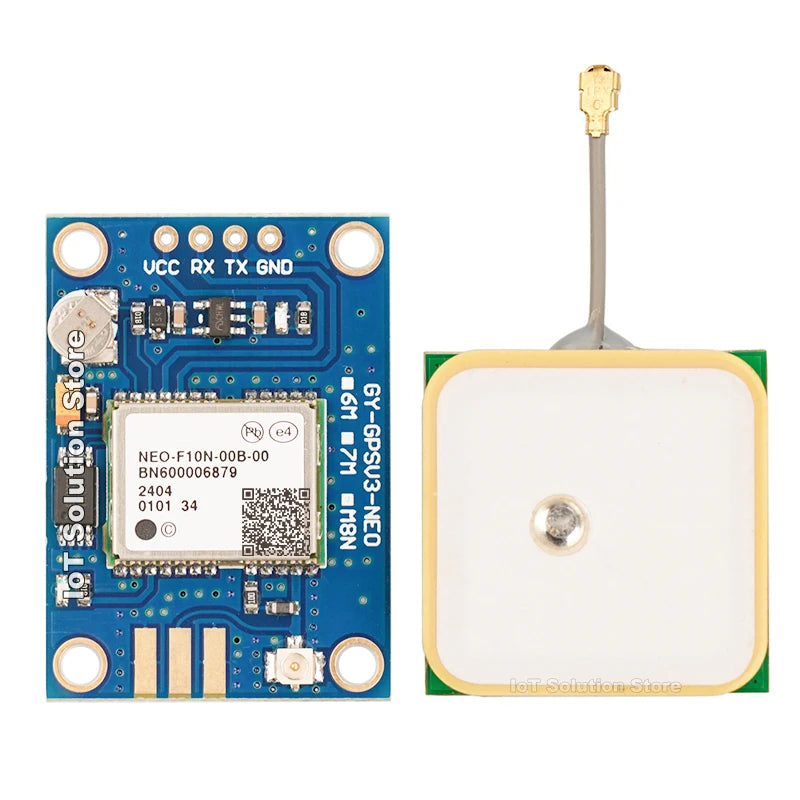

M8N:

(1) 3V-5V power supply;

(2) Module equipped with ceramic active antenna, signal formance is good (with amplification and filtering);

(3) EEPROM power down to save configuration parameter data;

(4) With data backup battery;

(5) With LED indicator;

(6) High quality gold plated PCB;

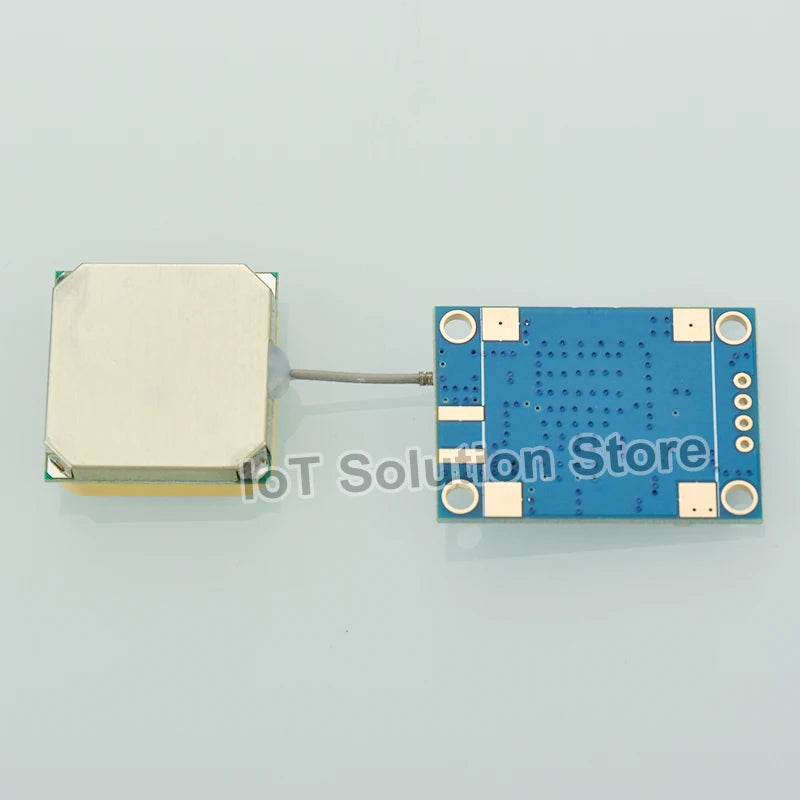

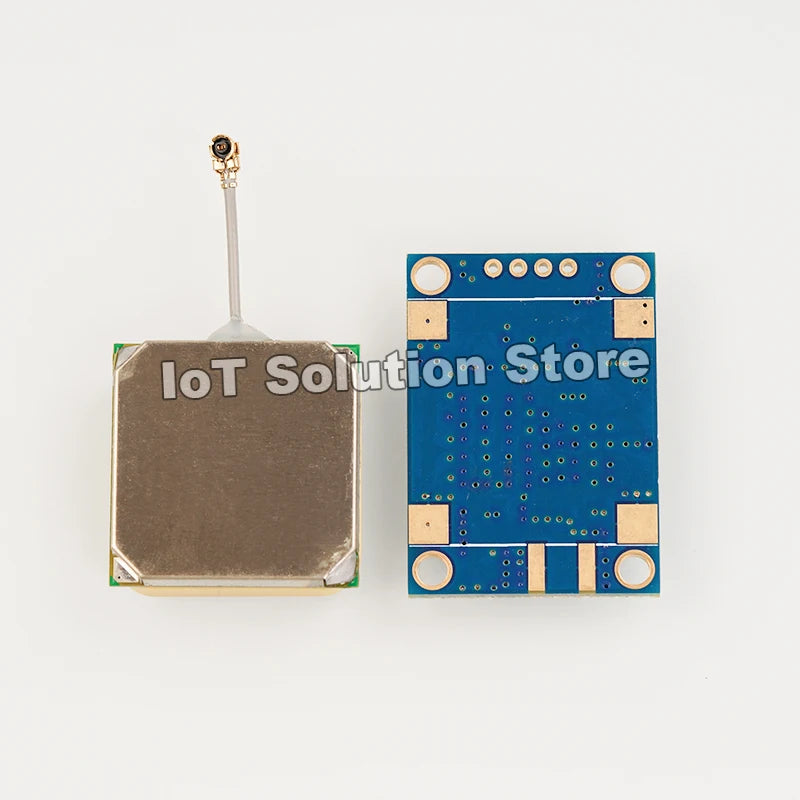

(7) Antenna size: 25x25mm;

(8) Module size: 25mmx35mm;

(9) Mounting aperture 3mm;

(10) Single weight 19g;

(11) Power supply voltage 3v-5v;

(12) Default Baud Rate: 9600;

(13) Compatible with various flight control modules, providing GPS computer testing software.

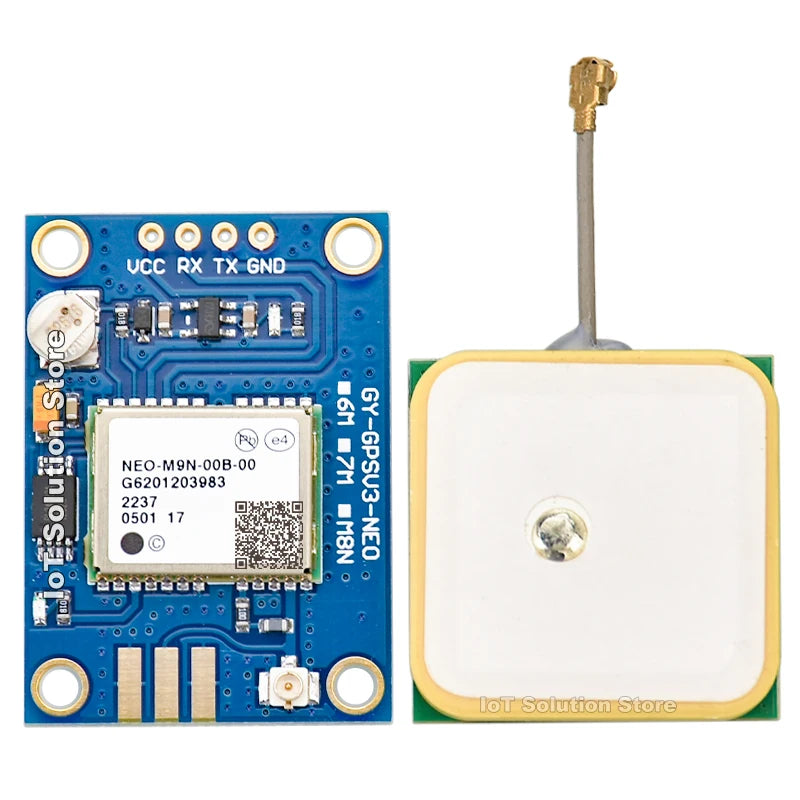

M9N:

(1) More channels than M8N, supporting simultaneous activation of GPS Glonass Beidou etc;

(2) Model: GY-GPSV3-M9N;

(3) Power supply: 3V-5V;

(4) Module with ceramic GNSS active antenna;

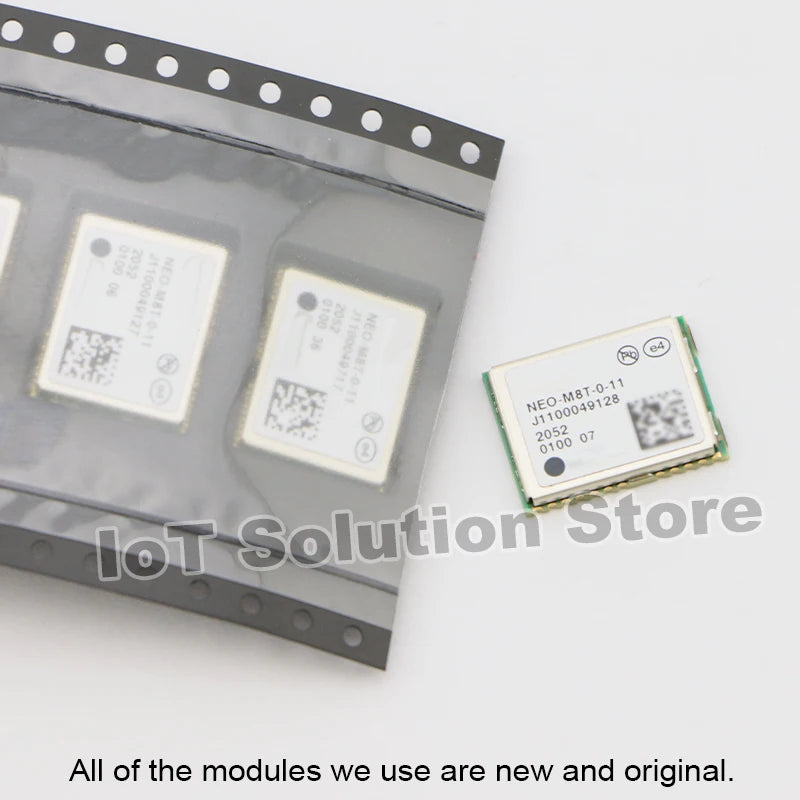

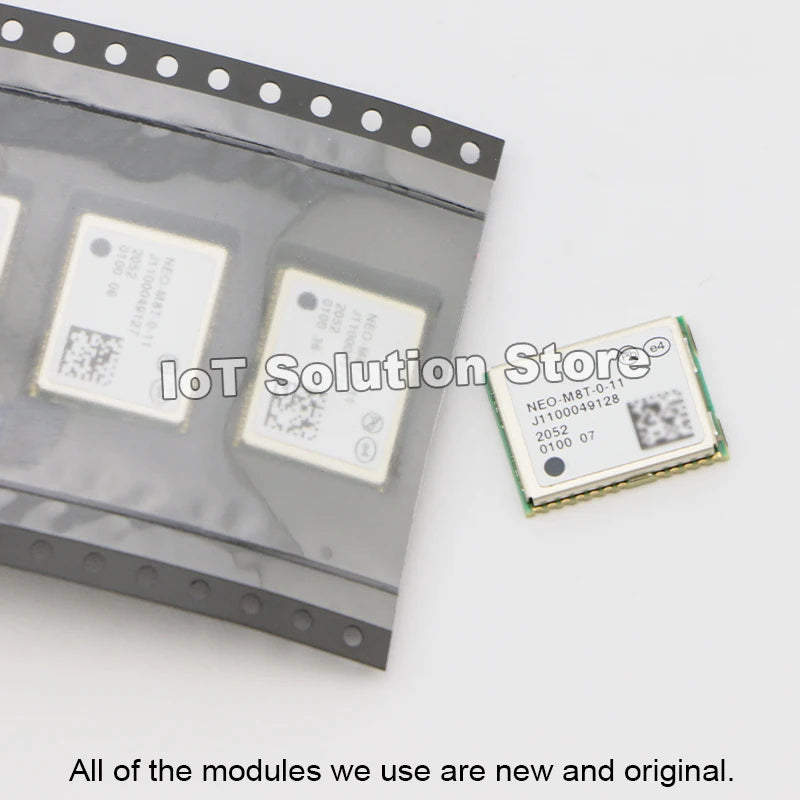

(5) New and Original NEO-M8N/M8T/M9N Module;

(6) With data backup battery;

(7) With LED signal indicator;

(8) Antenna size 25 x 25mm;

(9) Module size 25mm x 35mm;

(10) Mounting aperture: 3mm;

(11) Serial port output default baud rate: 38400;
