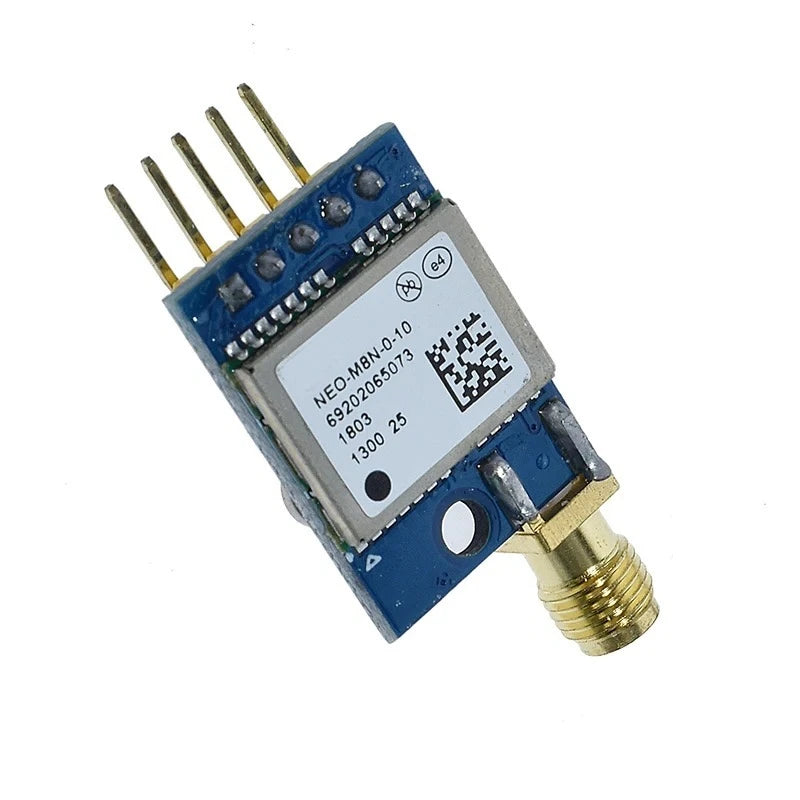

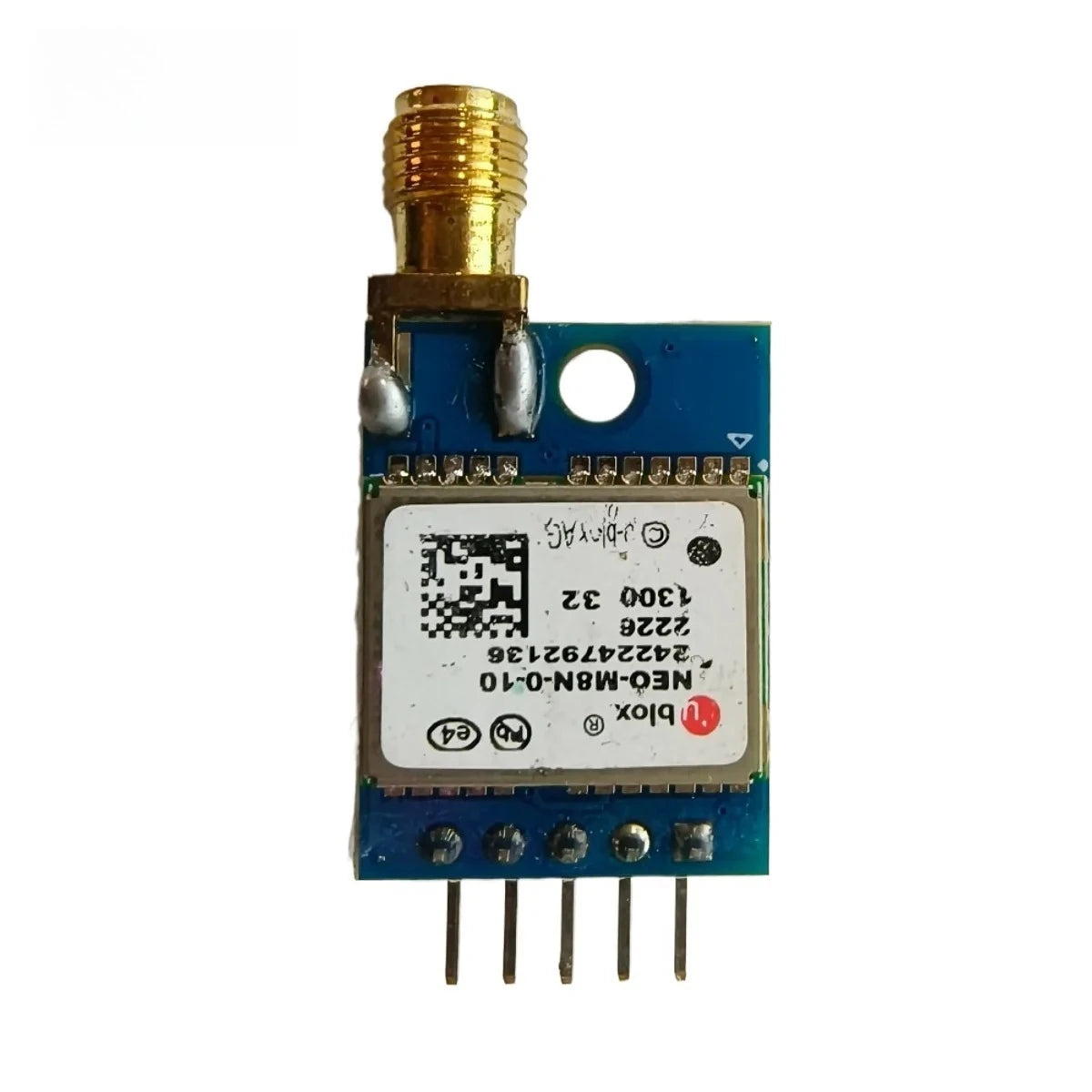

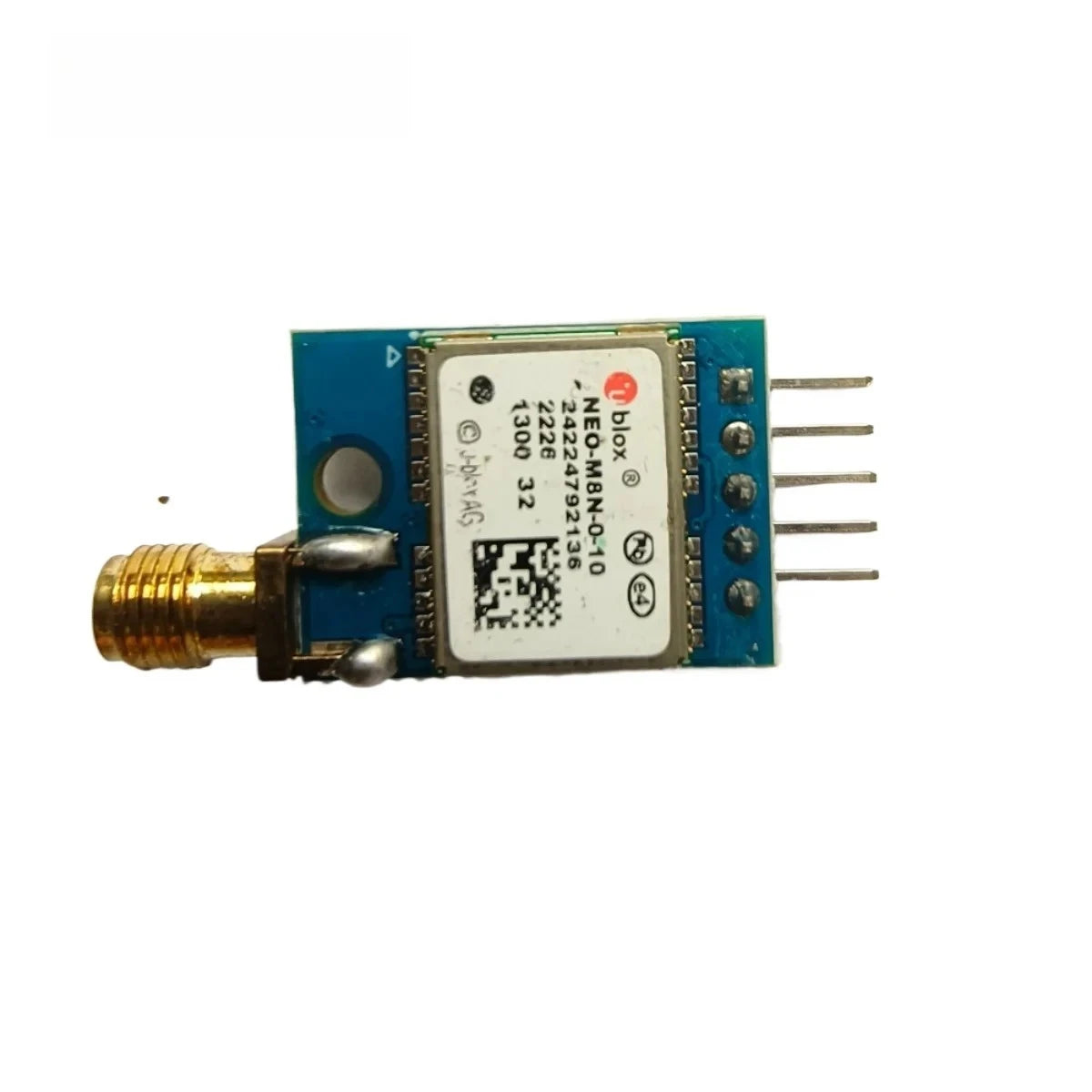

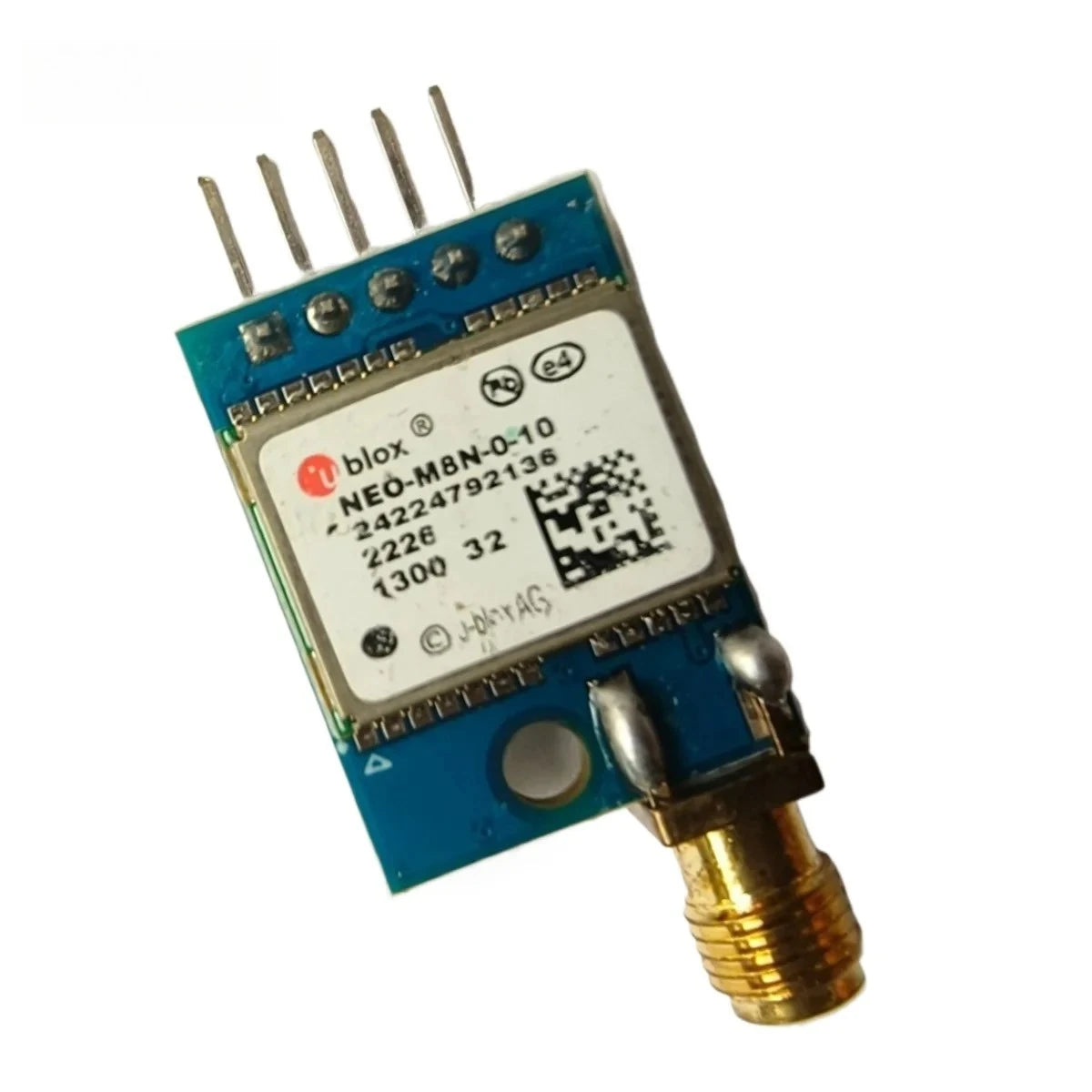

NEO-M8N-0-10 GPS Module UBLOX M5T Satellite Navigation Board GLONASS Compatible with FPV Flight Controller

NEO-M8N-0-10 GPS Module UBLOX M5T Satellite Navigation Board GLONASS Compatible with FPV Flight Controller

$66.68

$66.68 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Axle Bearing

High-concerned chemical: none

Material: Plastic

Model Number: NEO-M8N

Origin: Mainland China

Plastic Type: PC

Remote Control Peripherals/Devices: Remote Controller

Support: 5V/3.3V voltage

Tool Supplies: Cutting

Type: Hand Tool Parts

Upgrade Parts/Accessories: Frame

function: EEPROM function

NEO-M8N-0-10 GPS Module UBLOX M5T Satellite Navigation Board GLONASS Compatible with FPV Flight Controller

Specification:
- Default output baud rate: 9600 (can be modified through U-Center)
- Default output frequency: 1HZ (can be modified through U-Center)
- Output protocol: NMEA-0183
- Output level: TTL level for serial communication
- Supporting satellites: GPS satellite, Beidou satellite, GLONASS satellite
- Can be set to use GPS+Beidou satellite (default is GPS+GLONASS satellite combination, or GPS+GLONASS satellite combination)

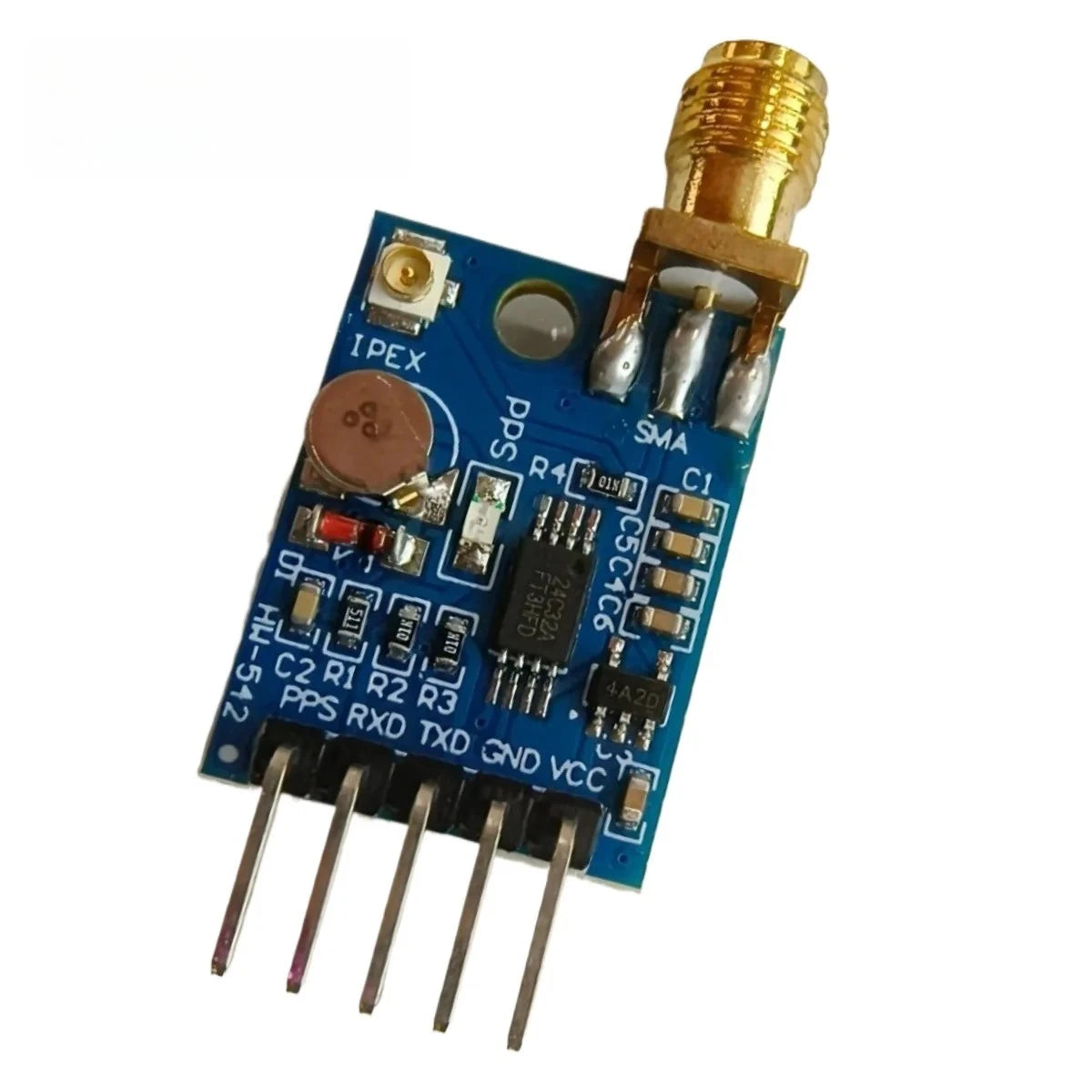

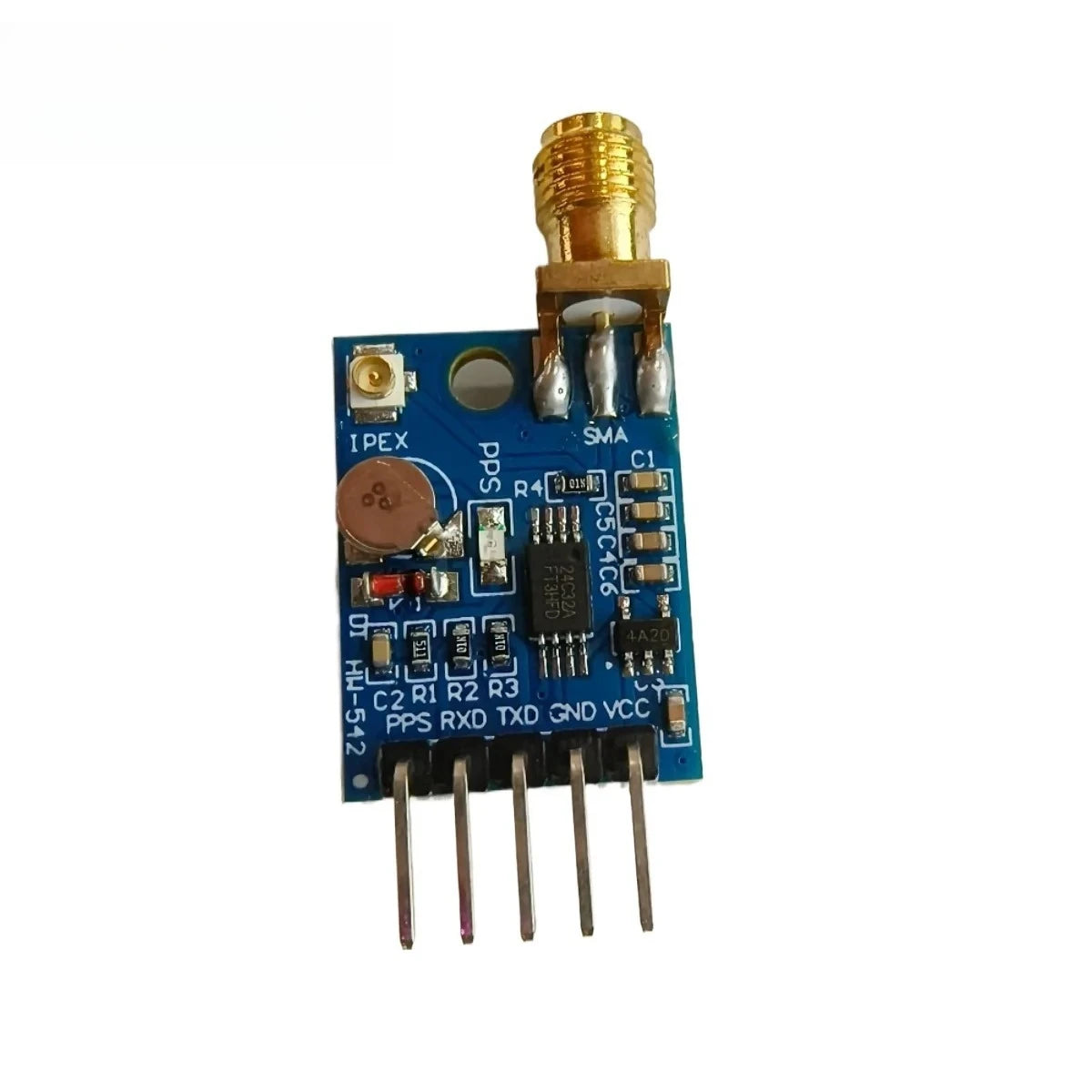

Equipped with IPEX and SMA antenna interfaces, it can connect various active antennas externally.
- Comes with EEPROM to store configuration information.
Equipped with a rechargeable backup battery, it can temporarily maintain ephemeris data in case of power failure to improve the speed of hot start positioning,
- Compatible with 5V/3.3V voltage, suitable for various microcontrollers with EEPROM and backup battery, satellite search module supports China: Beidou satellite
- Support for the United States: GPS satellites
- Support Russia: GLONSAA satellite

Please note the firmware could not updated,do not buy this one if you mind this
