SPECIFICATIONS

Applicable gender: male and female

Brand Name: jeefly,JeeFly

Drones Accessories Type: GPS

Electrified: No

High-concerned chemical: none

Model Number: 450 frame

Origin: Mainland China

Suitable age: 15-65 years old

color: red and gold

name: jp metel

name 2: 90mm edf

name 3: 6s edf

weight: 2000g

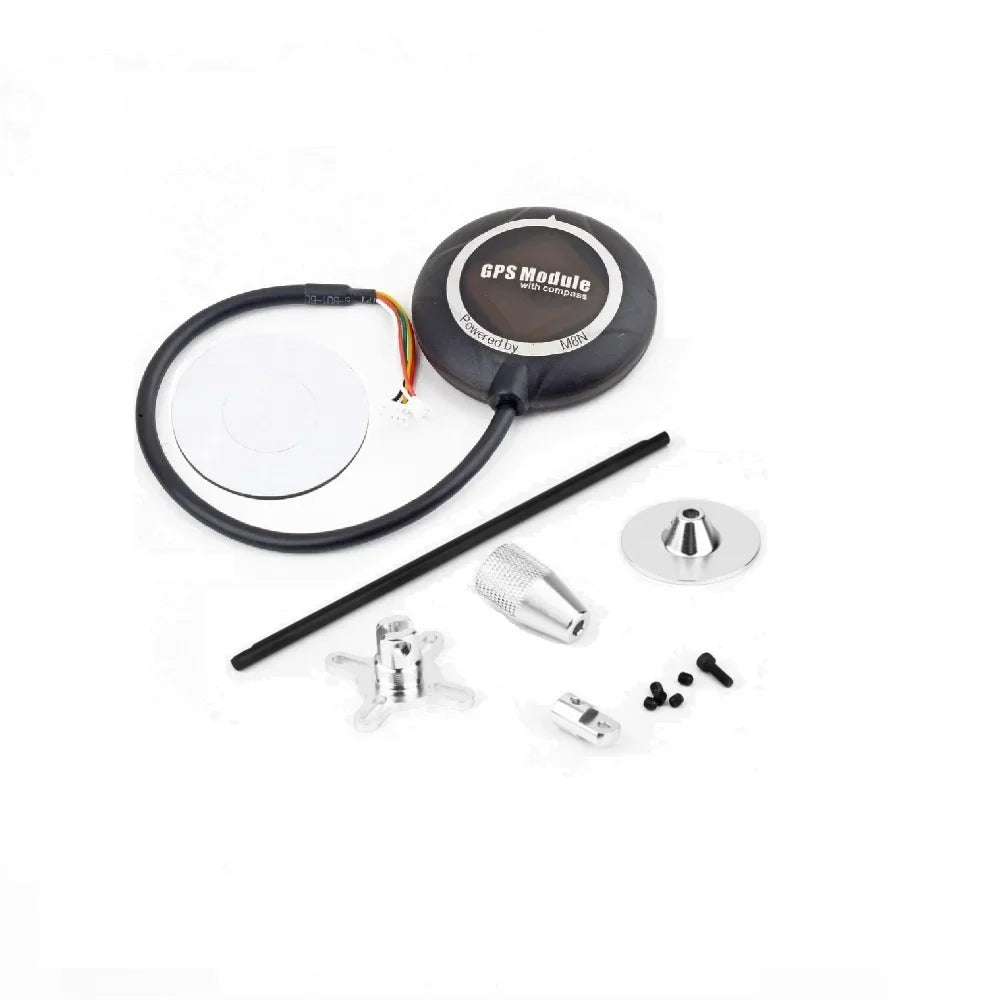

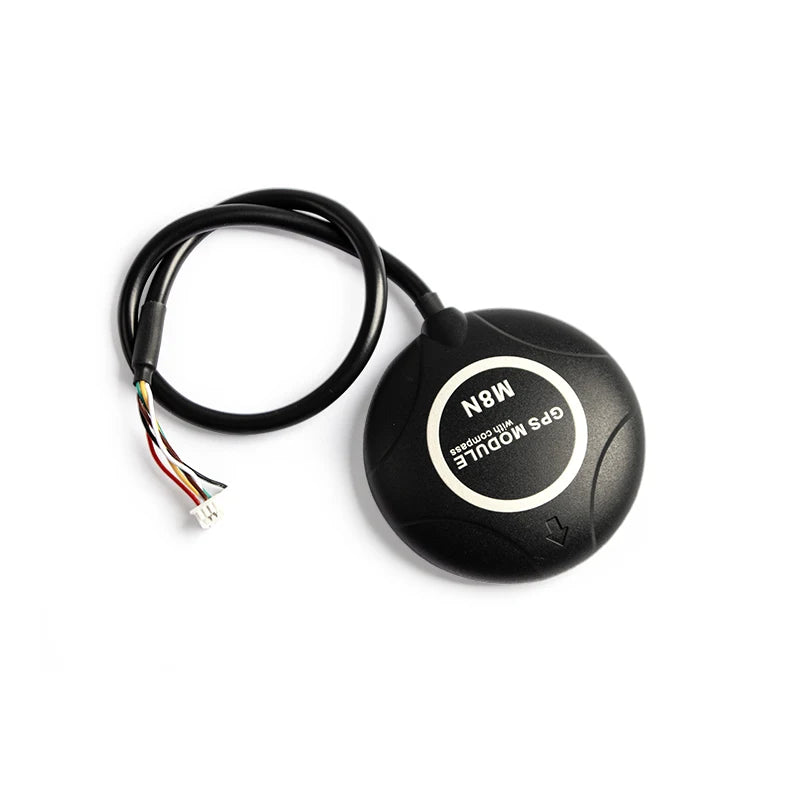

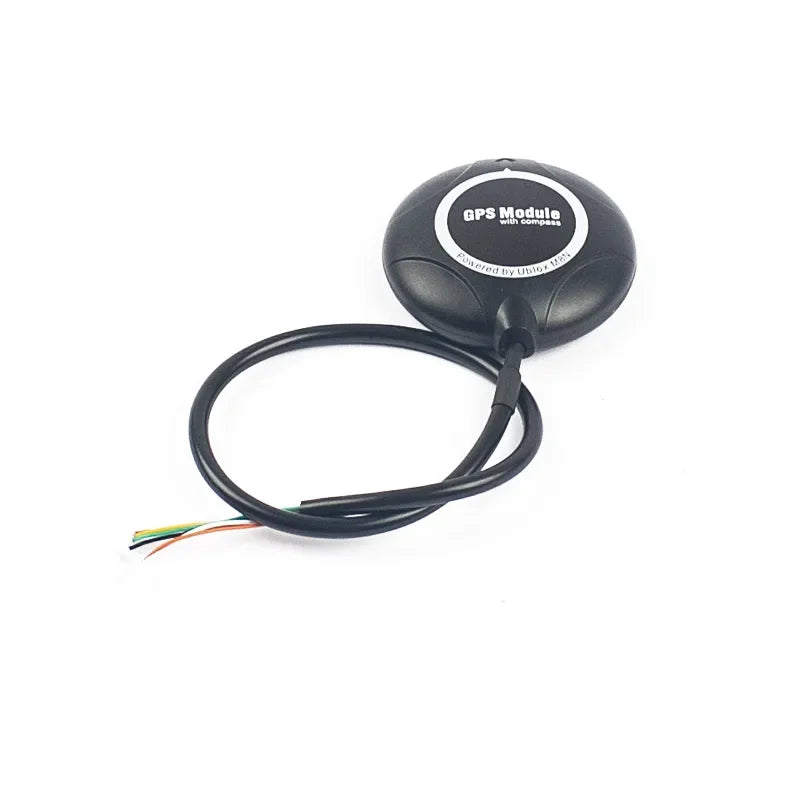

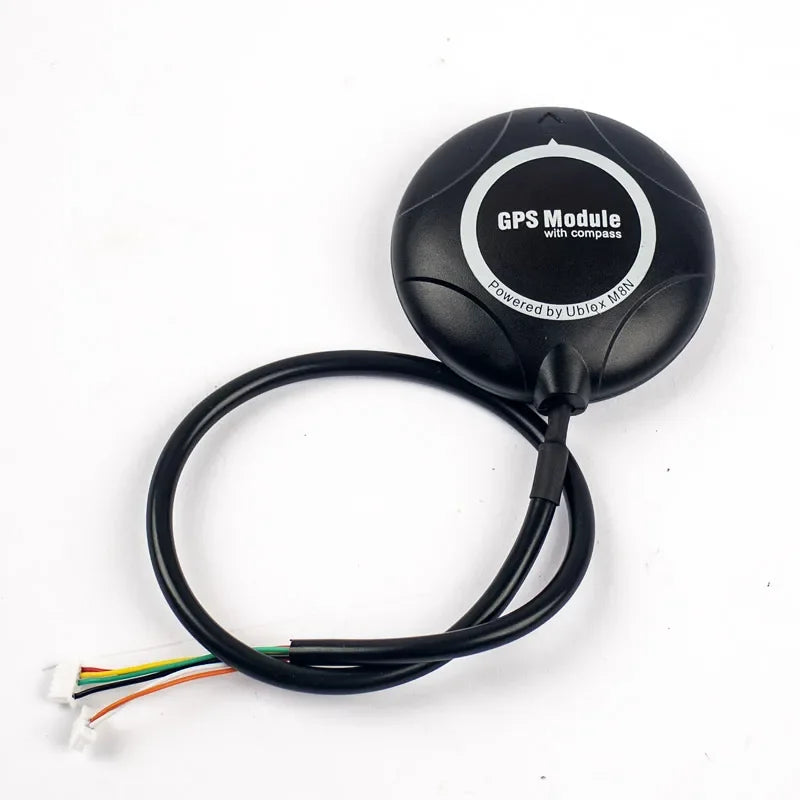

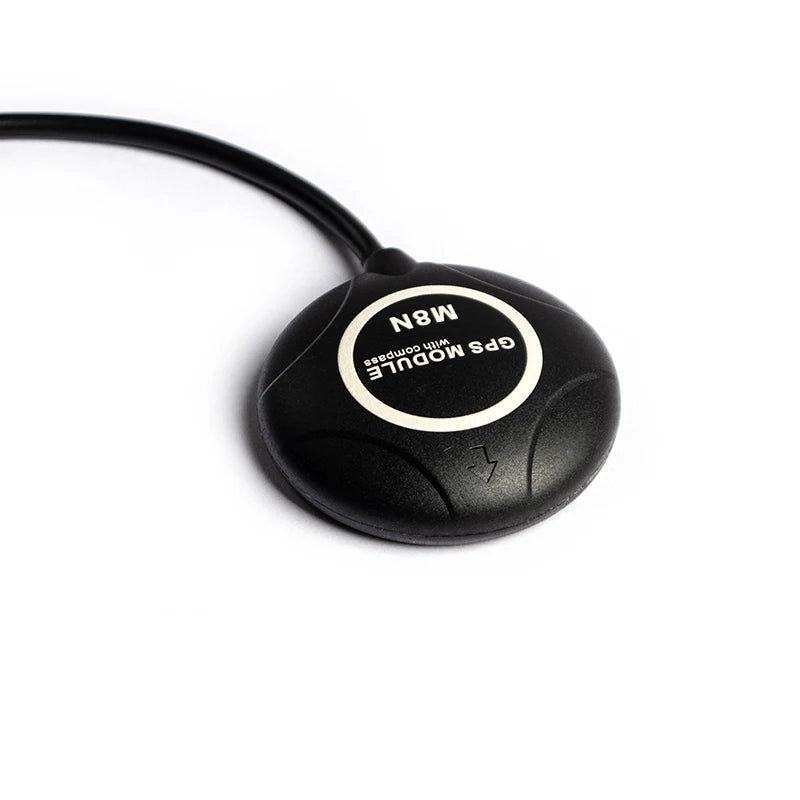

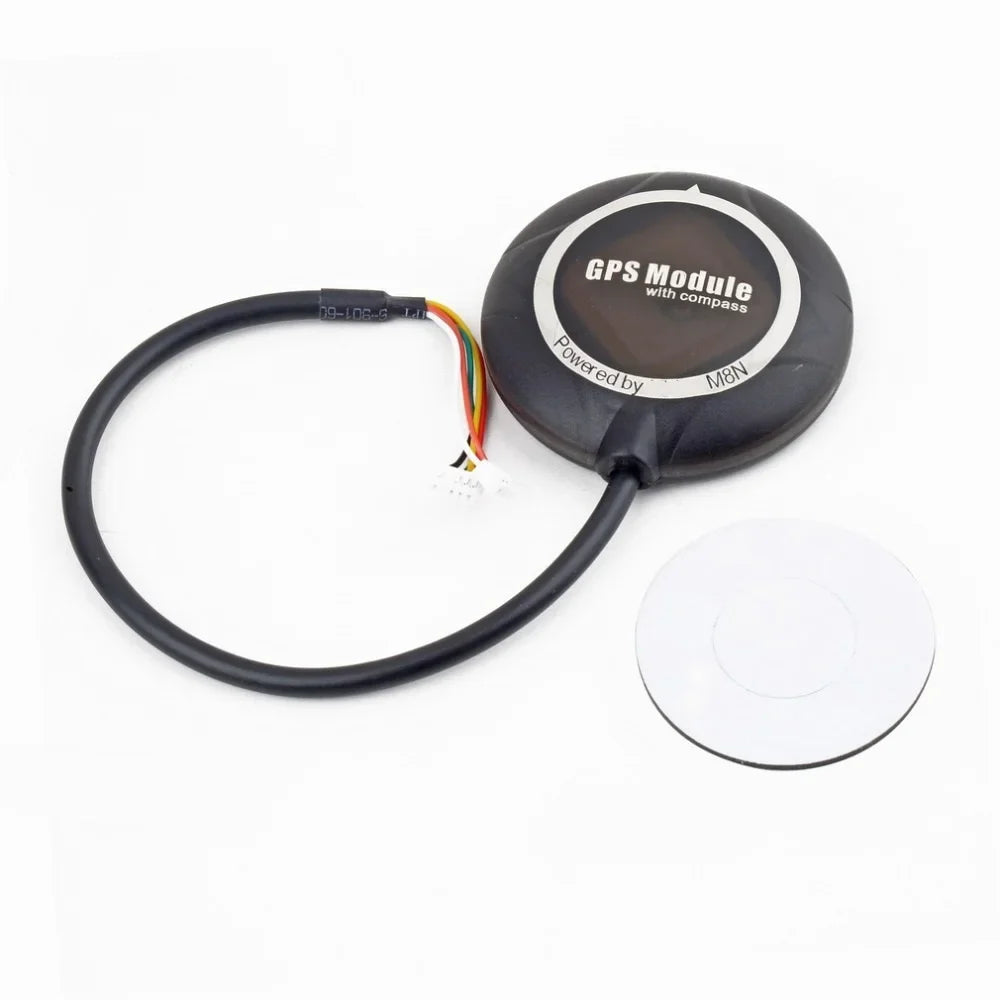

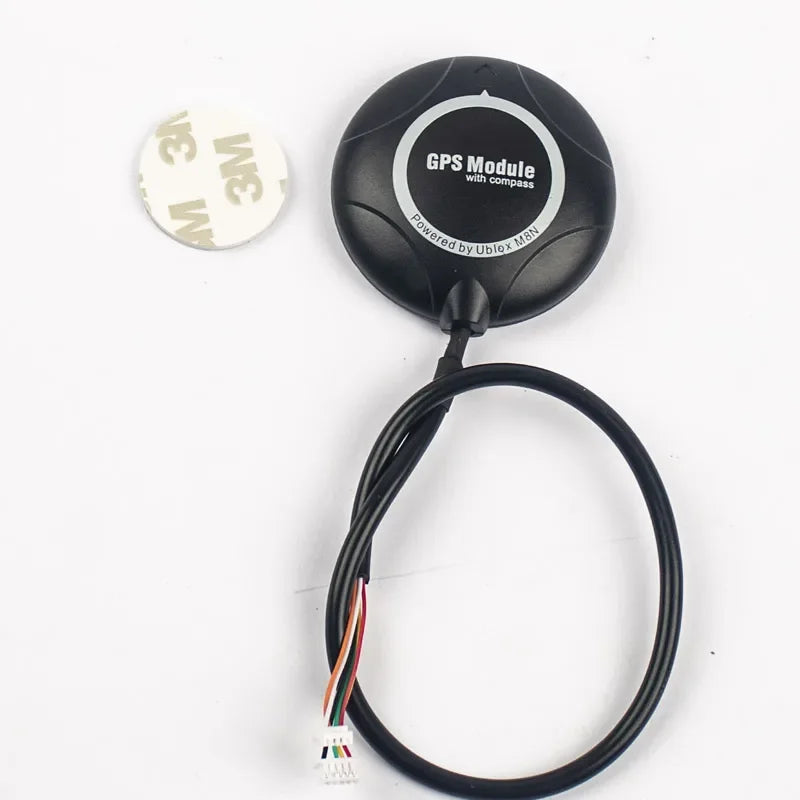

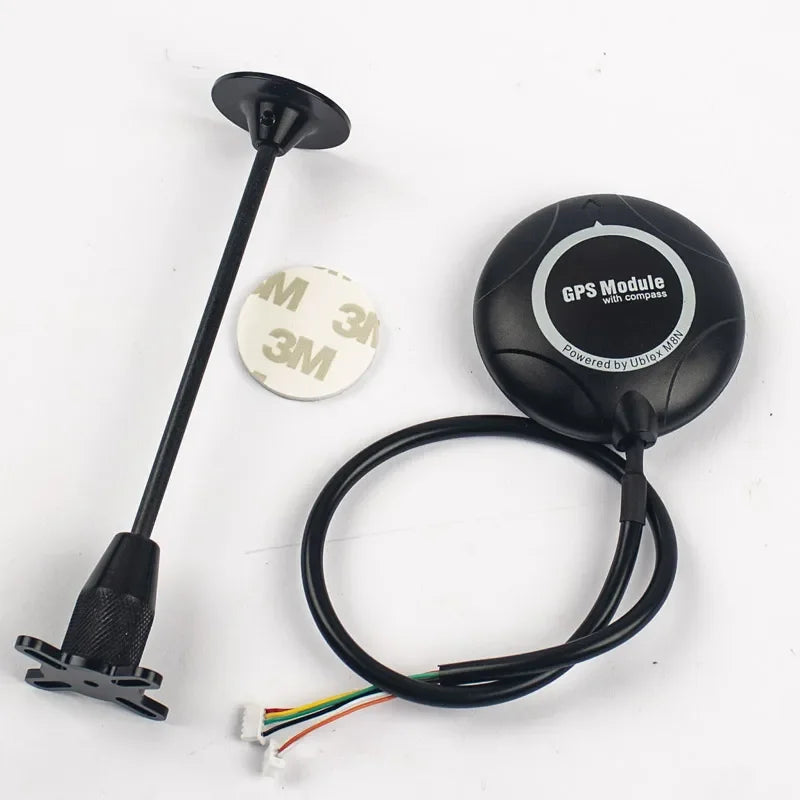

NEO-M8N M8N 8N High Precision GPS Built in Compass w/ Stand Holder for APM AMP2.6 APM 2.8 APM2.8 Pixhawk 2.4.6 2.4.8

Features:
Receiver type 72-channel M8N engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: -167 dBm
Cold starts: -148 dBm
Hot starts: -156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
