SPECIFICATIONS

Brand Name: XM

Certification: CE,FCC

Choice: yes

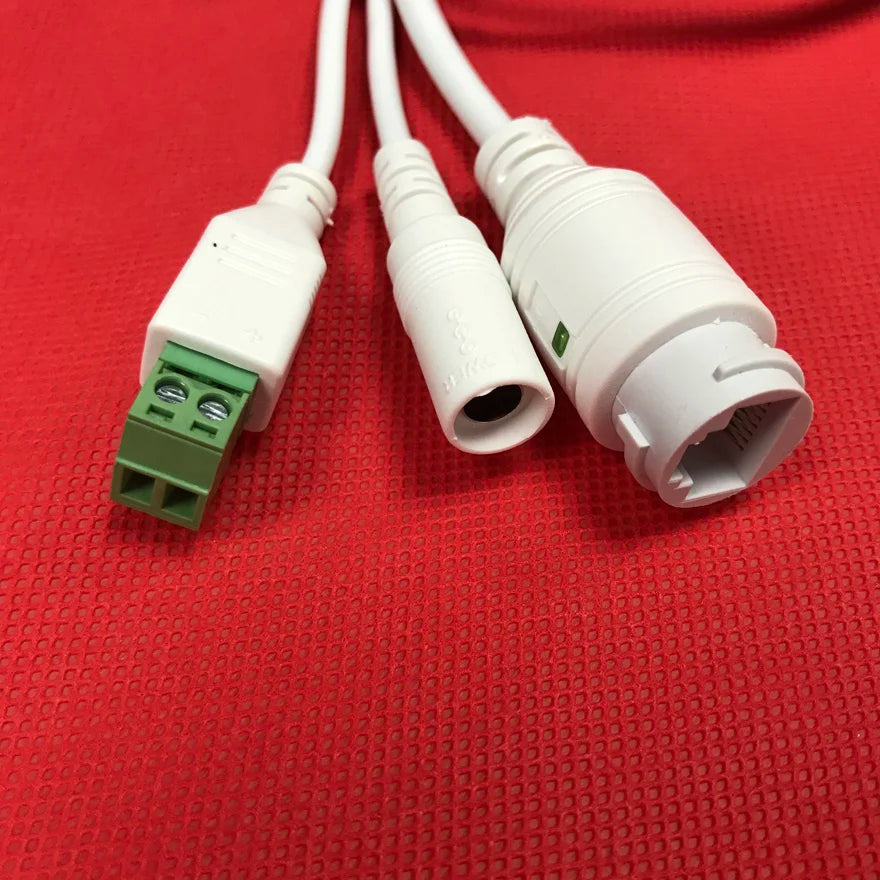

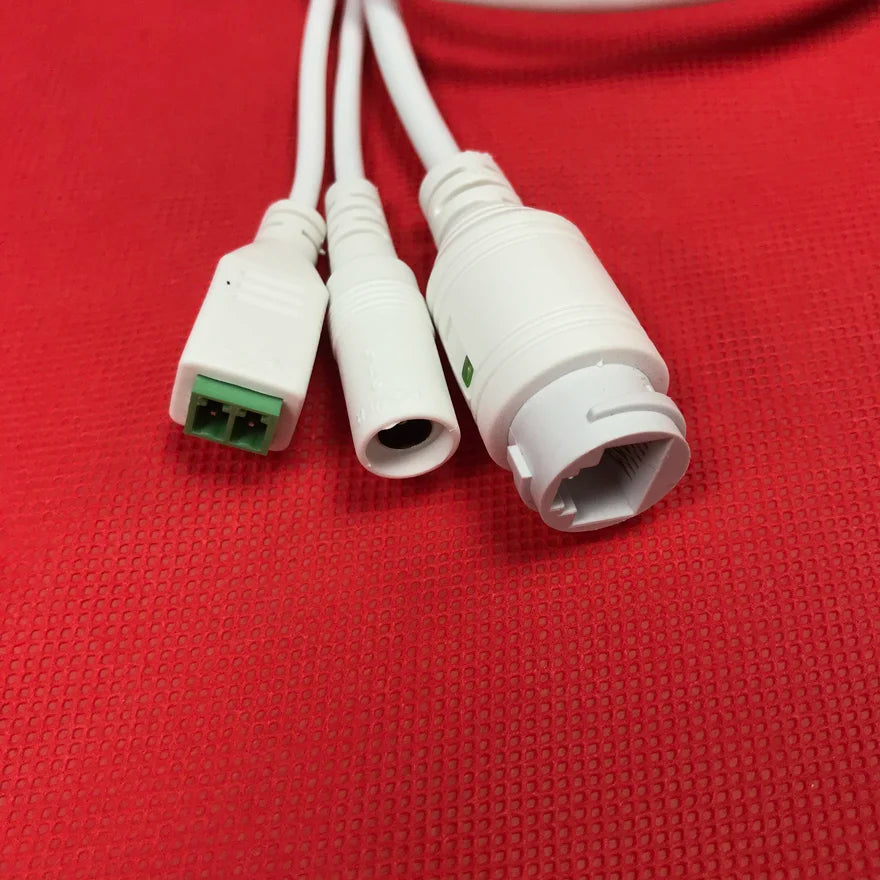

Connector PIN 1: yellow wire (RS485+)

Connector PIN 2: gray wire (RS485-)

DC Jack: red wire (+) / black wire (-)

High-concerned chemical: none

Item Type: Cables

LED indicator: violet wire (+) / share GND with power supply

Material quality: oxygen-free copper

Model Number: LAN cable RS485

Origin: Mainland China

Plug Type: None

RJ45: RX+ / RX- / TX+ / TX- (without 4/5/7/8)

Size: Length : 60cm (approxmate)

Terminal: 2P/2.0 + 9P/1.25

Wire diameter: 5.0mm

semi_Choice: yes

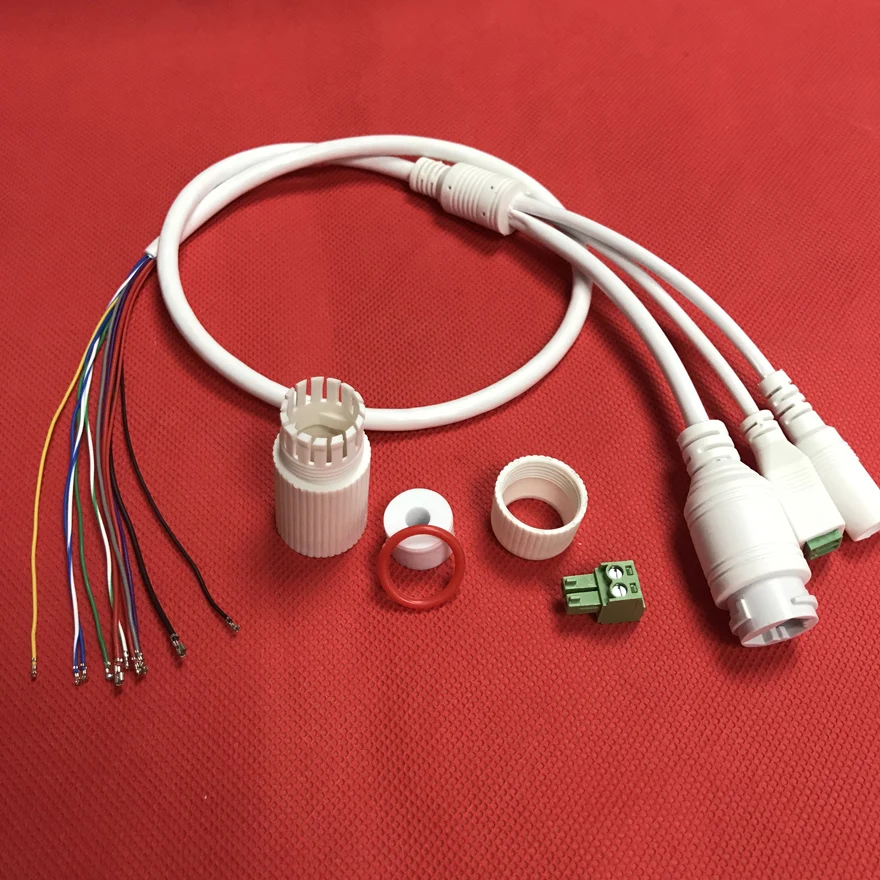

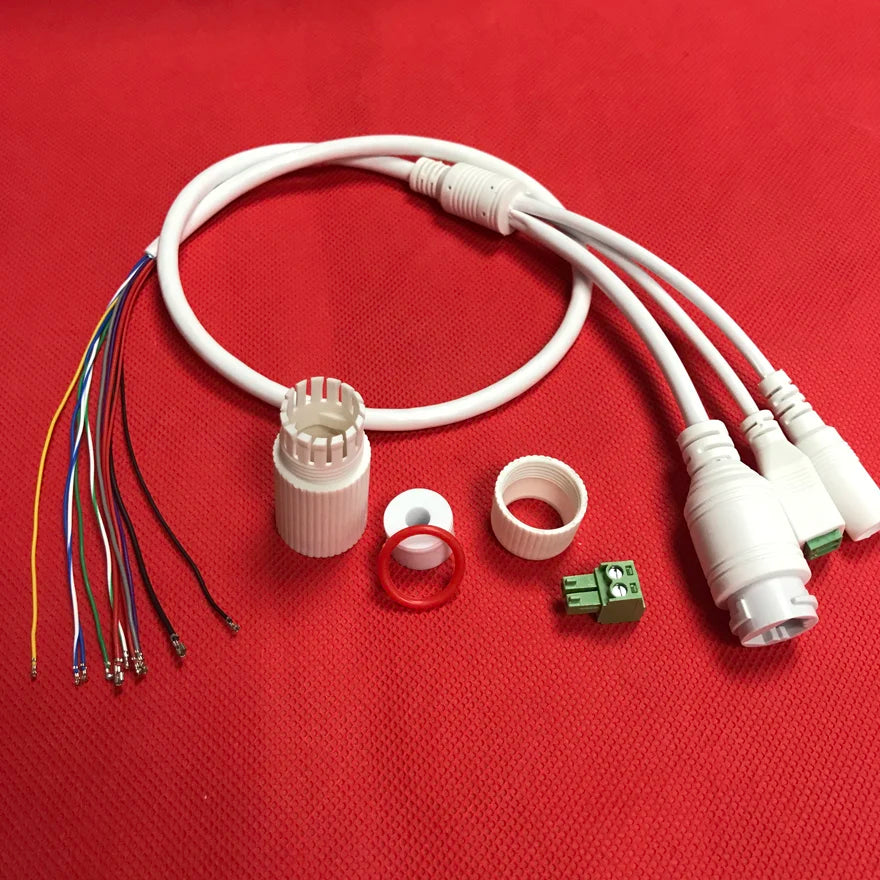

Packing list:

1 pcs 11-core RS485 network video cable
1 pcs 2pin port(2.0mm)
1 pcs 2pin port (1.25mm)
1 pcs 4pin port (1.25mm)
1 pcs 6pin port (1.25mm)
1pcs RS485 port
1 Waterproof Lid

Please note: 1 pcs 2pin port (2.0mm), 1 pcs 2pin port (1.25mm), 1 pcs 4pin port (1.25mm), 1 pcs 6pin port (1.25mm) and cable are separate, Please according to their own needs, Arrange the cable sequence.

Features

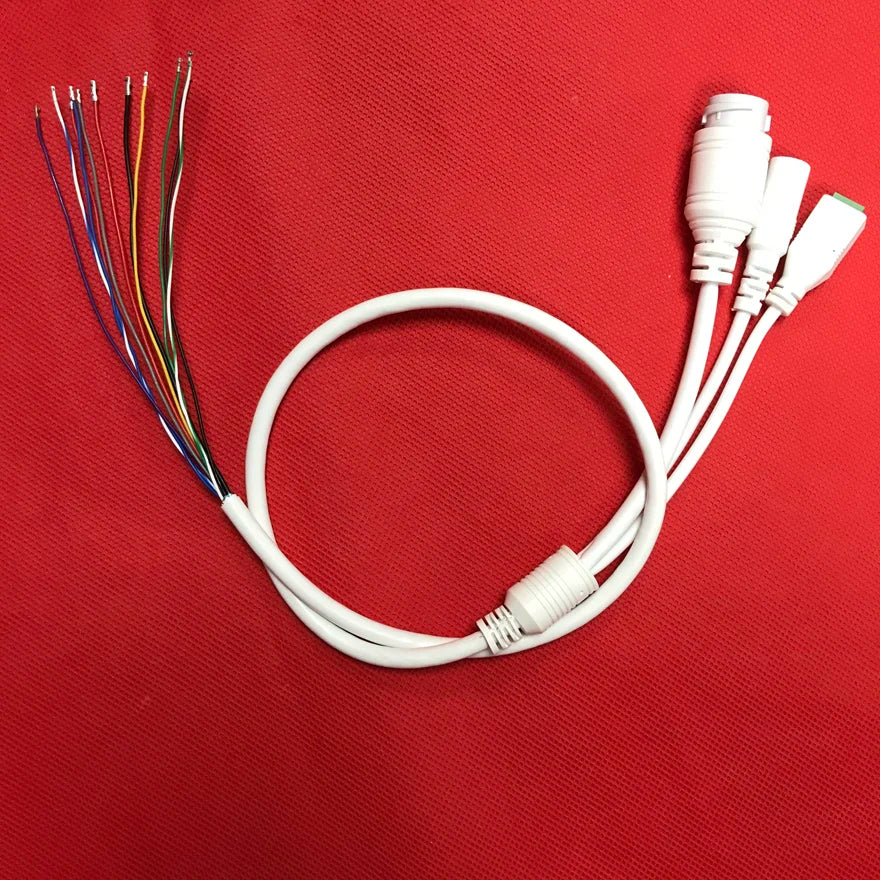

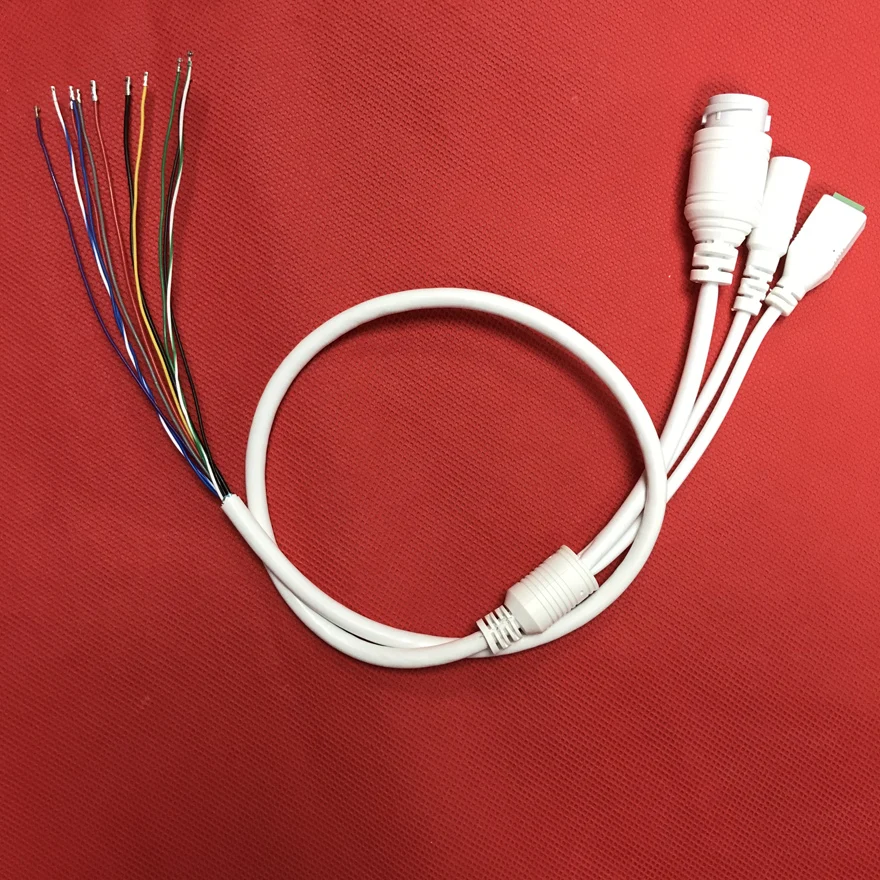

Product name: 11-core RS485 waterproof cable for ordinary network cameras

Outer skin material: environmentally friendly PVC

Wire color: white/black

Wire diameter: 5.0mm

Length: 0.75m (other lengths can be customized)

Material quality: oxygen-free copper

Terminal: 2P/2.0 + 9P/1.25

The tail line is made of cold-resistant PVC material, which can be used in severe cold weather at -30°C without cracking or deformation.

The terminal plastic shell is a gift, and it will be accompanied by the quantity when purchasing the tail wire. Please take the initiative to inform the customer service of the specifications of the plastic shell.

Interface Description

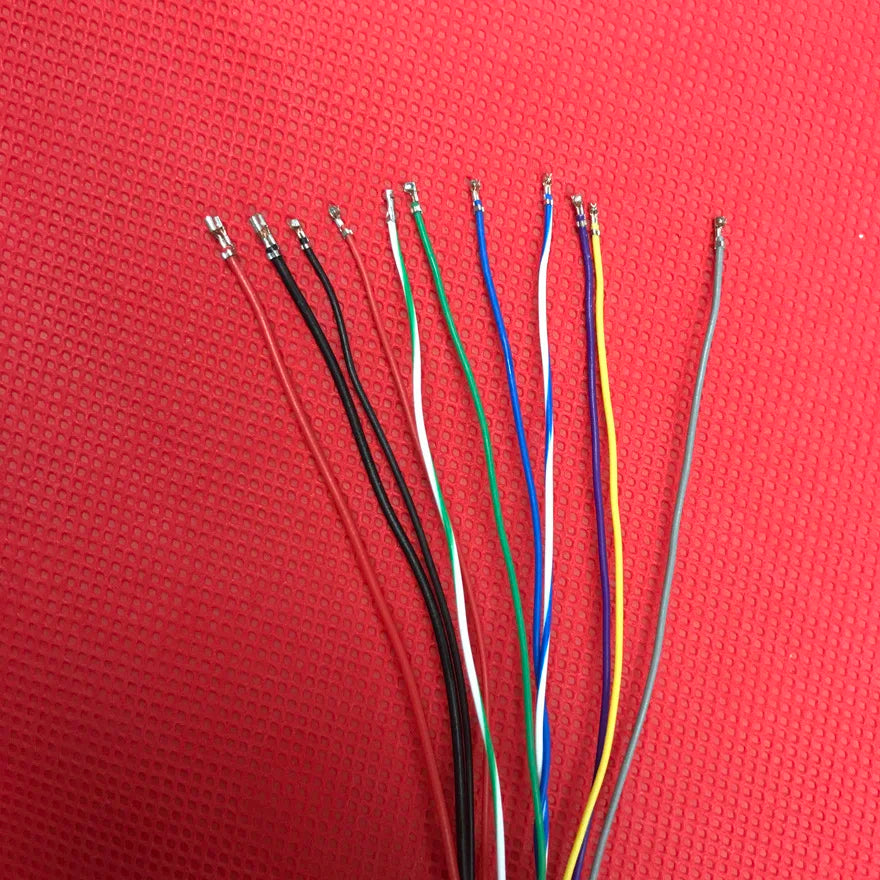

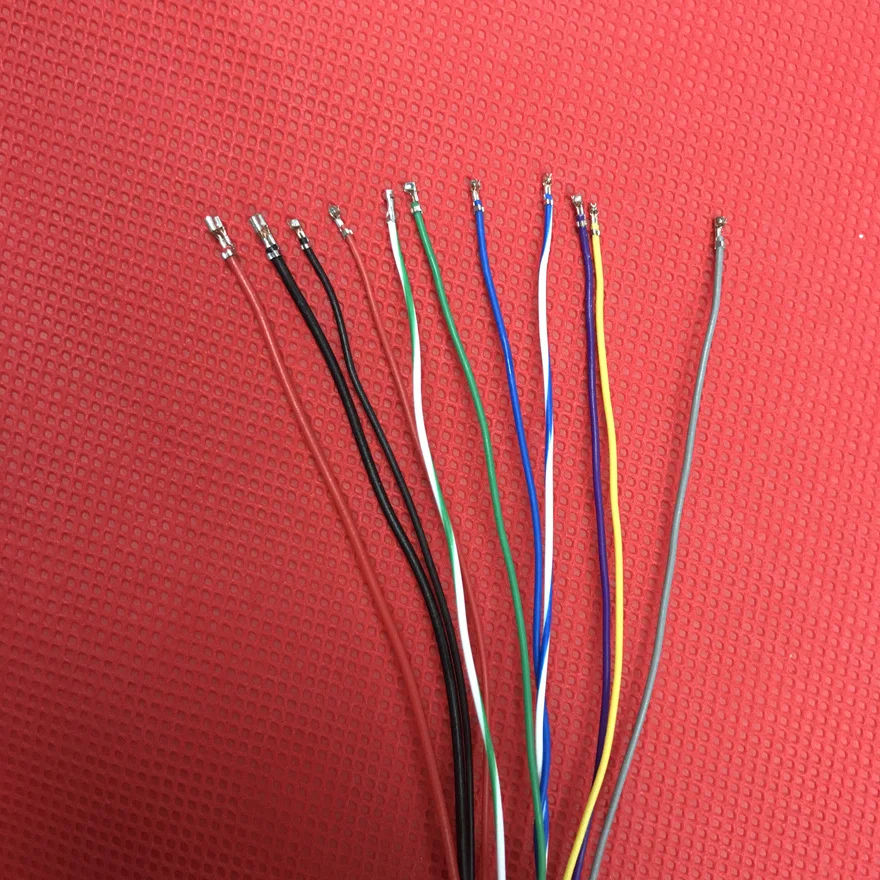

2.0mm Red: Light board +12V
2.0mm black: Light board GND

1.25mm red: IP camera+12V
1.25mm black: IP camera GND
1.25mm white and blue: TX+ network differential signal transmission positive
1.25mm blue: TX- network differential signal transmission negative
1.25mm white and green: RX+ network differential signal receiving positive
1.25mm green: RX- network differential signal reception negative
1.25mm purple: LED indicator
1.25mm gray: RS485-
1.25mm yellow: RS485+
