SPECIFICATIONS

Brand Name: JCD

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Voltage: 自定义编辑

semi_Choice: yes

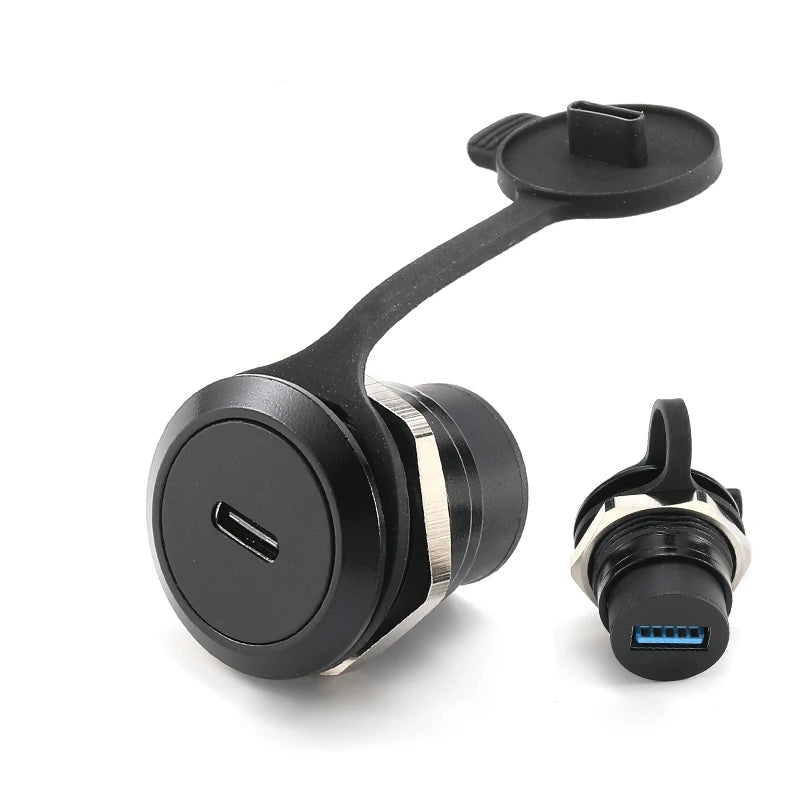

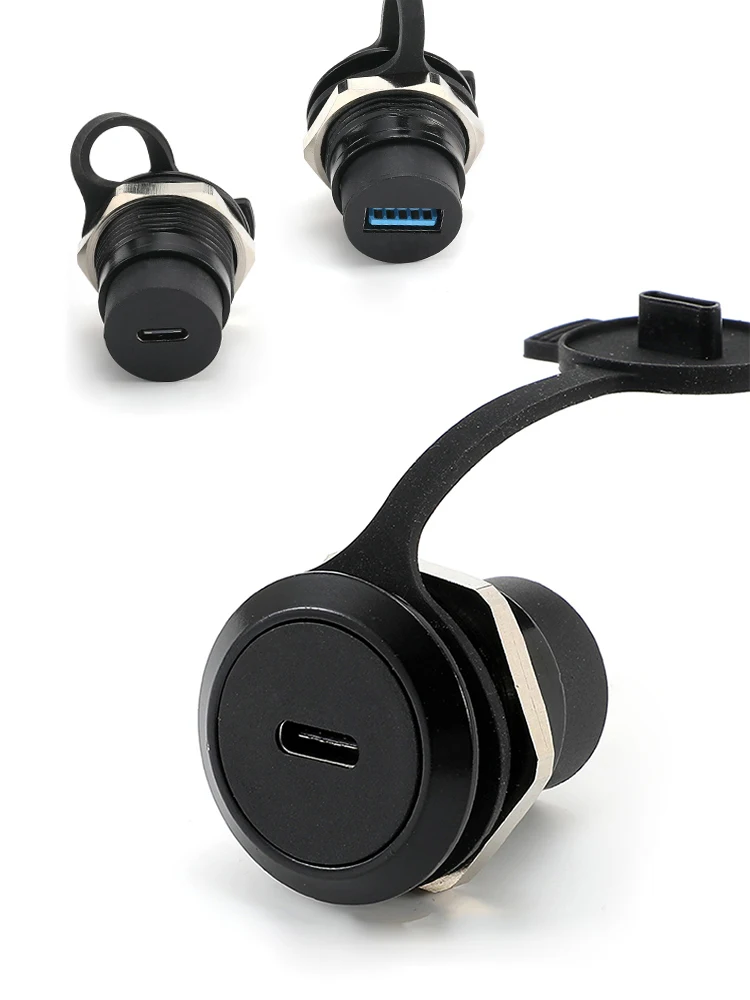

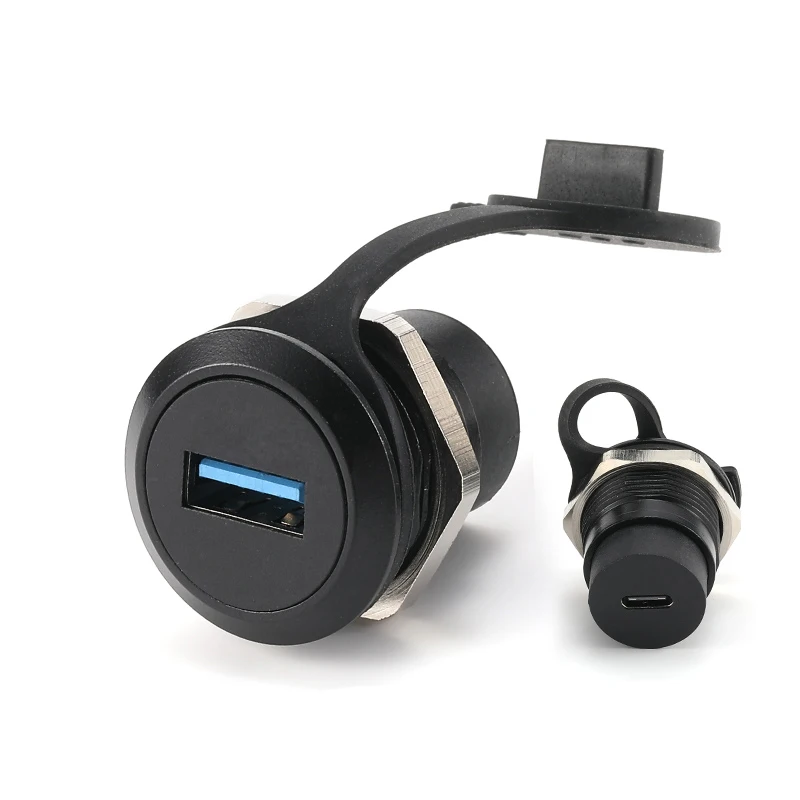

The metal circular through socket series is a reinforced and easy to install connection system, with a transmission speed up to international standards, an integrated optimized design, a metal body, and a round hexagonal nut fixed installation at the rear end. It is widely used in audio and video, optoelectronic networks, and various automated intelligent devices. Its base design is based on industrial standard panel aperture.

Features and performance:

A comprehensive universal circular installation hole design effectively saves space. Metal material, sturdy and durable. Can be equipped with dust and waterproof ring covers,Can accommodate compatible with any corresponding standard interface,The first in the industry to assemble and fix retaining rings, with long-lasting durability, suitable for harsh environments.Electrical parameters:Contact resistance,<10Dielectric strength, in kVdc, 1 insulation impedance, in G Ω,>0.5 per contact rated current, in A, 1.5 rated voltage, in V, 50V

Material:Contact: Electroplated gold platingContact: Copper, BronzeInsulator: PBTP 15% GRShell: Zinc alloyShell electroplating: black: electrophoretic paint, silver: nickel plating

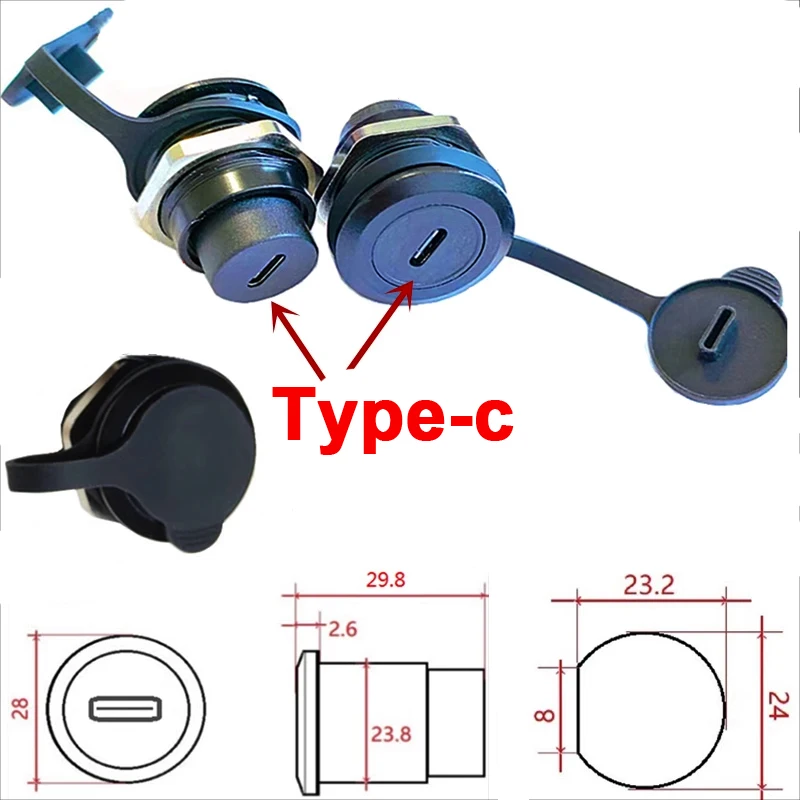

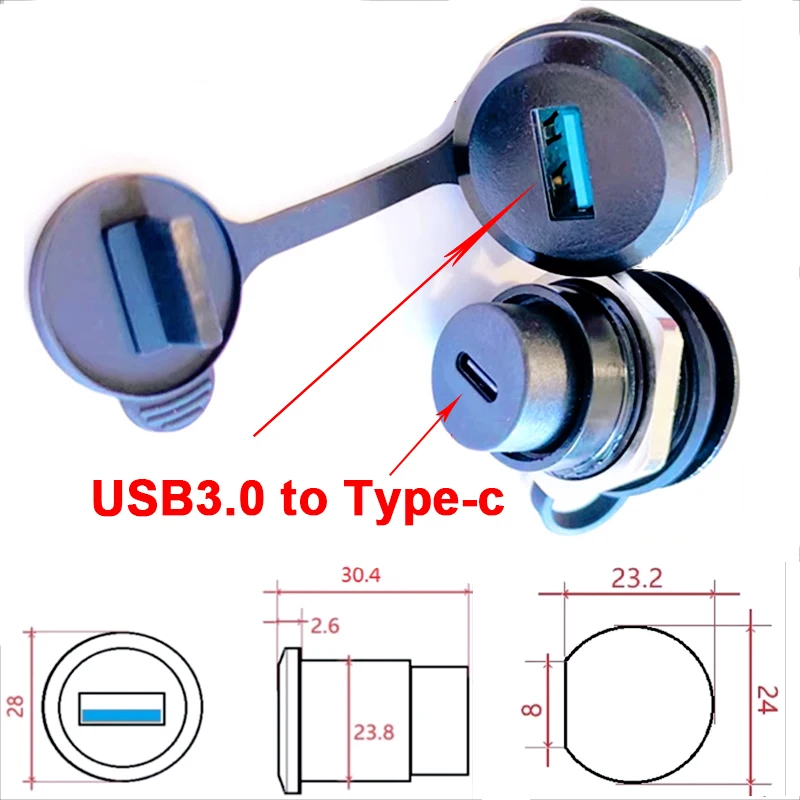

Install a hole of 24mm, which can be a round hole of 24mm or a through hole with a limit cutting surface. Thread length 12-14mm
