SPECIFICATIONS

BIOS: 64Mb Flash ROM

Brand Name: NONE

Dimension: 170mm x 170mm

Display Port: 1* HD OUTPUT port, 1* VGA interface

Memory: 1*SODDR3L SODIMM

Number Of Memory Slots: 1

Origin: Mainland China

Power Supply: DC 12V

Storage: 1*mSATA+1*2.5 inch SSD HDD

Support USB Type: USB 2.0

USB: 3* USB 2.0, 1* USB3.0

application: Desktop

brand name: Partaker

chipset: Other

chipset manufacturer: Intel

cpu type: Quad core

form factor: Mini-ITX

graphics card type: Integrated

hard drive interface: SATA

item condition: New

maximum ram capacity: 8 GB

memory bank: 1 DDR3 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA, VGA , USB 2.0, PS2, Display Port, USB 3.0, HDMI

products status: New

socket type: Slot 1

with cpu: Yes

Dear friends, welcome to my store. If you want more detailed information about this item, feel free to contact me. If the product you like is custom-made, or overweight & oversized goods, please get in touch with me before placing your order. I will offer you the best product quotation and accurate international shipping cost. My Whatsapp：+86 13667384331 ，Email: 15450024@qq.com

Product Description

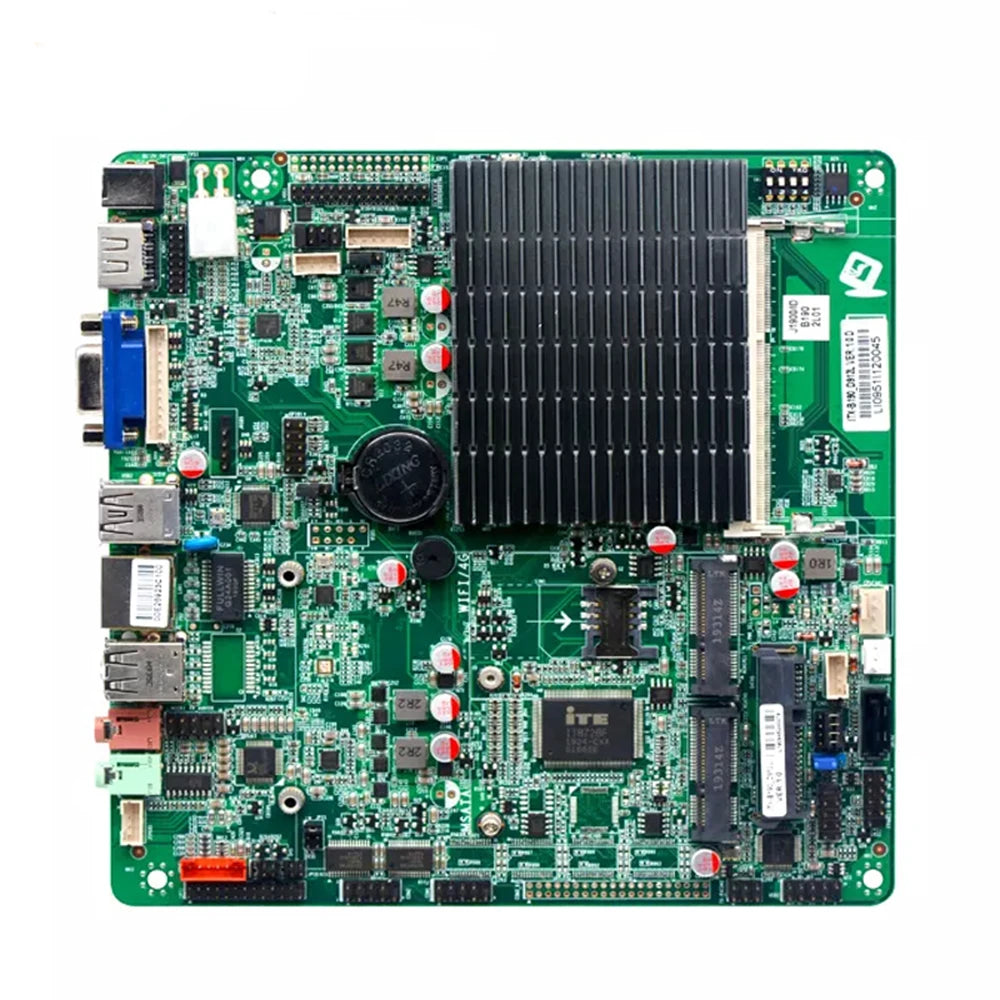

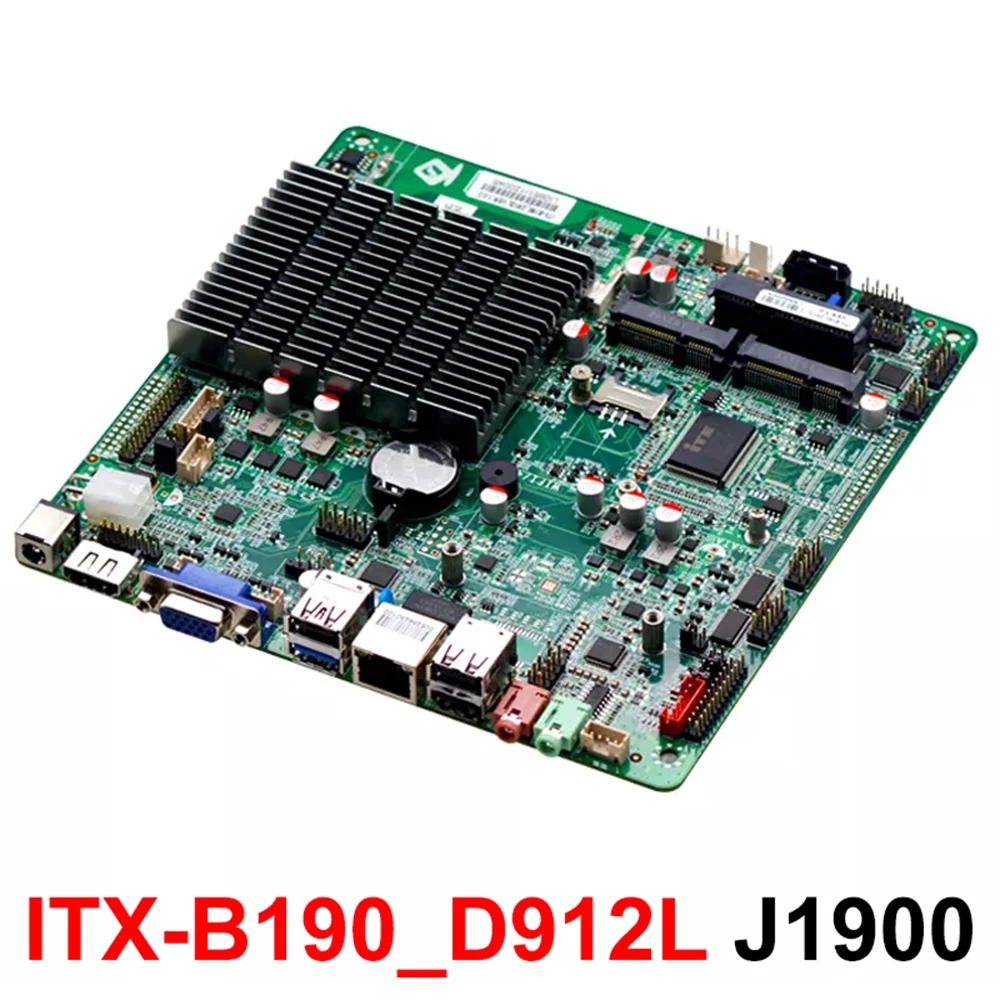

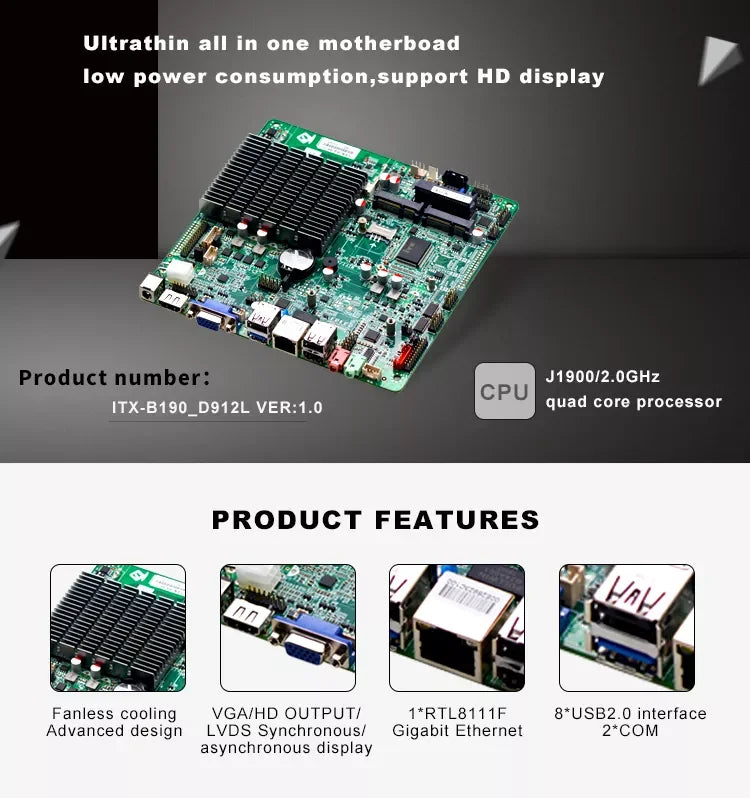

Model No.	ITX-B190_D912L VER:1.0
Processor	Integrated Intel® Celeron J1900/2.00GHz quad core processor,TDP 10W
	Compatible Intel® Bay Trail -I/M/D series CPU
Chipset	Based on Intel® Bay trail SOC platform
Memory	1*SODDR3L SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
Graphics	Integrated Intel® HD Graphics
		1* VGA,1*HD OUTPUT,1* LVDS
		Support VGA;HD OUTPUT;LVDS synchronous/asynchronous display
Network	1* Realtek RTL8111H gigabit ethernet ,support wake on LAN/PXE
Storage	1* SATA2.0 HDD port (SATA2 with 2.5 inch laptop HDD slot optional)
		1* SATA 2.5 inch laptop HDD slot ,can install HDD directly
		1* MSATA slot,support SSD,the transfer rate up to 3Gbps
Audio	Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.
		Support amplifer 2Ω5W trumpet
Expansion slots	1* Mini-PCIE slot,support WIFI,4G module

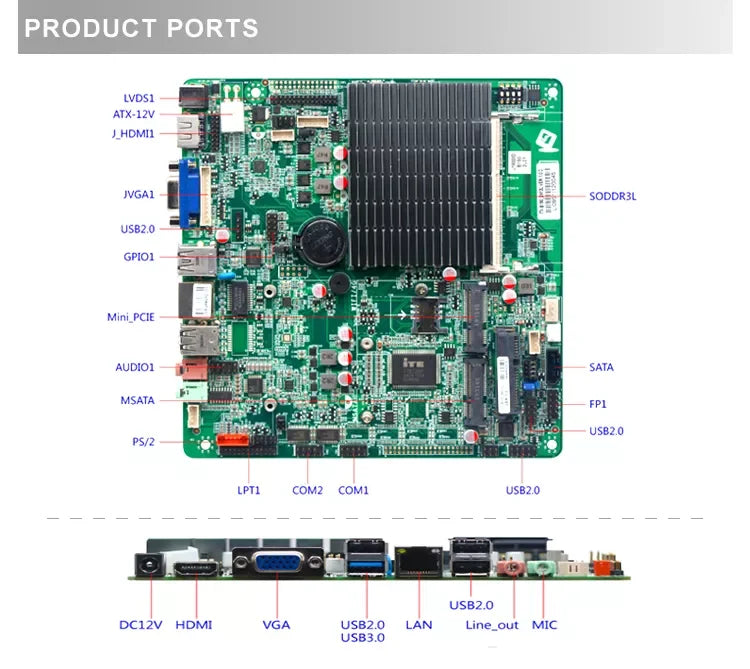

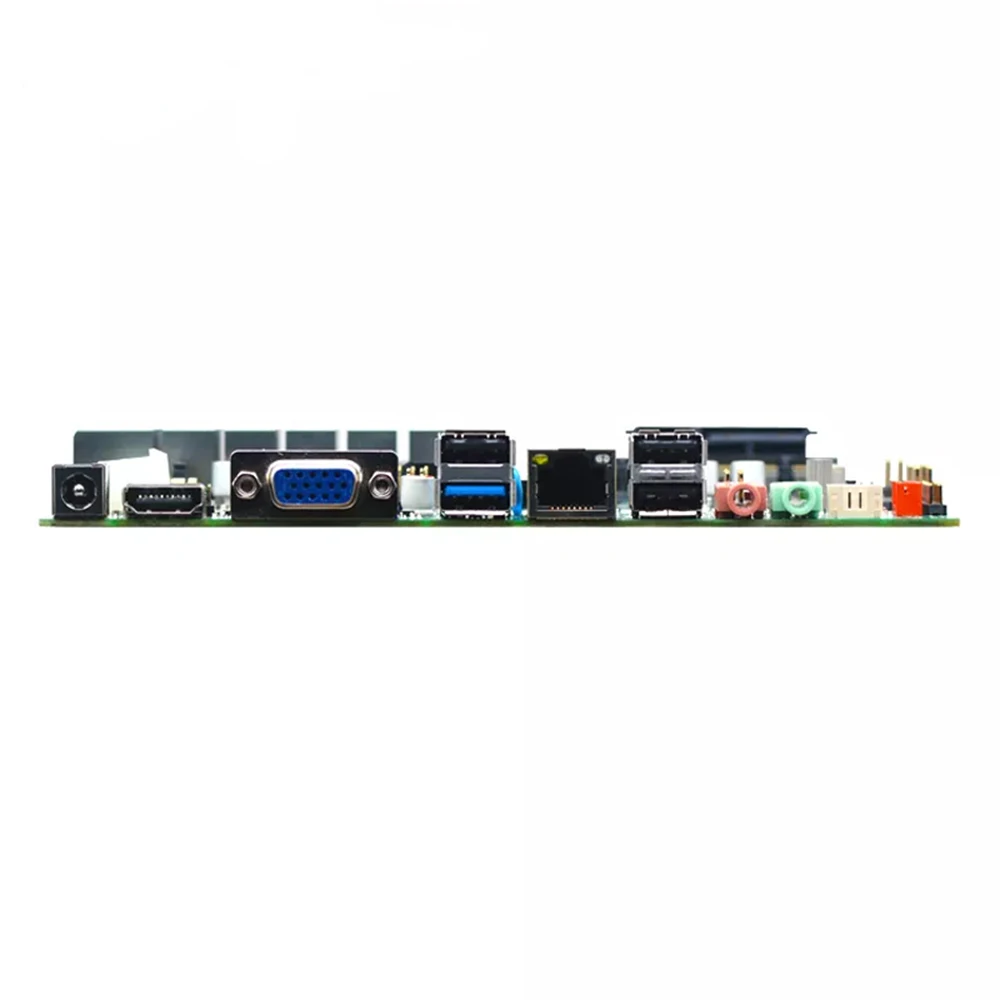

Rear I/O	1* HD OUTPUT
		1* VGA
		3* USB 2.0
		1*USB3.0
		1* RJ-45 Gigabit Ethernet connector
		1* Line out(Green),1* MIC(Red)
		1* 12V DC power input port
Internal I/O	1* 4pin ATX power port (can do 12V input/output power port )
		1* USB2.0 1*5pin
		4* USB 2.0 2*5Pin,USB5 with USB1 optional
		1* J_HD OUTPUT 2*8Pin(the same signal with HD OUTPUT1)
		1* JVGA 1*12Pin(the same signal with DB15)
		1* LVDS 2*15pin,support dual channel 24bit,
		1* screen backlight power supply port 1*6pin
		1* screen brightness adjustment port 1*4pin
		1* PS/2 KB/MS port (Red) 1*6Pin
		2* RS232 serial ports ,COM1/COM2 support 9pin charged function,COM2 support RS485 mode
		1* LPT print port 2*13Pin
		1* front audio port 2*5pin
		1* Front panel function button and indicator LED port 2*5pin
		1* HDD power supply port 1*4pin
		1* power amplifier 1*4pin
		1* SIM card socket
FAN connector	Fanless cooling ,Reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector
GPIO	Support 4 way input/output GPIO
BIOS	64Mb Flash ROM

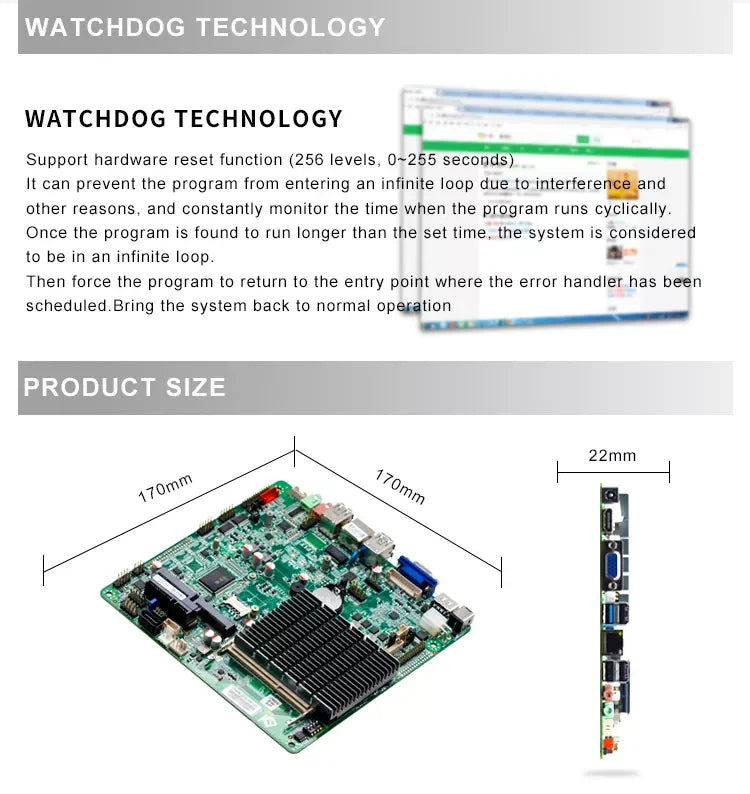

Watch dog	Support hardware reset function (L256, 0~255 seconds)
OS	Windows 7/Windows 10/Linux
Power input	Adopt DC 12V power supply
Working Temp.	-10℃~60℃
Storage Temp.	-20℃~70℃
Working Humidity	5%-95% relative humidity, non-condensing
Dimension	170mm x 170mm
