SPECIFICATIONS

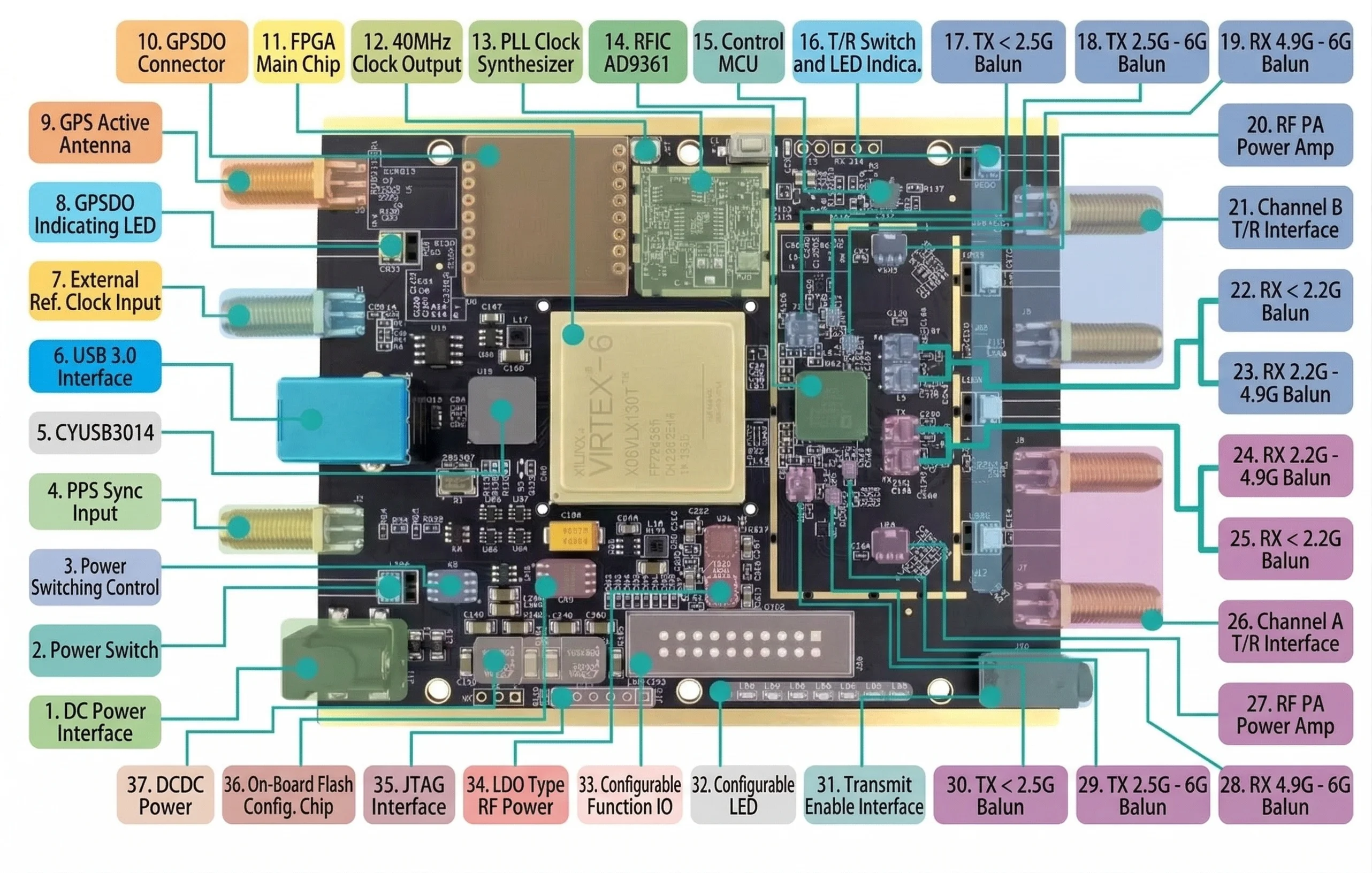

Description

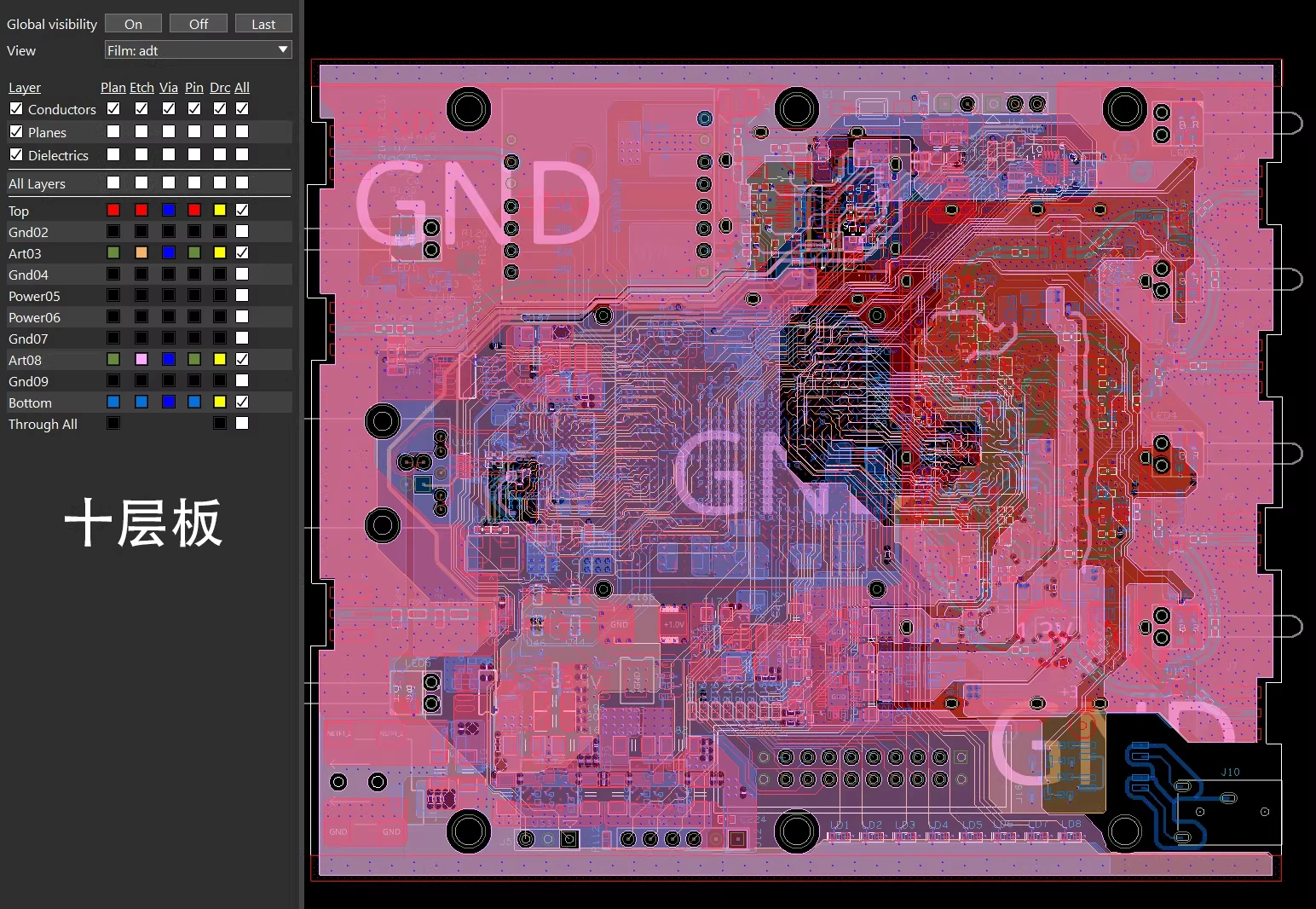

New B210 Pro SDR, compatible with the B210, replaced the FPGA chip by XILINX VIRTEX6, The XILINXVIRTEX6 chip has larger logic resources, and its internal buffer is twice of the original official design, making it more stable and reliable.

On board configuration chip, no software or driver modifications are required.

We have optimized the original frequency scheme and calibrated each crystal oscillator frequency part before leaving the factory. It has better frequency accuracy performance without using external reference frequencies and GPSDO, and can directly run applications such as SRSRAN 4G and OPEN5Gs.

Because it uses currently mass-produced FPGA chips VIRTEX6 to replace the officially discontinued FPGA, it has a higher cost-effectiveness.

Specifications

Supported frequency: 70Mhz-6Ghz

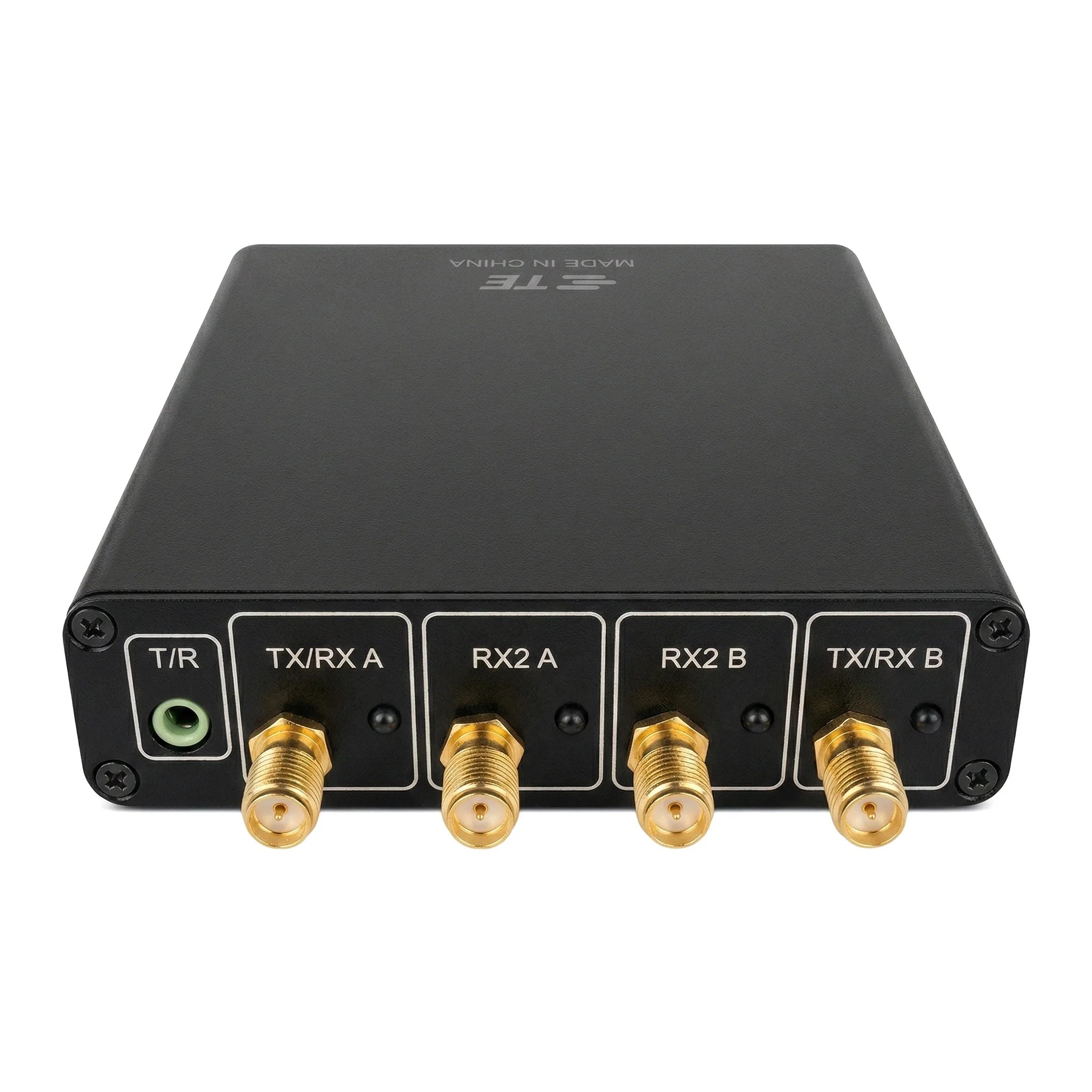

TX port: 2
RX port: 2

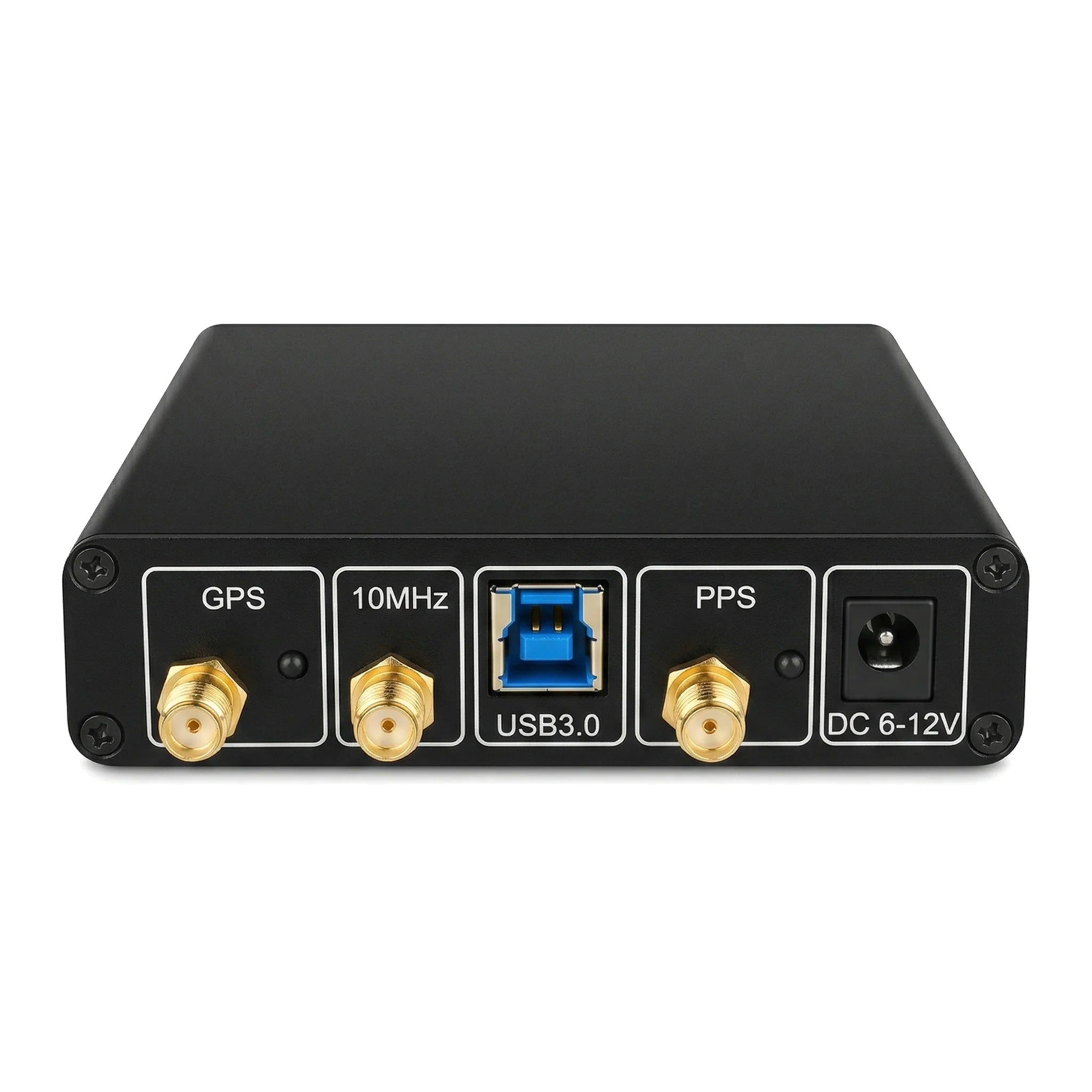

USB3.0 interface
DC interface (6v). If GPSDO is not used and only single-channel transceiver is used, no external power supply is required. If GPSDO or dual-channel transceiver is to be used, an external power supply is required.
VIRTEX6 FPGA

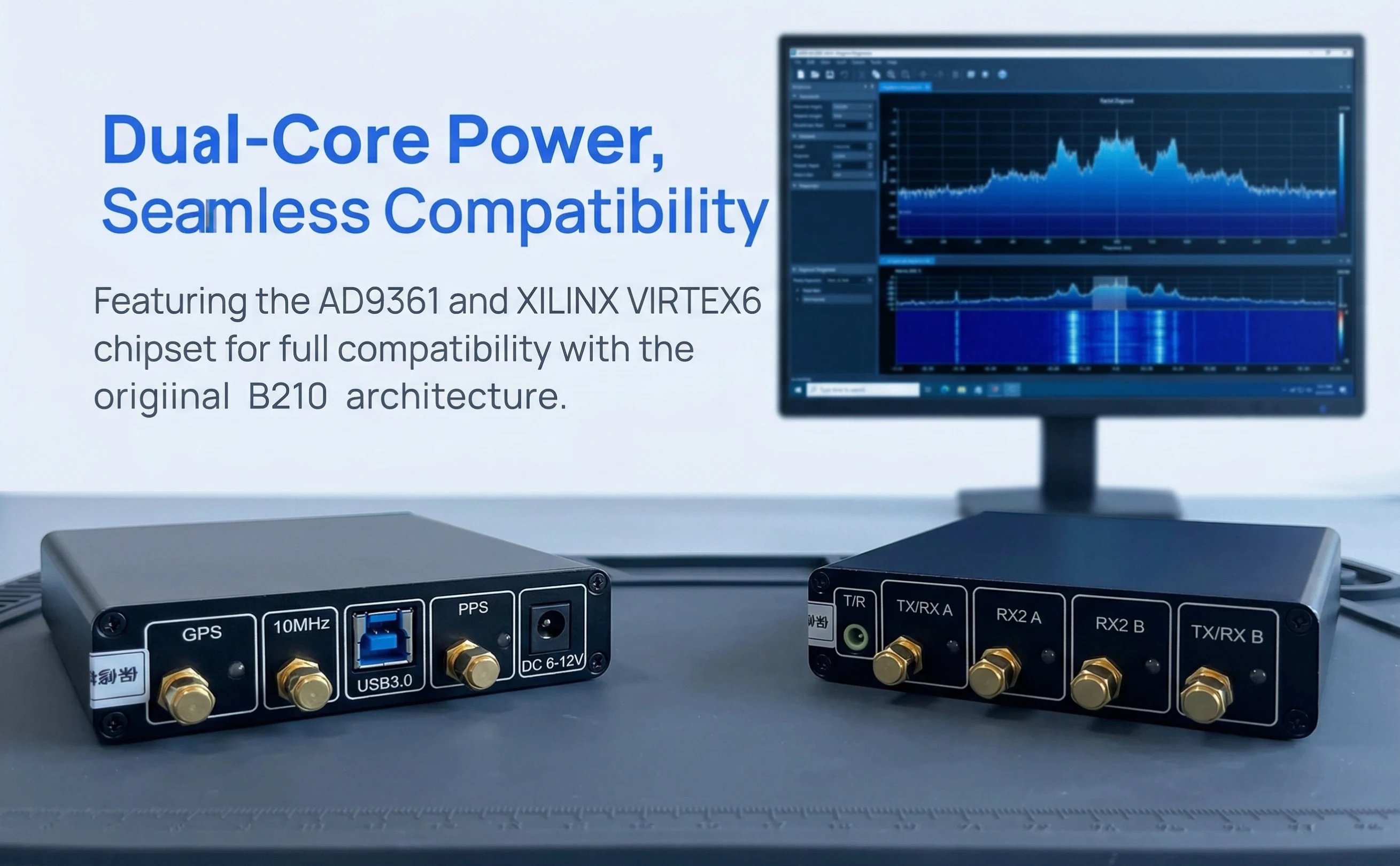

AD9361 dual-channel RF transceiver chip supports a maximum sampling rate of 61.44Mhz/s
Support for UHD, GNURADIO, OPENBTS, OPENBTS-UMTS, SRSLTE, openairinterface, gps-sdr-sim; use the dual channel transceiver of B210 to support for openbts dual bts, one board supports dual bts

Power Supply Input:
DC input 6V-12V; the attached power supply is 6V
Main Parameters of Its Conversion Module:
ADC sample rate rate (peak): 61.44MS/s
ADC resolution: 12bits
ADC SFDR: 78dBc
DAC sampling rate: 61.44MS/s
DAC resolution: 12bits
Local vibration accuracy: 2ppm
Unlocked TCXO accuracy: 7.5ppm
Locked TCXO accuracy: <1ppm
Single-channel RF performance parameters:
SSB signal/image rejection: -35/50dBc
3.5Ghz: 1.0degRMS
6Ghz: 1.5degRMS
Output power: > 10dbm
Output third-order intercept point: -20dbm
Noise figure: < 8db
Dimensions: 10 x 15.5 x 1.5cm/3.9 x 6.1 x 0.6"
Weight: 450g/1lb

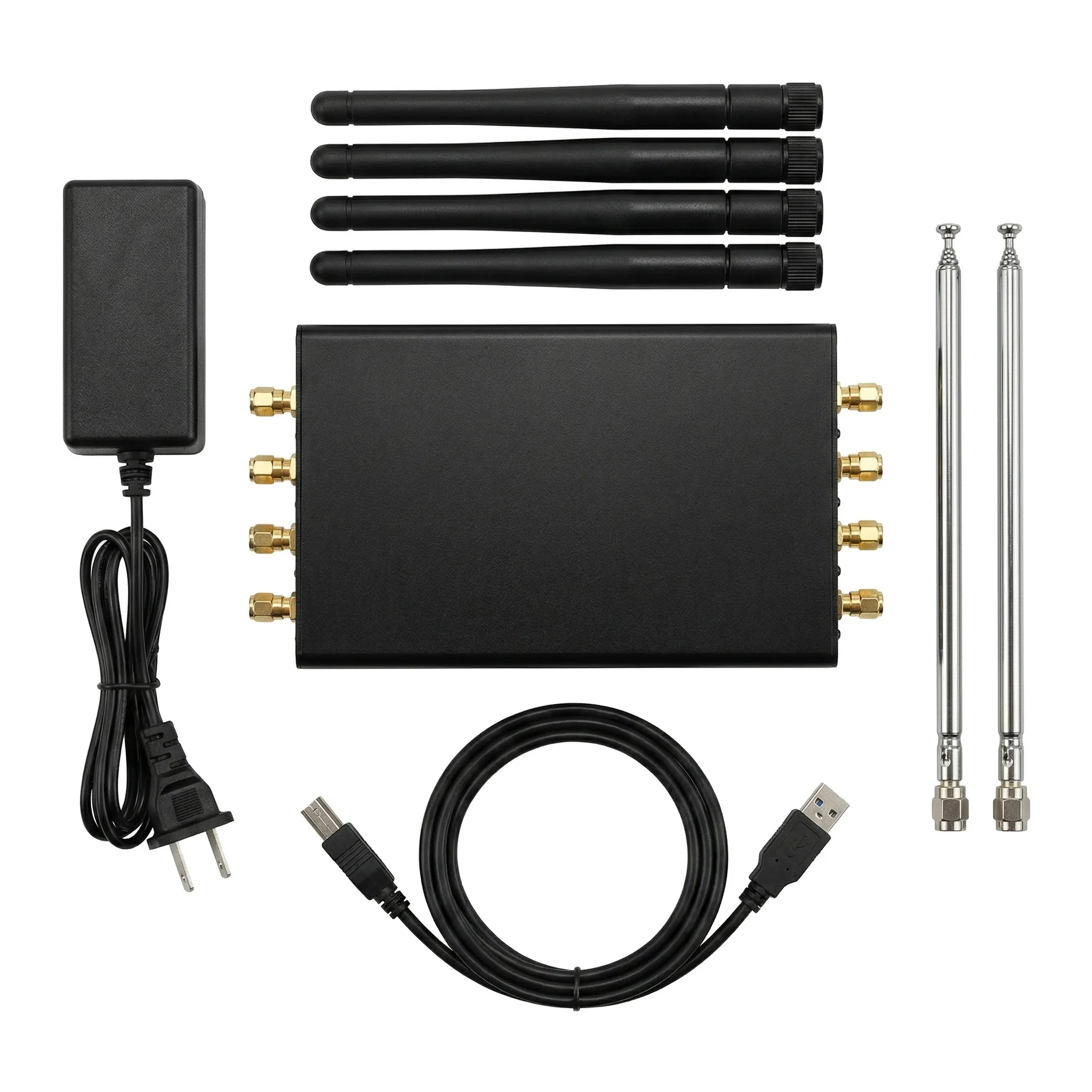

Package include

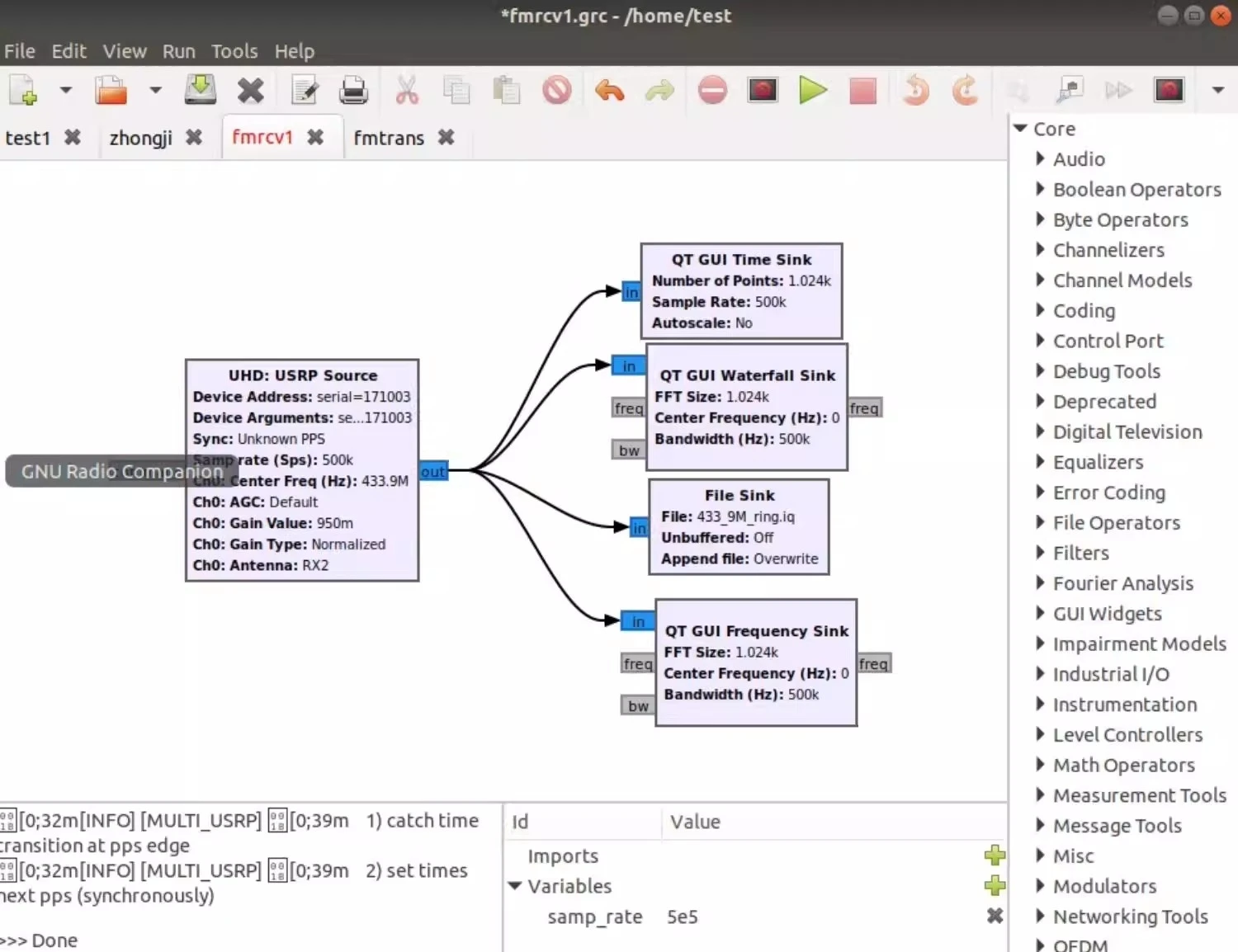

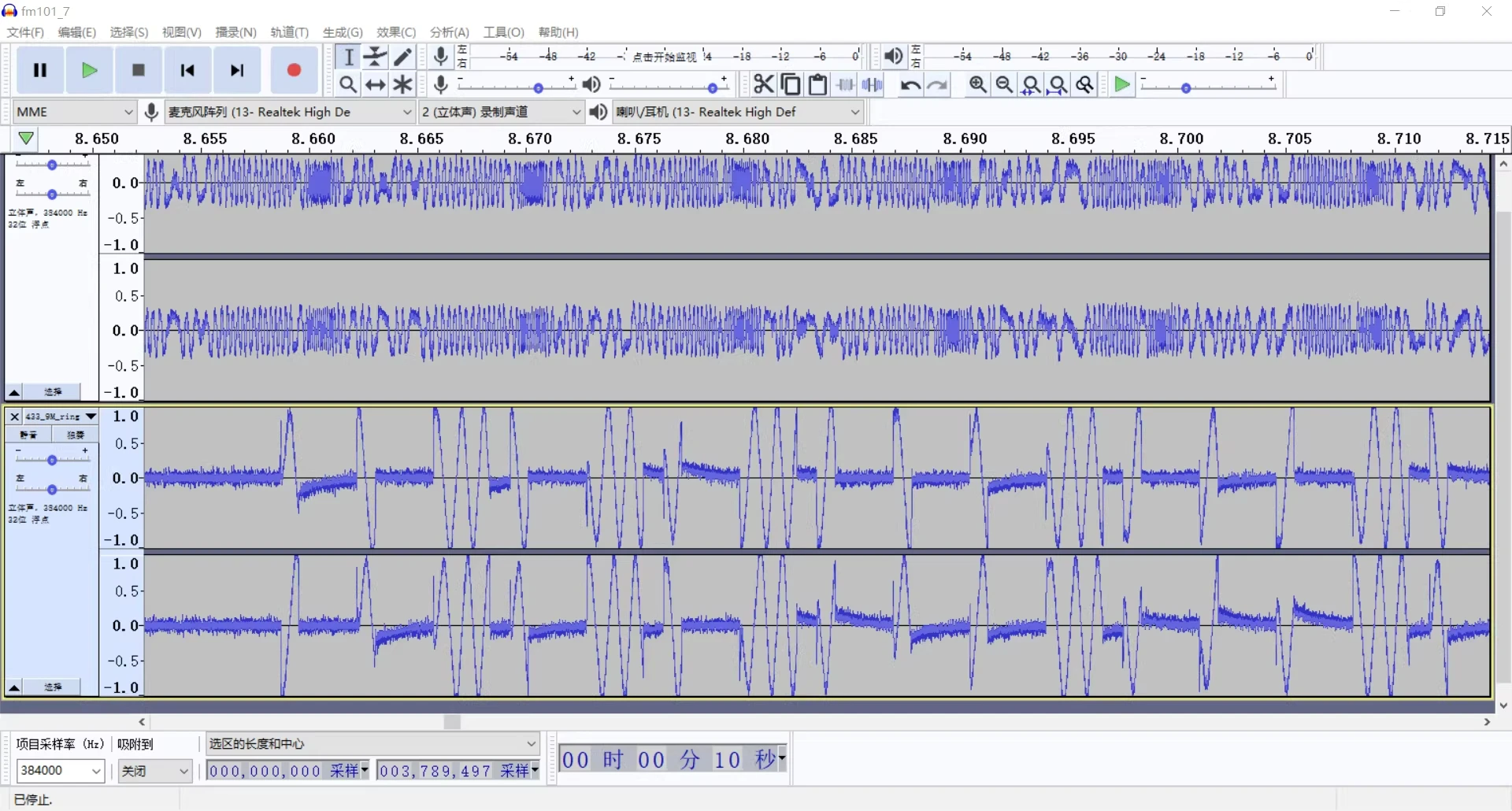

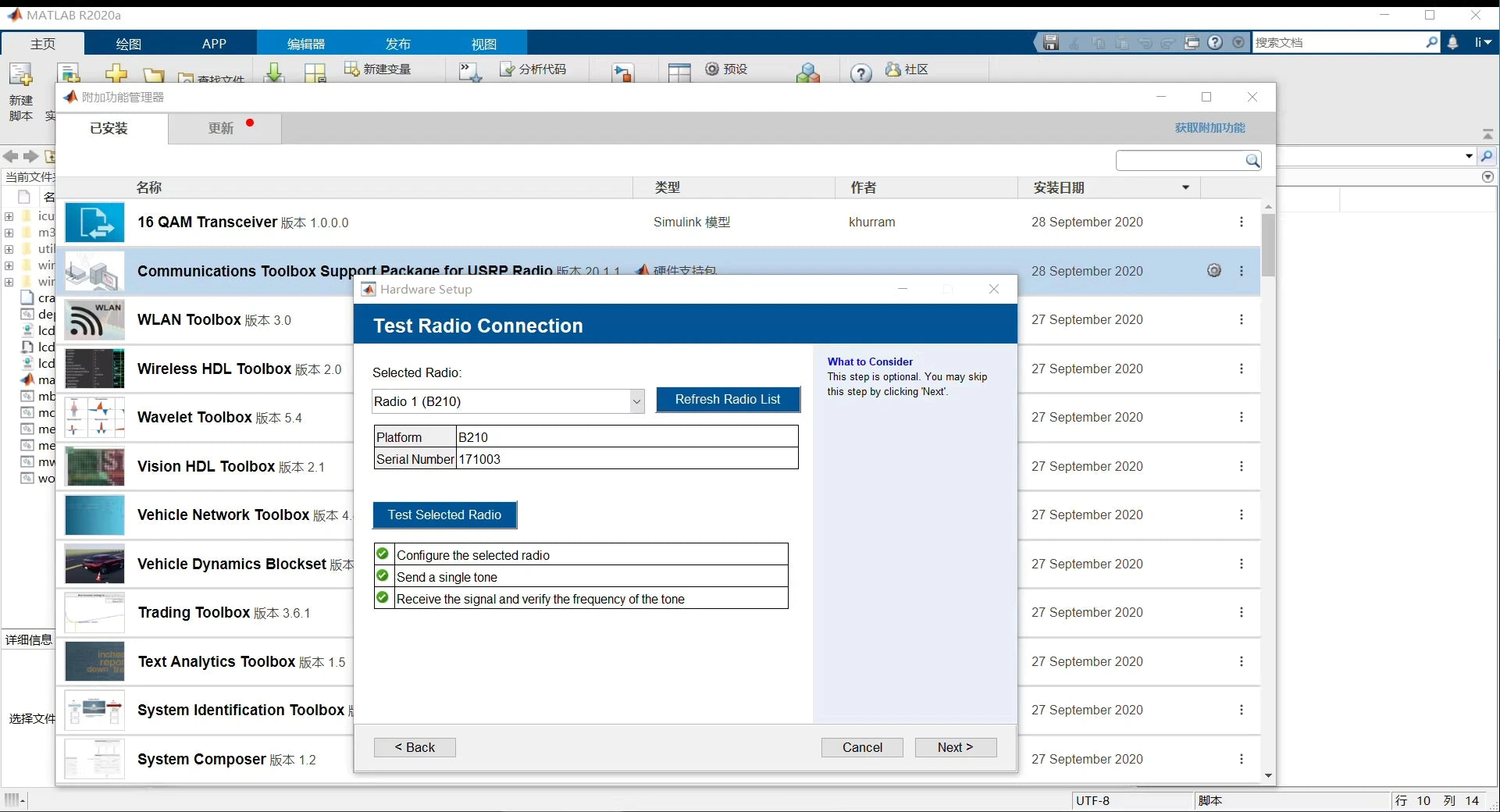

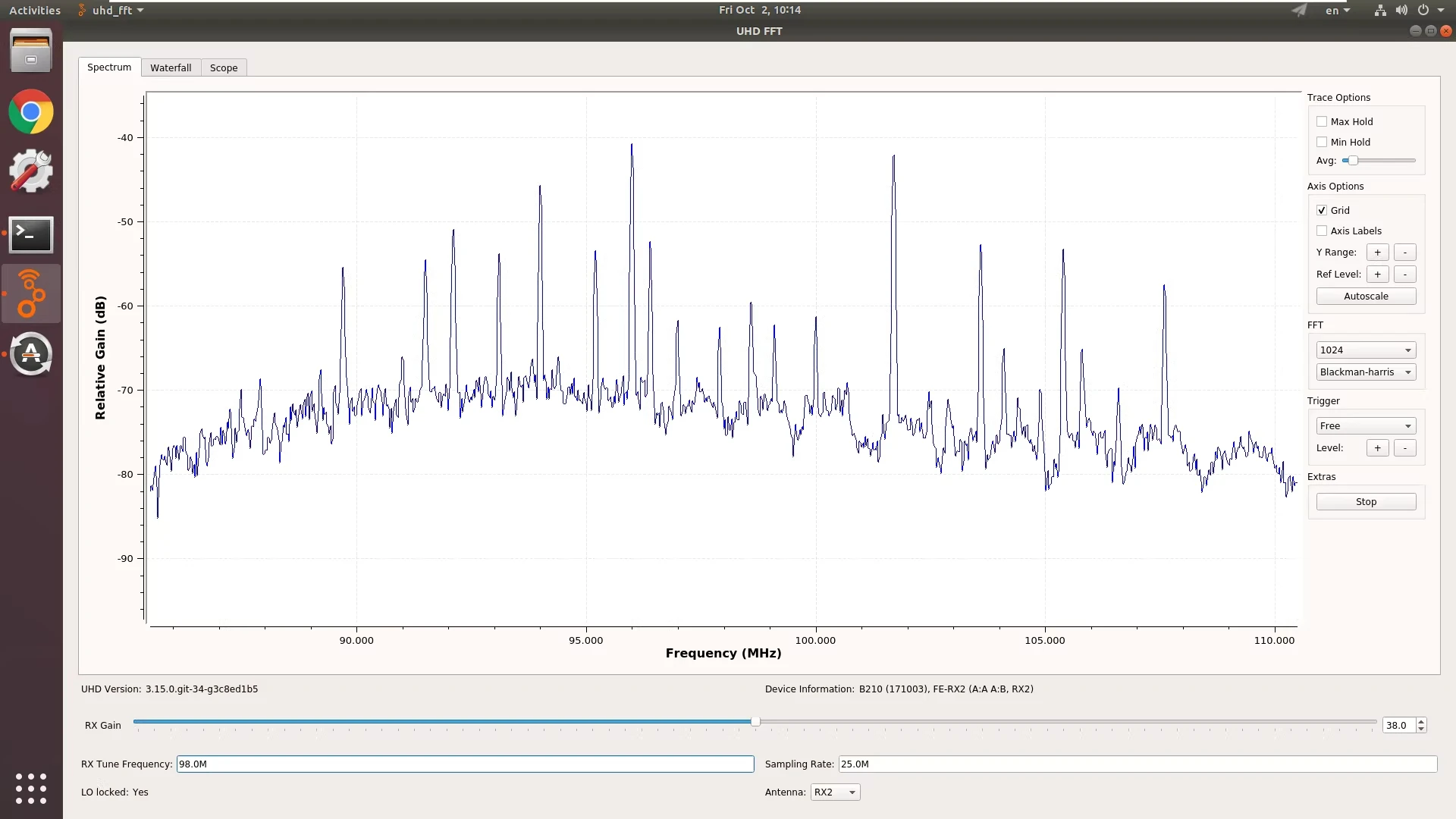

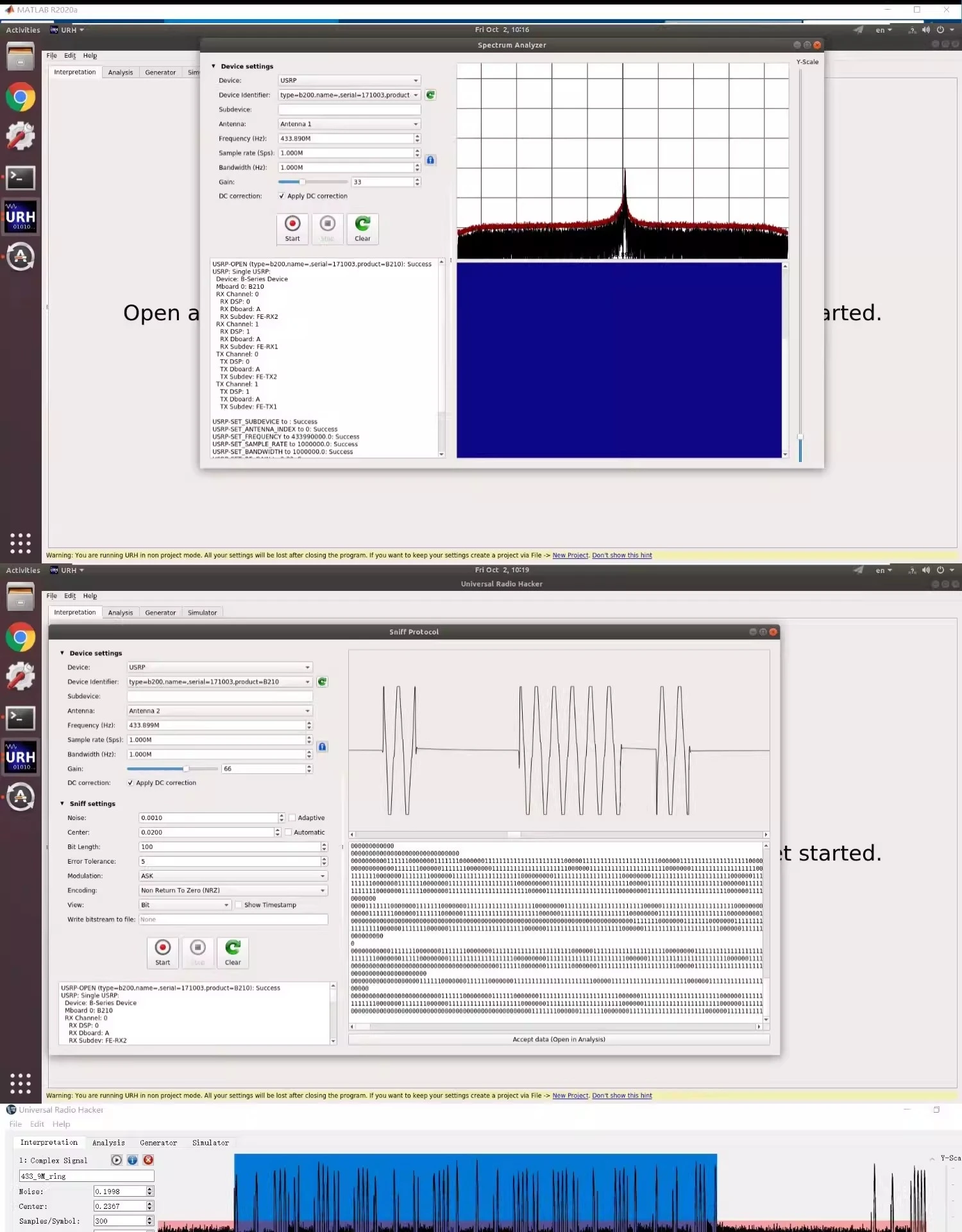

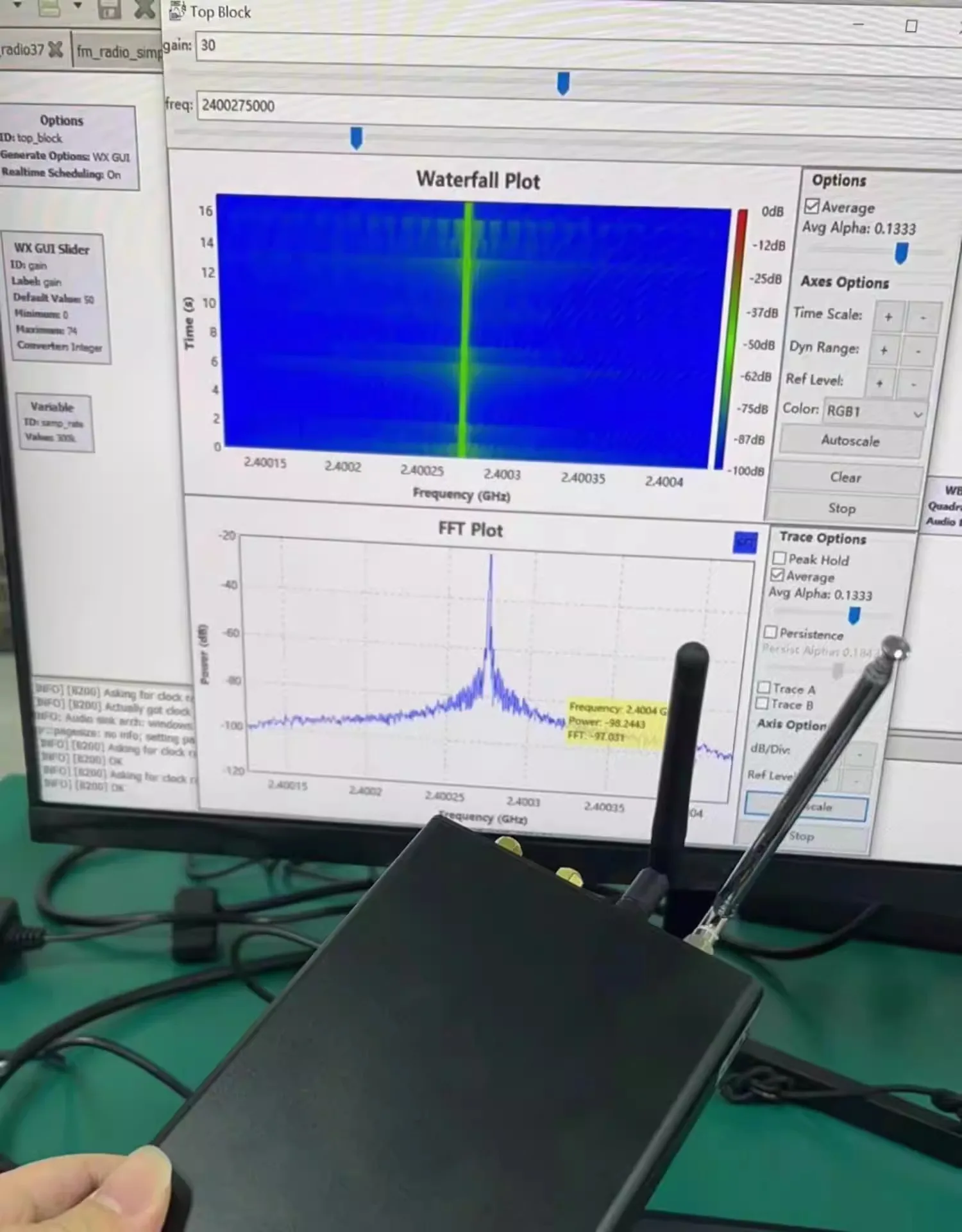

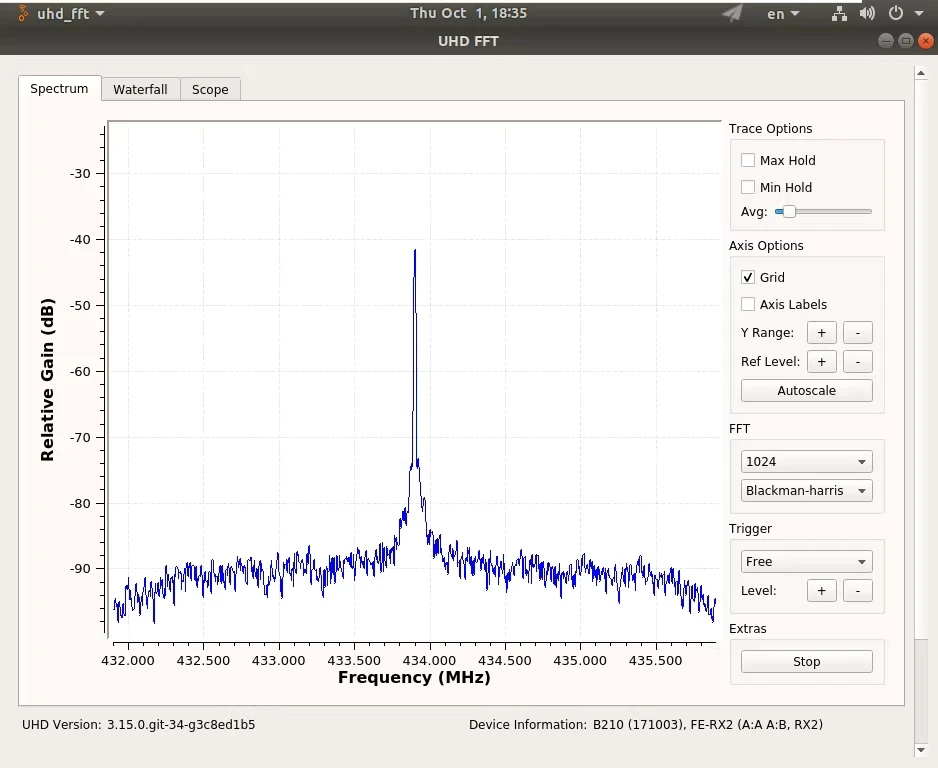

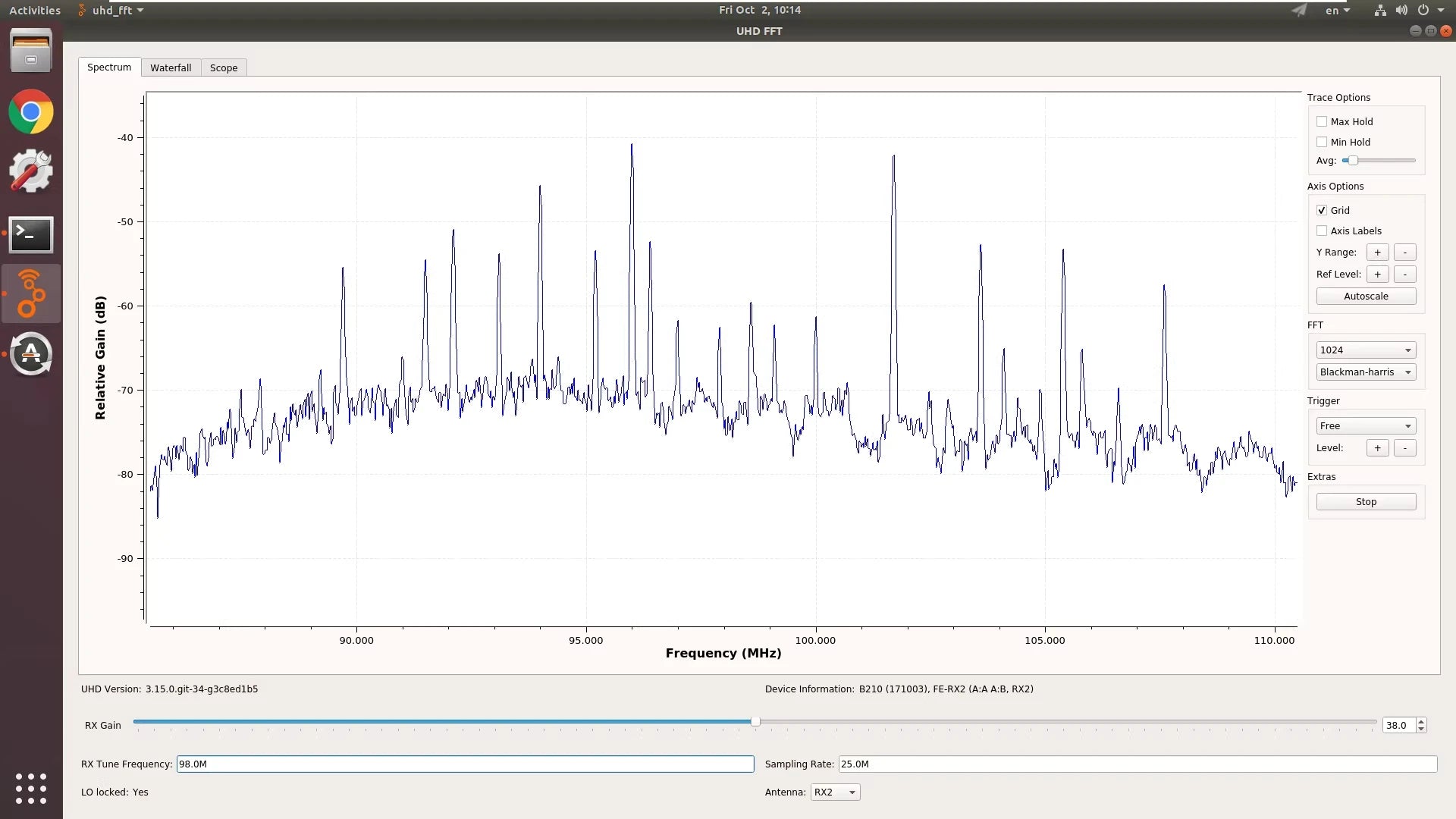

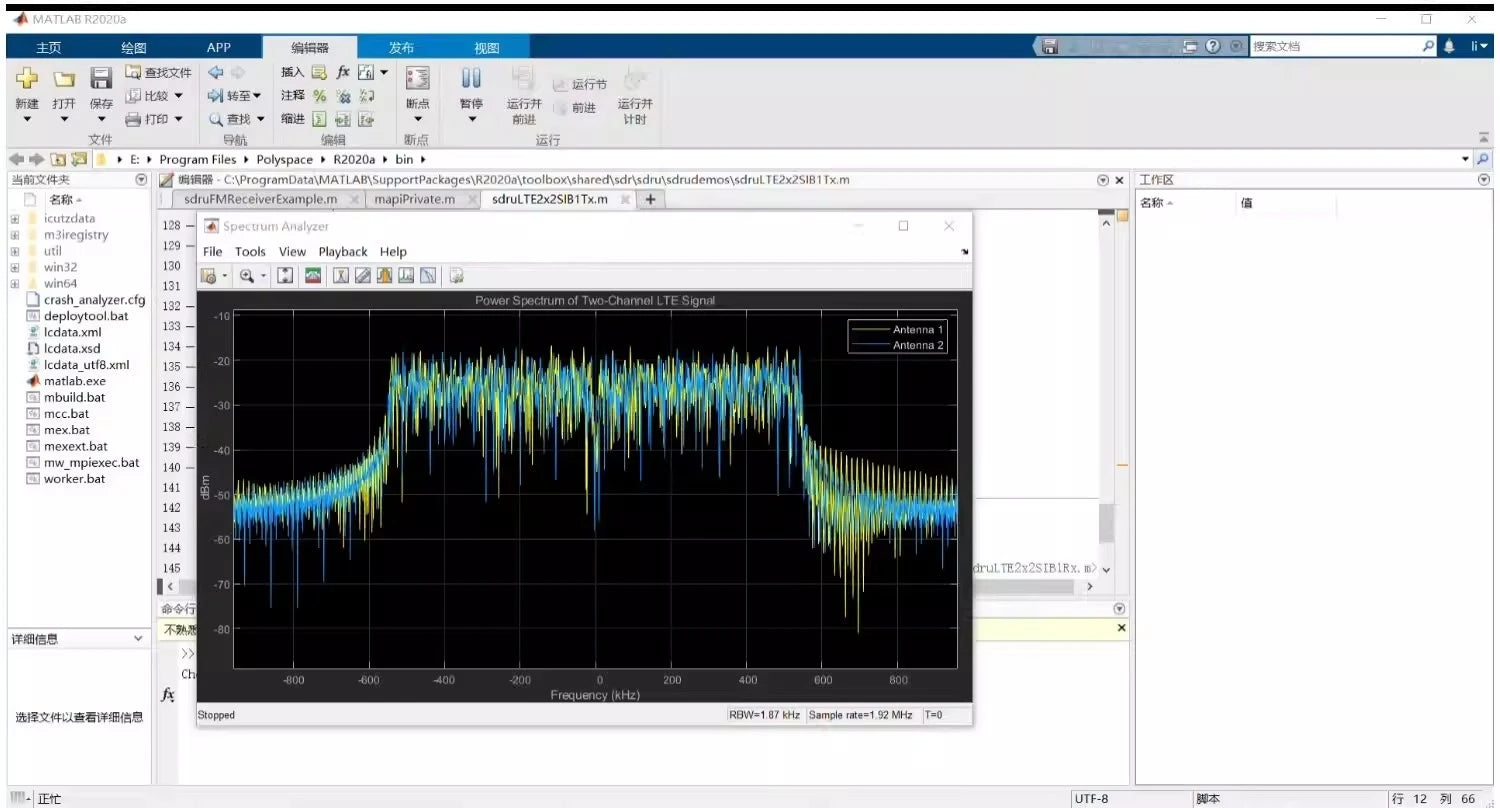

Test example
