SPECIFICATIONS

Brand Name: NONE,Wanling

Custom Service: FPC cable, connector, PIN definition, etc.

F.NO: F2.8

Focus: Manual Focus

Focus Range: 0.3m~infinity

Image sensor: IMX477

Keyword: imx477 Raspberry Pi

Lens Mount: M12

Model Number: 12MP IMX477

Mounting Type: MIPI

Optical Size: 1/2.3 inch

Origin: Mainland China

Pixel: 12.3 MP

Place of Origin: Guangdong, China

View Angle: Support custom FOV

Products Description

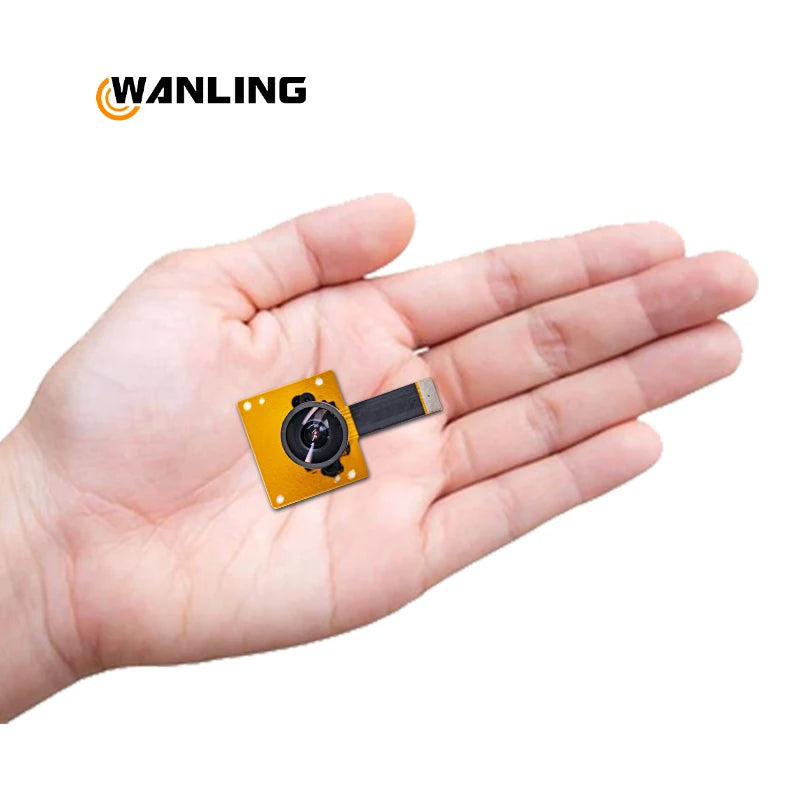

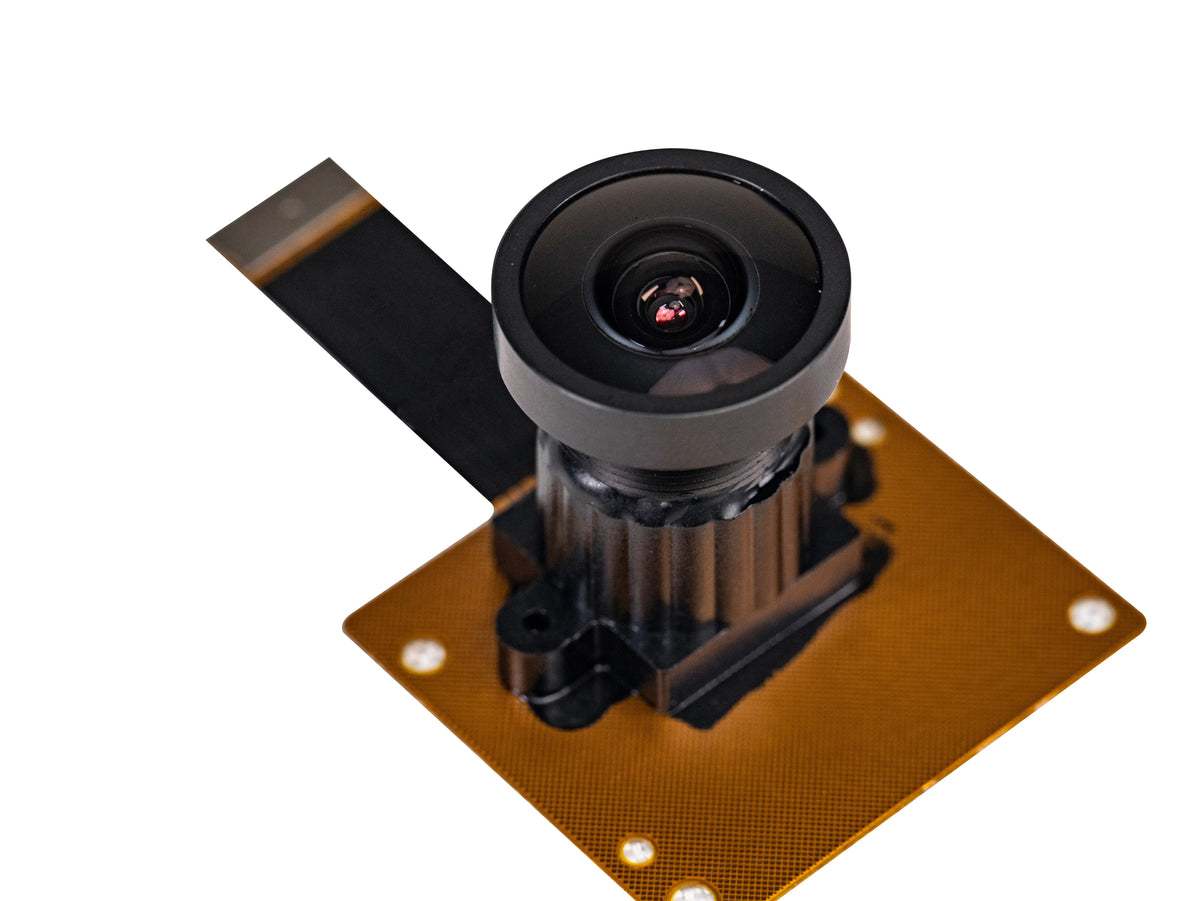

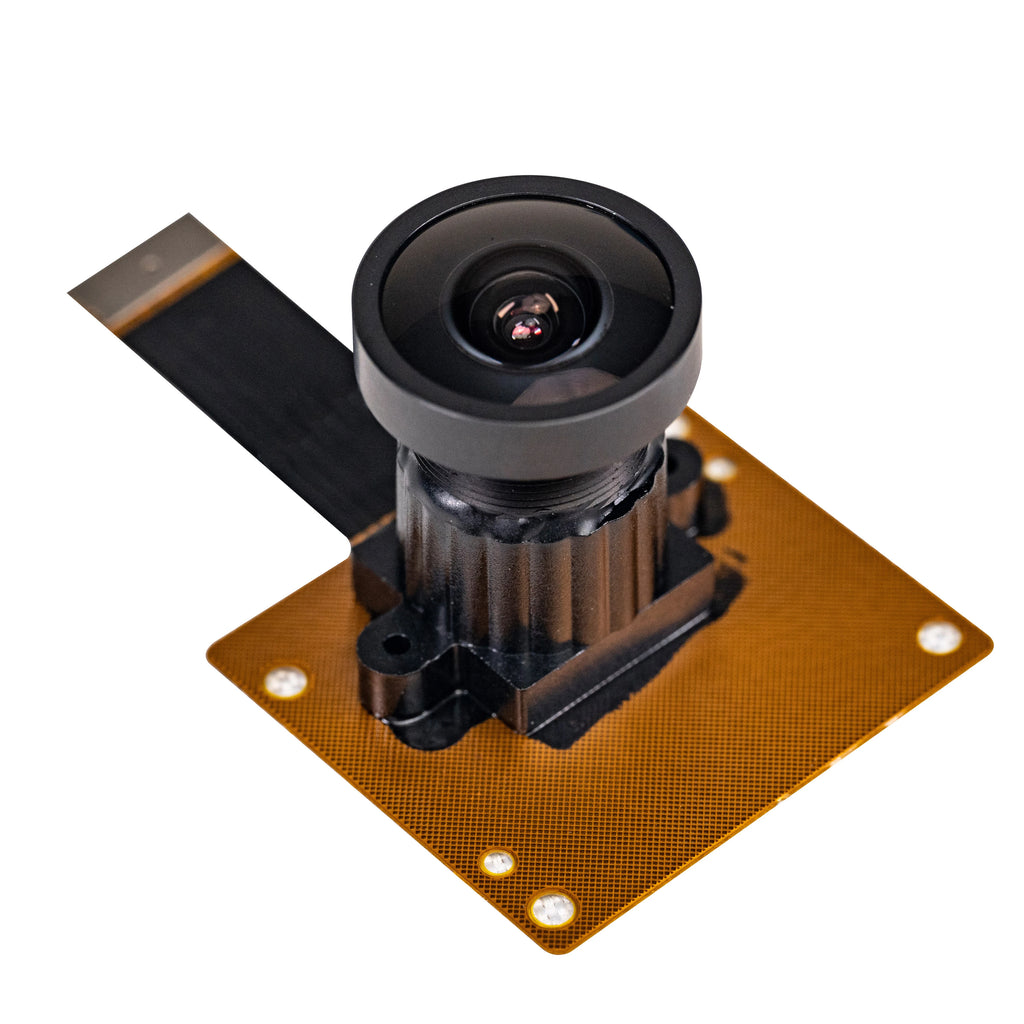

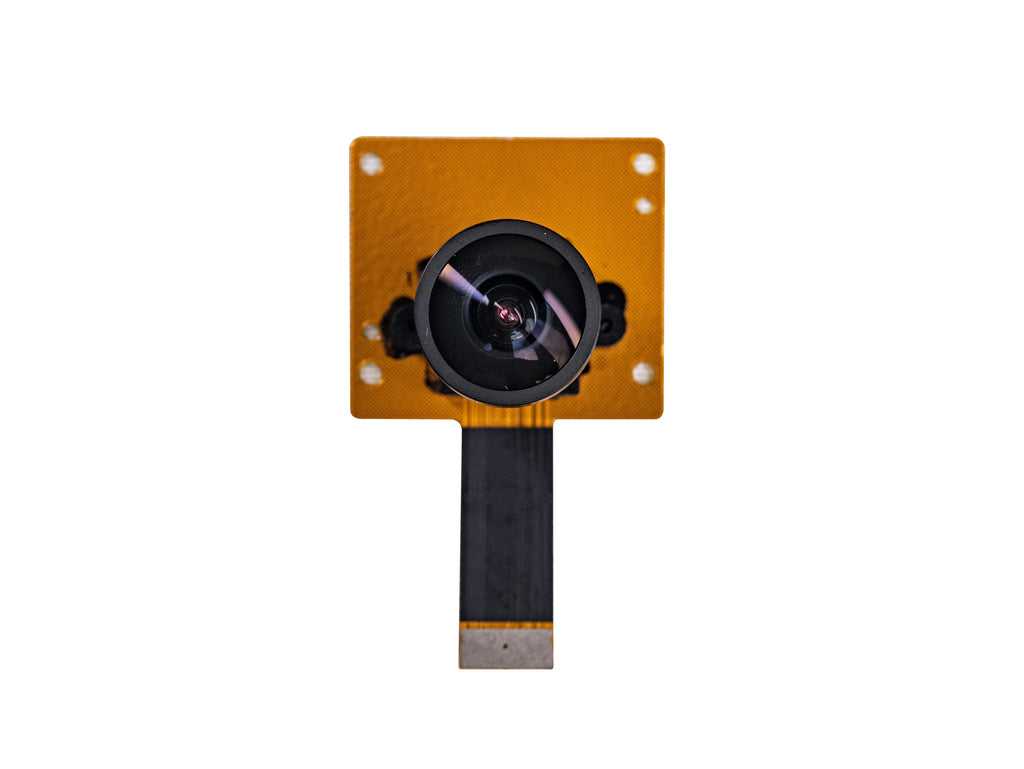

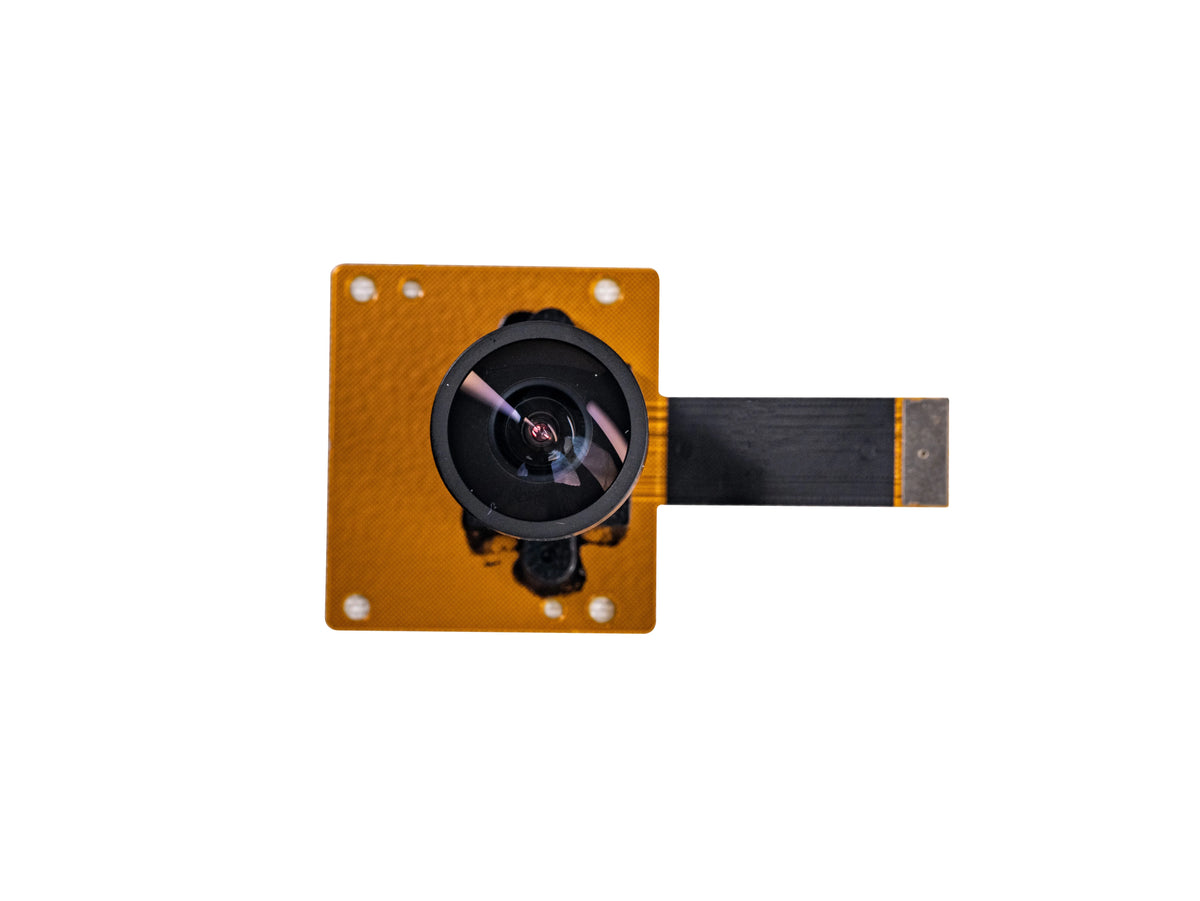

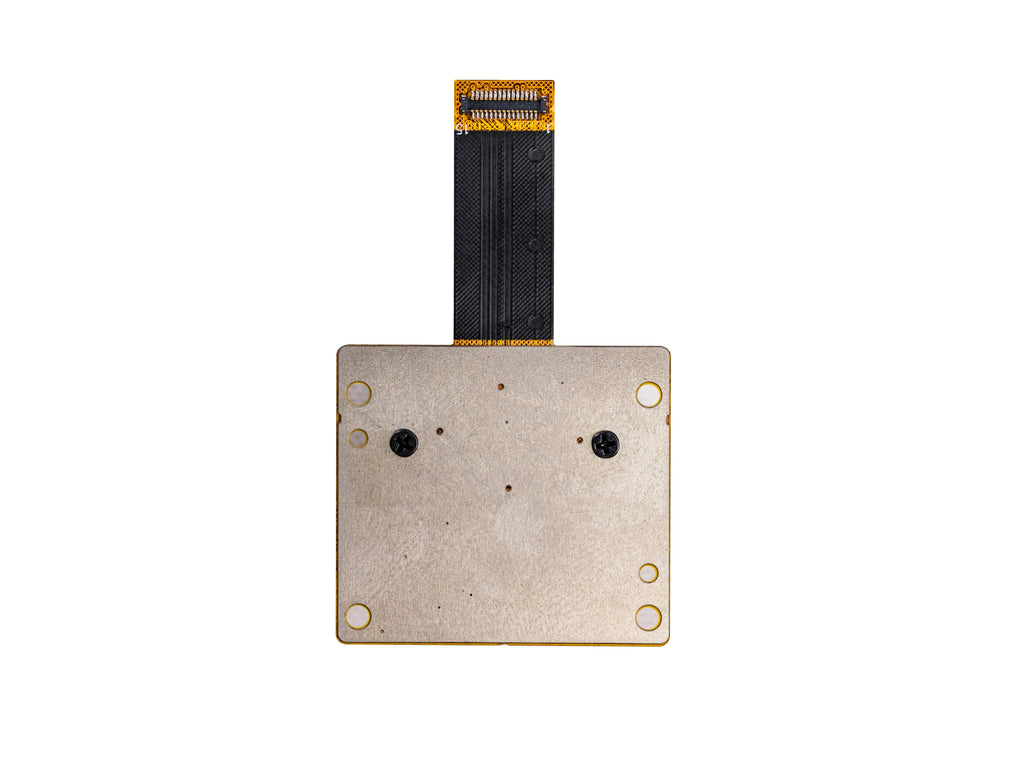

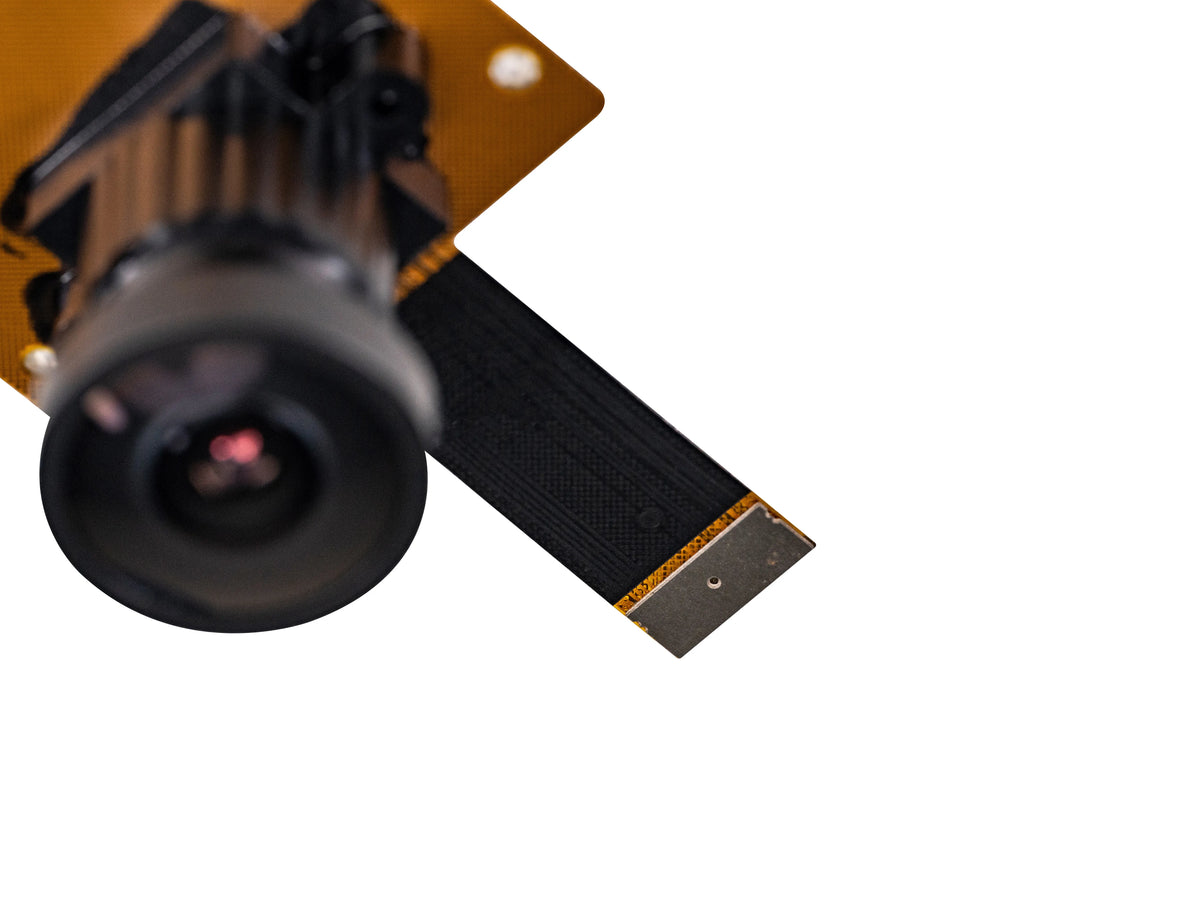

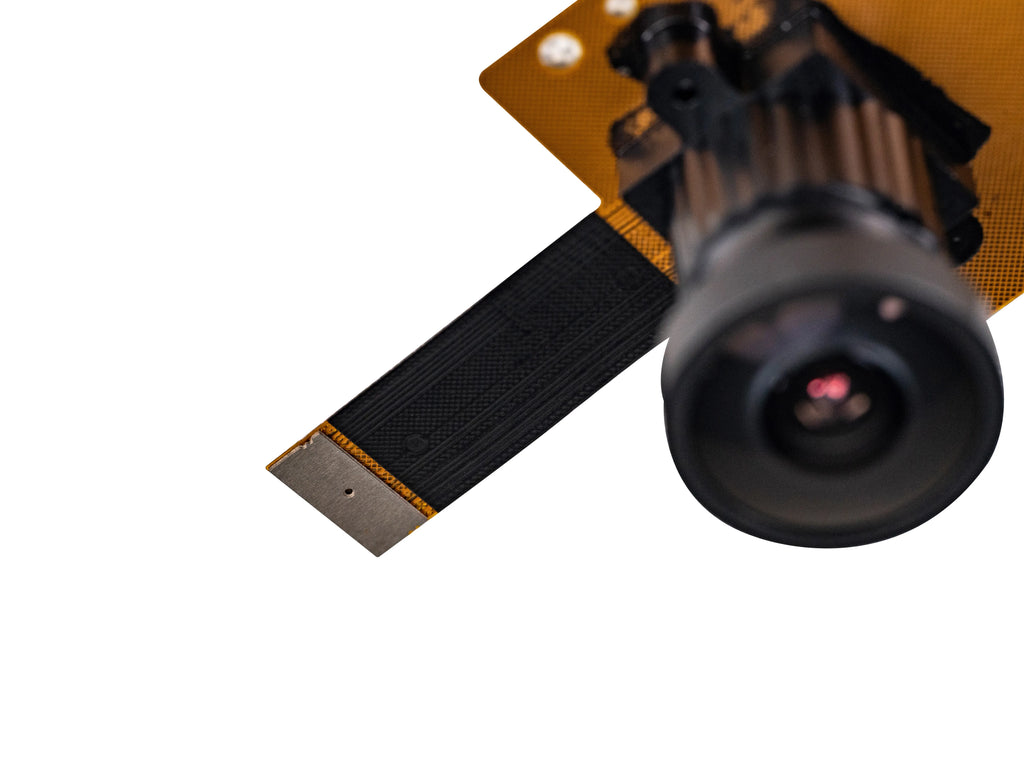

12.3MP IMX477 Sensor Raspberry Pi Camera Module Custom IR CUT Filter Wide Angle 160 Degree Support C / CS Lenses
Image Sensor	IMX477
Pixel	12.3 MP
Color Filter Type	Color
Frame Rate	4056×3040@10fps, 3840×2160@20fps, 1920×1080@60fps
FOV	Support Custom

Customization Service

1. Appearance & Dimensions

2. Lens & Lens Holder

3. Cable Shape & Length

4. Connector & Pin definition

5. Optional: IR/LED flash/Night-vision/OIS/Microphone

Contact us for free drawing and price

Functions and Features

General description:

The lMX477 is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. lt adopts Sony's Stacked CMOS lmage Sensor technology to achieve high speed Image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. lt equips an electronic shutter with variable integration time. it operates with three power supply voltages: analog 2.8 v, digital 1.05 V and 1.8 V for input output interface and achieves low power consumption.

Back-illuminated and stacked CMOS image sensor

Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output.

High signal to noise ratio (SNR). Full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s

Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame)

Output video format of RAW12/10/8, COMP8. Power Save Mode Pixel binning readout and V sub-sampling function. Independent flipping and mirroring. Input clock frequency 6 to 27 MHz CSl-2 serial data output (MlPl 2lane/4lane, Max. 2.1 Gbps/lane, D-PHY spec. ver. 1.2 compliant) 2-wire serial communication. Two PLLs for independent clock generation for pixel control and data output interface.

Defect Pixel Correction (DPC) Ambient Light Sensor (ALS) Fast mode transition. (on the fly) Dual sensor synchronization operation (Multi camera compatible) 7 k bit of OTP ROM for users. Built-in temperature sensor 10-bit/12-bit AD conversion on chip 92-pin high-precision ceramic package

Application

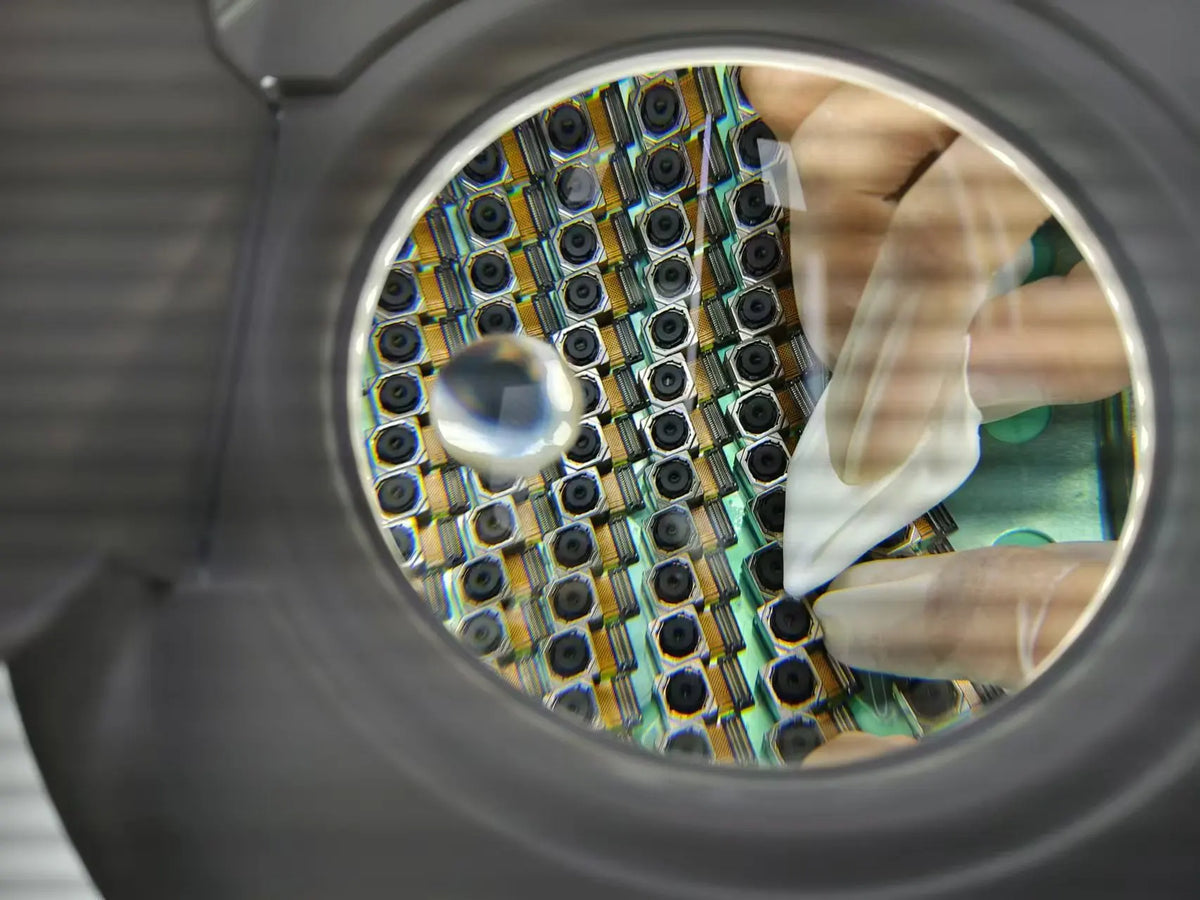

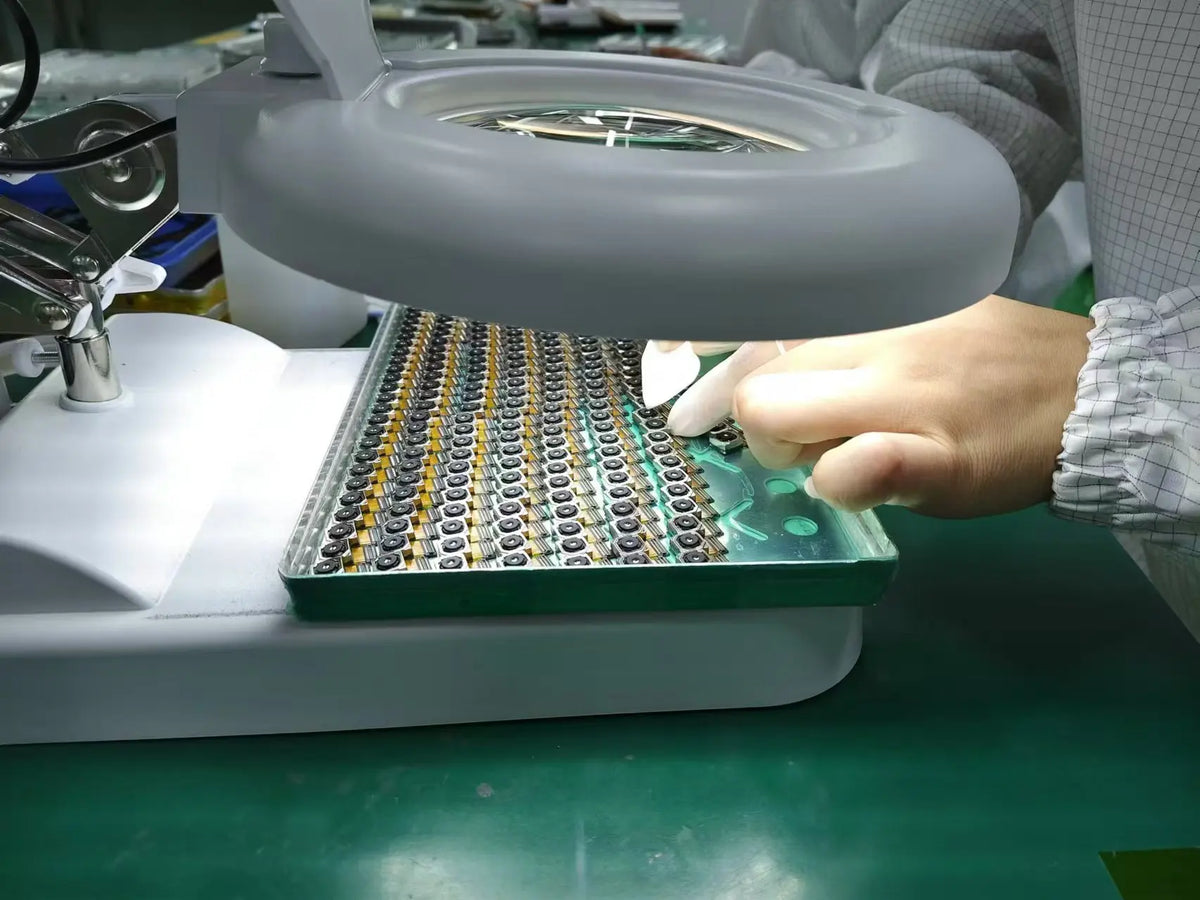

Company Profile

FAQ

Q1: Are you camera module manufacturer?

Yes. We are a professional camera module manufacturer. We have our own factory with our own production line.

Q2: Do you offer custom service?

Yes. We can customize camera modules according to your detailed requirements

Q3: Get a free quote and drawings easy

Provide specific requirements: Requirements of the camera module. our professional technical team will conduct a preliminary assessment and analysis.

Communication: We will discuss with you the technical details, design requirements, delivery time and other aspects, ensure that we have a full understanding of your needs.

Drawing design: Based on your needs and our technical capabilities, our professional technical team will develop a drawing for the camera module. Includes determining the module's specifications, features, materials, processes, etc. and ensuring its compatibility with your device integration.

Sample development: Once the design is finalized, our engineers will manufacture the samples according to the design, test and adjust them to ensure they meet your requirements and expectations.

Sample testing: We will conduct rigorous testing and verification of the developed samples to ensure that their performance and quality meet the requirements.

Firm production: We will share the test results with you and make necessary modifications and improvements based on your feedback. If no modification is required, mass production will be carried out.

Q4: How long is the production cycle?

Existing camera module: Sample order 4-5 days delivery, bulk order 7-10 days delivery.

Custom camera module: Sample order 10-12 days delivery, bulk order 15-20 days delivery.

Q5: What's the duration of guarantee and warranty?

The guarantee period is one year after delivery of the goods. Improper or unprofessional deployment, wear and tear,improper storage, carelessness during use, or unauthorized alterations to the goods caused by the customer or third parties invalidate the warranty rights.

Q 6: What's your products MOQ?

We provide you small MOQ for each item, it depends your specific order!

Q7: What's your shipment method?

Usually we use DHL, UPS, FedEx, Aramex,TNT,EMS,HK Post and EUB.

If you have forwarder in China, we also can ship to their address.
