SPECIFICATIONS

Brand Name: LKNDIZ

Certification: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature1: Relay

Feature2: Waterproof IP68

Feature3: Universal

Feature4: Dual Battery

Feature5: Charing

Feature6: Isolator

Feature7: Protector

High-concerned chemical: none

Item Type: Car Relays

Item Weight: 210g

Model Number: 12V 140A

New function: Digital Display

Origin: Mainland China

Special Features: Charge for Dual battery banks

Use: AUTO

Voltage: 12V

is_customized: Yes

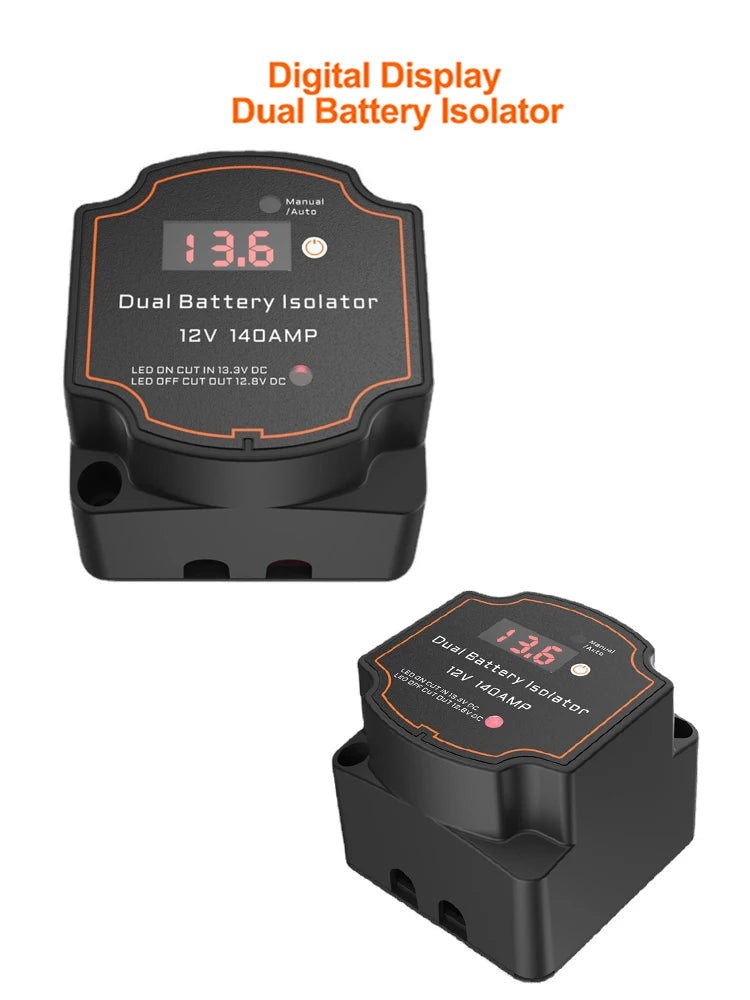

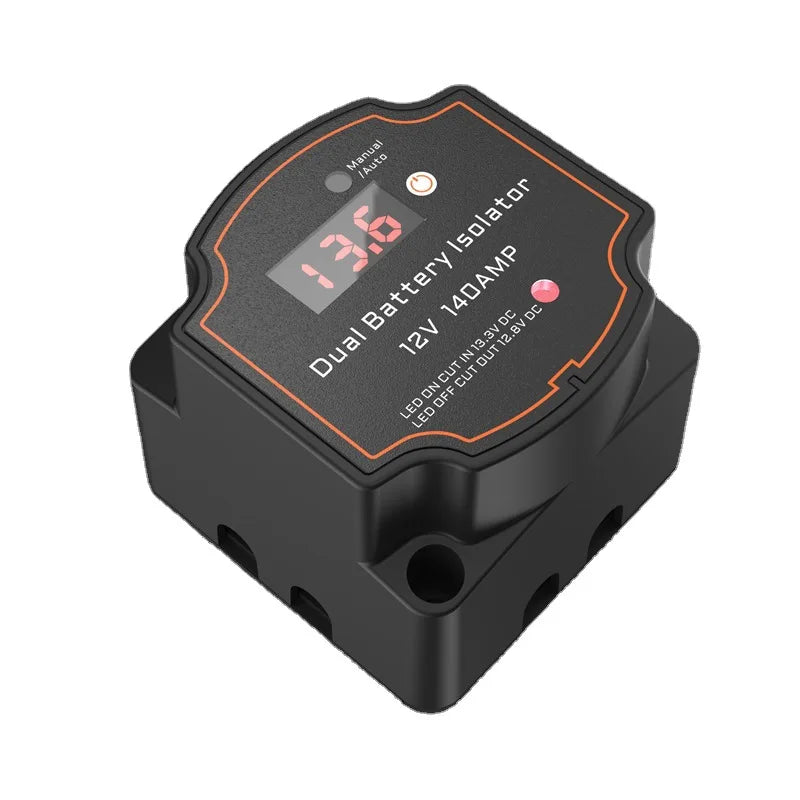

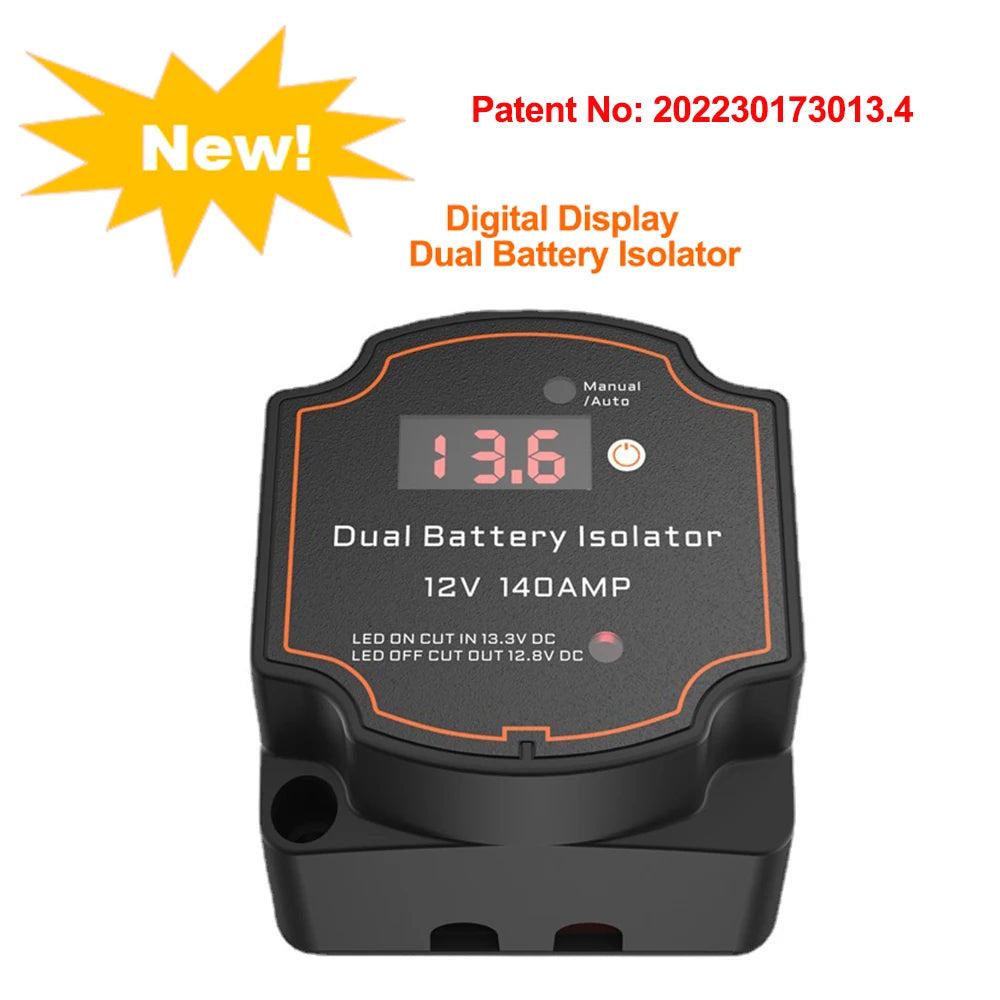

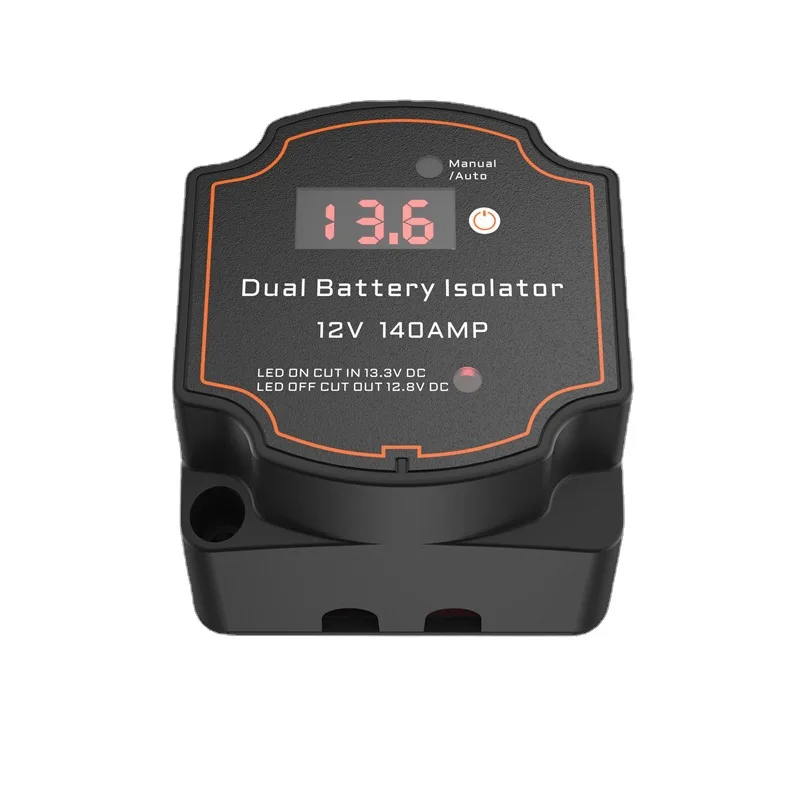

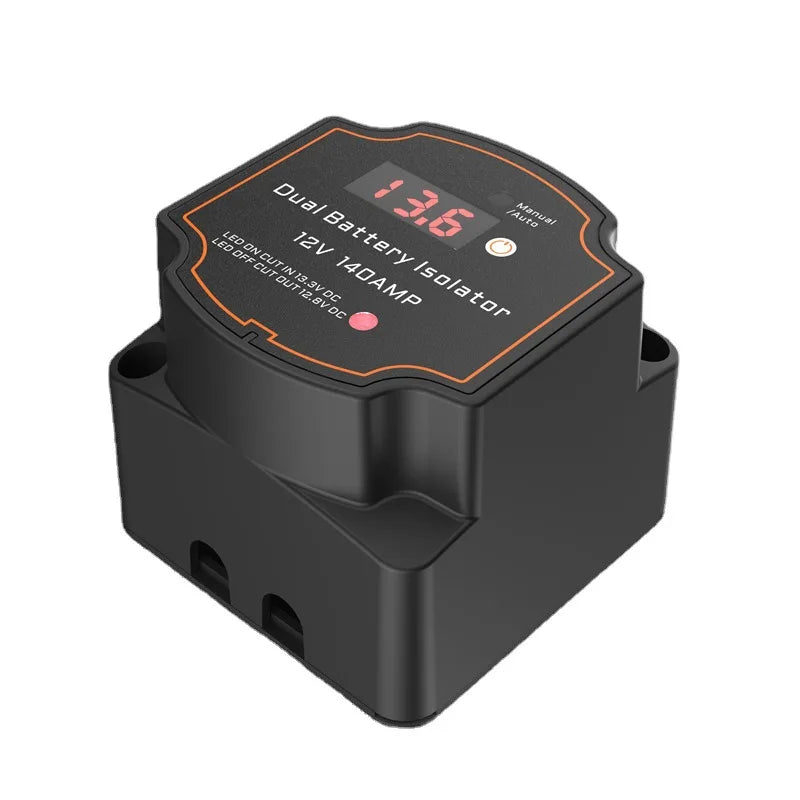

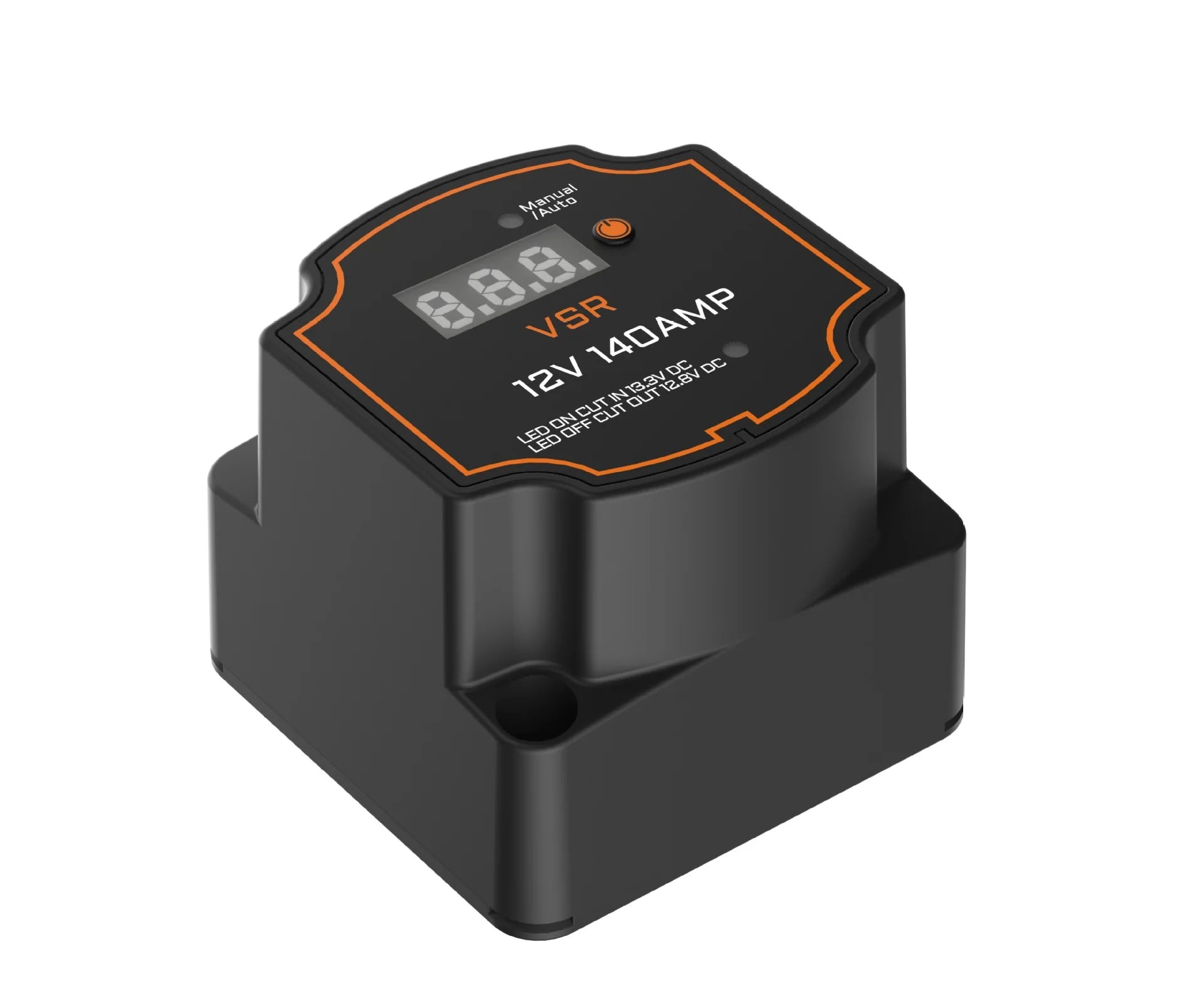

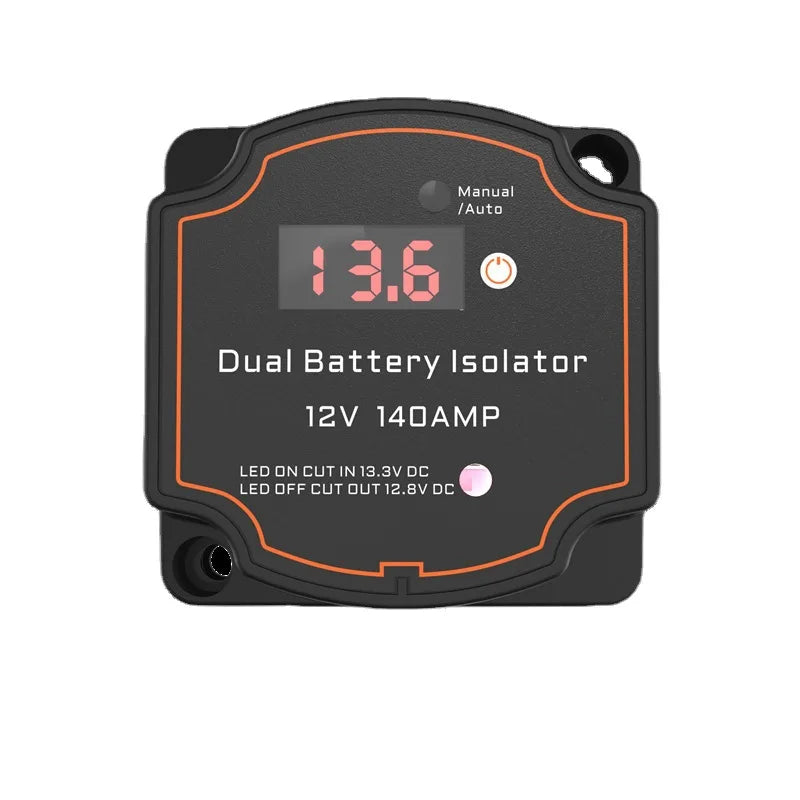

New Design Digital Display Smart Dual Battery Isolator 12V 140A Voltage Sensitive Intelligent Split Charge Relay VSR For Camper Car

Product  Description：

The Voltage Sensitive Relay (VSR) allows two batteries to be charged at the same time. When the engine is started and the start battery reaches 13.3 volts, the VSR engages, allowing two battery banks (start and house) to be charged simultaneously.

When the voltage drops below 12.8 volts (eg the engine is stopped), the VSR disengages, separating the batteries. This system eliminates the possibility of draining the start battery and protects sensitive electronic equipment powered from the house battery from harmful engine start up spikes.

Features:
Voltage sensitive relay12 volt 140 amp  Red LED indicator.Allows split charging of the 2nd battery bank without discharging the primary/start battery.The relay makes at 13.3 volts and breaks at 12.8 volt.

Advantages of fitting a VSR over conventional charge (diode isolators). Easy 3 wire connection at the battery. No need to bypass existing alternator wiring. VSR have no volt drop. Conventional diode isolators incur a minimum of 0.6 volt drop. Compact size - No large heat sink Cost effective solutionQuality products; affordable prices

Specification:

Novel exterior design, patent protection

Product Type : 12V140A Digital Display Dual Battery Isolator

Continuous current:  80-100A

Instantaneous current: 125A

Waterproof grade: IP68

Current consumption - charging :  240mA

Current consumption standby: 8mA

Detachment delay: 5-10 seconds

Recommended fuse : 80Amp

Power stud: M6 copper screw nut

Surge protection: Internal setting

Product size: 68x52x68 mm
