Key Features

• 16 digital channels

• Up to 400MHz sample rate

• Up to 256Mbits hardware memory

• Up to 16G sample depth (stream mode)

• Adjustable Threshold (0.1V Step)

• Shielded fly wires

• Unibody aluminum case

• 3-year warranty

Connectivity

• USB Type-C interface (USB 2.0 device port)

• 27mm dupont female connector (Host device)

• 54mm dupont female connector (Fly wires)

Power Source

• Power source voltage: 5VDC±5%

• Power consumption: 2 W maximum

Input output ports

Designed to make your work enjoyable

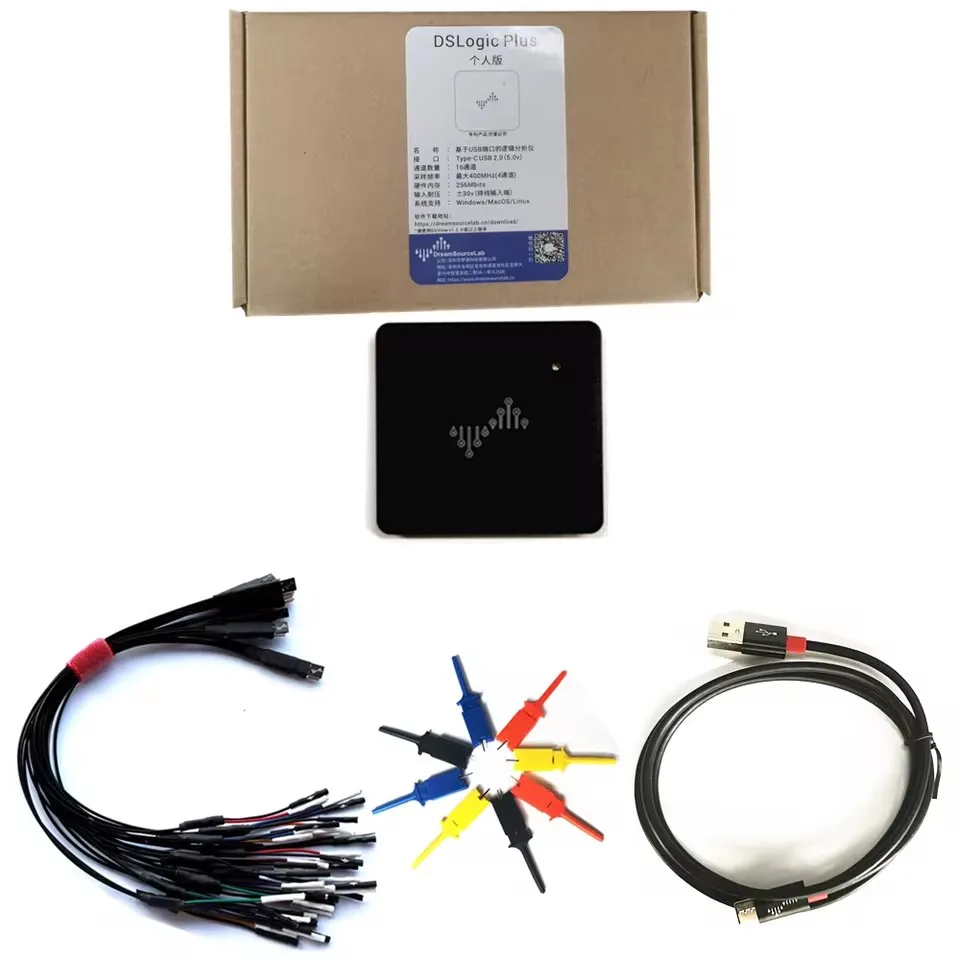

DSLogic Plus is an USB-based logic analyzer, which has a portable size (79x74x9mm), but powerful performance (up to 400MHz sample rate). With the easy-to-use and cross platform software, DSView, you can use your favorite computer to debug and analysis your circuits, observe the digital wave and decoder various protocols at anywhere and anytime.

Technical Specifications

Input Voltage and Thresholds

Operation voltage range: -0.9v ~ 6v
Threshold voltage: 0v ~ 5v (0.1v step)
Work with most of logic voltage level (such as: 5v, 3.3v, 2.5v, 1.8v, 1.5v, 1.2v, 1.0v, etc.)
ESD protected

Input Impedance

250KΩ // ~10pF

Max Sample Rates

Buffer mode: 400MHz when using 4 channels, 200MHz when using 8 channels, 100MHz when using 16 channels
Stream mode: 100MHz when using 3 channels, 50MHz when using 6 channels, 25MHz when using 12 channels, 20MHz when using 16 channels

Max Sample Depth

Buffer mode (without RLE compression): 256M
Buffer mode (with RLE compression): 16G
Stream mode: 16G

Error/Accuracy

Minimum acquisition pulse: 5ns
Acquisition Accuracy: ±sample interval (for example: ±10ns@100M sample rate, ±1us@1M sample rate)

Noise Immunity

Each channel provides independent shielding ground.

System Requirements

• Windows XP, Vista, Win7, Win8 , Win10, Win11

• Mac OS X 10.8 or above

• Linux: recent Ubuntu, Fedora, Arch, etc.

• USB 2.0 Host port

•
