SPECIFICATIONS

Battery Included: no

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

NanoVNA Plus, is a portable, handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After many upgrades, NanoVNA Plus is currently the highest performing version. The measurement frequency range has been upgraded to 50KHz-2.7GHz, and its performance is better than the previous 1.5GHZ version.

Specifications:

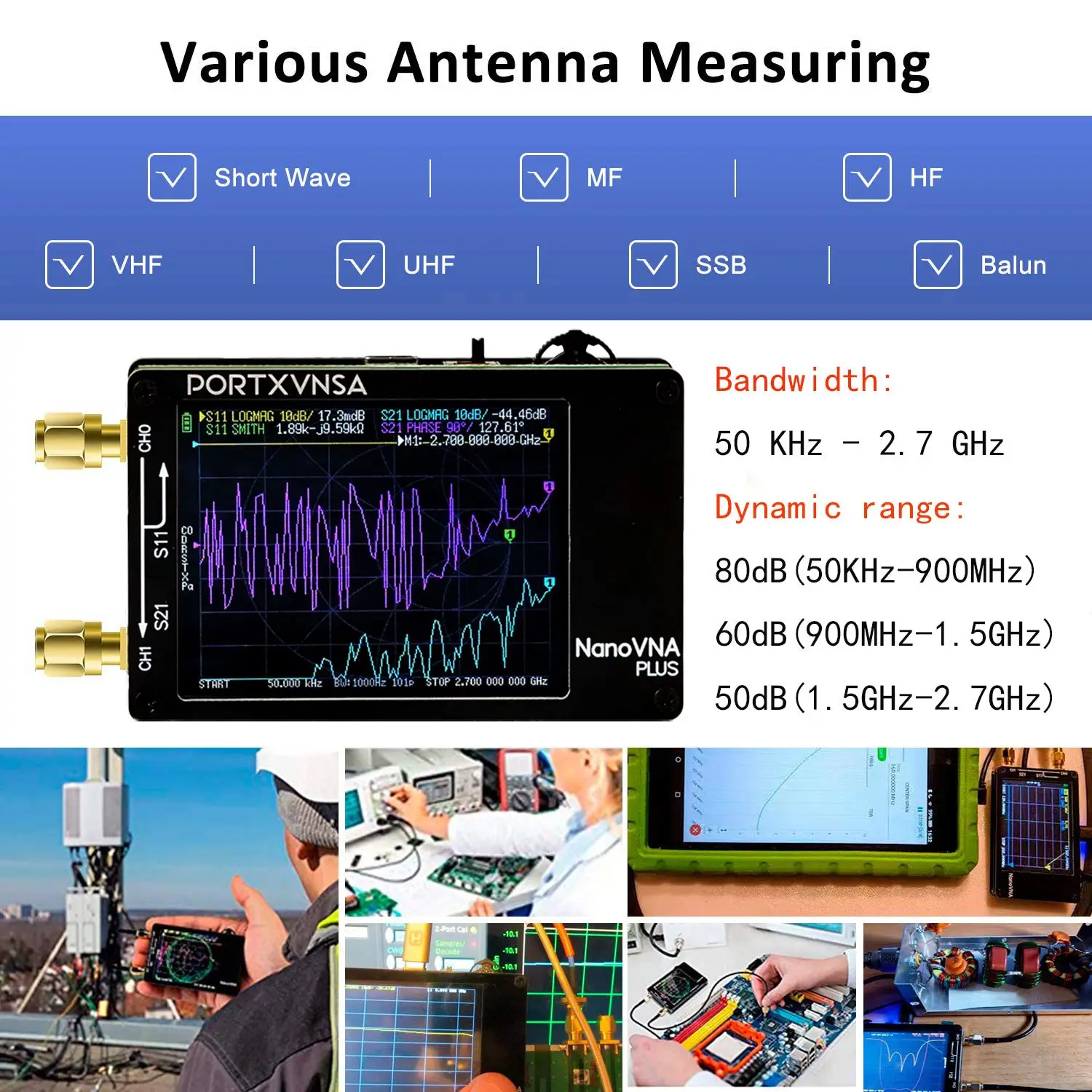

Bandwidth:50KHz-2.7GHz

Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)

Reflection coefficient:SWR:<1.1

Frequency accuracy: <0.5 ppm

Frequency stability:<2.5 ppm

Scan points: 101

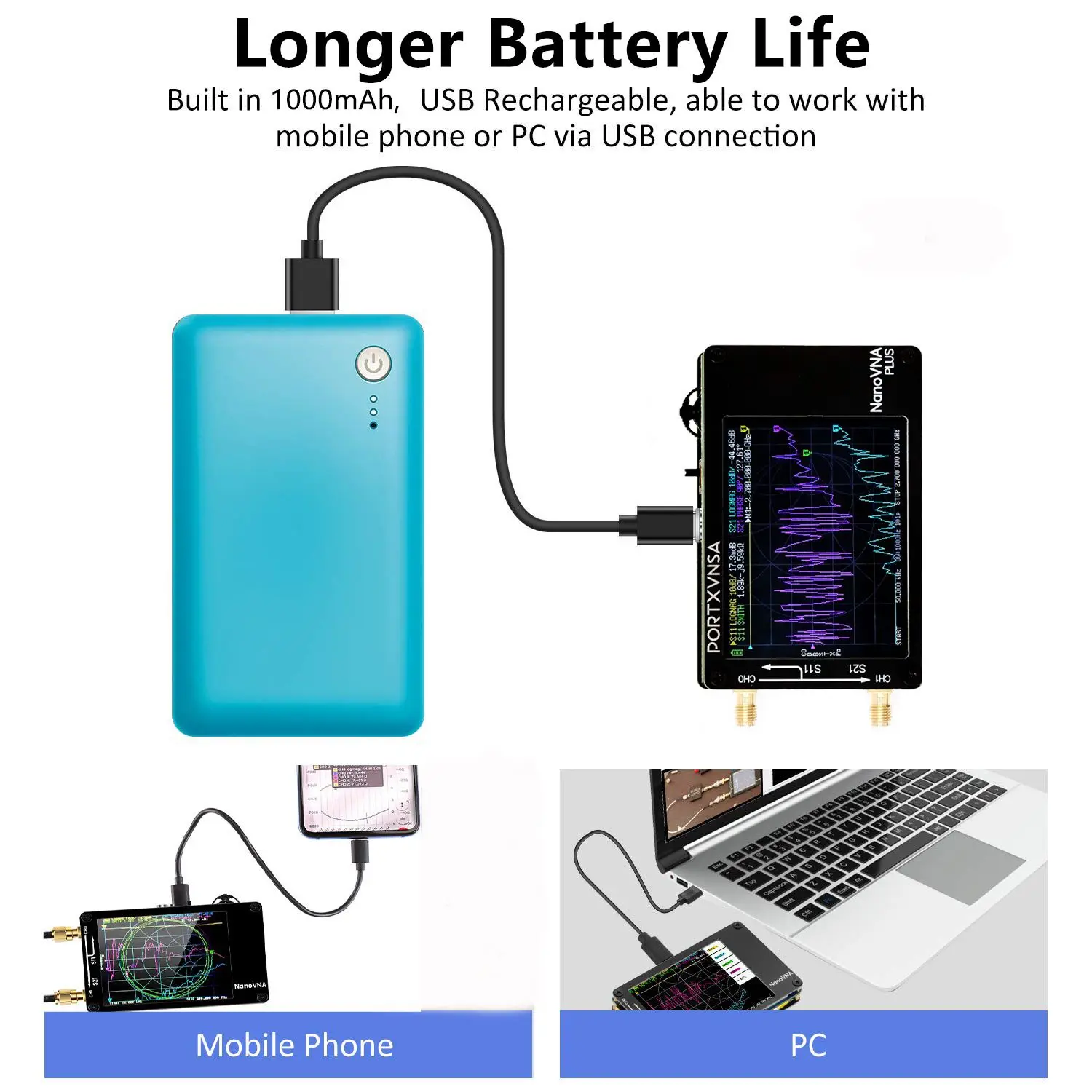

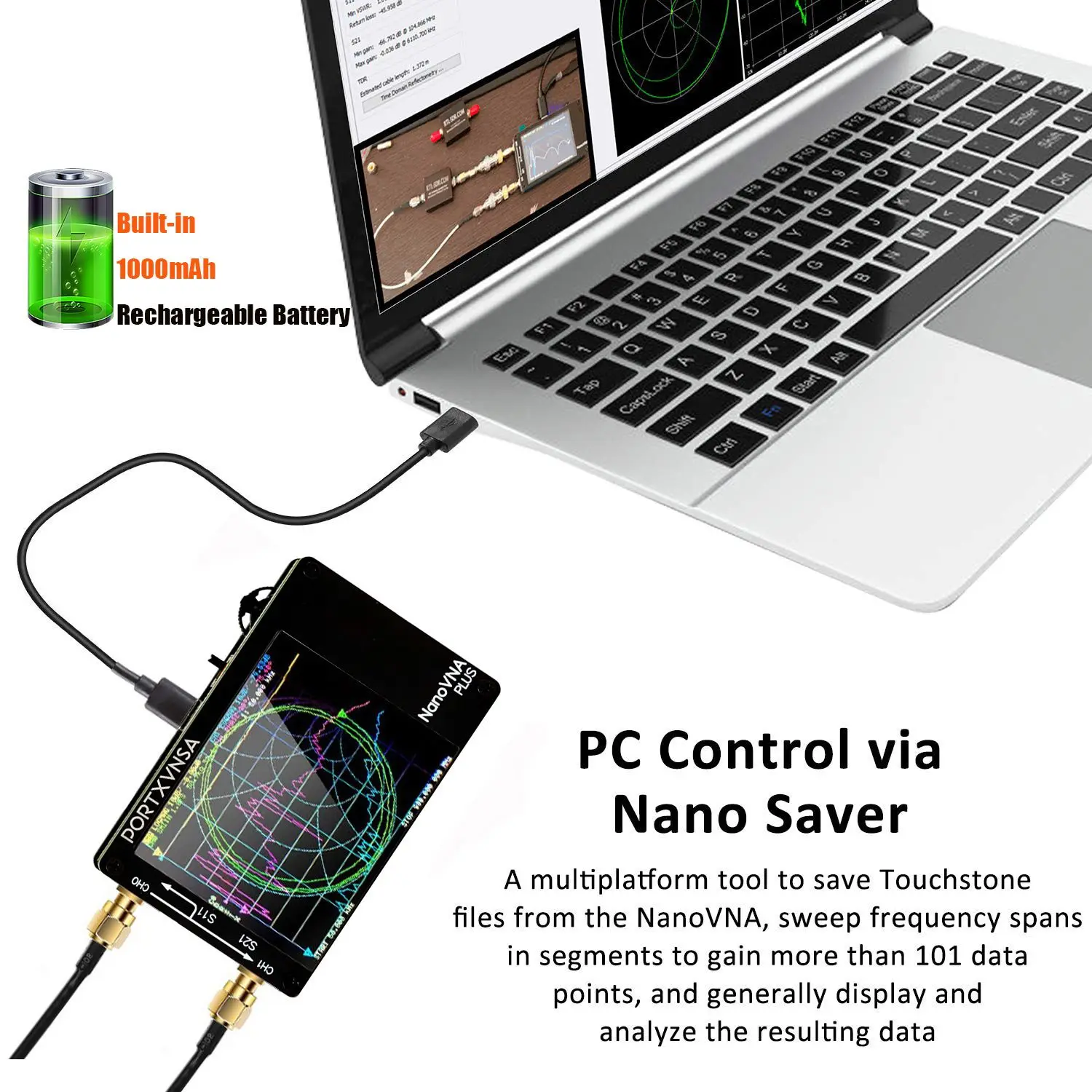

Built-in 1000mAh battery

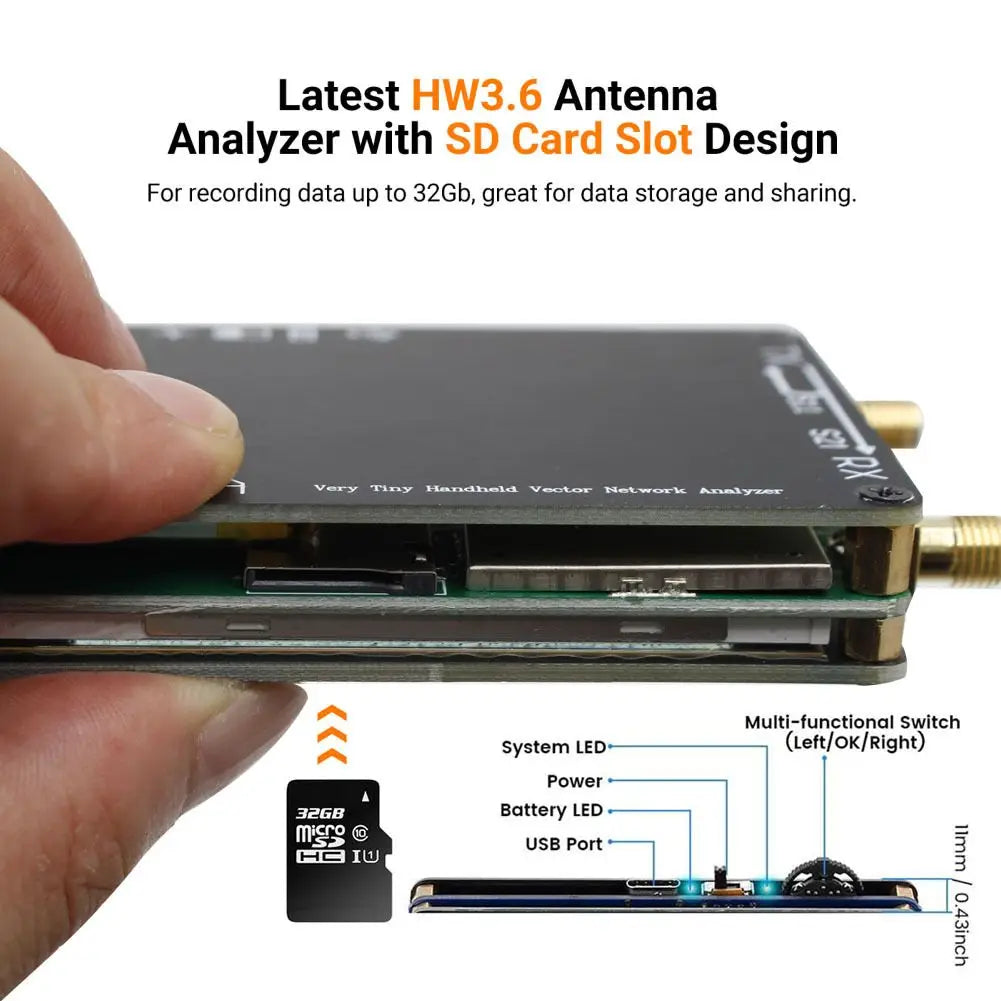

MicroSD supports up to 32GB and only supports SPI mode.

Add RTC support;

Modify the port names to Port1 and Port2

Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart...;

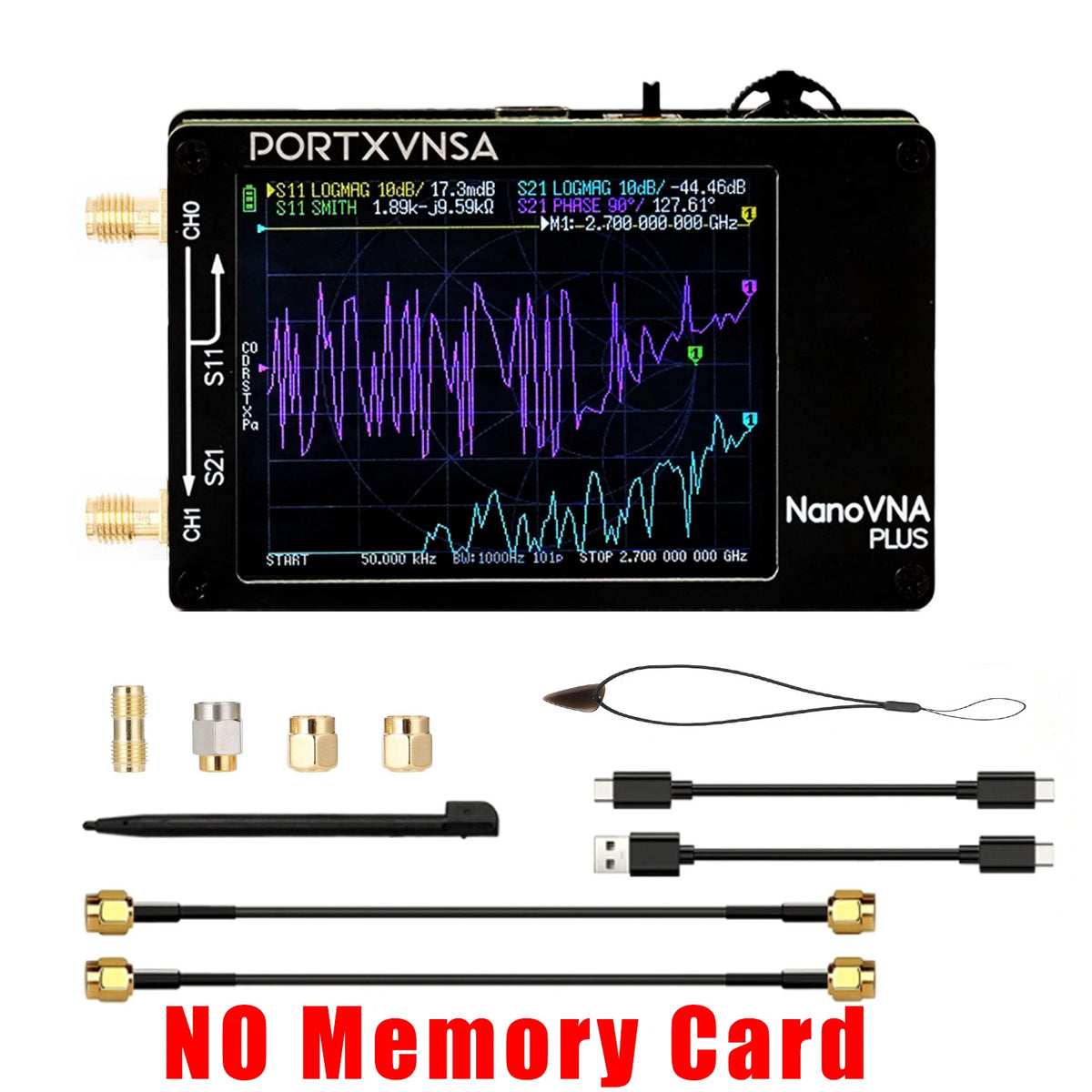

Set 1

Packing list:

1. NanoVNA host*1 (including 2.8-inch touch screen, 1000mAh battery)

2. 20cm SMA male to male RG174 RF cable *2

3.Type-C to Type-C cable

4. USB Type-C data cable *1

5. Simple instruction manual*1

6. Touch pen*1

7. Pick*1

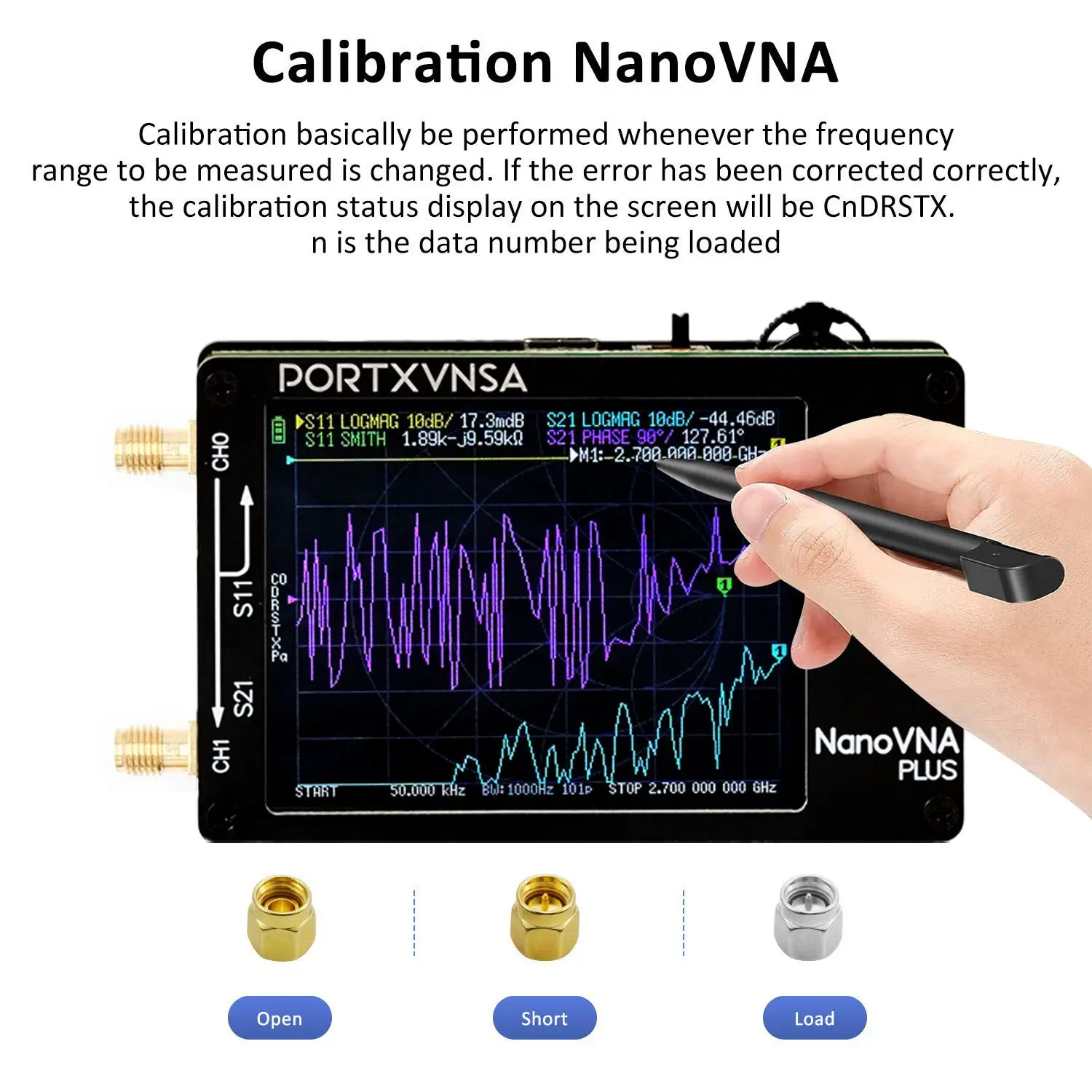

8. SMA simple calibration kit LOAD *1

9. SMA simple calibration kit OPEN *1

10. SMA simple calibration kit SHORT *1

11. SMA female to female connector *1

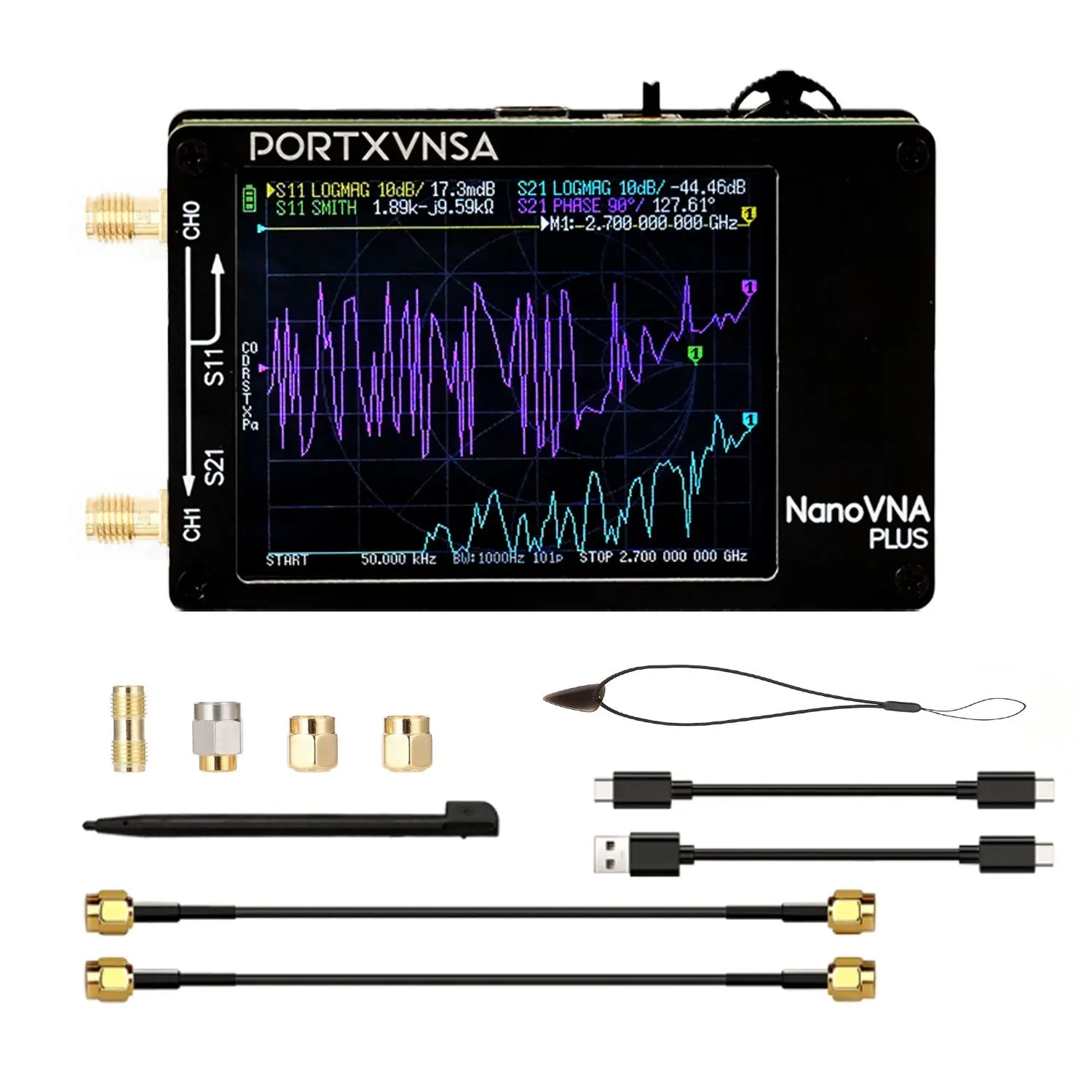

Set 2

Packing list:

1. NanoVNA host*1 (including 2.8-inch touch screen, 1000mAh battery)

2. 20cm SMA male to male RG174 RF cable *2

3.Type-C to Type-C cable

4. USB Type-C data cable *1

5. Simple instruction manual*1

6. Touch pen*1

7. Pick*1

8. SMA simple calibration kit LOAD *1

9. SMA simple calibration kit OPEN *1

10. SMA simple calibration kit SHORT *1

11. SMA female to female connector *1

12.Memory card 32G
