SPECIFICATIONS

Features

- 4Gbit storage depth (optional)

- 1Gsps high sampling rate (optional)

- USB3.0 5Gbps

- 200+ decoding protocol

- 0-6V threshold input

- External trigger

- Trigger output

- Multiple hardware filtering

- RLE compress algorithm

- Aluminum alloy shielding shell

- For Win/Mac/Linux

Specification:

- Channel number:
PX Logic16 Pro 16CH
PX Logic32 32CH

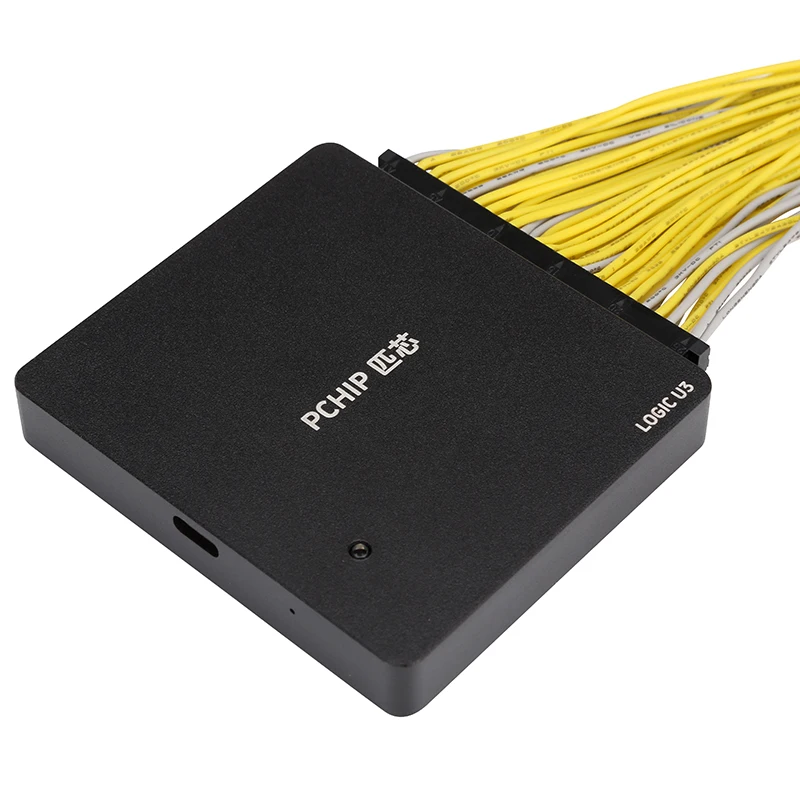

- USB interface: USB3.0 (Type-C support forward and backward insertion)

- Buffer mode maximum sampling rate: 1GHz/8ch

- Stream mode maximum sampling rate: 1GHz/2ch

- Minimum acquisition pulse width: 2ns

- Data caching mode: Buffer (higher sampling rate)/Stream (longer storage depth)/Roll mode (real-time monitoring)

- Maximum storage depth:

Buffer Mode: 4G (Bit)

Stream Mode: depends on computer RAM capacity, up to 1024G (Bit)

- Trigger type:

Internal trigger: rising edge/high level/falling edge/low level/arbitrary edge

External trigger: rising edge/high level/falling edge/low level/arbitrary edge

Trigger output: trigger signal output to IO for external device synchronization

- Protocol support: 200+ protocols (open protocol decoding library, customizable protocols)

- Input withstand voltage: ±40V

- Input impedance: 200K/1pf

- Threshold value: 0 - 6V (0.1V step)

- Waveform output: 1 channel PWM

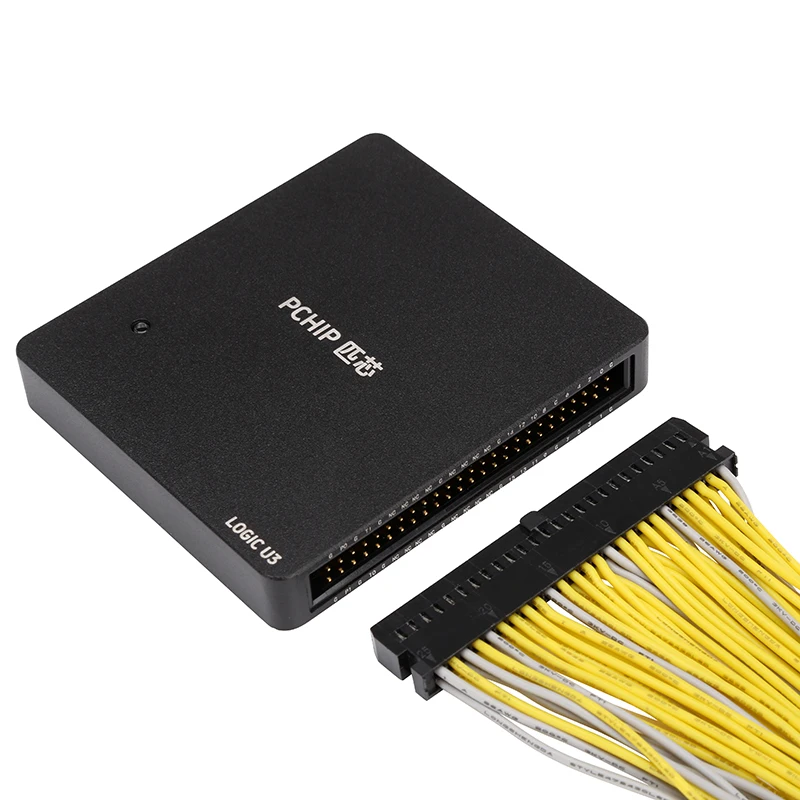

- Channel interface: 2.54mm DuPont cable interface (50Pin for Nextron, 3U gold-plated JTAG)

- Power supply voltage: 5V/USB power supply

- Power supply current: 300mA (at 5V)

- Power supply power: 1.5W

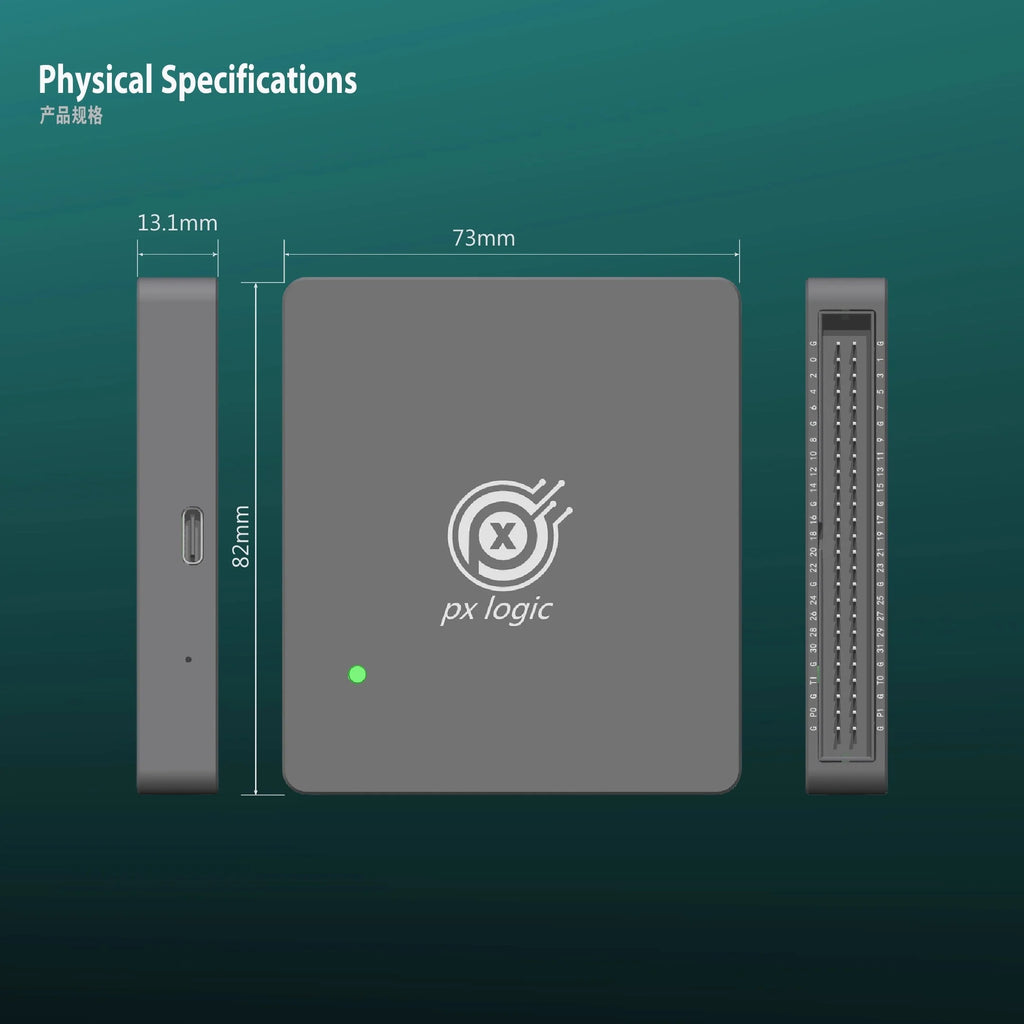

- Size: 80 x 74 x 13.5mm

- Working temperature: 0 - 85℃ (non-condensing)

More detail

- https://github.com/PXLogic/PXView

- If you need to compile a Linux version, please compile it yourself.

- Opensource protocol: GPL V3.

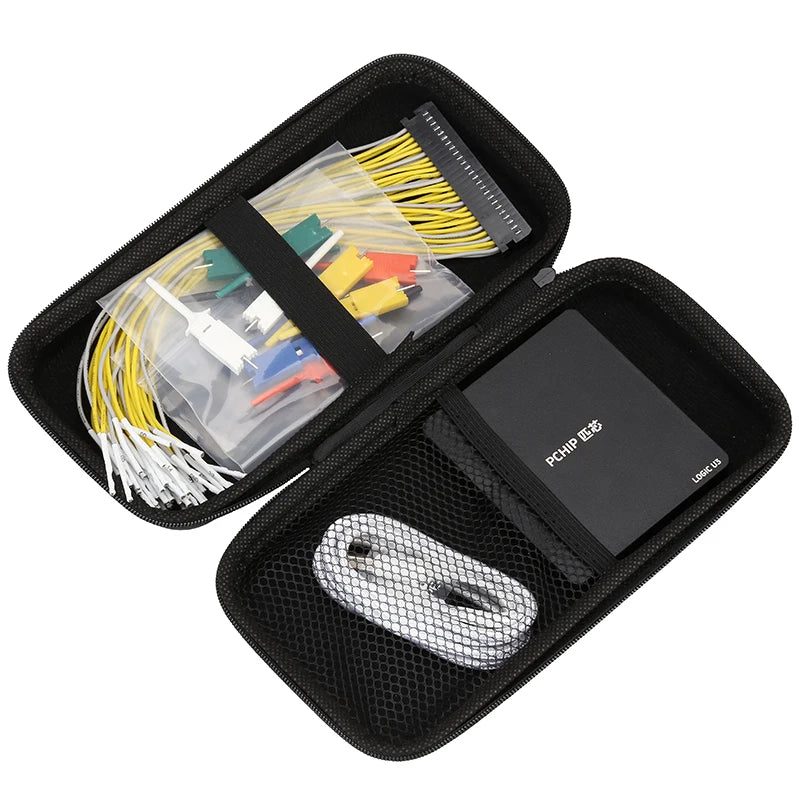

Package include
