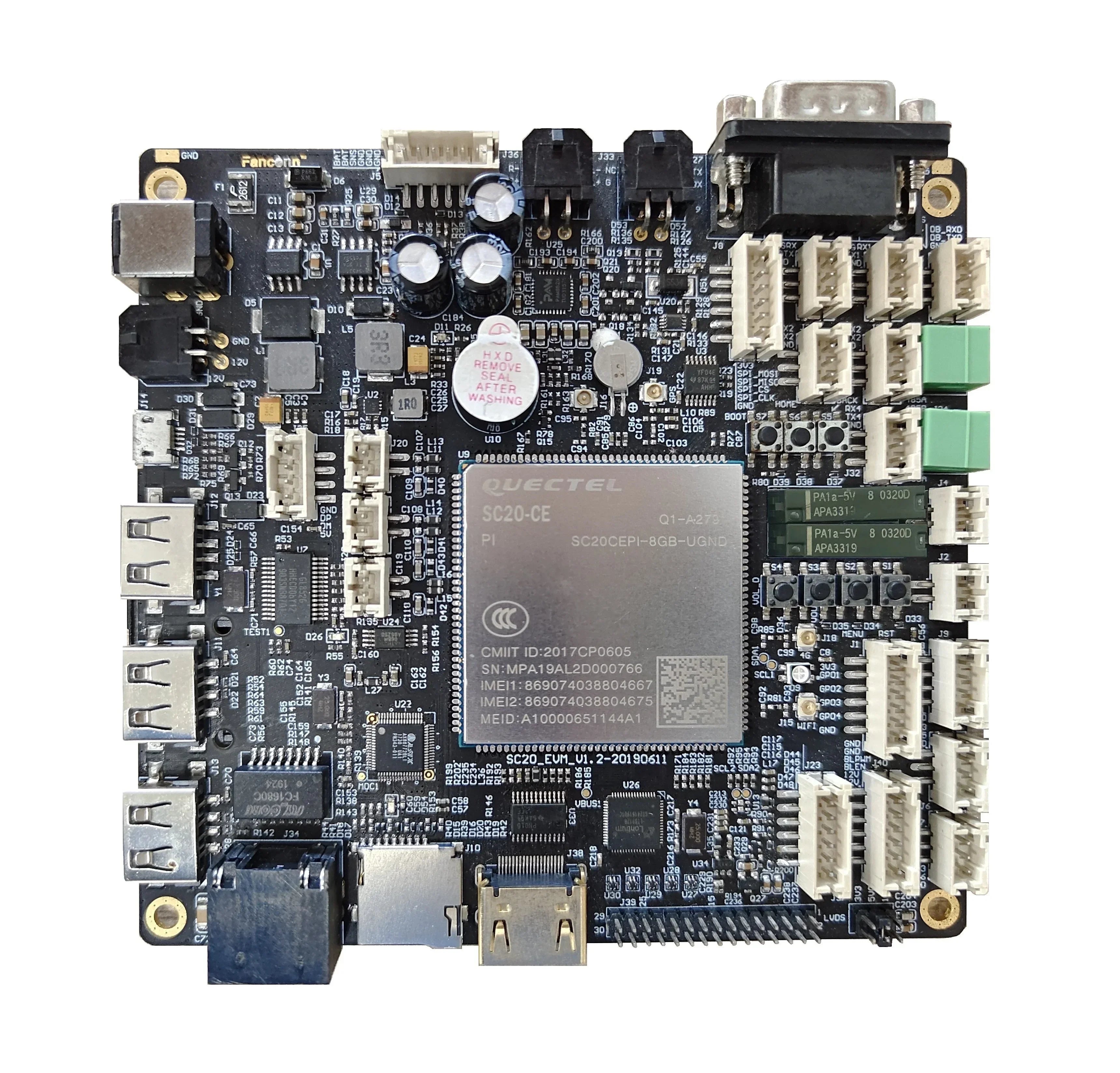

NEW Quectel SC20 module SC20-EVM smart board for android system 4G LTE android development boards with lte

NEW Quectel SC20 module SC20-EVM smart board for android system 4G LTE android development boards with lte

$821.84

$821.84 $0.00

Description

SPECIFICATIONS

Brand Name: NONE,Getcom.AI

CPU: CPU SC20 1.1GHz quad-core A7 processor

Core Processor: Quad core ARM Cortex-A7 1.1GHz

DDR: 1GB LPDDR3

Description: Development Board

Environmental Require: -40°C ~ +75°C

Model Number: SC20-EVM

Module: Quectel SC20

Operating System: Android, Linux

Origin: Mainland China

Place of Origin: China

Power input Support: Support 12V wide voltage DC power input

Storage: 8GB eMMC

System: Android 7.1

Type: Development Board

Welcome to our official store! We provide reliable quality, secure packaging and on-time delivery. If you have any questions or inquiries, please feel free to message us. We are always at your service. Due to the time difference, my reply may be delayed. Please leave a message, and I will get back to you as soon as possible. WhatsApp: +86 173 5287 0921Welcome to our official store! We provide reliable quality, secure packaging and on-time delivery. If you have any questions or inquiries, please feel free to message us. We are always at your service. Due to the time difference, my reply may be delayed. Please leave a message, and I will get back to you as soon as possible. WhatsApp: +86 173 5287 0921Hello, my friend, if I can't reply to you in time, please contact me on WhatsApp: +8618124781192or my email number :2693290064@qq.com. Thank you for coming to my shop.

Product Description

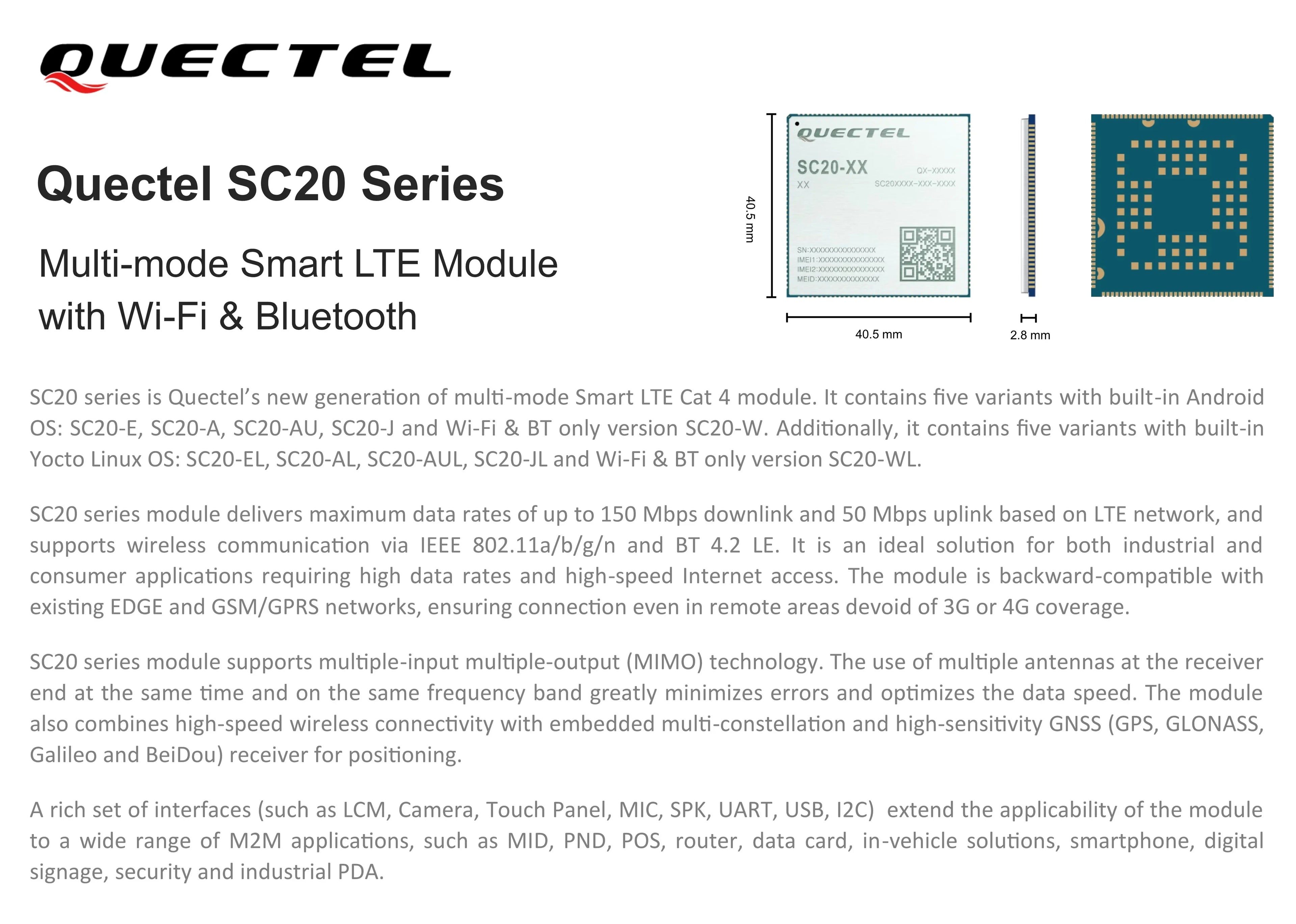

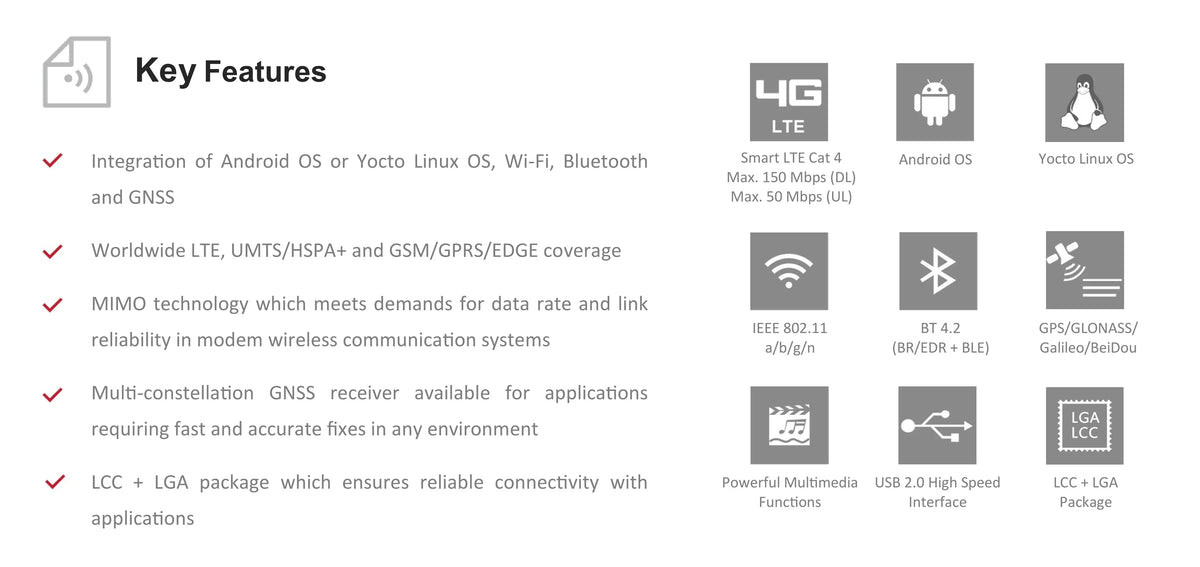

SC20 is a series of multi network smart LTE cat 4 modules launched by mobile communication, Equipped with Android operating system. SC20 series modules include a total of seven versions:SC20-CE,SC20-E,SC20-A,SC20-AU,SC20-J,SC20-EUand SC20-W(just support Wi-Fi & BT).SC20 support LTE FDD Max 150Mbps downlink and 50Mbps Uplink data transmission,backward compatible EDGE and GSM/GPRS network,to ensure that it works well in areas lacking 3G and 4G networks; Also supports IEEE 802.11 a/b/g/n (SC20-CE/-W Default support IEEE 802.11 b/g/n) wireless transmission protocol and BT4.1 LE Bluetooth technology(Android 7.1 and above version support BT4.2). SC20 supports multiple-input multiple-output (MIMO) technology. Multiple receiving antennas can be used at the receiving end, so that the signal can be received through multiple antennas at the receiving end, thereby increasing the downlink rate, reducing the bit error rate and improving the communication quality. At the same time, SC20 supports GPS+GLONASS+BeiDou multiple positioning systems, which greatly improves the positioning speed and accuracy. SC20 integrates function-rich interfaces (such as LCM, camera, touch screen, microphone, speaker, UART, USB, I2C interface, etc.), which greatly expand the application of SC20 in the M2M field, and can be widely used in MID, PND, POS, routers , data cards, in-vehicle terminals, smart phones, digital billboards, security, and industrial-grade PDAs and other industries and equipment. The main advantages of SC20: equipped with Android operating system, integrated Wi-Fi, Bluetooth and GNSS; comprehensive coverage of various network standards; support for MIMO.Technology improves the data transmission rate and connection reliability of wireless communication; integrates multi-constellation GNSS receivers to meet the needs of fast and accurate positioning in different environments; adopts LCC+LGA package, which is convenient for patching and testing.

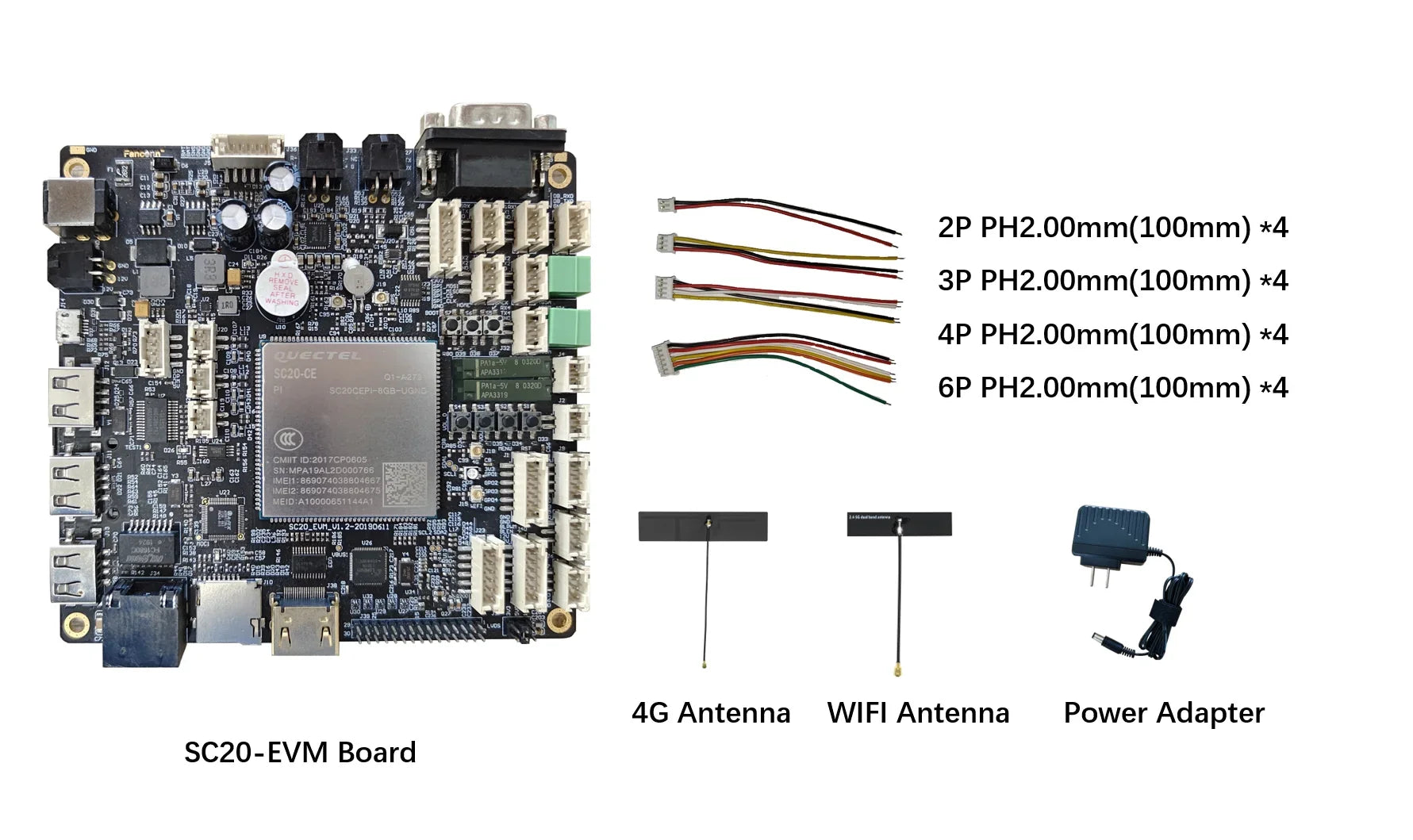

Shipping List

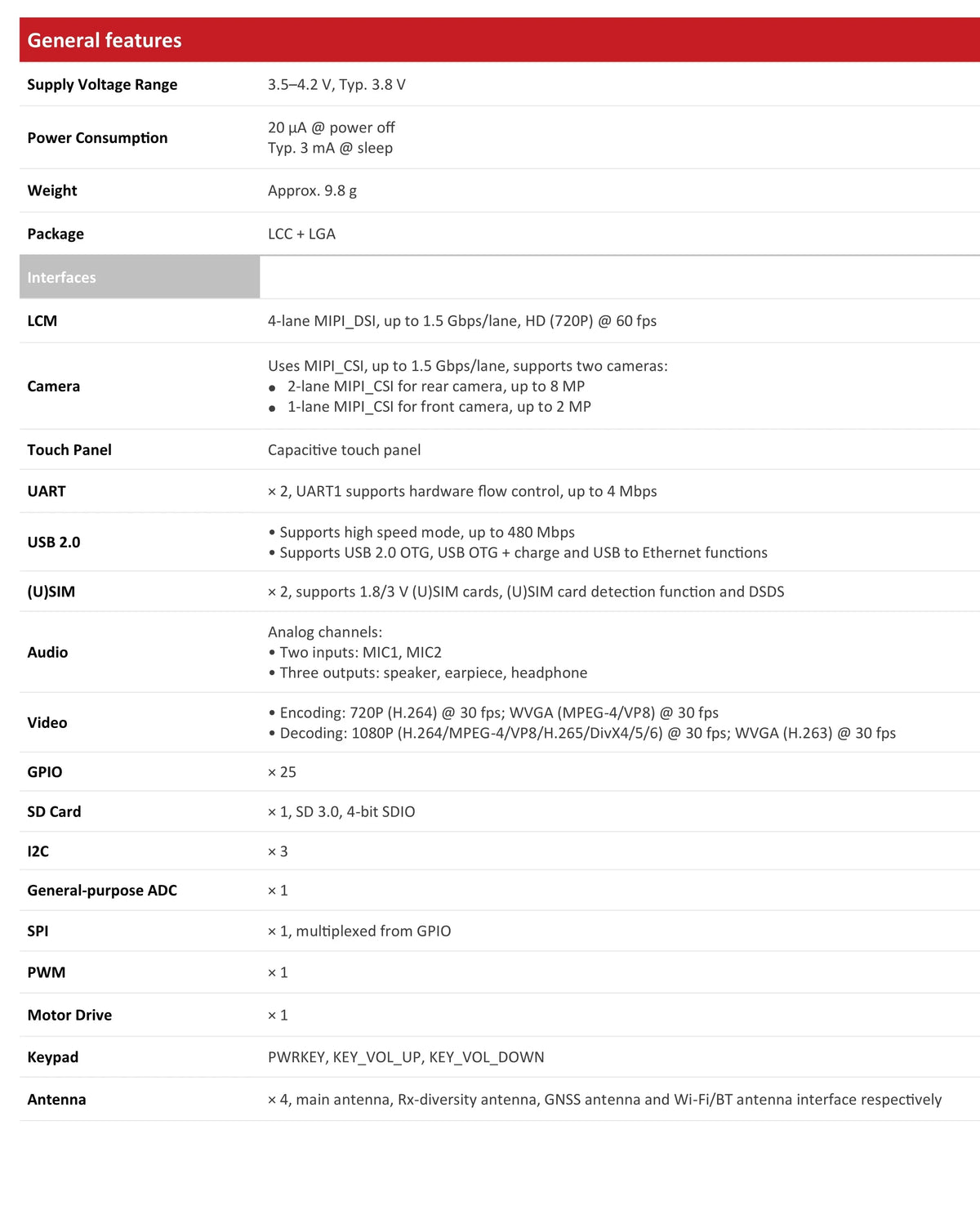

Specification

Features	Instructions
CPU	Quad core ARM Cortex-A7 1.1GHz
DDR	1GB LPDDR3
Storage	8GB eMMC

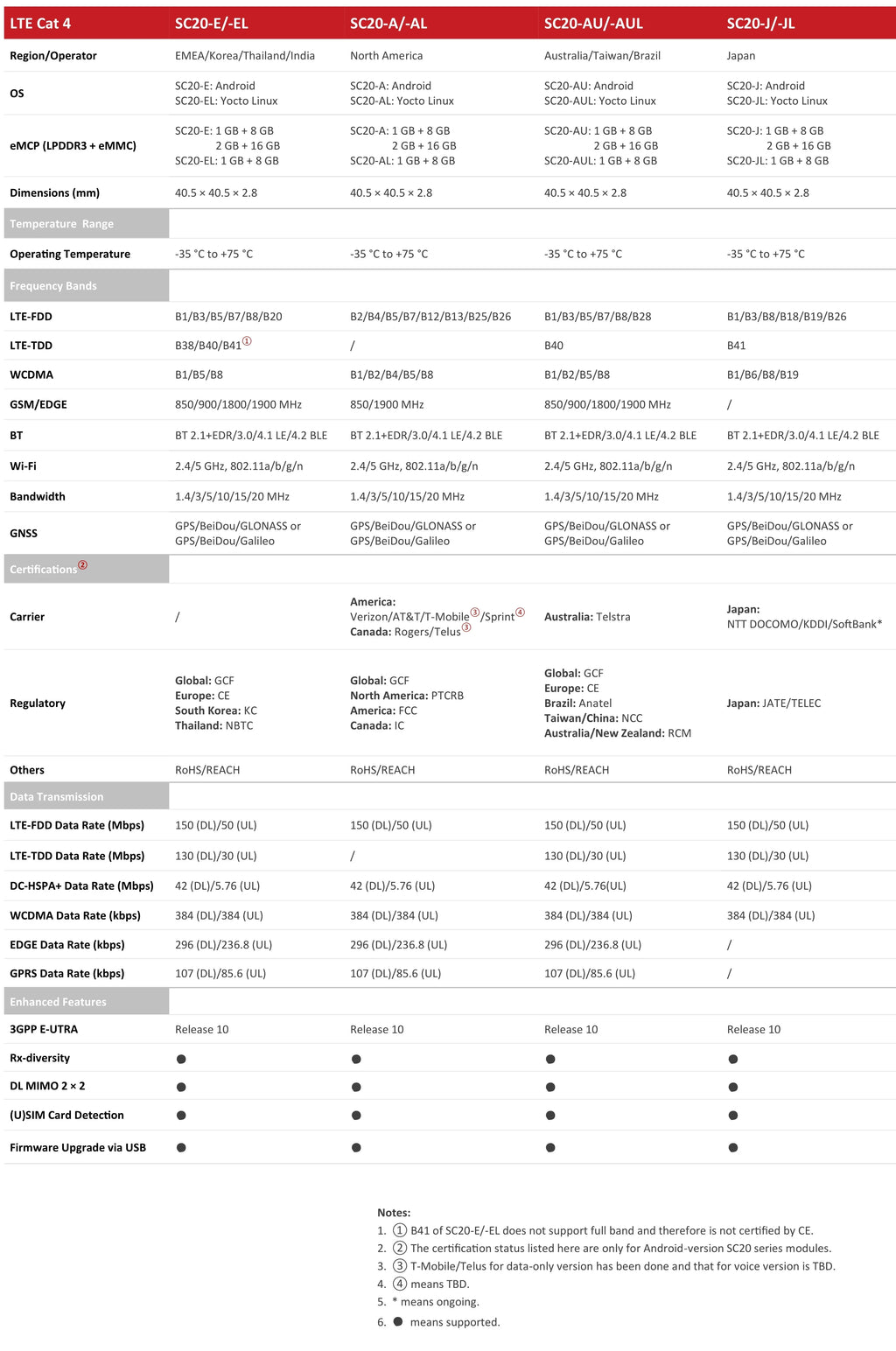

SC20-CE Band	LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 EVDO/CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz
SC20-E Band	LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz
SC20-A Band	LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26 WCDMA: B1/B2/B4/B5/B8 GSM: 850/1900MHz
SC20-AU Band	LTE FDD: B1/B3/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz
SC20-J Band	LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19

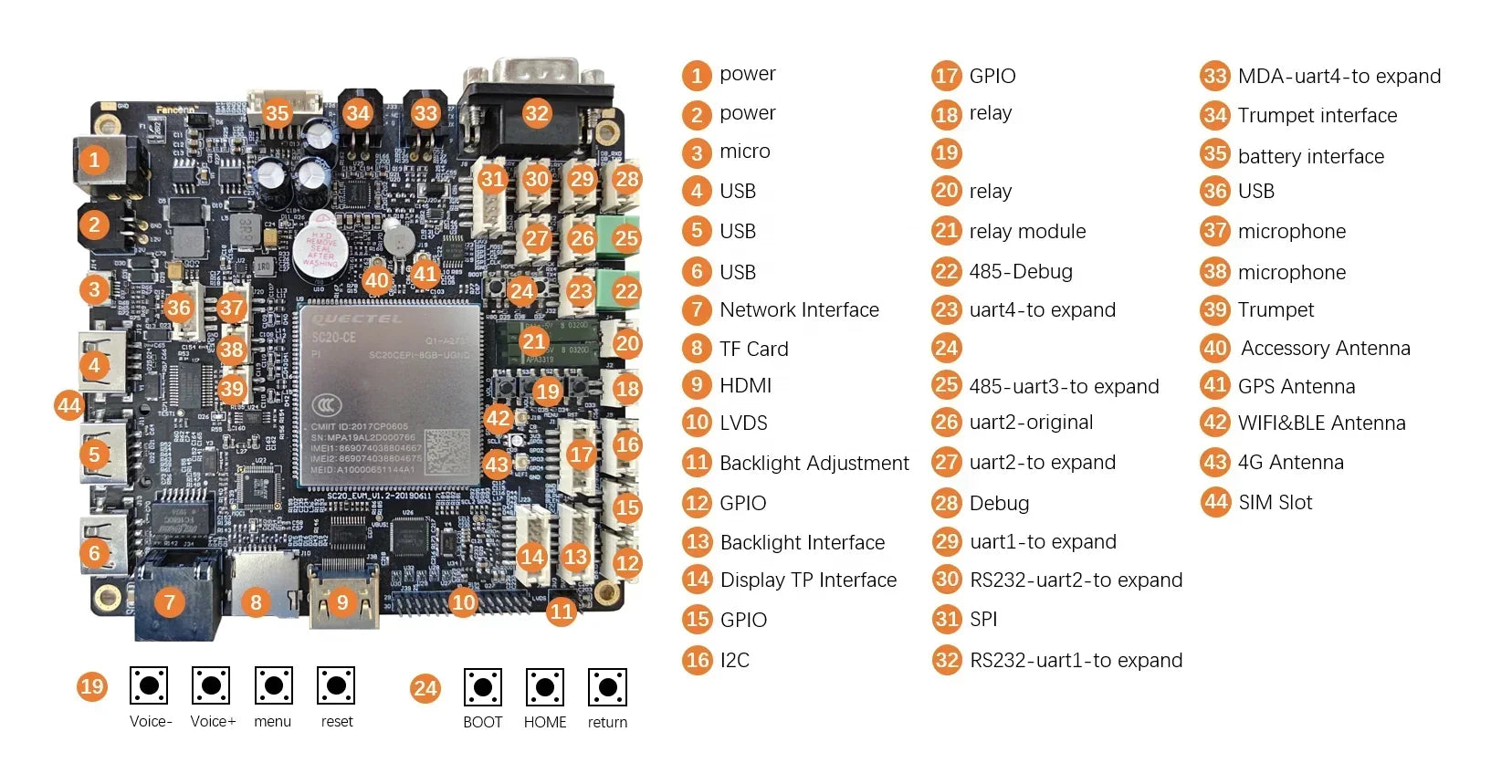

LVDS	30-pin industry standard dual LVDS interface, support VESA/JEITA format, up to 1366*768 output
HDMI storage	HDMI 2.0a standard display interface, up to 720P output
Amplifier output	8 ohm 6W dual audio amplifier output
MIC input	Differential MIC input (pin header)
USB interface	2 horizontal ports (and USB 2.0x1)
Serial port	1 TTL/232 built-in, 1 TTL/232/485 compatible built-in, 4 extended TTL/RS-232 compatible built-in
TF card	Self-elastic TF card socket, supports up to 128GB TF card
WiFi	Built-in high-performance SDIO interface WiFi module, support IEEE 802.11 b/g/n/ac, support dual-mode WiFi (2.4/5GHz)
Bluetooth	Built-in high-performance serial port BT module (optional), support V2.1+EDR/BT v3.0/BT v3.0 +HS/BT v4.0
Ethernet port	10/100M Adaptive Ethernet RJ45 port
Backlight control	Industry standard LCD backlight control interface, support backlight switch and brightness adjustment
GPIO interface	Expandable GPIO buttons and/or 3.3V output
I2C Bus	I2C pin header interface, expandable I2C capacitive screen, etc.
Button Burn button	Burn button(RECOVERY)
