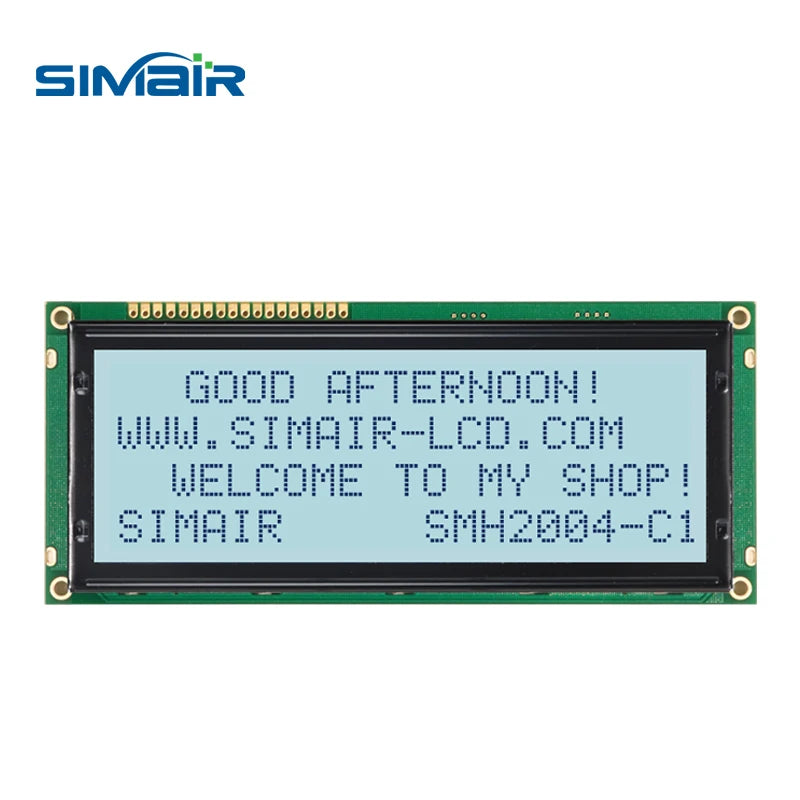

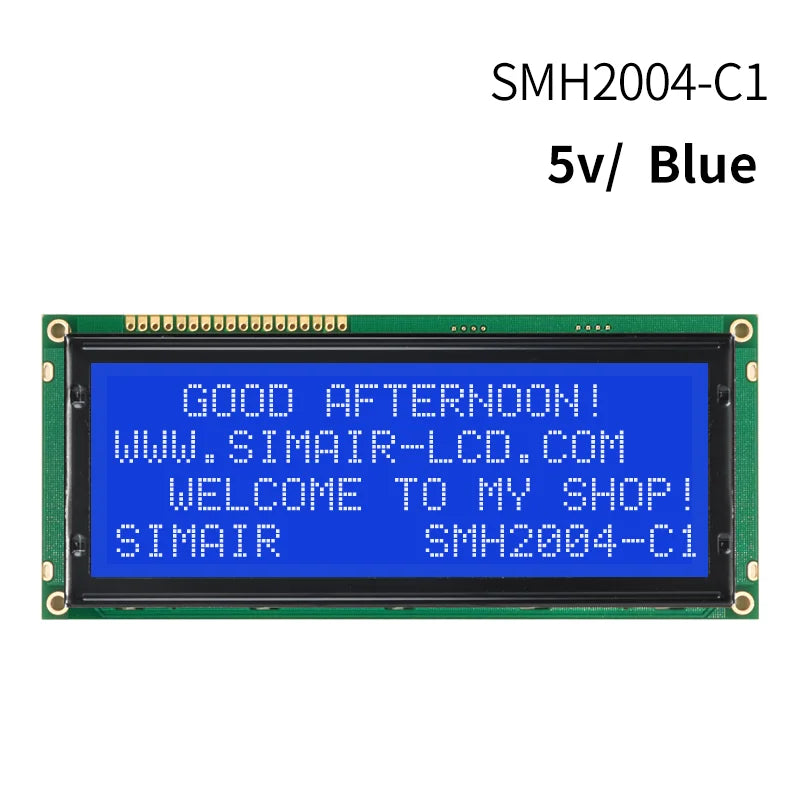

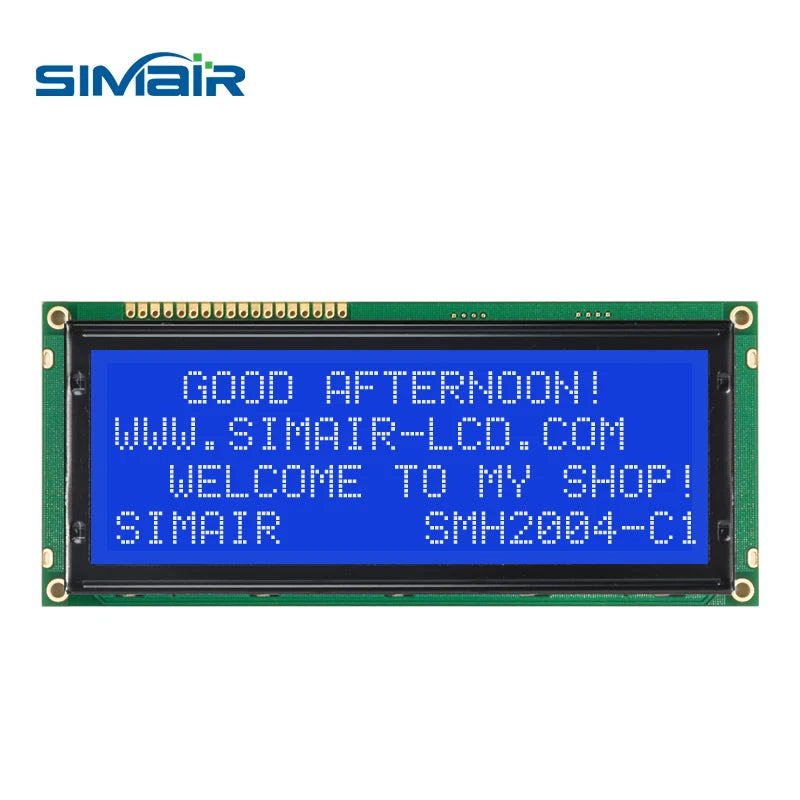

New STN COB 5/3.3V HD7780 20*4 Dots Screen 2004 Big Character LCD Display 20x4 Blue

New STN COB 5/3.3V HD7780 20*4 Dots Screen 2004 Big Character LCD Display 20x4 Blue

$49.86

$49.86 $0.00

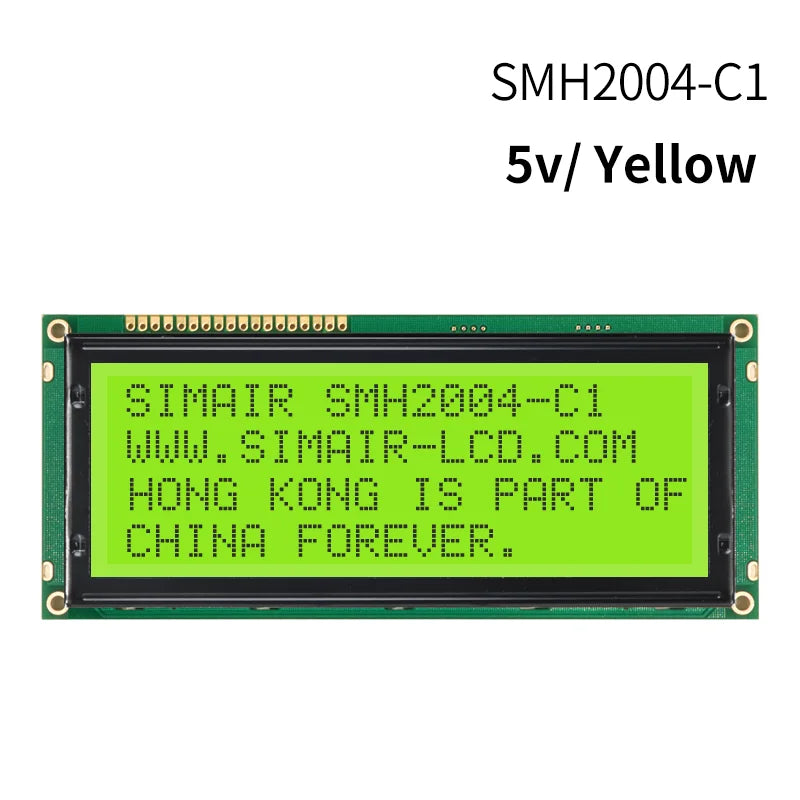

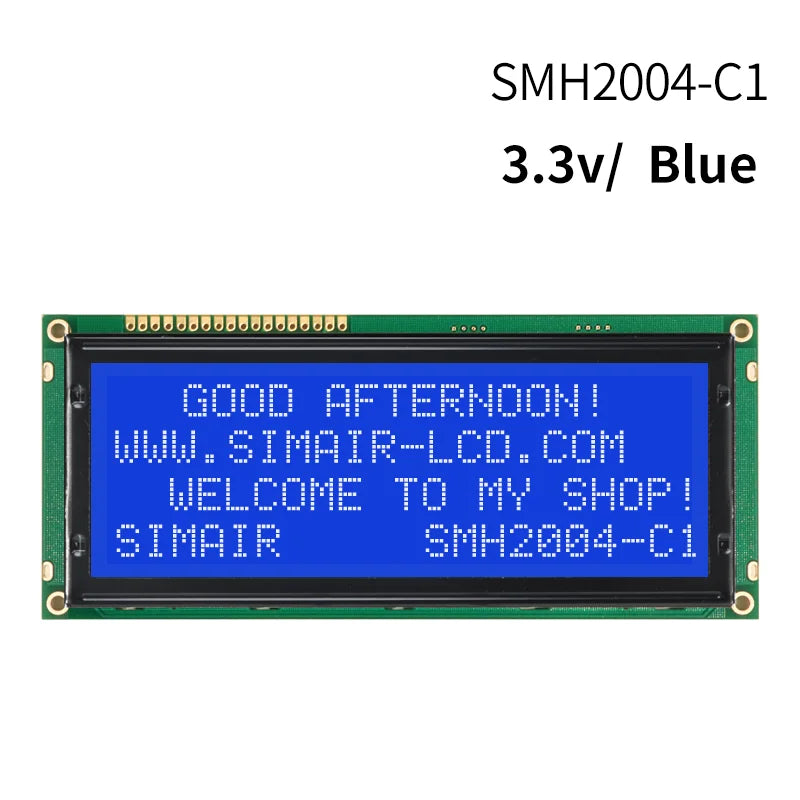

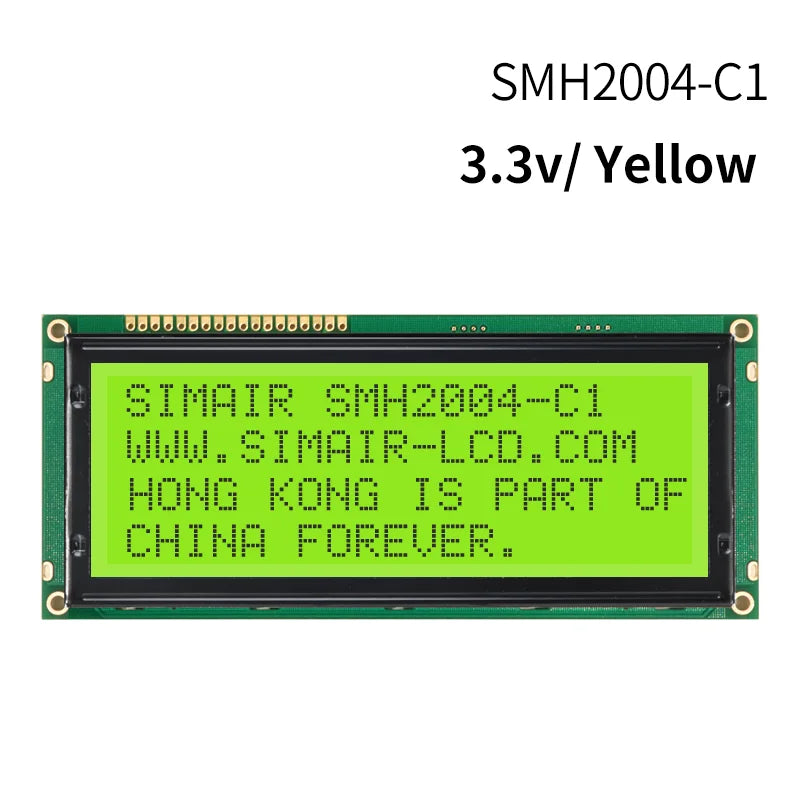

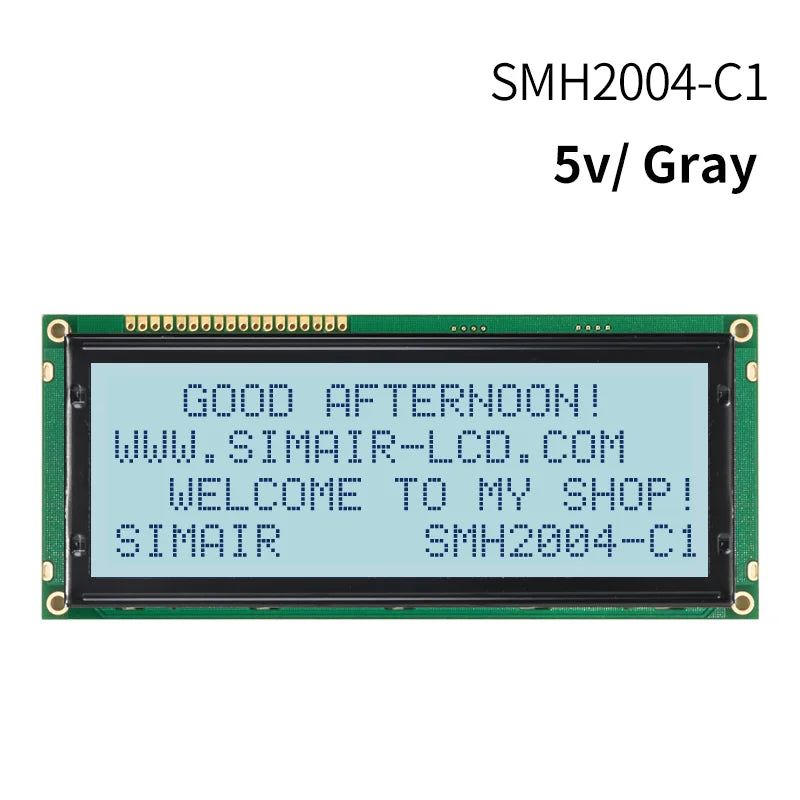

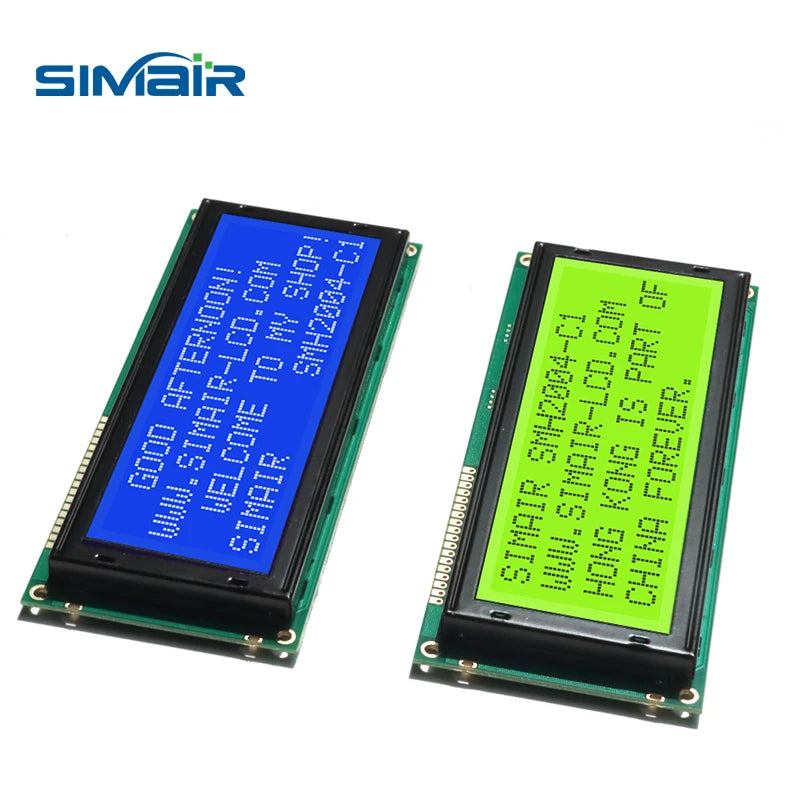

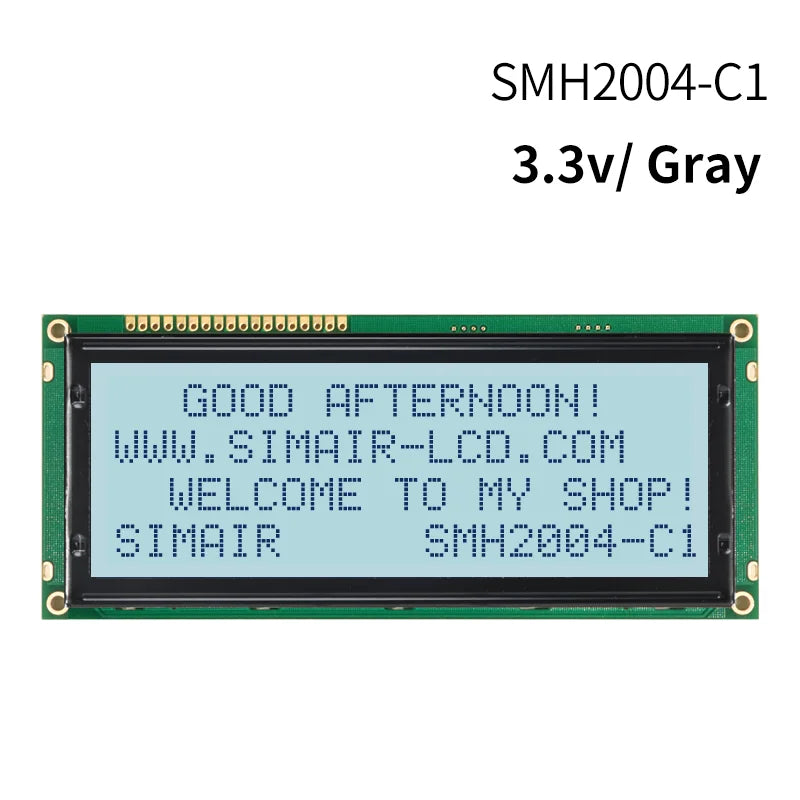

Color Blue 5V Russian Yellow 5V Russian Gray 5V Russian Yellow-green 3.3V Blue 5V Gray 3.3V Blue 3.3V Gray 5V Yellow-green 5V

Ships FromChina Mainland

Description

SPECIFICATIONS

Backlight: LED

Brand Name: simair

Controller: SPLC780D

Display Color: Yellow-green/Blue/Gray

Display Mode: 10000

Drive method: 1/16

High-concerned chemical: none

Interface: Parallel

Model Number: SMH2004-C1

Origin: Mainland China

Power Supply: 5/3.3V

Resolution: 20*4,20 characters x 4 Lines

Structure: COB

Type: Character,Character LCD

is_customized: Yes

Purchase Instructions:

Dear customers, welcome to Our shop ! Hope you have a good business trip in our store！

1. Please select the model you need. If you have any questions, please contact us.

2. The product can provide detailed development data and technical support. Please contact us !

3. For repair and replacement, if you are not familiar with LCD, pls.contact us first !

4. If you have any questions about freight and price, please contact us.

5. Pls.choose the right shipment .According to experience, we suggest to choose Aliexpress Standard shipping .

6 We are factory . We support customized products if you have big quantity .

7. If you have any questions, please contact us first. Thanks for your cooperation!

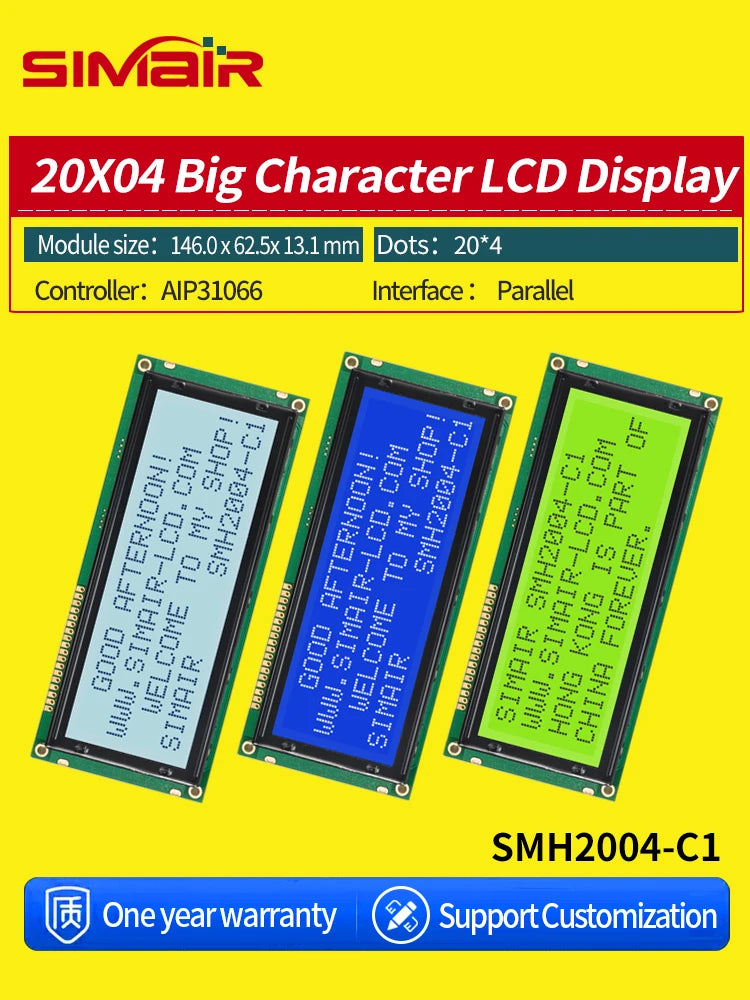

1.Specification parameters

Model	SMH2004-C1
Model size((WxHxT))	146x62.5x13.1mm
View Area((WxH)	123.5x44.1mm
View Direction	6 O'clock
Character Size	4.84x9.22mm
Character Pitch	6.0x9.75mm
LCD Mode	STN(Blue/yellow-green)、FSTN（Gray）
Operating voltage	5V/3.3V
Driver IC	SPLC780D or Equivalent
Net weight（g）	100
Driving Method	1/16 DUTY,1/5 BIAS
Number of chracter	20 characters x 4 lines
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃

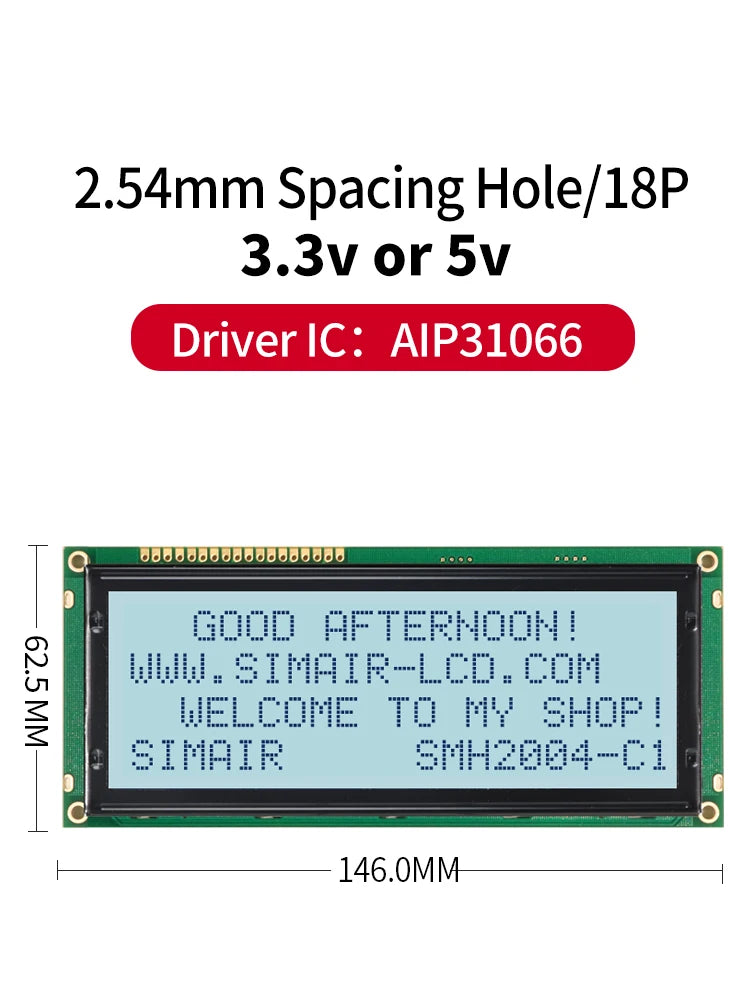

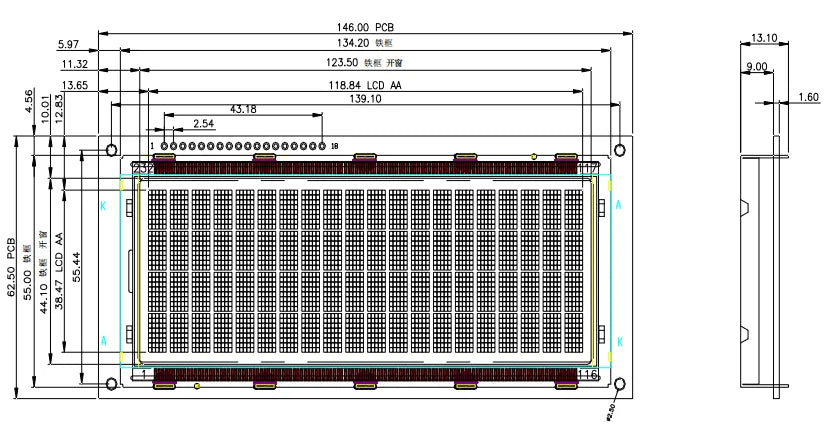

2.Extenal Dimensions

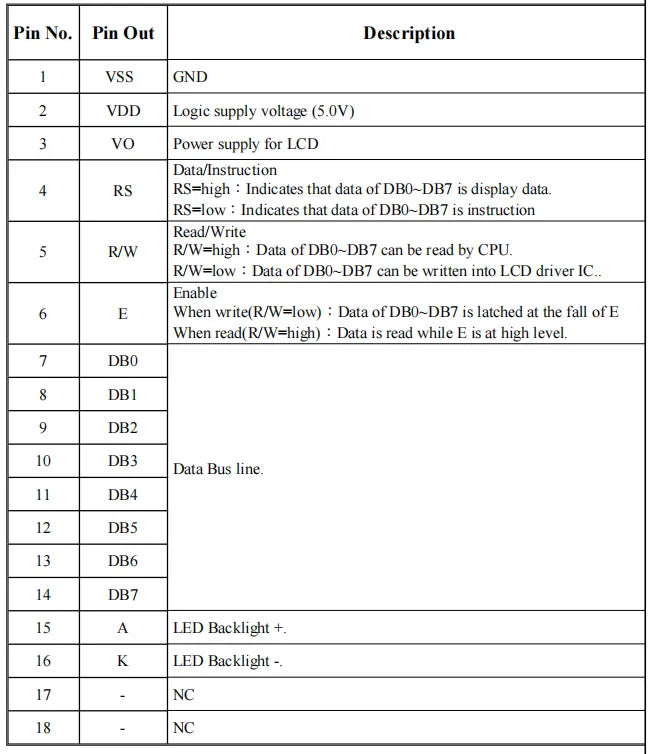

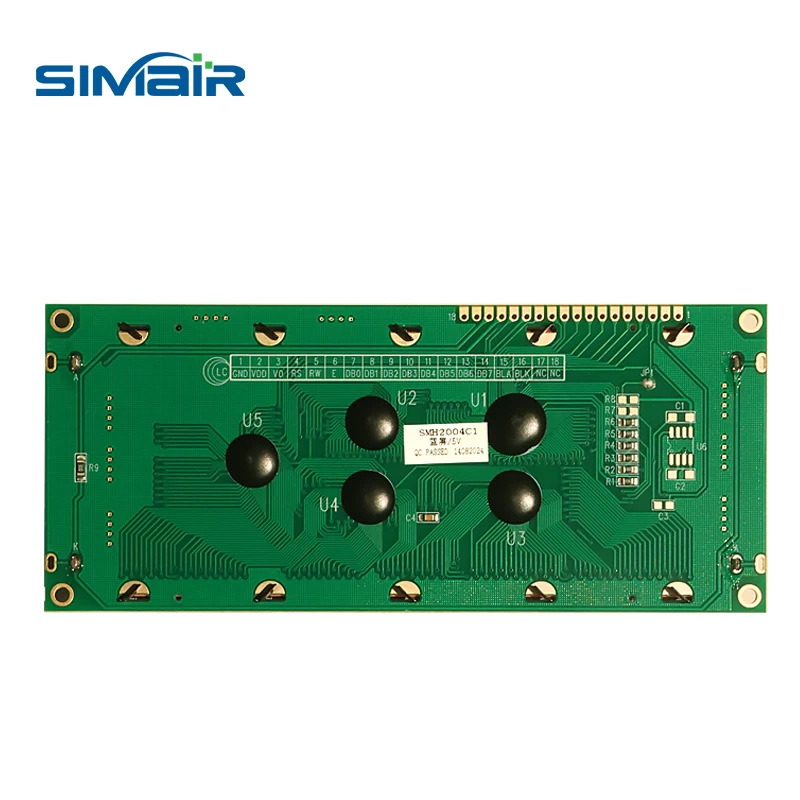

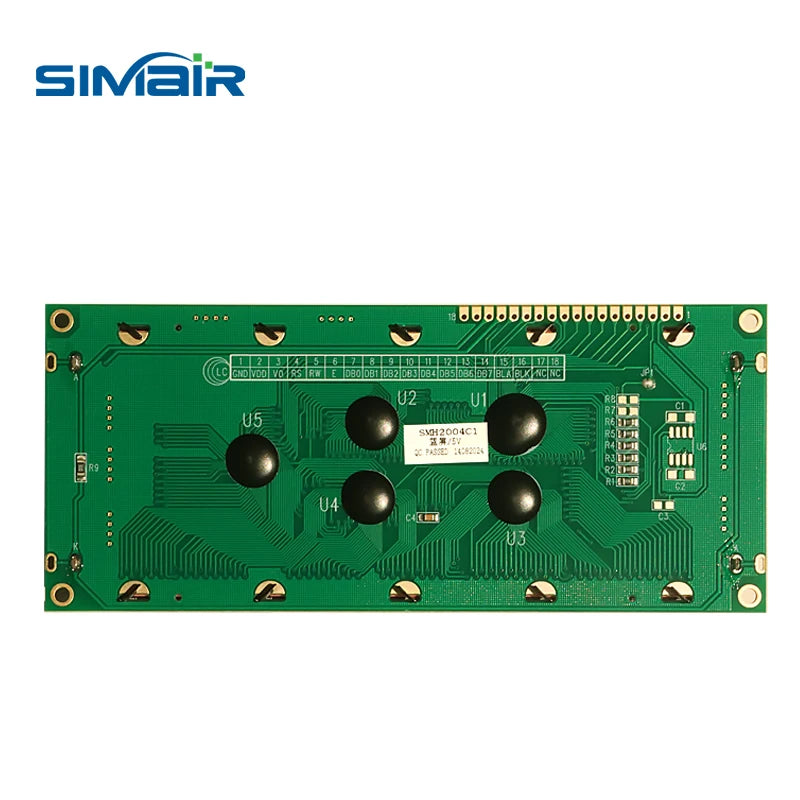

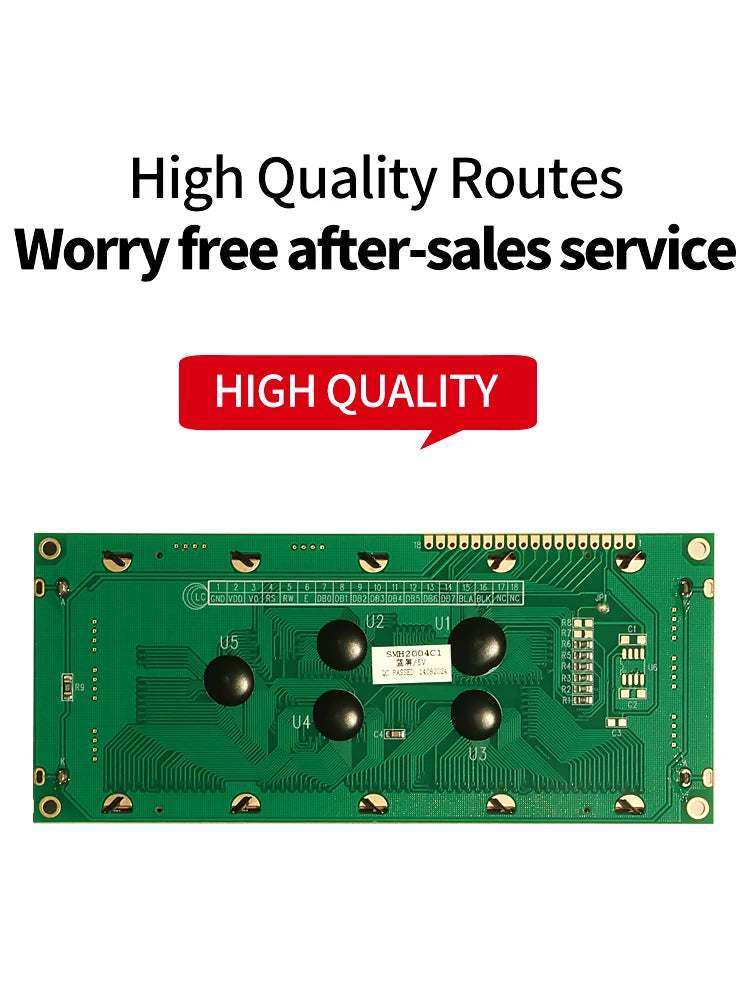

3.Pin Descriptions

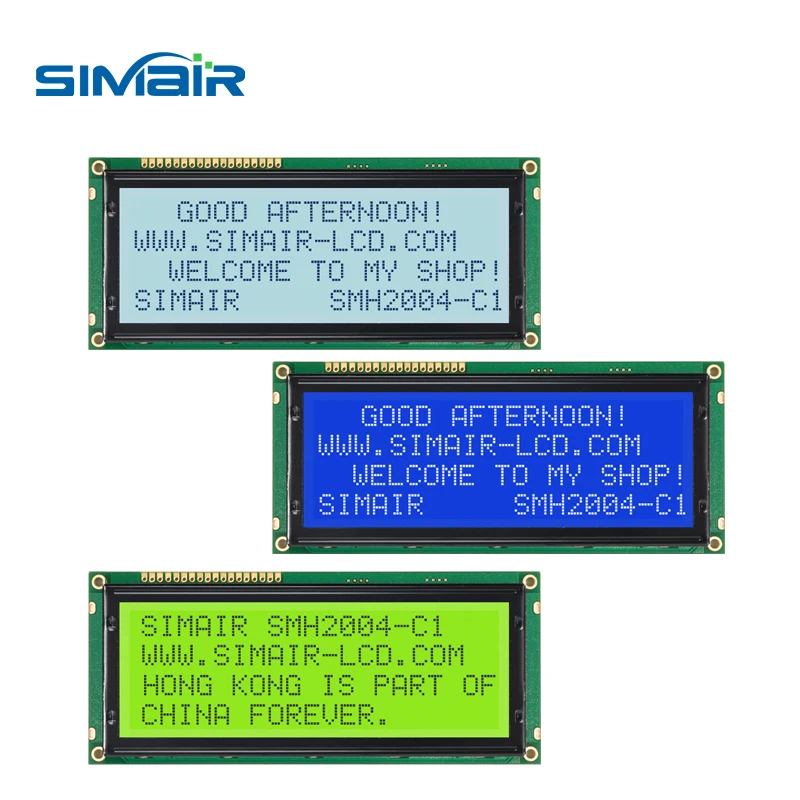

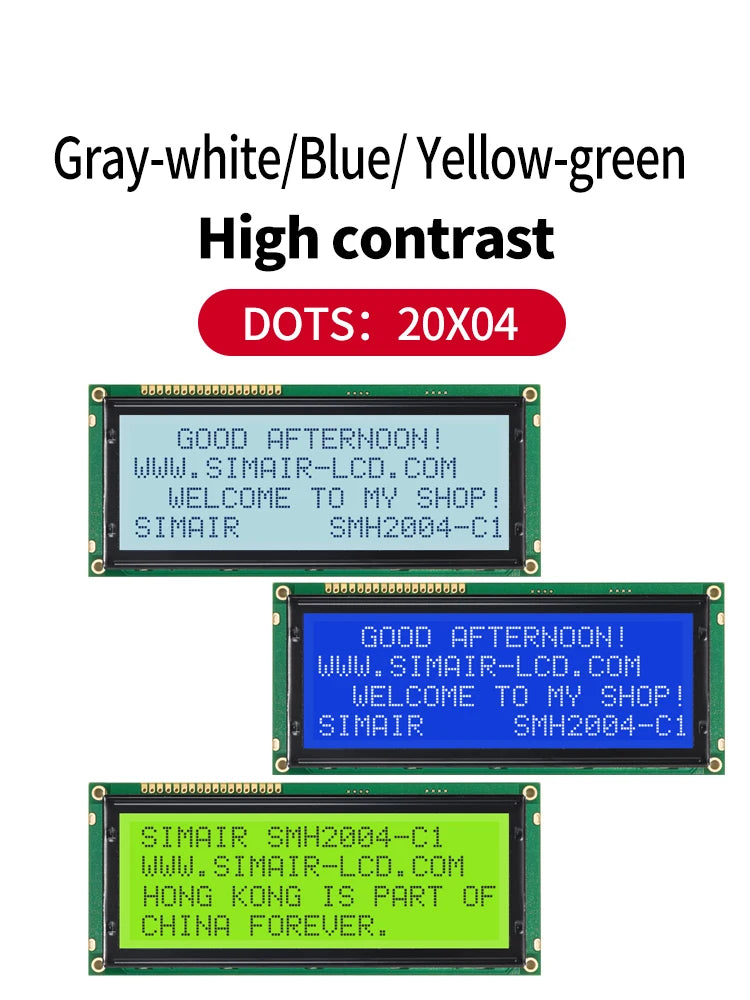

4.Photo Display

Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.

Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.

Q: Can you customize the product?  How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.


Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.

Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.

Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.


Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
