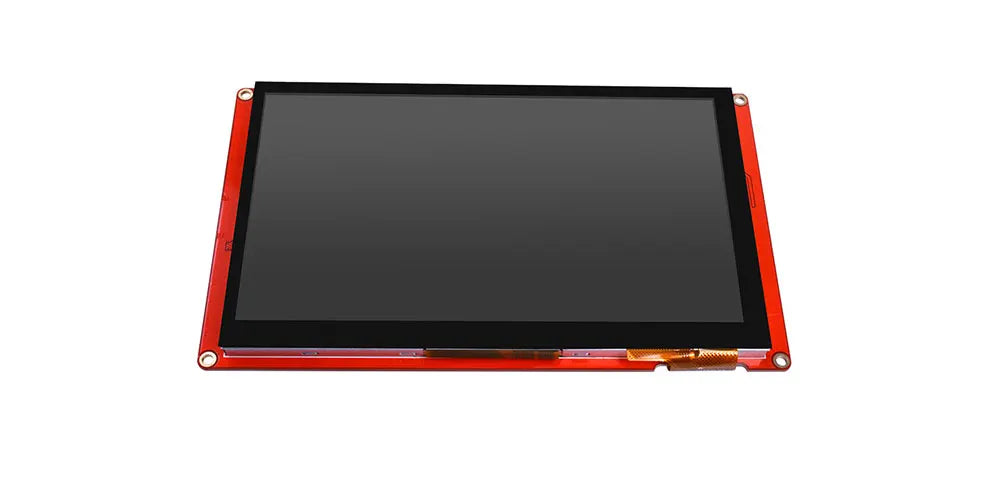

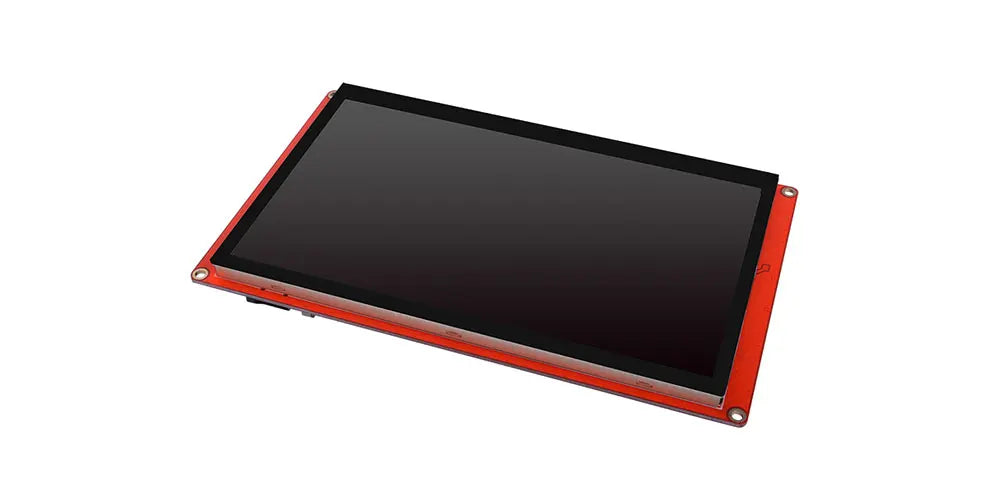

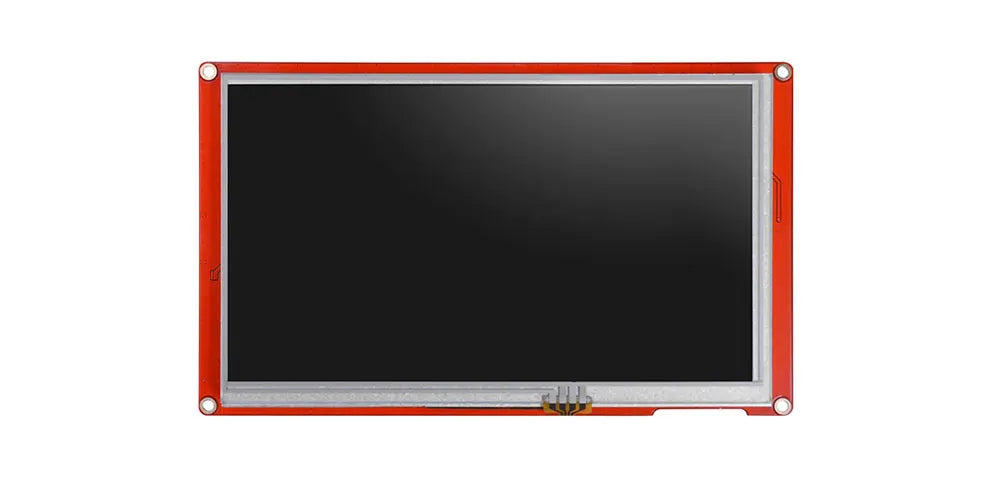

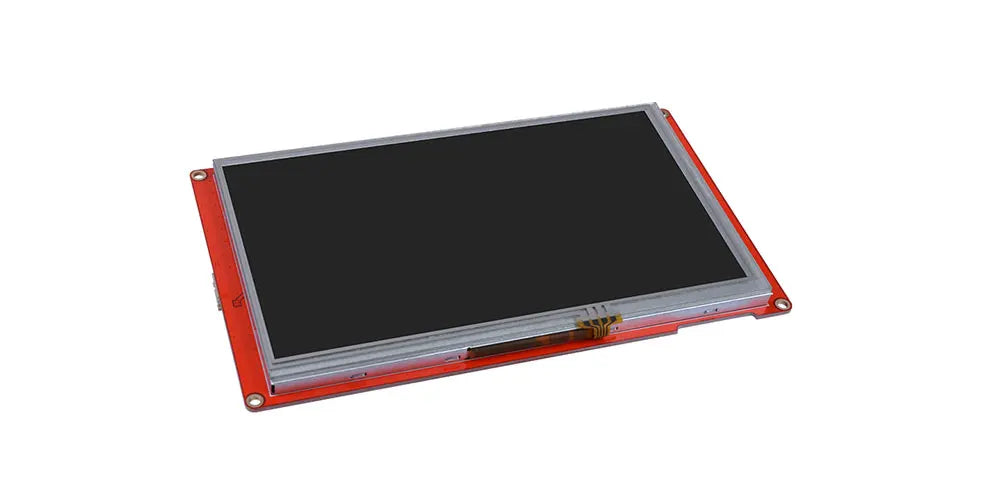

NEXTION 7.0'' Intelligent LCD Touch Display Module NX8048P070-011C/R Multifunction HMI Resistive/Capacitive Without Enclosure

NEXTION 7.0'' Intelligent LCD Touch Display Module NX8048P070-011C/R Multifunction HMI Resistive/Capacitive Without Enclosure

$328.73

$328.73 $0.00

Color NX8048P070-011R NX8048P070-011C

Ships From Russian Federation China Mainland

Description

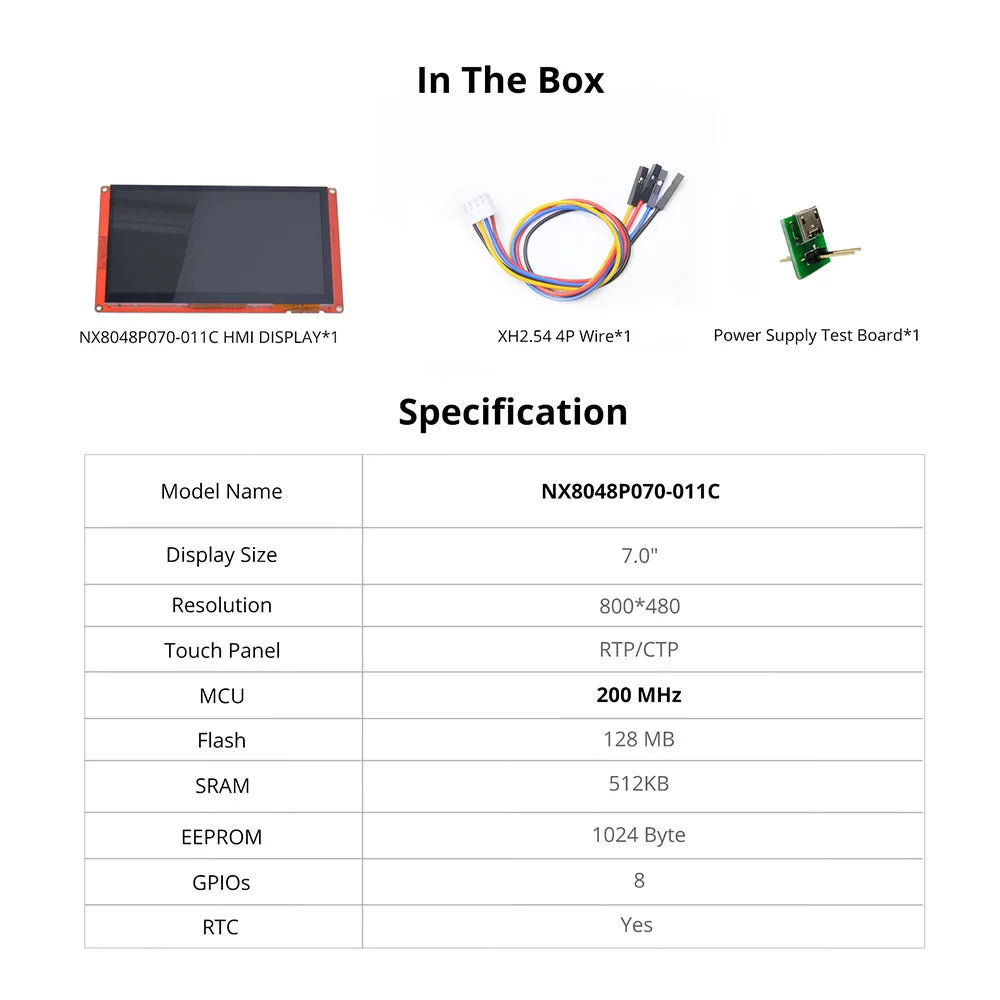

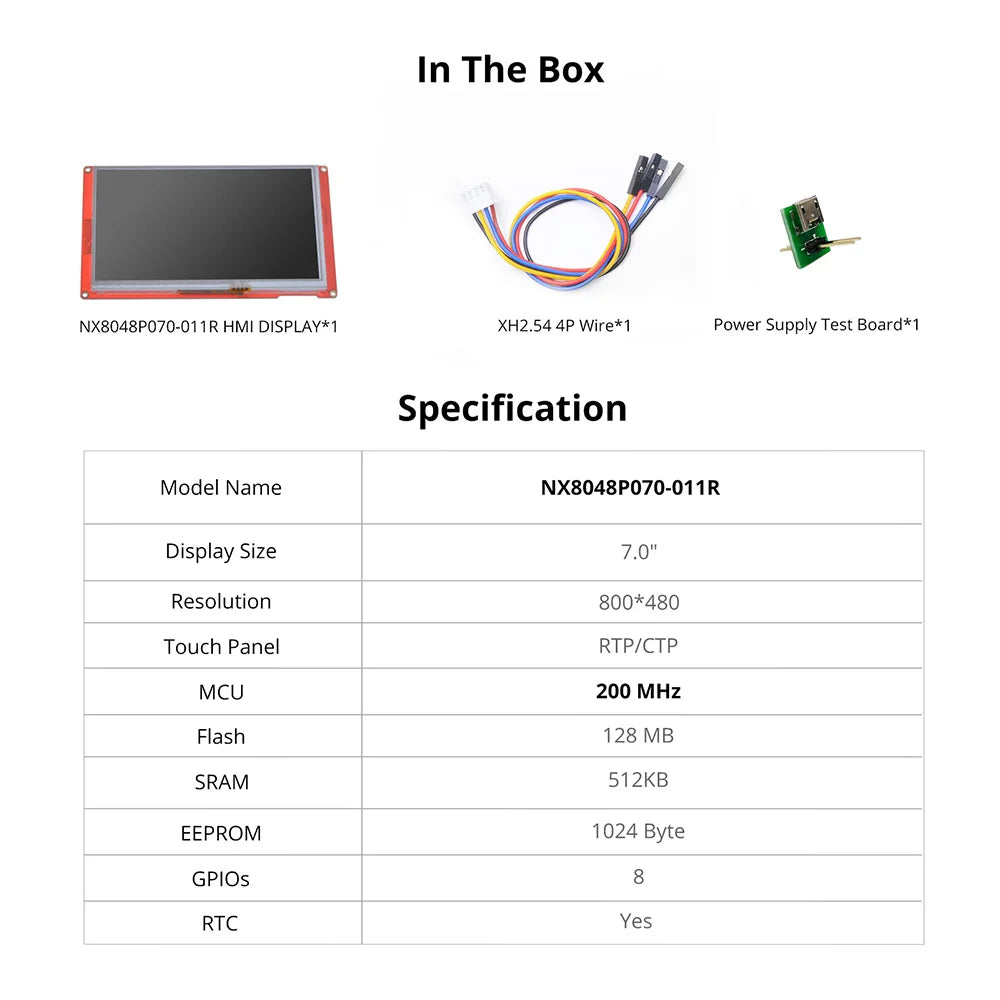

SPECIFICATIONS

Active Area (A.A.): 164.90mm(L)*100.00mm(W)

Backlight: LED

Backlight lifetime (Average): >30,000 Hours

Brand Name: NEXTION

Color: 65K 65536 colors

Display Mode: 10

Extended IO: 8 Digital extended GPIO

High-concerned chemical: none

Layout size: 181mm(L)*108mm(W)*9.3mm(H)

Model Number: NX8048P070-011C/R

Origin: Mainland China

RTC: Built-in RTC Support (Battery type: CR1220)

Resolution: 800*480,800*480 pixel

Serial Port: 4Pin_2.54mm

Serial Port Mode: 3.3V/5.0V TTL

Touch type: Resistive/Capacitive

Type: Graphic

USB interface: NO

Visual Area (V.A.): 154.08mm(L)*85.92mm(W)

is_customized: Yes

NEXTION 7.0'' Intelligent LCD Touch Display Module NX8048P070-011C/R Multifunction HMI Resistive/Capacitive Without Enclosure

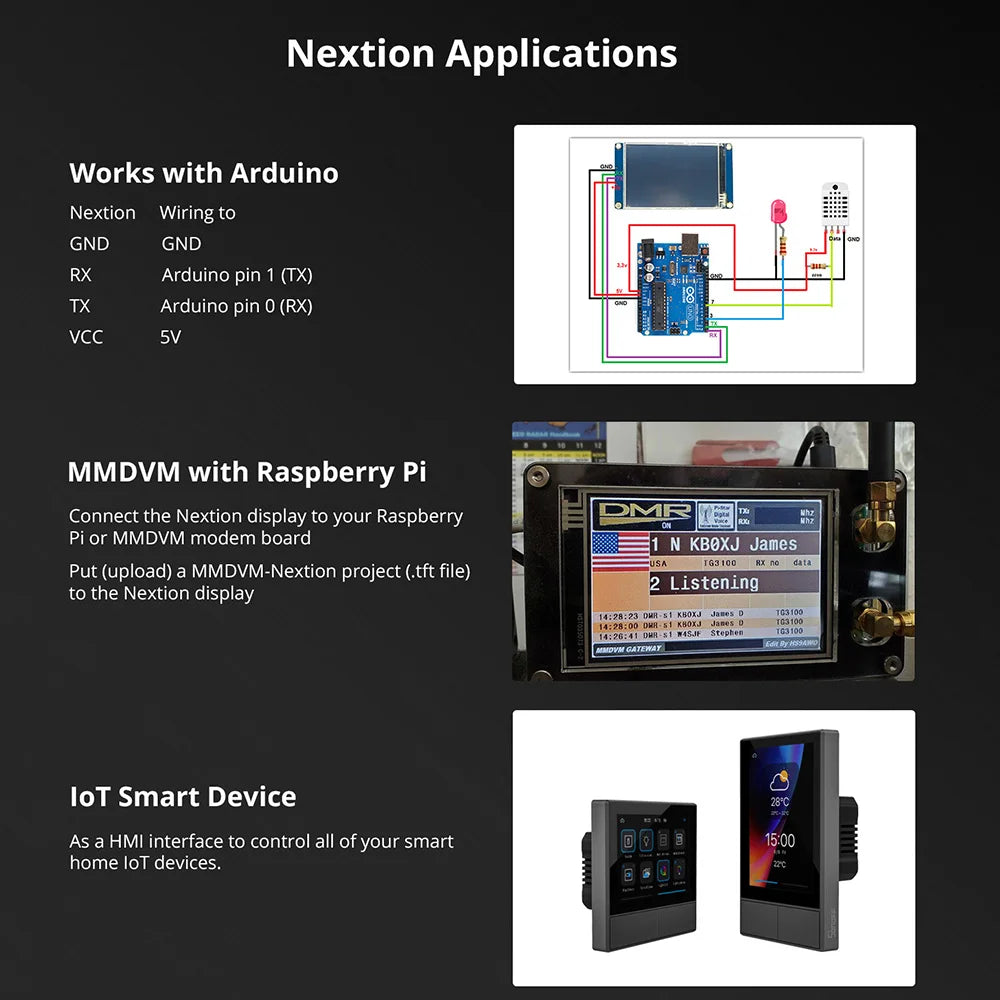

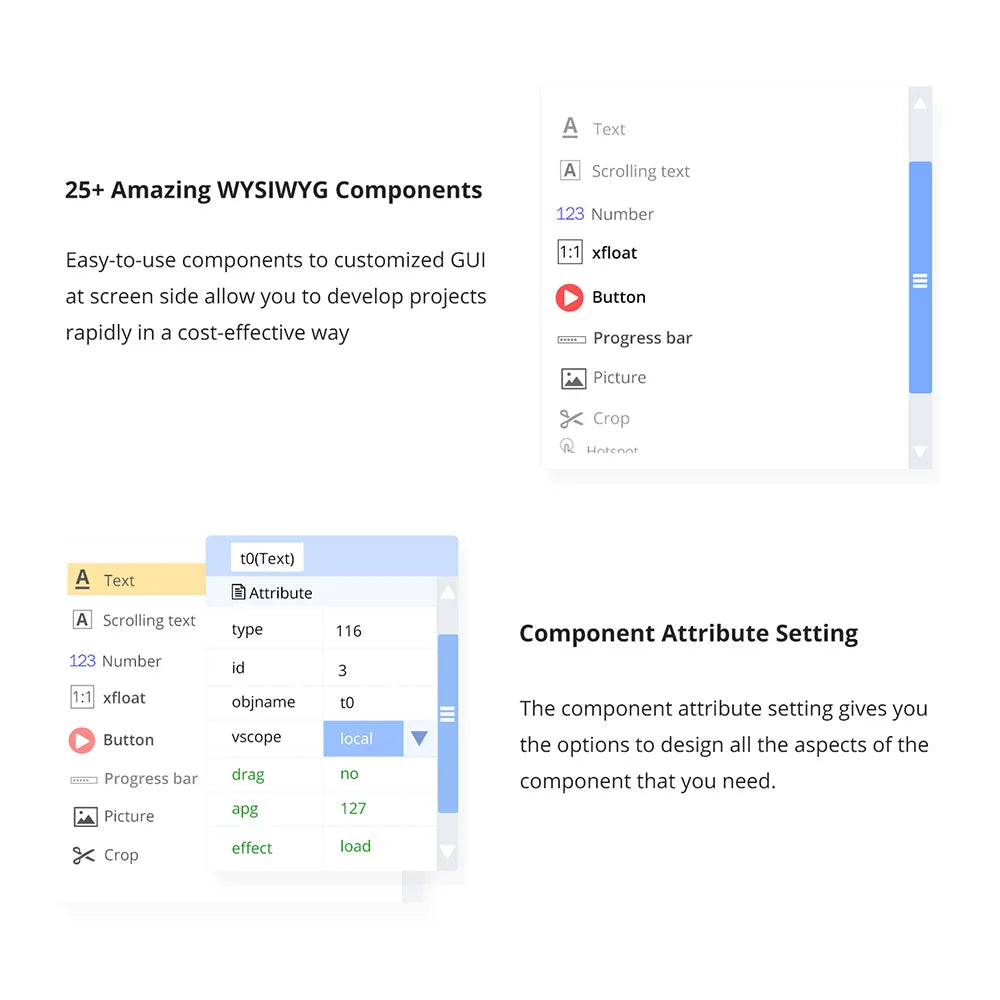

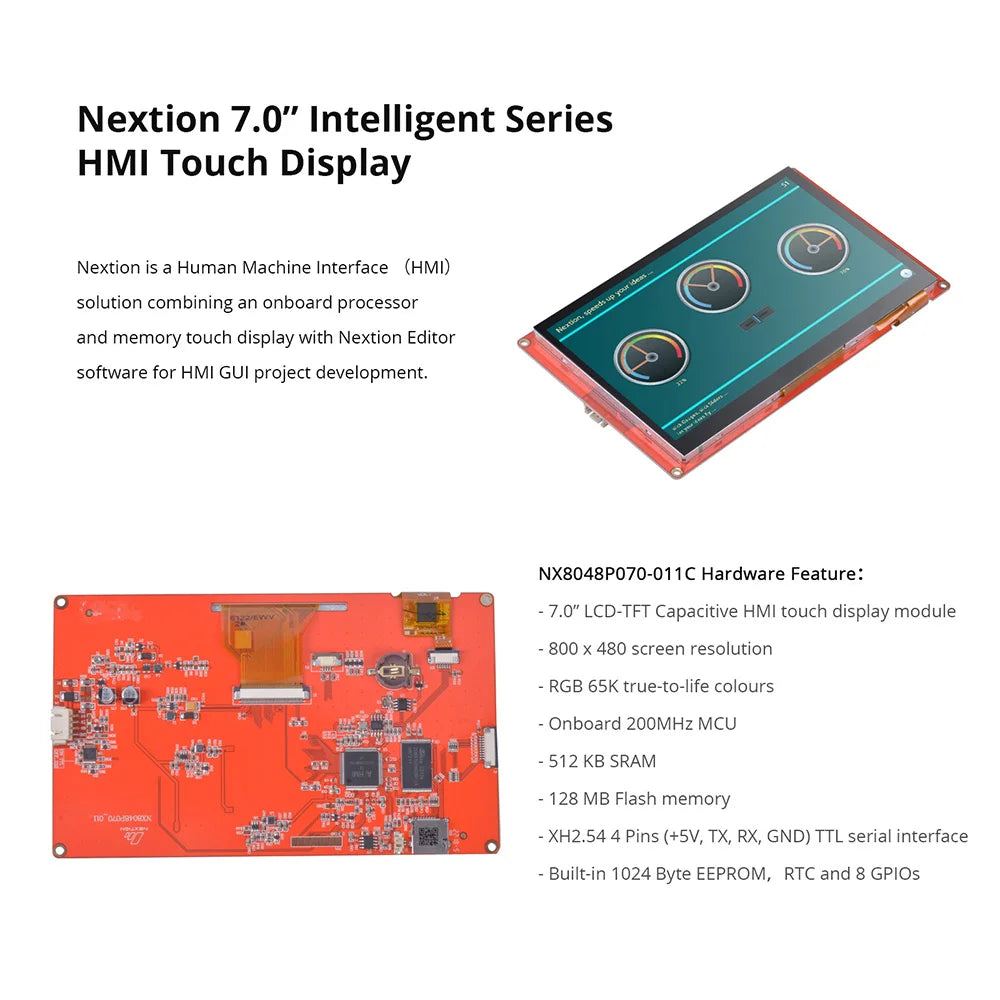

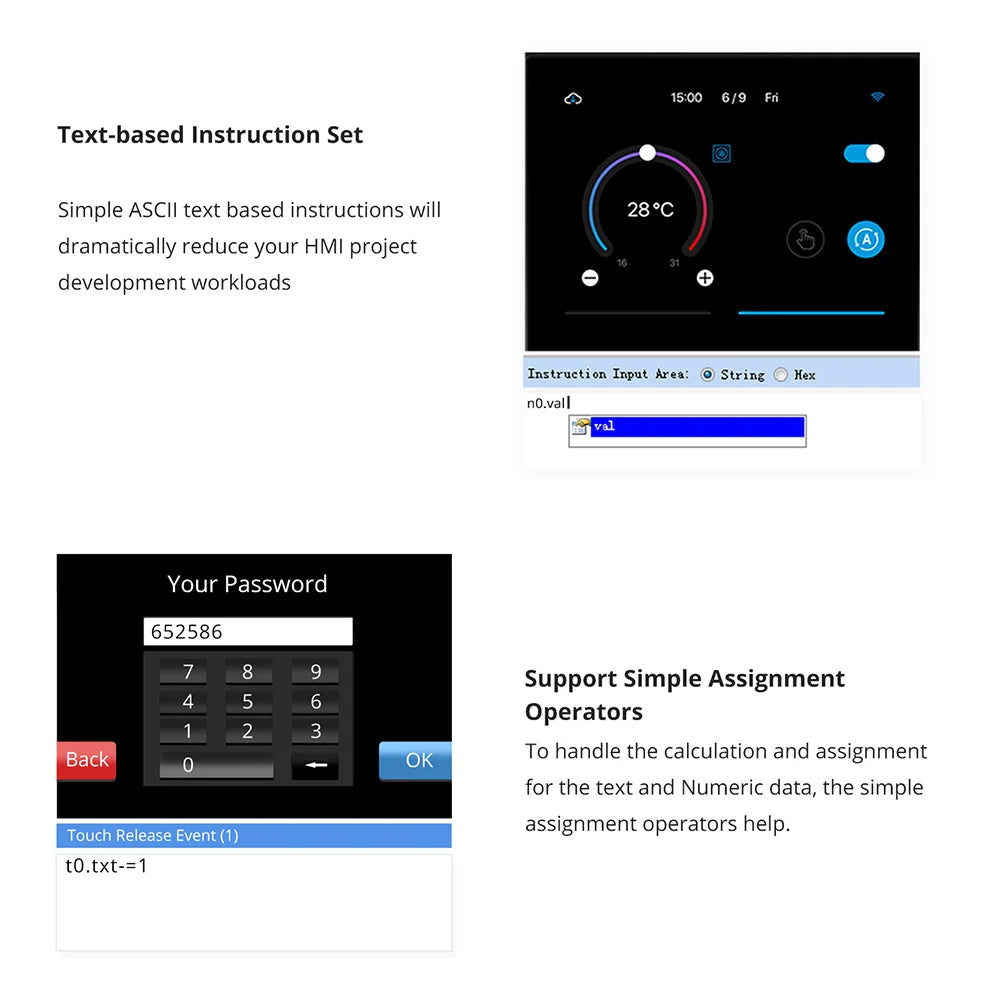

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

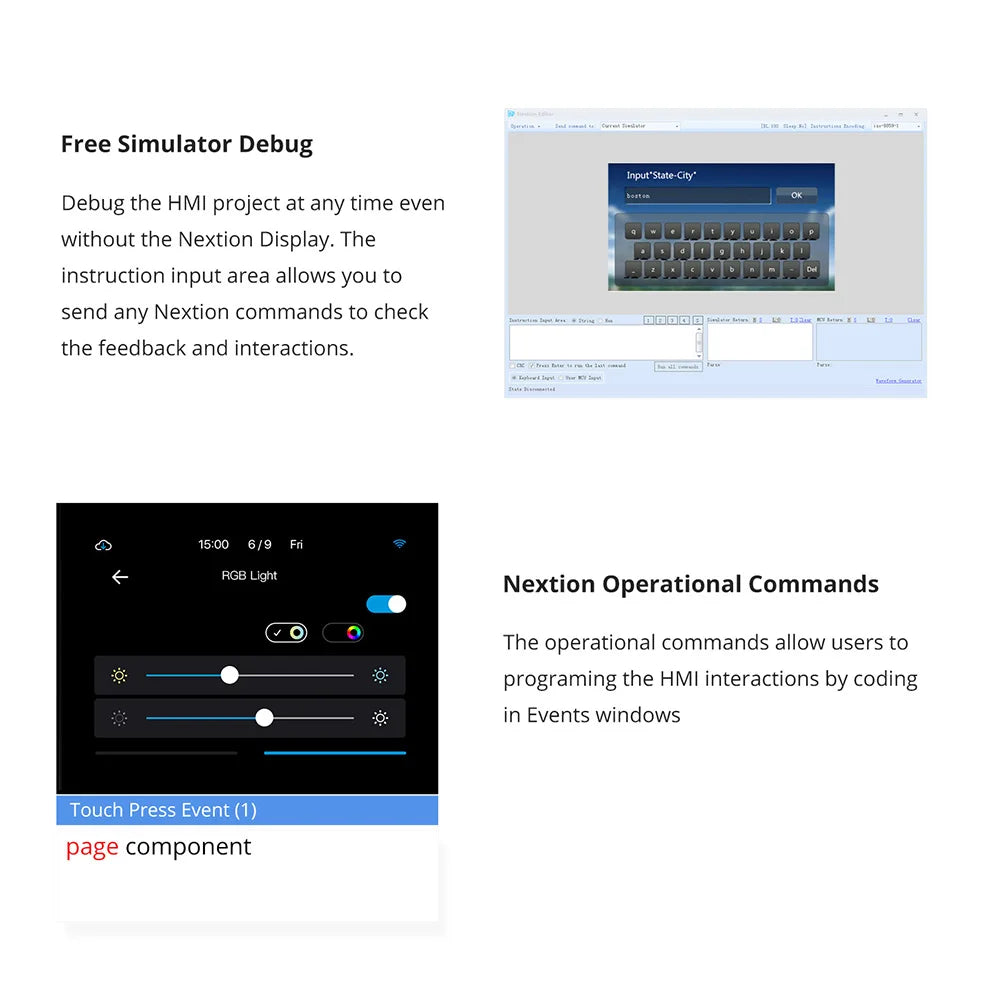

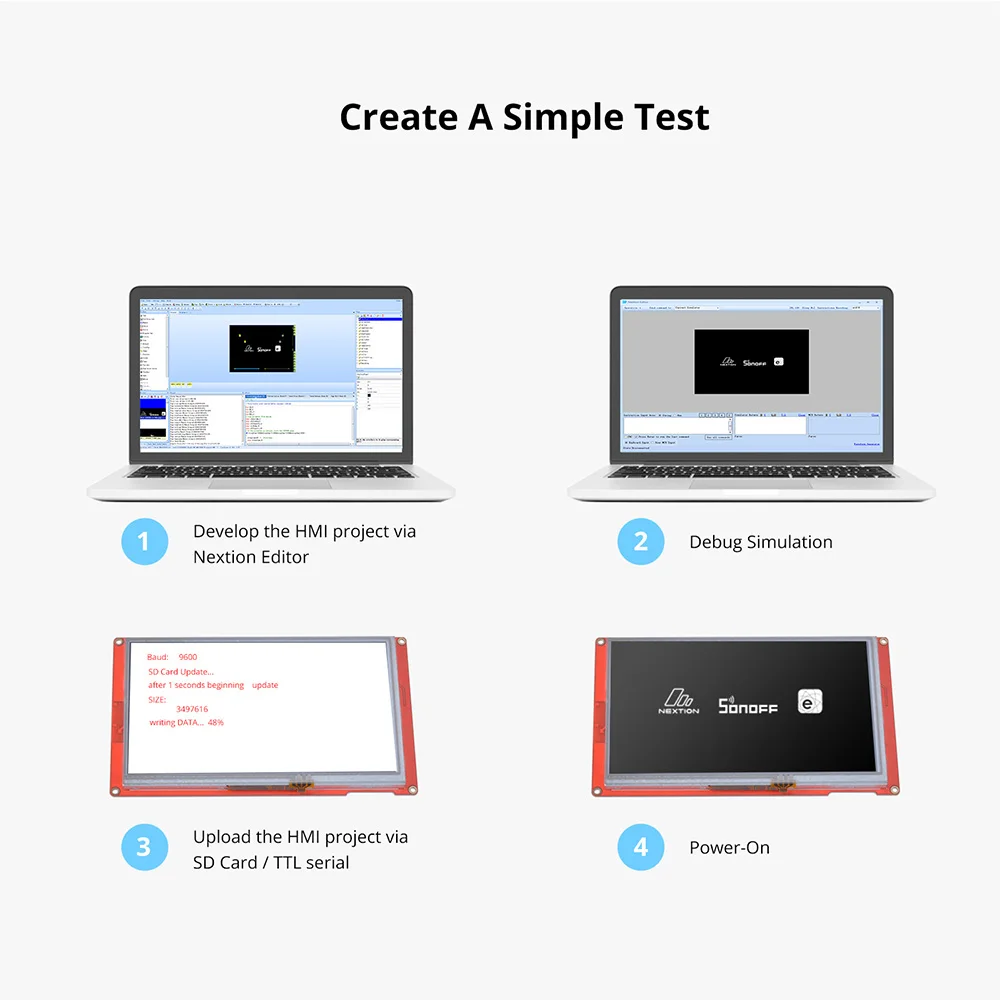

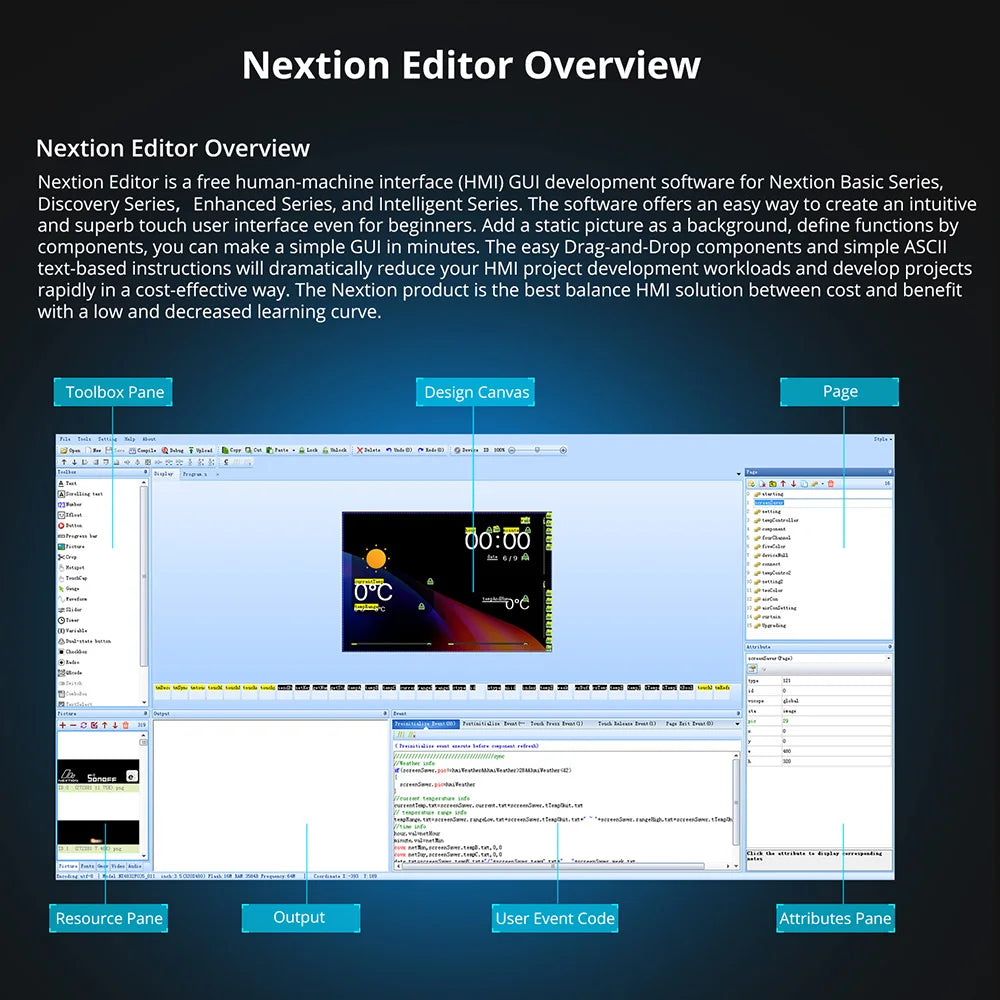

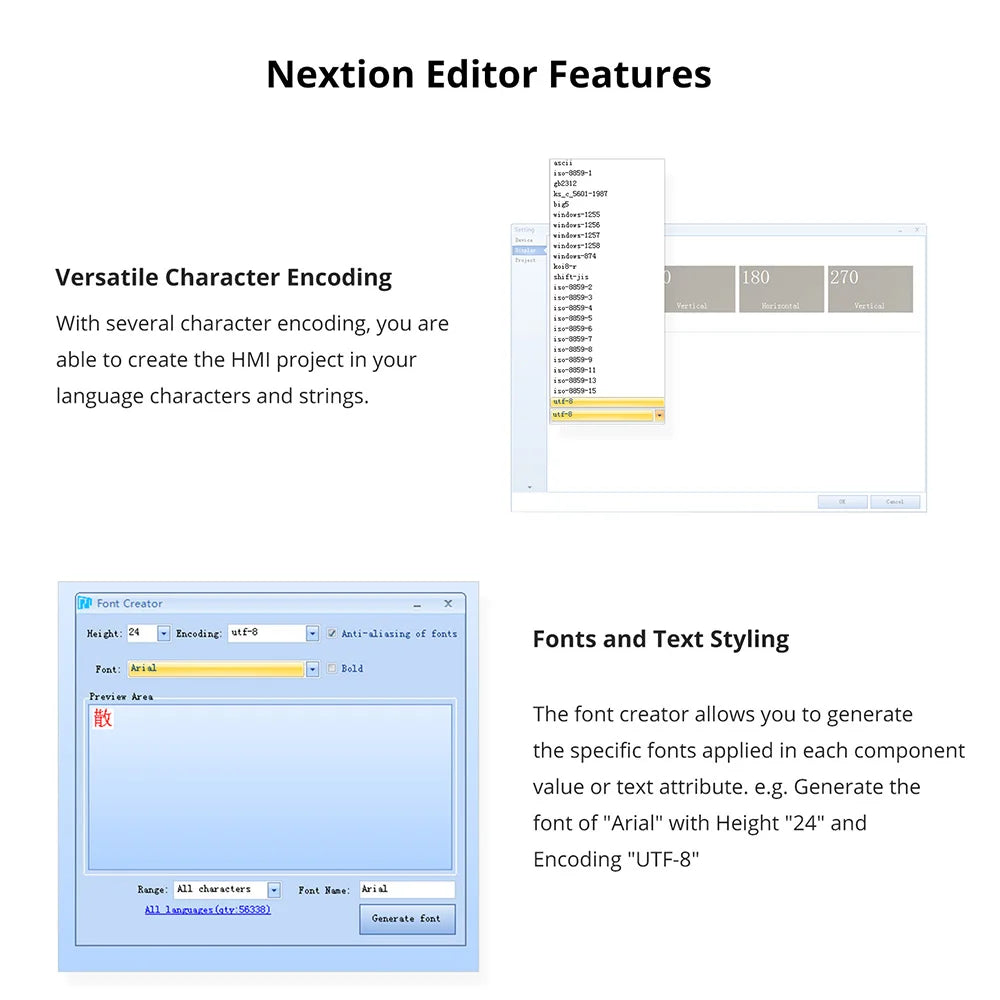

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

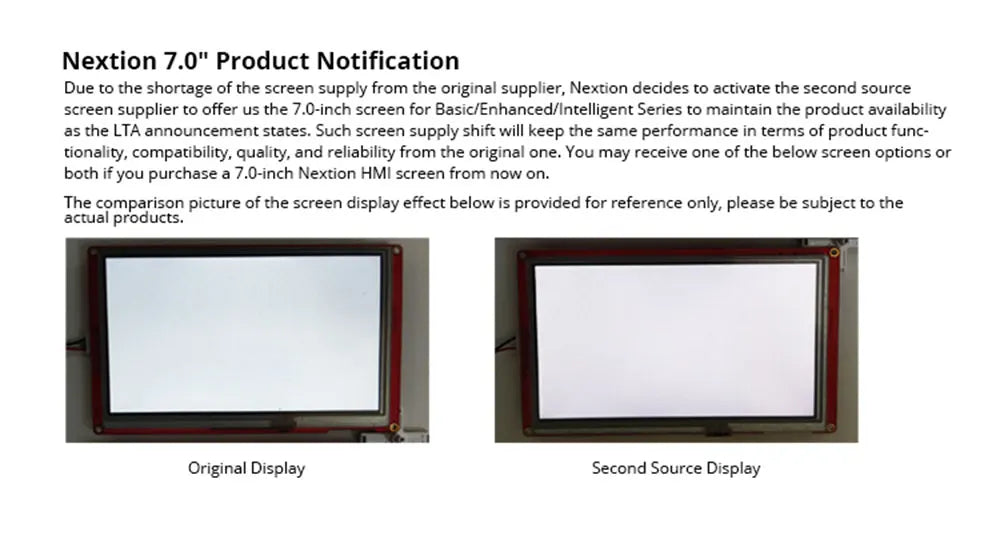

Nextion 7.0" Product Notification

Due to the shortage of the screen supply from original supplier, Nextion decides to activate the second source screen supplier to offer us the 7.0" inch screen for Basic/Enhanced/Intelligent Series to maintain the product availability as the LTA announcement states. Such screen supply shift will keep the same performance terms of product functionality, compatibility, quality and reliability from the original one.

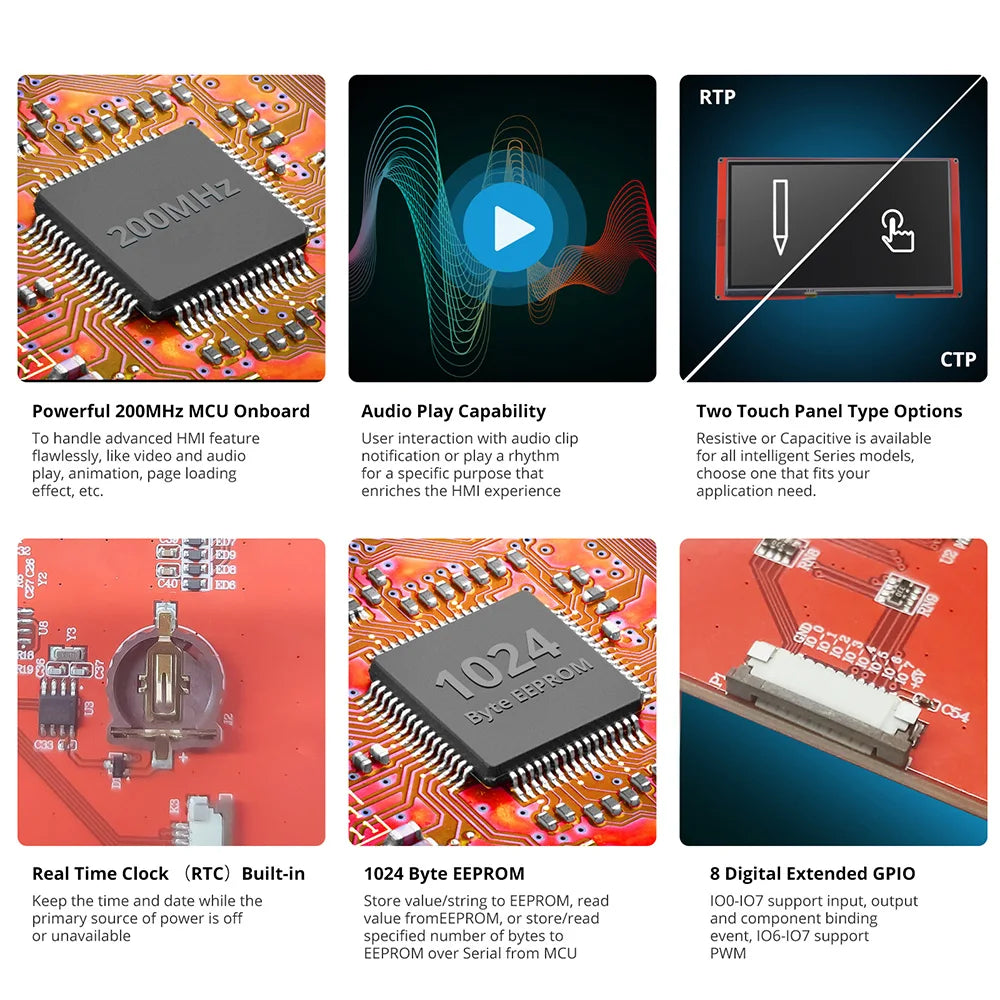

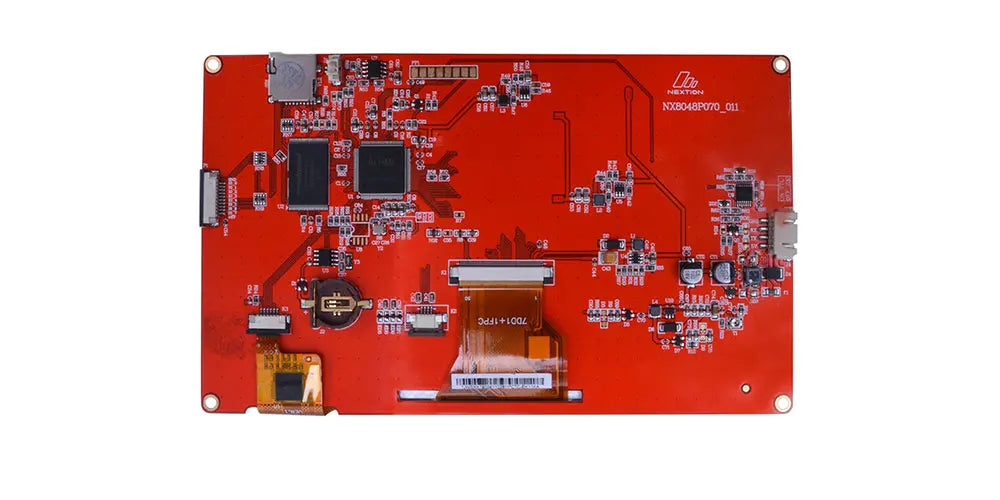

Hardware Features

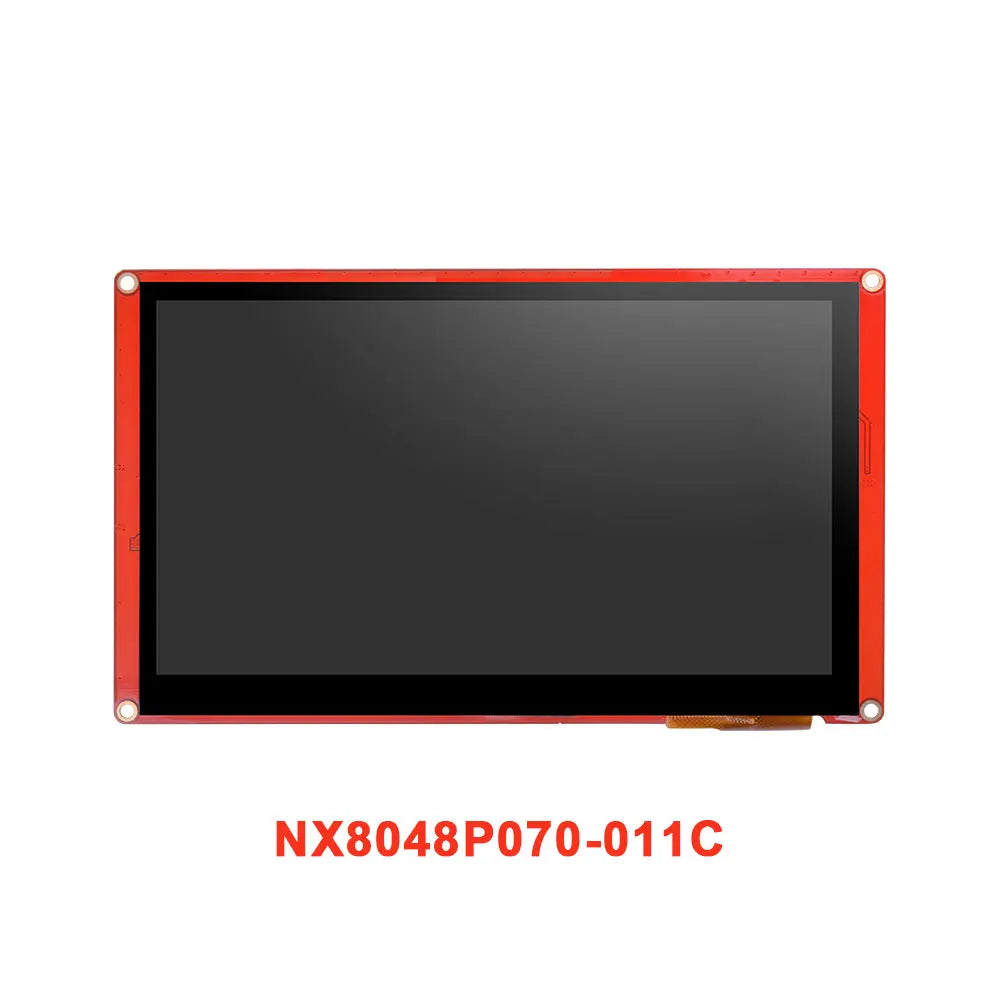

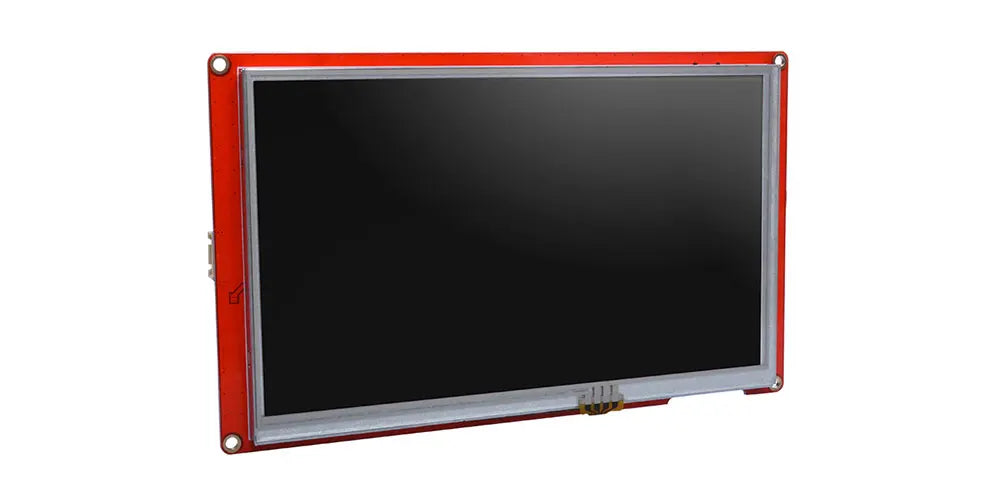

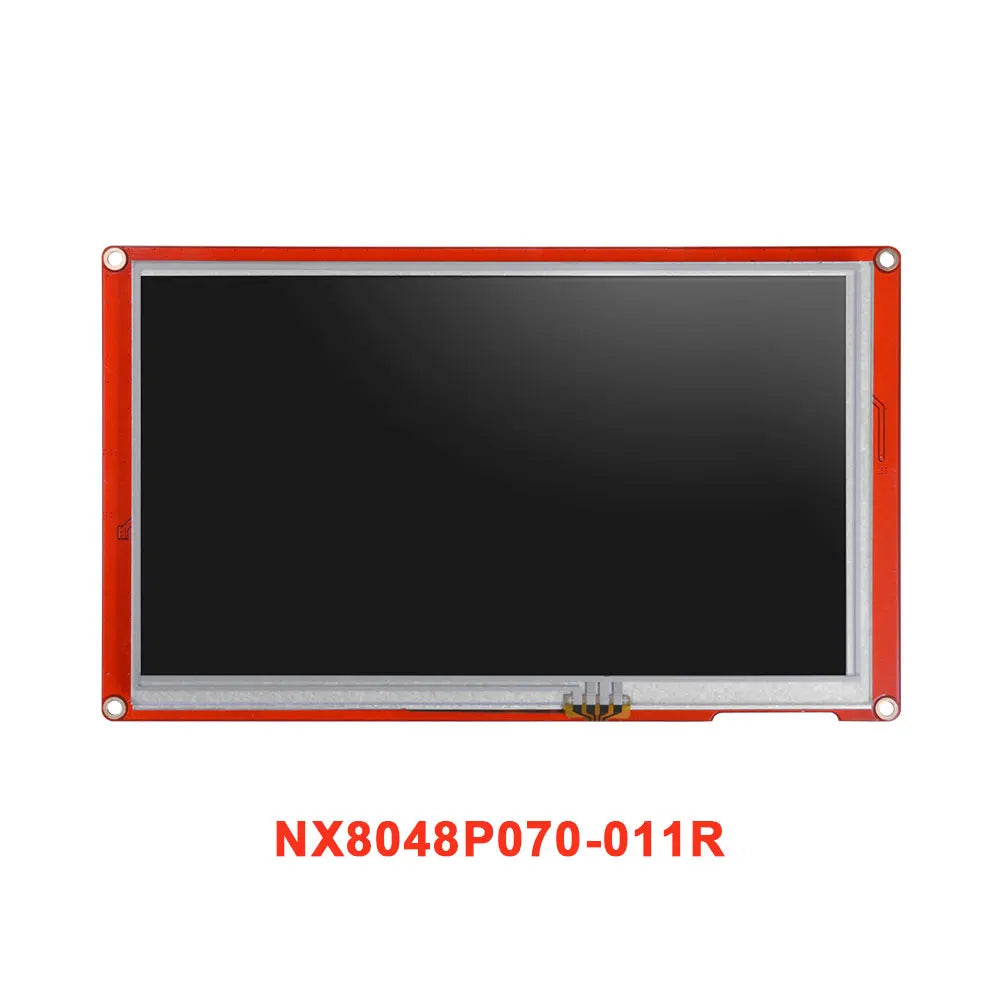

- NX8048P070-011C(7.0'' IPS RGB 65K capacitive touchscreen), NX8048P070-011R(7.0'' IPS RGB 65K Resistive touchscreen)
- Onboard MCU 200MHz and up to 128MB for HMI project
- Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
- 4 pins (+5V, TX, RX, GND) TTL serial interface
- 300 nit Brightness with 1% interval adjustment
- Audio interface
- CE and RoHS Compliant
- Model: NX8048P070-011C(HMI Capacitive Touch Display) and NX8048P070-011R((HMI Resistive Touch Display)
