SPECIFICATIONS

Battery Included: no

Brand Name: Sense of Clock

Diameter: 165

Display Type: DIGITAL

Feature: LUMINOVA

Function: With Backlight

High-concerned chemical: none

Length: 170

Material: Acrylic

Model Number: 6-IN14

Motivity Type: External Power Supply

Movement Type: Jumping movement

Origin: Mainland China

Shape: SQUARE

Sheet Size: 10"

Style: BRIEF

Type: Desk Clocks

Weight: 0.3

Width: 40

Shipping List:

1. Use 5V2 A TYPE C USB

2. With RGB LED

3. Use DS3231 high-precision timing IC

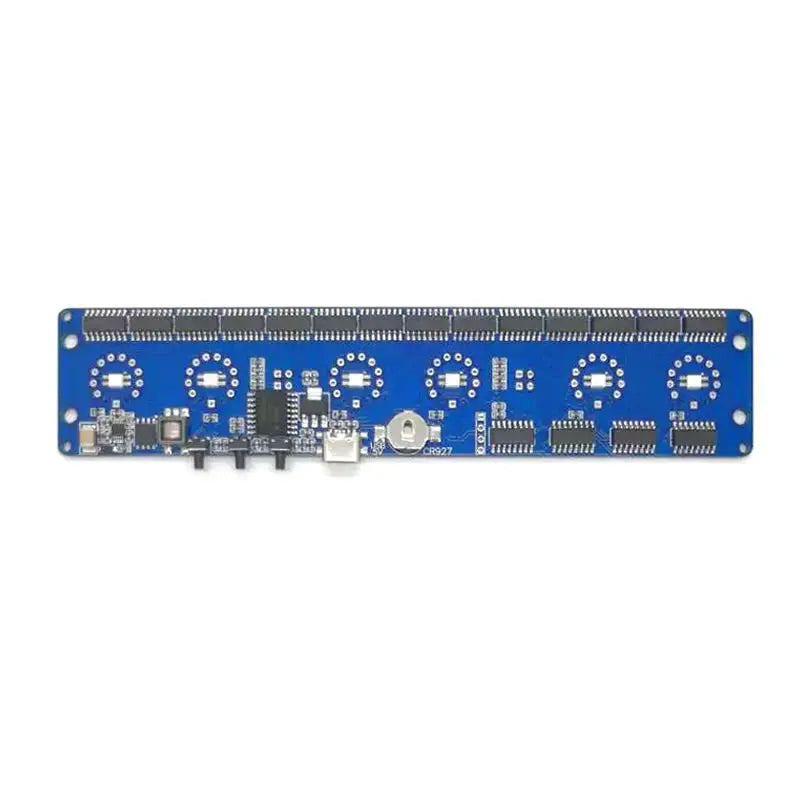

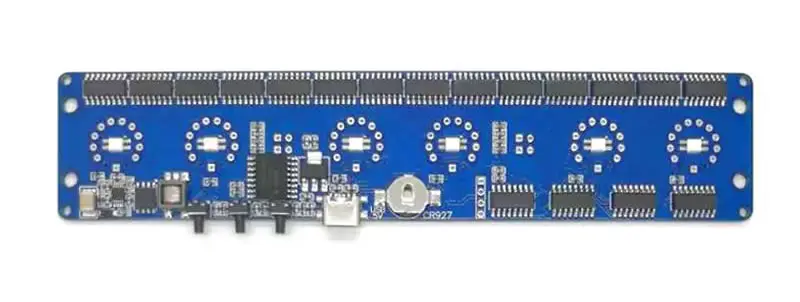

4. PCB size: 163x35mm

5. Function: 24-hour display model, digital display can be set to refresh every 1 to 9 minutes, no alarm.

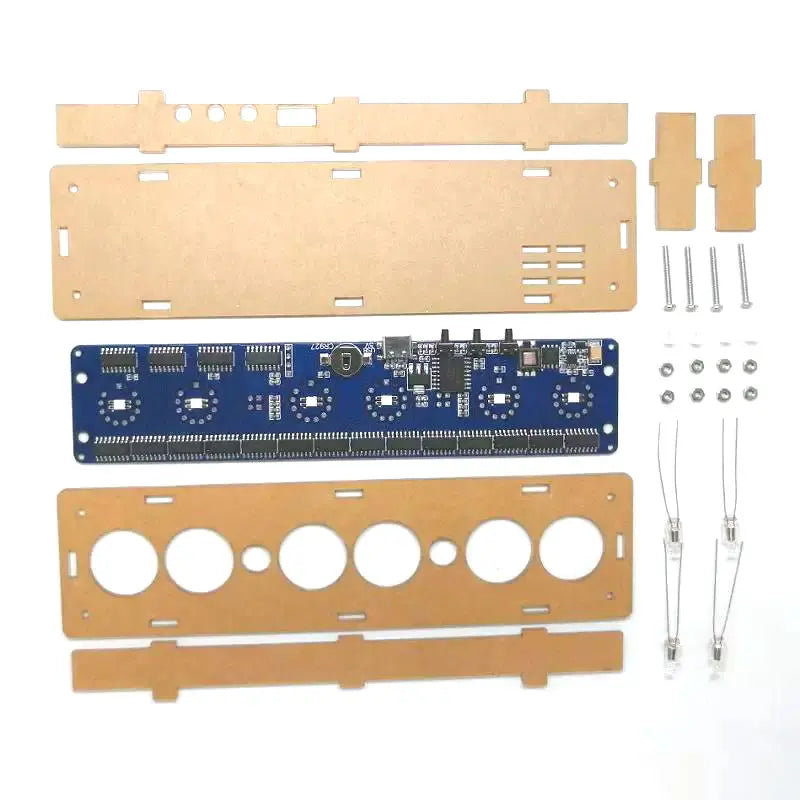

6. Packaging contents: circuit board, neon light, acrylic, no tube, excluding IN14 tube.

7. The version is constantly updated, so the picture depends on the actual product.

Using imported high-precision clock chips, the error is less than 1 minute per year. Using integrated IC driver, the display is more stable and reliable

Features: High Precision Glow Circuit Board Clock Kit

Type: parts assembly clock

24 hour mode, time display, anti positing program (every 10 minutes refresh the monitor), no alarm, remote control is not supported

2. Function:

2.1.Time

2.2. Backlight color (multiple color switching)

2.3.12/24 hour module

2.4. Sleep module (no display screen from 22:00~07:00. Display screen from 07:00~22:00)

2.5. Refresh time setting (1~9 minutes)

3. Operation:

3.1. Set time: Click the "Set" button to enter the setting time. Click Up, Down to set the time, then click Set to finish.

3.2.12/24 hour module: Click the "Up" button to change

3.3. Sleep module. Click "Settings" for a long time without display and enter the sleep module (no display from 22:00~07:00. Display from 07:00~22:00). Displays all "0" digits outside the sleep module.

3.4. Set the refresh time: click "UP" for a long time, and then click "UP" or "Dowm". Refresh can be set from 1 to 9 minutes (click "Settings" to change 1-5 LED brightness).

3.5. Set the back color: Click "Down" to change the color. When the color refreshes, it means it changes color automatically (one color per day) or fixed color.
