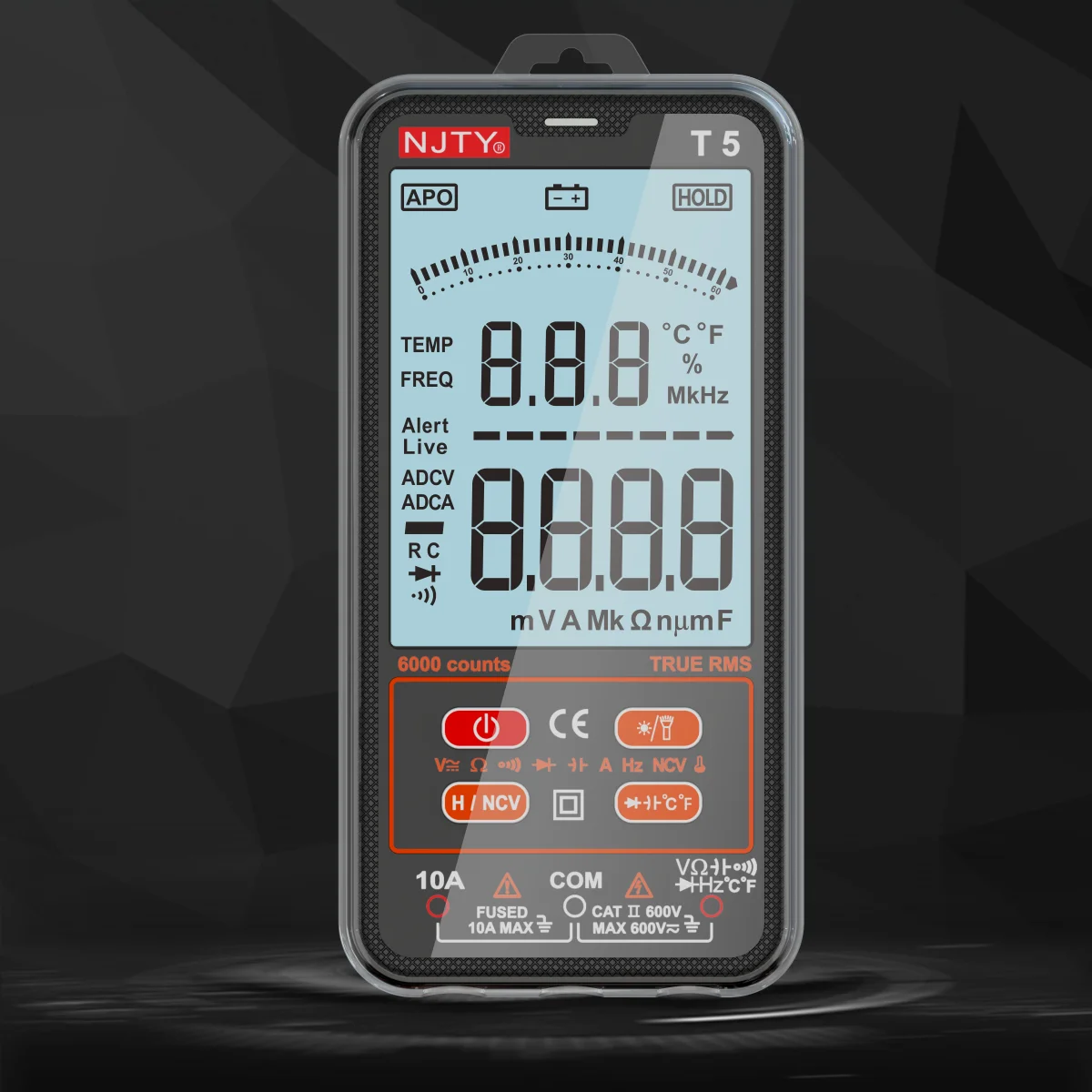

NJTY T5 Smart Digital Multimeter True RMS 6000 Counts Auto-Ranging 600V AC/DC Voltage Current Capacitance Temperature Tester

NJTY T5 Smart Digital Multimeter True RMS 6000 Counts Auto-Ranging 600V AC/DC Voltage Current Capacitance Temperature Tester

$90.24

$90.24 $0.00

Description

SPECIFICATIONS

AC Current: 6MA-10A

AC Voltage: 600v

Battery Included: no

Brand Name: NJTY

Certification: CE,RoHS,UL

Choice: yes

DC Current: 5MA-10A

DC Voltage: 8.8V-600V

DIY Supplies: Electrical

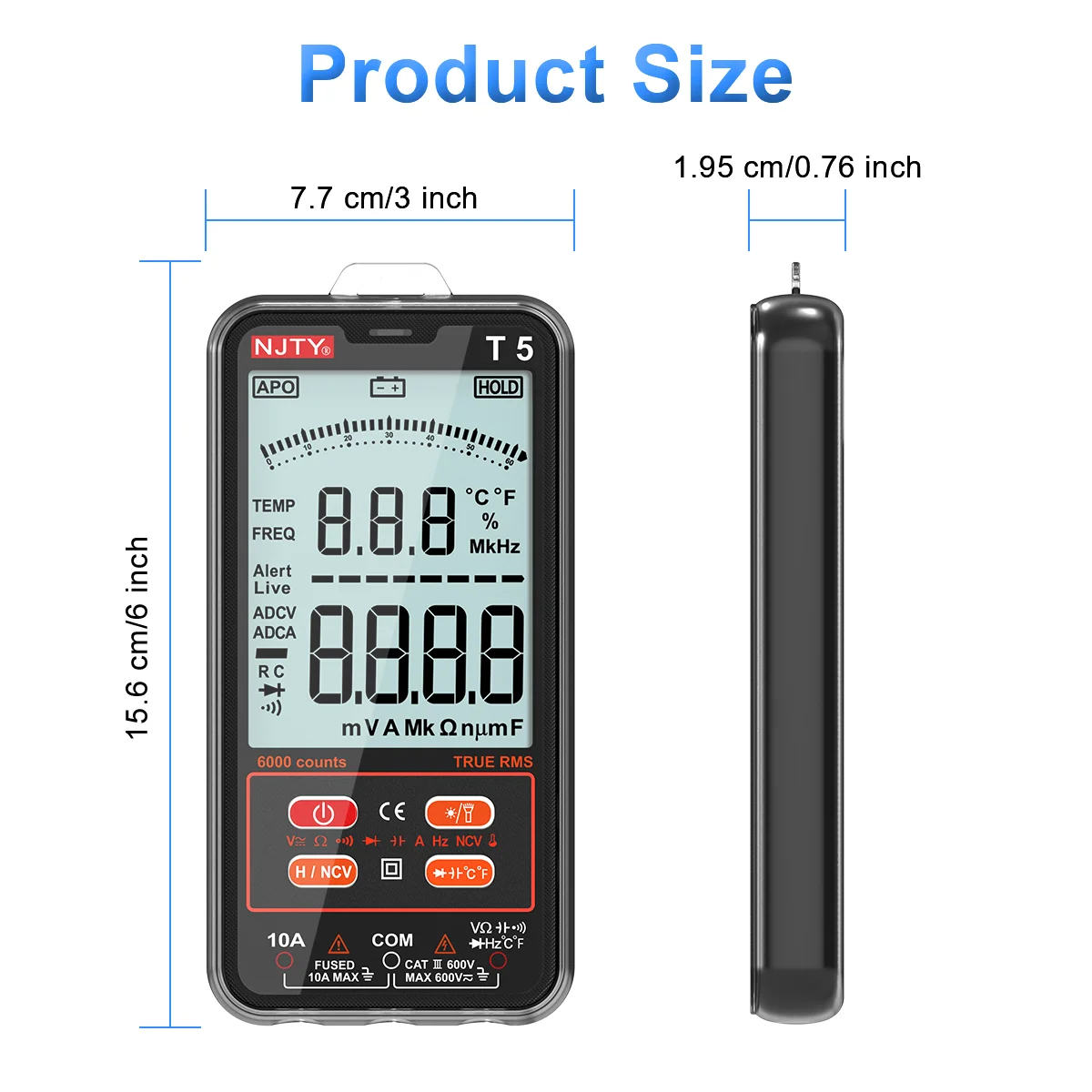

Dimensions: 156mm*77mm *19.5mm

Display: 6000 counts

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Inductance Range: /

Measuring Resistance Range: 0Ω-60MΩ

Model Number: T5

NJTY Model: T5

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Power by: 1.5V X 2AAA Battery not included

Semi-finishedproduct: No

NJTY T5 High Precision Smart Digital Multimeter, Auto Range, 6000 Counts, CAT III 600V, Temperature Test, Anti-burn, NCV, for Car/Home/Electronics Use

The T5 Smart Digital Multimeter is a fully automatic, high-precision measurement tool designed for both professionals and beginners. With intelligent detection of up to 7 electrical parameters, smart range switching, and dual measurement modes, it offers fast, reliable readings without manual setup. Certified to IEC61010-1 CAT III 600V safety standards, it features an explosion-proof ceramic fuse, double insulation, and a high-definition

6000 counts backlit LCD for clear visibility in any environment. Ideal for home electrical checks, industrial maintenance, electronics testing, and automotive diagnostics, this multimeter combines accuracy, safety, and ease of use in one powerful device.

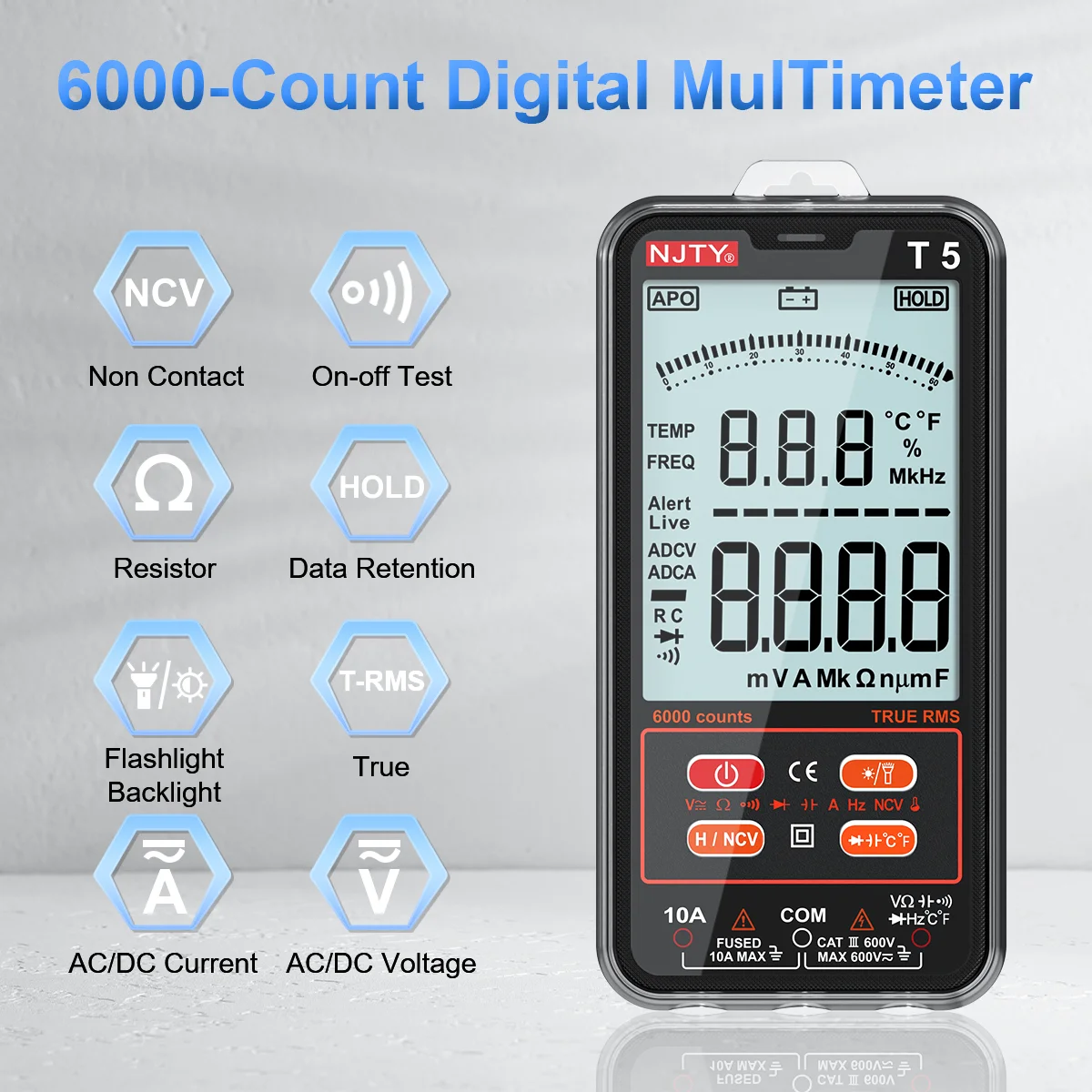

Fully Automatic Intelligent Detection

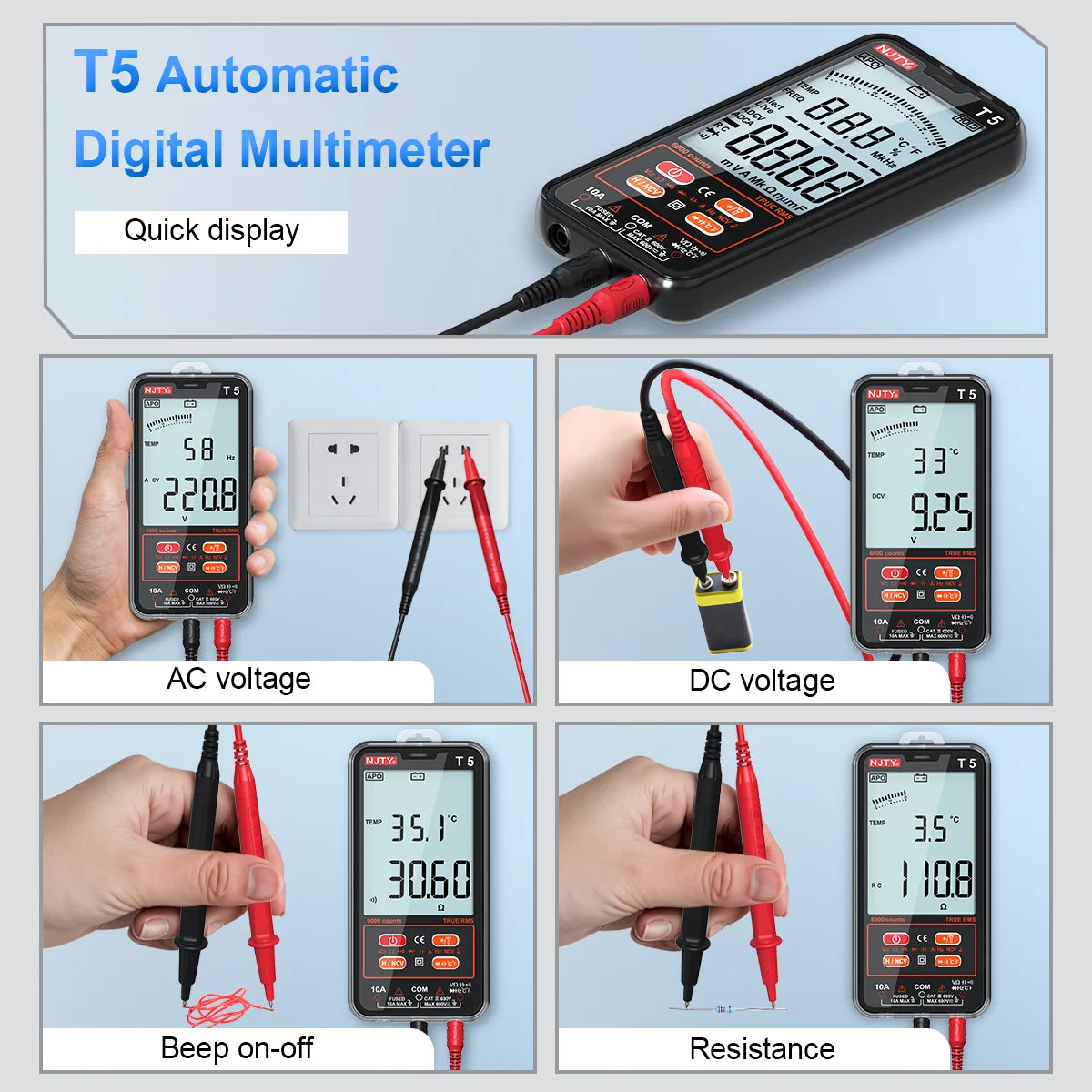

- Automatically recognize 7 parameters: DC/AC voltage, AC/DC current, resistance, frequency, sound switching signal.

- Intelligent range switching technology, say goodbye to the trouble of manual gear adjustment.

Dual mode free switching

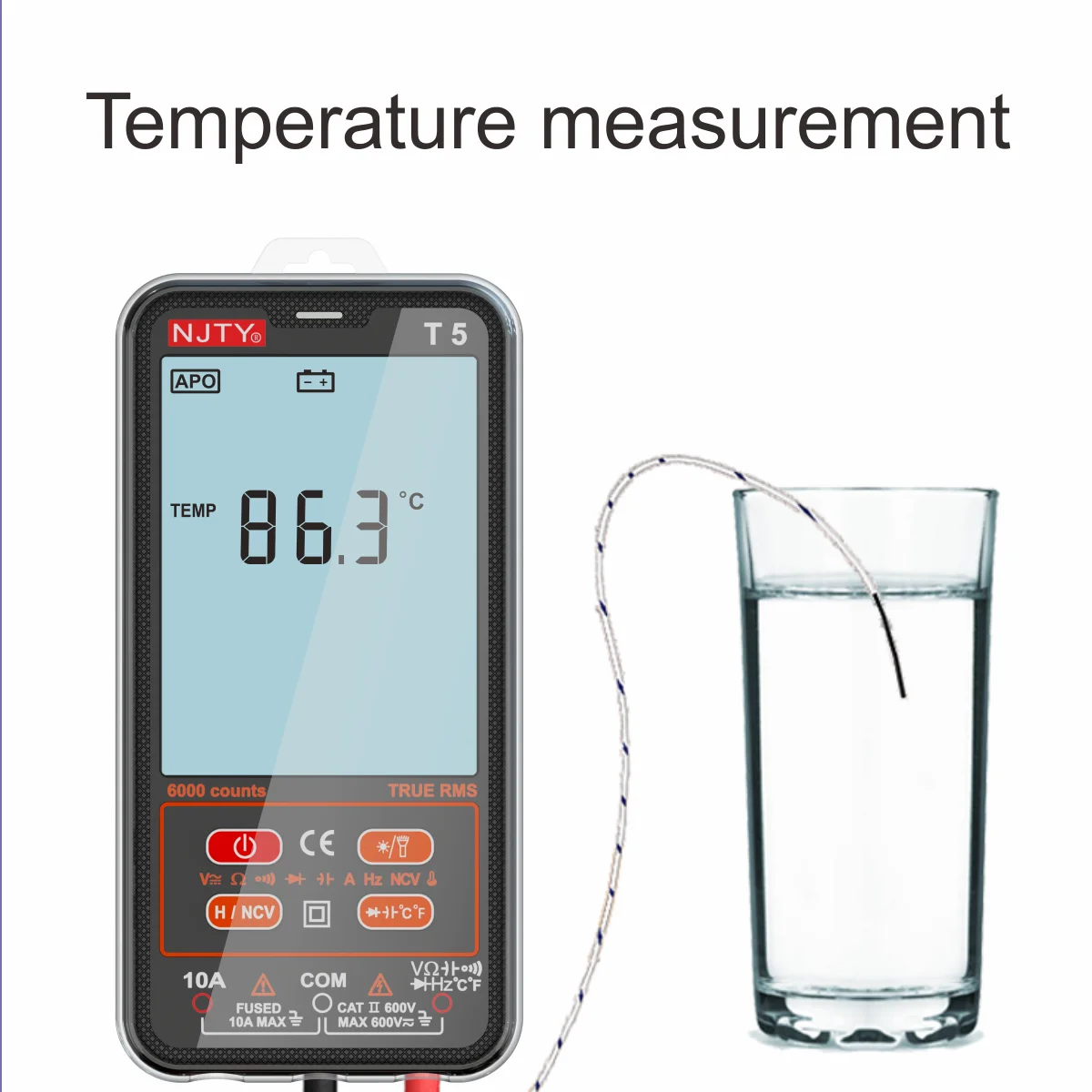

- Support manual expansion mode: accurate measurement of diode, capacitance and temperature (optional probe required).

- Mode memory function to improve the efficiency of repeated measurements

Professional Safety Protection

- IEC61010-1 safety certification, CAT III 600V standard/pollution class 2.

- Explosion-proof ceramic fuse + double insulator design.

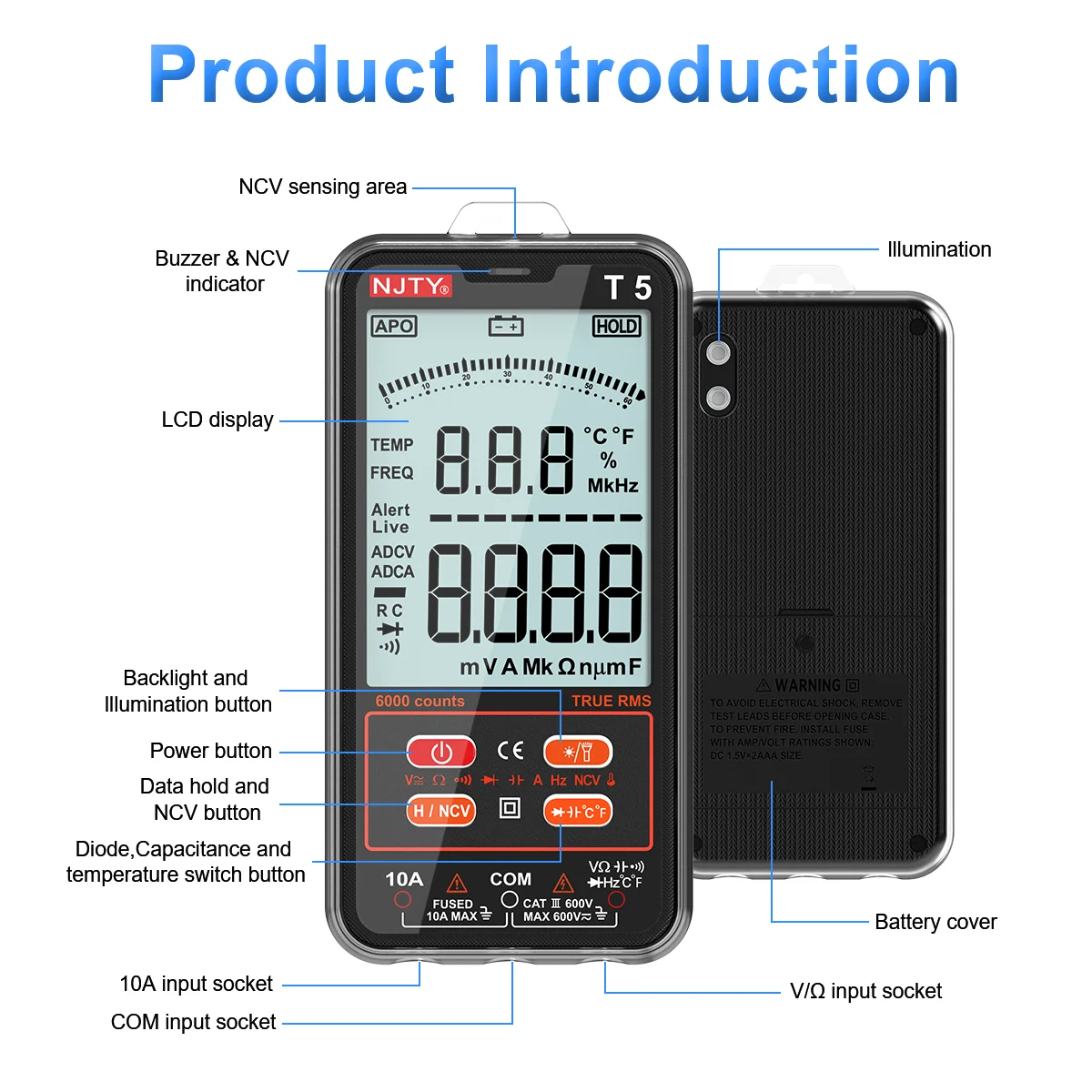

Laboratory Display System

- High definition backlit LCD display with wide reading angle.

- Displays 6000 actual RMS counts with an accuracy of ±0.5%+3

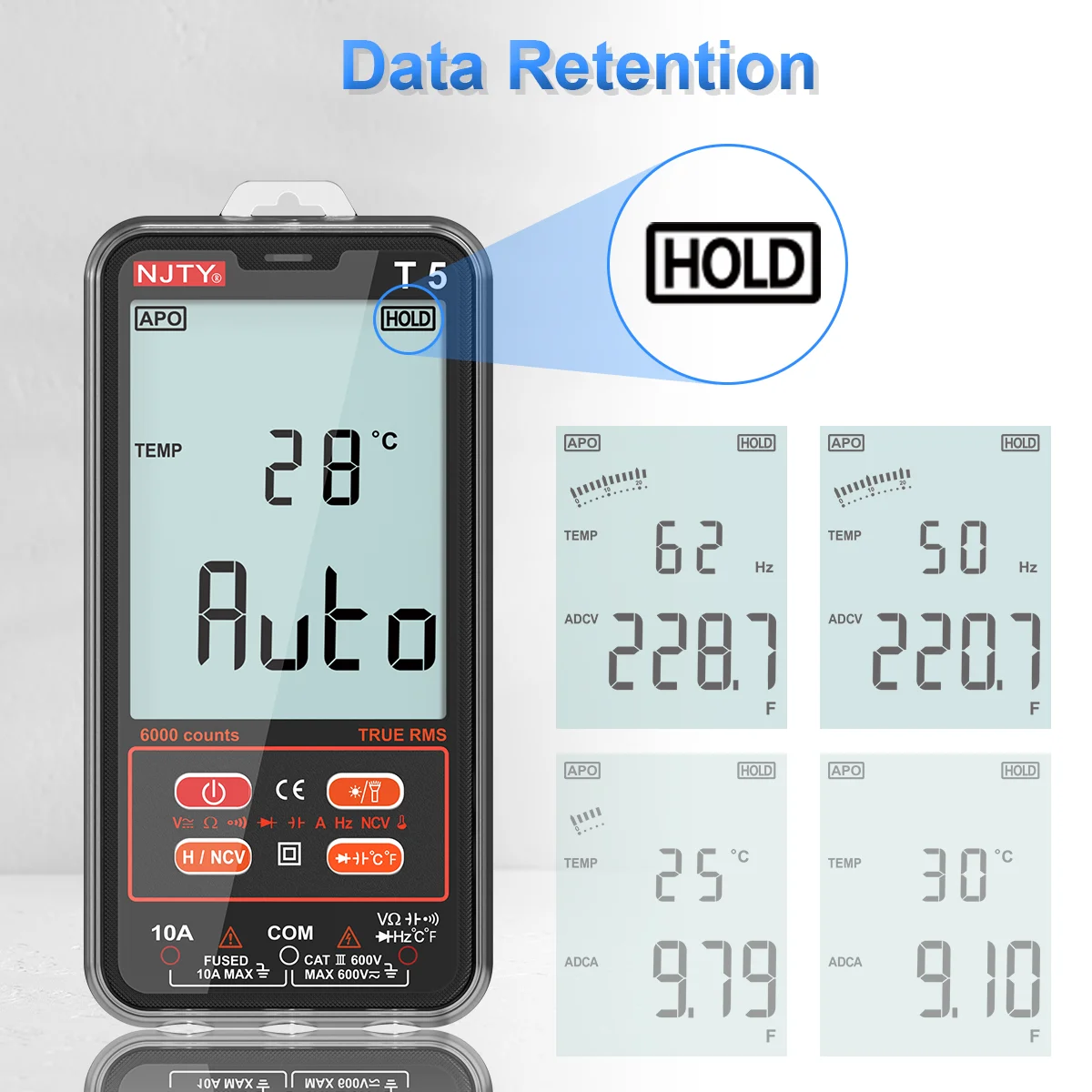

- Data Hold Function / Relative Value / Maximum and Minimum Value Recording [Scenario Based Application

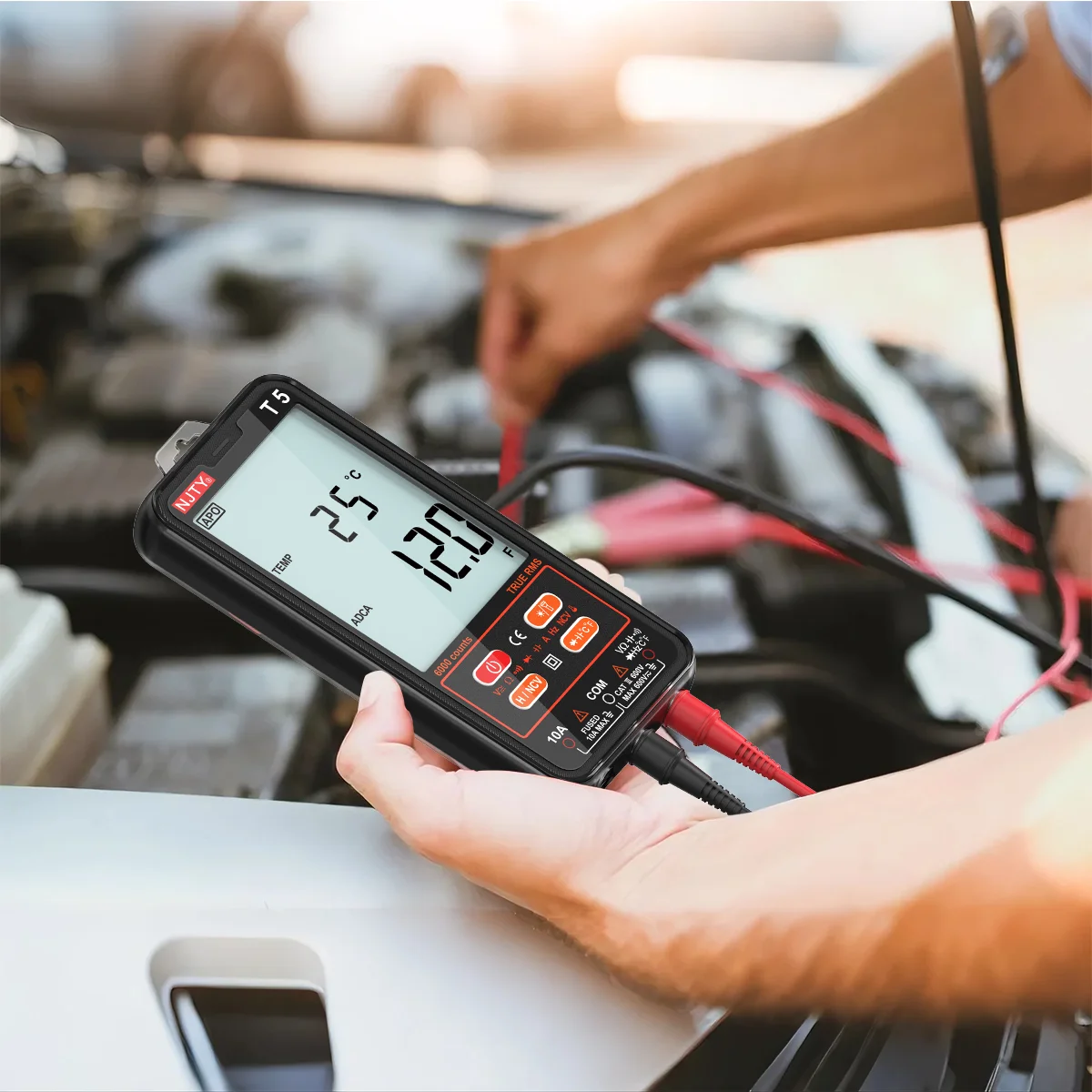

🔧 Home Circuit Review ｜ 🛠️ Industrial Equipment Maintenance ｜ 🔬 Electronics R&D Testing ｜ 🚗 Automotive Troubleshooting [User Value Update].

Technical Parameters

Operating conditions: 600 VCATII 600 VCATII
Altitude: less than 2000 meters
Operating temperature: 0-40°C (<80%RH)
Storage temperature: -10-60°C (<70%RH with battery removed)
Test or calibration ambient temperature: 20°C x 2°C
Maximum voltage between measurement terminal and ground: 600V
Conversion speed: approx. 3 sec/sec
Visualization: 6000 LED display
Overload: “OL” is displayed.
Battery low voltage indicator:Displayed when the operating voltage is low.

Function	Range	Resolution	Accuracy
DC Voltage	0.8V~600V	0.001V	± (0.8%+5)
AC Voltage	0.5V~600V	0.001V	± (1.0%+5)
Resistance	0Ω~60MΩ	0.1Ω	± (1.0%+5)
DC Current	5mA~10A	0.1mA	± (2.0%+5)
AC Current	6mA~10A	0.1mA	± (2.0%+5)
Temperature	-20~530°C/ -4~986°F	1°C/1°F	± (3.0%+5)
Capacitance	0~100mF	0.1mF	± (4.0%+5)
Frequency	10Hz~2000Hz	1Hz	± (2.0%+5)
Max Display	6000 counts	-	-
Auto Power Off	Yes	-	-
Backlight	Yes	-	-

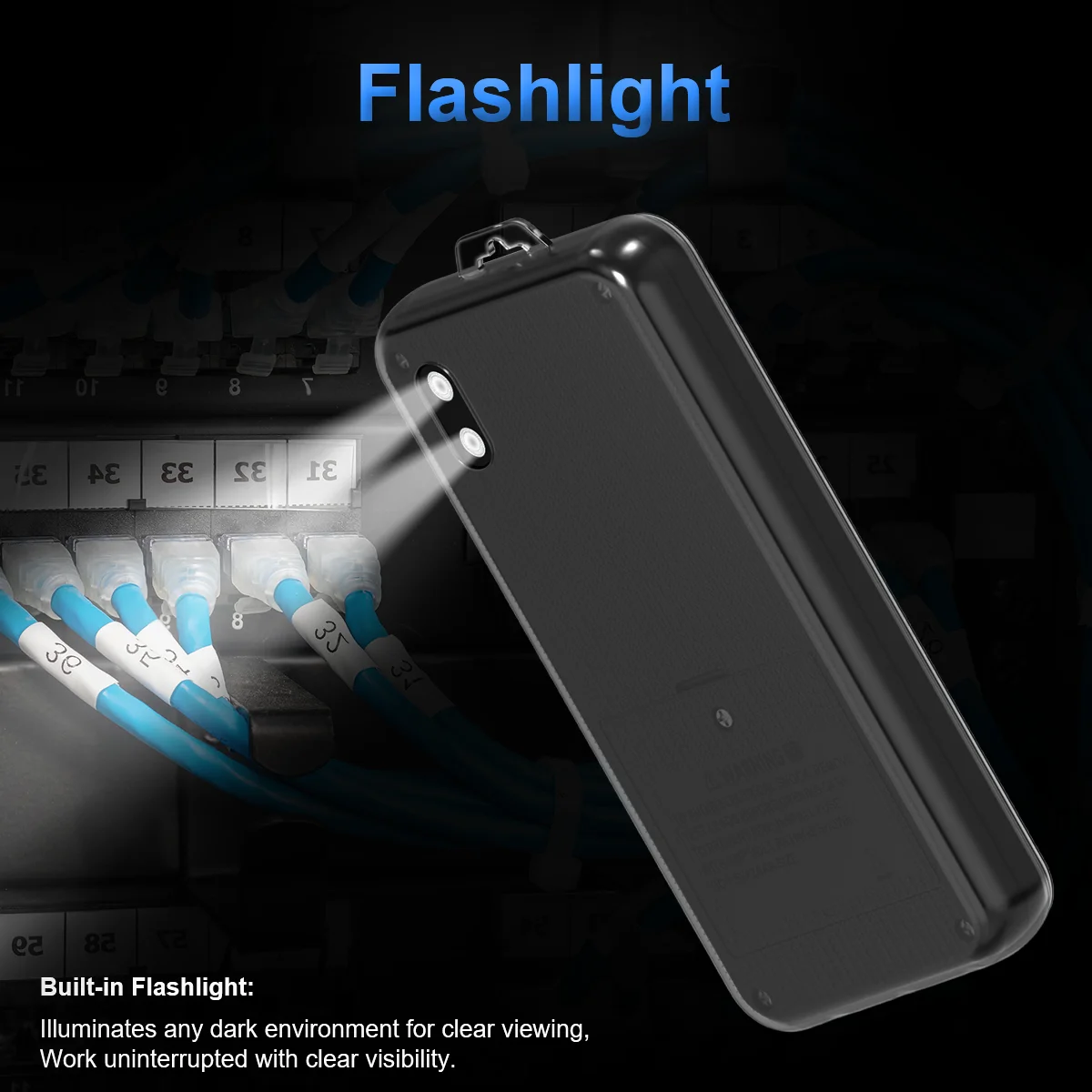

Flashlight	Yes	-	-
Diode Test	Yes	-	-
Continuity Buzzer	Yes	-	-

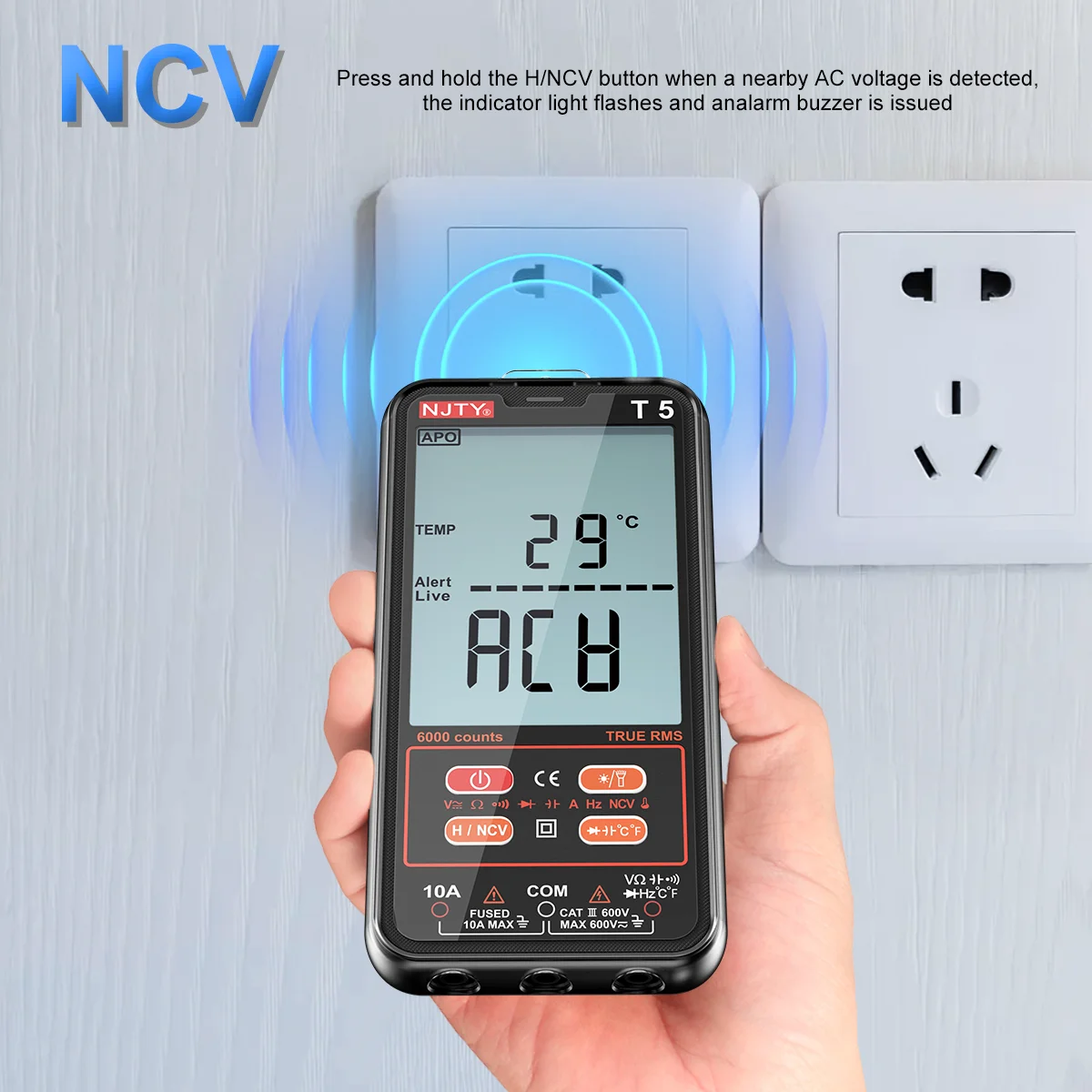

NCV (Non-Contact Voltage)	Yes	-	-
Data Hold	Yes	-	-
True RMS	Yes	-	-
Dimensions	1567719.5mm	-	-
Weight	~178g	-	-
Power Supply	2x1.5V AAA (not included)	-	-
