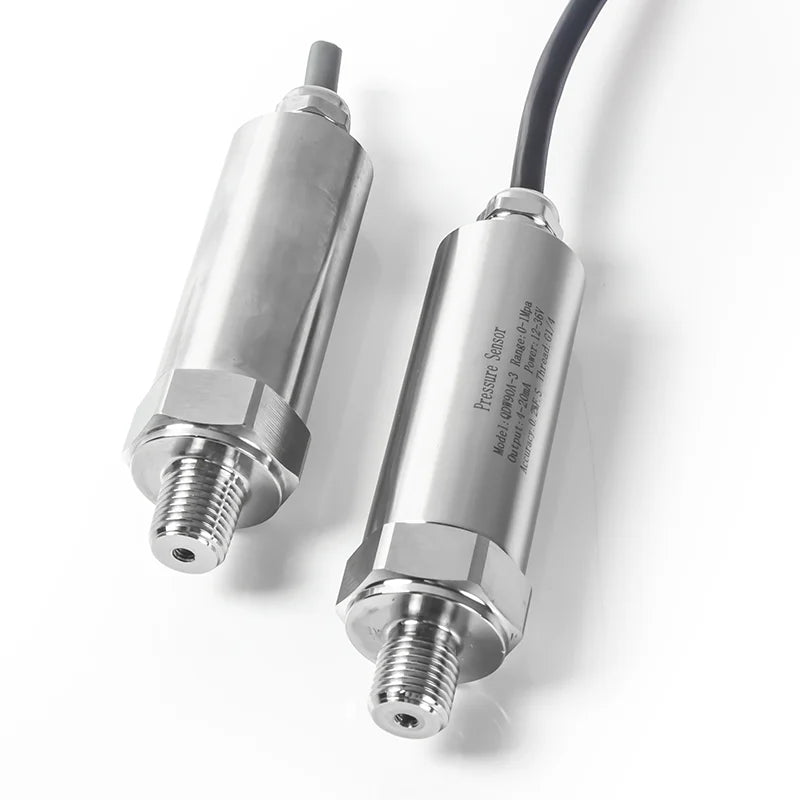

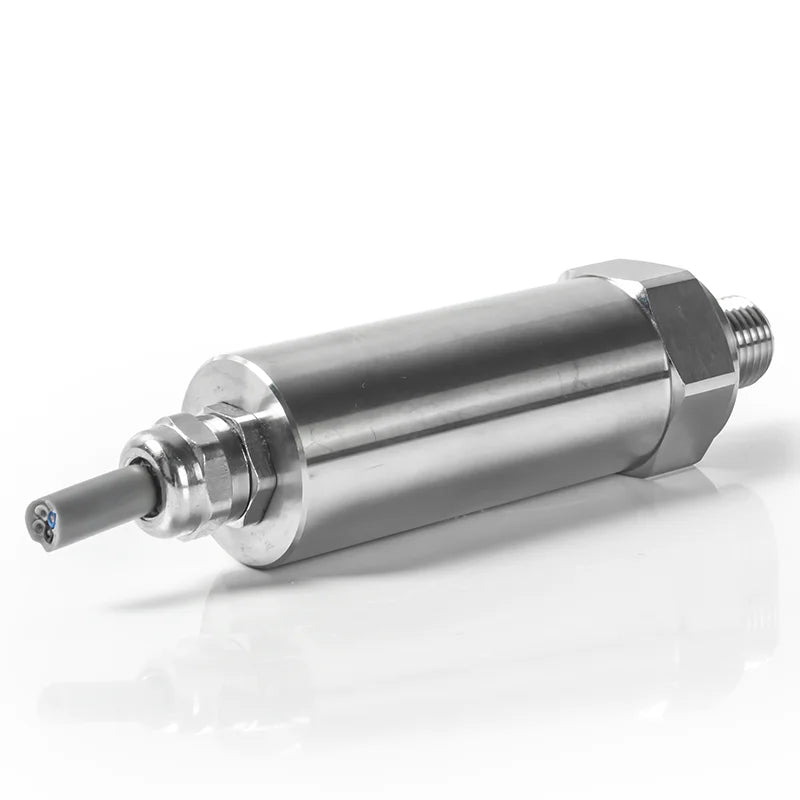

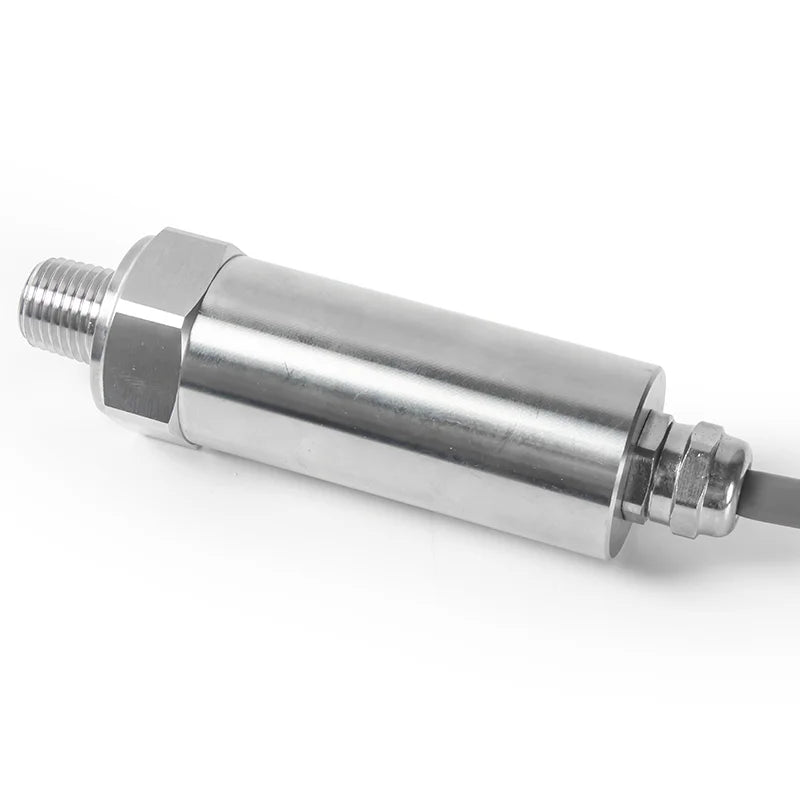

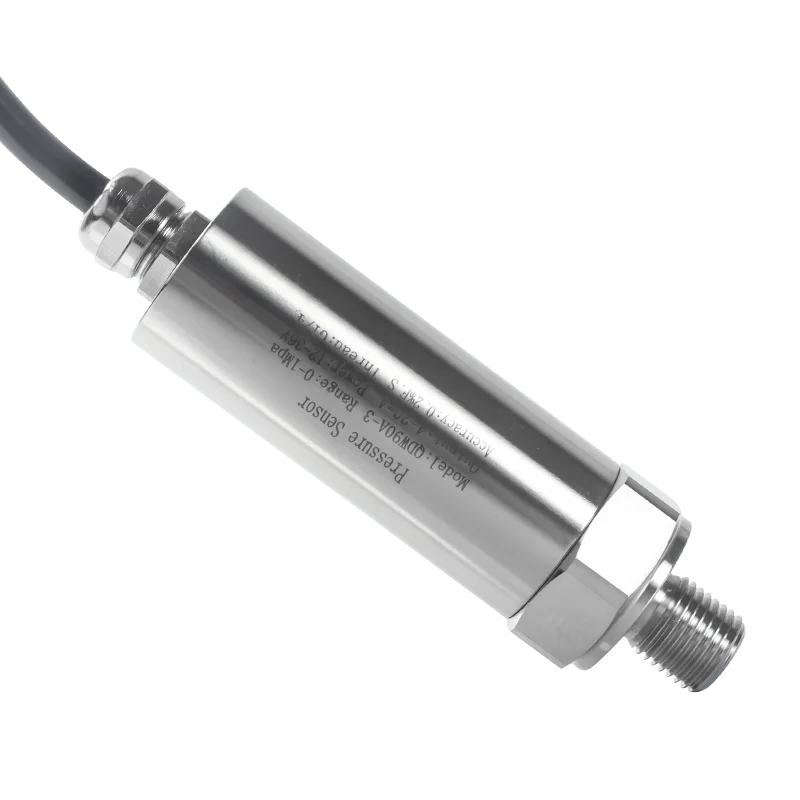

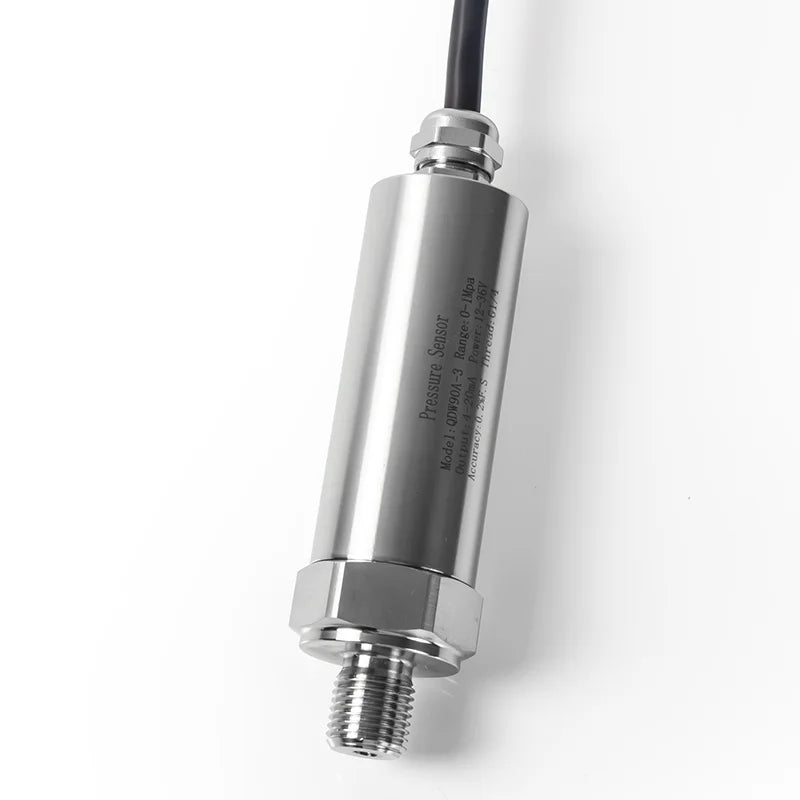

NPT1/4 Pressure Sensor 4-20mA 0-10V 0-600bar Direct Lead Pressure Treansducer IP67 Direct Lead Pressure Transmitter 100bar 50bar

RS485 NPT1-4 / 0-100Psi

$246.15

Sale price $246.15 Regular price $0.00

Skip to product information

NPT1/4 Pressure Sensor 4-20mA 0-10V 0-600bar Direct Lead Pressure Treansducer IP67 Direct Lead Pressure Transmitter 100bar 50bar

NPT1/4 Pressure Sensor 4-20mA 0-10V 0-600bar Direct Lead Pressure Treansducer IP67 Direct Lead Pressure Transmitter 100bar 50bar

$246.15

Sale price $246.15 Regular price $0.00

Color RS485 NPT1-4 1-5V NPT1-4 0-5V NPT1-4 0-10V NPT1-4 4-20mA G1-4 4-20mA NPT1-4

Measuring Range 0-100Psi 0-600bar 0-400bar 0-500bar 0-200bar 0-300bar 0-50bar 0-100bar 0-20bar 0-30bar 0-10bar 0-16bar 0-1bar 0-5bar 0-0.3bar 0-0.5bar 0-0.1bar -1-10bar -50-50mbar

Description

SPECIFICATIONS

Accuracy: 0.2%FS,0.5%FS,

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

Choice: yes

Default Thread Size: NPT1/4

Feature 1: 0-16bar to 4-20mA Direct Lead pressure sensor

Feature 10: 0-500Bar to 4-20mA Direct Lead pressure sensor

Feature 2: 0-25bar to 4-20mA Direct Lead pressure sensor

Feature 3: 0-40bar to 0-10V Direct Lead pressure sensor

Feature 4: 0-100Psi to 4-20mA Direct Lead pressure sensor

Feature 5: 0-16bar to 0-5V Direct Lead pressure sensor

Feature 6: 0-10bar to 4-20mA Direct Lead pressure sensor

Feature 7: 0-200bar to 0-10V Direct Lead pressure sensor

Feature 8: 0-400Bar to RS485 Direct Lead pressure sensor

Feature 9: -1-10bar to RS485 Direct Lead pressure sensor

High-concerned chemical: none

Material: 304 stainless steel

Max Measuring Range: 400 Bar & Above

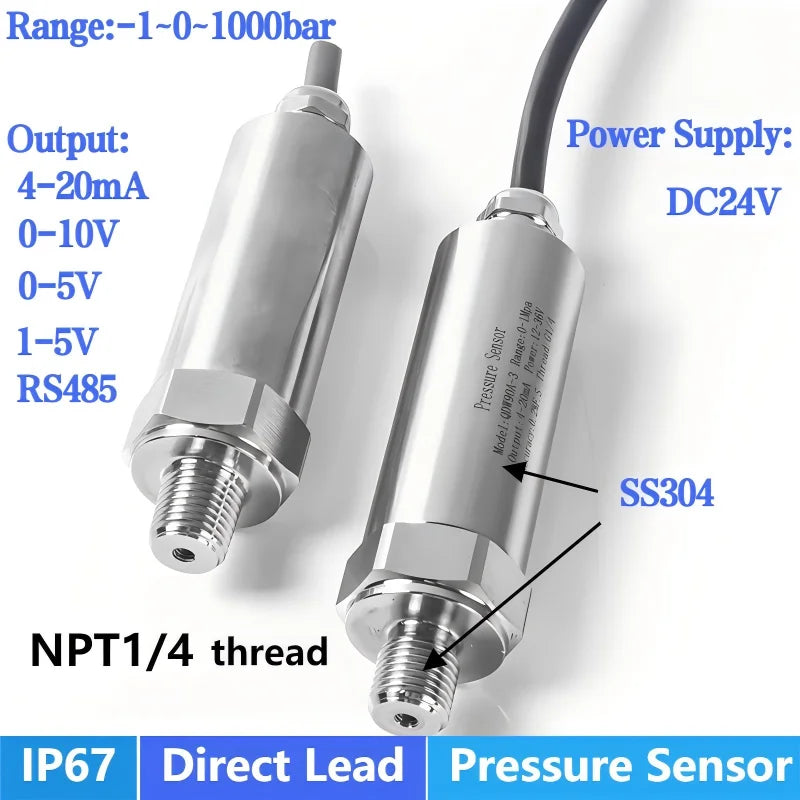

Measuring Range: -1bar~0~1000bar

Medium: Oil, Gas, Water, Air

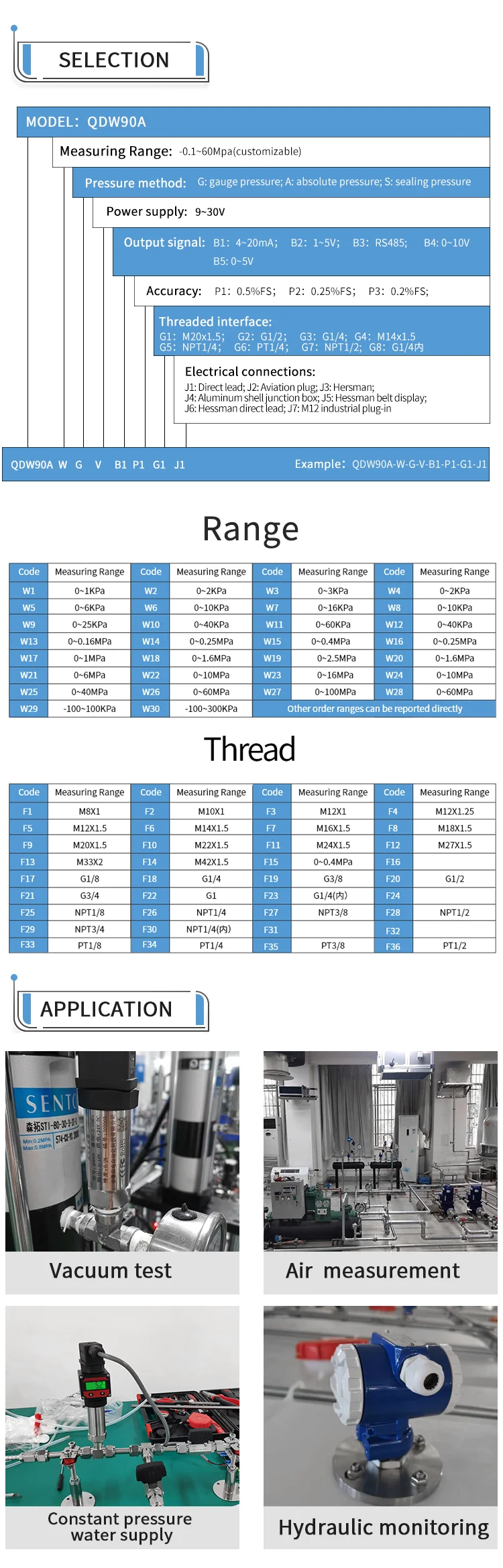

Model Number: QDW90A-3

Origin: Mainland China

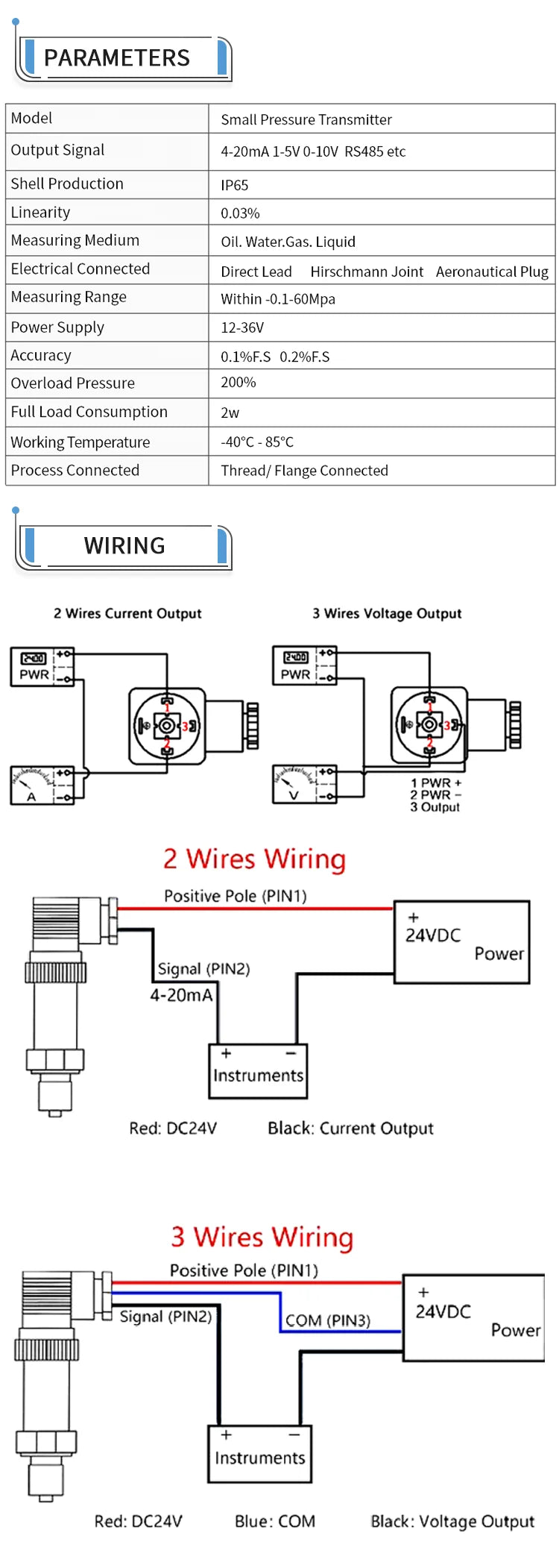

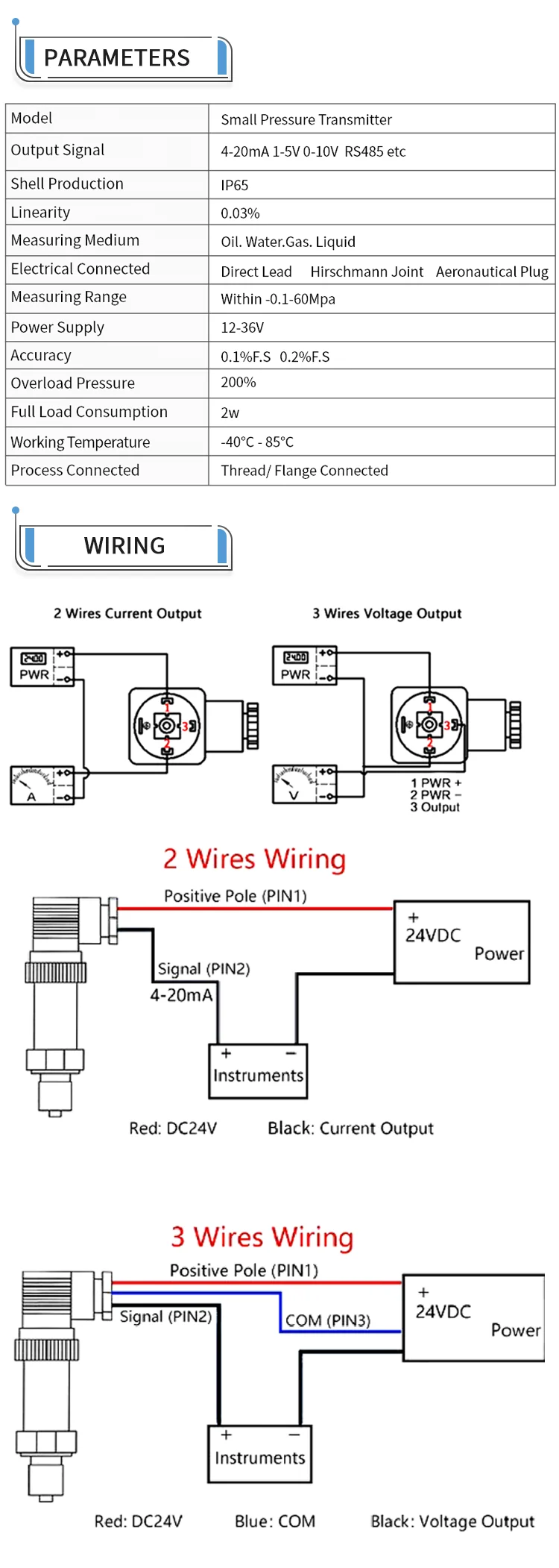

Output Signal: 4-20mA, 0-10V, 0-5V, RS485

Power Supply: DC24V, DC12V, DC12-30V,

Product Name: Direct Lead Pressure Sensor

Semi-finishedproduct: No

Shell Protection: IP67

Thread Size: M20*1.5, G1/2, G1/4,NPT1/2 customization

semi_Choice: yes

For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.

Our sales team will reply to you within 24 hours with detailed quotations and support.

Thank you for your inquiry!

Notes:

Default Power Supply: DC24V

Default Connection: NPT1/4 (other sizes G1/2,G1/4,NPT1/2,M20*1.5,M14*1.5, pls leave a message.)

Default cable length:50cm.

Pressure Range we can make :-0.1bar~0~1000bar. (-0.1Mpa-0-100Mpa)

If you need other special parameters,please contact me.

And let me know the range , output signal , power supply , thread size request .
Our packages will include a QR code for the product manual. If you cannot obtain the manual/RS485 protocol by the code, please contact me and I will send the manual to you directly.
Introduction:

<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.
<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.
<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

FEATURES:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 0-5V, 0-10V,RS485 various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

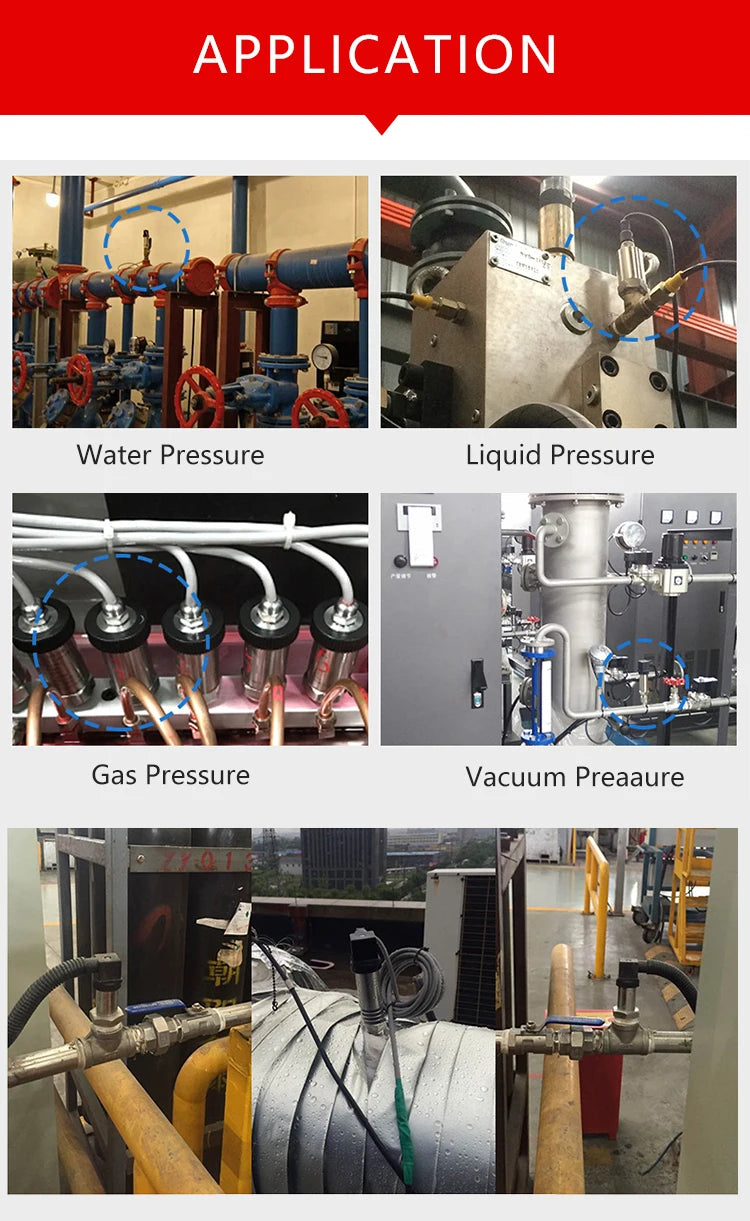

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring
