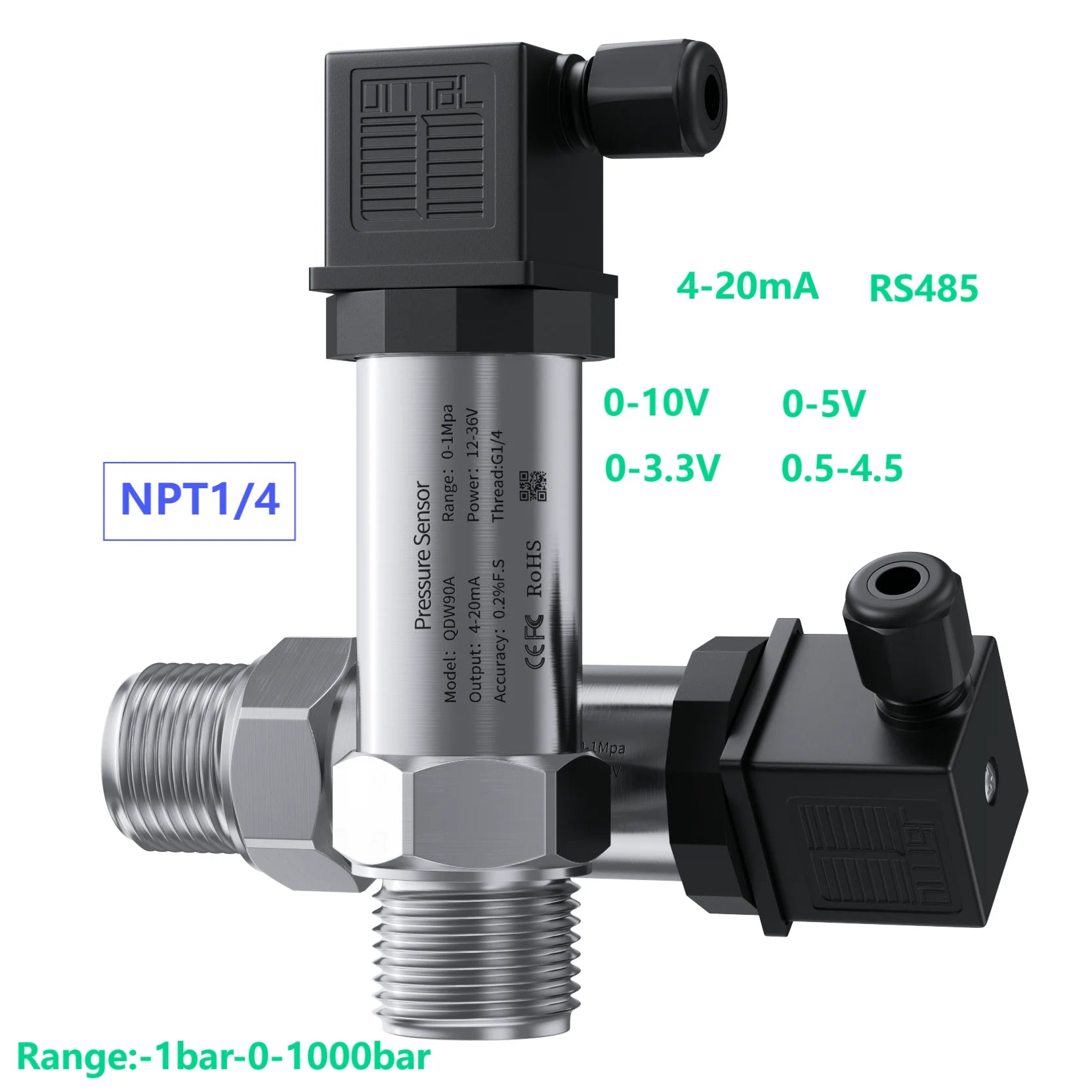

NPT1/4 Pressure Sensor Transmitter 4-20mA Hersman 0-1000bar 200bar -1bar 1bar Smart Hydraulic Pressure Transducer Gauge 0-5V

4-20mA dc24v / 0-60bar

$202.55

Sale price $202.55 Regular price $0.00

Skip to product information

NPT1/4 Pressure Sensor Transmitter 4-20mA Hersman 0-1000bar 200bar -1bar 1bar Smart Hydraulic Pressure Transducer Gauge 0-5V

NPT1/4 Pressure Sensor Transmitter 4-20mA Hersman 0-1000bar 200bar -1bar 1bar Smart Hydraulic Pressure Transducer Gauge 0-5V

$202.55

Sale price $202.55 Regular price $0.00

Color 4-20mA dc24v 0-10V dc24v RS485 dc24v 0-5V dc24v 0.5-4.5V dc5v 0-3.3V dc5v

Measuring Range 0-60bar 0-2.5Mpa 0-10bar -100-500Kpa 0-100Kpa -1bar-1bar -1bar-0 0-500bar 0-400bar 0-300bar 0-250bar 0-200bar 0-150bar 0-100bar 0-80bar 0-1000bar -1 to 3bar 0-800bar -1 to 10bar 0-600bar

Description

SPECIFICATIONS

Battery Included: no

Brand Name: Vadias

Certification: CE,FCC,RoHS

Choice: yes

Feature 1: 0-250bar to 4-20mA Hersman Pressure Transmitter Sensor

Feature 10: 0-100Bar to 0.5-4.5V Pressure Sensor

Feature 2: 0-100bar to 4-20mA Hersman Pressure Sensor Transmitter

Feature 3: 0-2.5Mpa to 0-10V Hersman Pressure Sensor

Feature 4: 0-16bar to RS485 Hersman Pressure Sensor

Feature 5: -1-10bar to 4-20mA Pressure Transmitter

Feature 6: 0-100Kpa to 4-20mA Pressure Transmitter

Feature 7: 0-2.5Mpa to RS485 Pressure Transmitter

Feature 8: 0-400Bar to 4-20mA Pressure Transmitter

Feature 9: 0-600bar to 0-3.3V Pressure Transmitter

High-concerned chemical: none

Material: SS304,ABS

Max Measuring Range: 400 Bar & Above

Measuring Range: -0.1Mpa~0~100MPa

Medium: Oil, Gas, Water, Air

Model Number: QDW90A

Origin: Mainland China

Output Signal: 4-20mA, 0-10V, 0-5V, 0-3.3V,0.5-4.5V,RS485

Power Supply: DC24V, DC12V, DC12-30V,

Product Name: Hersman Pressure Sensor

Semi-finishedproduct: No

Thread Size: NPT1/4

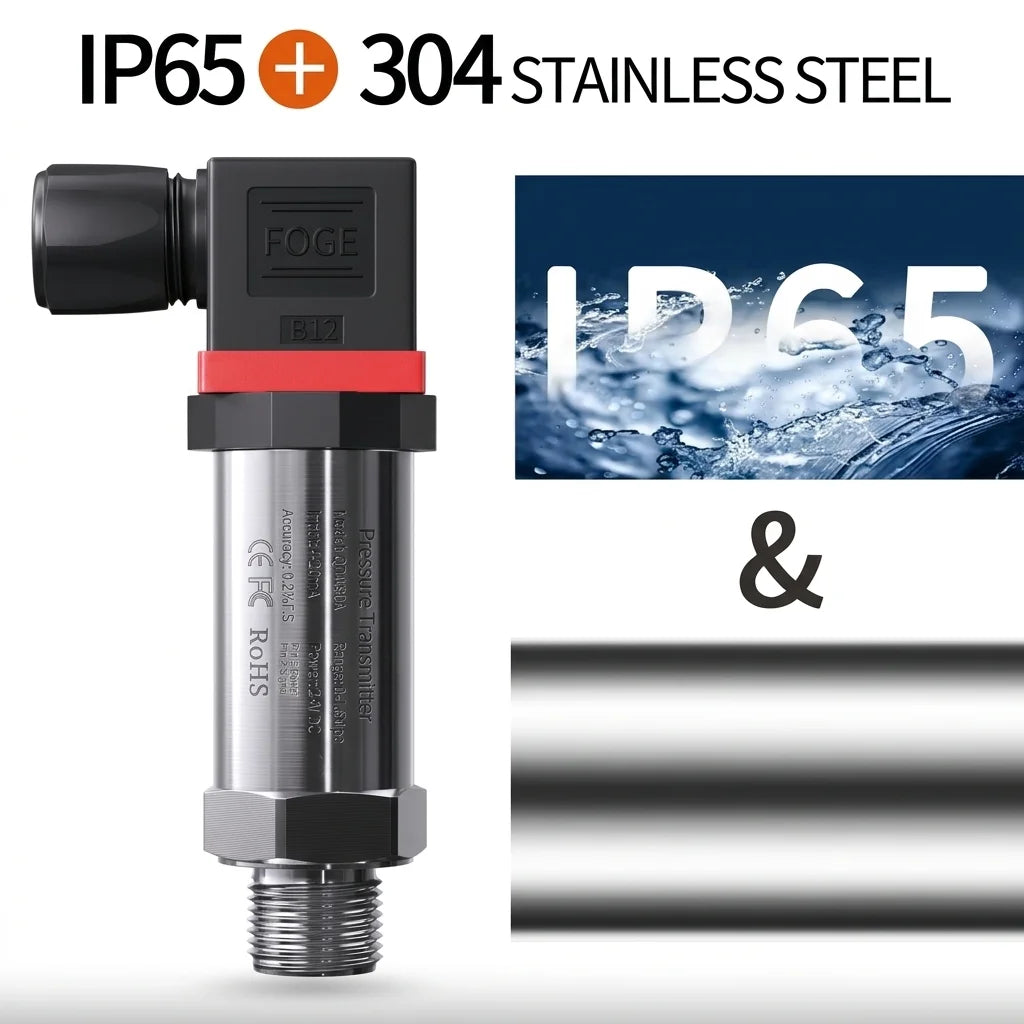

Waterproof Grade: IP65

semi_Choice: yes

For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.

Our sales team will reply to you within 24 hours with detailed quotations and support.

Thank you for your inquiry!

Notes:

1.DefaultPower Supply:DC24V,for 0-3.3V,0.5-4.5V output,the power supply is DC5V.

2.Default Thread size:NPT1/4,(for G1/2,G1/4,NPT1/2,M20*1.5,pls leave a message,tks)

3.We can make 0~1000bar,If you need other special parameters,pls contact with me.

And let me know the range , output signal , power supply , thread size request .

4.Our packages will include a QR code for the product manual. If you cannot obtain the manual/RS485 protocol by the code, please contact me and I will send the manual to you directly.

5.The voltage output does not have reverse protection, please be careful not to connect the wrong wire. Connecting the wrong wire will directly burn out the product, and the manufacturer cannot compensate.

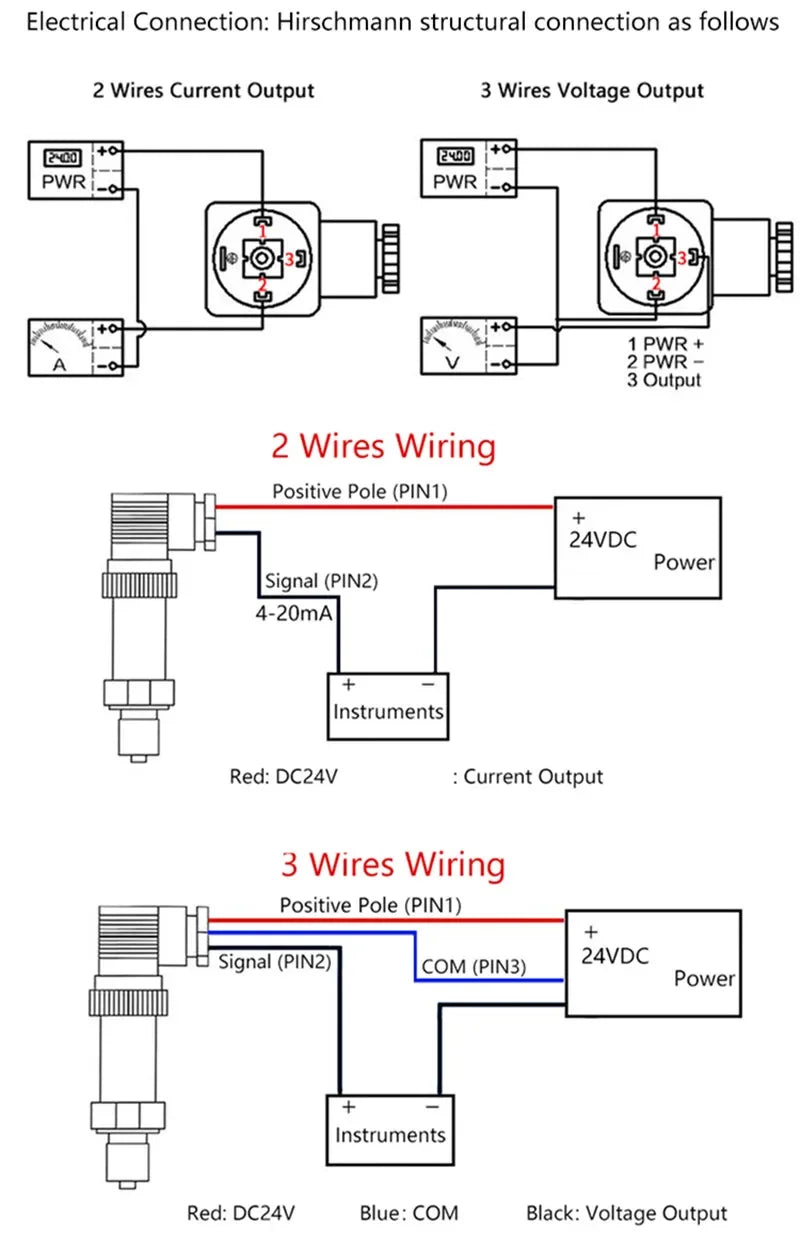

The detailed information below includes a wiring diagram. If you are unsure, please contact me. Thank you.

Introduction:

<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.
<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.
<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

FEATURES:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

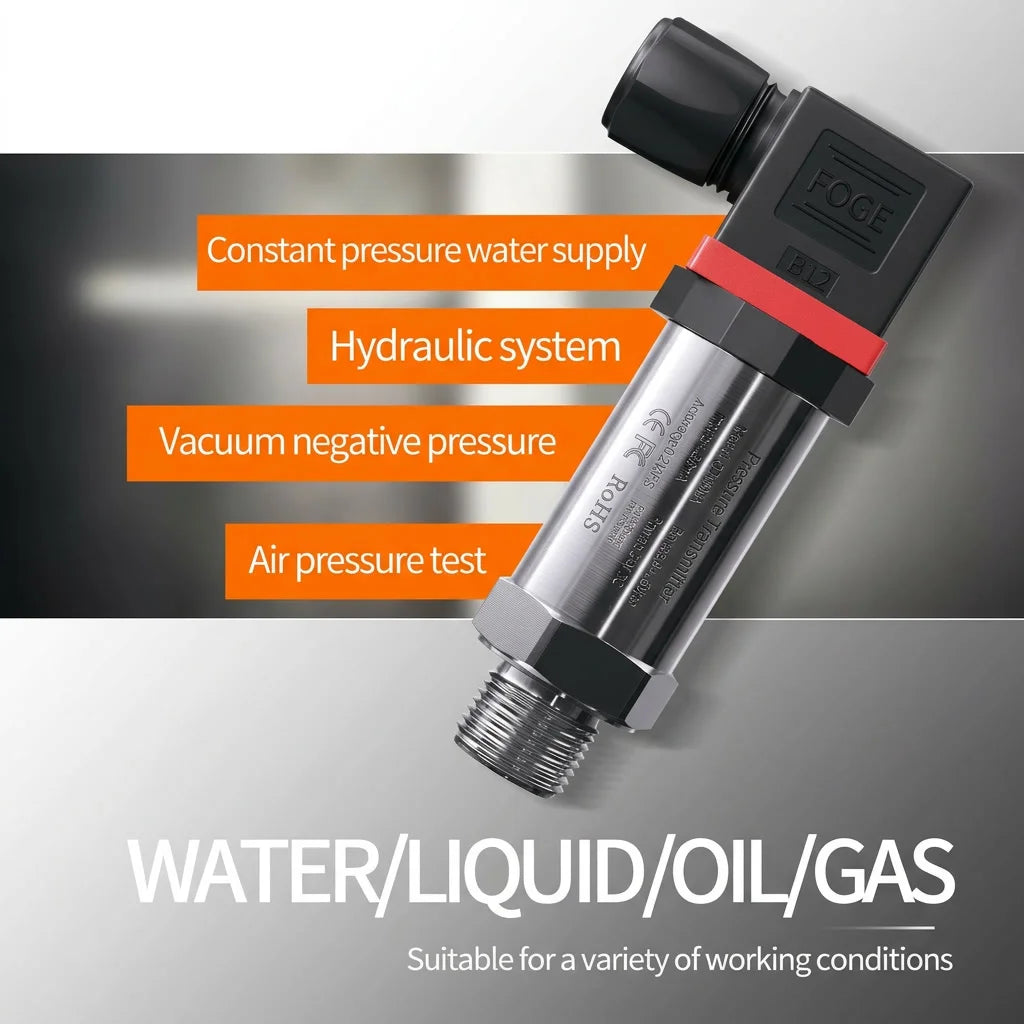

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

Technical parameters:

Model	QDX50
Measuring range	0~100MPa; -1~0~1 Bar.....600 Bar
Pressure type	Gauge pressure, Absolute pressure
Overload	150%F.S.
Output signal	4~20mA, 0~5V, 0~10V, 1~5V
Power supply	12~36VDC (Default: DC24V)
Response time	<3ms

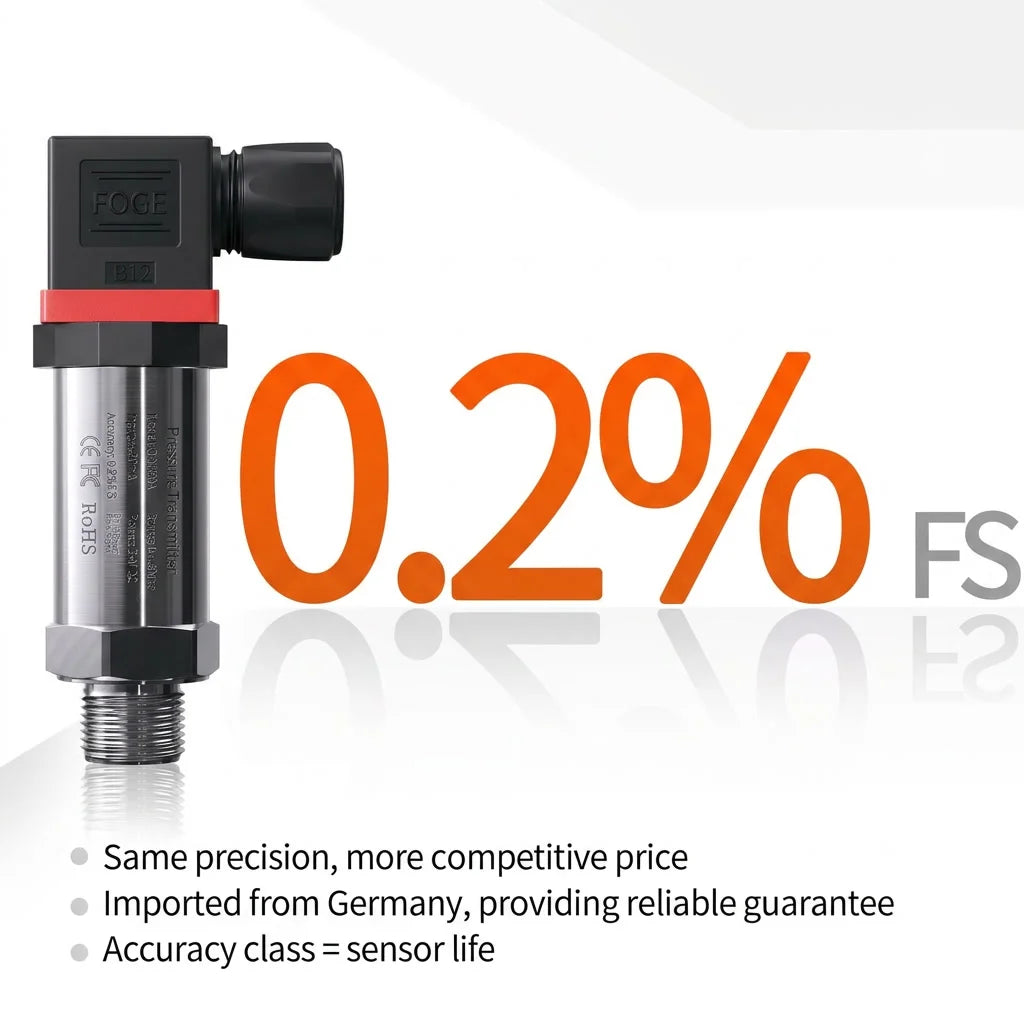

Accuracy	0.2%FS; 0.5%FS(Default)
Long-term stability	±0.1%F.S/year; ±0.2%F.S/year
Load resistance	RL=(U-12V)/0.02A (4~20mA current output) U—loop voltage(V)
Operating temperature	-30~80℃
Sorage temperature	-40~120℃
Zero Tempe Drift	0.2%FS/10℃
Pressure connection	M20×1.5,G1/2,G1/4,1/2NPT (Customized)
Material	Stainless steel shell; internal sensor 316L
Protection grade	IP65
