SPECIFICATIONS

Battery Included: no

Brand Name: Vadias

Certification: CE,FCC,RoHS

Feature 1: 0-400bar to 4-20mA Hersman Pressure Transmitter Sensor

Feature 10: 0-100Bar to 4-20mA Pressure Sensor Transmitter Sensor

Feature 2: 0-500Psi to 0-10V Pressure Transmitter

Feature 3: 0-100Psi to 4-20mA Pressure Sensor

Feature 4: -50-50mbar to 4-20mA Hersman Pressure Sensor

Feature 5: 0-1000bar to 0-10V Pressure Transmitter

Feature 6: -1-1bar to 0.5-4.5V Hersman Pressure Transmitter

Feature 7: 0-600bar to 4-20mA Pressure Transmitter

Feature 8: -1-0bar to RS485 Pressure Transmitter

Feature 9: 0-500Bar to 4-20mA Pressure Transmitter Sensor

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measuring Range: -0.1Mpa~0~100MPa

Medium: Oil, Gas, Water, Air

Model Number: QDW90A

Origin: Mainland China

Output Signal: 4-20mA, 0-10V, 0-5V, 0-3.3V,0.5-4.5V,RS485

Power Supply: DC24V, DC12V, DC12-30V,

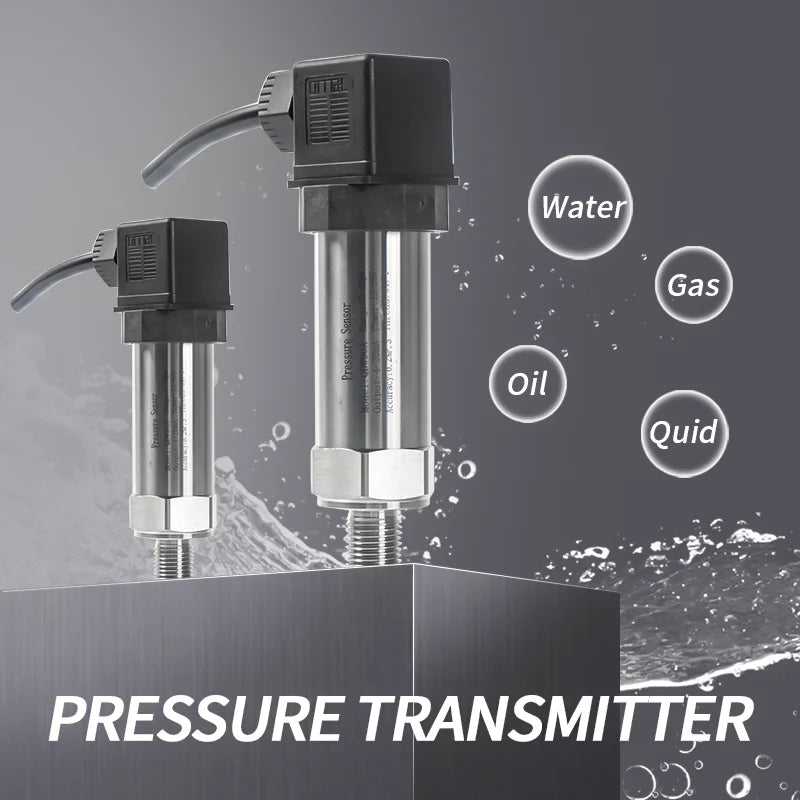

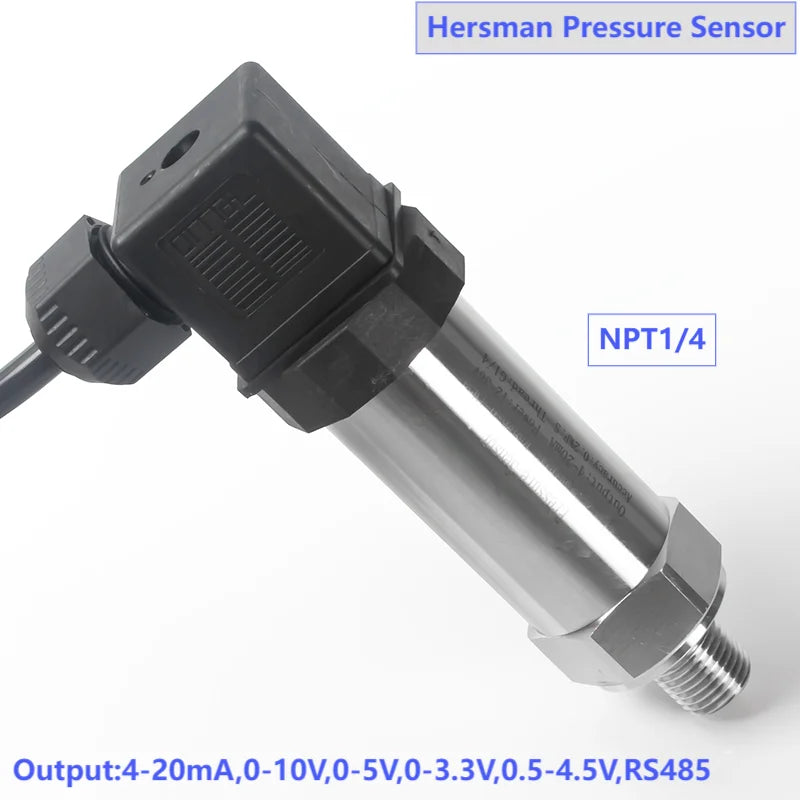

Product Name: Hersman Pressure Sensor

Semi-finishedproduct: No

Thread Size: NPT1/4

For bulk orders, OEM/ODM customization, or technical support, please send us a message via AliExpress Chat.

Our sales team will reply to you within 24 hours with detailed quotations and support.

Thank you for your inquiry!

NOTES:

DefaultPower Supply:DC24V,for 0-3.3V,0.5-4.5V output,the power supply is DC5V.

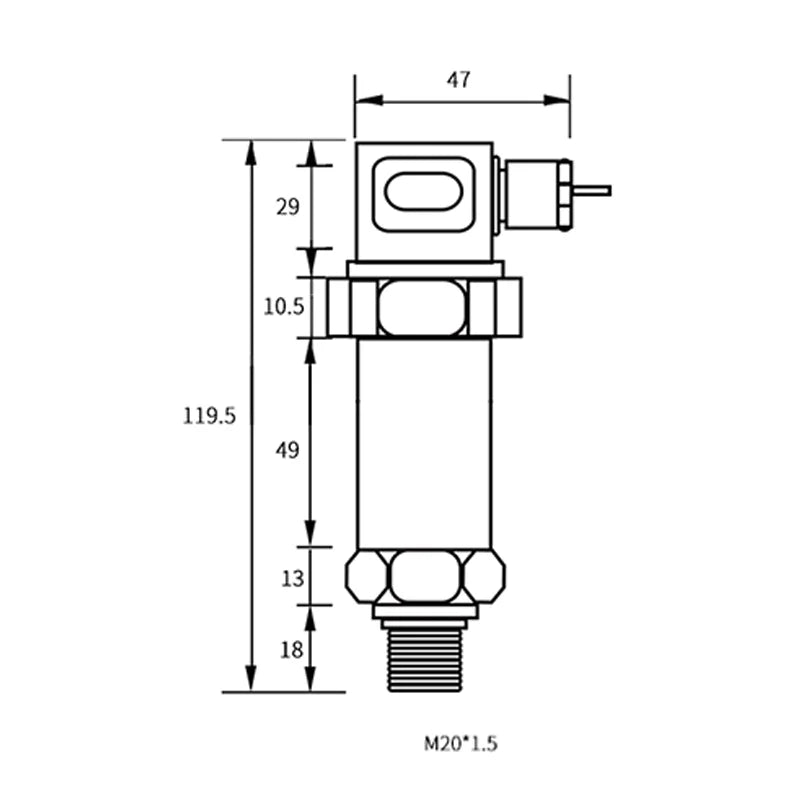

Default Thread size:NPT1/4,(for G1/2,G1/4,NPT1/2,M20*1.5,pls leave a message,tks)

Our packages will include a QR code for the product manual. If you cannot obtain the manual/RS485 protocol by the code, please contact me and I will send the manual to you directly.

Introduction:

<1>. This series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.

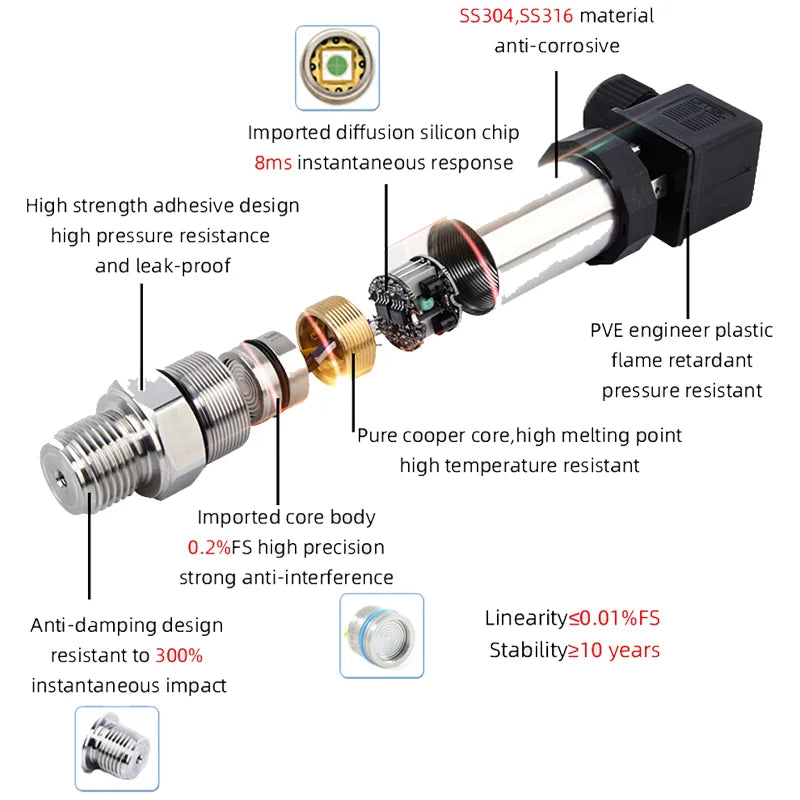

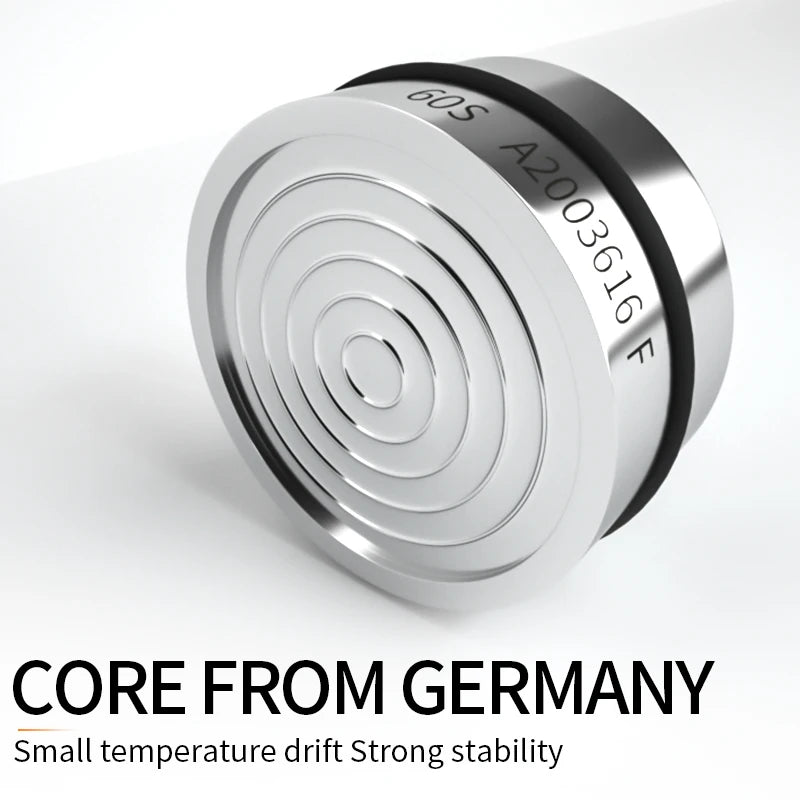

<2>.The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.

<3>.This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>.Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

Features:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

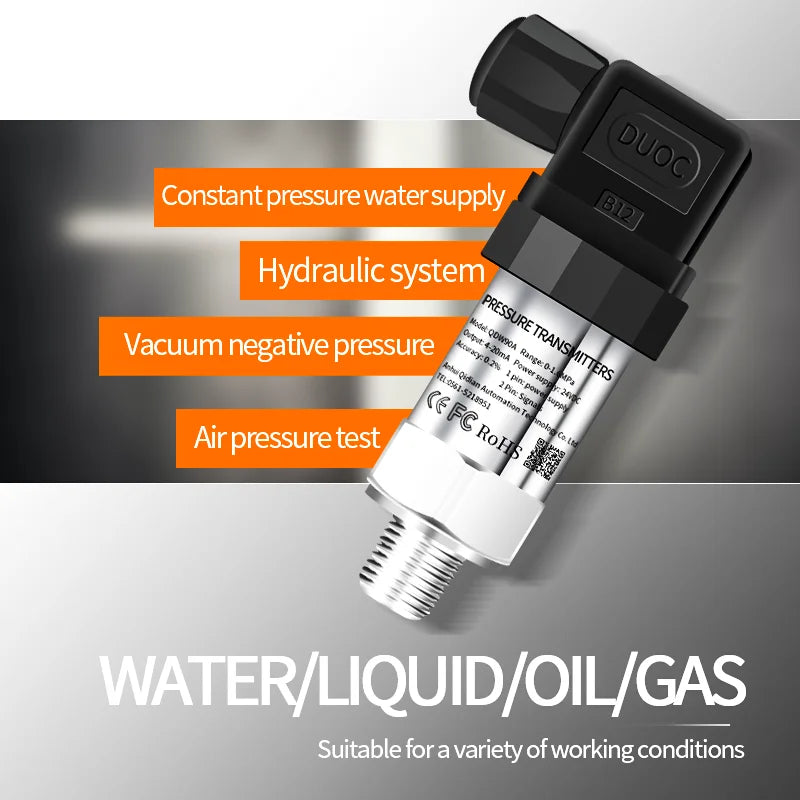

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring
