Description

SPECIFICATIONS

Accuracy: +/-0.5-1%FS

Battery Included: no

Brand Name: BENXU

Case Material: 304 Stainless Steel

Certificate: CE&ROHS

Certification: CE,RoHS

Electrical Connection: Packard plug-in Unit

High-concerned chemical: none

Long-term Stability: ≤±0.2%FS/year

Max Measuring Range: 100 - 199 Bar

Model Number: BX-PTV201

Origin: Mainland China

Power Supply: 5VDC or 12VDC

Pressure Medium: non-corrosive liquid or gas

Pressure Range: 5-3000psi/-14.5 to 30psi/-14.5 to 45psi/10bar

Pressure Thread: NPT1/8

Pressure Type: Gauge Pressure

Protection Class: IP65

Semi-finishedproduct: No

Sensor Core: Ceramic Pressure Sensor

Singal Output: 0.5-4.5V or 1-5V Linear Voltage Output

Temperature Drift on Sensitivity: Typical:0.02%FS/℃;Maximal:0.05%FS/℃

Temperature Effect on Zero: Typical:0.02%FS/℃;Maximal:0.05%FS/℃

Working Temperature: -40 to +85℃

Technical Parameters:

Pressure Range	5-3000psi/-14.5-30psi/-14.5 to 45psi or 0-10bar gauge pressure
Power Supply	5VDC±0.5V or 12VDC±0.5V
Signal Output	0.5-4.5V or 1-5V linear voltage output

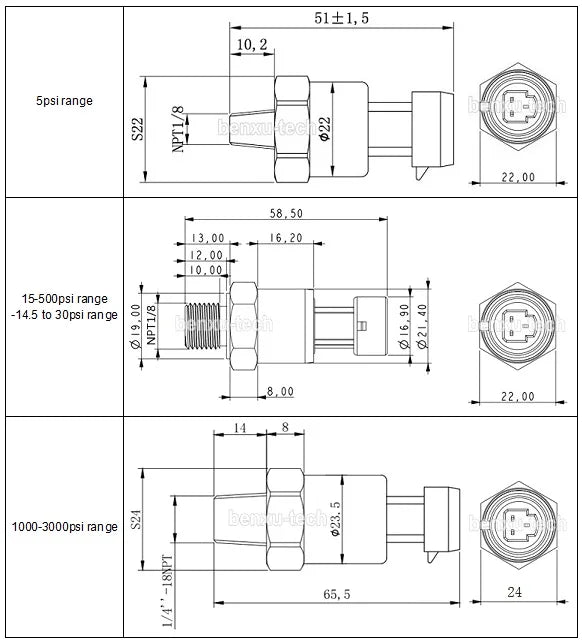

Pressure Connection	NPT1/4 for 3000psi,NPT1/8 for others
Accuracy	±0.5-1%FS
Sensor	Al203-96% ceramic sensor
Overload Capacity	200%FS
Pressure Medium	Non-corrosive liquid or gas
Long-term Stability	≤±0.2%FS/year
Working Temperature	-40 to +85℃
Temperature Drift	±0.02%FS/℃

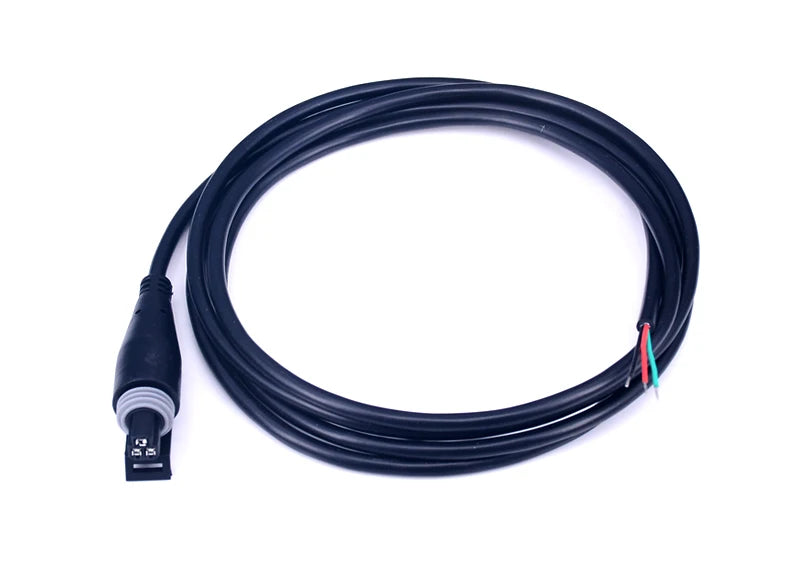

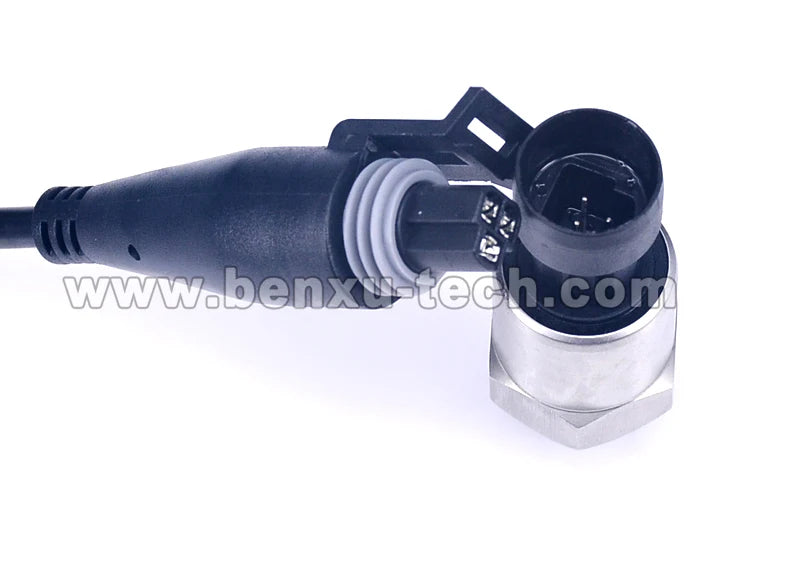

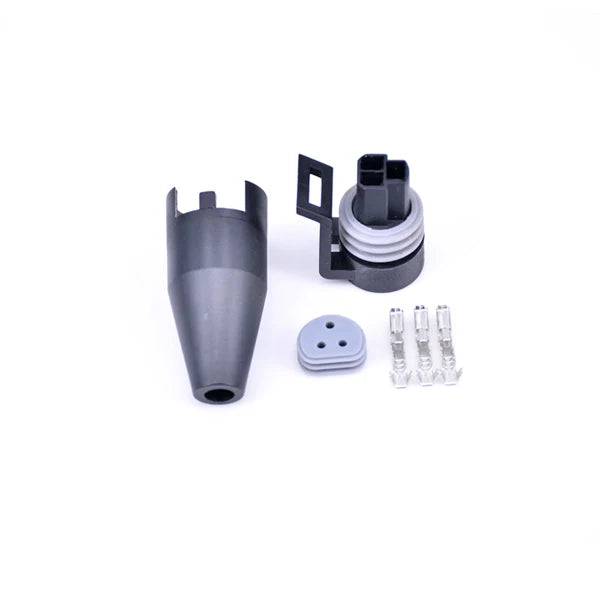

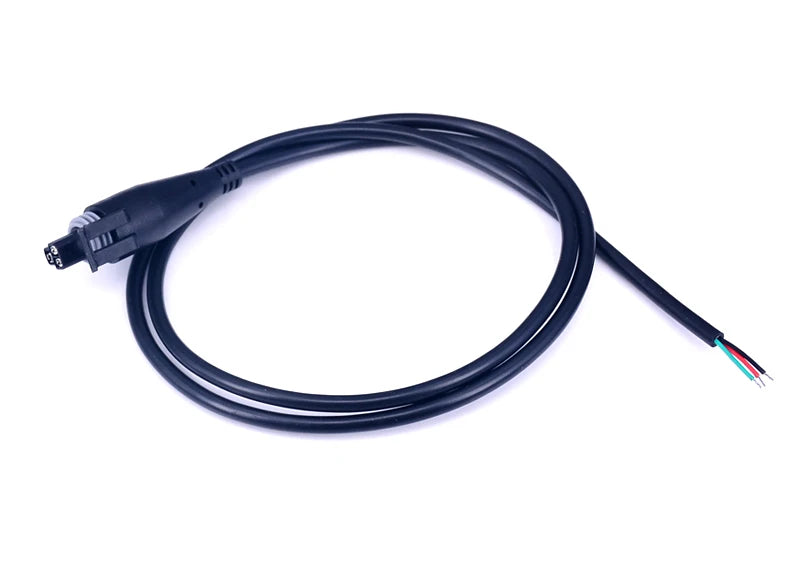

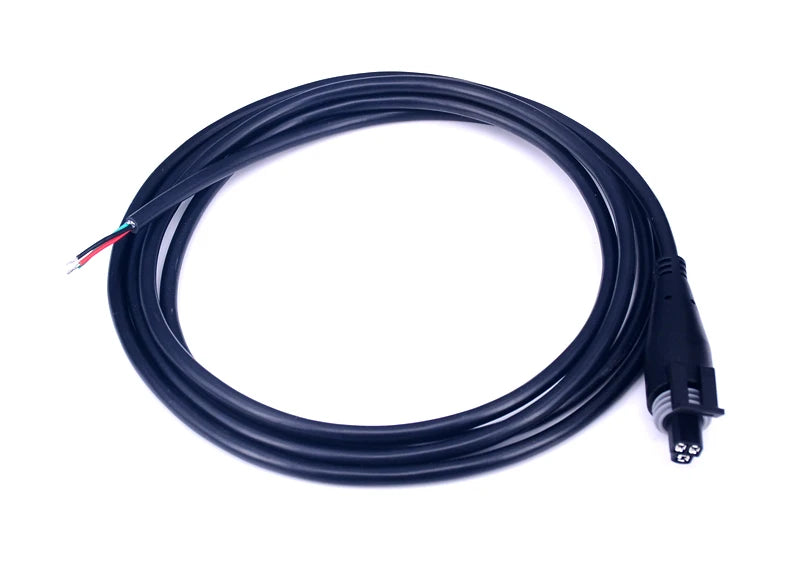

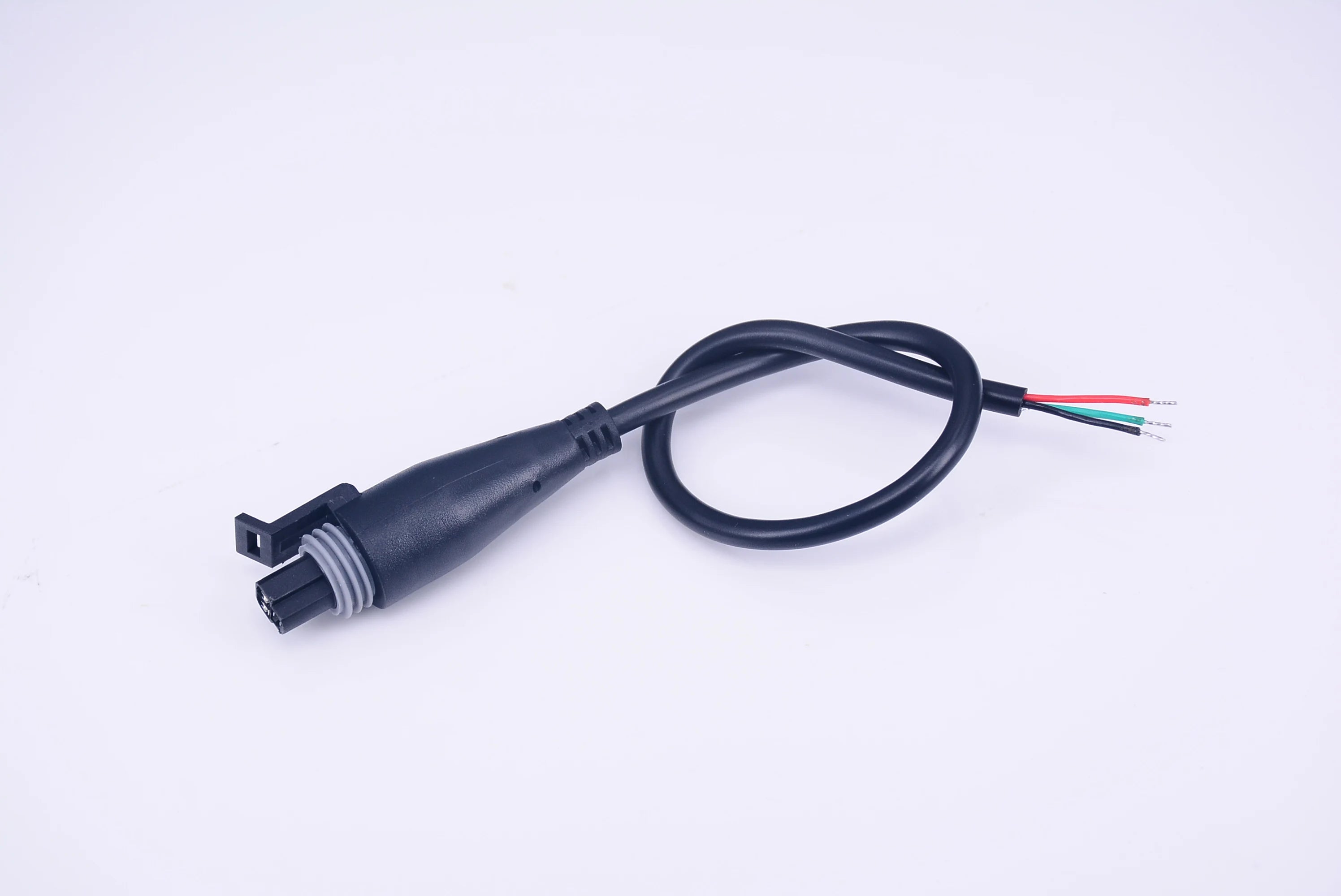

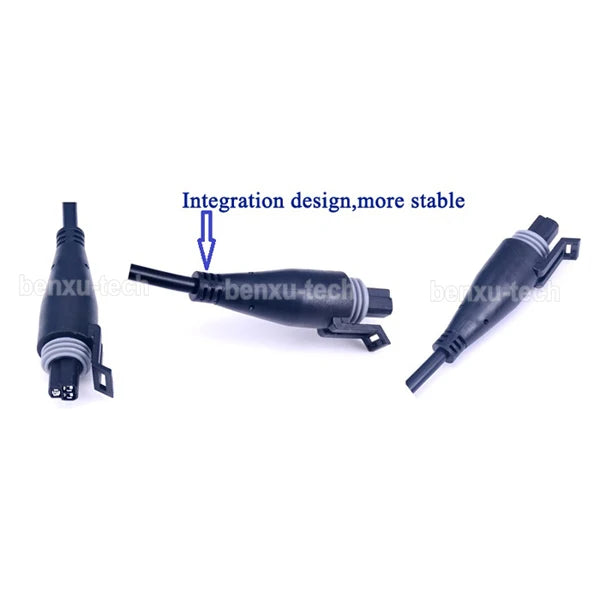

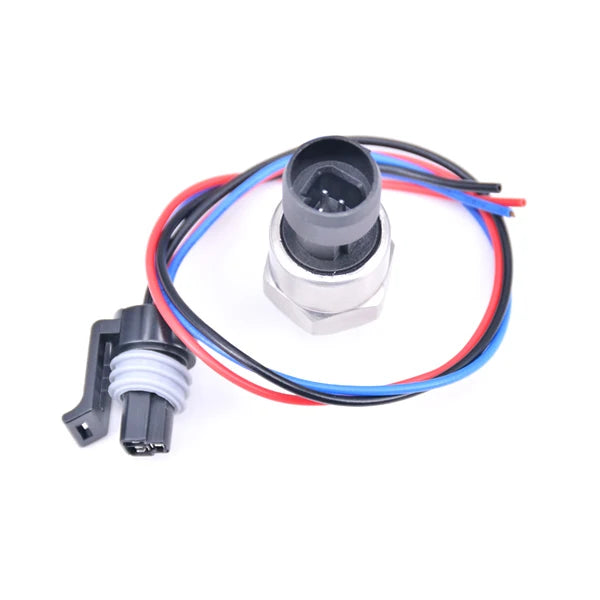

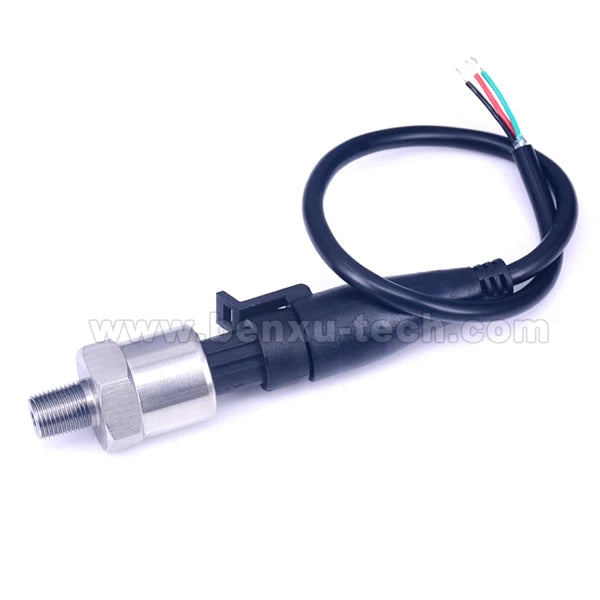

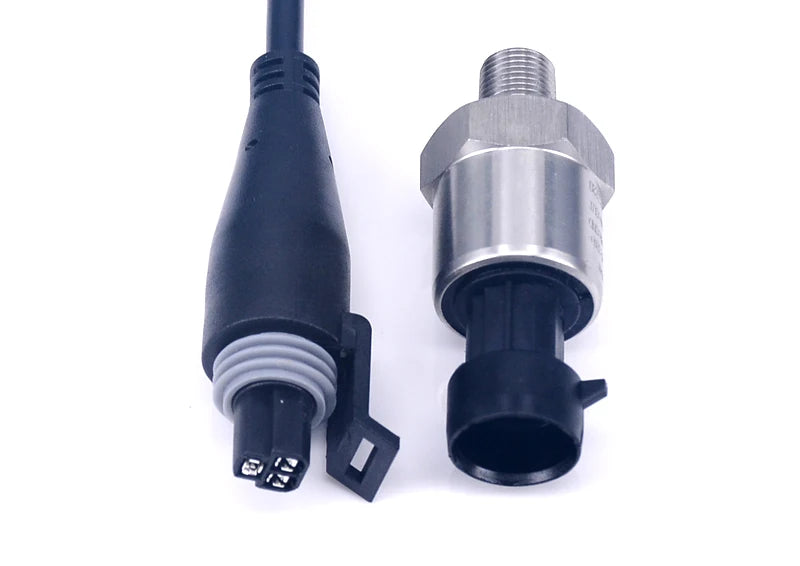

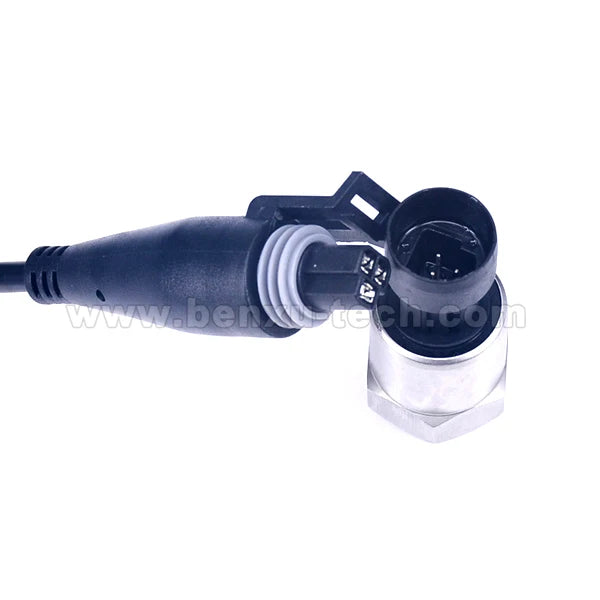

Electrical Connection	Packard Connector with 0.3m cable

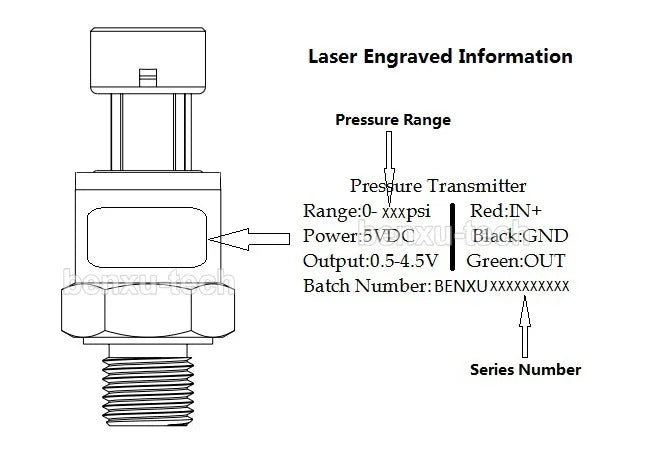

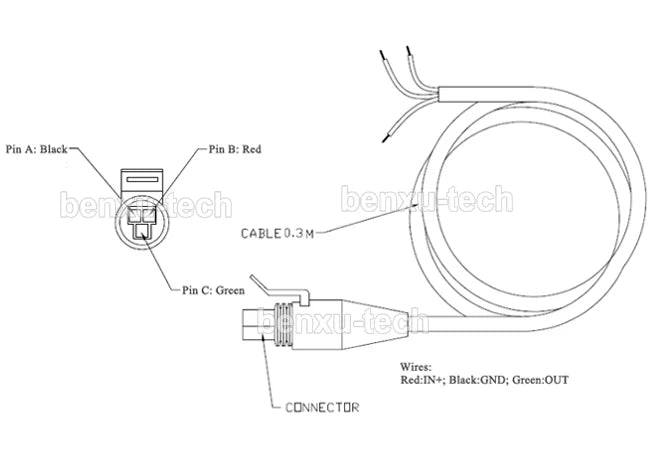

Wiring	Red:IN+; Black:GND; Green:OUT
Waterproof Class	IP65

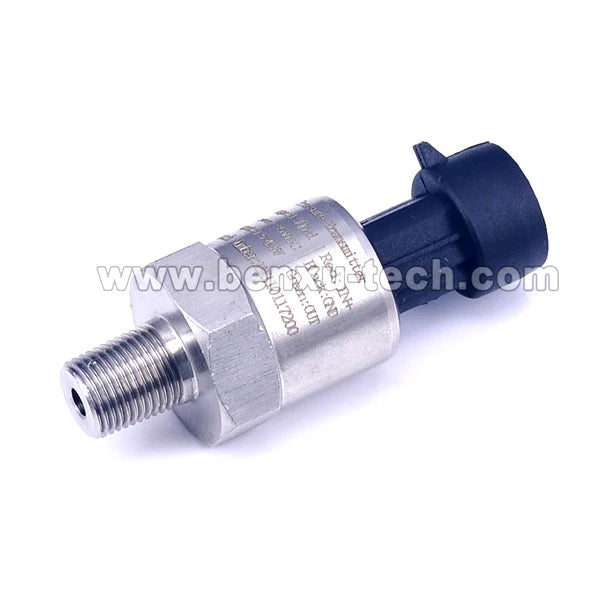

Housing Material	304 Stainless Steel
Blast Proof Class	ExiaПCT6
