nRF24L01 2.4GHz SMD Wireless Module PA LNA Long Distance 800m SPI RF Transceiver CDSENET E01-2G4M20S1B PCB Antenna GFSK
Default Title
$20.21
Sale price
$20.21
Regular price
$0.00
Skip to product information
nRF24L01 2.4GHz SMD Wireless Module PA LNA Long Distance 800m SPI RF Transceiver CDSENET E01-2G4M20S1B PCB Antenna GFSK
$20.21
Sale price
$20.21
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CDSENET
Choice: yes
Condition: New
High-concerned chemical: none
Model Number: E01-2G4M20S1B
Origin: Mainland China
Type: Module

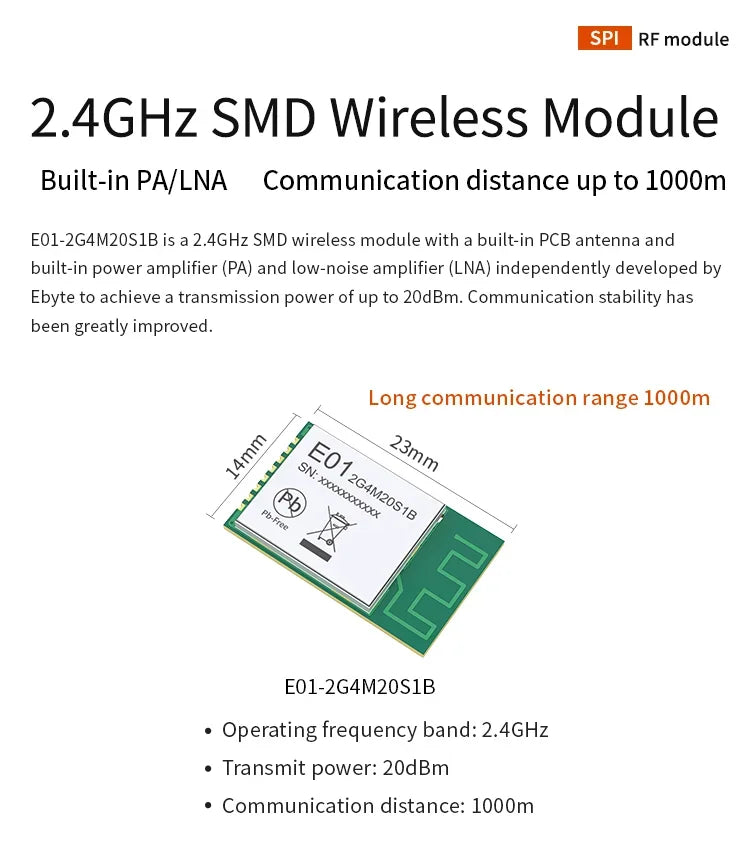

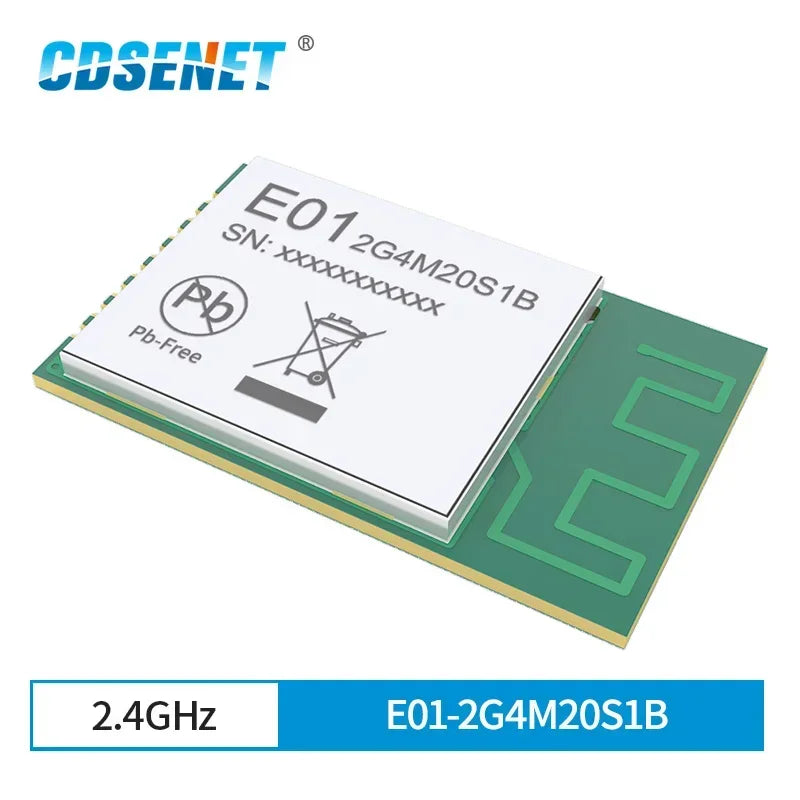

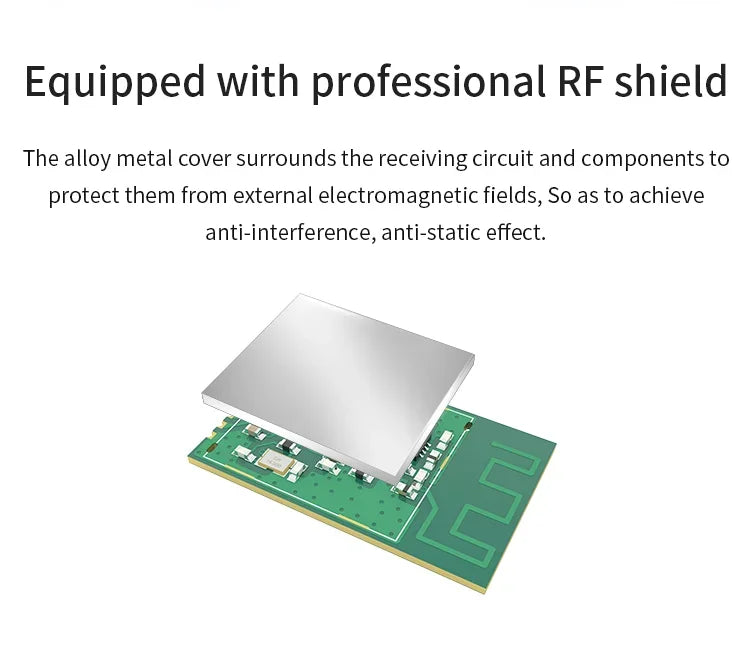

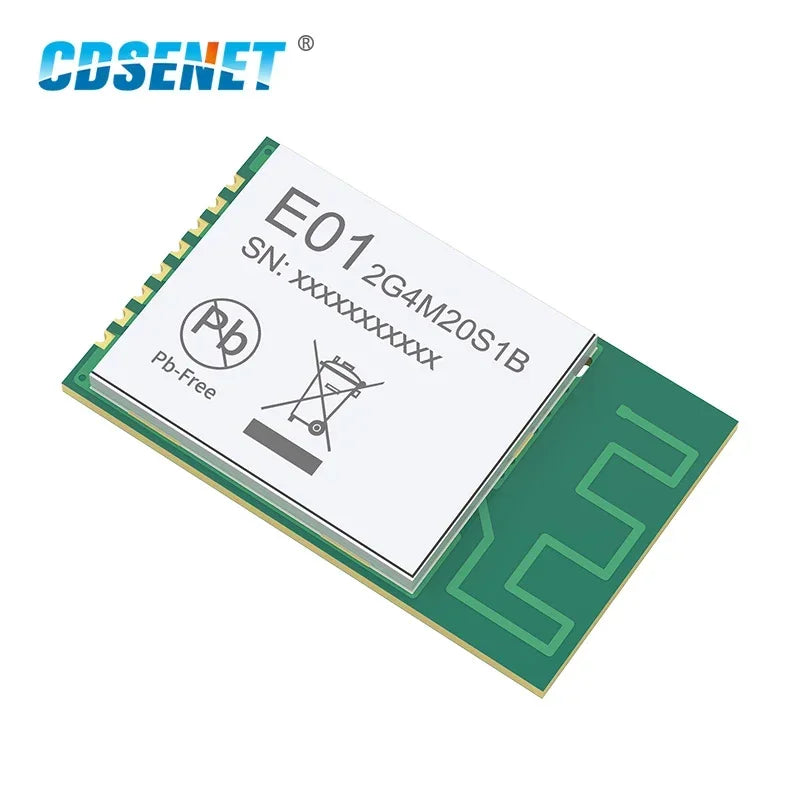

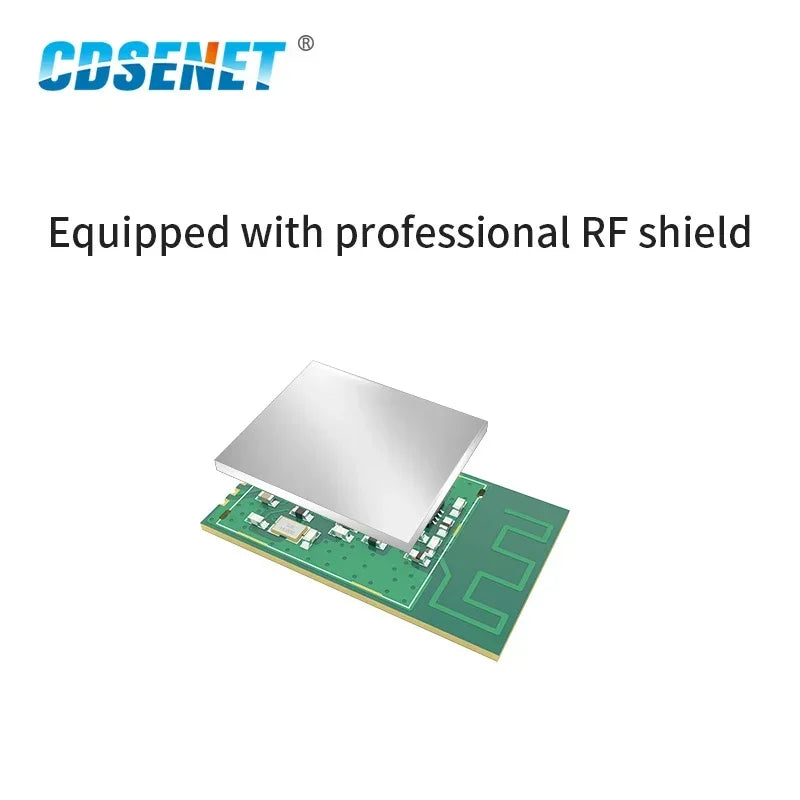

E01-2G4M20S1B nRF24L01 2.4GHz PCB Antenna SMD Module PA LNA Long Distance SPI Transceiver
Download Files:
PCB:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111412329297.zip
DEMO:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111412285309.zip
User Manual:https://www.cdebyte.com/pdf-down.aspx?id=626
|
Main parameter |
Description |
Remark |
|
Voltage supply |
0~3.6V |
Voltage over 3.6V will cause permanent damage to module |
|
Blocking power |
-10dBm |
Chances of burn is slim when modules are used in short distance |
|
Working temperature |
-40 ~85℃ |
- |
|

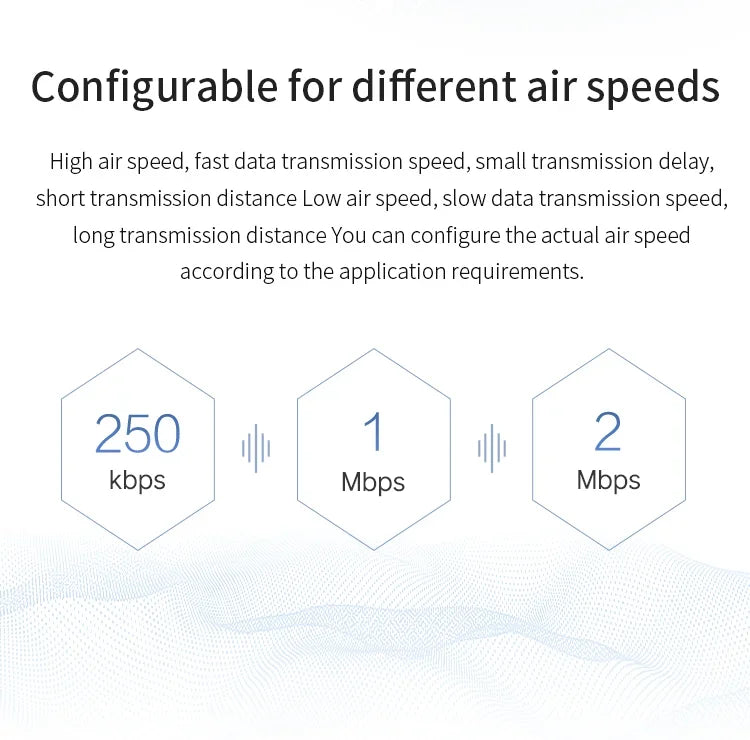

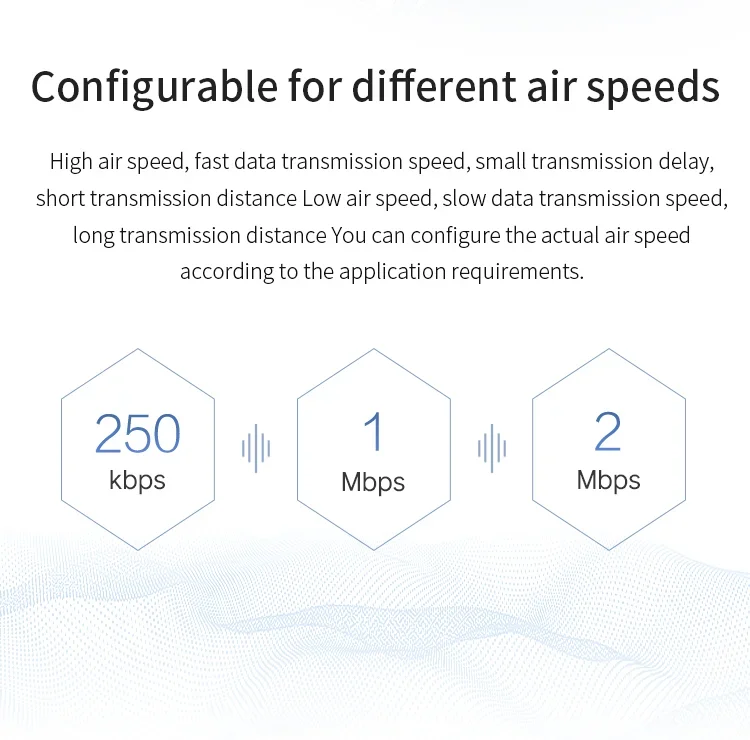

Distance |
800m |
in open and clear air, at height of 2.5m,air data rate:250kbps |
|
FIFO |
32Byte |
Max packet length per time |
|
Crystal Frequency |
16MHz |
- |
|
Modulation |
GFSK |
- |
|
Package |
SMD |
- |
|
Connector |

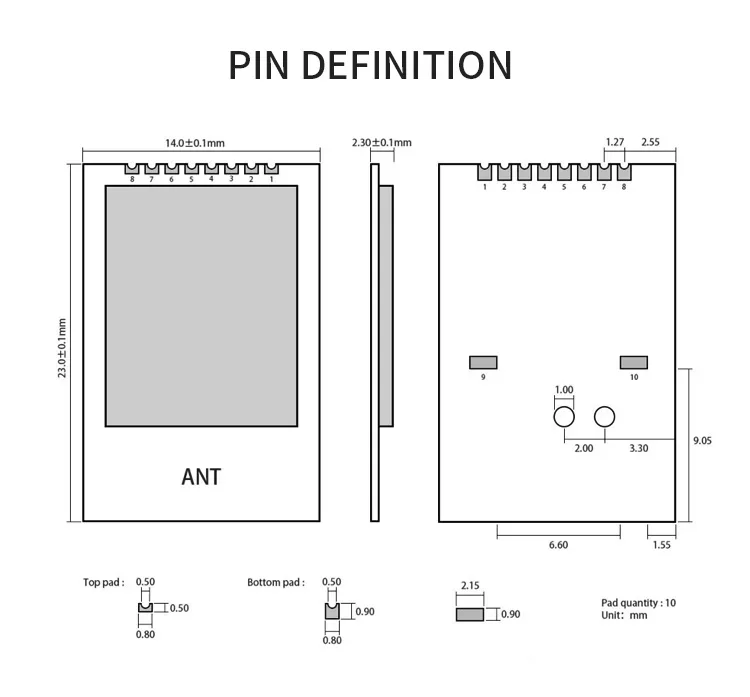

Half hole 1.27mm |
- |
|
Communication interface |
SPI |
0-10Mbps |
|

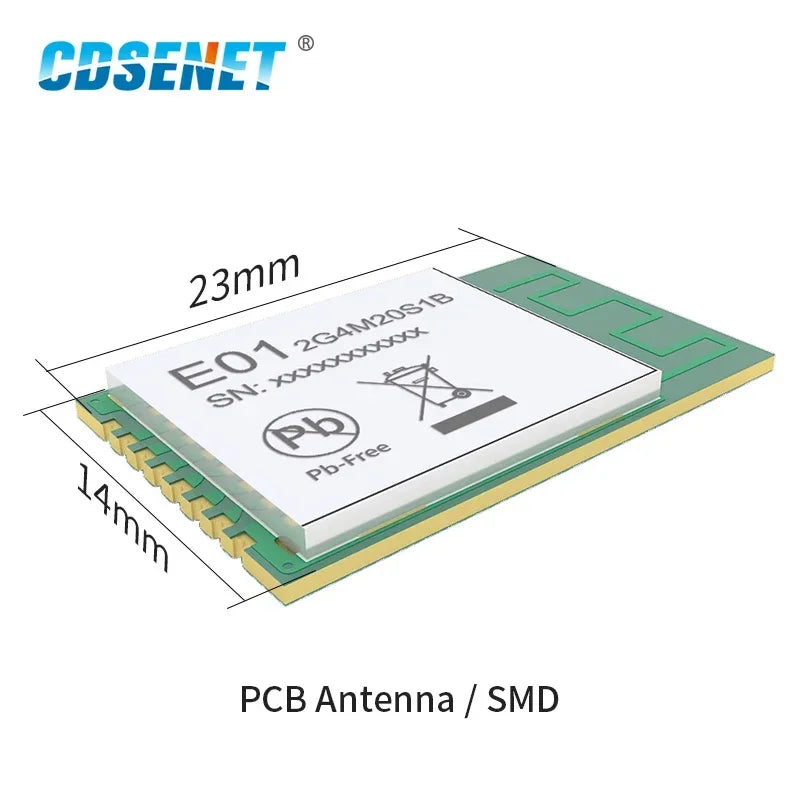

Size |
23 * 14mm |
with PCB antenna |
|
Antenna |
PCB antenna |
50 ohm impedance match |
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Operating voltage |
2.0 |
3.3 |
3.6 |
V |
≥3.3 V ensures output power |
|
Communication level |
- |
3.3 |
- |
V |
For 5V TTL, it may be at risk of burning down |
|
TX current |
- |
135 |
- |
mA |
Instant power consumption |
|
RX current |
- |
20 |
- |
mA |
- |
|
Sleep current |
19 |
19.5 |
20 |
μA |
Software is set 0dBm, built-in pa |
