SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

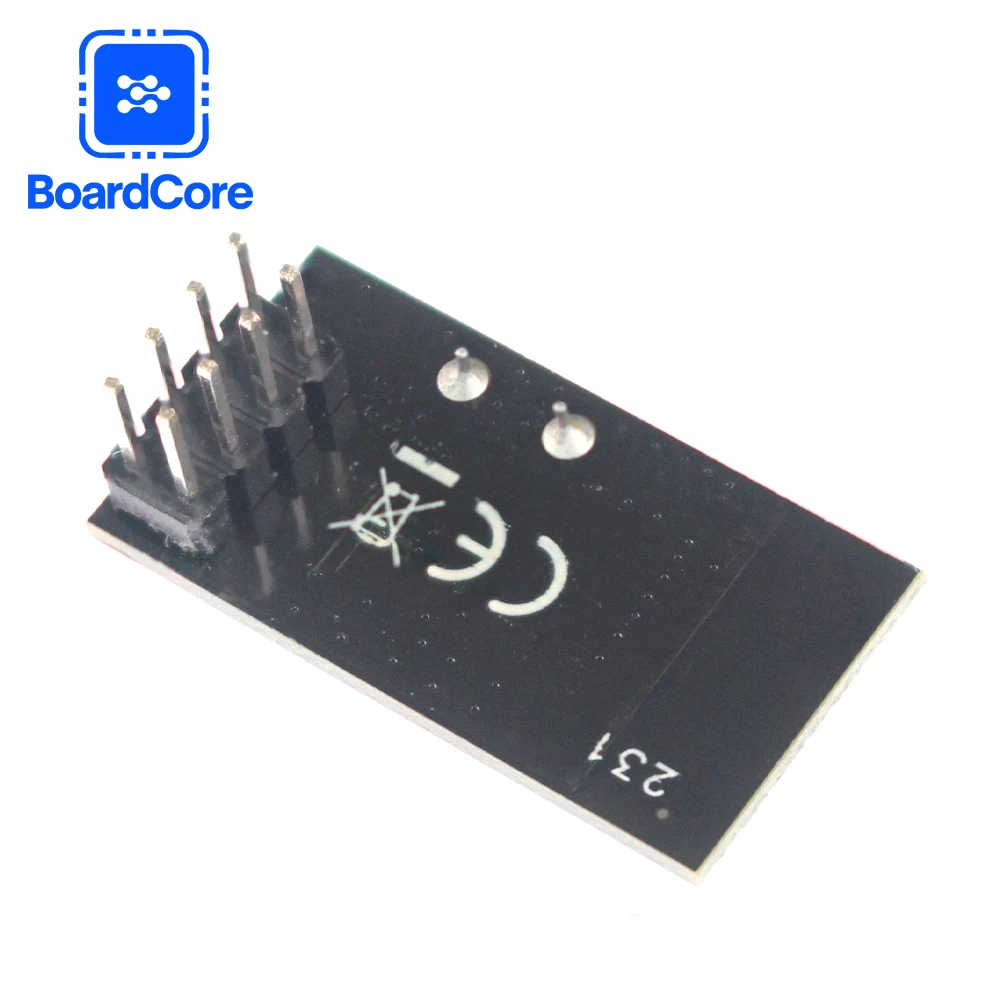

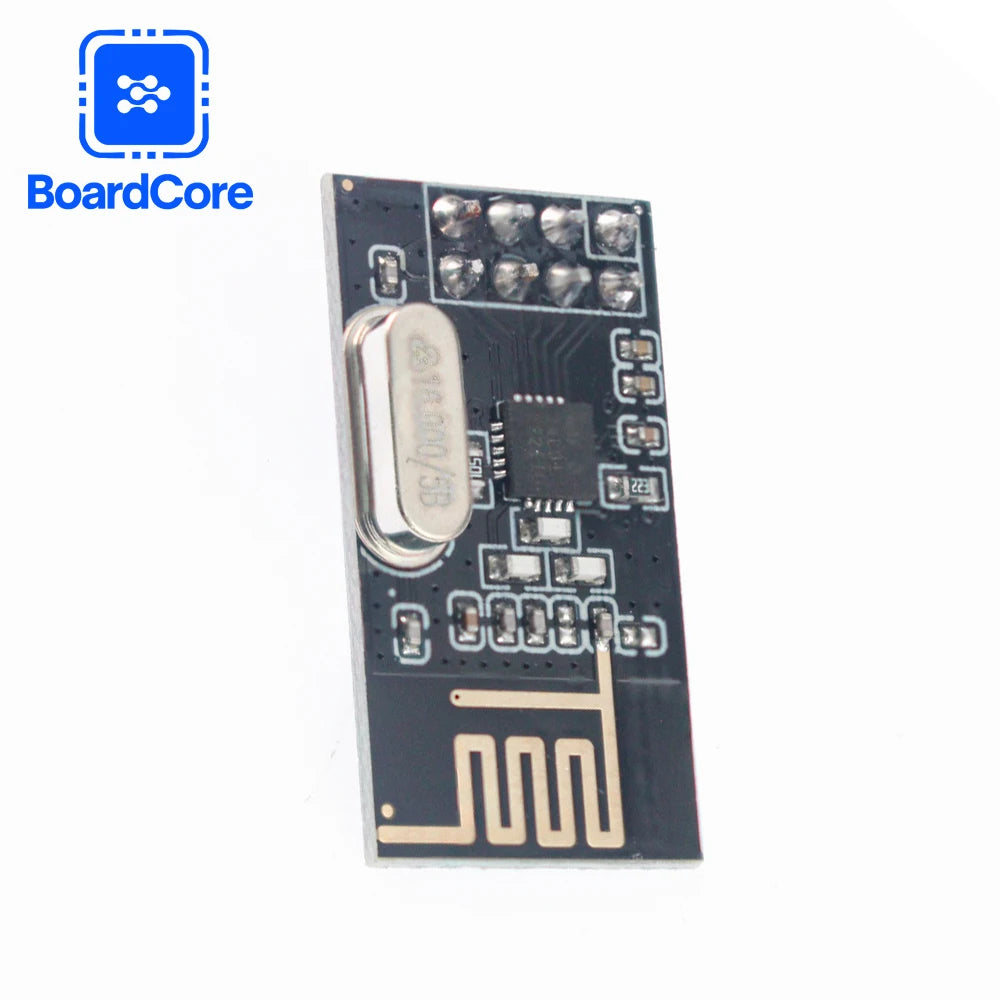

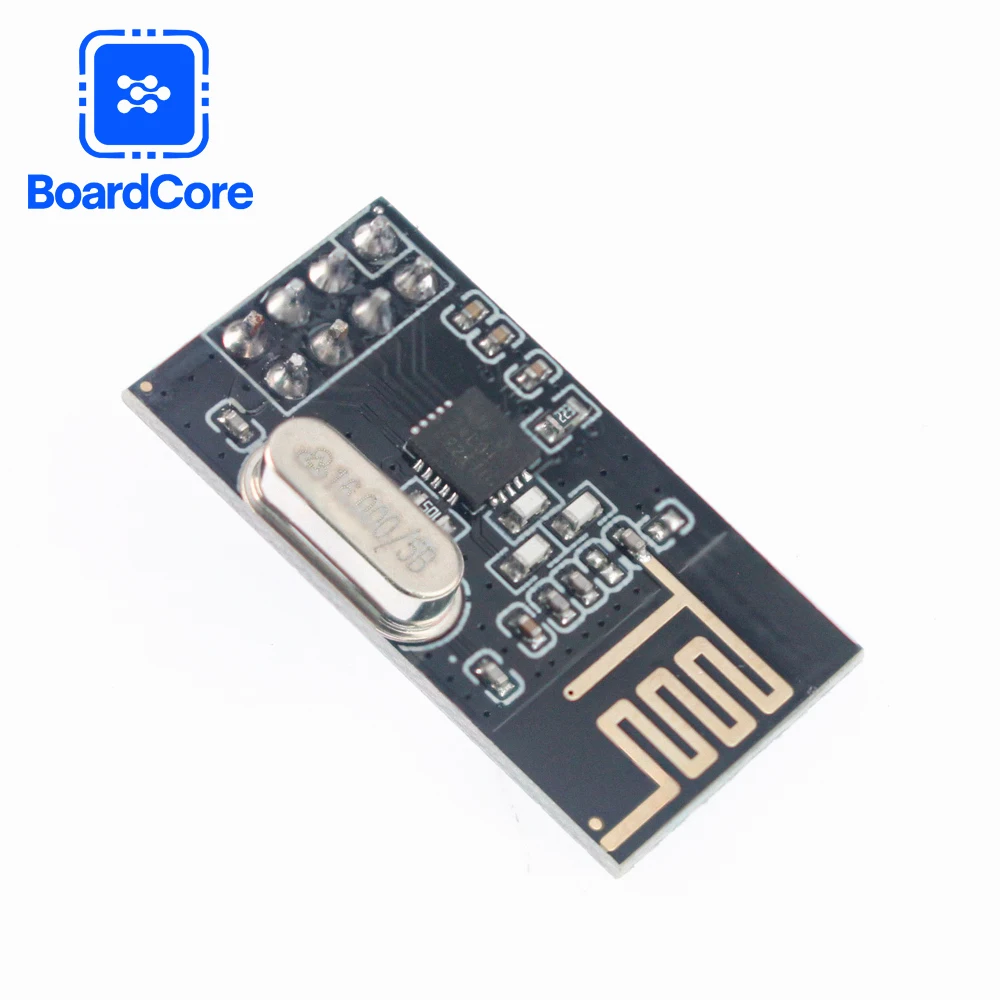

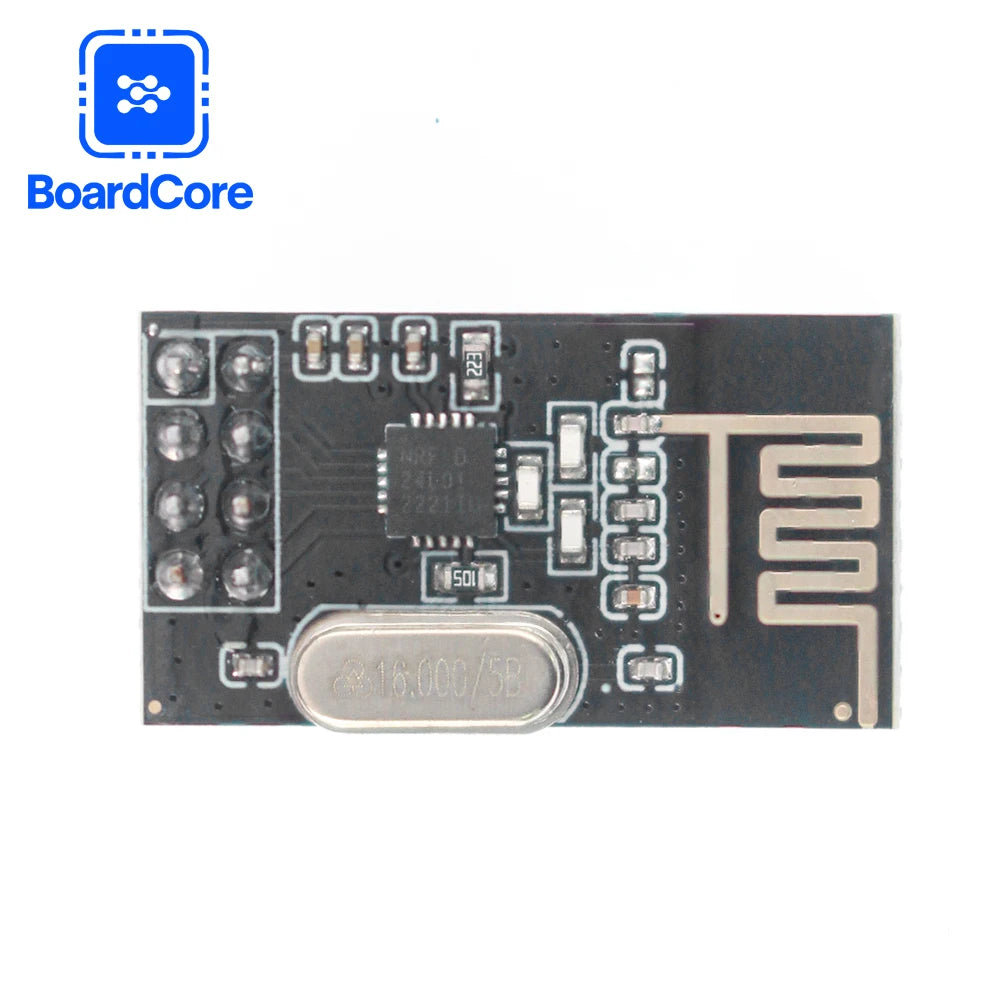

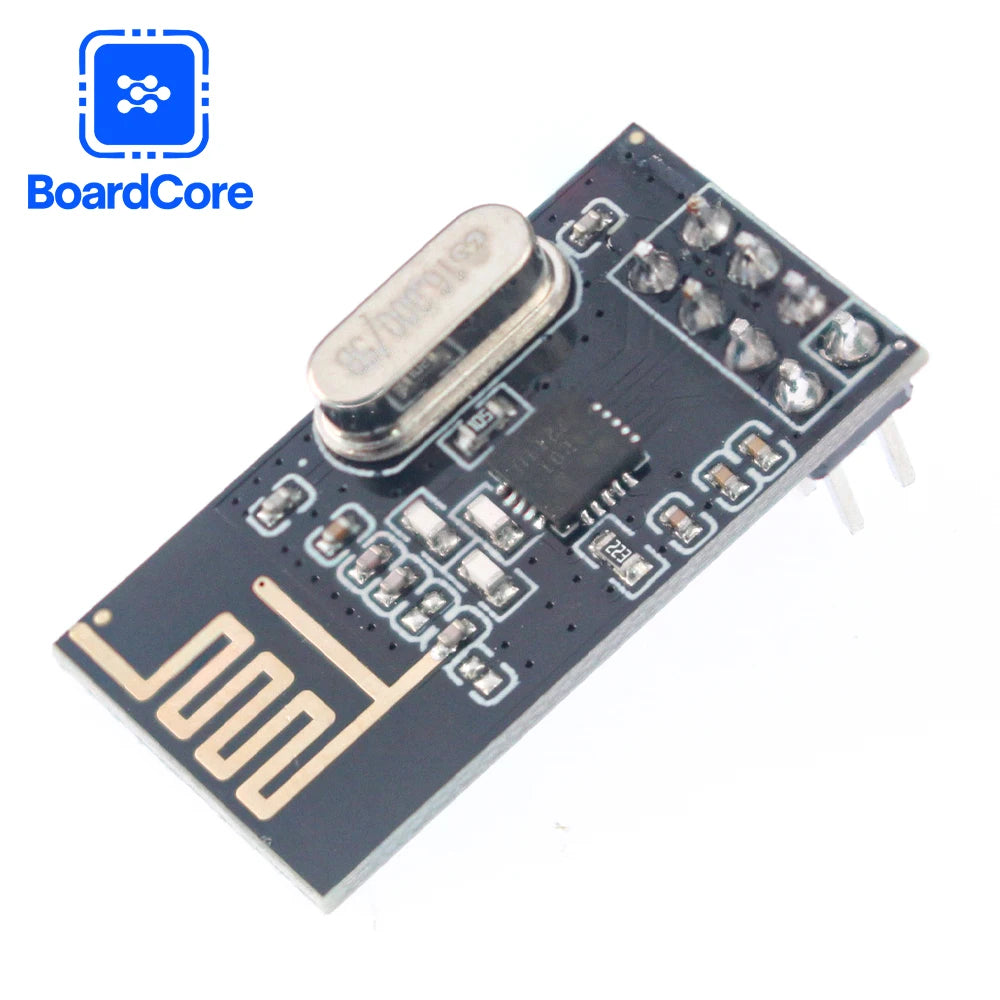

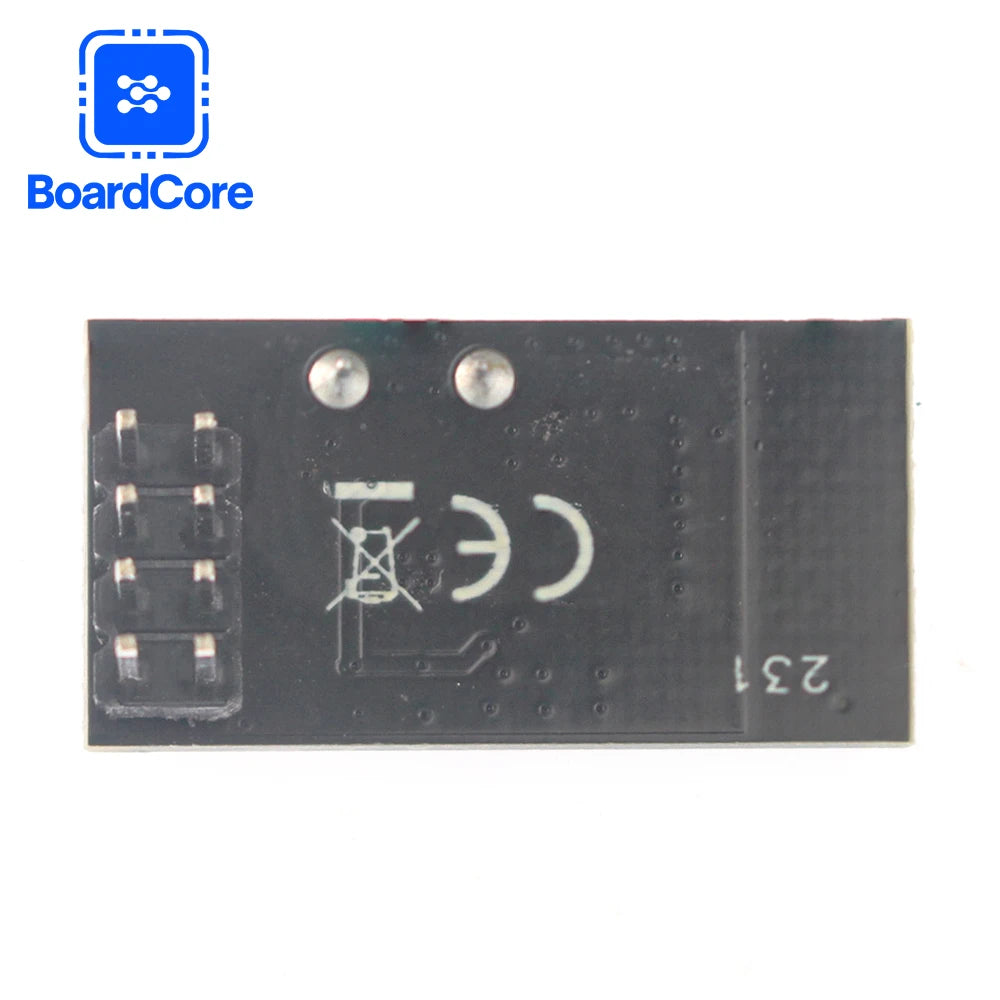

NRF24L01 Upgraded Version Wireless Transceiver Module Technical Specifications

Product Overview
The NRF24L01 upgraded version is an enhanced single-chip wireless transceiver operating in the global 2.4-2.5GHz ISM band, integrating a complete wireless communication solution.

Key Features

Frequency Band: 2.4-2.5GHz ISM license-free band

Transmit Power: Up to 0dBm (100m range in open areas)

Supply Voltage: 1.9-3.6V wide operating range

Data Rate: Software-configurable dual mode (2Mbps/1Mbps)

Communication Channels: 125 selectable frequency points

Dimensions: 15×29mm (with built-in 2.4GHz antenna)

Performance Parameters
Ultra-Low Power Design:

Transmit mode (6dBm): Only 9.0mA

Receive mode: 12.3mA

Lower power consumption in standby/sleep modes

Multi-Channel Support:

6 independent receive channels

125 frequency points supporting frequency hopping

Enhanced Communication Reliability:

Automatic packet retransmission

Hardware CRC verification

Packet error counter

Carrier detection function

Technical Advantages

Highly Integrated Design:

Automatic packet processing

Smart acknowledgment mechanism

Supports point-to-multipoint address control

Developer-Friendly Features:

Full link layer integration

Programmable retransmission parameters

Supports hardware SPI/GPIO emulation interface

Built-in FIFO buffer

Typical Applications

Smart remote control devices

IoT terminals

Low-power sensor networks

Package Contents
NRF24L01 upgraded module ×1
