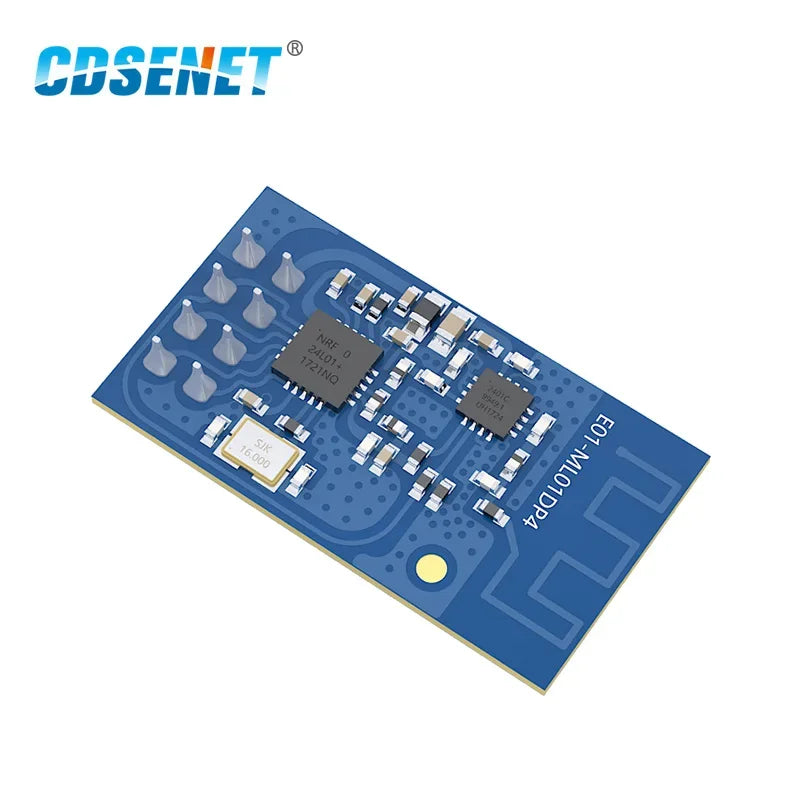

nRF24L01P SMD E01-ML01DP4 SPI 2.4GHz nRF24L01 PA LNA Wireless rf Transceiver 20dBm Long Range 2.4G nRF24L01+ PCB Anten rf Module
$18.09
Sale price
$18.09
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CDSENET
Choice: yes
Condition: New
Distance: 1800m
High-concerned chemical: none
Interface: SPI
Model Number: E01-ML01DP4
Origin: Mainland China
Power: Maximum 20dBm
RF IC: nRF24L01
RF connector: SMD
Size: 15*27mm
Type: Module
Working Frequency: 2.4 GHz
nRF24L01P SMD E01-ML01DP4 SPI 2.4GHz nRF24L01 PA LNA Wireless rf Transceiver 20dBm Long Range 2.4G nRF24L01+ PCB Anten rf Module
Download Files:
PCB:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/2022111134075416.zip
DEMO:https://www.cdebyte.com/Uploadfiles/Files/2022-1-11/20221111339569659.zip
User Manual:https://www.cdebyte.com/pdf-down.aspx?id=599
|
RF Parameter |
Value |
Remark |
|
Working frequency |
2400~2525 MHz |
Default: 2.4GHz (16MHz oscillator) |
|
Transmitting power |
20 dBm |
Max. Power (100mW) |
|
Receiving sensitivity |
-96 dBm |
Air data rate: 250kbps |
|
Air data rate |
250k~2Mbps |
Default: 250kbps |
|
Test distance |
1800m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
|
Hardware Parameter |
Value |
Remark |
|

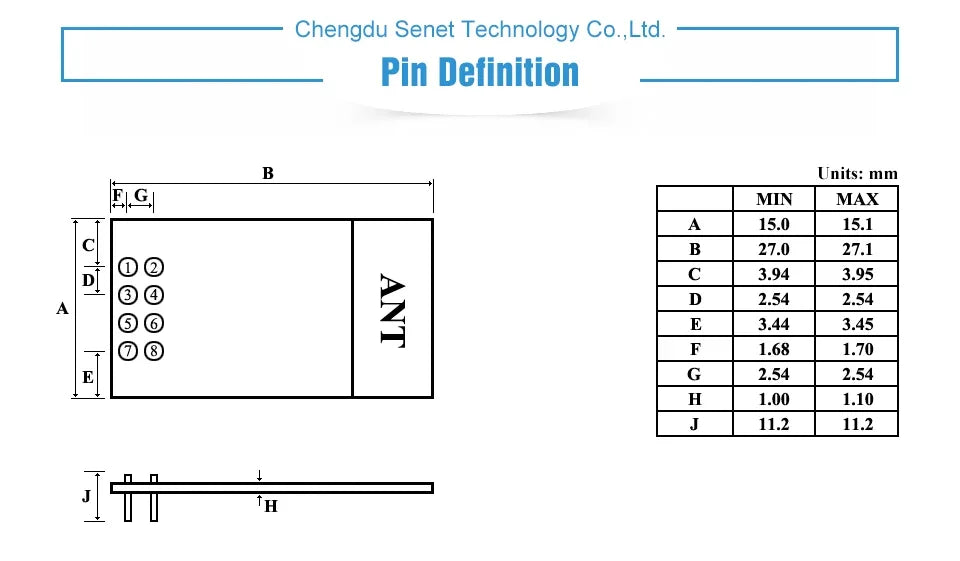

Size |
15 * 27 mm |
Without SMA |
|
Antenna type |
PCB |
|
|
Communication interface |
SPI |
|
|
Package |
DIP |
|
|
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
|
Power supply |
2.0 |
3.3 |
3.6 |
V |
|
|
Communication level |
2.0 |
3.3 |
3.6 |
V |
|
|

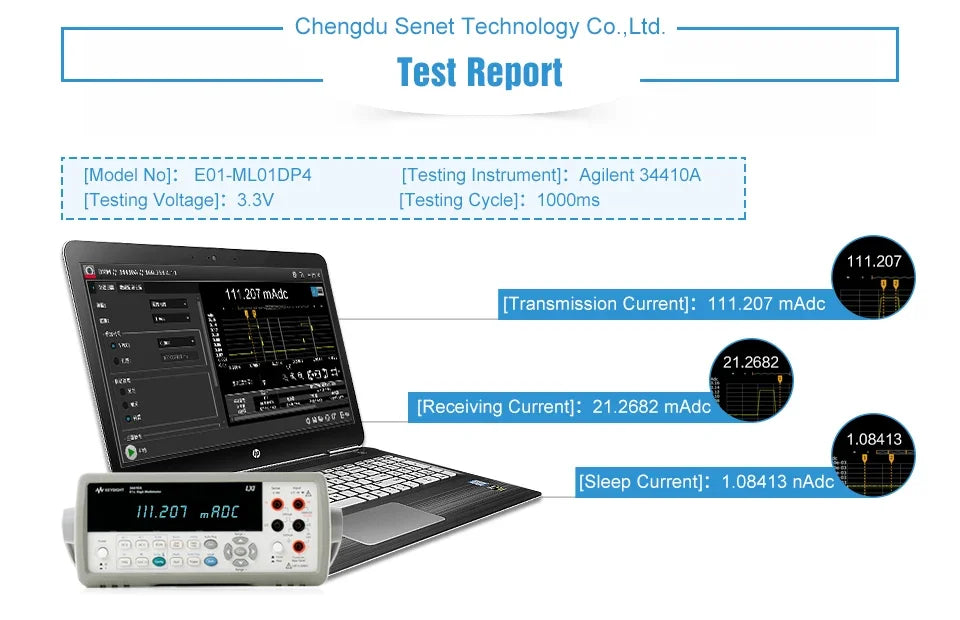

Transmitting current |
100 |
110 |
120 |
mA |
20dBm（100mW） |
|
Receiving current |
18 |
20 |
22 |
mA |
|
|
Sleep current |
0.5 |
1.0 |
2.0 |
μA |
|
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
|
Operating humidity |
10 |
60 |
90 |
% |
|
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
|
