SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Origin: Mainland China

Semi-finishedproduct: No

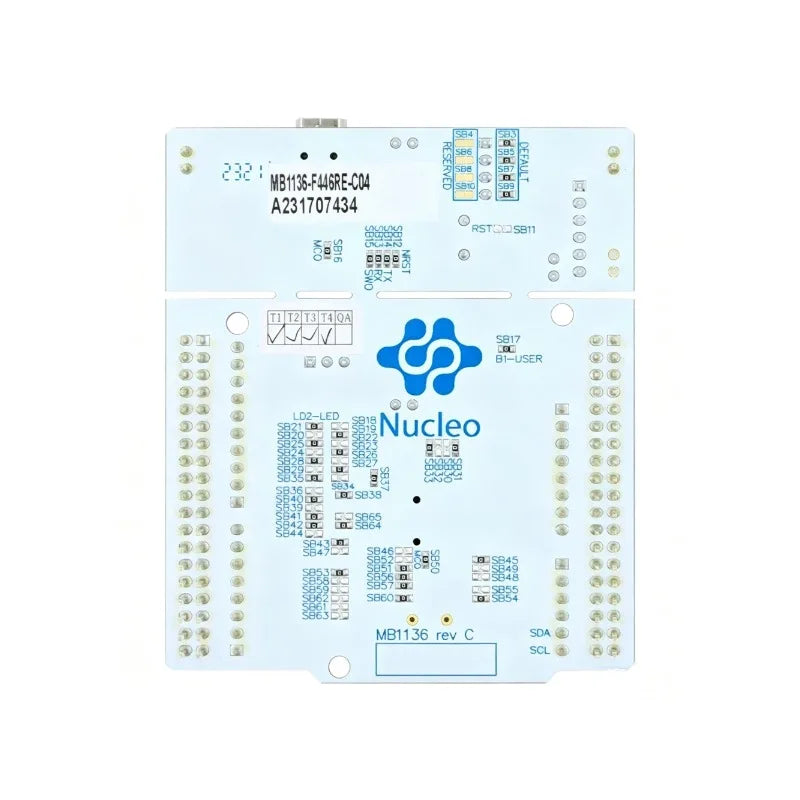

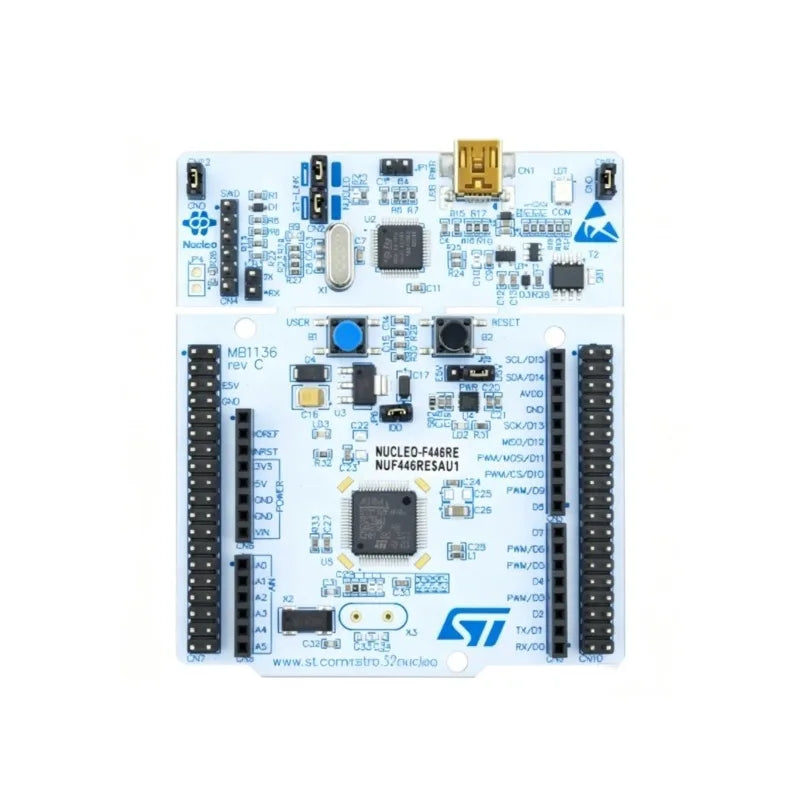

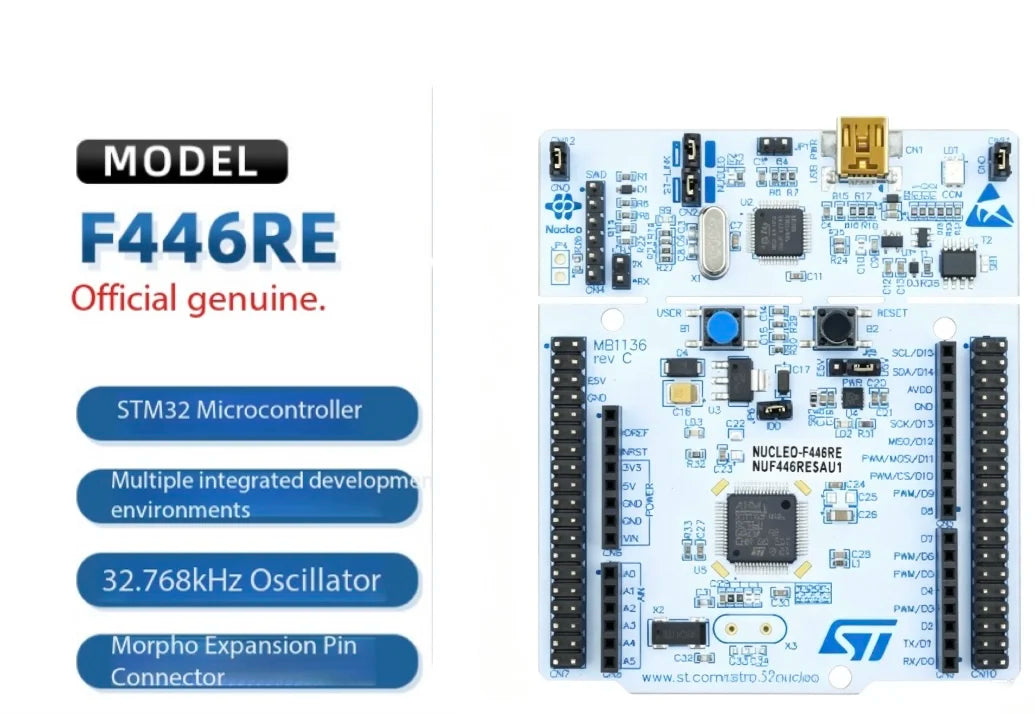

STMicroelectronics NUCLEO-F446RE STM32 Nucleo-64 Development Board

The STM32 Nucleo-64 development board with NUCLEO-F446RE MCU supports Arduino™ and ST Morpho connectivity. The STM32 Nucleo-64 board offers an affordable and flexible solution for trying out new concepts and building prototypes. It allows users to leverage the performance and features of various combinations of the STM32 microcontroller. For the ST Morpho connector, SMPS can significantly reduce running mode power consumption. Arduino™ Uno V3 connectors support ST Morpho pinout expansion for easy extension of the STM32 Nucleo open development platform. It provides a wide range of specialized expansion boards to choose from. The STM32 Nucleo-64 board requires no separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-64 board comes with a comprehensive software HAL library and various packaged software examples. It also has direct access to Arm® Mbed™ online resources.

Features

STM32 microcontroller in LQFP64 package

External SMPS to generate Vcore logic supply (only for boards with "-P" suffix)

1 user LED, shared with Arduino™

1 user and 1 reset pushbutton

32.768 kHz LSE crystal oscillator

Board expansion connectors:

Arduino™ Uno V3

ST Morpho extension pin headers, providing full access to all STM32 I/Os for flexible experimental setup with external circuitry (only for boards with "-P" suffix)

Flexible power supply options: ST-LINK USB VBUS or external power source

On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability. USB power management supported

3 different interfaces supported: mass storage, virtual COM port, and debug port

STM32Cube MCU software packages include comprehensive free software libraries and examples

Supported by multiple integrated development environments (IDEs), including IAR™, Keil®, and GCC-based IDEs, as well as Arm® Mbed Enabled™
