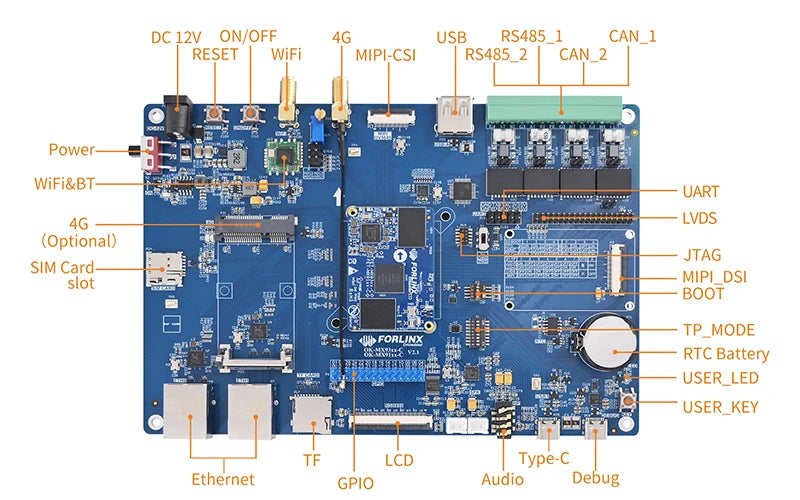

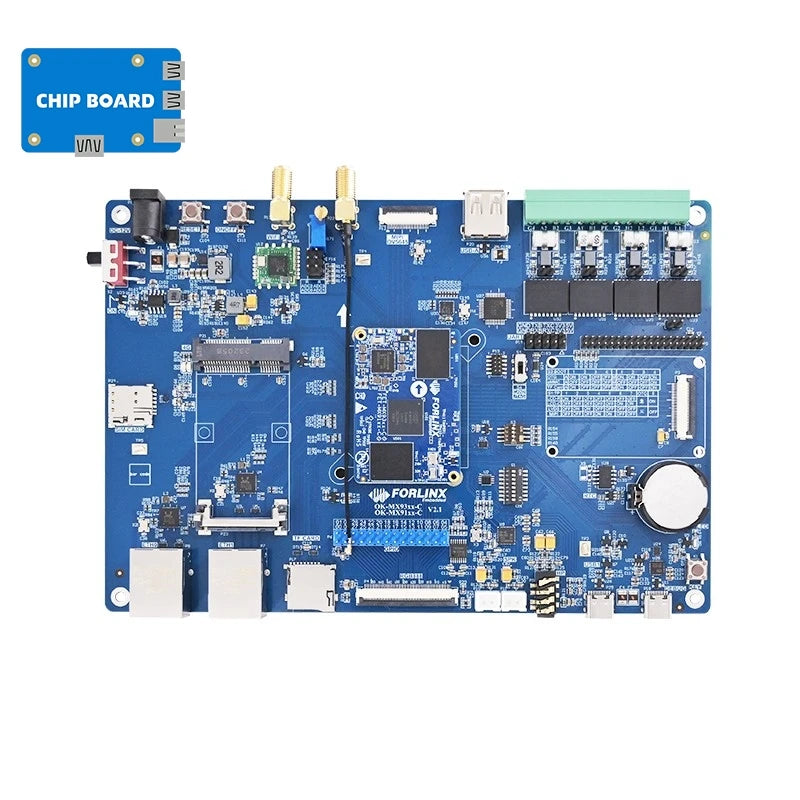

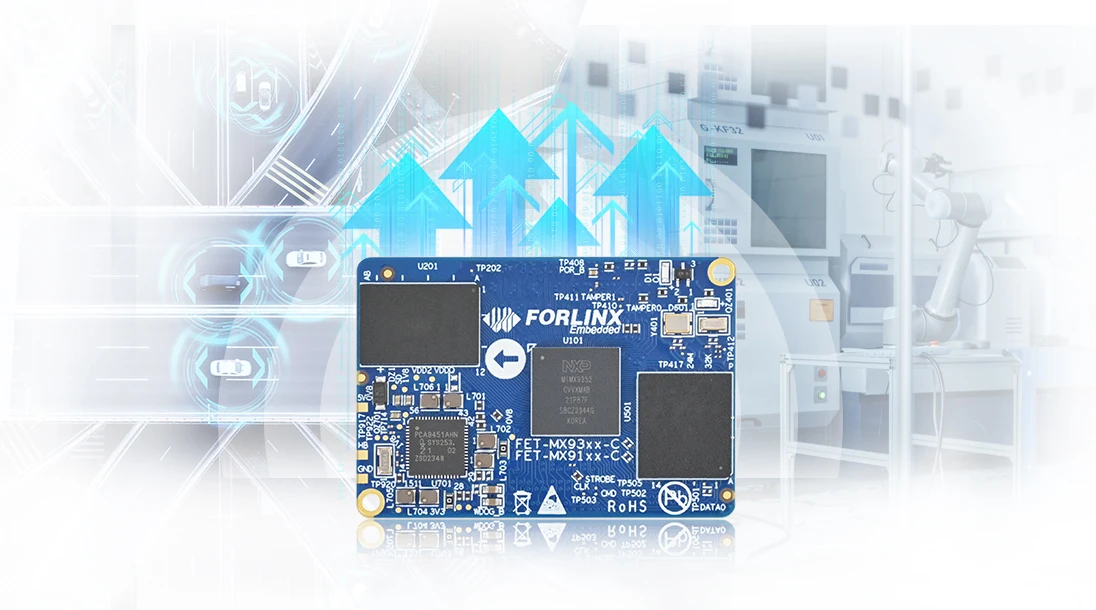

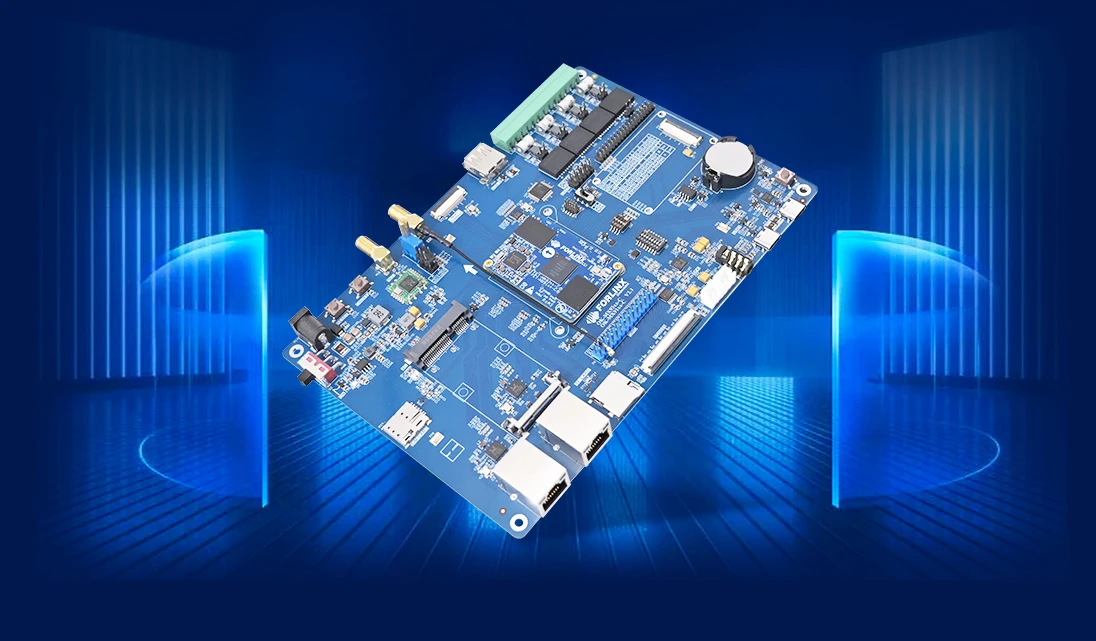

OK-MX9352-C Carrier Board Features

LCD

1

• RGB888 24-bit, up to 1366×768p60 or 1280×800p60

LVDS

1

• single 8-bit, up to 1366×768p60 or 1280×800p60

MIPI DSI

1

• 4 lanes, up to 1920×1200p60

TF card slot

1

• 1, for OS image flashing, complies with SD card 3.0 protocol

4G

1

• Mini-PCIe slot, available for EC20 module with external antenna

Ethernet

2

• 2x 10M/100M/1000M RJ45 connector, ENET1/ETH1 supports TSN

GPIO

28

• dual-row pin headers, multiplexed with LCD

ADC

4

• 12-bit ADC with sampling rate 1MS/s

CAN-FD

2

• with static, surge and pulse protection circuits level 4, and Galvanic isolation complies with CAN2.0B

RS-485

2

• with static, surge and pulse protection circuits level 4, and Galvanic isolation with automatic transceiving control

USB2.0

2

• USB1 by TYPE-C, can be used for OS image flashing;

• USB2 is expanded from HUB, circuited to 4G, WiFi /BT, USB to 4 serial, and USB-A feamale connector

UART

2

• 3.3V TTL, by pin headers with pitch of 2.54mm

WiFi & BT

1

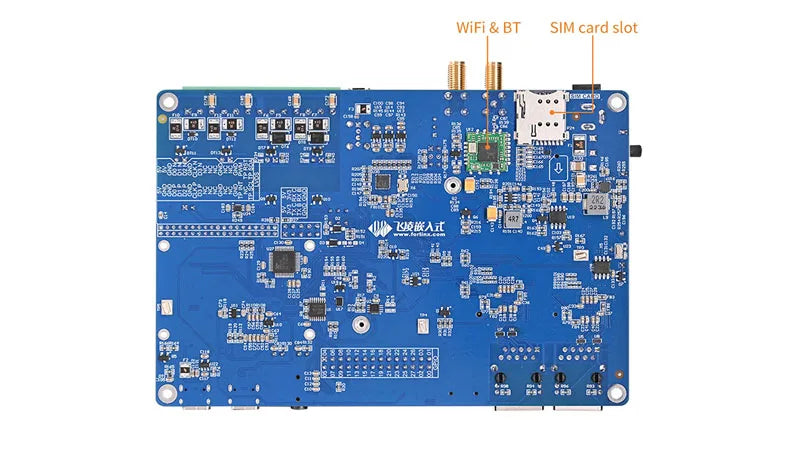

• on-board BL-M8723DU, 2.4GWiFi, Bluetooth 2.1/4.2

RTC

1

• on-board RTC battery holder, for real-time updating

Audio

1

• 1 four-part phone jack with dual-channel HP and MIC and 2 speaker jacks.

Camera

1

• MIPI-CSI, fits OV5645 module

KEY

3

• reset, power on/ off and user key

LED

1

• user defined

GPIO

9

• 9xGPIO(3.3V), 5V, 3.3V and 1.8V power by pin headers with pitch of 2.54mm

DEBUG

1

• serial converted to USB for debug, TYPE-C connector

JTAG

1

10-pin(2×5) headers with pitch of 2.0mm
