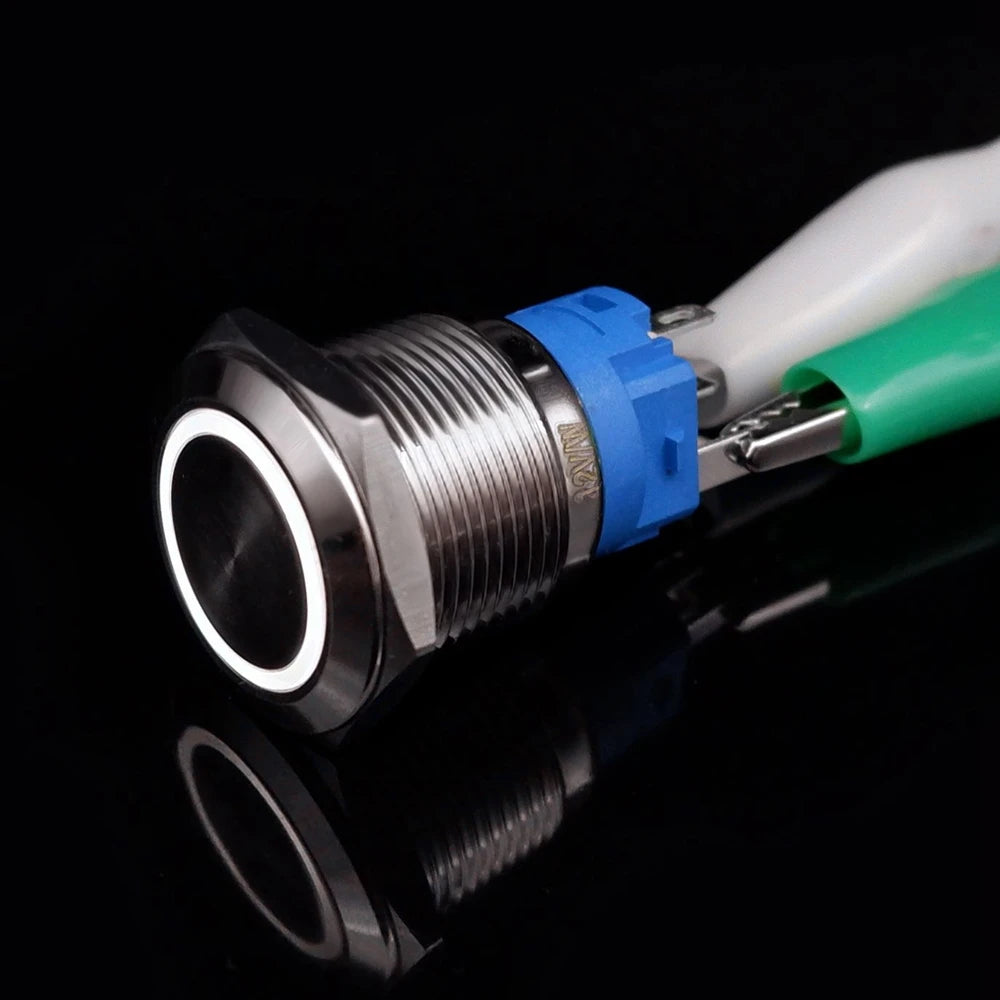

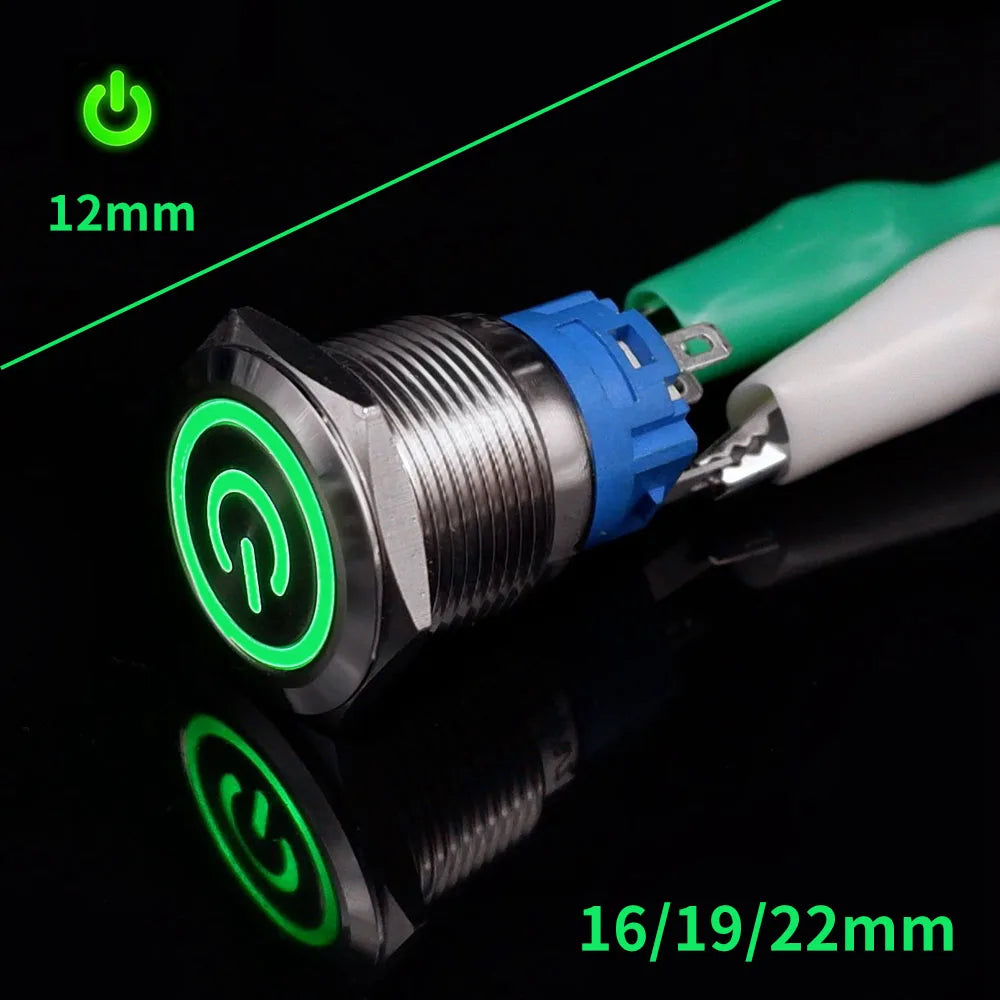

On Off PC Power Metal Waterproof Push Button Switch 12v for Car Ignition Switches Momentary/Latching NC 5V 220V 12 16 19 22 mm

Circle Green / 22mm Flat head / 110-220V|Momentary Self-reset

$16.47

Sale price $16.47 Regular price $0.00

Skip to product information

On Off PC Power Metal Waterproof Push Button Switch 12v for Car Ignition Switches Momentary/Latching NC 5V 220V 12 16 19 22 mm

On Off PC Power Metal Waterproof Push Button Switch 12v for Car Ignition Switches Momentary/Latching NC 5V 220V 12 16 19 22 mm

$16.47

Sale price $16.47 Regular price $0.00

Color Circle Green Circle White Power Port Red Power Port Yellow Power Port Blue Power Port Green Power Port White Circle Red Circle Yellow Circle Blue

Size 22mm Flat head 12mm Flat head 16mm Flat head 19mm Flat head

Description

SPECIFICATIONS

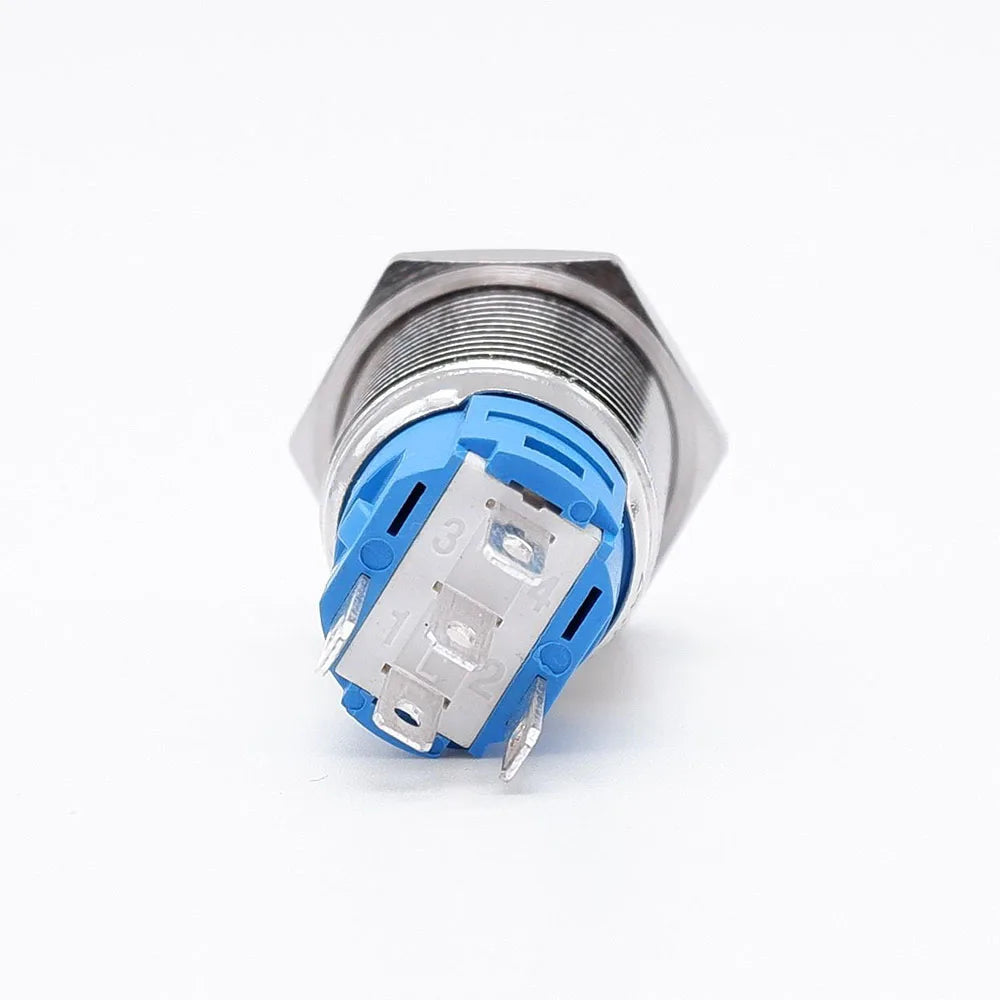

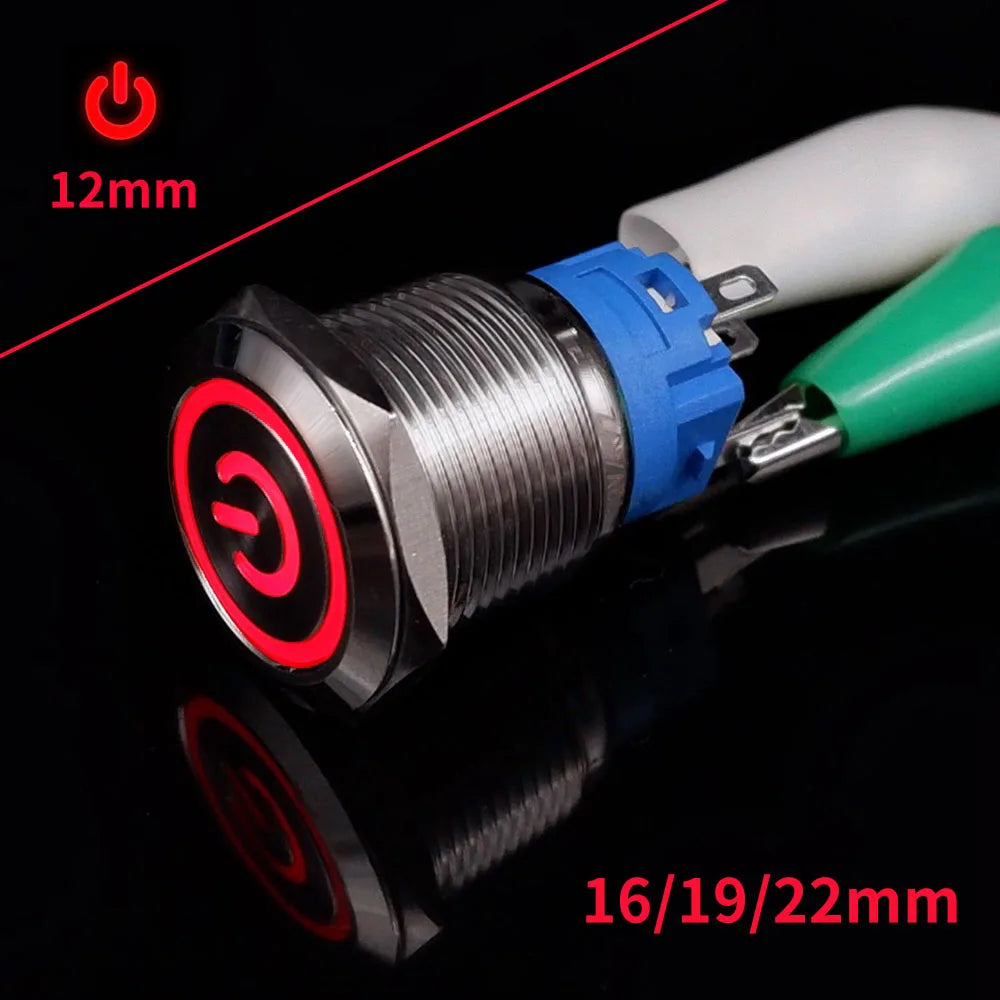

12mm: 4 Pins(1NO)

16/19/22mm: 5 Pins(1NO1NC)

Brand Name: PRONCH

Certification: CE,CCC,CCC,ce

Current: ≤3A

Customizable Material: Stainless steel

Customization: Yes , please leave a message to us

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Momentary Latching

Function: Momentary/ Latching

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

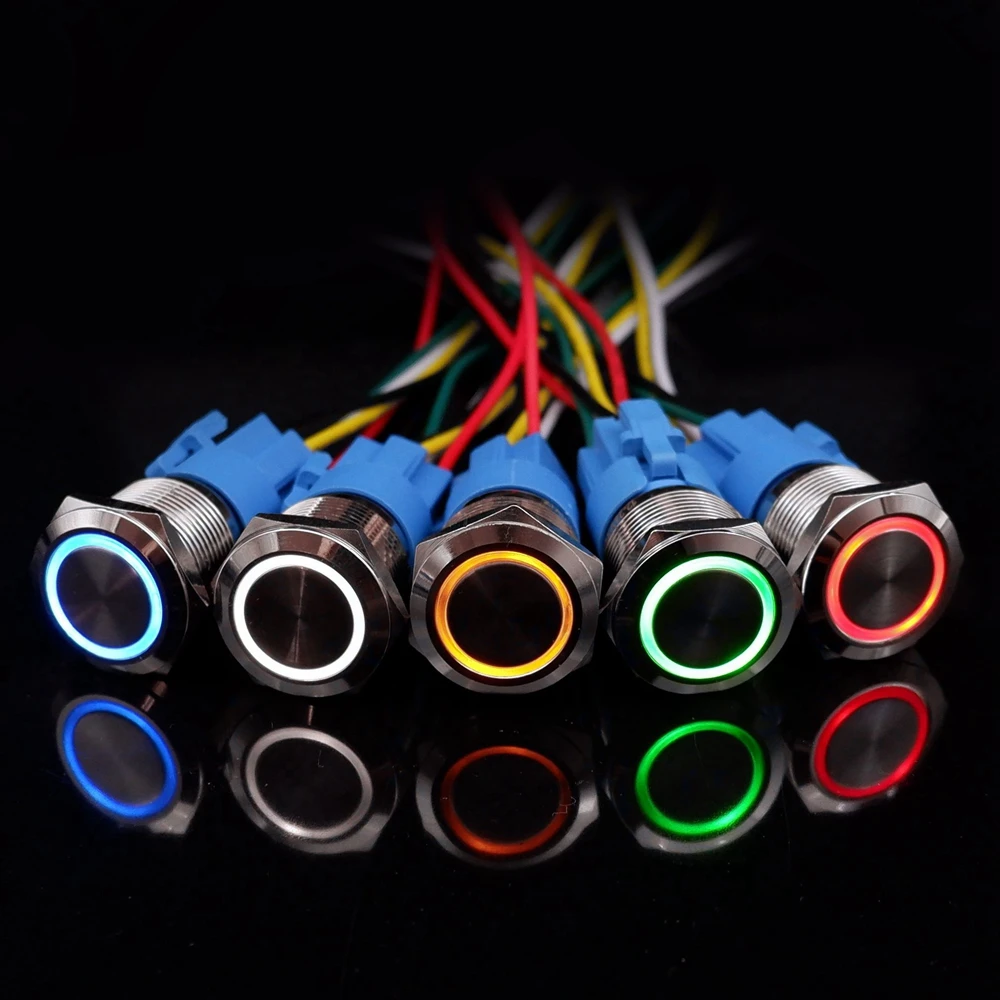

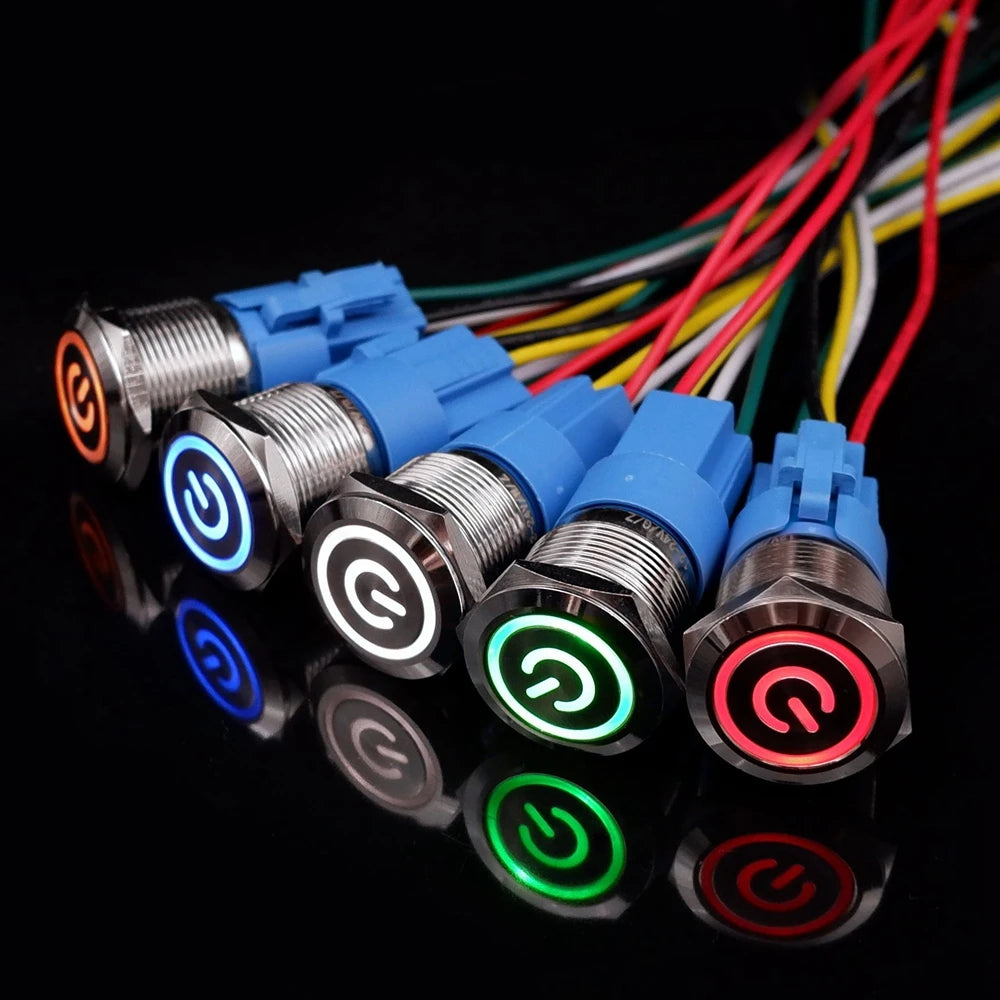

LED Color: Red Yellow Blue White Green

LED Voltage: 3-6V 9-24V 110-220V

Material: Alloy

Model Number: Push button switch

Name: Power button/push button/switch button/Switches

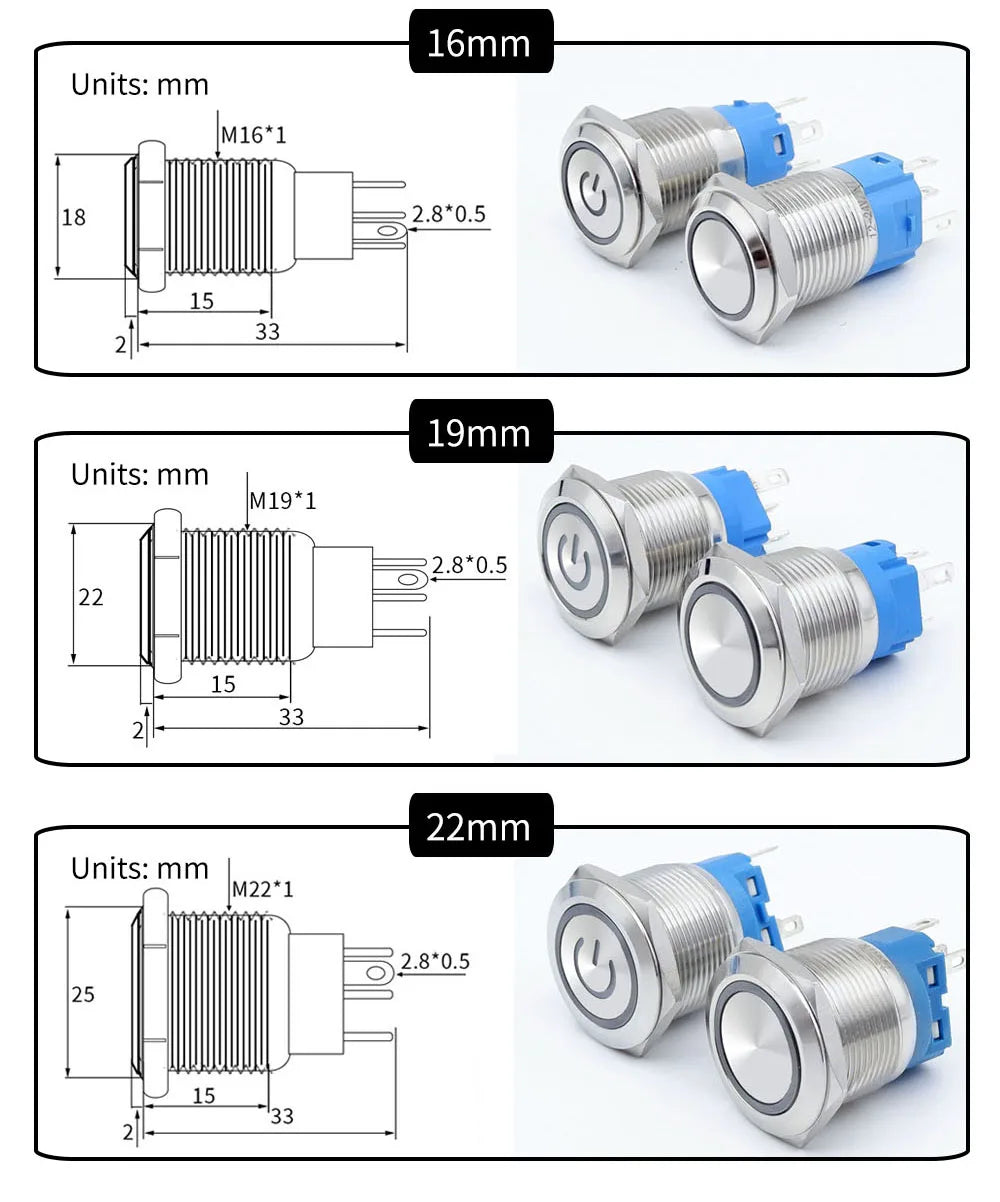

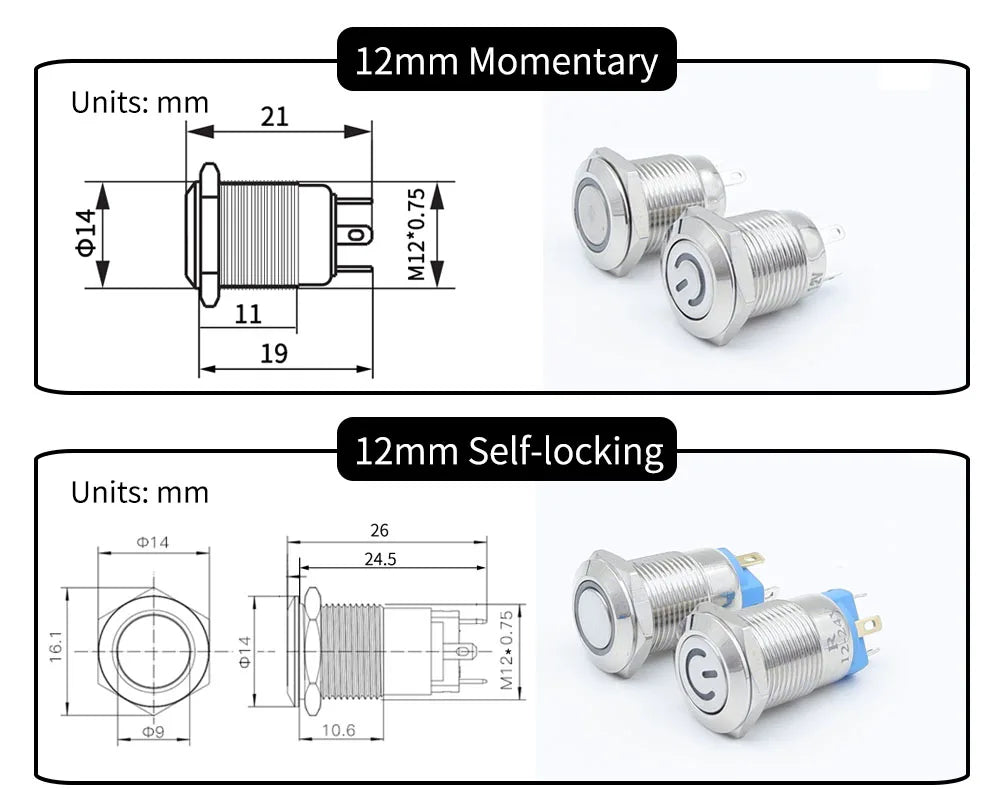

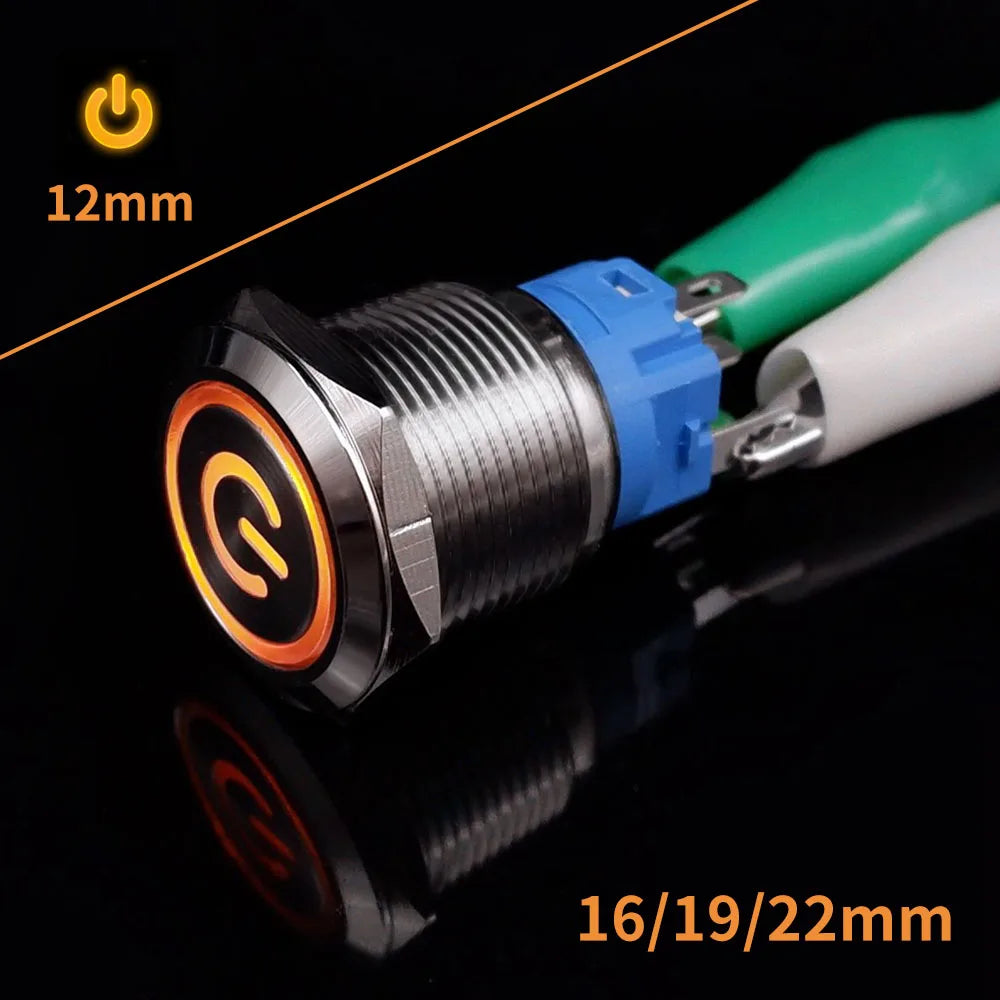

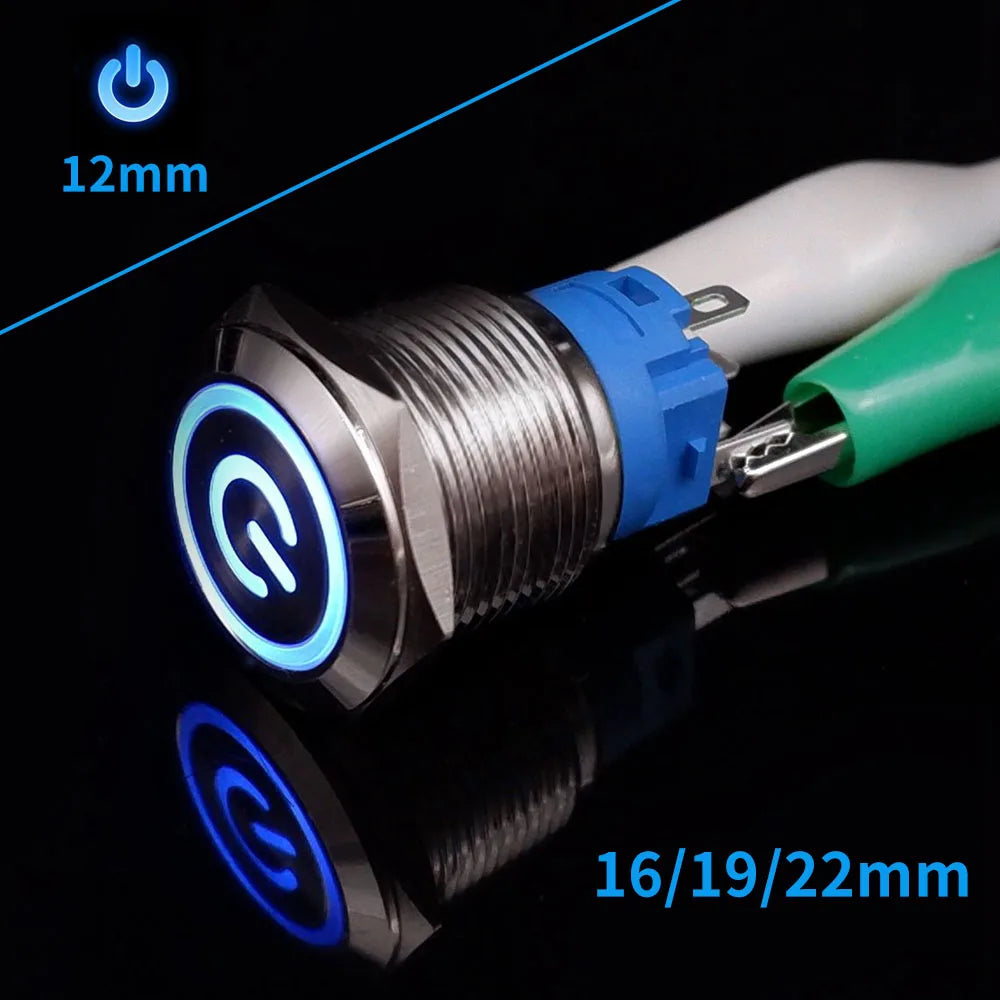

Opening Diameter: 12mm/16mm/19mm/22mm

Origin: Mainland China

Shell Material: Brass nickel plated

Switch Type: Push Button Switch,Normally Open/Normally closed

Using: Car PC machine Device buttons

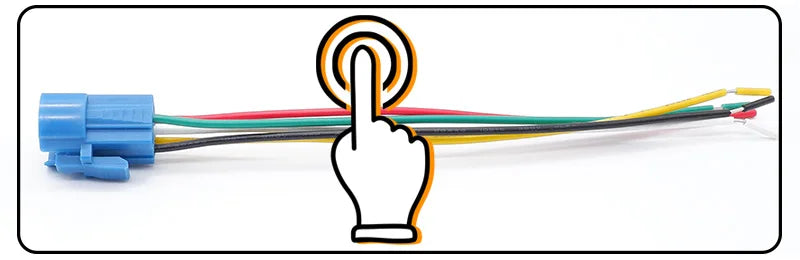

Note: Connectors need to be purchased separately, you can click the following image to purchase.

Product Name: Push Button Switch
12mm:1NO
16/19/22mm:1NO1NC
Opening Diameter:12mm/16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery 、Self-locking
Material: Brass nickel plating

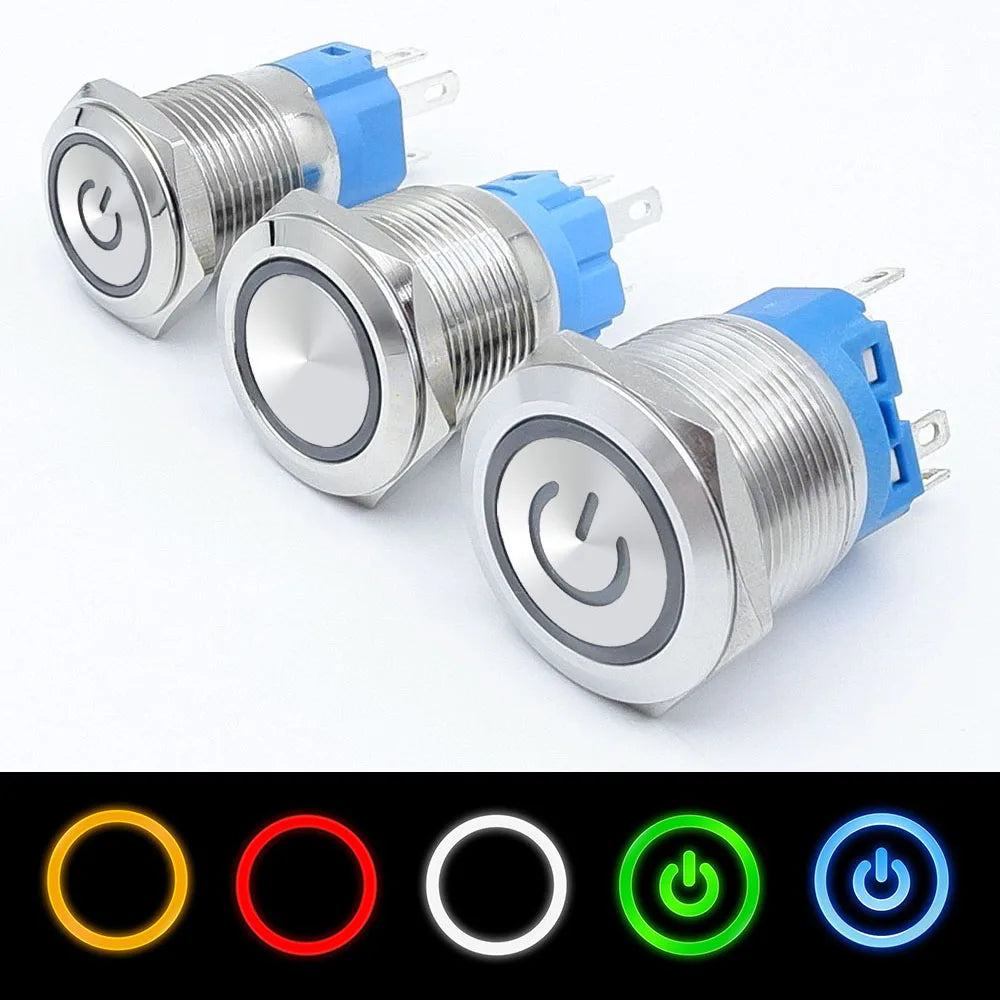

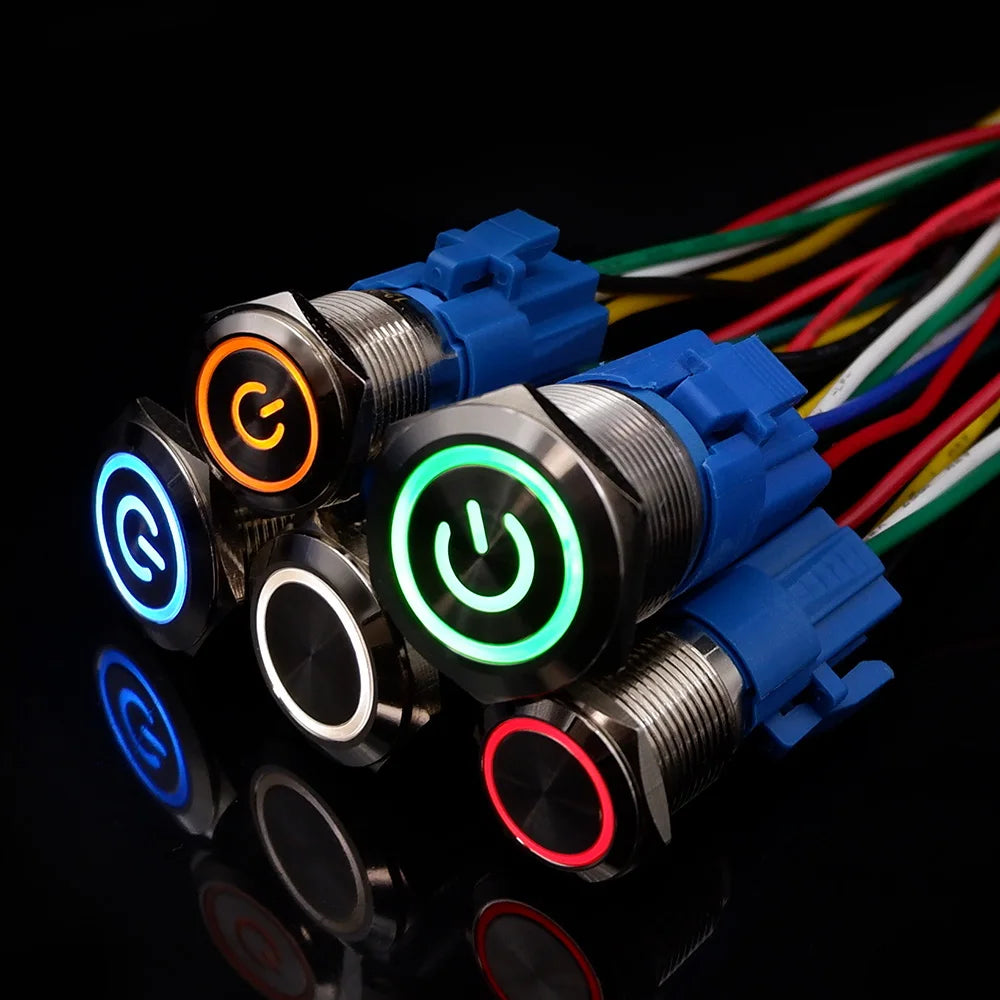

LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V;9-24V;110-220V

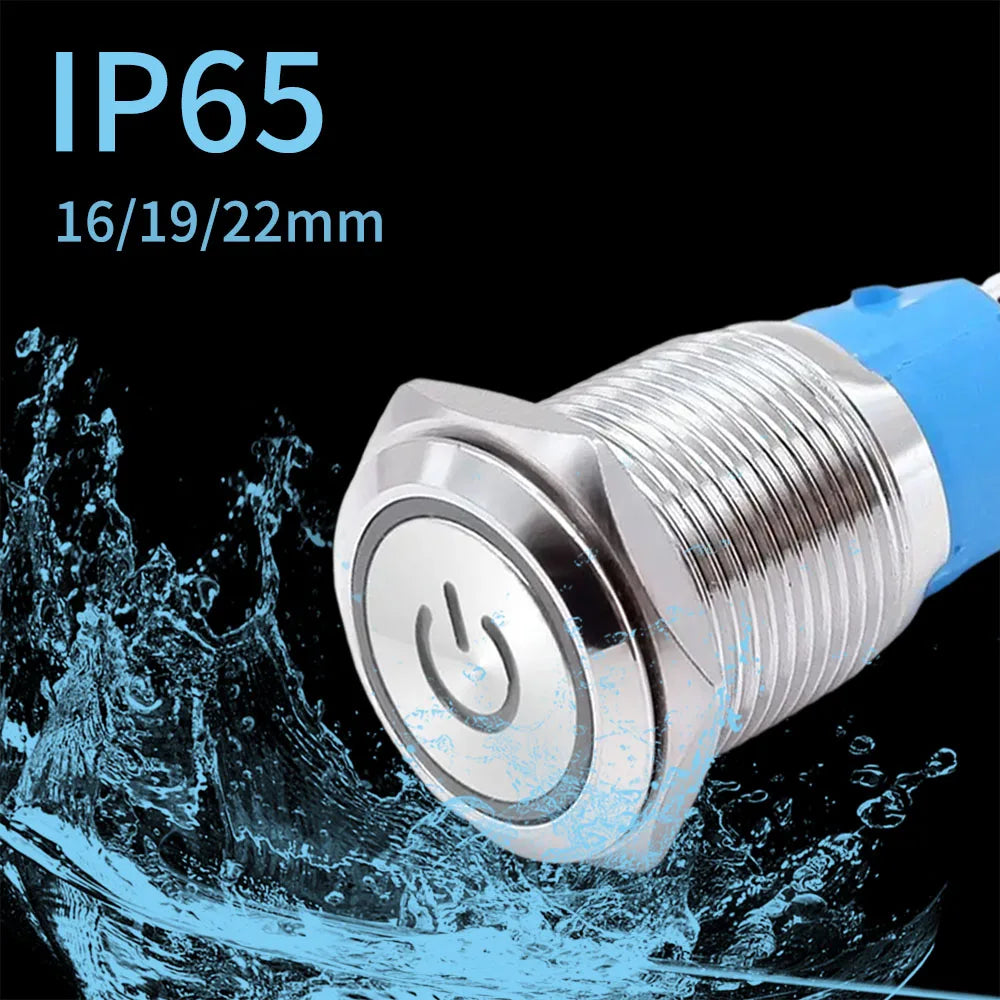

Waterproof Level: IP65（16/19/22mm）
No waterproof design for 12mm
Customization: Yes , please leave a message to us

Due to manual measurement, please allow a little error.

Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.

The metal shell can resist corrosion, pressure and wear.

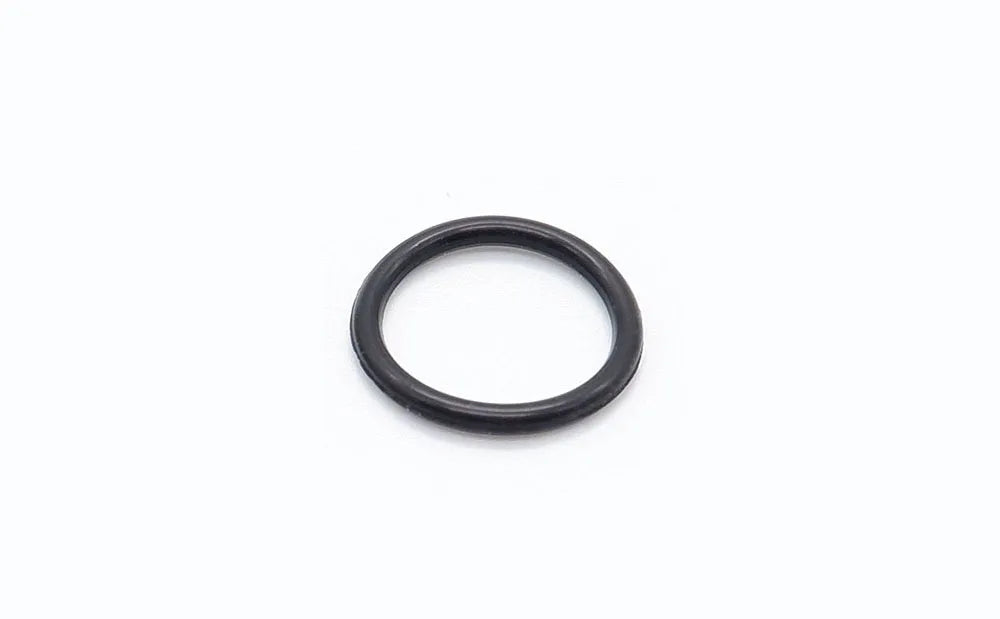

With rubber sealing ring, waterproof and dustproof.

Flame retardant base, fire and electricity proof, safer use.

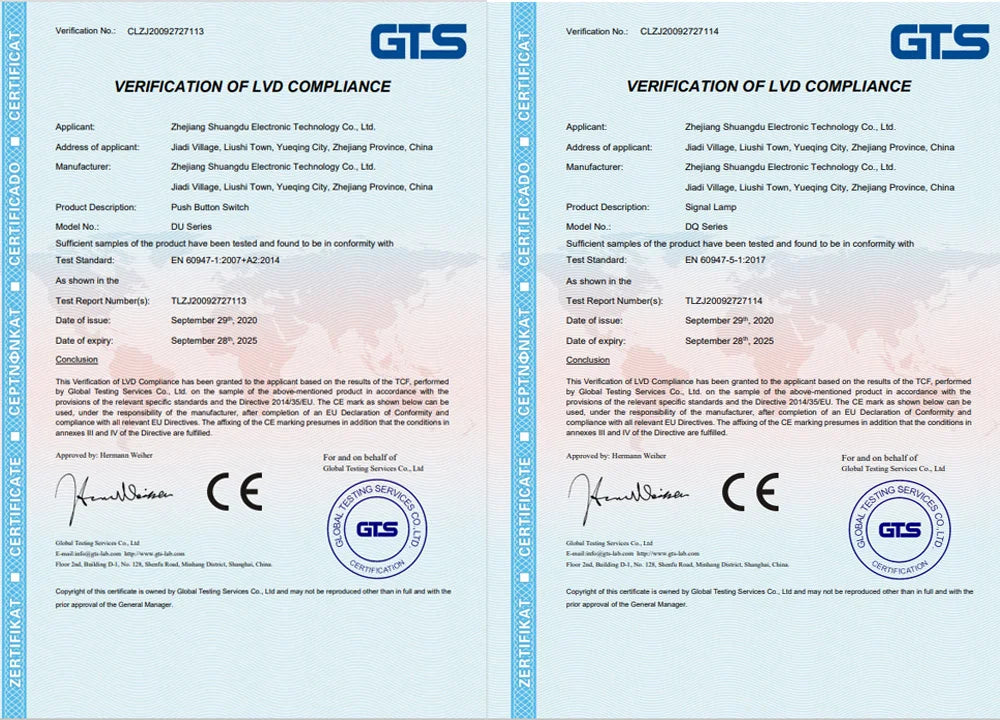

Certificate

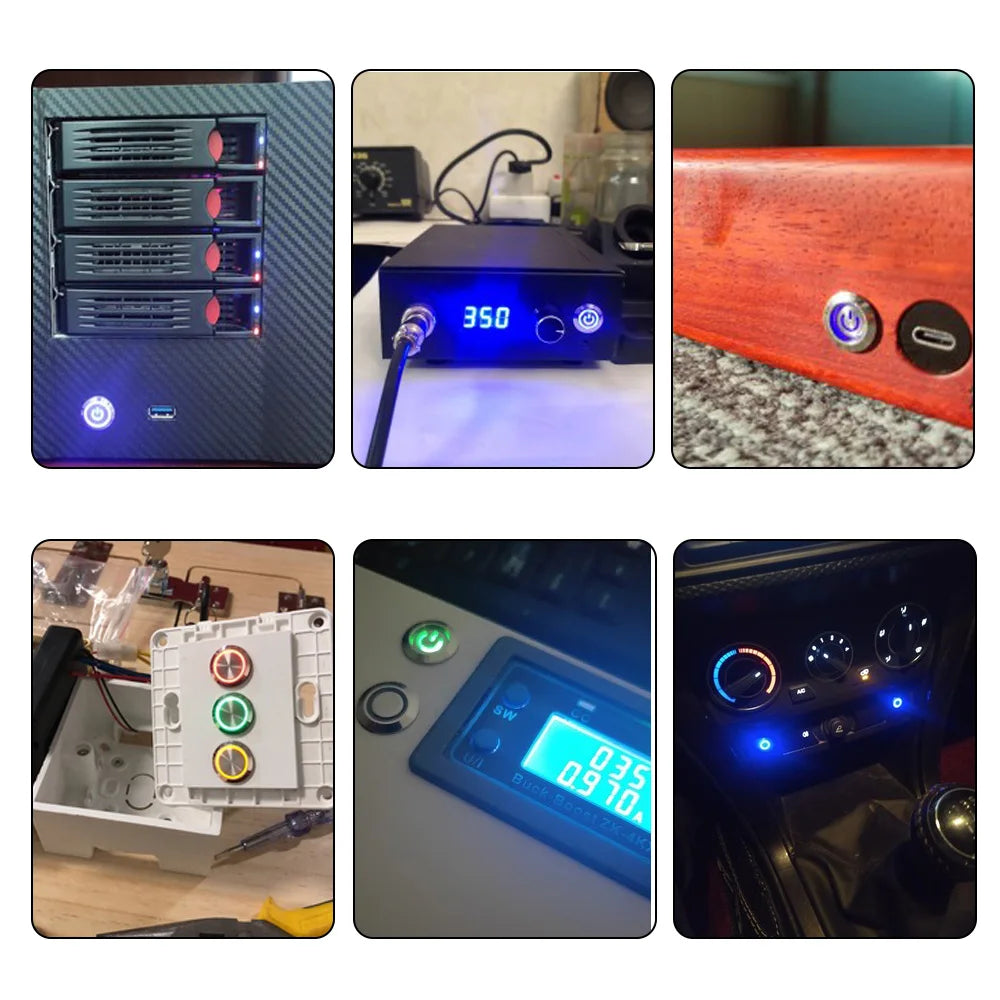

This metal push-button switch has many uses. For example, it is used in cars, computer mainframe, audio, socket, remote control and other places where you need switch control.

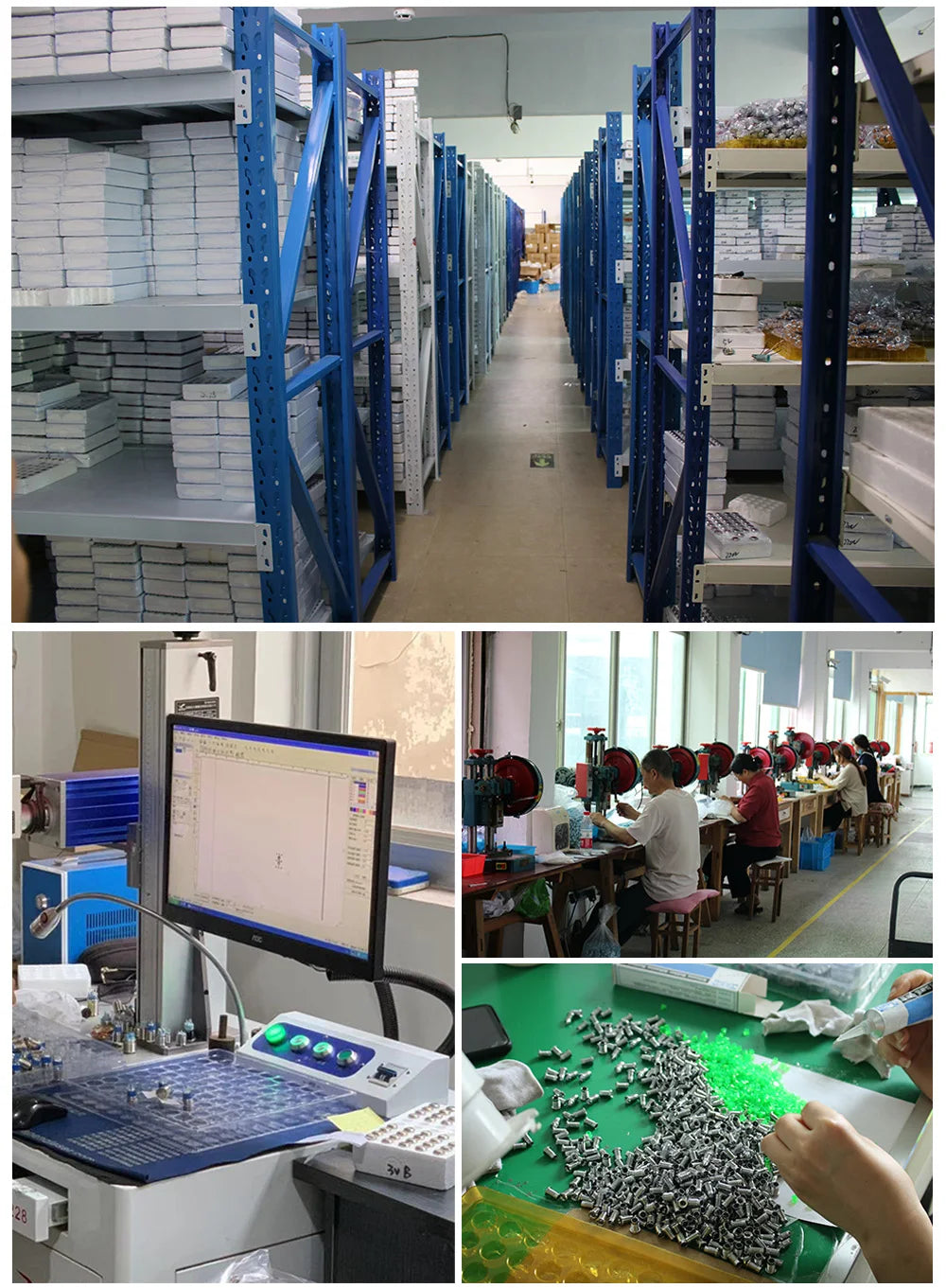

Factory direct sales, sufficient supply.

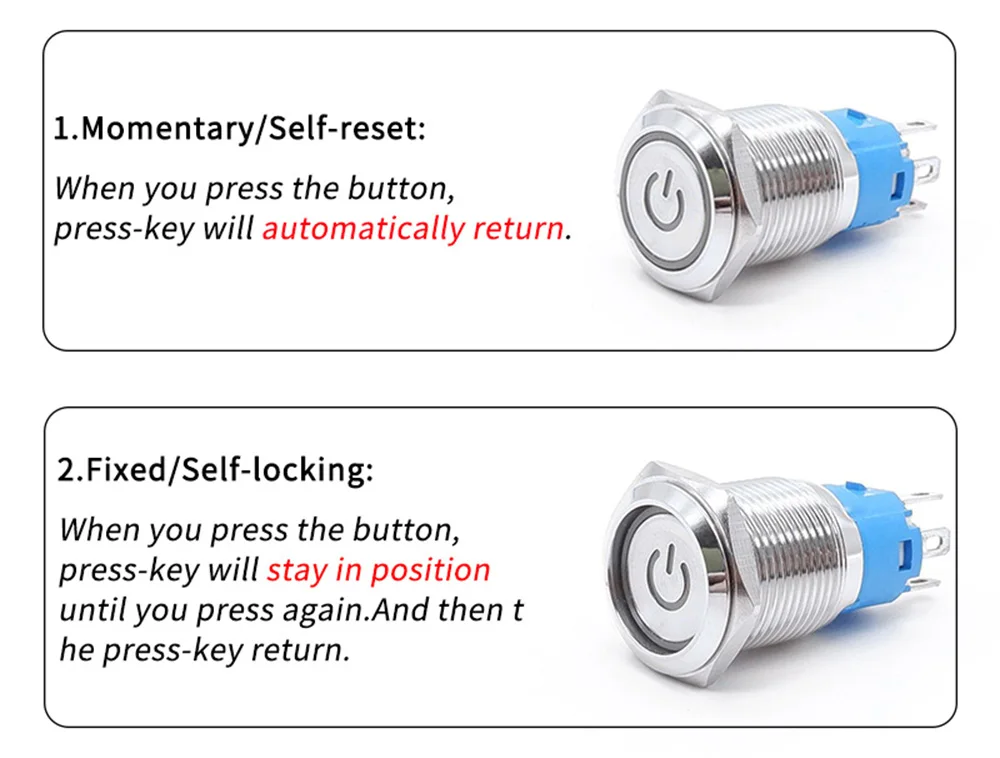

Switch Tip

1.Momentary/Self-reset: When you press the button, press-key will automatically return.

2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.

Wiring Instructions

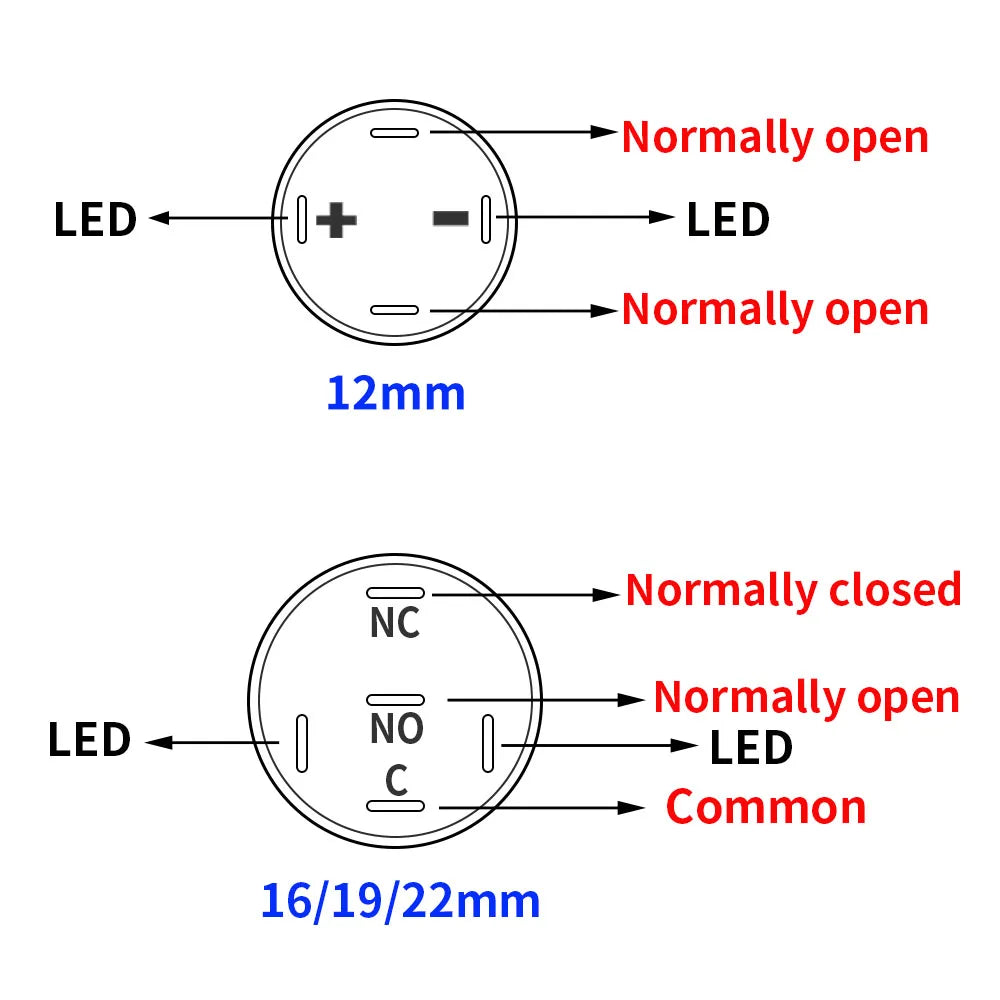

1.What does the signal “C”、"NC" and "NO" means?

" NC ": Normal Close
" NO ": Normal Open
" C " : Common

2.How to connect?

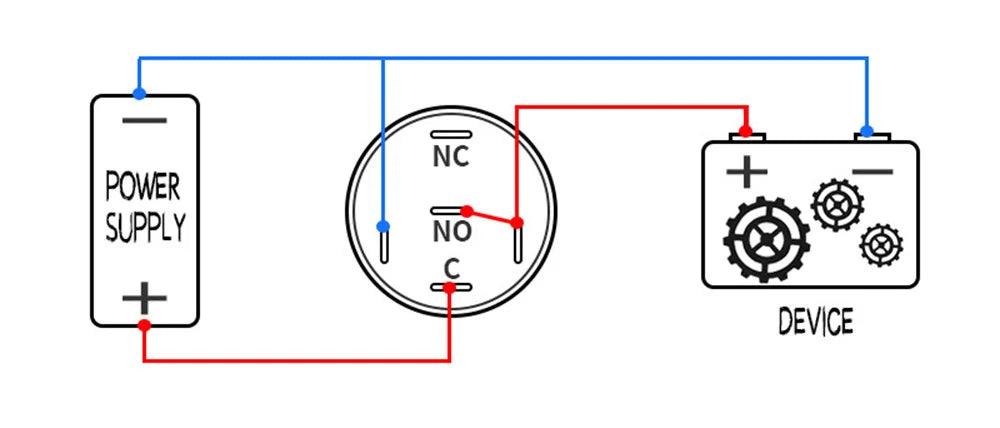

(1).Connect " NO " and " C " : The circuit is alway open unless press the button.

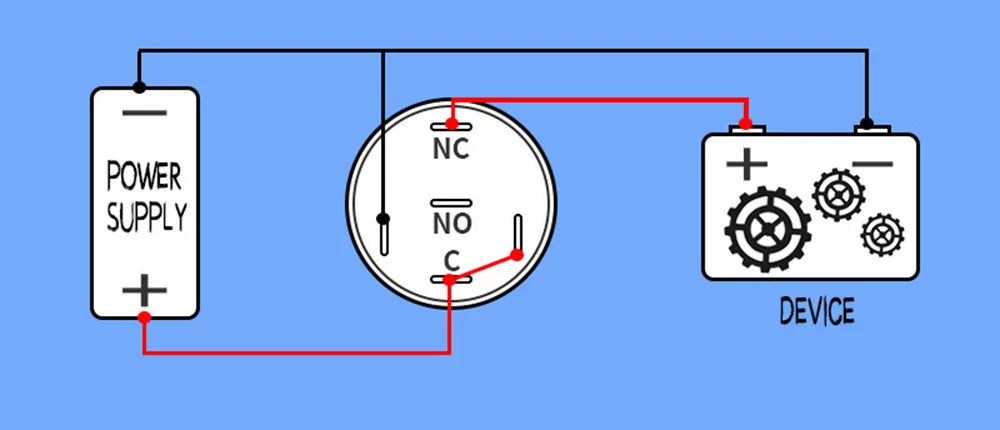

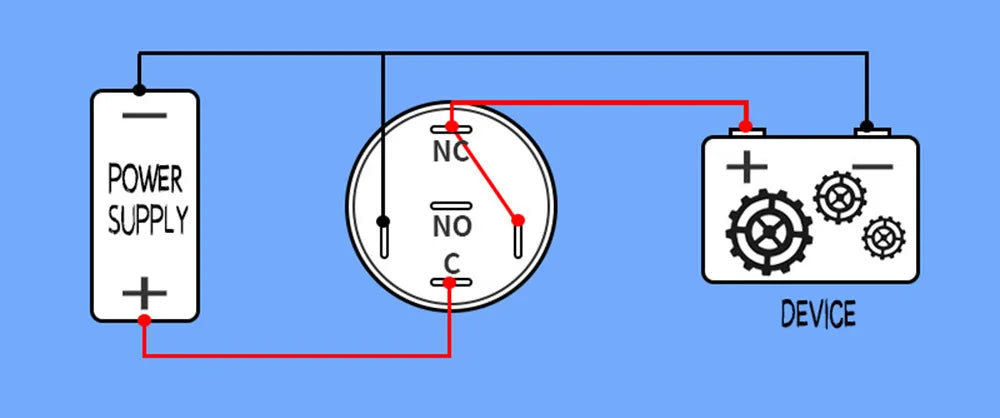

(2).Connect " NC " and " C " : The circuit is alway close unless press the button.

3.Do lights and switches have electrodes?

The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.

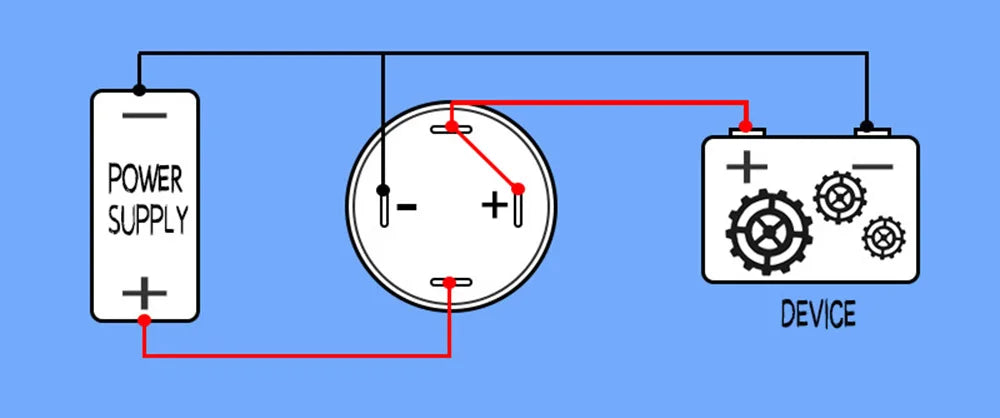

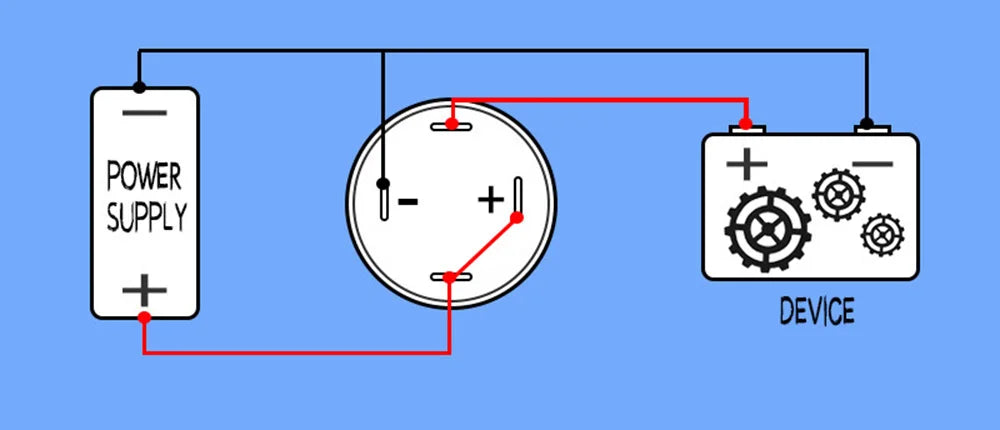

Wiring Diagram(12mm)

1、The button turns the LED light on and off，the circuit is alway open unless press the button.
