SPECIFICATIONS

Brand Name: ONCCY

Certification: CE,RoHS

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Is Smart Device: no

Origin: Mainland China

Type: SPD,Circuit breaker

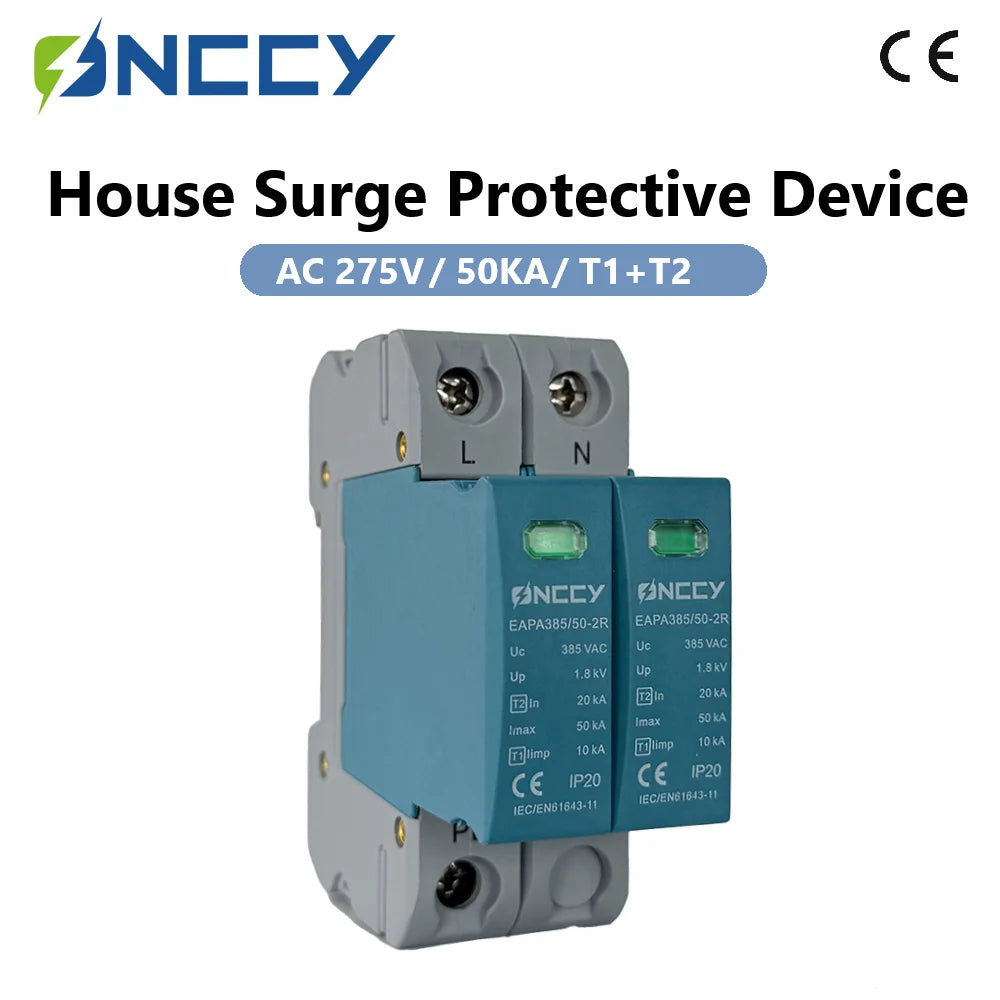

ONCCY Surge Protection Device was designed and manufactured, complyingstandard GB/T18802.1

IEC/EN 61643-11 ,Rated voltage 275V~、320V~、385V~440V~,Maximum discharge current 50kA,

High Energy Varistor, high effective for lightning protection.

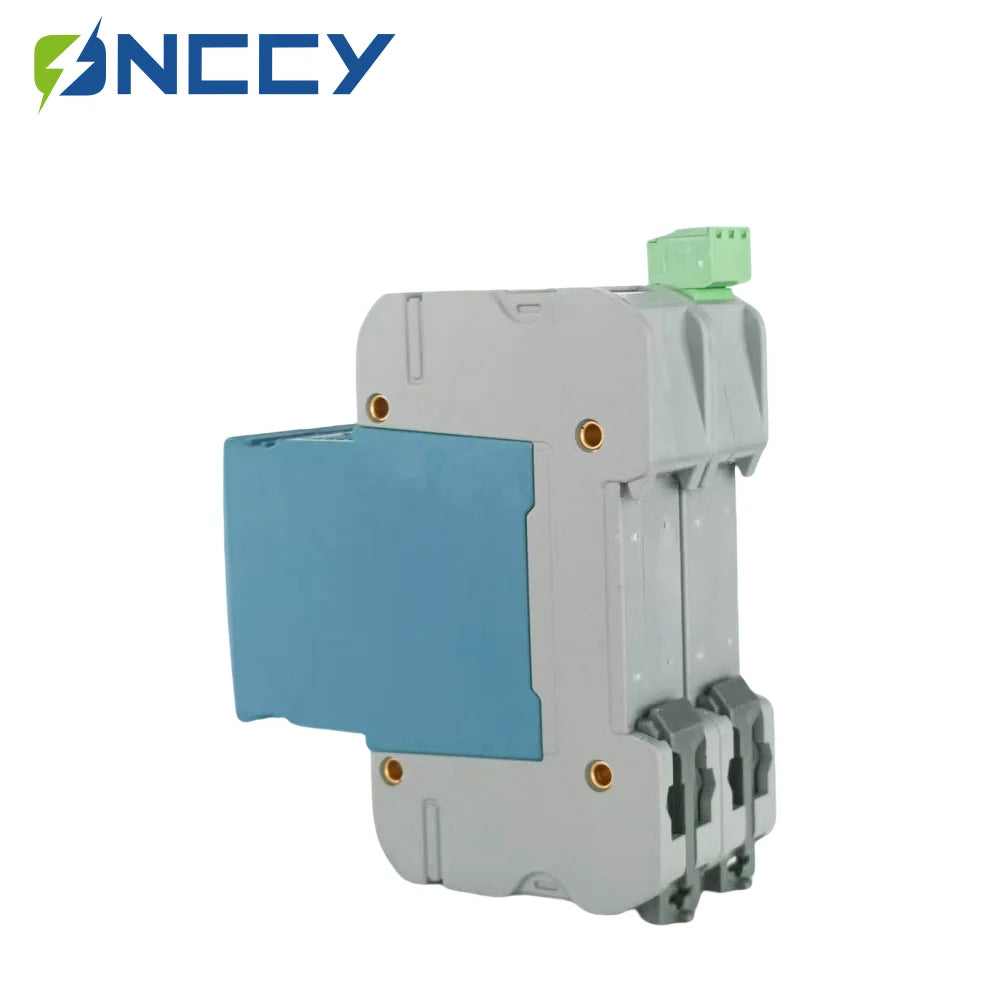

🚨Optional Remote Signalling Contact(FM) for Monitoring Device🚨

Technical Data

Mechanical & Environmental

Operating Temperature Range：-40°F to +158°F [-40'℃ to +80°]
Permissible Operating Humidity： 5%...95%
Atmospheric pressure and altitude：80k Pa ... 106k Pa/-500m ..2000m
Terminal Screw Torque：39.9 lbf.in [2.0~2.5-Nm]
Conductor Cross Section(max) ：2 AWG (Solid, Stranded)/4 AWG (Flexible)35mm'(Solid, Stranded)/25mm'(Flexible)
Mounting：35mm DIN Rail, EN 60715
Degree of Protection：IP20(built-in)
Housing Material：Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection：Yes

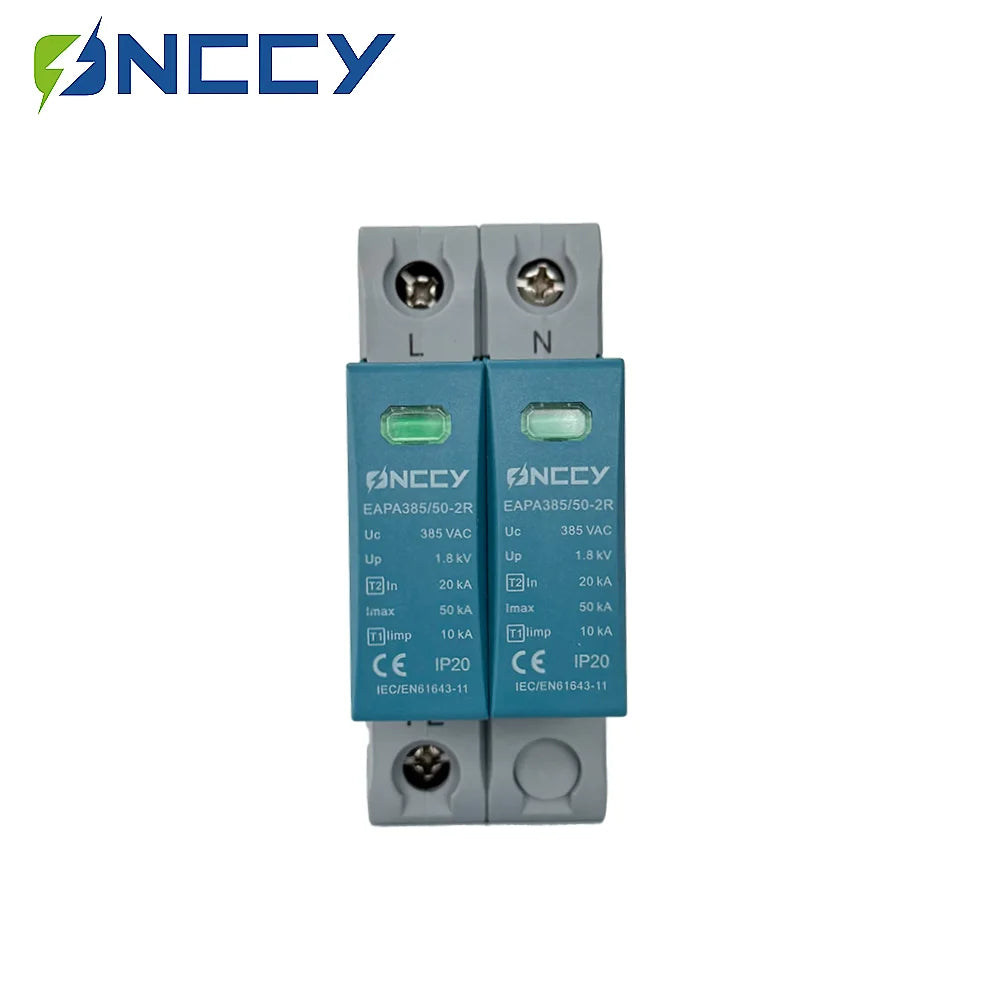

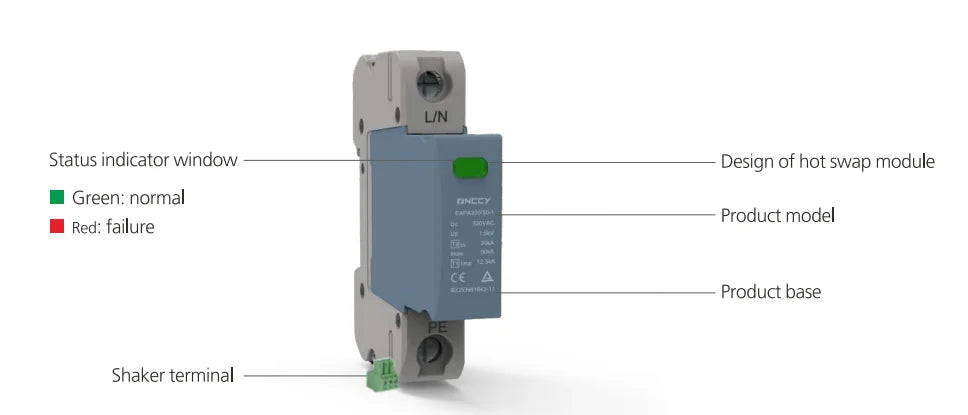

Operating State / Fault Indication：Green: ok / Red: failure
Remote Contacts(RC)：Optional
RC Switching Capacity：AC:250V/0.5A: DC:250V/0.1A: 125V/0.2A; 75V/0.5A
RC Conductor Cross Section (max)：16AWG (Solid) /1.5mm²(solid)

Widely used

Onccy EAP series surge protective devices can be widely used in various fields, including homes, distribution boxes, switchgear, fire protection, photovoltaic systems, communications, data centers, gas stations, factories, communities, elevators, control cabinets, industrial applications, renewable energy, construction, and rail transit.
