SPECIFICATIONS

Brand Name: Stlxy

Choice: yes

Contact Load: High Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

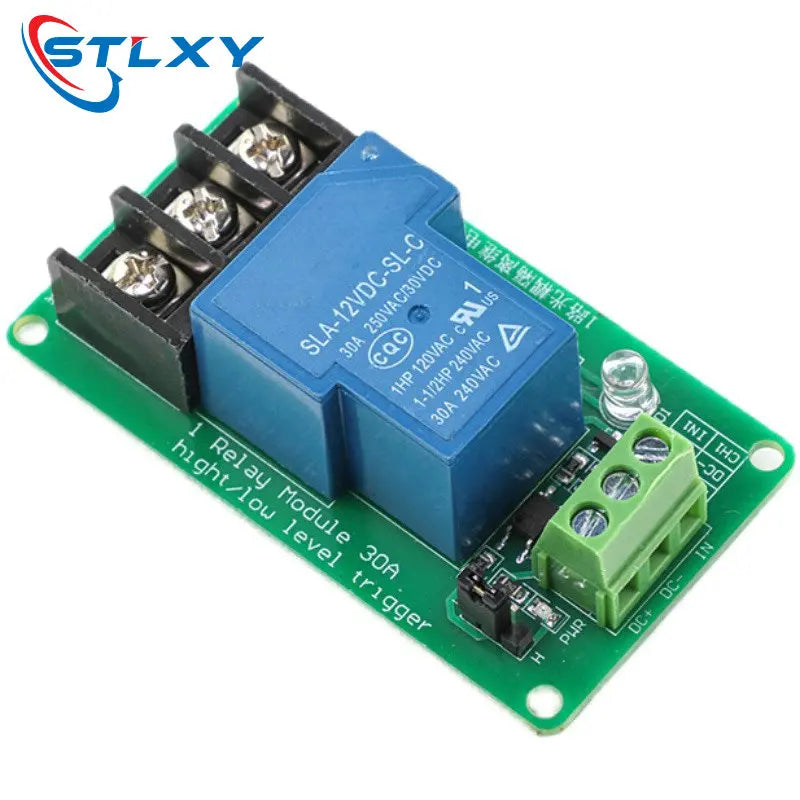

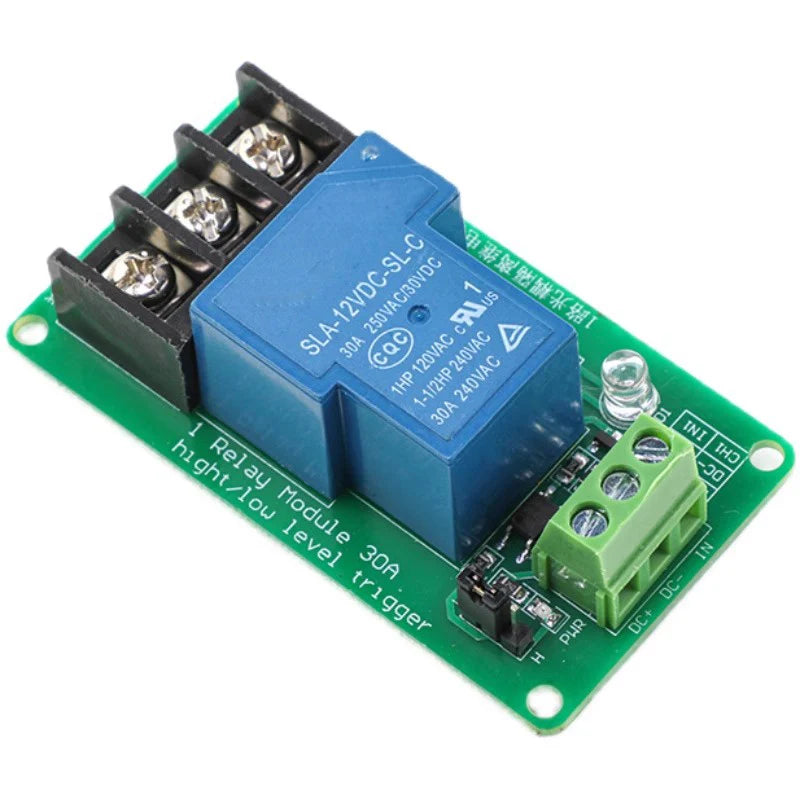

Model Number: 1 channel relay module 30A with optocoupler isolation

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 5V

is_customized: Yes

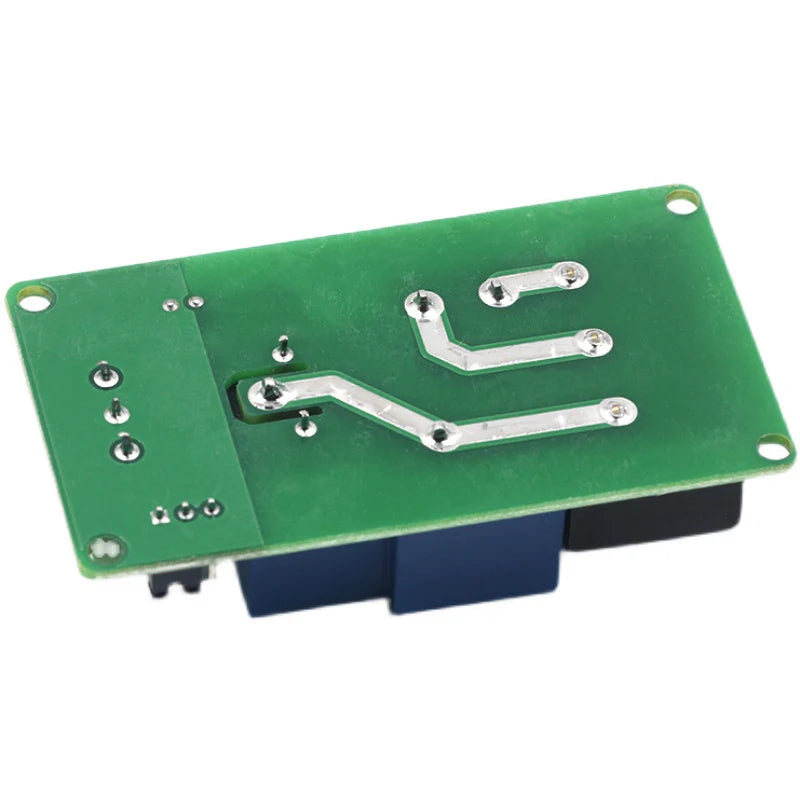

Descripition:

1,the module uses genuine high quality 30A relay,normally open interface maximum load: AC 250V / 30A,DC 30V / 30A;

2,the use of SMD optocoupler isolation,strong drive capability,stable performance; trigger current 5mA;

3,the module voltage 5V,12V,24V to choose from;

4,the module can be set by jumper high or low trigger

5,user-friendly interface design,all interfaces can be directly connected through the terminal leads,very convenient

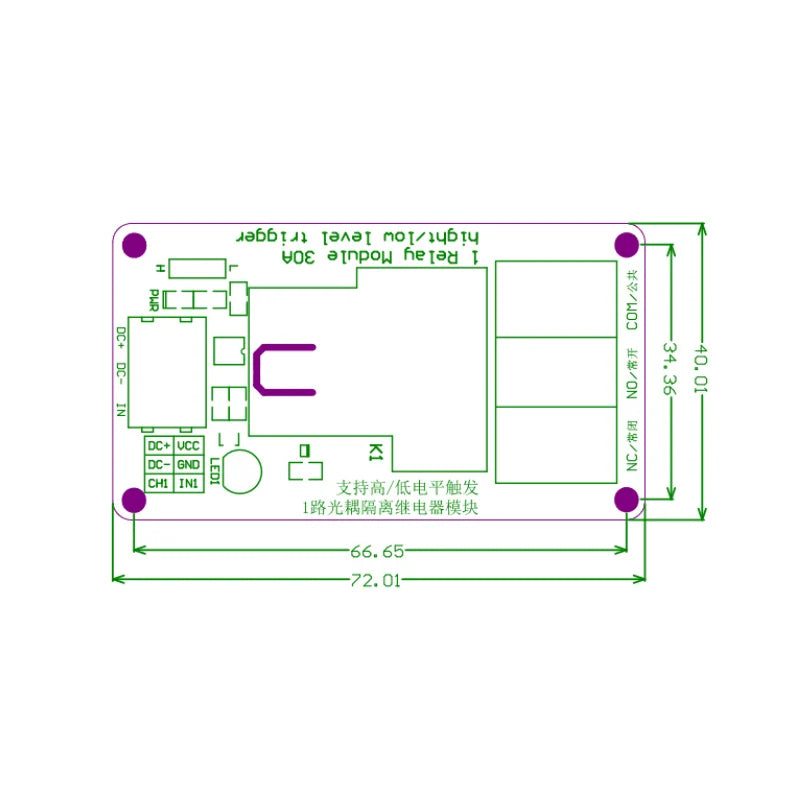

6,Module Size: 72mm * 40mm * 24mm (L * W * H)

8,with four fixed bolt holes,holes 3.1mm,spacing 44.5mm * 27.5mm

Technical parameters:

Relay version: 5V

Quiescent current: 5mA

Maximum current: 190mA

Trigger current: 2-4mA

Relay version: 12V

Quiescent current: 5mA

Maximum current: 80mA

Trigger current: 2-4mA

Relay version: 24V

Quiescent current: 5mA

Maximum current: 50mA

Trigger current: 2-4mA

Module interface:

1.DC +: module DC power supply positive (trigger terminal voltage positive)

2.DC-: module DC power supply negative (trigger terminal voltage negative)

3.IN: signal trigger terminal (the default trigger voltage and power supply the same)

4. High / low level trigger mode selection,as shown,jumper and L-side connection,IN-side low-level trigger,connected with the H-side high trigger

5. NC (NC): normally closed relay

6. Common (COM): Relay Common

7. often open (NO): relay normally open

Package List:

1 * 5V/12V/24V 1 Channel Relay Module
