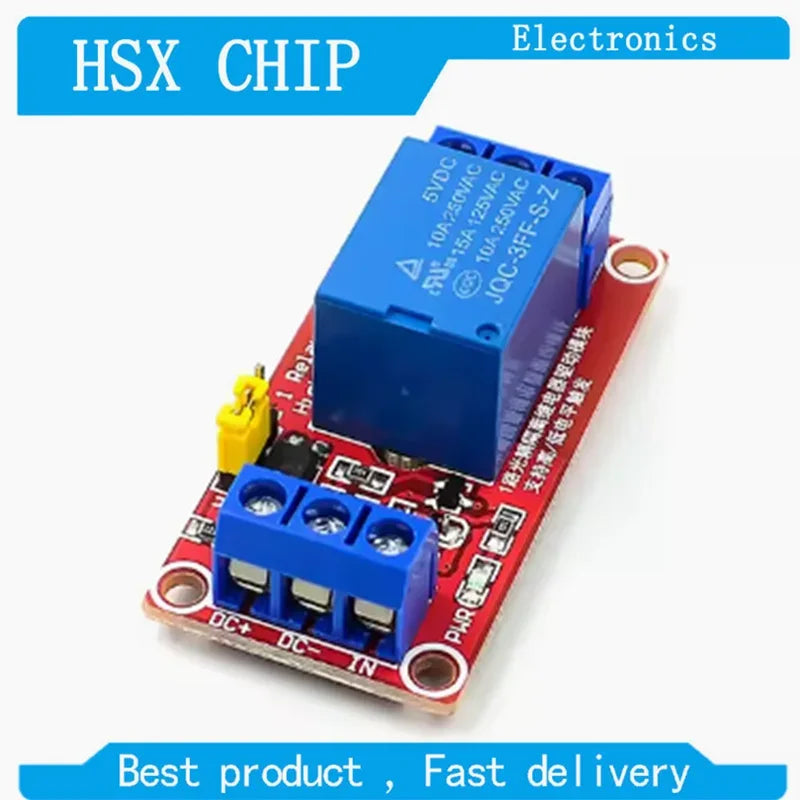

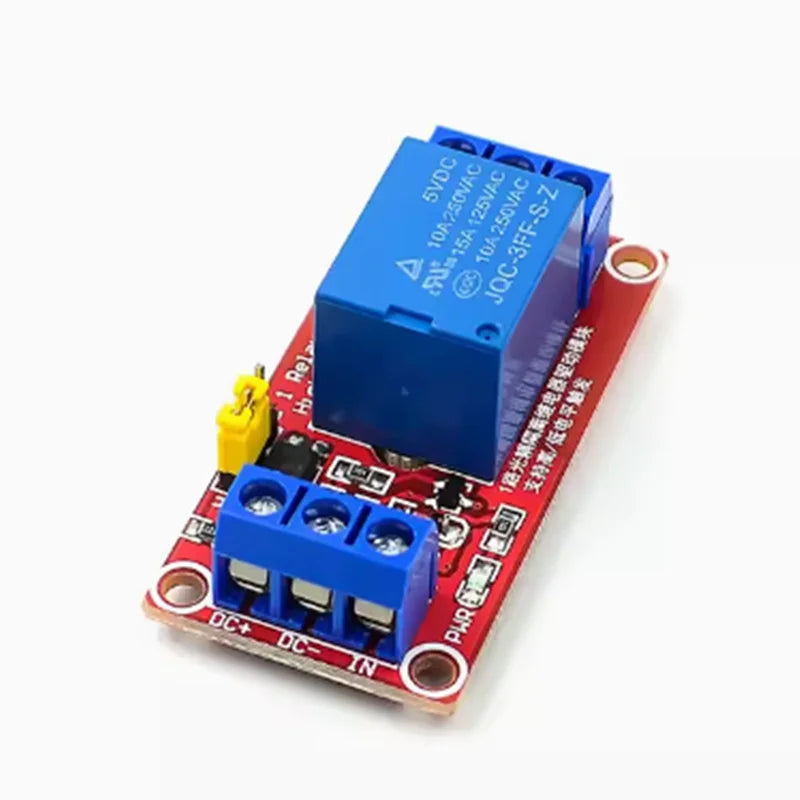

One 1 Channel Relay Module DC 5V 12V 24V High / Low Level Trigger Relay ModuleWith Optocoupler Red
24V
$7.34
Sale price
$7.34
Regular price
$0.00
Skip to product information
One 1 Channel Relay Module DC 5V 12V 24V High / Low Level Trigger Relay ModuleWith Optocoupler Red
$7.34
Sale price
$7.34
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
semi_Choice: yes
Description:
100% brand new and high quality
1-Channel relay module, with photoelectric isolation
The module can be high or low by a jumper setting trigger
With power and relay action indicator
The module Operating voltage 5V
The module uses genuine quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A
Module interface:
DC+: positive power supply (VCC)(5V)
DC-: negative power supply (GND)
IN: The control end, the driving current should be more than 4mA
COM: The control of loop of earth wire
