SPECIFICATIONS

Brand Name: HAXNFIELEC

Choice: yes

Compatible Audio & Video Equipment Style: Professional Audio Equipment

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

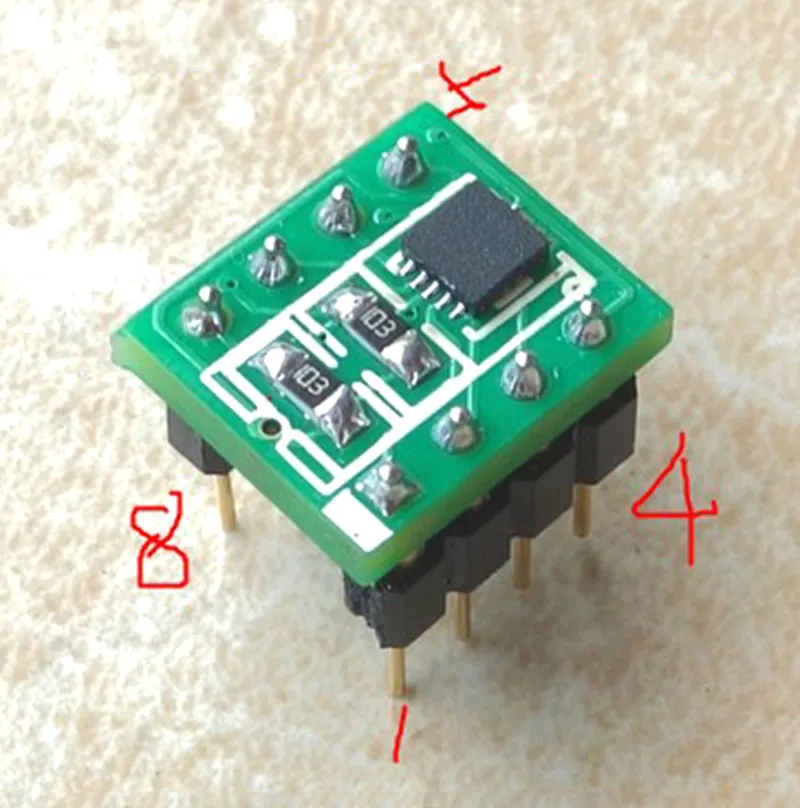

OPA1622 DIP8 High Current Output Low

Distortion Dual OP AMP Operational Amplifier

Description:

The OPA1622 is a dual-channel, bipolar input, SoundPlus audio operational amplifier. The device is available at 1kHz frequency 2.8nV / √Hz low noise density and -119.2dB low THD + N, but also to 100mW output power to drive a 32Ω load. The OPA1622 has a high AC power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) specifications that eliminate noise from the power supply and are therefore ideal for portable audio applications. In addition, the device also has a high output drive capability of + 145mA / -130mA, which can drive headphones directly.

The OPA1622 supports a wide supply voltage range of ±2V to ±18V, with a supply current of only 2.6m per channel
.

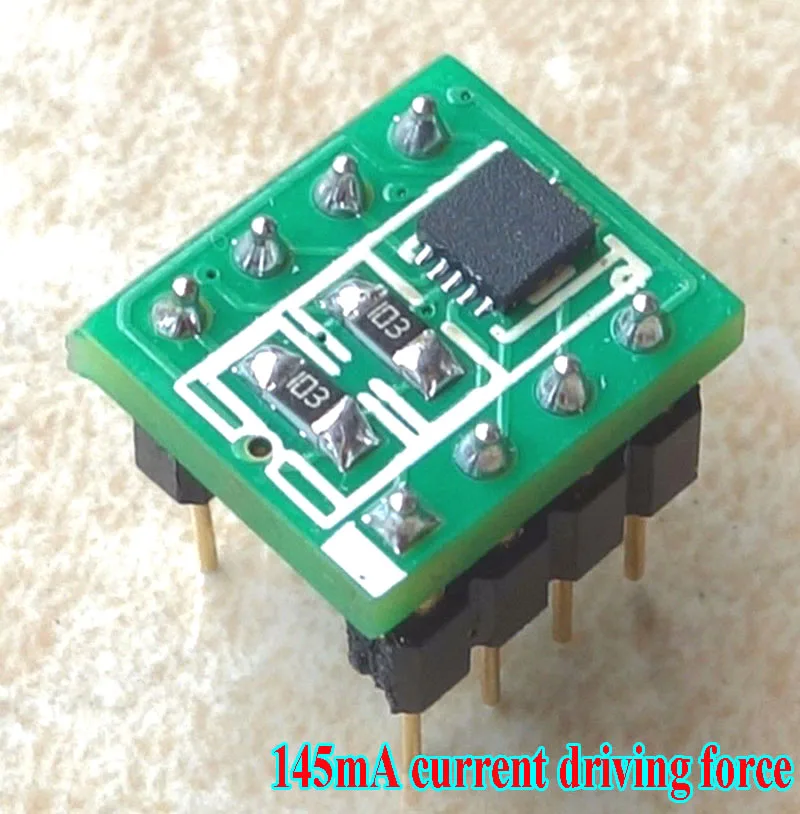

General amplifier NE5532 OPA2604 output current less than 50MA, OPA1622 output up to 145MA, greatly increased the driving force, the circuit has a better match, lower output impedance, high and low level, the dynamic performance of the very good.

Packing List:

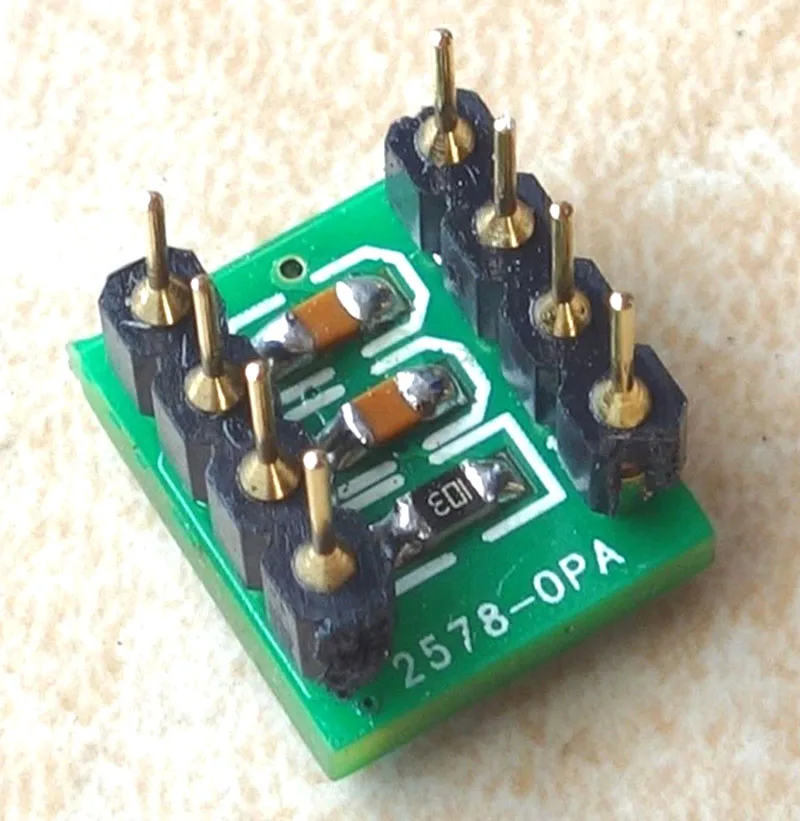

1pcs x OPA1622 DIP8 Dual Op Amp Module
