SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Drive IC

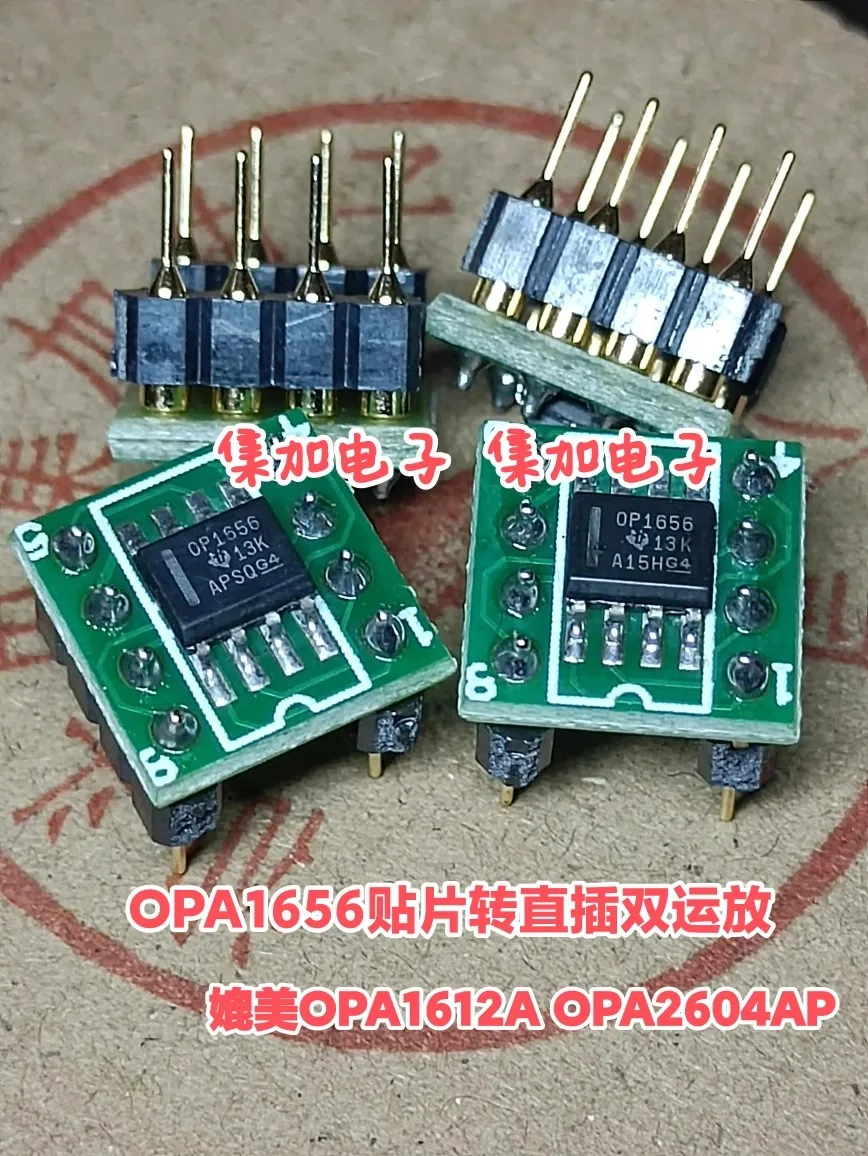

Note: The description of SKU option label (SOP8) does not include an adapter

The SKU option label (DIP8) indicates that it comes with an adapter

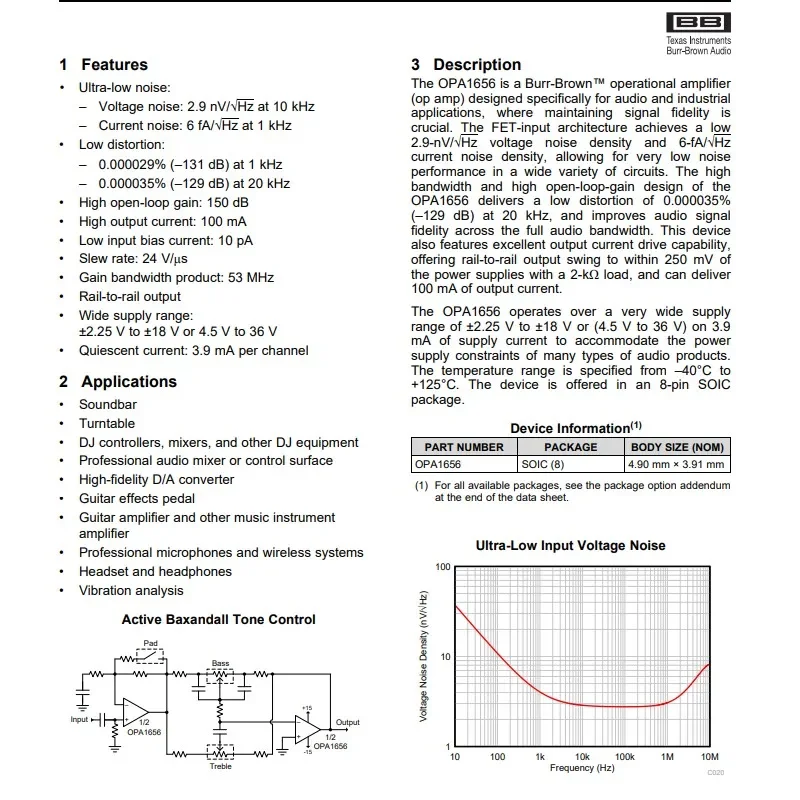

    The OPA1656 is a Burr-Brown™ operational amplifier(op amp) designed specifically for audio and industrial applications, where maintaining signal fidelity is crucial. The FET-input architecture achieves a low 2.9-nV/√Hz voltage noise density and 6-fA/√Hz current noise density, allowing for very low noise performance in a wide variety of circuits. The high bandwidth and high open-loop-gain design of the OPA1656 delivers a low distortion of 0.000035% (–129 dB) at 20 kHz, and improves audio signal fidelity across the full audio bandwidth. This device
also features excellent output current drive capability, offering rail-to-rail output swing to within 250 mV of the power supplies with a 2-kΩ load, and can deliver 100 mA of output current.

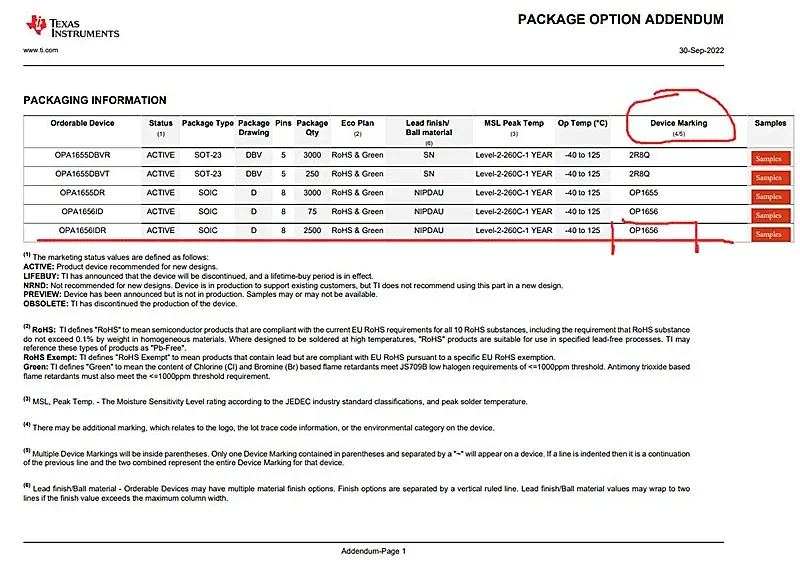

Please note that the laser designation of the OPA1656 op amp is OP1656. Don't make the mistake of saying it's not an official mark. You can check the official information yourself.
